PIKO-ZM Extrusion

Ref No: A01168

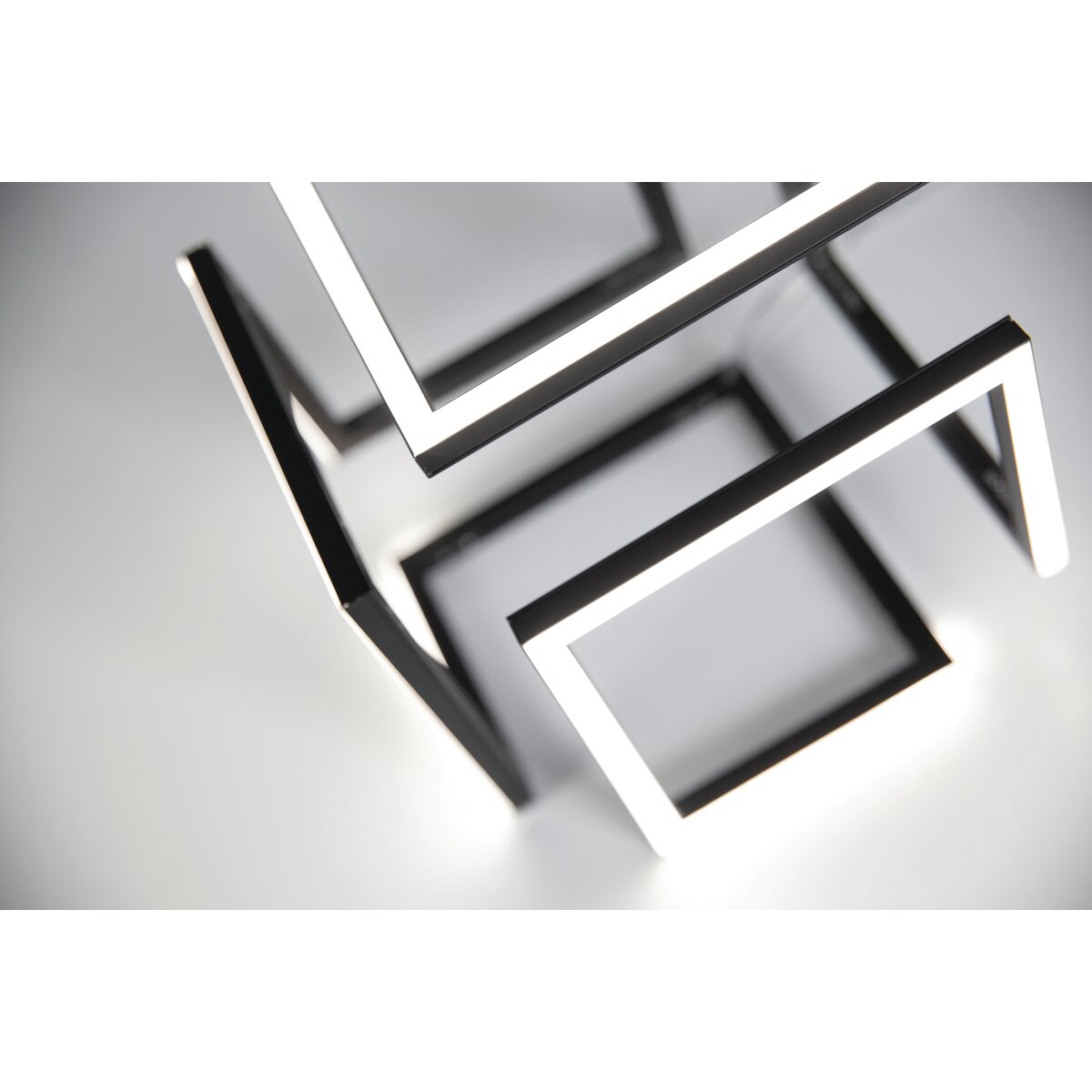

PIKO-ZM Extrusion
PIKO-ZM Extrusion
PIKO-ZM Extrusion
PIKO-ZM Extrusion
PIKO-ZM Extrusion
PIKO-ZM Extrusion
PIKO-ZM Extrusion
  • Minimum width and height
  • Possibility of installing sealed 5K series LED strips
  • Easy maintenance
  • Wide range of accessories
  • Small bending radius
  • Possibility of bending in the light plane
Suspended
Trimless
Recessed with suspension function
Possibility of twisting
Possibility of bending
With the possibility of sealing up to IP20
With the possibility of sealing up to IP67
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Closet Rated
Configure
Color
silver white black
  • Minimum width and height
  • Possibility of installing sealed 5K series LED strips
  • Easy maintenance
  • Wide range of accessories
  • Small bending radius
  • Possibility of bending in the light plane
Application
  • - furniture and decorative lighting
Mounting
  • - to the surface, suspended or recessed, using a dedicated mounting track, dedicated accessories, or mounting adhesive
Additional information
  • - for suspending small-size extrusion, it is recommended to use a wire with a diameter of 0.5 mm
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
  • - NCS Premium paint option - minimum order quantity 30pcs - available immediately

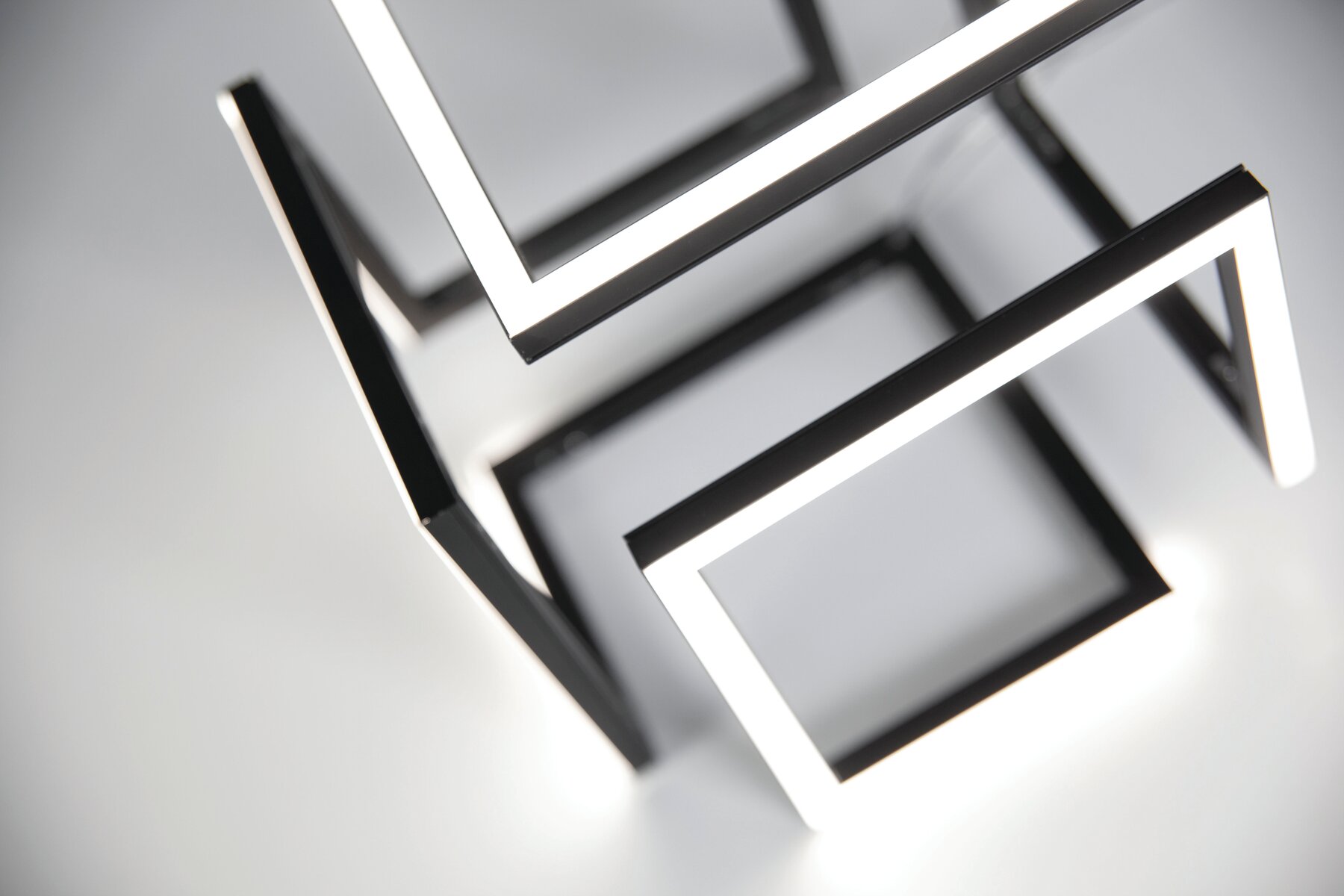

Usage examples
Technical drawing
PIKO-ZM Extrusion aluminum Technical drawing - A01168
Technical specification
Material
aluminum
Possible fixture IP
20, 67
Possible fixture shapes
linear, polygonal, round
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
2.9 W/ft
Width
0.4" (10 mm)
Height
0.4" (9.7 mm)
LED gluing width A
0.3" (7 mm)
The cover is cut to the length of the profile
Yes
Can be easily connected into runs
Yes
Wire out end cap
Yes
Wire out back of extrusion
Yes
Possibility of bending in the light plane
Yes
Possibility of twisting
Yes
Possibility of obtaining a line of light
Yes
Possibility of bending
Yes
Minimum radius of the light arc
Radius of the light arc
Yes
Inside
220 mm
Outward
120 mm
Downward
250 mm
Building type
Commercial, Retail, Entertainment/ Arts, Hotel / Restaurant
Facility zone
under-cabinet / furniture, bathroom, kitchen, office, exhibition / tradeshow / display, decorative, media rooms / av
Color Length Ref No
silver anodized
39.4" (1000 mm)
78.9" (2005 mm)
A01168A_1
A01168A_2
white lacquered
78.9" (2005 mm)
A01168L10OD_2
black anodized
78.9" (2005 mm)
A01168A07_2
Line of Light Table for Pixel Free Illumination
LED Tapes Covers
Categories LED tape type BENCO-7 Cover frosted
CRI 90+ K-SHD-0960-24 Line of Light for a number (X) of rows (1)
Adjustable White / Dim to Warm K-30/18-1440-010-24 Line of Light for a number (X) of rows (1)
Bendable tape K-BT-0910-24 Line of Light for a number (X) of rows (1)
Line of Light for a number (X) of rows
Line of Light for a number (X) of rows - Pixel free imaging
Centered Line of Light
Centered Line of Light - Concentrated in middle
None
None - Visible dotting from diodes
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
Reference shapes
similar profiles
Surface mounted
PIKO-45
Ref No: A00014
Trimless
KOZEL-10
Ref No: A01575
Surface mounted
Recessed with suspension function
PIKO
Ref No: A08288
Suspended
Surface mounted
PIKO-O
Ref No: A01167
Related products
Product name Material Key features Light transmittance [%] Color Ref No
PIKO-7 Cover
PMMA - For indoor and outdoor applications
- perfectly diffusing
- UV resistant
- Thin line of light
43 %
17 %
satin
black
B17001S
B17001B
BENCO-7 Cover
silicon - indoor use
- perfect for bent extrusions
53 %
frosted
B17069F
No results found for the selected filters.
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SHD-0960-24 LED tape, 193-268 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- ideal for use with black covers
- high LED density
K-SHD22-0960-24
K-SHD25-0960-24
K-SHD27-0960-24
K-SHD30-0960-24
K-SHD35-0960-24
K-SHD40-0960-24
K-SHD50-0960-24
KWP-5KSHD-0960-24 LED tape
65 silicon sleeve 2.9 W/ft
2700K
3000K
3500K
4000K
5000K
- easy snap-in installation
- high LED density
- ideal for use with black covers
KWP-5KSHD27-0960-24
KWP-5KSHD30-0960-24
KWP-5KSHD35-0960-24
KWP-5KSHD40-0960-24
KWP-5KSHD50-0960-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-RGB-1560-24 LED tape, 194 lm/ft, IP20,
20 - 4.8 W/ft
RGB
- RGB
K-RGB-1560-24_
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-30/18-1440-010-24 LED tape, 1800K, 234 lm/ft, 4.4 W/ft, IP20
20 - 4.4 W/ft
1800K
- Dim to Warm 1800K-3000K
K-30/18-1440-010-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-BT-0910-24 LED tape, 237-282 lm/ft, IP20,
20 - 2.8 W/ft
2700K
3000K
3500K
4000K
5000K
- LED tape for bent profiles
K-BT27-0910-24
K-BT30-0910-24
K-BT35-0910-24
K-BT40-0910-24
K-BT50-0910-24
No results found for the selected filters.
Product name Material Color Ref No
PIKO-ZM-OTW
ABS
gray
white
black
C24307C02TW
C24307C10TW
C24307C07TW
Product name Material Color Ref No
PIKO-ZM End cap
ABS
gray
white
black
C24307C02
C24307C10
C24307C07
No results found for the selected filters.
Product name Key features Material Color Ref No
TEPIKO Extrusion
aluminum
A18046
Product name Key features Material Color Ref No
K-10 Mounting bracket
- Transparent – aesthetic installation of minimalist linear fixtures
PC
transparent
C24340C00
NEO-ZM-3 Fastener set
- 3 pieces for heavy fixtures
magnet
silver
C28105N00
NEO-ZM-4 Fastener set
- 4 pieces for light fixtures
magnet
silver
C28106N00
Product name Key features Material Color Ref No
TEKNIK Latch
PP
white
C24003C10
Product name Key features Material Color Ref No
RD-1 Fastener set
- Smooth cable adjustment, cable included
brass
silver
white
black
C28231P00
C28231P01
C28231L10
C28231L07
RG-1 Fastener set
- Cable adjustment at the ceiling, cable included
brass
silver
black
C28230P00
C28230L07
FI-8-ZM-2 Fastener set
- Convenient cable length adjustment, in the ZM system
stainless steel, aluminum
silver
white
black
C28135N00
C28135L10
C28135L07
Product name Key features Material Color Ref No
Fi-60mm Canopy
- Convenient cable length adjustment, in the ZM system
steel
gray
white
black
C24540L01
C24540L10
C24540L07
Product name Key features Material Color Ref No
FI-10-ZM-P Fastener
- Cross mounting
stainless steel
silver
C28117N00
FI-10-ZM-W Fastener
stainless steel
silver
C28116N00
FI-8-LIN-ZM Fastener
- Installation in the ZM system
stainless steel, PA
silver
black
C28170N00
C28170L07
K-10-PP Fastener
- Cross mounting
stainless steel, PC
silver
C28235N00
Product name Key features Material Color Ref No
FI-8-LIN-ZMZ Fastener
- Power supply - mounting in the ZM system
stainless steel, aluminum, rubber, PCV
silver
white
black
C28171N00
C28171L10
C28171L07
No results found for the selected filters.
Product name IP rating Key features Ref No(Ref. arch.)
UNI Proximity switch
20 - touchless switch
- width only 7mm
E61579
No results found for the selected filters.
Product name Material Color Ref No
ZM-G Connector
stainless steel
silver
42308
42304
42328
42330
42332
42334
42336
42338
42310
42324
42326
ZM Connector
stainless steel
silver
black
colorless
C28075N00
C28072N00
42720
42728
C24797C07
C28072C07
C28075C07
C28070C07
C28071C07
C28073C07
C28074C07
C24797N00
ZM-PION Connector
stainless steel
silver
black
42718
42719
42320
C28086N00
C28084N00
42314
C28086C07
C28084C07
C28088C07
C28087C07
C28085C07
Product name Material Color Ref No
Coupler L135
aluminum
silver
L135
Coupler L135PW
aluminum
silver
L135PW
Coupler L135PZ
aluminum
silver
L135PZ
Coupler L90
aluminum
silver
L90
Coupler L90PW
aluminum
silver
L90PW
Coupler L90PZ
aluminum
silver
L90PZ
Coupler T135L
aluminum
silver
T135L
Coupler T135R
aluminum
silver
T135R
Coupler T90
aluminum
silver
T90
Coupler X135
aluminum
silver
X135
Coupler X90
aluminum
silver
X90
Product name Material Color Ref No
ZM-10 Adapters set
PC
transparent
C29000C00
Gland 6x1,2
C24517C07
Gland 6,4x3
C42264C07
No results found for the selected filters.
