PIKO Extrusion

Ref No: A08288
PIKO Extrusion
PIKO Extrusion
PIKO Extrusion
PIKO Extrusion
  • Possibility of installing sealed 5K series LED strips
  • Minimum width and height
  • Small bending radius
Surface mounted
Recessed with suspension function
Possibility of twisting
Possibility of bending
With the possibility of sealing up to IP20
With the possibility of sealing up to IP67
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Closet Rated
Configure
Color
silver black
  • Possibility of installing sealed 5K series LED strips
  • Minimum width and height
  • Small bending radius
Application
  • - furniture and decorative lighting
Mounting
  • - to the surface, suspended or recessed, using dedicated accessories, with double-sided adhesive tape or mounting adhesive
  • - easy assembly and disassembly by snapping in and out
Additional information
  • - for suspending small-size extrusion, it is recommended to use a wire with a diameter of 0.5 mm
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

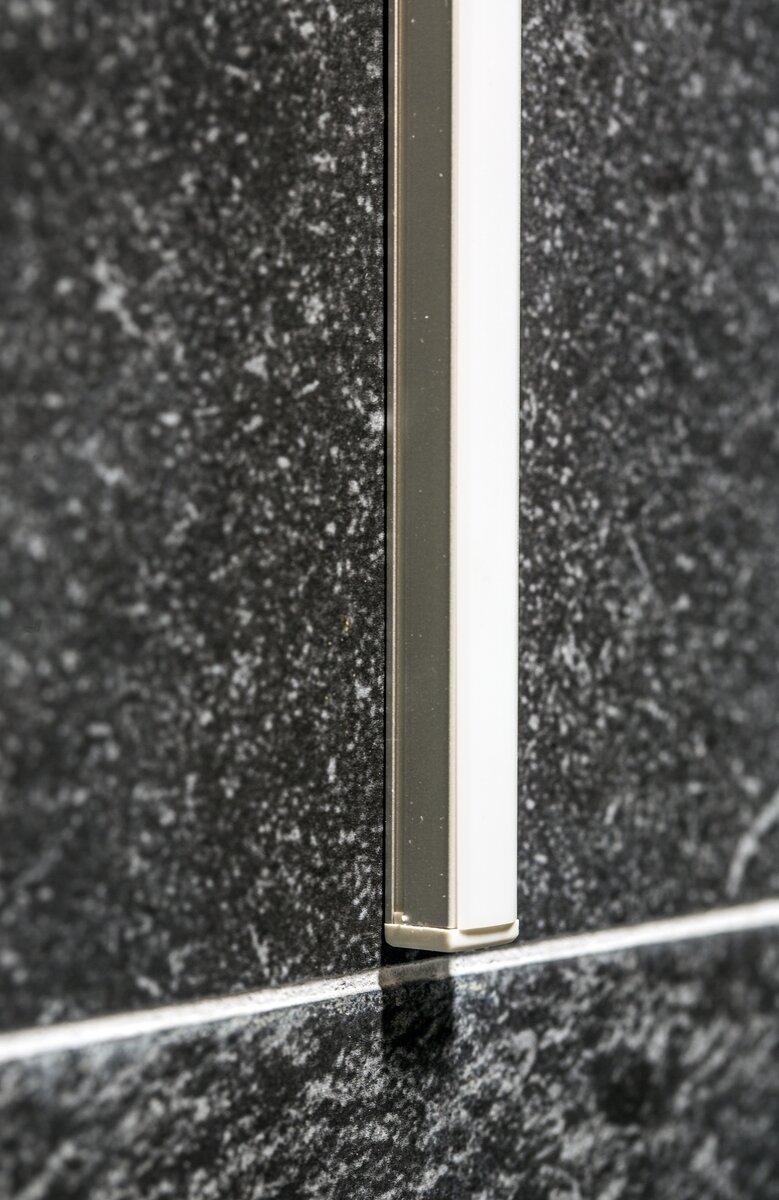

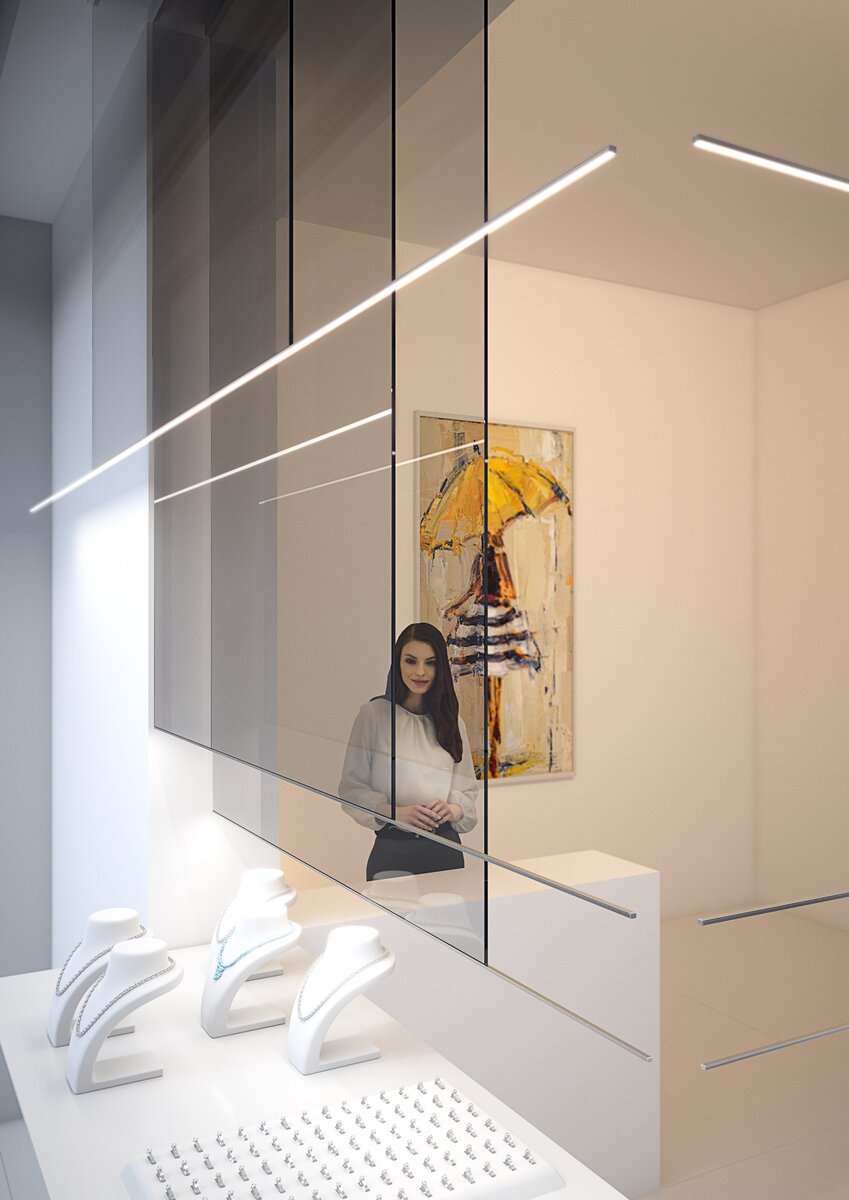

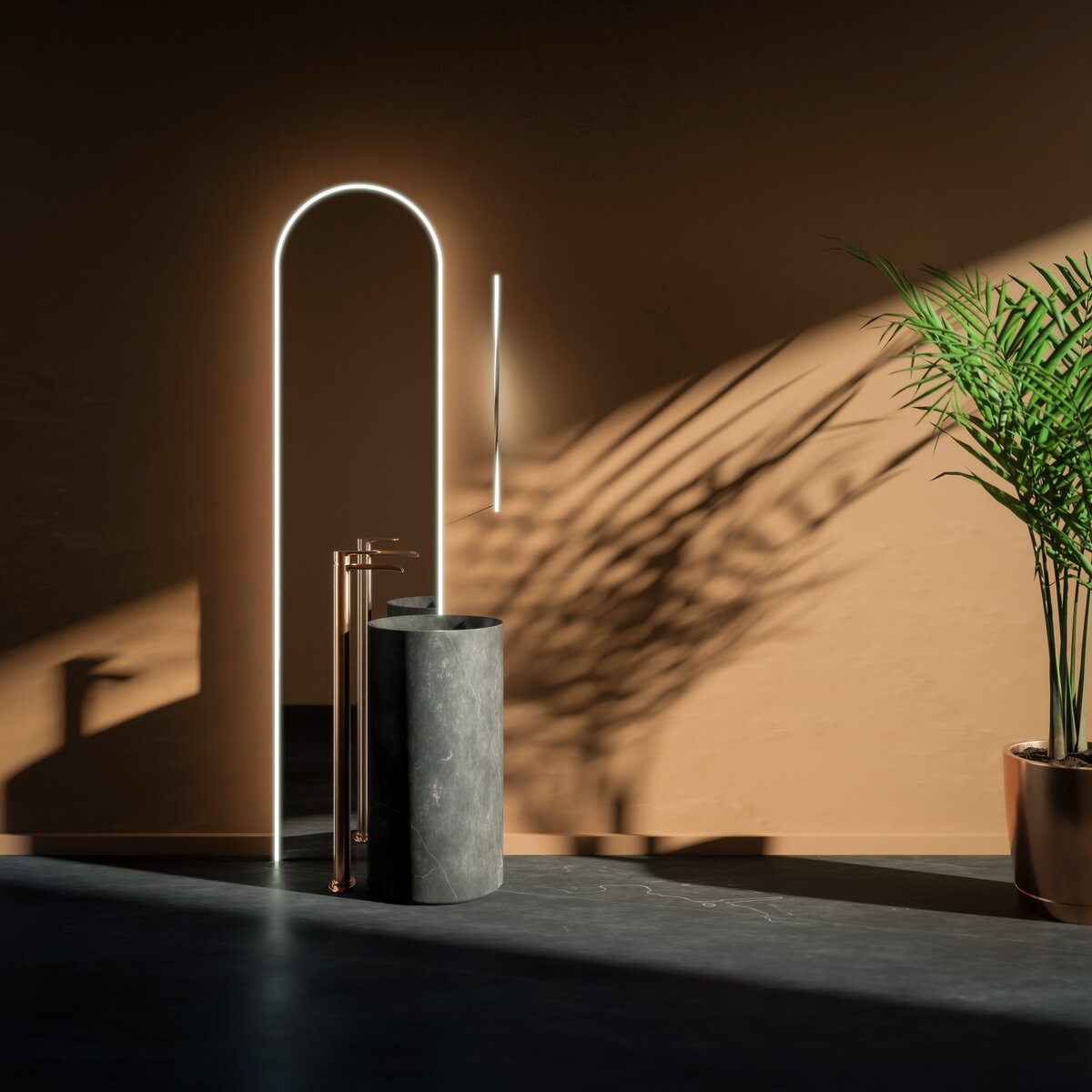

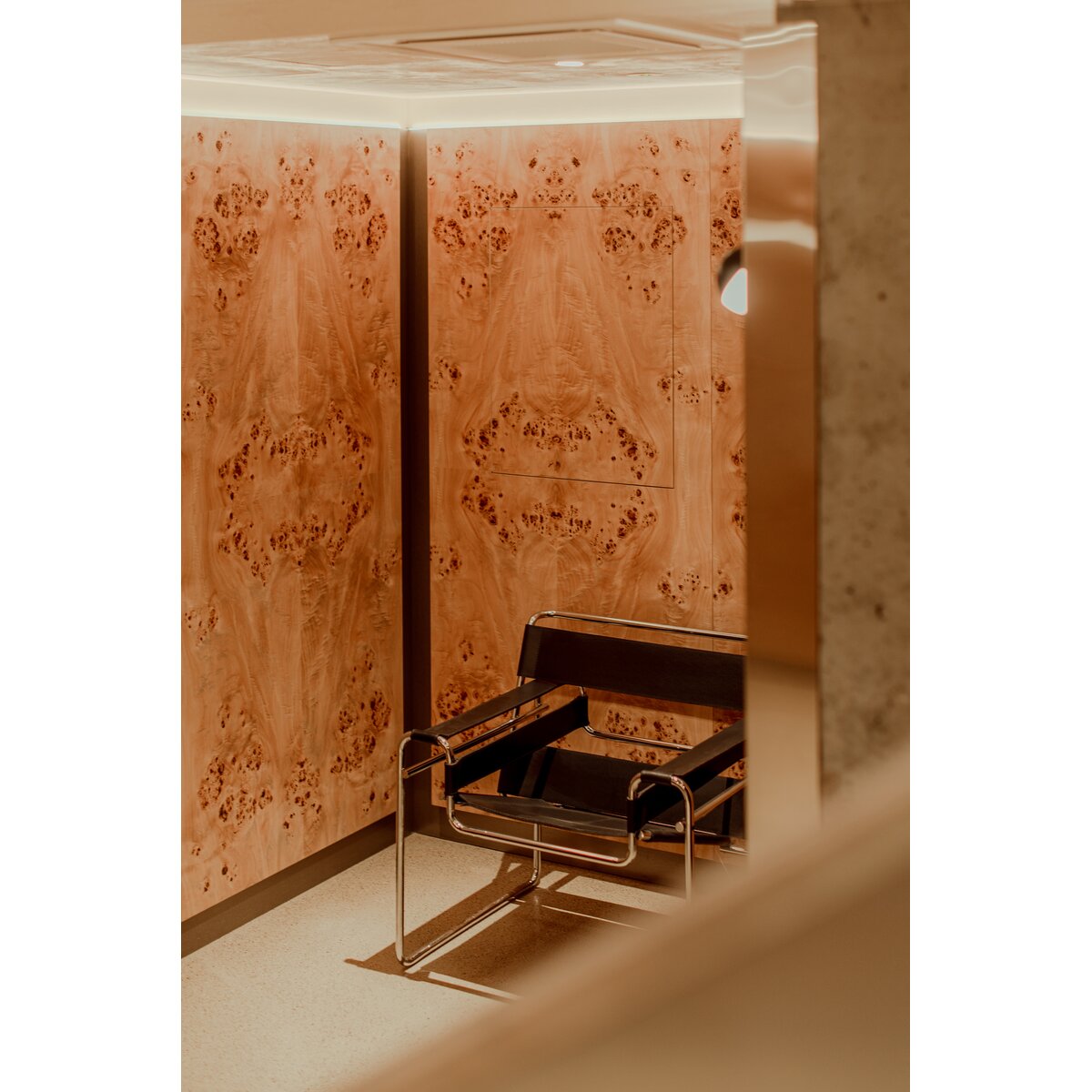

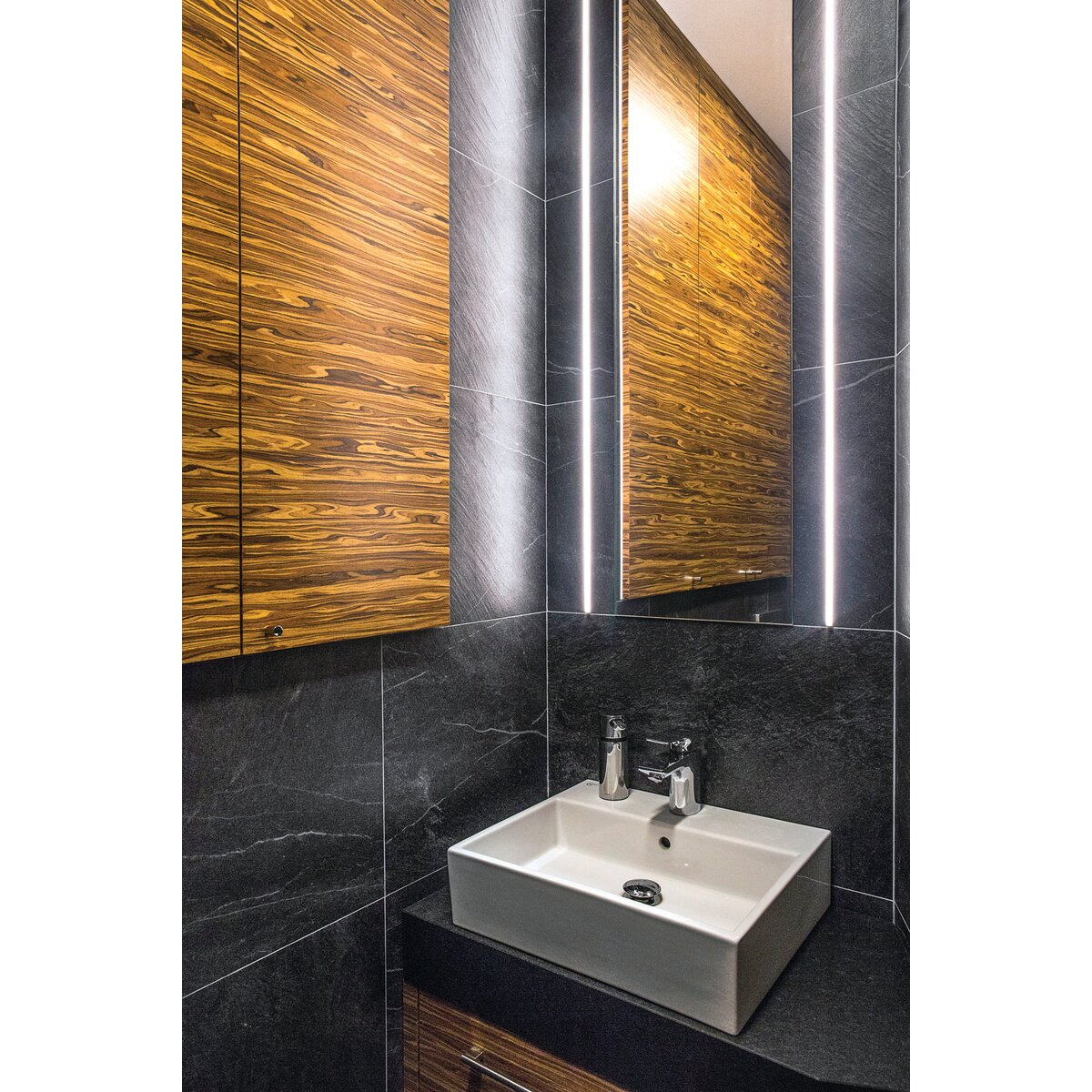

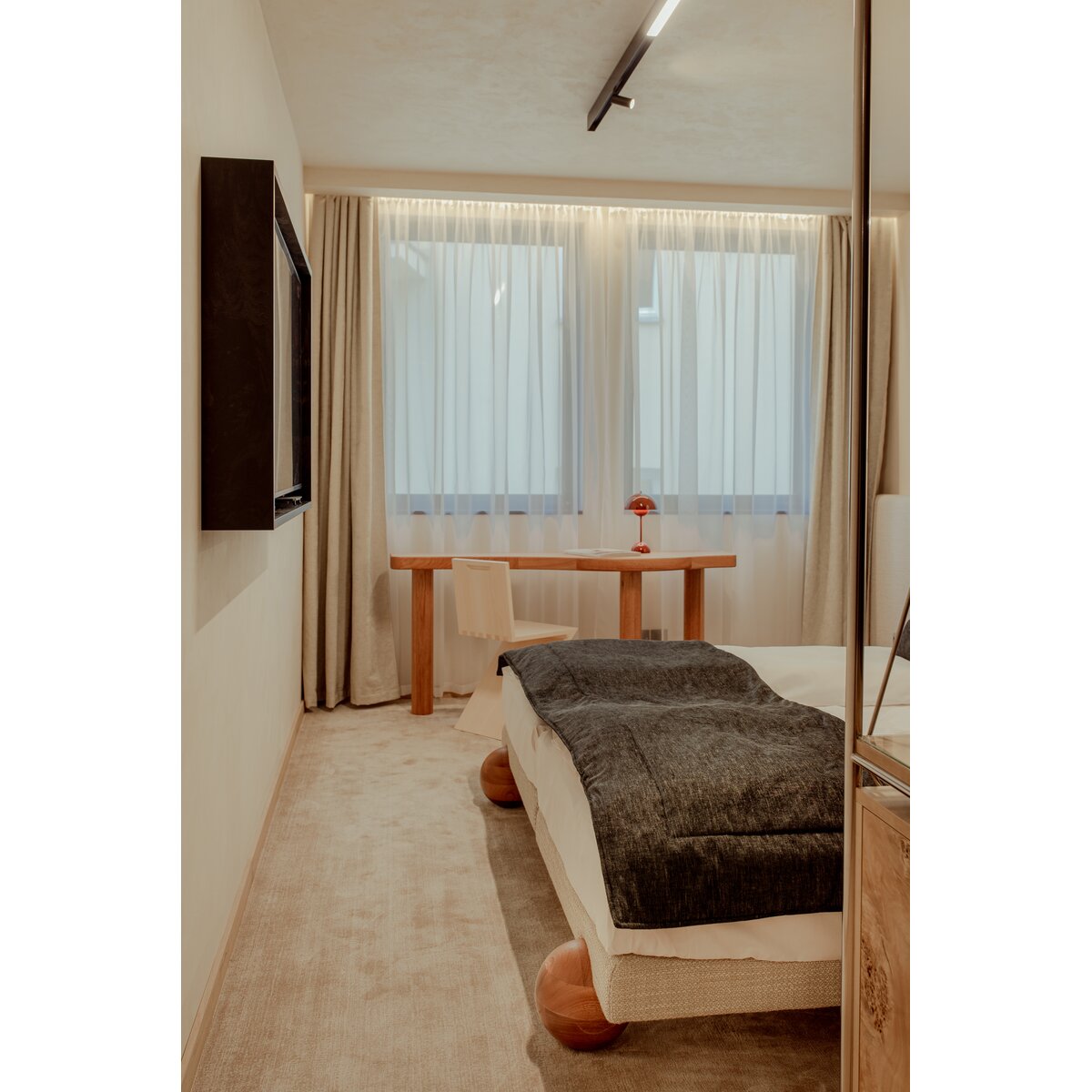

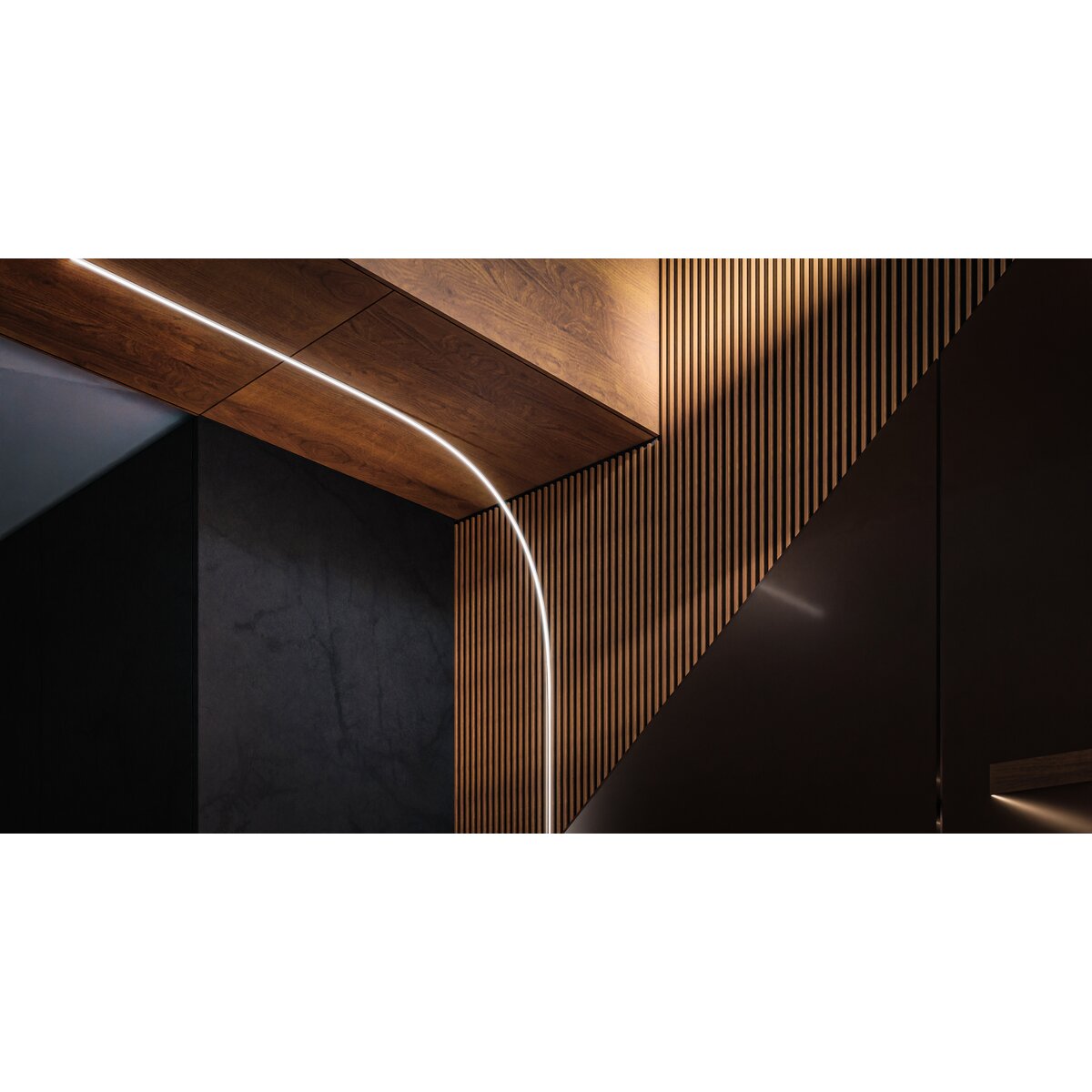

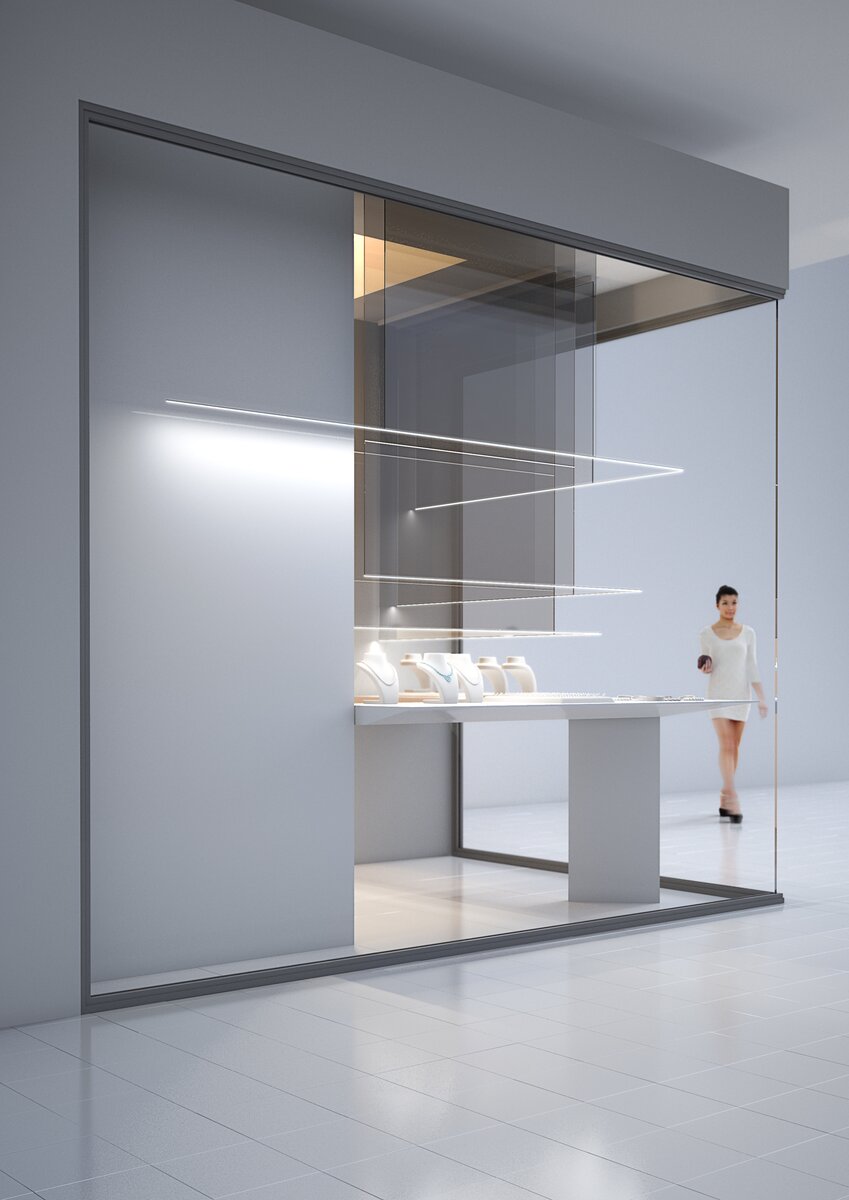

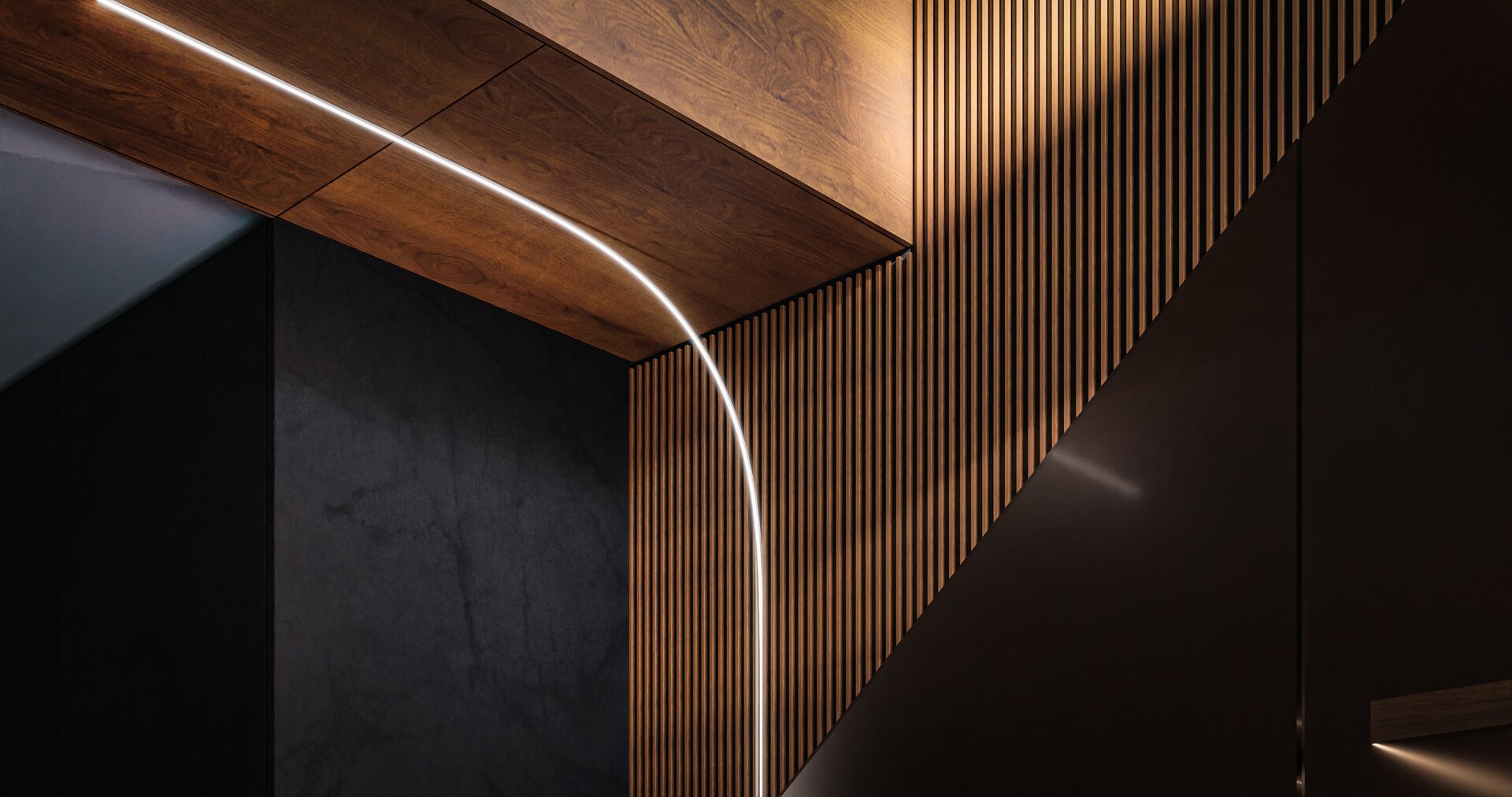

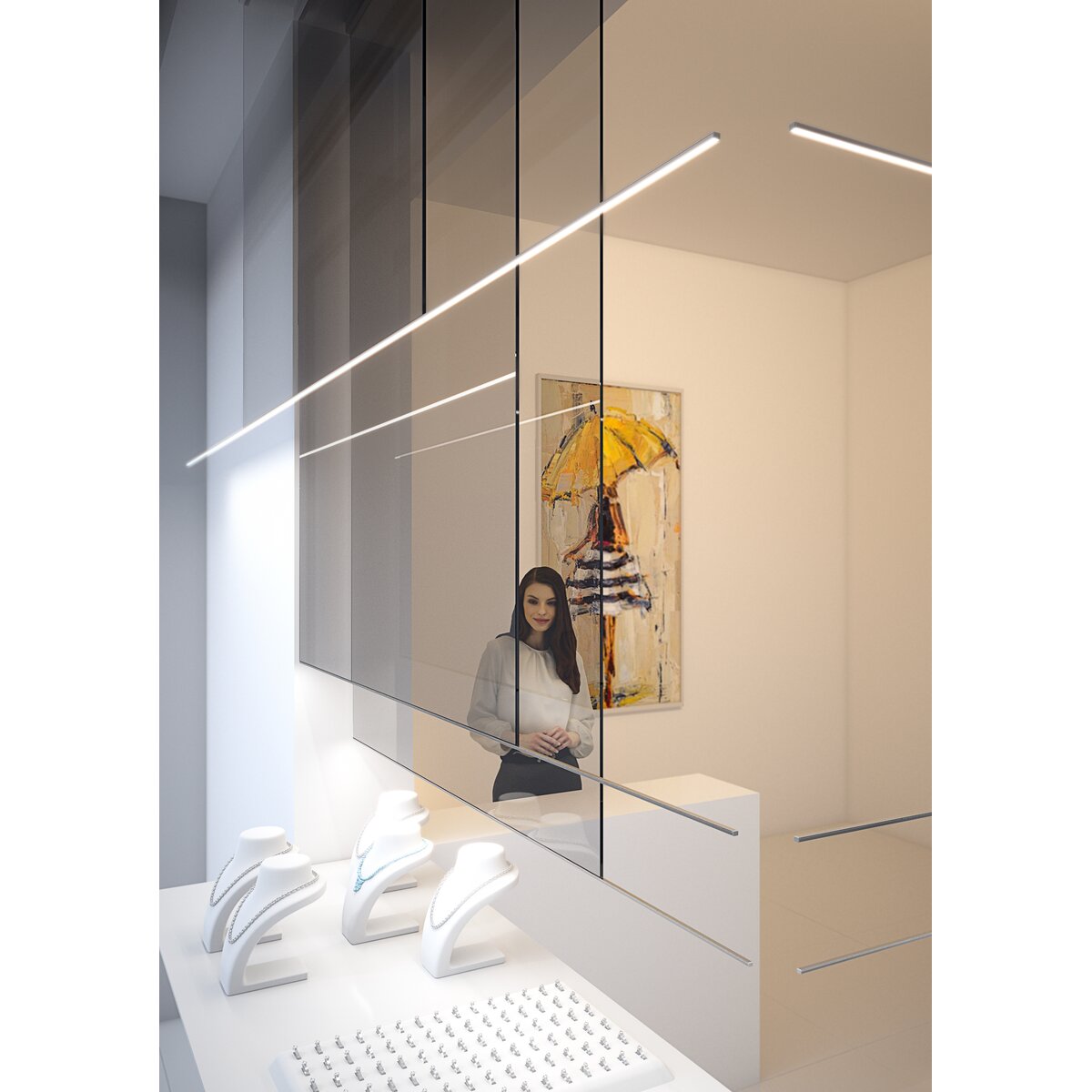

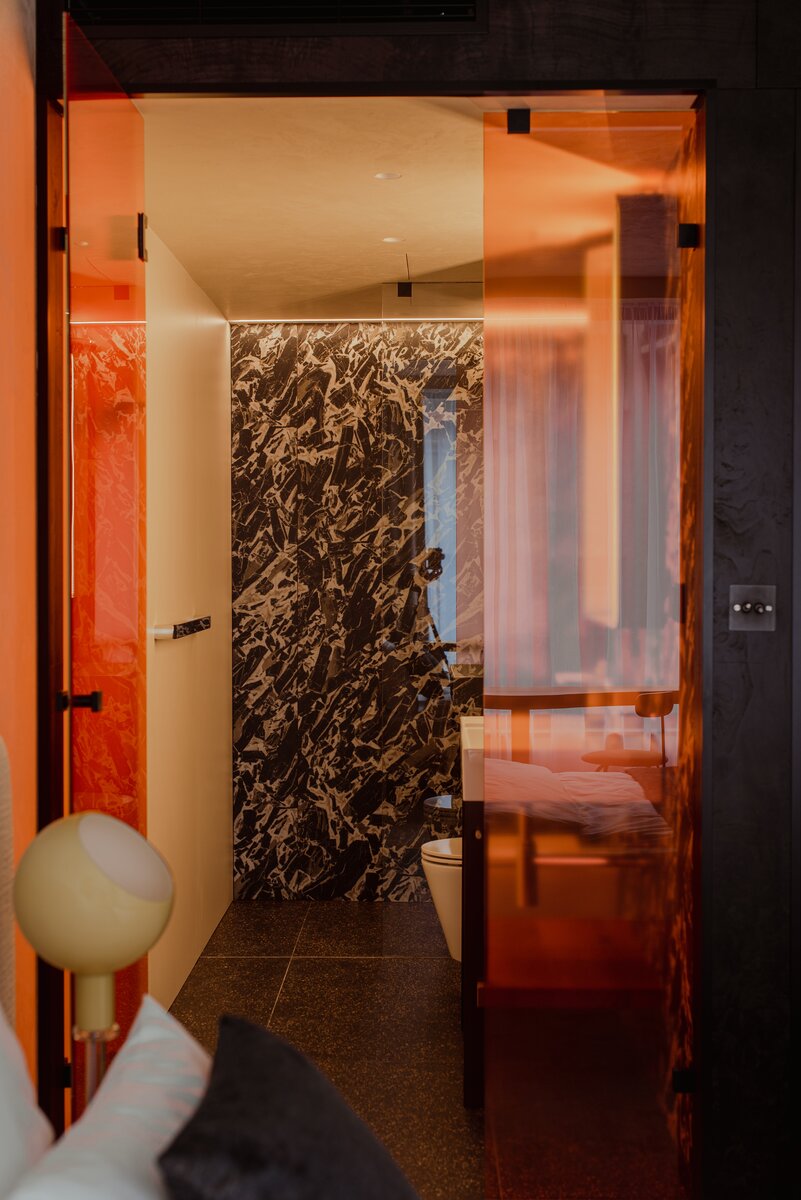

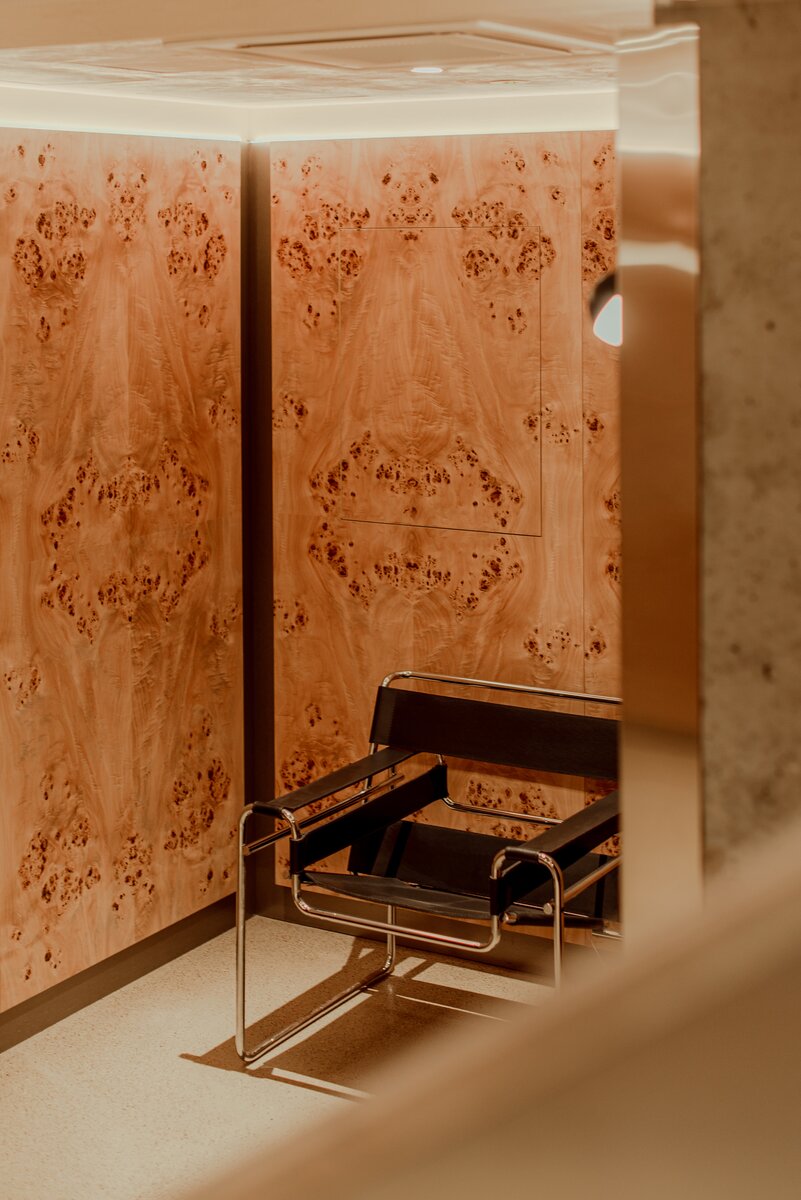

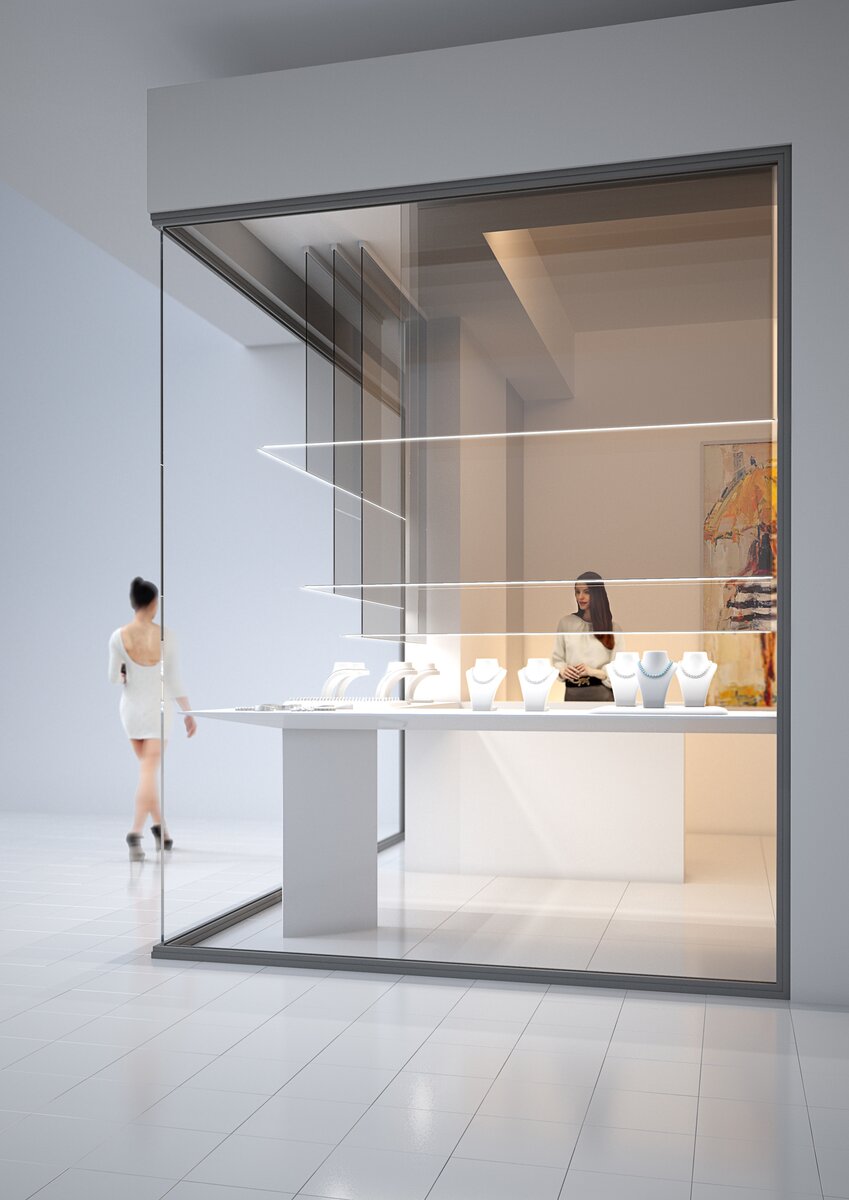

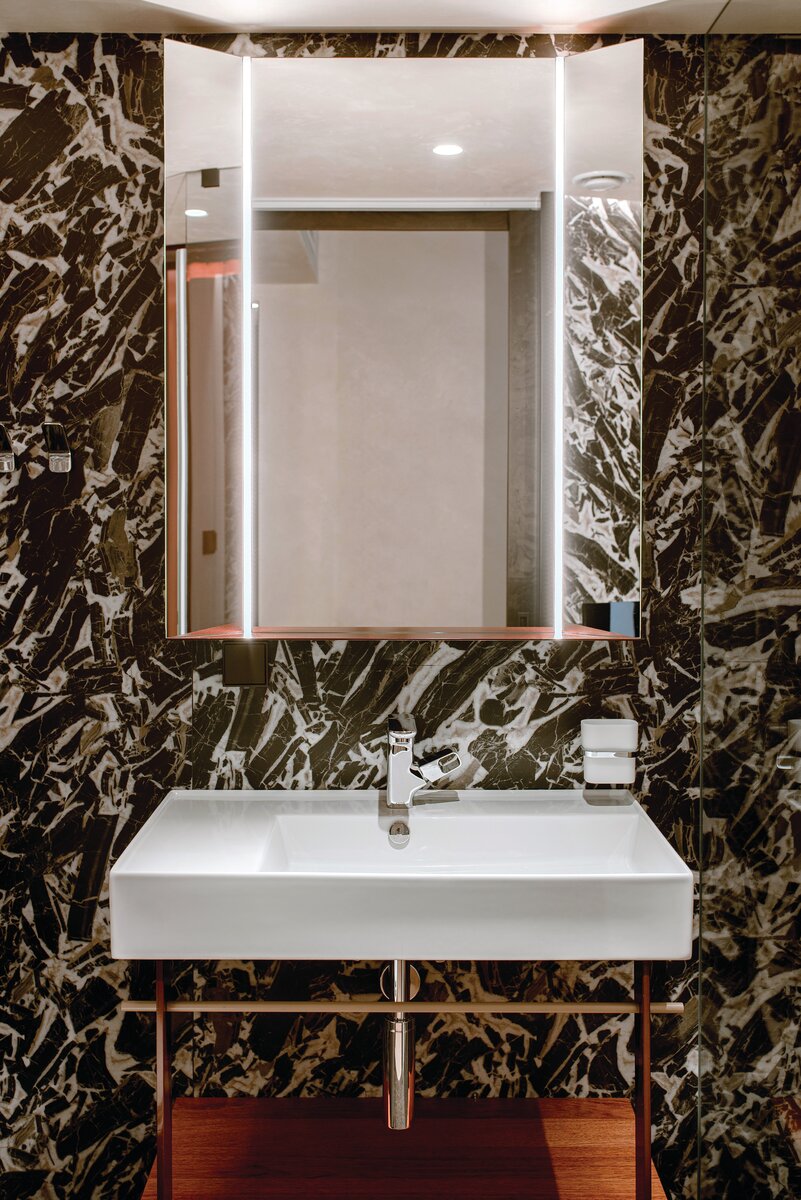

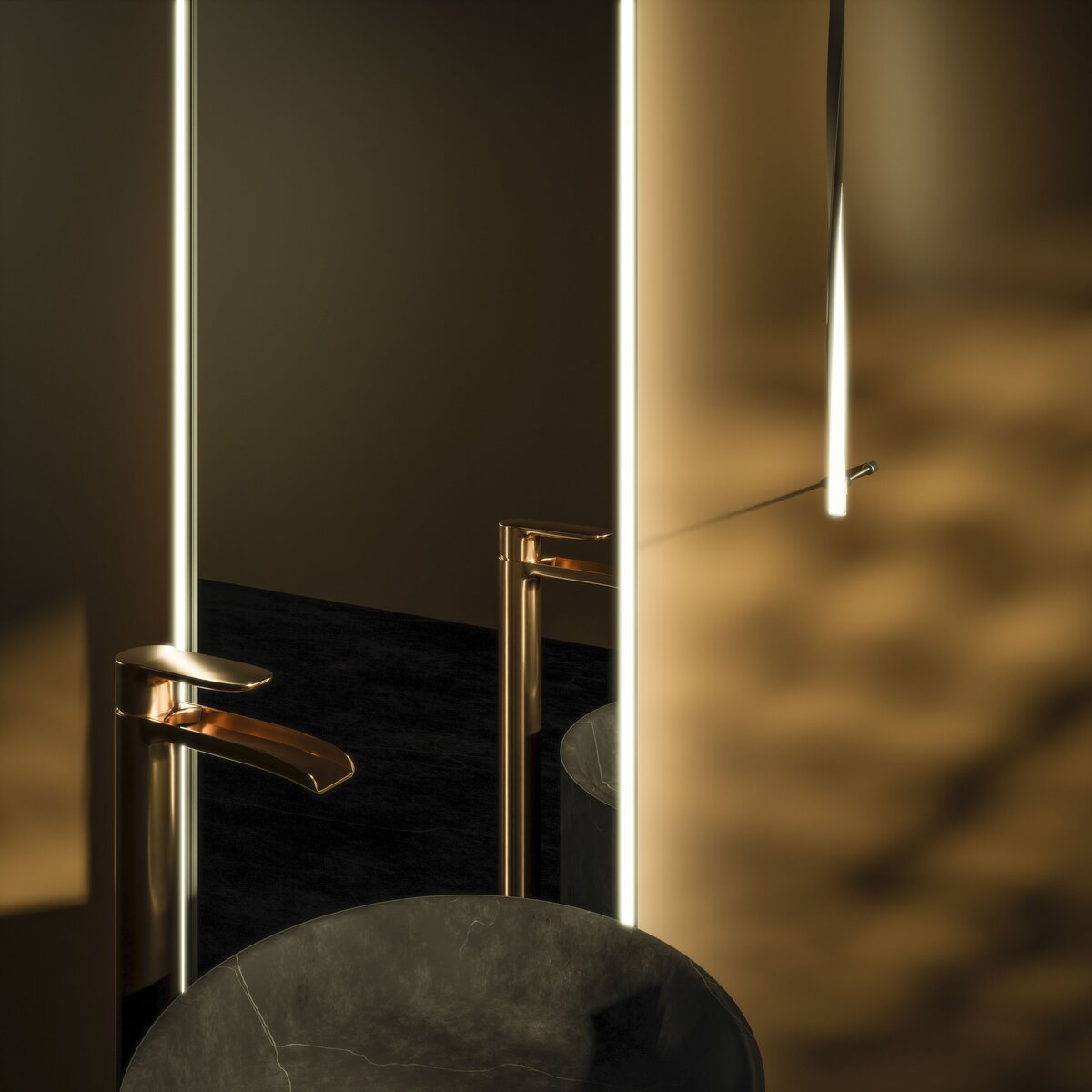

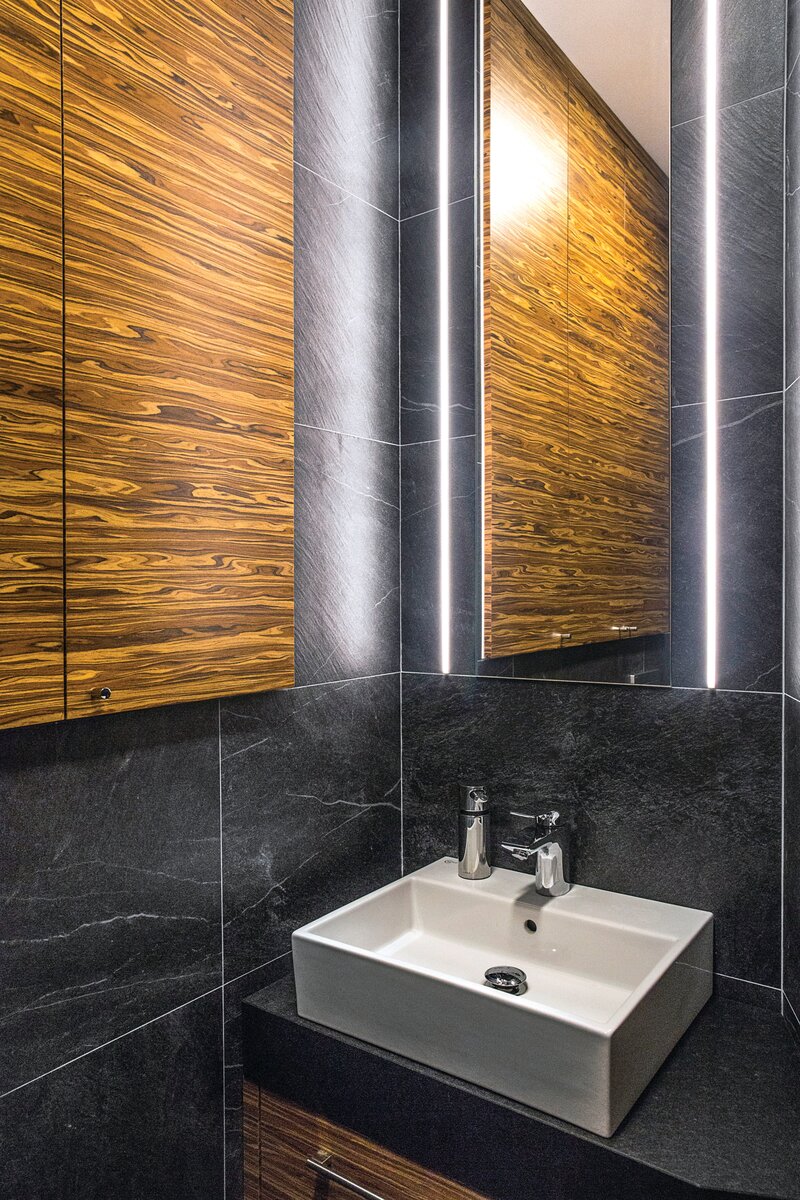

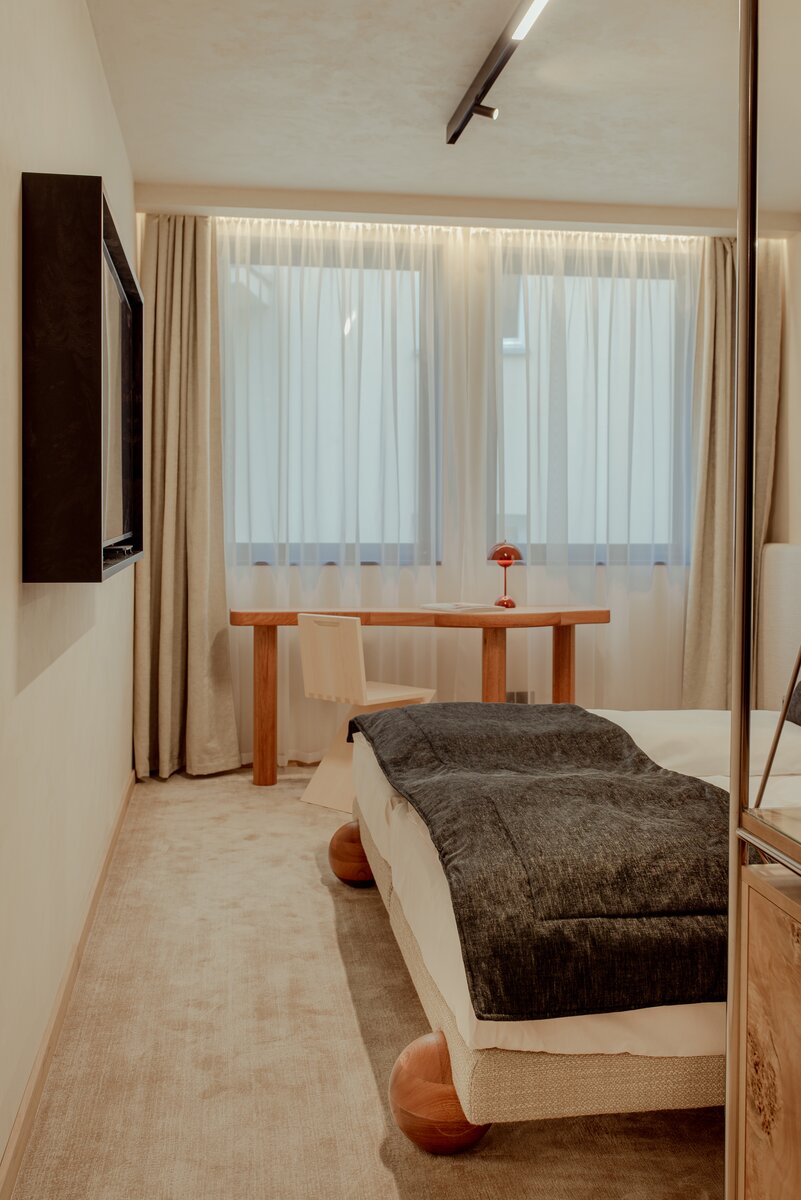

Usage examples
Technical drawing
PIKO Extrusion aluminum Technical drawing - A08288
Technical specification
Material
aluminum
Possible fixture IP
20, 67
Possible fixture shapes
linear, round
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
2.9 W/ft
Width
0.4" (10 mm)
Height
0.3" (7 mm)
LED gluing width A
0.3" (7 mm)
Easy assembly and disassembly by snapping in and out
Yes
The cover is cut to the length of the profile
Yes
Wire out end cap
Yes
Wire out back of extrusion
Yes
Closet Rated
Yes
Possibility of twisting
Yes
Possibility of obtaining a line of light
Yes
Possibility of bending
Yes
Minimum radius of the light arc
Radius of the light arc
Yes
Inside
150 mm
Outward
150 mm
Building type
Retail, Entertainment/ Arts, Hotel / Restaurant
Facility zone
under-cabinet / furniture, bathroom, kitchen, office, exhibition / tradeshow / display, decorative, fitness / spa, media rooms / av
Color Length Ref No
silver anodized
39.4" (1000 mm)
78.9" (2005 mm)
A08288A_1
A08288A_2
black anodized
78.9" (2005 mm)
A08288A07_2
Line of Light Table for Pixel Free Illumination
LED Tapes Covers
Categories LED tape type BENCO-7 Cover frosted PIKO-7 Cover satin
CRI 90+ K-SHD-0960-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
Bendable tape K-BT-0910-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
Adjustable White / Dim to Warm K-30/18-1440-010-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
Line of Light for a number (X) of rows
Line of Light for a number (X) of rows - Pixel free imaging
Centered Line of Light
Centered Line of Light - Concentrated in middle
None
None - Visible dotting from diodes
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
similar profiles
Surface mounted
PIKO-45
Ref No: A00014
Trimless
KOZEL-10
Ref No: A01575
Suspended
Surface mounted
PIKO-O
Ref No: A01167
Suspended
Trimless
Recessed with suspension function
PIKO-ZM
Ref No: A01168
Related products
Product name Material Key features Light transmittance [%] Color Ref No
PIKO-7 Cover
PMMA - For indoor and outdoor applications
- perfectly diffusing
- UV resistant
- Thin line of light
43 %
17 %
satin
black
B17001S
B17001B
BENCO-7 Cover
silicon - indoor use
- perfect for bent extrusions
53 %
frosted
B17069F
No results found for the selected filters.
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SHD-0960-24 LED tape, 193-268 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- ideal for use with black covers
- high LED density
K-SHD22-0960-24
K-SHD25-0960-24
K-SHD27-0960-24
K-SHD30-0960-24
K-SHD35-0960-24
K-SHD40-0960-24
K-SHD50-0960-24
KWP-5KSHD-0960-24 LED tape
65 silicon sleeve 2.9 W/ft
2700K
3000K
3500K
4000K
5000K
- easy snap-in installation
- high LED density
- ideal for use with black covers
KWP-5KSHD27-0960-24
KWP-5KSHD30-0960-24
KWP-5KSHD35-0960-24
KWP-5KSHD40-0960-24
KWP-5KSHD50-0960-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-RGB-1560-24 LED tape, 194 lm/ft, IP20,
20 - 4.8 W/ft
RGB
- RGB
K-RGB-1560-24_
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-30/18-1440-010-24 LED tape, 1800K, 234 lm/ft, 4.4 W/ft, IP20
20 - 4.4 W/ft
1800K
- Dim to Warm 1800K-3000K
K-30/18-1440-010-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-BT-0910-24 LED tape, 237-282 lm/ft, IP20,
20 - 2.8 W/ft
2700K
3000K
3500K
4000K
5000K
- LED tape for bent profiles
K-BT27-0910-24
K-BT30-0910-24
K-BT35-0910-24
K-BT40-0910-24
K-BT50-0910-24
No results found for the selected filters.
Product name Material Color Ref No
PIKO End cap
ABS
gray
C24202C02
No results found for the selected filters.
Product name Key features Material Color Ref No
TEPIKO Extrusion
aluminum
A18046
Product name Key features Material Color Ref No
Fi-60mm Canopy
- Convenient cable length adjustment, in the ZM system
steel
gray
white
black
C24540L01
C24540L10
C24540L07
Product name Key features Material Color Ref No
FI-8-LIN-MR Fastener
- Power supply cable - mounting in thin walls (from 1mm)
silver
black
C28172N00
C28172L07
No results found for the selected filters.
Product name IP rating Key features Ref No(Ref. arch.)
UNI Proximity switch
20 - touchless switch
- width only 7mm
E61579
No results found for the selected filters.
Product name Material Color Ref No
Gland 6x1,2
C24517C07
