PIKO-O

Ref No: C28223C7012

PIKO-O ABS Projects - C28223C7012

PIKO-O ABS Projects - C28223C7012

PIKO-O ABS Projects - C28223C7012

PIKO-O ABS Projects - C28223C7012

PIKO-O ABS Projects - C28223C7012

PIKO-O ABS Projects - C28223C7012

Single pole conductivity possible
Transverse suspension on a rod or cable
Possibility to rotate the fixture after installation

Conducting electricity

Color

silver

Single pole conductivity possible
Transverse suspension on a rod or cable
Possibility to rotate the fixture after installation

Application

- aesthetic finish and protection of the interior of the lighting fixture

Mounting

- to the extrusion, by pressing
- to a rod or cable, using a set bolt

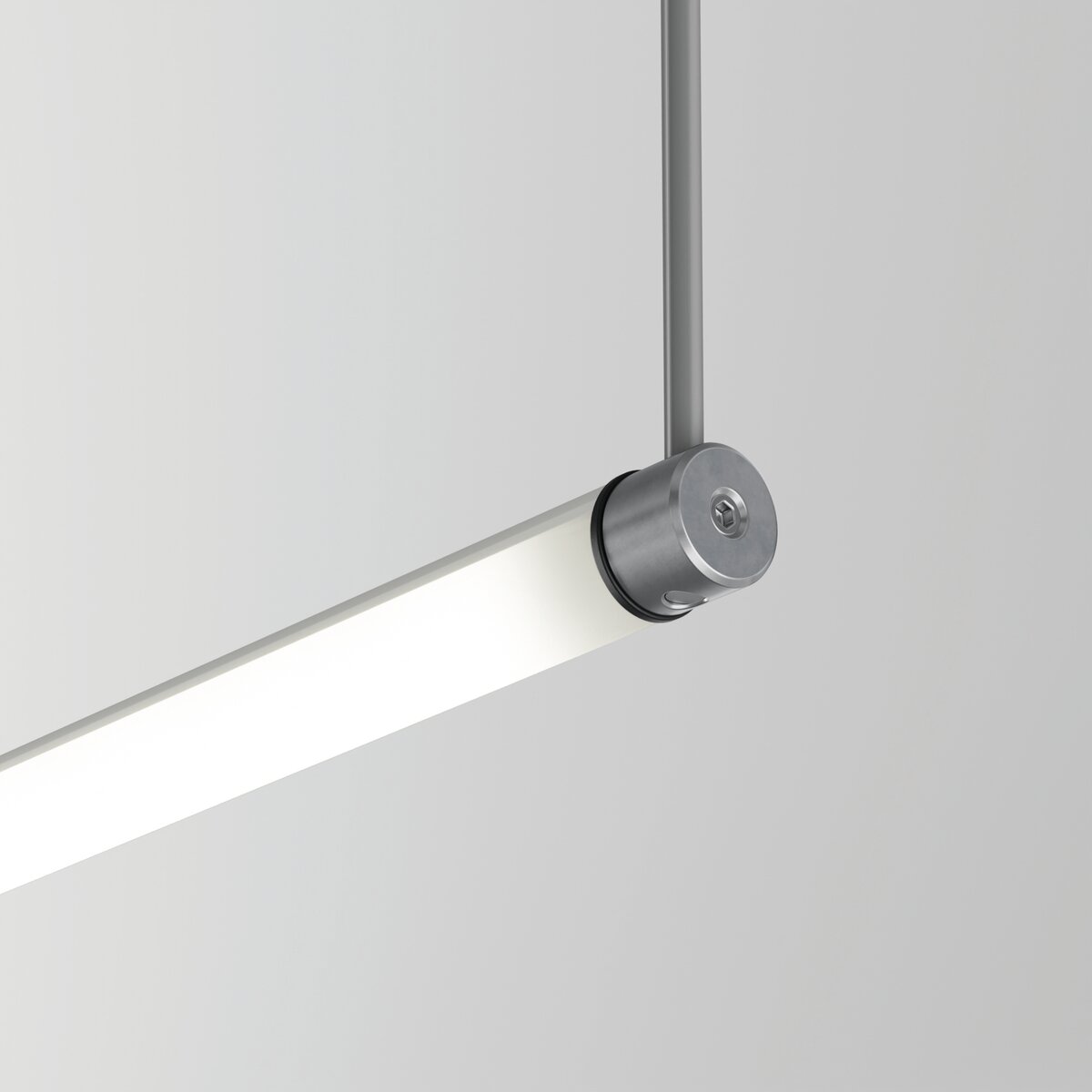

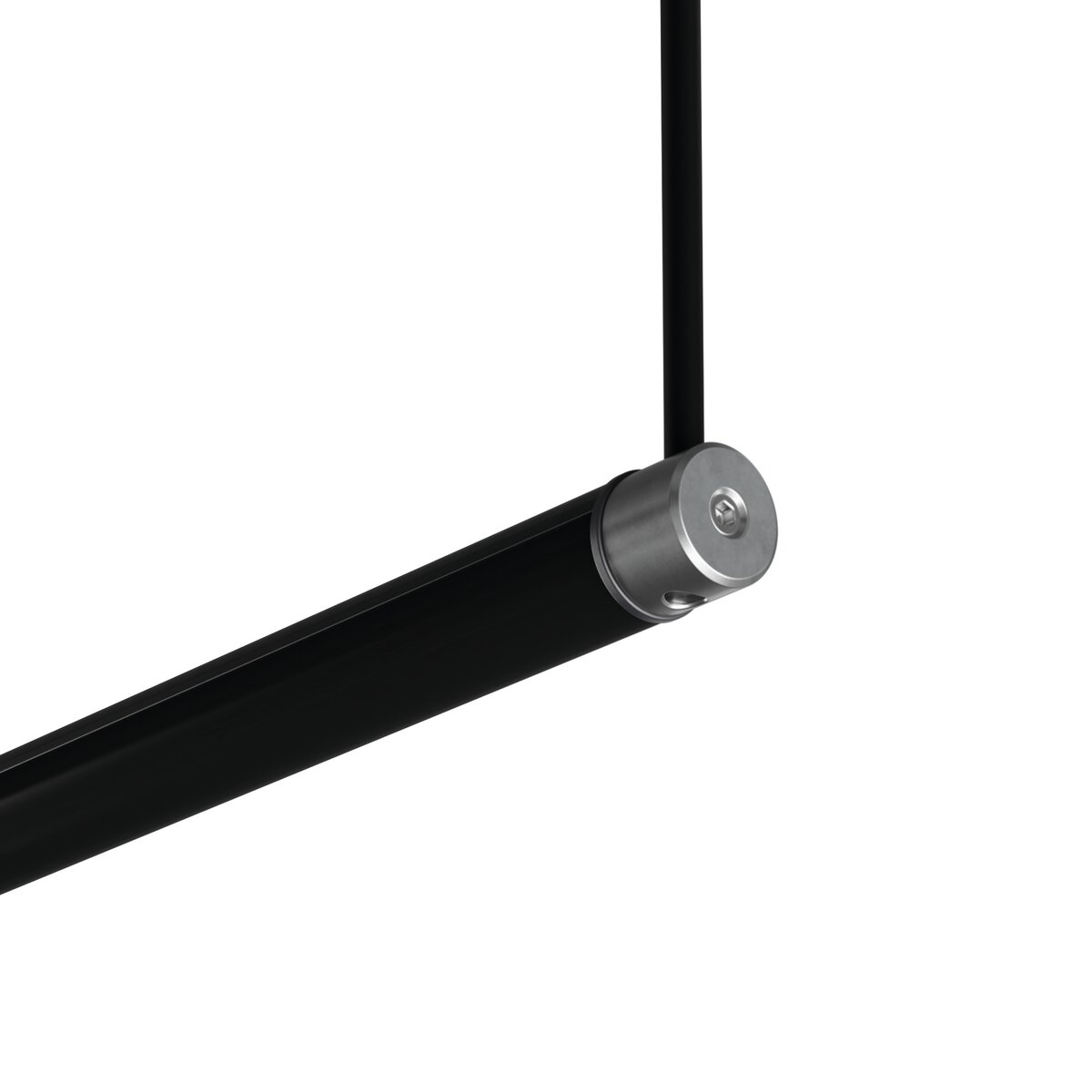

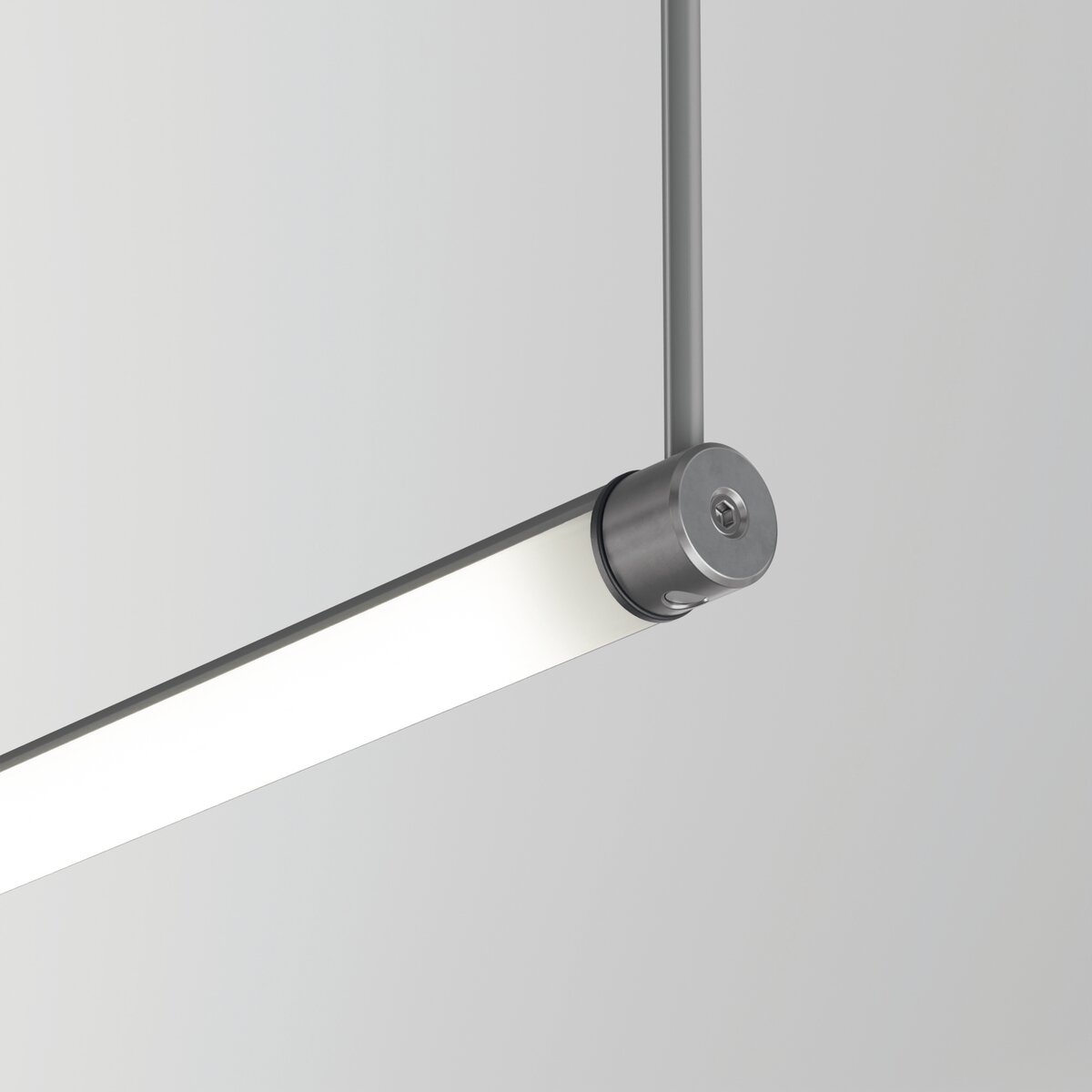

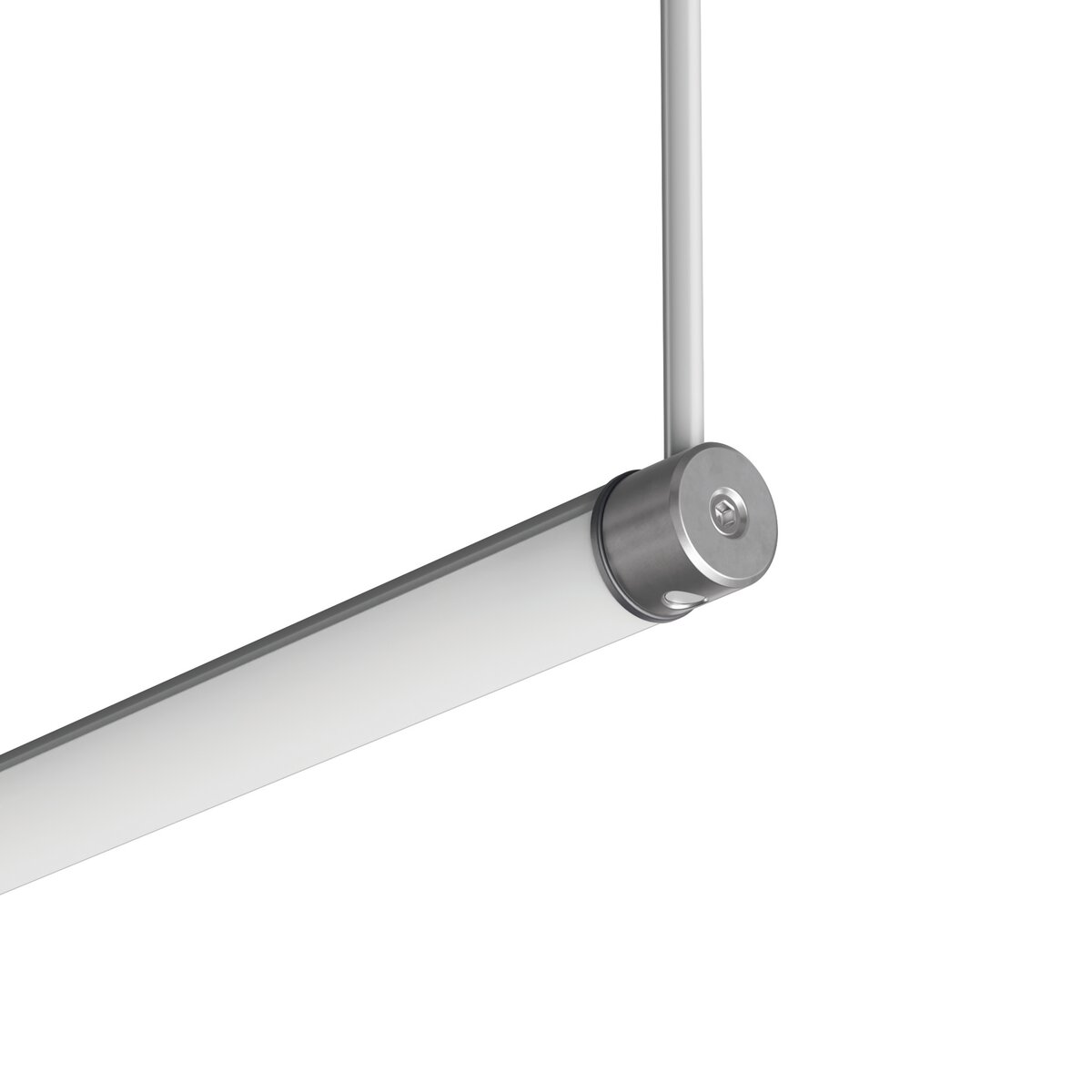

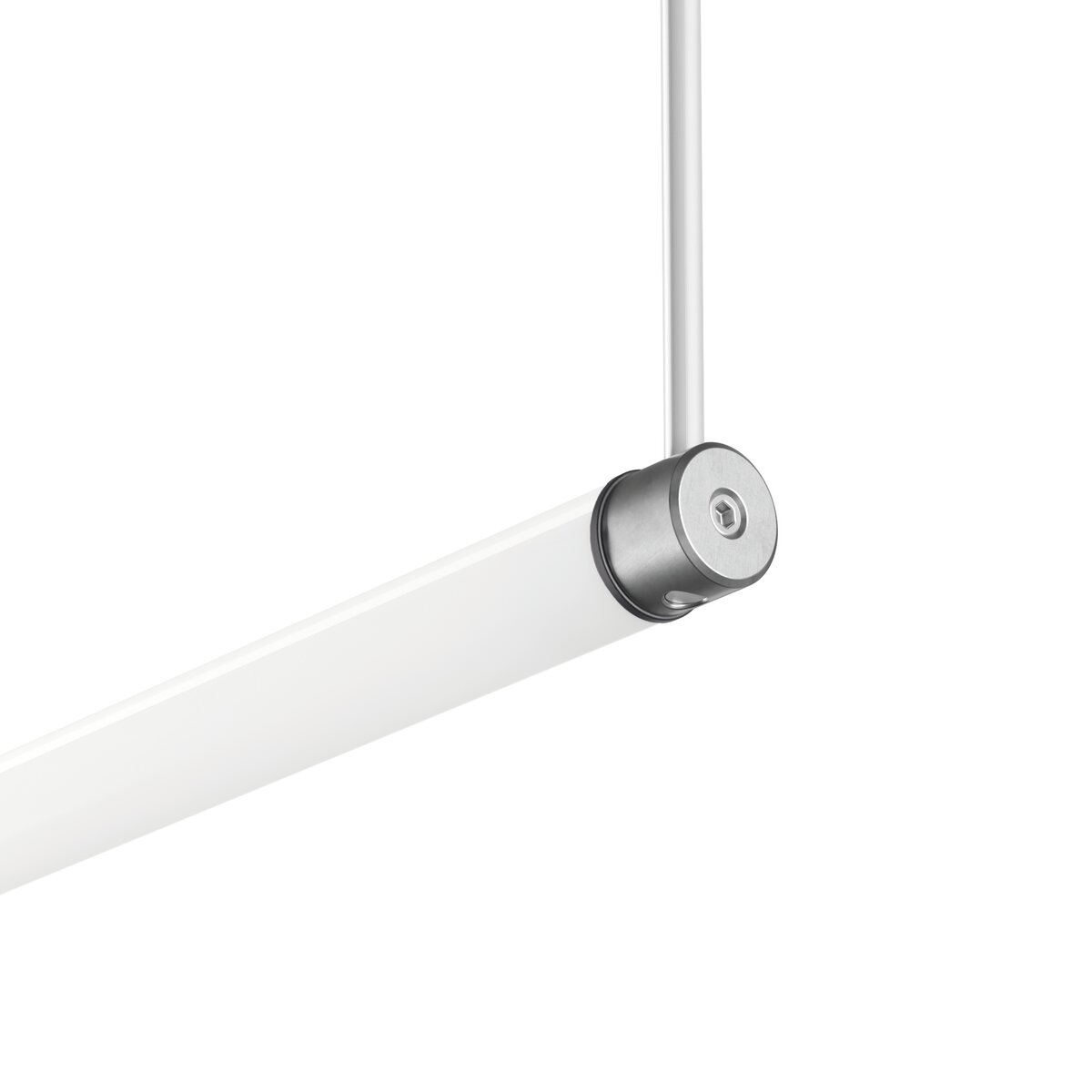

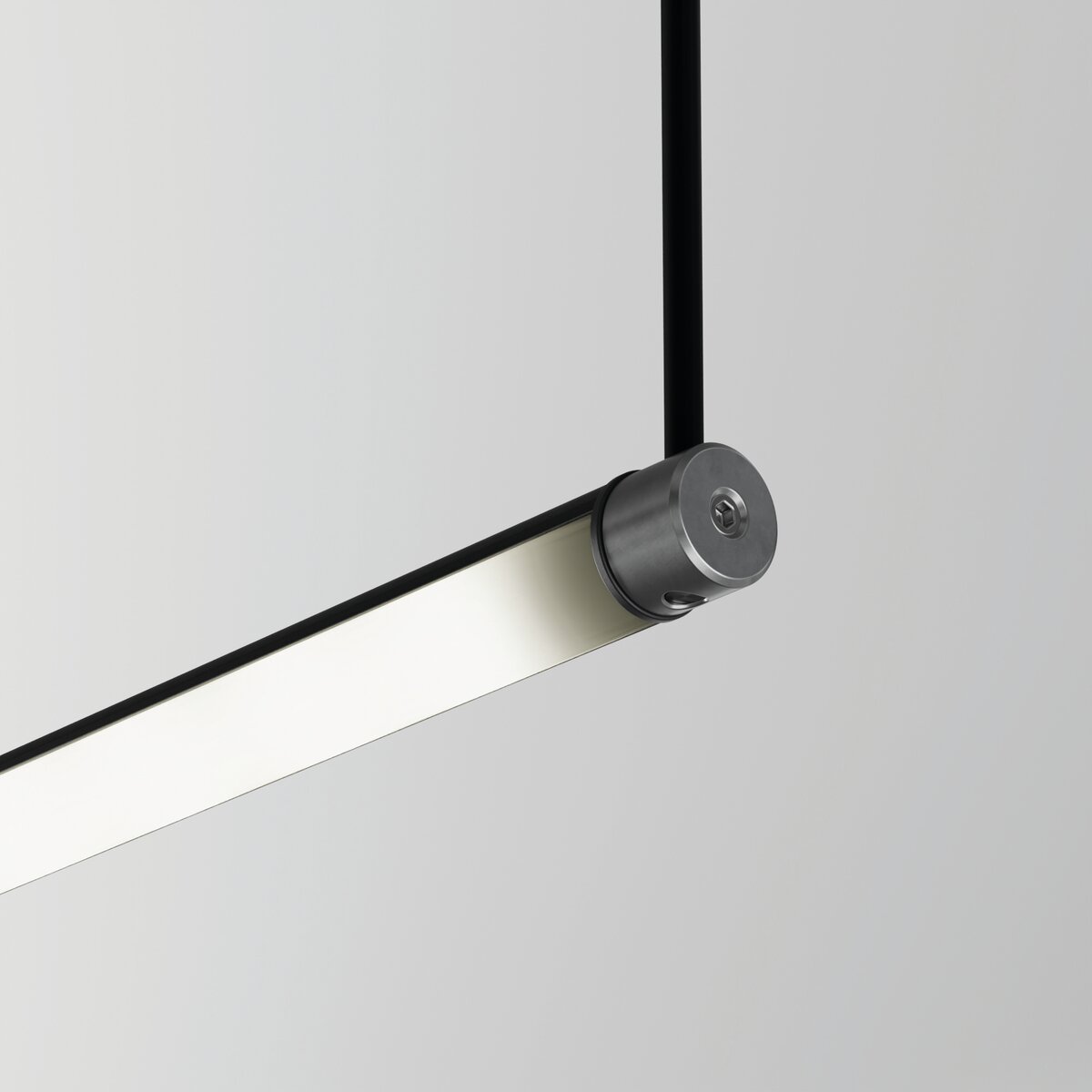

Usage examples

Description
download

Application

- aesthetic finish and protection of the interior of the lighting fixture

Mounting

- to the extrusion, by pressing
- to a rod or cable, using a set bolt

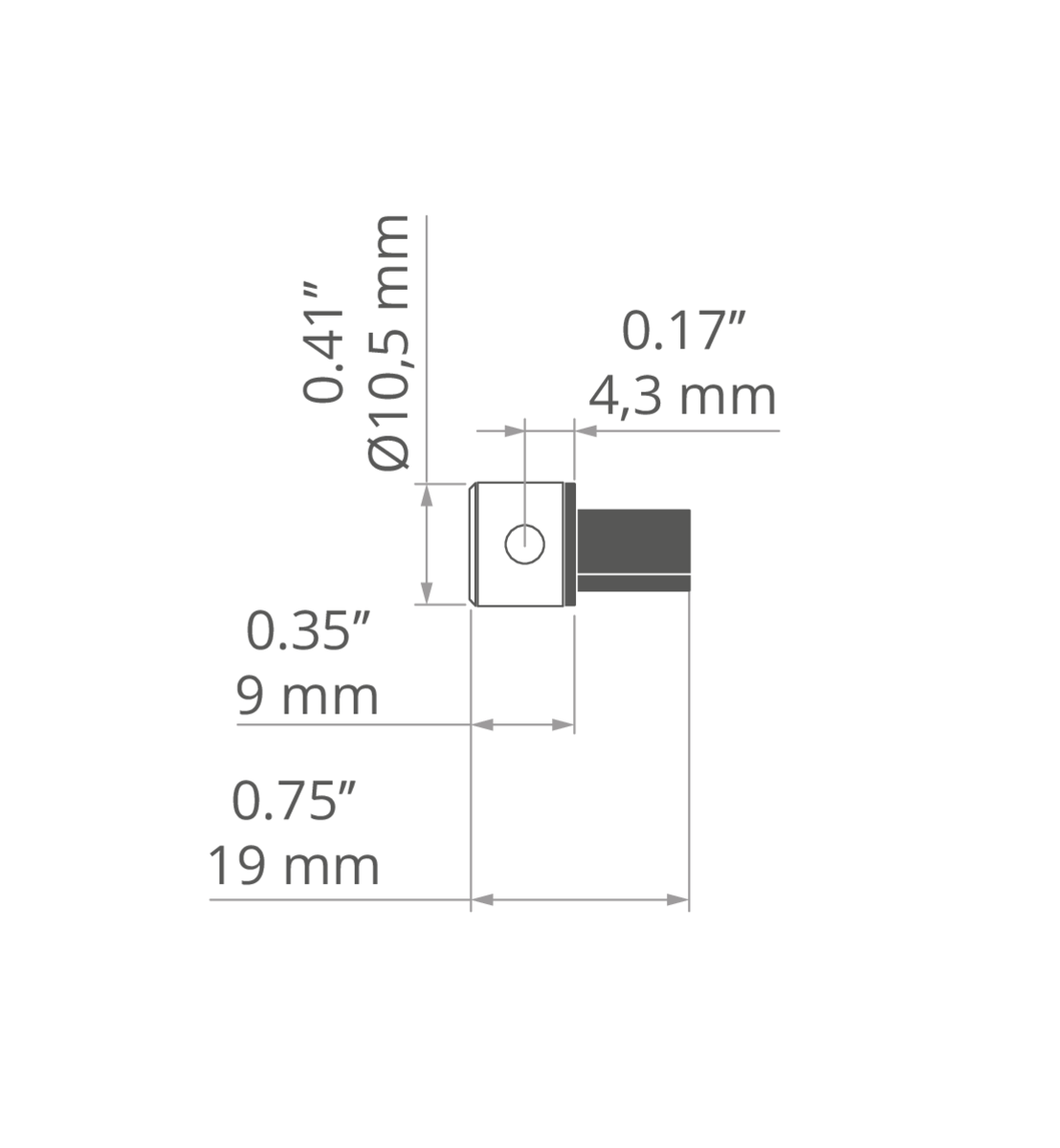

Technical drawing

PIKO-O ABS Technical drawing - C28223C7012

Technical specification

Finish

colored

Material

ABS

Shape

round

Maximum current intensity

2.5 A

Power loss

0.08 V

Working temperature

140°F

Lifting capacity

41.8 lb

Angle of illumination adjustment to

360°

Conducting electricity

Yes

Length x Width x Height

0.7" x 0.4" x 0.4"
