RAM-TEK-100 Extrusion (A18061)

Compare

Compared

Mounting track
Easy servicing of the OMODO-100 Extrusion
Installation from below, wall to wall
Openwork structure
Adjustable spacing of bridges in the mounting track
Mounting to 12,5 mm - 0.50" drywall
Stable mounting to a suspended ceiling

WATCH INSTRUCTIONAL VIDEO

Color

Description

Mounting track
Easy servicing of the OMODO-100 Extrusion
Installation from below, wall to wall
Openwork structure
Adjustable spacing of bridges in the mounting track
Mounting to 12,5 mm - 0.50" drywall
Stable mounting to a suspended ceiling

Application

- makes mounting and service of the OMODO-100 extrusion easy

Mounting

- in drywall, with screws

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

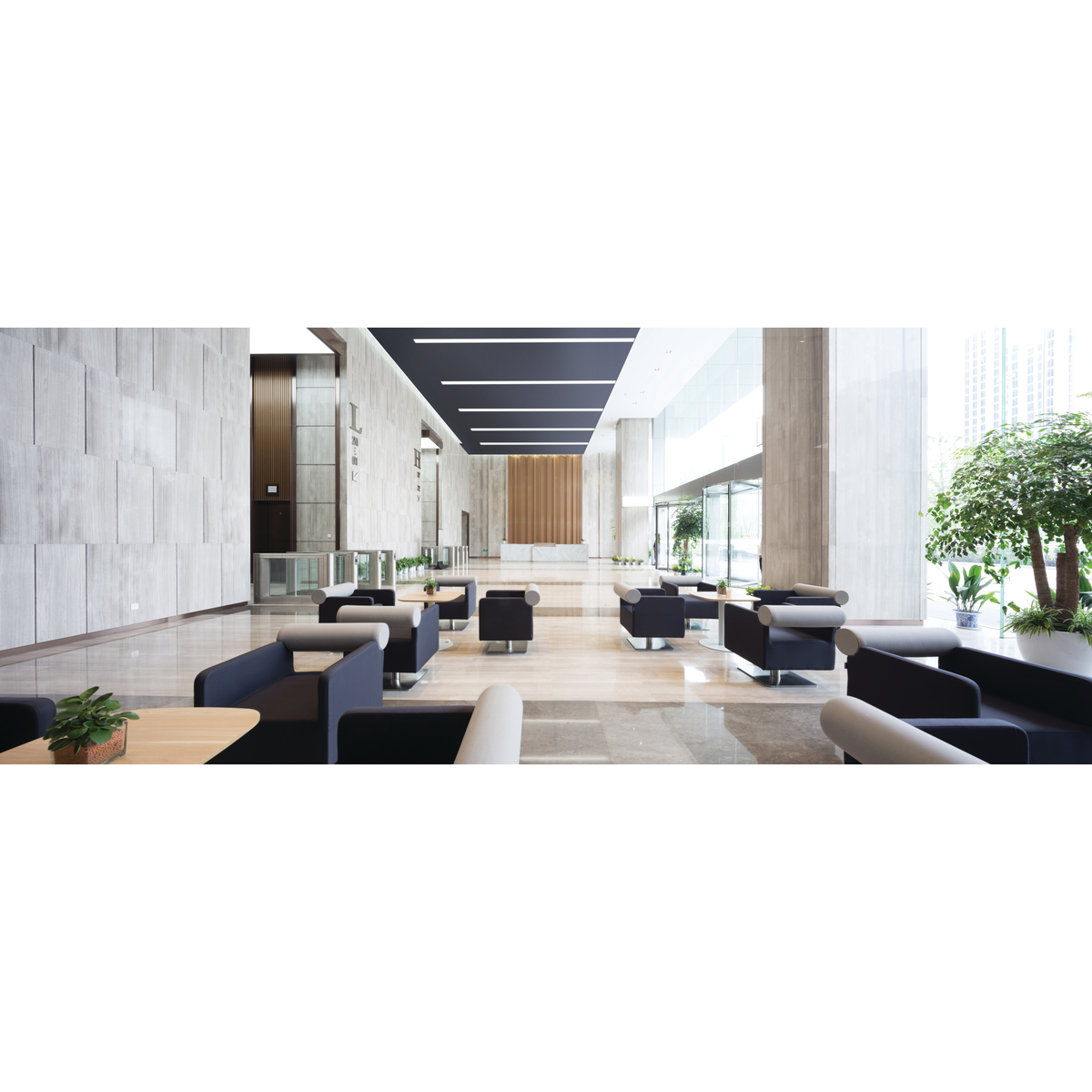

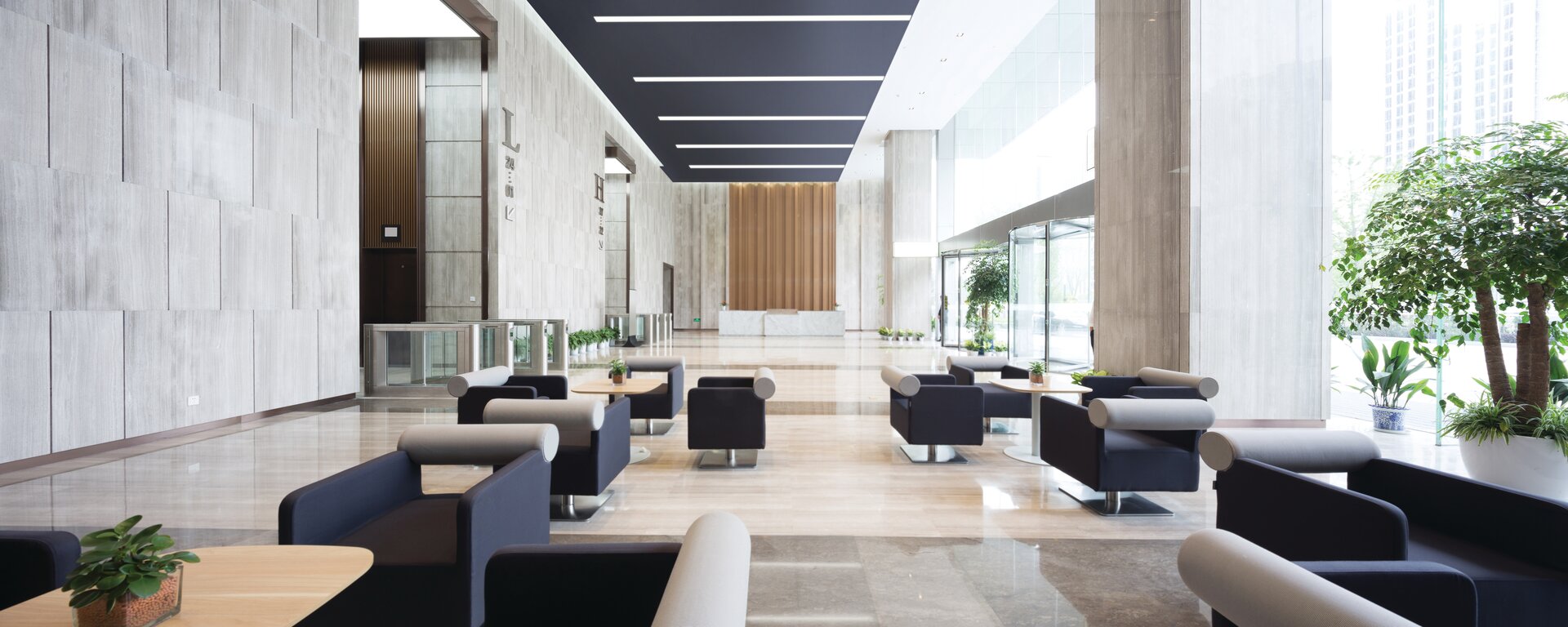

Usage examples

Description
download

Application

- makes mounting and service of the OMODO-100 extrusion easy

Mounting

- in drywall, with screws

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

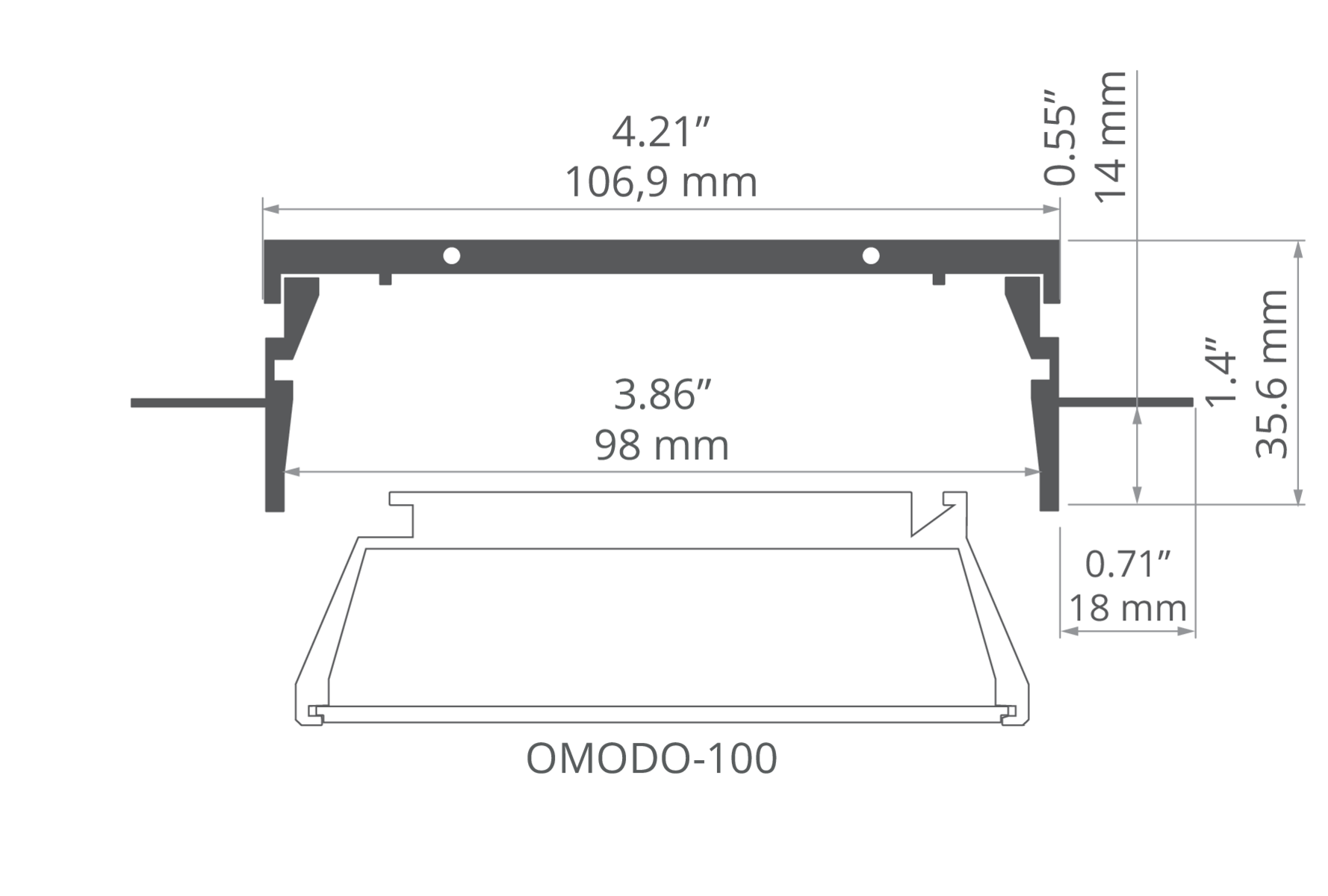

Technical drawing

Technical specification

Material

aluminum

Possible fixture shapes

linear, polygonal

Width

4.2" (106.9 mm)

Height

1.4" (35.6 mm)

Can be easily connected into runs

Yes

Mounting to drywall

Yes

To cover with plaster

Yes

Wire out back of extrusion

Yes

Building type

Commercial, Residential, Hotel / Restaurant, Entertainment/ Arts

Facility zone

lobby / foyer, office

Color	Length	Ref No
silver non anodized	78.9" (2005 mm)	A18061N_2

Related extrusions

Related products

Accessories
End caps
Standard end caps

Product name	Material	Color	Ref No

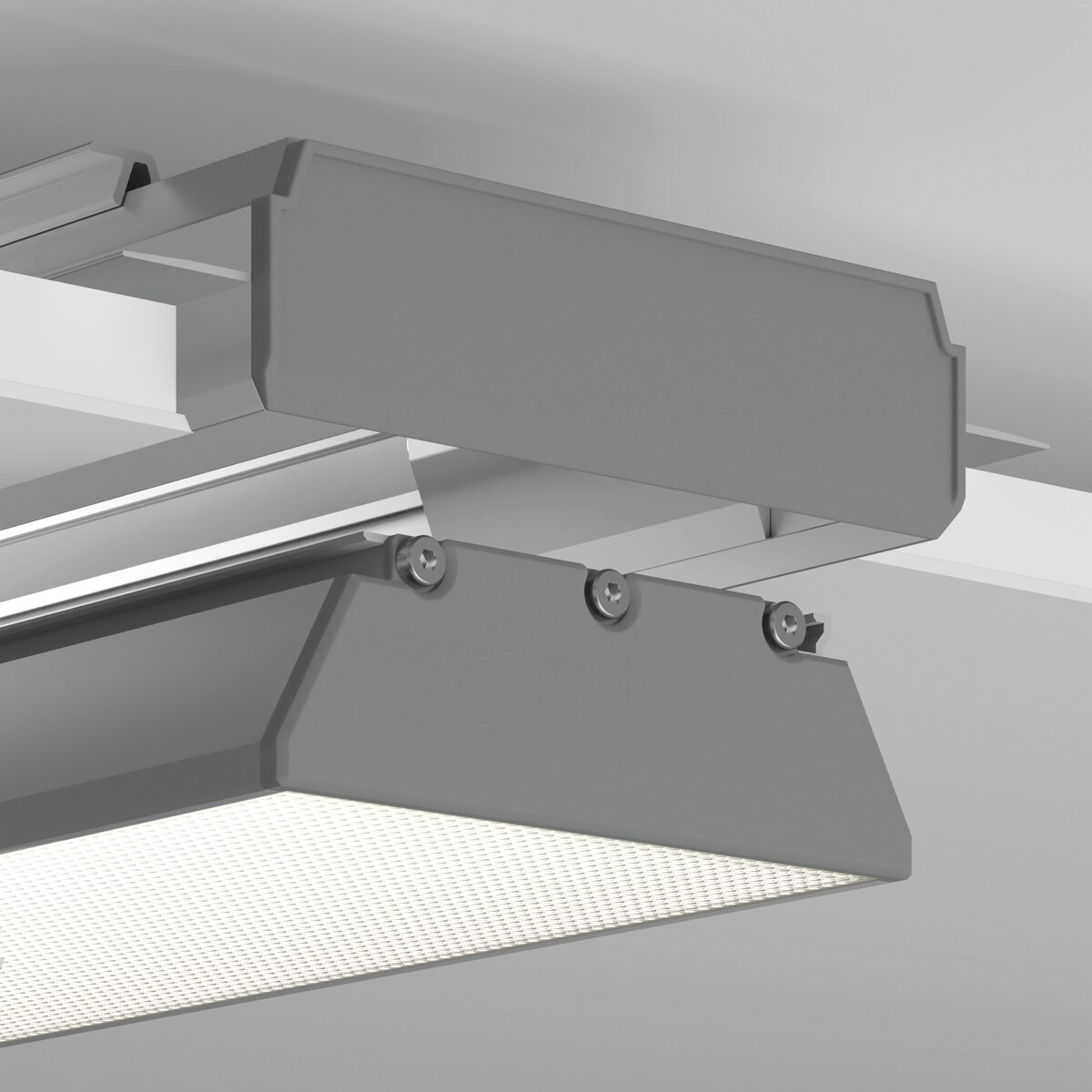

End cap RAM-TEK-100	ABS	gray	C24357C02

LED extrusions
Mounting tracks

Product name	Key features	Material	Color	Ref No
MOD-KR-TEK Extrusion		aluminum		A02052
MOD-MOS-100 Extrusion		aluminum		A01815

Accessories
Mounting accessories
Springs for recessed mount and mounting tracks

Product name	Key features	Material	Color	Ref No
Spring KR		steel	steel	C42737N00
Spring RAM-1		stainless steel	silver	C42738N00

Accessories
Accessories for connecting and securing lighting fixtures
Connectors

Product name	Material	Color	Ref No
ZM-NA Connector	stainless steel	silver	42339
ZM-NA-PION Connector	stainless steel	silver	42321 42315 42317
ZM Connector	stainless steel	silver black colorless	C28075N00 C28072N00 42720 42728 C24797C07 C28072C07 C28075C07 C28070C07 C28071C07 C28073C07 C28074C07 C24797N00
ZM-PION Connector	stainless steel	silver black	42718 42719 42320 C28086N00 C28084N00 42314 C28086C07 C28084C07 C28088C07 C28087C07 C28085C07

Accessories
Additional items

Product name	Material	Color	Ref No
Tool KR	PA12	Graphite	Z70449
