OMODO-100 Extrusion

Ref No: A18058
OMODO-100 Extrusion
OMODO-100 Extrusion
  • Easy maintenance
  • High lumen output
  • Possibility to use current modules with efficiency up to 190lm/W and CRI>90. Available upon request.
  • Possiblity to obtain UGR < 19
Trimless
With the possibility of sealing up to IP20
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Color
silver
  • Easy maintenance
  • High lumen output
  • Possibility to use current modules with efficiency up to 190lm/W and CRI>90. Available upon request.
  • Possiblity to obtain UGR < 19
Application
  • - main and decorative lighting
Mounting
  • - in drywall, using a dedicated mounting track and screws
Additional information
  • - both LED strips and LED current modules can be used
  • - safety due to high vibration resistance
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

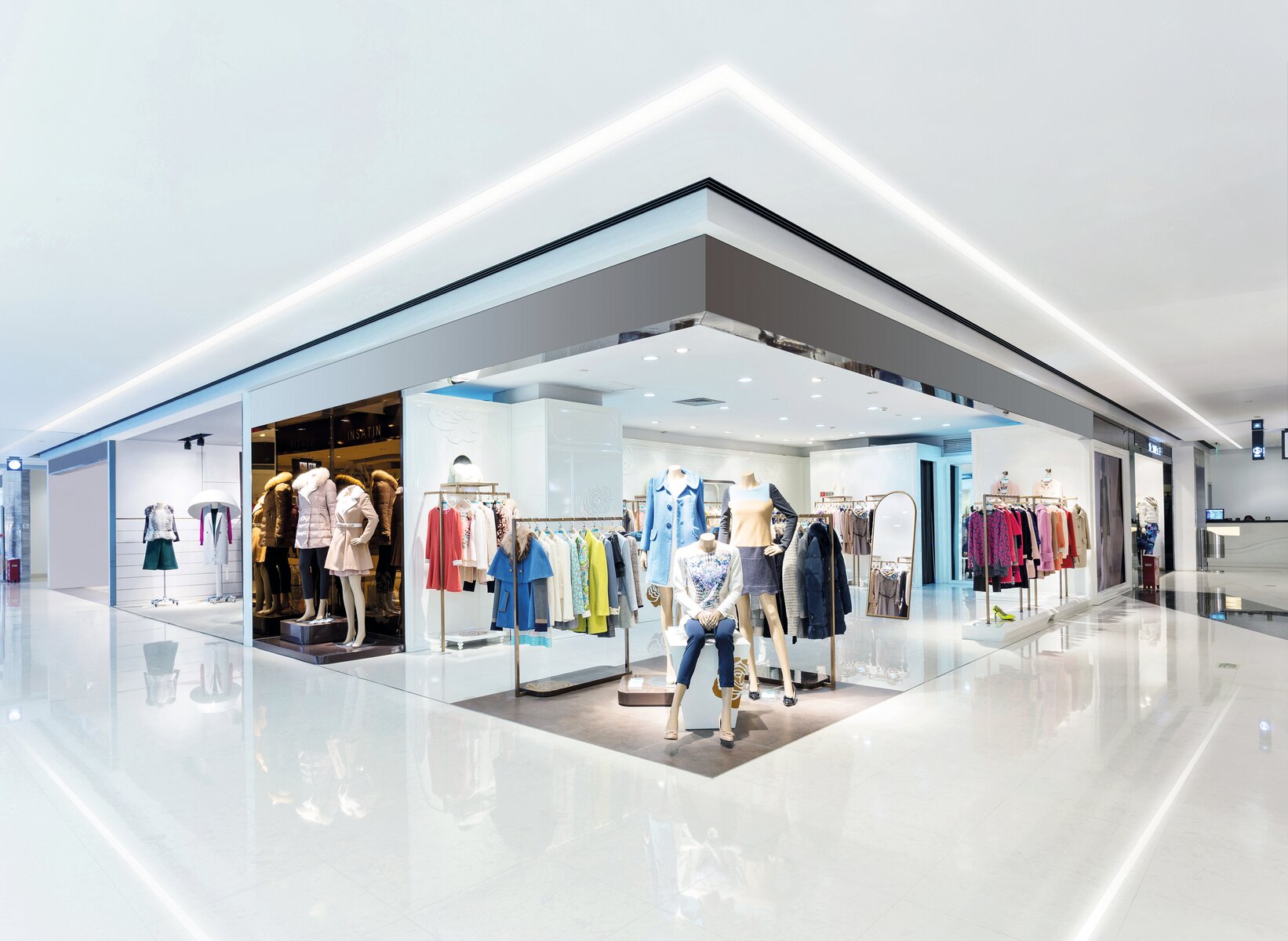

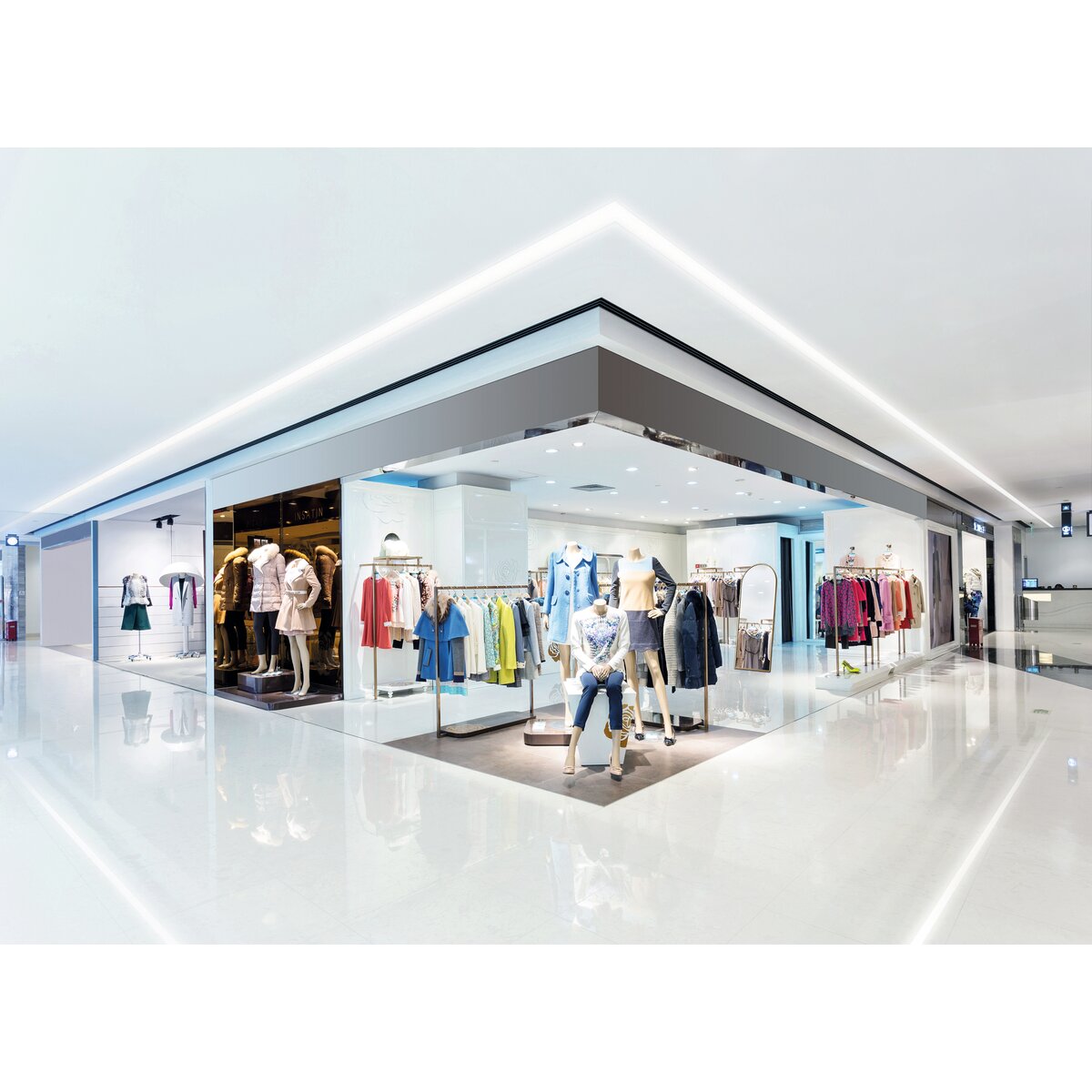

Usage examples

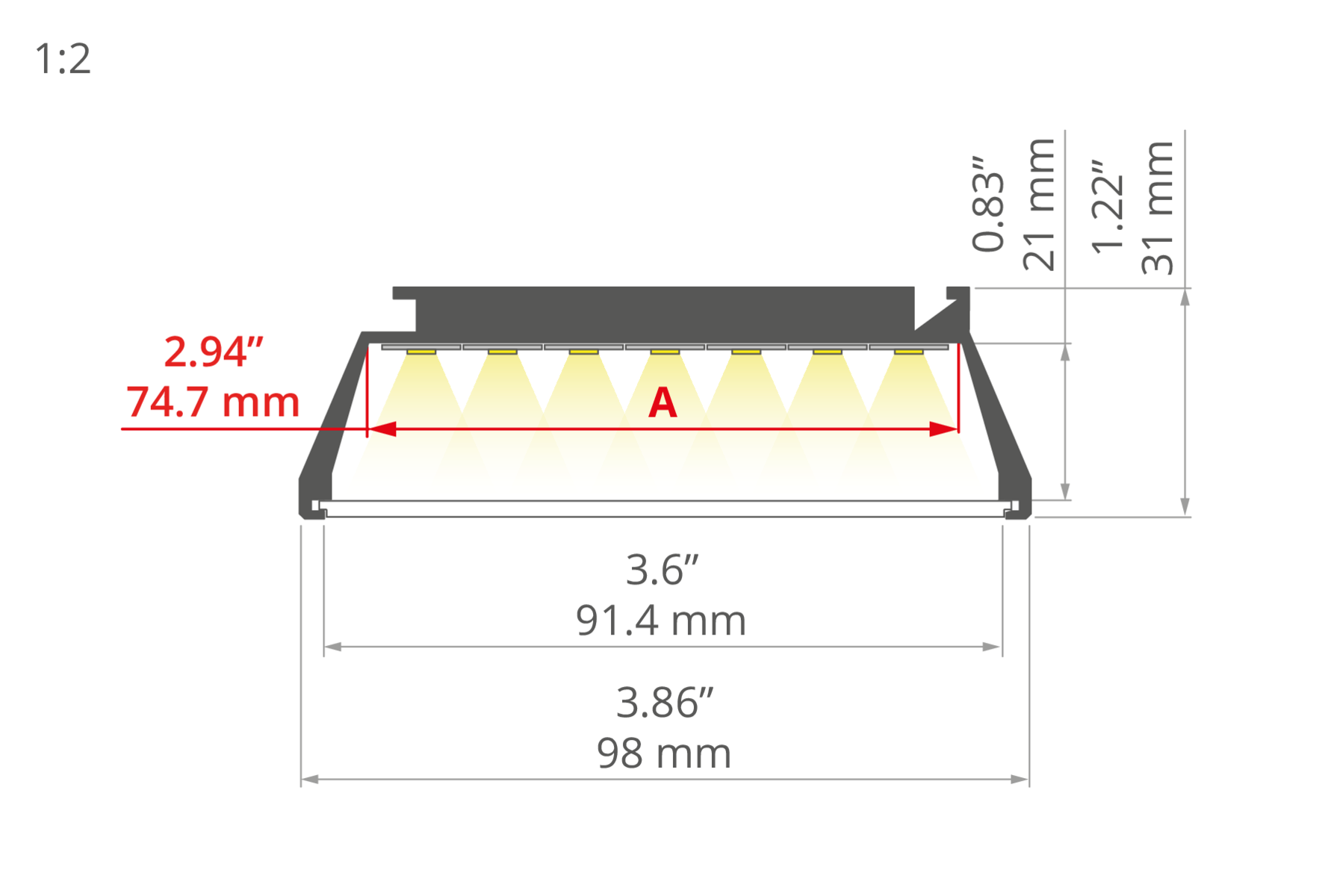

Technical drawing
OMODO-100 Extrusion aluminum Technical drawing - A18058
Technical specification
Material
aluminum
Possible fixture IP
20
Possible fixture shapes
linear, polygonal
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
7.3 W/ft
Width
3.9" (98 mm)
Height
1.2" (31 mm)
LED gluing width A
2.9" (74.7 mm)
Max. number of LED strips A (0.31" wide)
9
Possibility of obtaining a line of light
Yes
Building type
Commercial, Retail, Entertainment/ Arts, Hotel / Restaurant
Facility zone
office, lobby / foyer
Color Length Ref No
silver anodized
78.9" (2005 mm)
A18058A_2
Line of Light Table for Pixel Free Illumination
LED Tapes Covers
Categories LED tape type HSP-90 Cover frosted
High Efficacy K-HEHD-0480-24 Line of Light for a number (X) of rows (6)
K-HEHD-0960-24 Line of Light for a number (X) of rows (6)
K-HEHD-1440-24 Line of Light for a number (X) of rows (6)
K-HEHD-1920-24 Line of Light for a number (X) of rows (6)
K-HEHD-0320-24 Line of Light for a number (X) of rows (6)
CRI 95+ K-CRHD-1820-24 Line of Light for a number (X) of rows (6)
K-CRHD-1910-24 Line of Light for a number (X) of rows (6)
K-HEHD-1440-24-40C Line of Light for a number (X) of rows (6)
CRI 90+ K-2400-24 Line of Light for a number (X) of rows (6)
RGB / RGB-W / RGB-CTT K-RGBW-1920-160-24 Line of Light for a number (X) of rows (6)
Single diode cuttable K-SD-1440-24 Line of Light for a number (X) of rows (6)
Adjustable White / Dim to Warm K-SDCR-22T50-1530-24 Line of Light for a number (X) of rows (6)
KWP-SDCR-22T50-1530-24 Line of Light for a number (X) of rows (6)
Line of Light for a number (X) of rows
Line of Light for a number (X) of rows - Pixel free imaging
Centered Line of Light
Centered Line of Light - Concentrated in middle
None
None - Visible dotting from diodes
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
similar profiles
Suspended
MOD-100
Ref No: A18049
Related products
Product name Material Key features Light transmittance [%] Color Ref No
HSP-90 Cover
- indoor use
- Ease of obtaining a wide line of light
68 %
frosted
B17166F
No results found for the selected filters.
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,
20 - 1.5 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-0480-24
K-HEHD25-0480-24
K-HEHD27-0480-24
K-HEHD30-0480-24
K-HEHD35-0480-24
K-HEHD40-0480-24
K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-0960-24
K-HEHD25-0960-24
K-HEHD27-0960-24
K-HEHD30-0960-24
K-HEHD35-0960-24
K-HEHD40-0960-24
K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-1440-24
K-HEHD25-1440-24
K-HEHD27-1440-24
K-HEHD30-1440-24
K-HEHD35-1440-24
K-HEHD40-1440-24
K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,
20 - 5.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-1920-24
K-HEHD25-1920-24
K-HEHD27-1920-24
K-HEHD30-1920-24
K-HEHD35-1920-24
K-HEHD40-1920-24
K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,
20 - 1 W/ft
2700K
3000K
3500K
4000K
- CRI over 95
- High Efficacy
K-HEHD27-0320-24
K-HEHD30-0320-24
K-HEHD35-0320-24
K-HEHD40-0320-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1220-24
K-CR25-1220-24
K-CR27-1220-24
K-CR30-1220-24
K-CR35-1220-24
K-CR40-1220-24
K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1275-24
K-CR25-1275-24
K-CR27-1275-24
K-CR30-1275-24
K-CR35-1275-24
K-CR40-1275-24
K-CR50-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,
20 - 5.6 W/ft
2700K
- CRI over 95
- high LED density
K-CRHD27-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,
20 - 2.8 W/ft
2700K
3500K
4000K
- CRI over 95
- high LED density
K-CRHD27-1910-24
K-CRHD35-1910-24
K-CRHD40-1910-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,
20 - 1.6 W/ft
3500K
- CRI over 95
K-CRHD35-0530-24
K-HEHD-1440-24-40C LED tape, 570-667 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- High Efficacy
- cold weather -40F
K-HEHD22-1440-24-40C
K-HEHD25-1440-24-40C
K-HEHD27-1440-24-40C
K-HEHD30-1440-24-40C
K-HEHD35-1440-24-40C
K-HEHD40-1440-24-40C
K-HEHD50-1440-24-40C
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20
20 - 7.3 W/ft
2700K
3000K
3500K
4000K
5000K
- high power
K-27-2400-24
K-30-2400-24
K-35-2400-24
K-40-2400-24
K-50-2400-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-120-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,
65 silicon sleeve 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
KWP-GRGBW-1920-120-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20
20 - 4.7 W/ft
2200K
- Tuneable white 2200K-5000K
K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65
65 silicon sleeve 4.7 W/ft
2200K
- Tuneable white 2200K-5000K
KWP-SDCR-22T50-1530-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,
20 - 4.4 W/ft
2700K
3000K
3500K
4000K
K-SD27-1440-24
K-SD30-1440-24
K-SD35-1440-24
K-SD40-1440-24
No results found for the selected filters.
Product name Material Color Ref No
End cap OMODO-100
ABS
gray
C28027C02
No results found for the selected filters.
Product name Key features Material Color Ref No
RAM-KOZE-100 Extrusion
aluminum
A18057
RAM-TEK-100 Extrusion
aluminum
A18061
No results found for the selected filters.
Product name IP rating Key features Ref No(Ref. arch.)
Controller LED MONO, Wlightboxs 120W IP20
20
E60228
Product name IP rating Key features Ref No(Ref. arch.)
UNI Proximity switch
20 - touchless switch
- width only 7mm
E61579
No results found for the selected filters.
Product name Material Color Ref No
Gland 6x1,2
C24517C07
Gland 6,4x3
C42264C07
Gland M8x1
C42265N00
No results found for the selected filters.
