BENCO-22 Cover

Ref No: B17209
  • installation in bent profiles
  • Additional chamber for sealing the LED strip
  • Cover offered in sections up to 10 rm
Frosted
Possibility of twisting
Possibility of bending
UV radiation resistance
Color
frosted
  • installation in bent profiles
  • Additional chamber for sealing the LED strip
  • Cover offered in sections up to 10 rm
Application
  • - LED protection and light diffusion in lighting fixtures
Mounting
  • - Snapped in a dedicated profile
Additional information
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

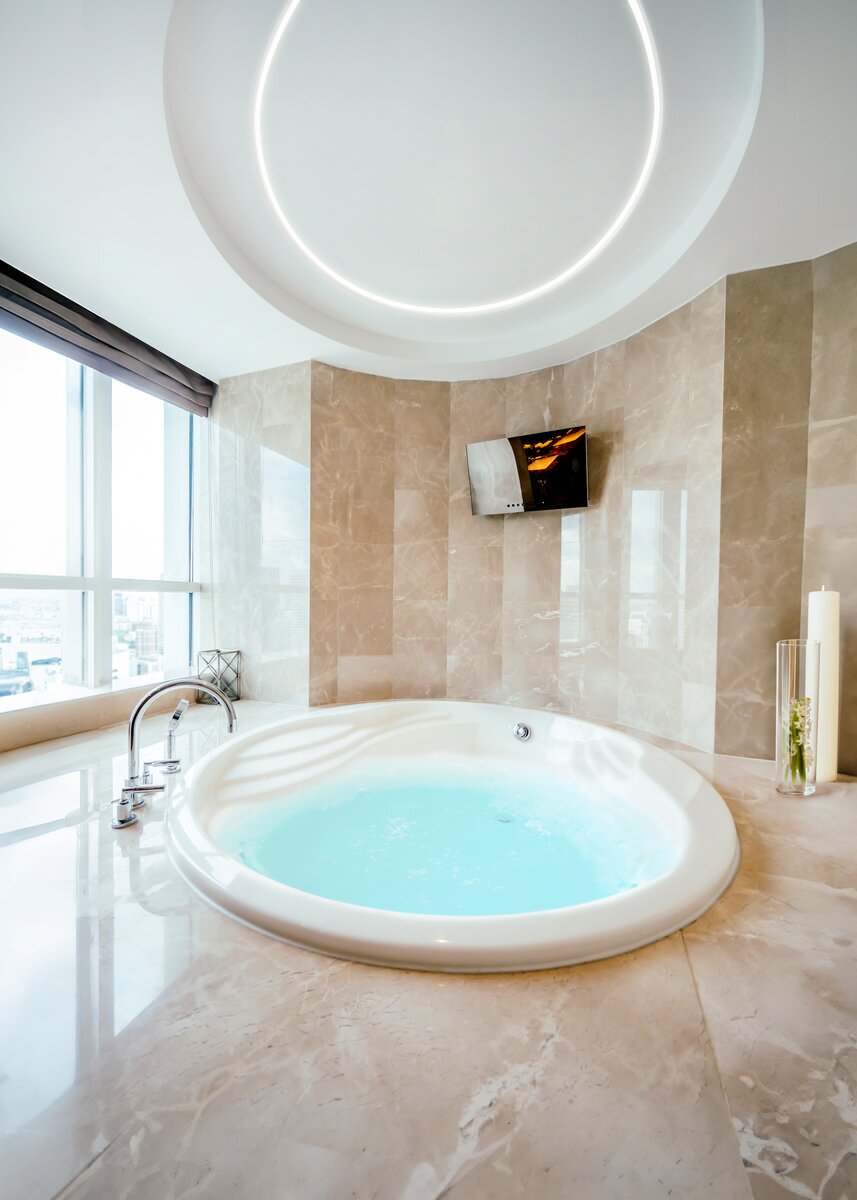

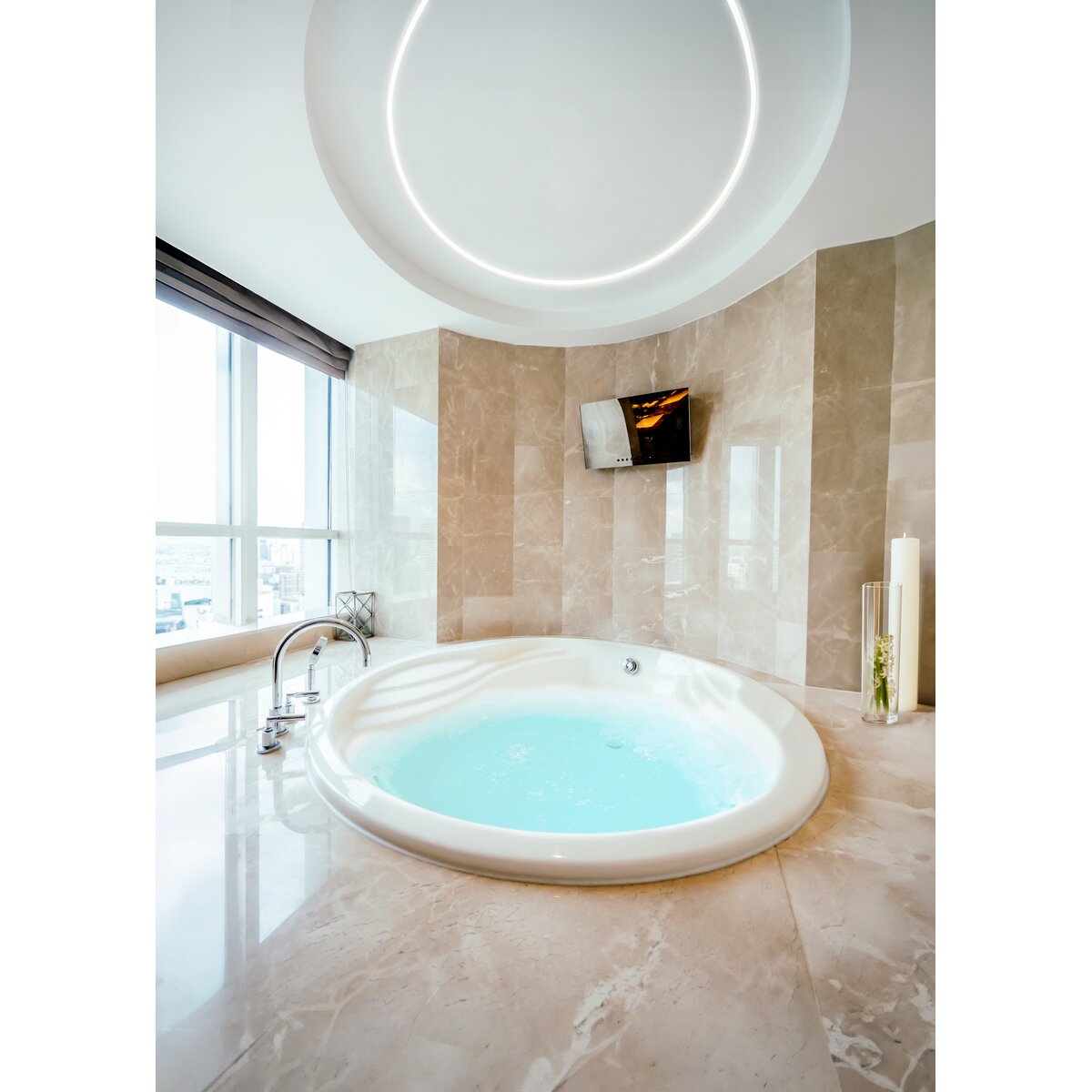

Usage examples

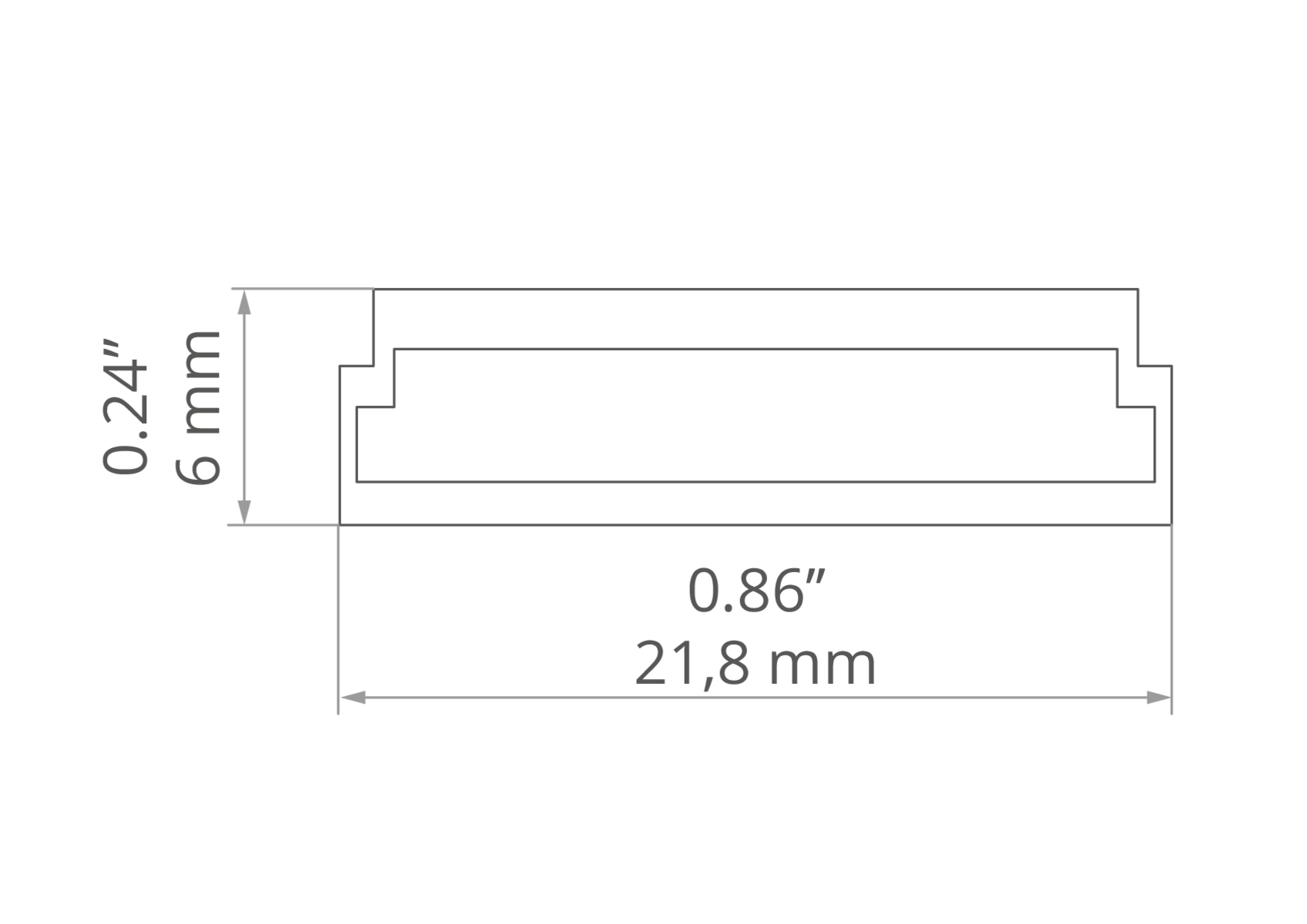

Technical drawing
BENCO-22 Cover silicon Technical drawing - B17209
Technical specification
Finish
frosted
Material
silicon
Shape
flat
Maximum length on request
32'09" (10000 mm)
Light transmission
62 %
Przepuszczalność świetlna dokładna [%]
62 %
Possibility of obtaining a line of light
Yes
Possibility of twisting
Yes
Possibility of bending
Yes
UV resistance
Yes
Width x Height
0.9" x 0.2"
Color Light transmittance [%] Length Ref No
frosted
62 %
118.1" (3000 mm)
32'09" (10000 mm)
B17209F_3
B17209F_10
