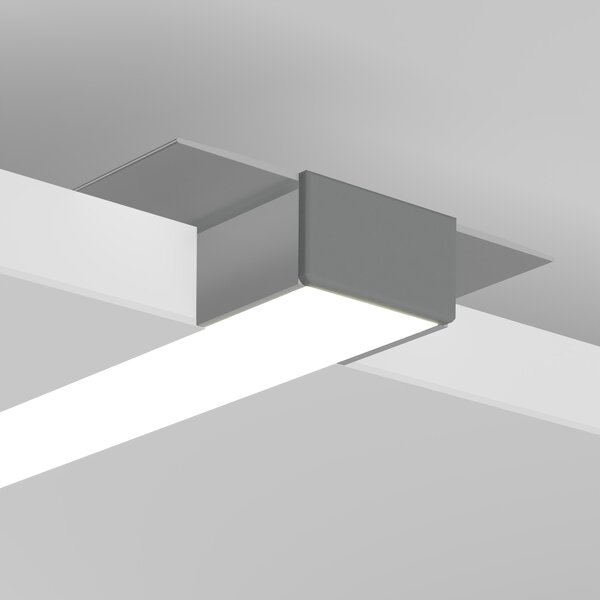

GIZA-LL-T Extrusion (A02479)

Compare

Compared

Mounting to 12,5 mm - 0.50" drywall
No collision with the ceiling structure
Stable mounting to a suspended ceiling
Non visible aluminum elements
Possibility to use current modules with efficiency up to 190lm/W and CRI>90. Available upon request.

With the possibility of sealing up to IP20

Configure

WATCH INSTRUCTIONAL VIDEO

Color

Description

Mounting to 12,5 mm - 0.50" drywall
No collision with the ceiling structure
Stable mounting to a suspended ceiling
Non visible aluminum elements
Possibility to use current modules with efficiency up to 190lm/W and CRI>90. Available upon request.

Application

- main, decorative and functional lighting

Mounting

- in drywall, with screws

Additional information

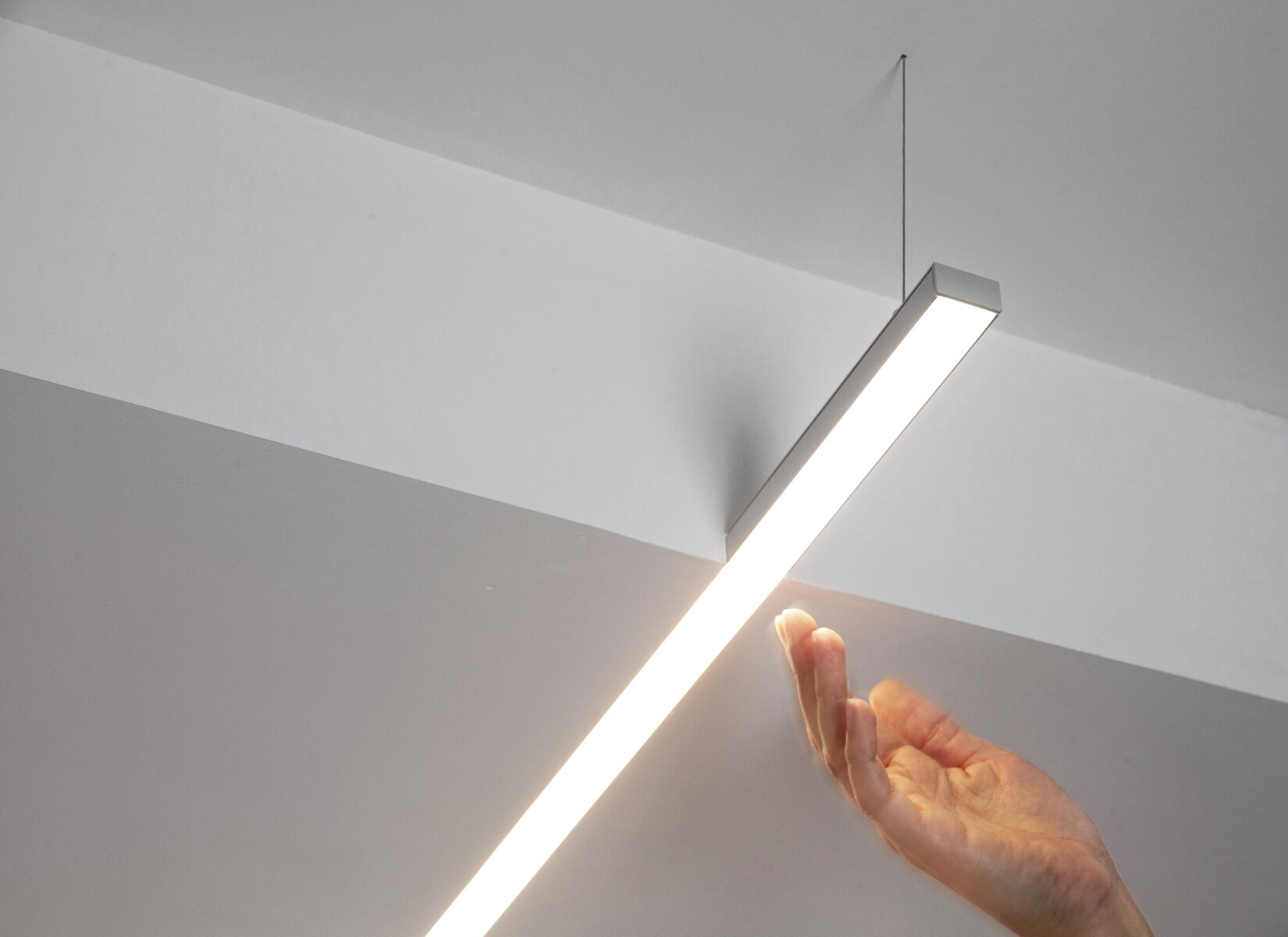

- smooth transition from a recessed into a suspended fixture
- in order to protect the lighting fixture during installation, a TECH-22 protective insert should be used
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

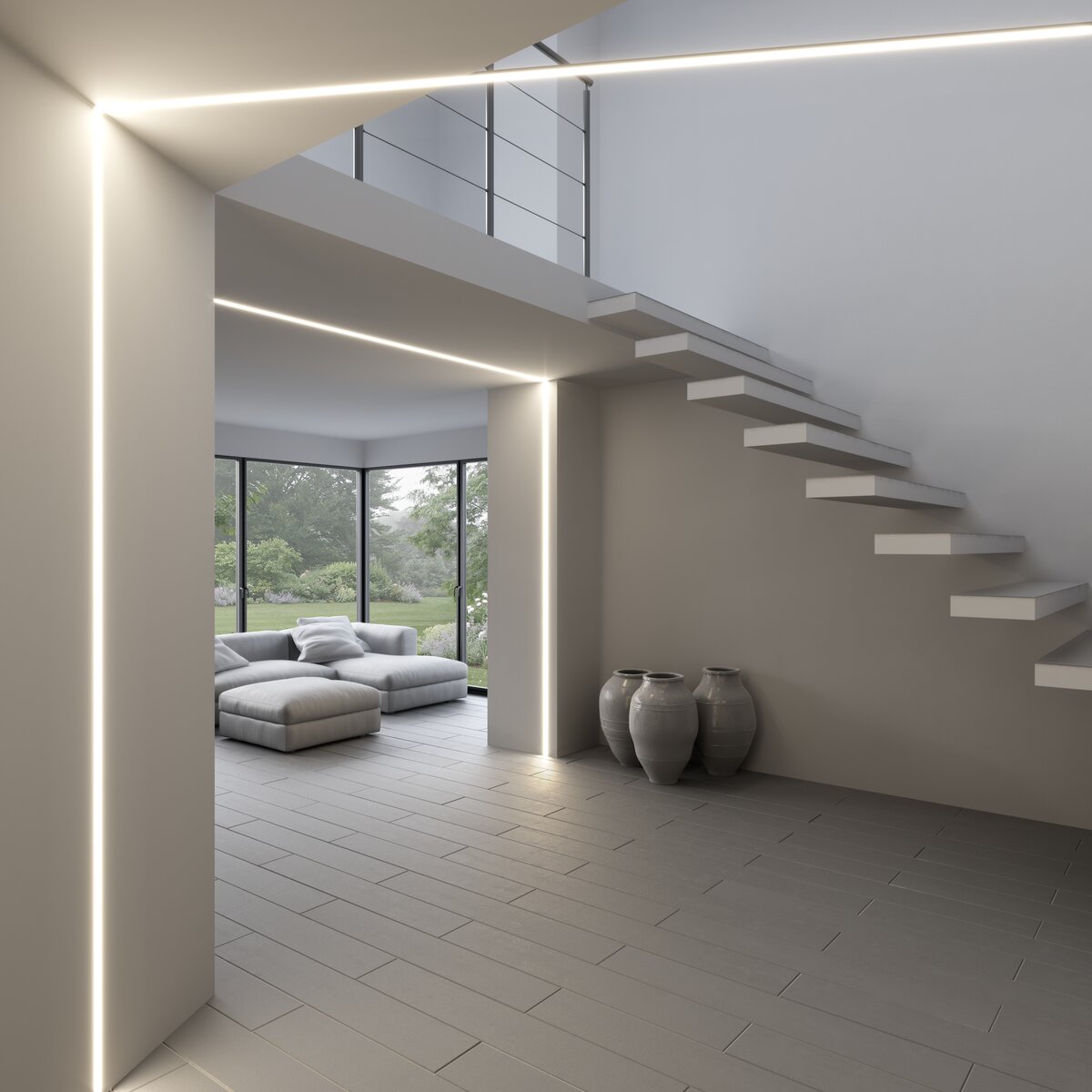

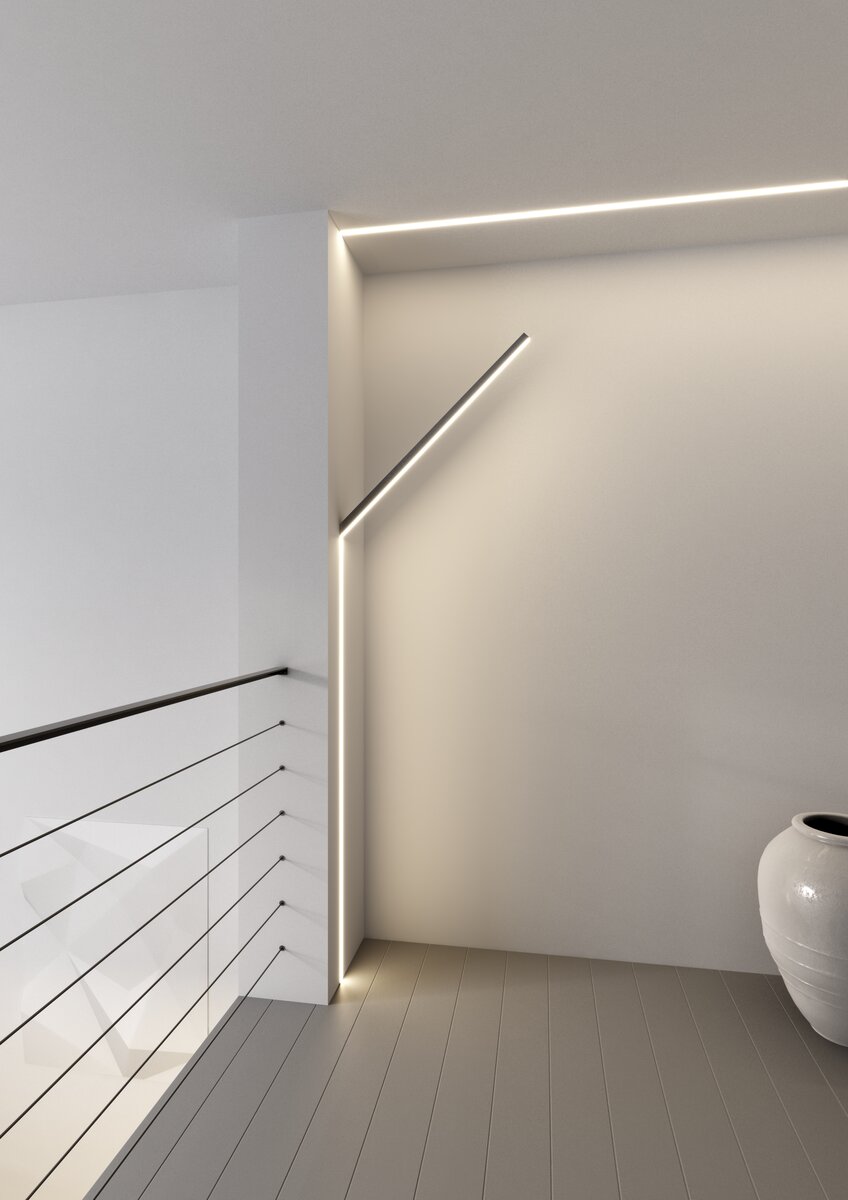

Usage examples

Description
download

Application

- main, decorative and functional lighting

Mounting

- in drywall, with screws

Additional information

- smooth transition from a recessed into a suspended fixture
- in order to protect the lighting fixture during installation, a TECH-22 protective insert should be used
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

Declaration of Conformity UKCA

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

Possible fixture shapes

linear, polygonal

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

2.6" (66 mm)

Height

0.6" (14.5 mm)

LED gluing width A

0.9" (24 mm)

Max. number of LED strips A (0.31" wide)

The cover is cut to the length of the profile

Yes

Can be easily connected into runs

Yes

Wire out back of extrusion

Yes

Possibility of obtaining a line of light

Yes

Building type

Commercial, Retail, Entertainment/ Arts

Facility zone

office, lobby / foyer, decorative, fitness / spa, media rooms / av

Color	Length	Ref No
silver non anodized	39.4" (1000 mm) 78.9" (2005 mm)	A02479N_1 A02479N_2

Line of Light Table for Pixel Free Illumination

LED Tapes		Covers
Categories	LED tape type	LIGER-22 Cover satin	HS-22 Cover frosted	G-22S Cover satin	G-22R Cover satin
High Efficacy	K-HEHD-0480-24	(2)	(2)	(1)	(1)
	K-HEHD-0960-24	(2)	(2)	(1)	(1)
	K-HEHD-1440-24	(2)	(2)	(1)	(1)
	K-HEHD-1920-24	(2)	(2)	(1)	(1)
	K-HEHD-0320-24	(2)	(2)	(1)	(1)
CRI 95+	K-CRHD-1820-24	(2)	(2)	(1)	(1)
CRI 95+	K-CRHD-1910-24	(2)	(2)	(1)	(1)
RGB / RGB-W / RGB-CTT	K-RGBW-1920-160-24	(2)	(2)	(1)	(1)
Single diode cuttable	K-SD-1440-24	(2)	(2)	(1)	(1)
Adjustable White / Dim to Warm	K-SDCR-22T50-1530-24	(2)	(2)	(1)	(1)
Adjustable White / Dim to Warm	KWP-SDCR-22T50-1530-24	(2)	(2)	(1)	(1)

Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
