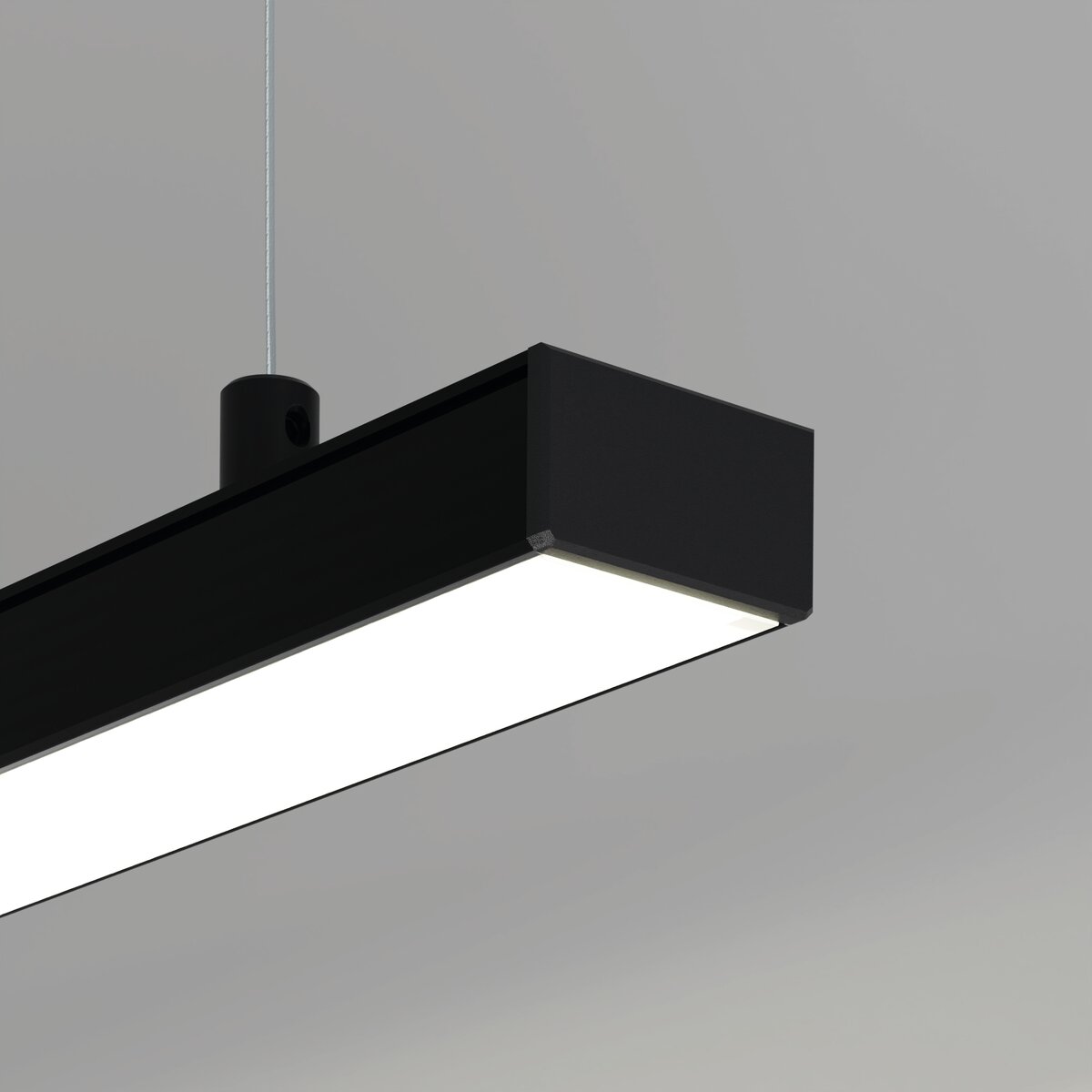

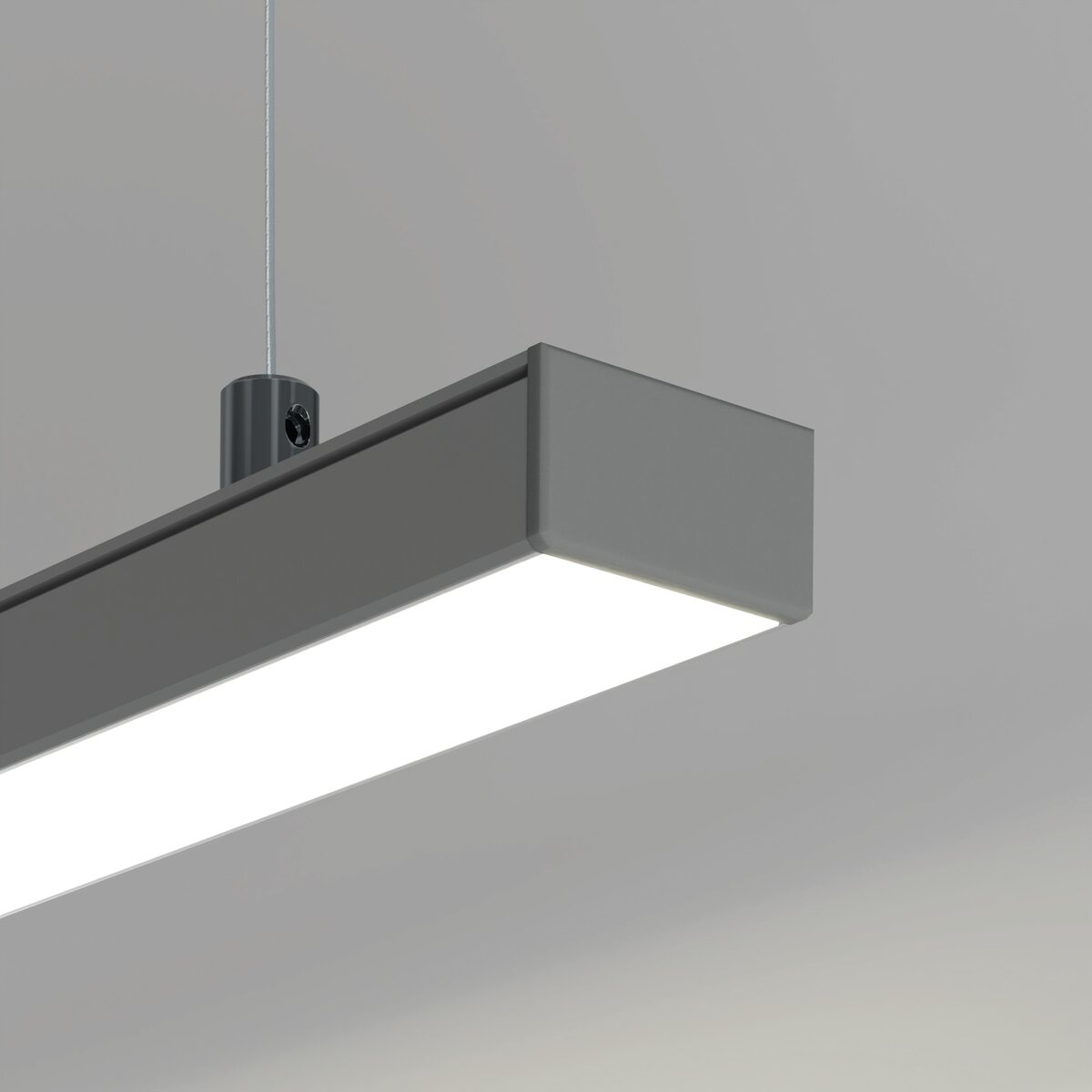

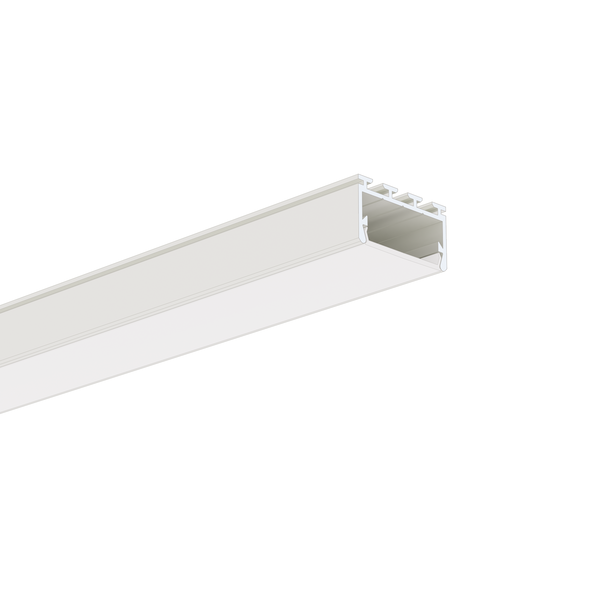

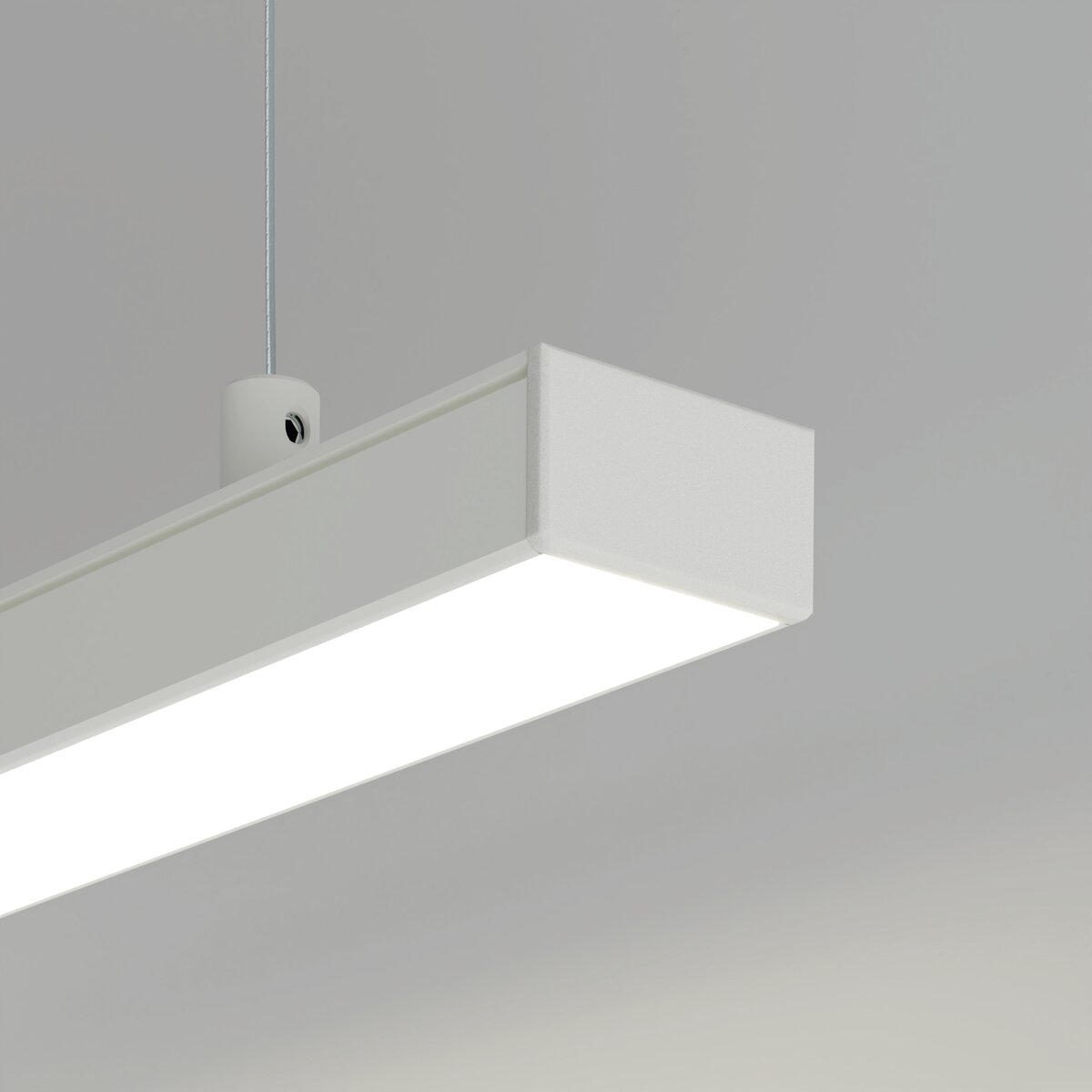

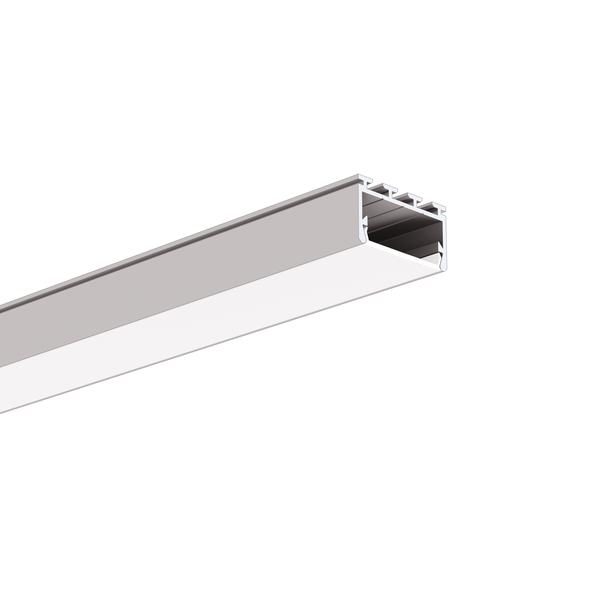

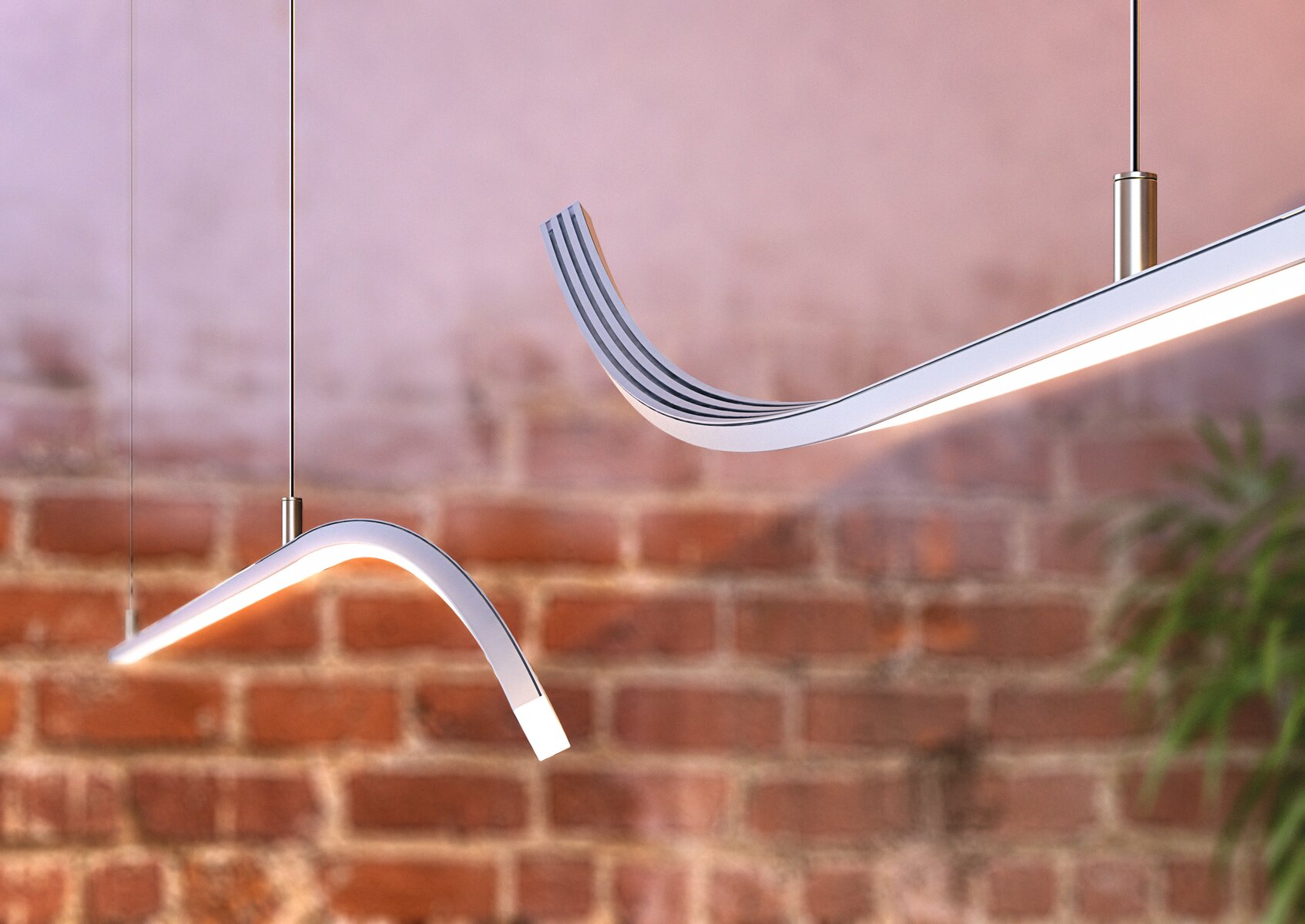

GIZA-LL Extrusion (A00758)

Compare

Compared

Small bending radius
Wide range of accessories
Luminaire direction adjustment
Possibility to use current modules with efficiency up to 190lm/W and CRI>90. Available upon request.

With the possibility of sealing up to IP20

With the possibility of sealing up to IP67

Configure

WATCH INSTRUCTIONAL VIDEO

Color

Description

Small bending radius
Wide range of accessories
Luminaire direction adjustment
Possibility to use current modules with efficiency up to 190lm/W and CRI>90. Available upon request.

Application

- main, decorative and functional lighting

Mounting

- suspended, to the surface or recessed, using dedicated accessories, properly selected screws or a dedicated mounting track
- easy assembly and disassembly by snapping in and out

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
- NCS Premium paint option - minimum order quantity 30pcs - available immediately

download

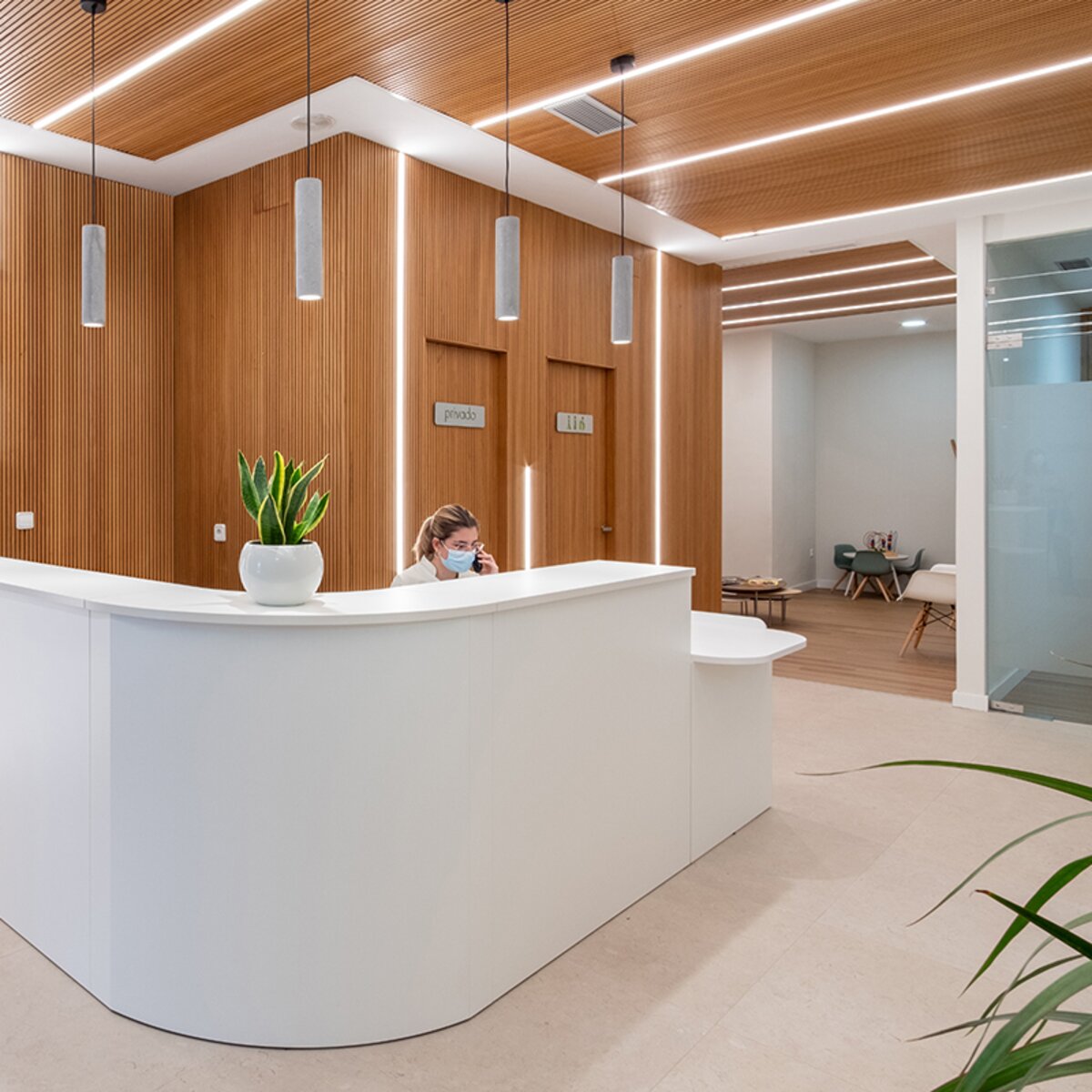

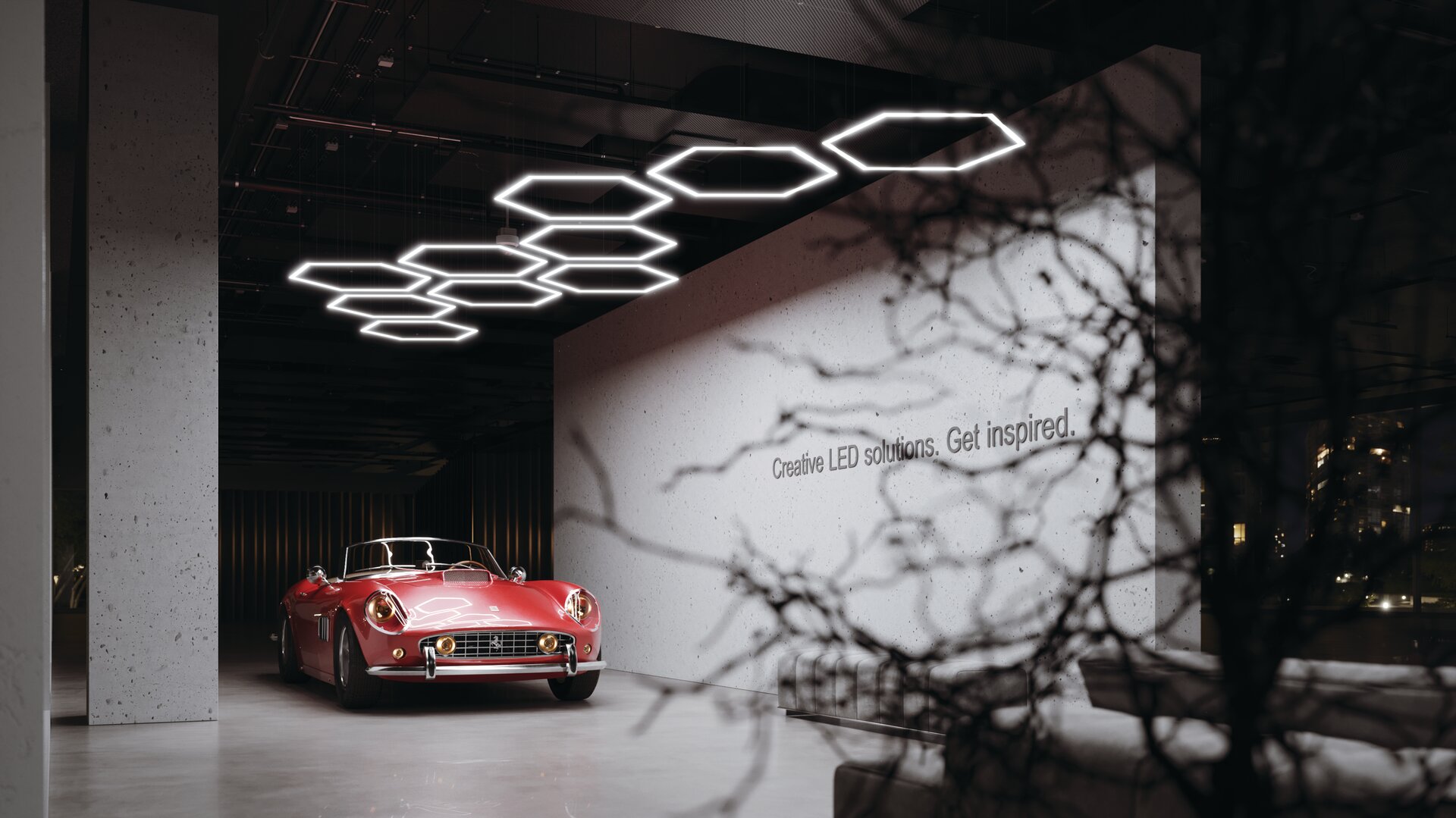

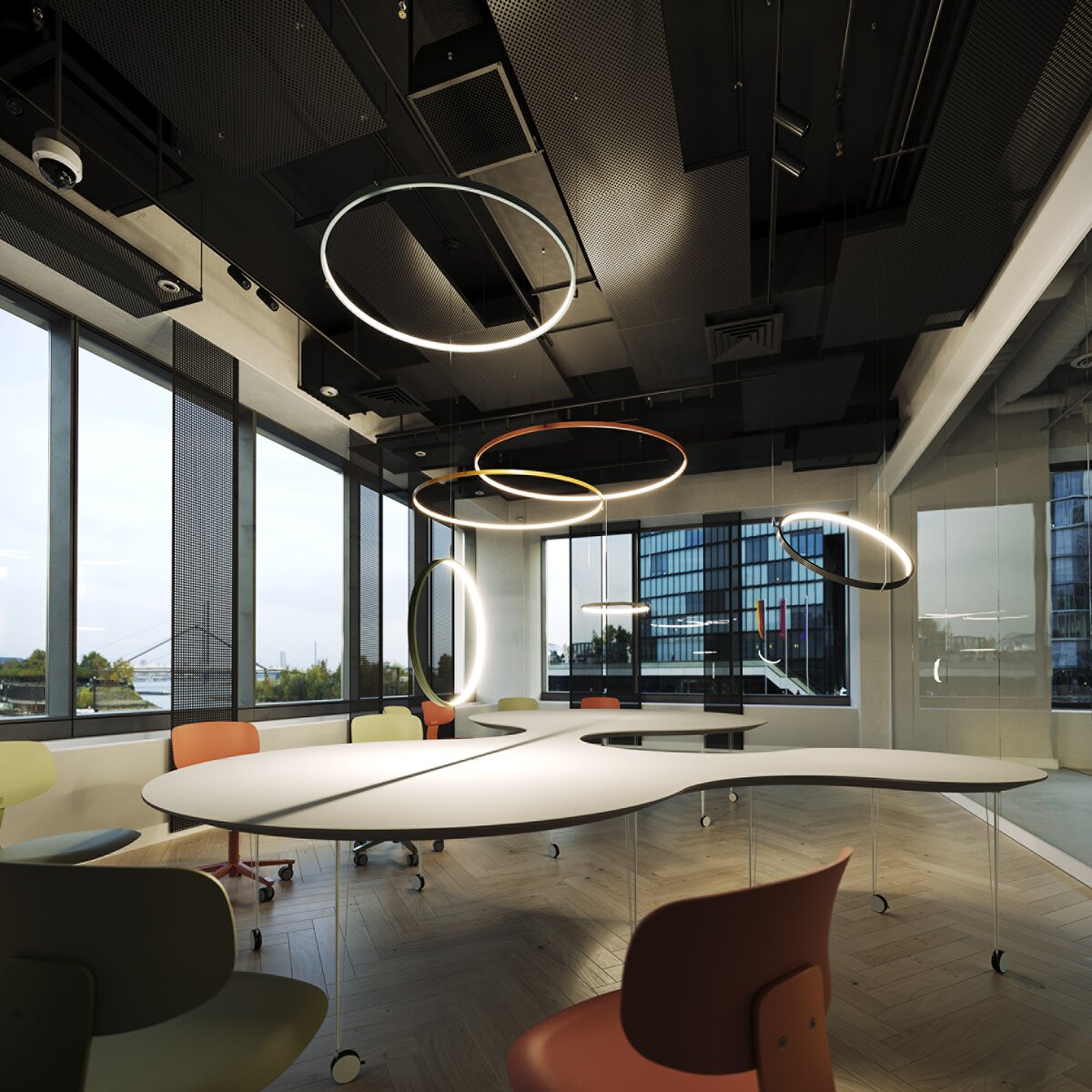

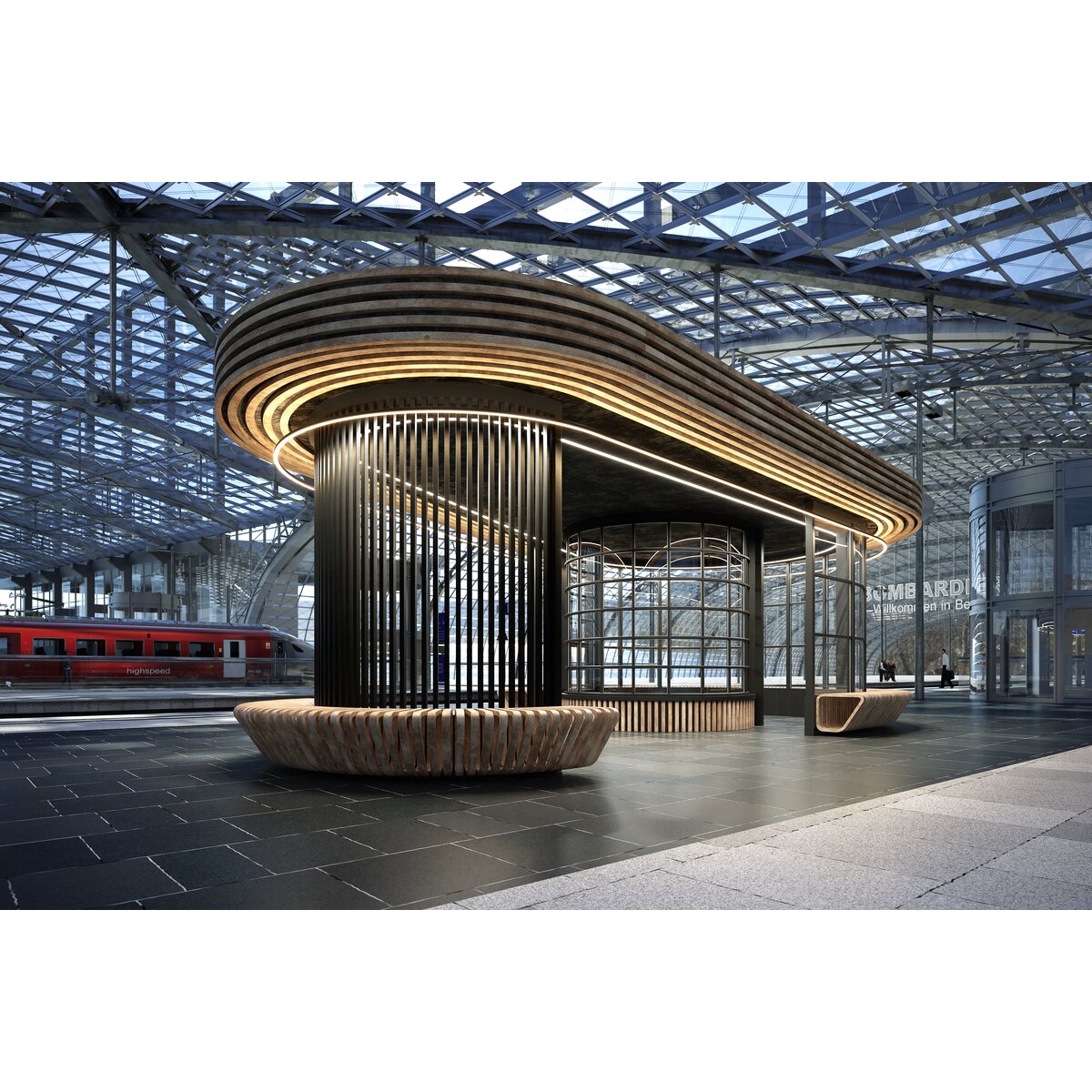

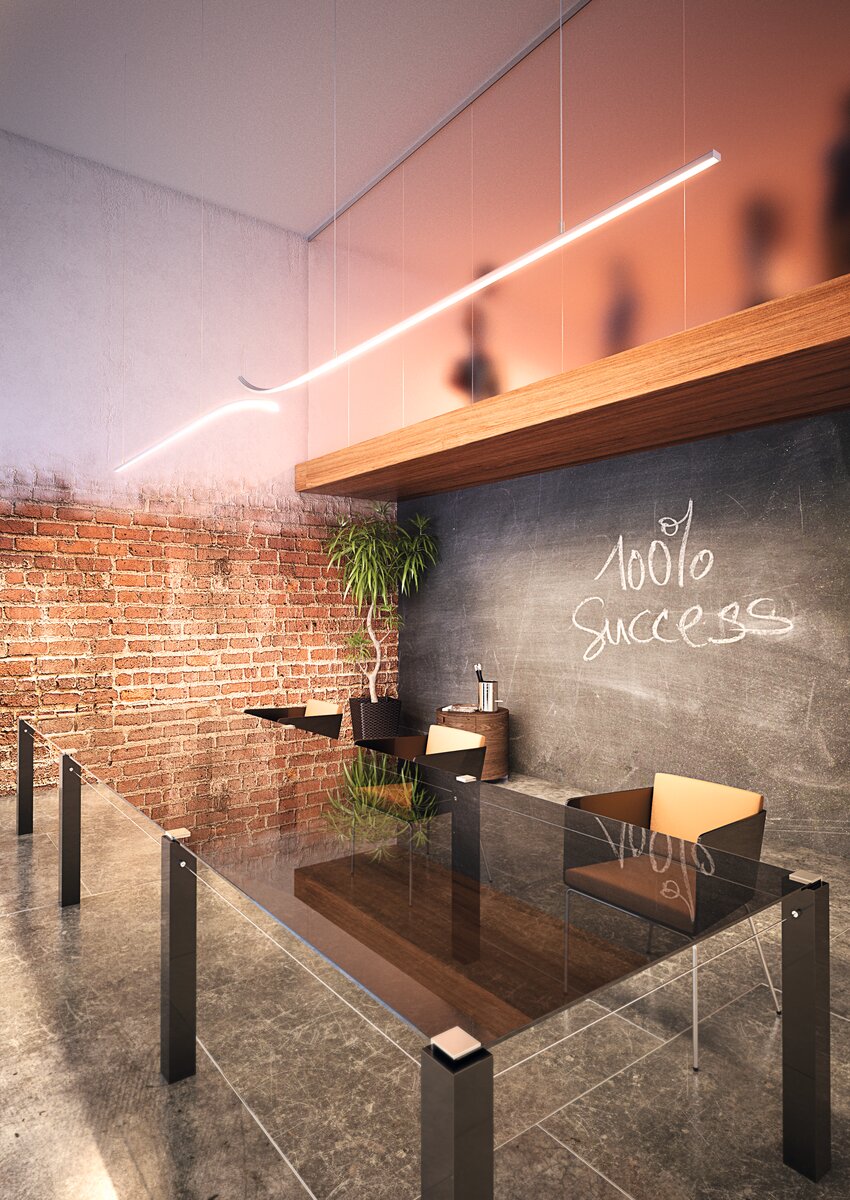

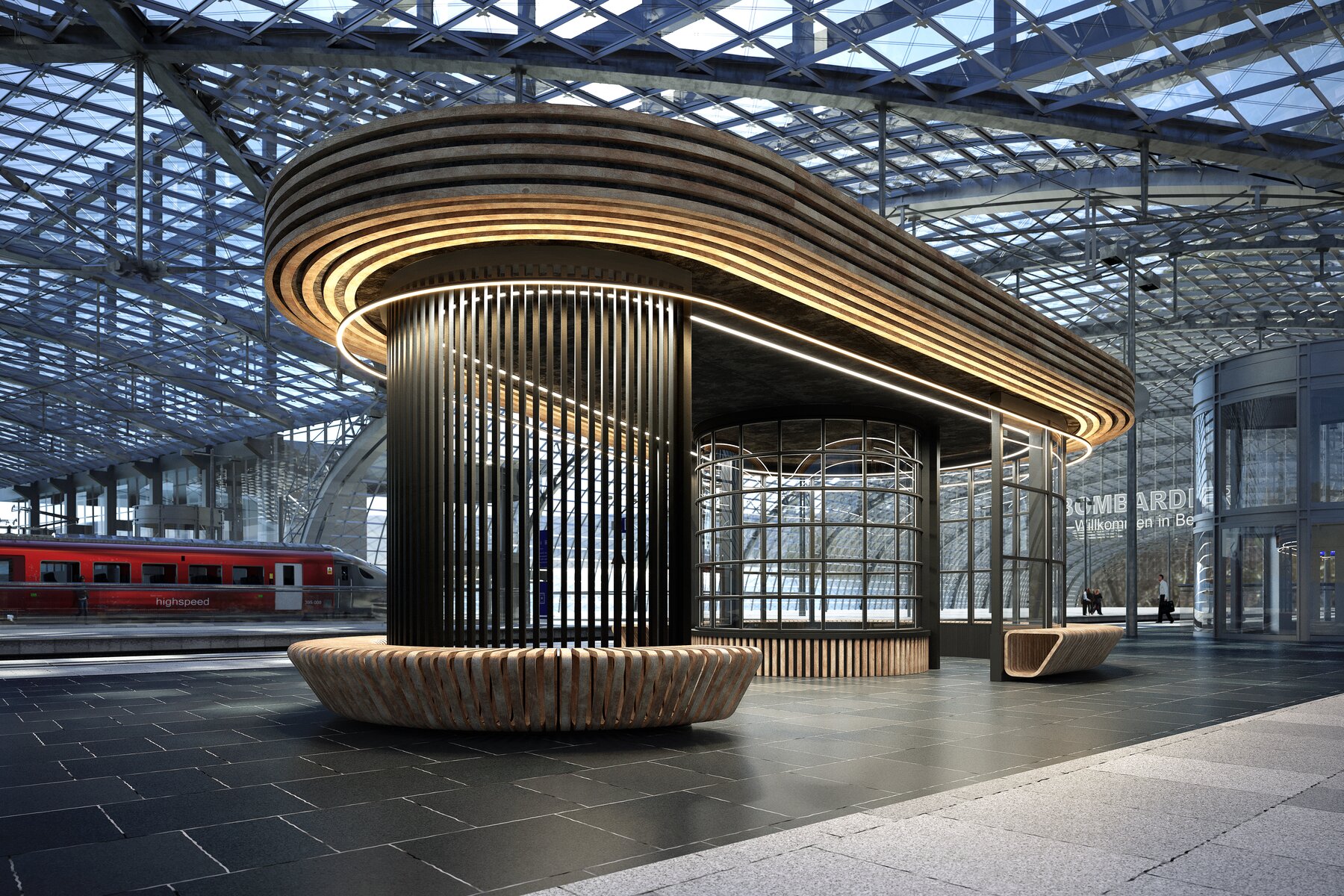

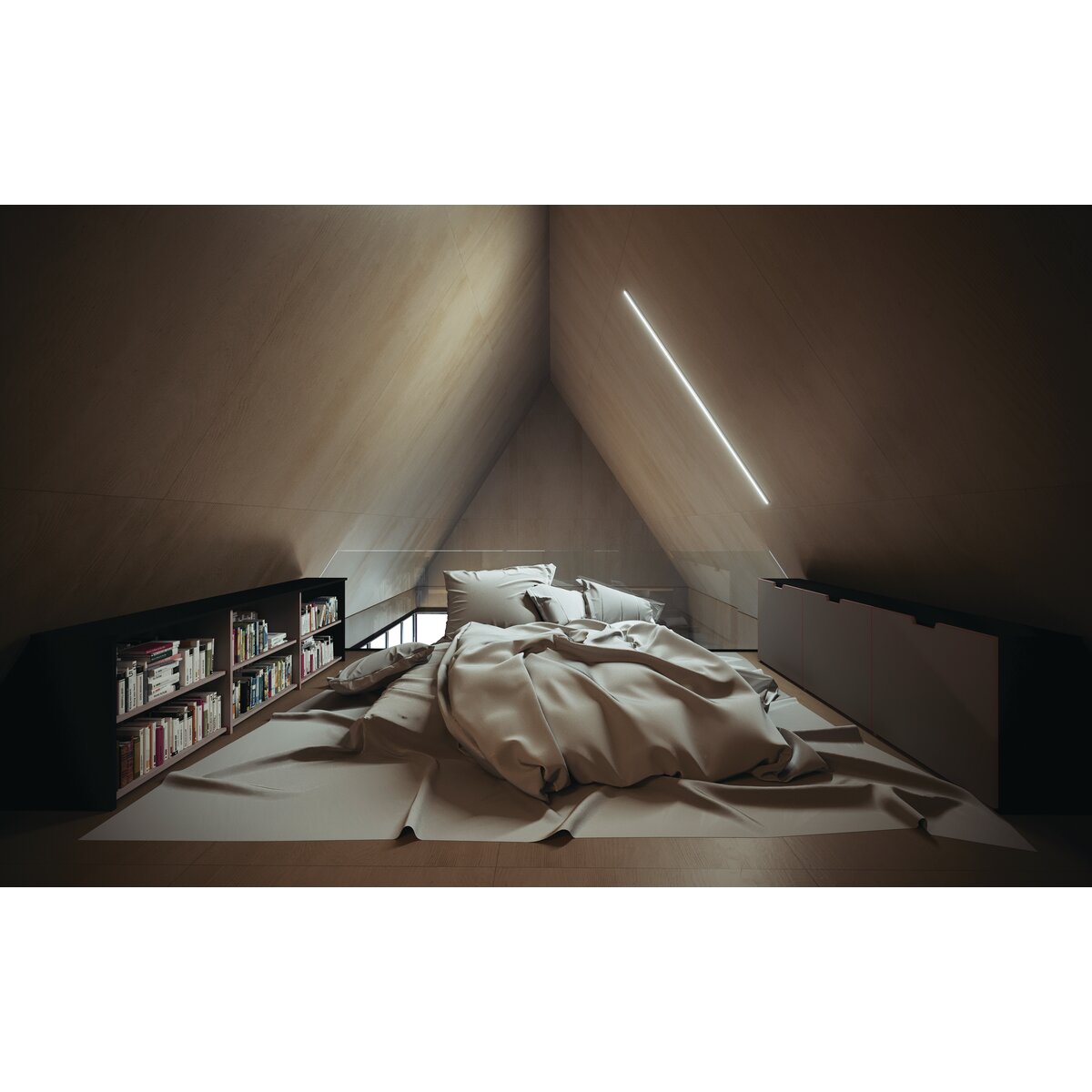

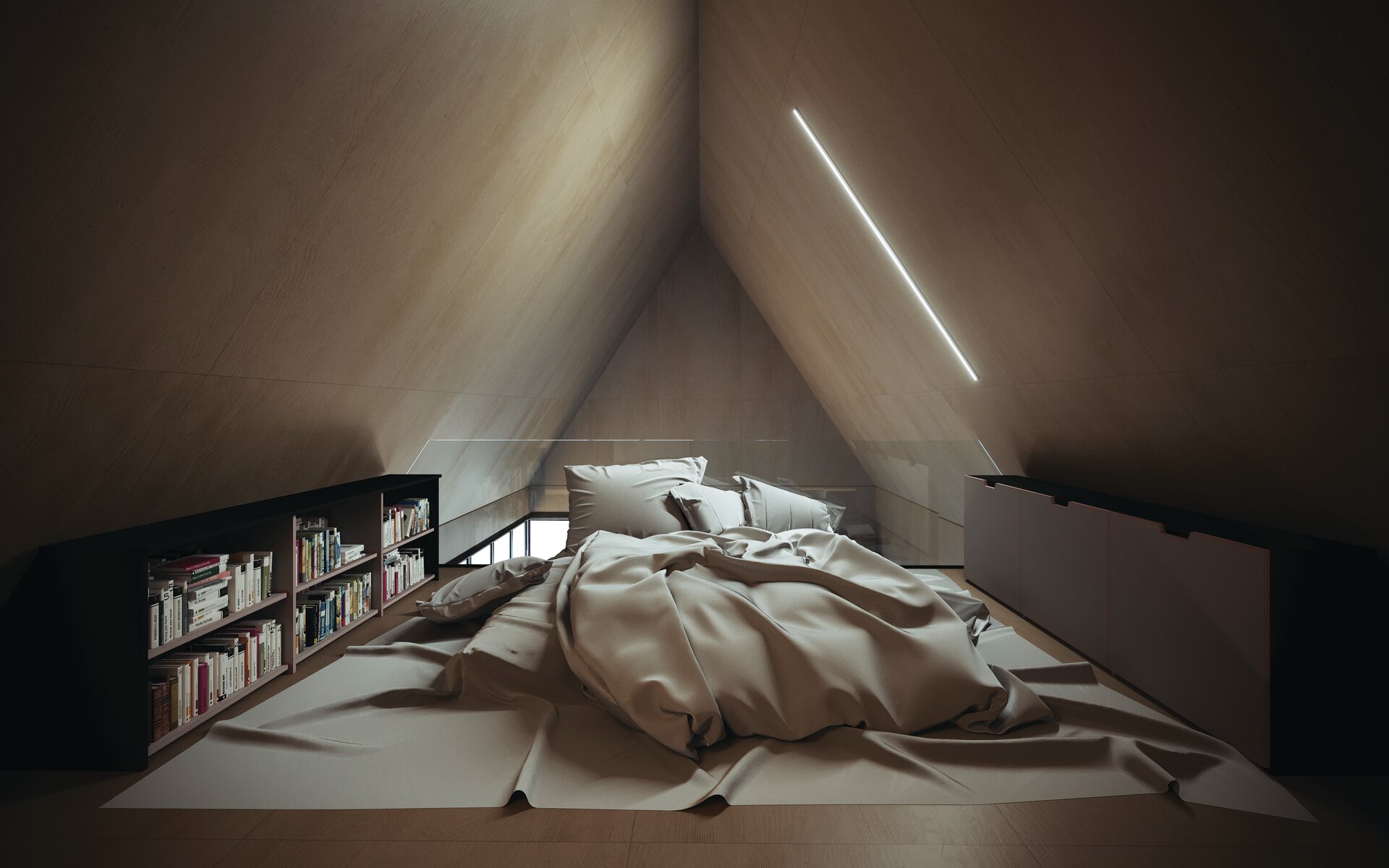

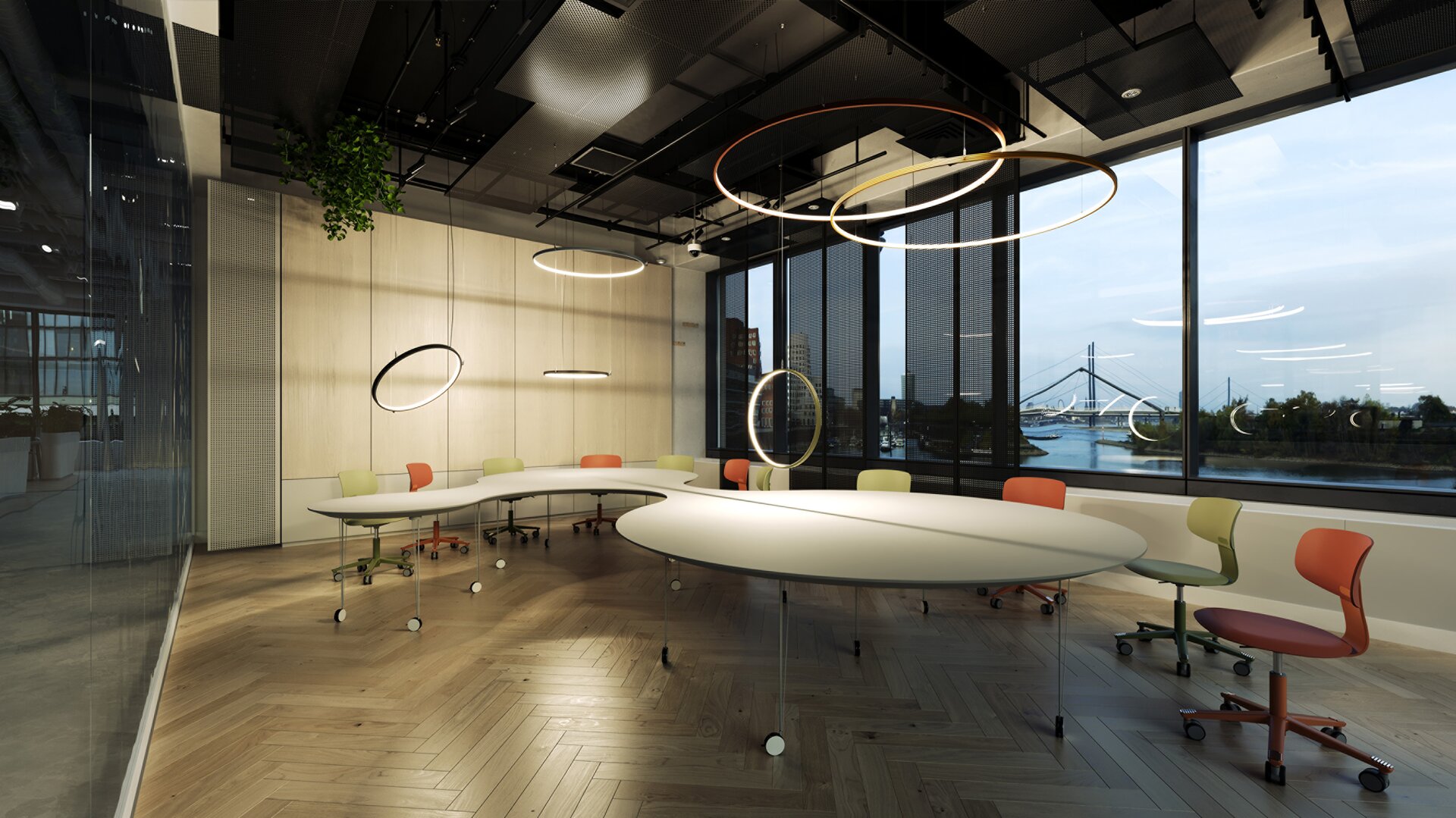

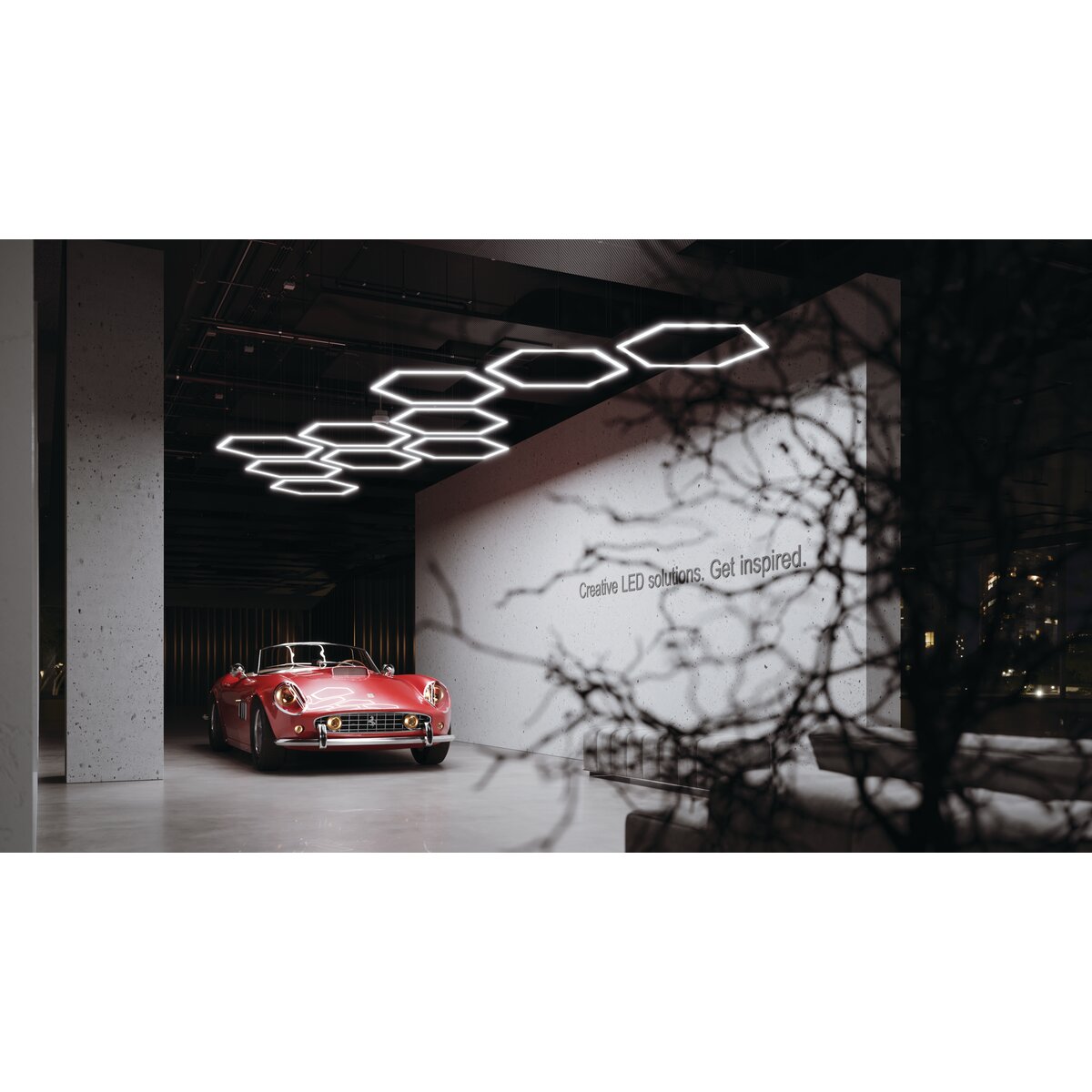

Usage examples

Description
download

Application

- main, decorative and functional lighting

Mounting

- suspended, to the surface or recessed, using dedicated accessories, properly selected screws or a dedicated mounting track
- easy assembly and disassembly by snapping in and out

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
- NCS Premium paint option - minimum order quantity 30pcs - available immediately

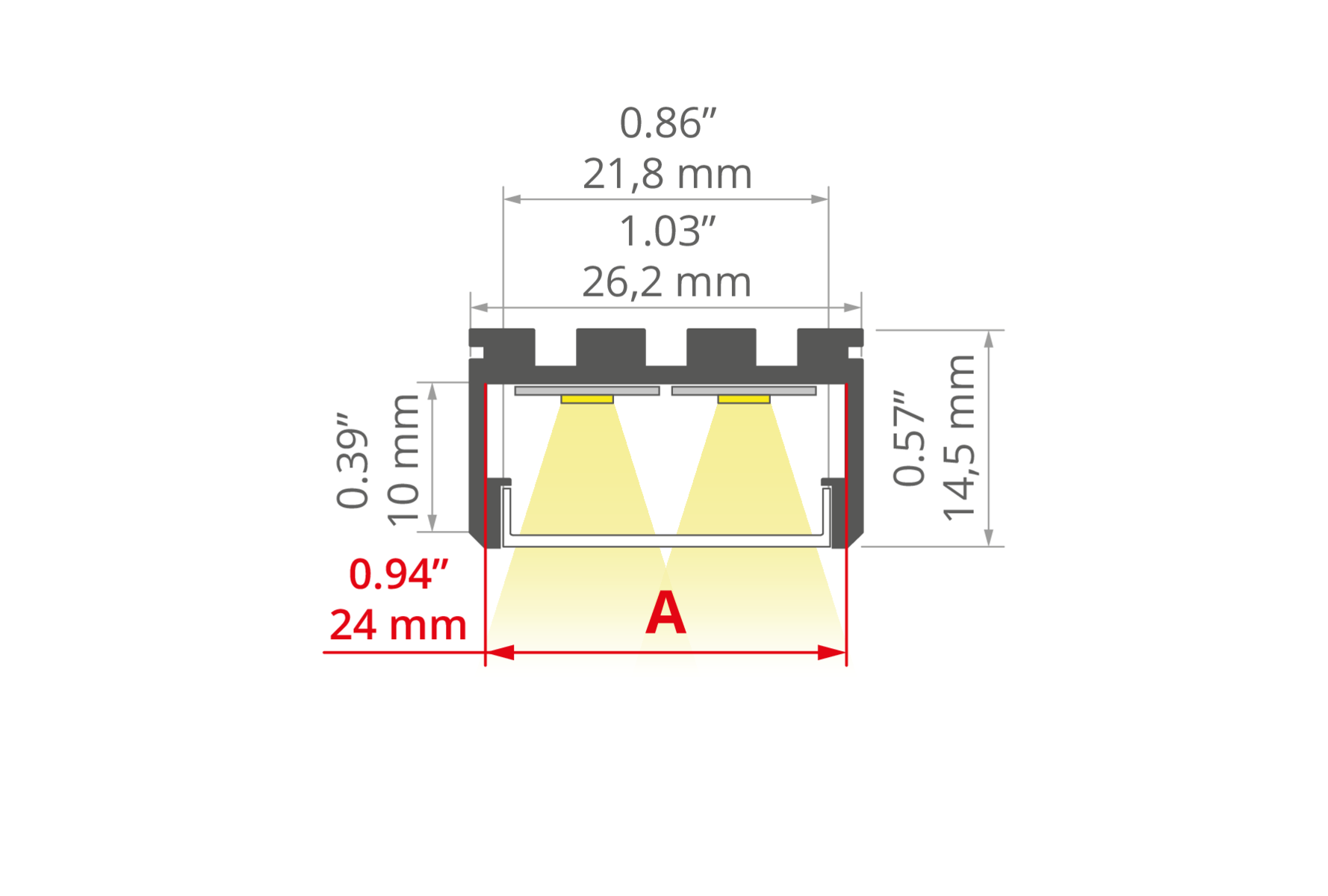

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

20, 67

Possible fixture shapes

linear, polygonal, round

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

1" (26.2 mm)

Height

0.6" (14.5 mm)

LED gluing width A

0.9" (24 mm)

Max. number of LED strips A (0.31" wide)

Lighting angle adjustment up to

150

Easy assembly and disassembly by snapping in and out

Yes

The cover is cut to the length of the profile

Yes

Can be easily connected into runs

Yes

Wire out back of extrusion

Yes

Possibility of obtaining a line of light

Yes

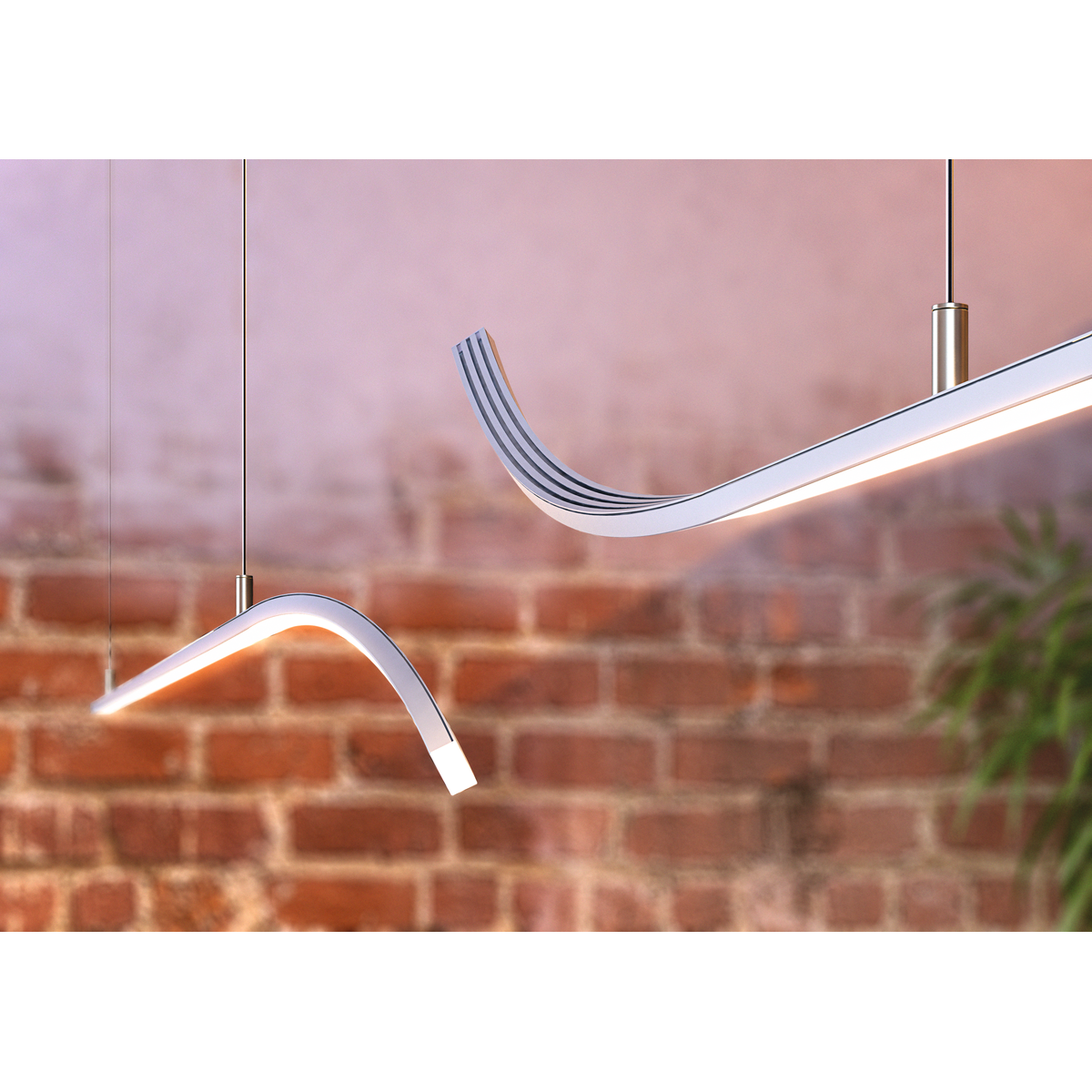

Possibility of bending

Yes

Minimum radius of the light arc

Radius of the light arc

Yes

Inside

240 mm

Outward

240 mm

Downward

1000 mm

Building type

Entertainment/ Arts, Hotel / Restaurant, Commercial, Retail

Facility zone

office, lobby / foyer, decorative, fitness / spa, media rooms / av

Color	Length	Ref No
silver anodized	39.4" (1000 mm) 78.9" (2005 mm) 118.5" (3010 mm)	A00758A_1 A00758A_2 A00758A_3
white lacquered	78.9" (2005 mm)	A00758L10OD_2
black anodized	78.9" (2005 mm)	A00758A07_2

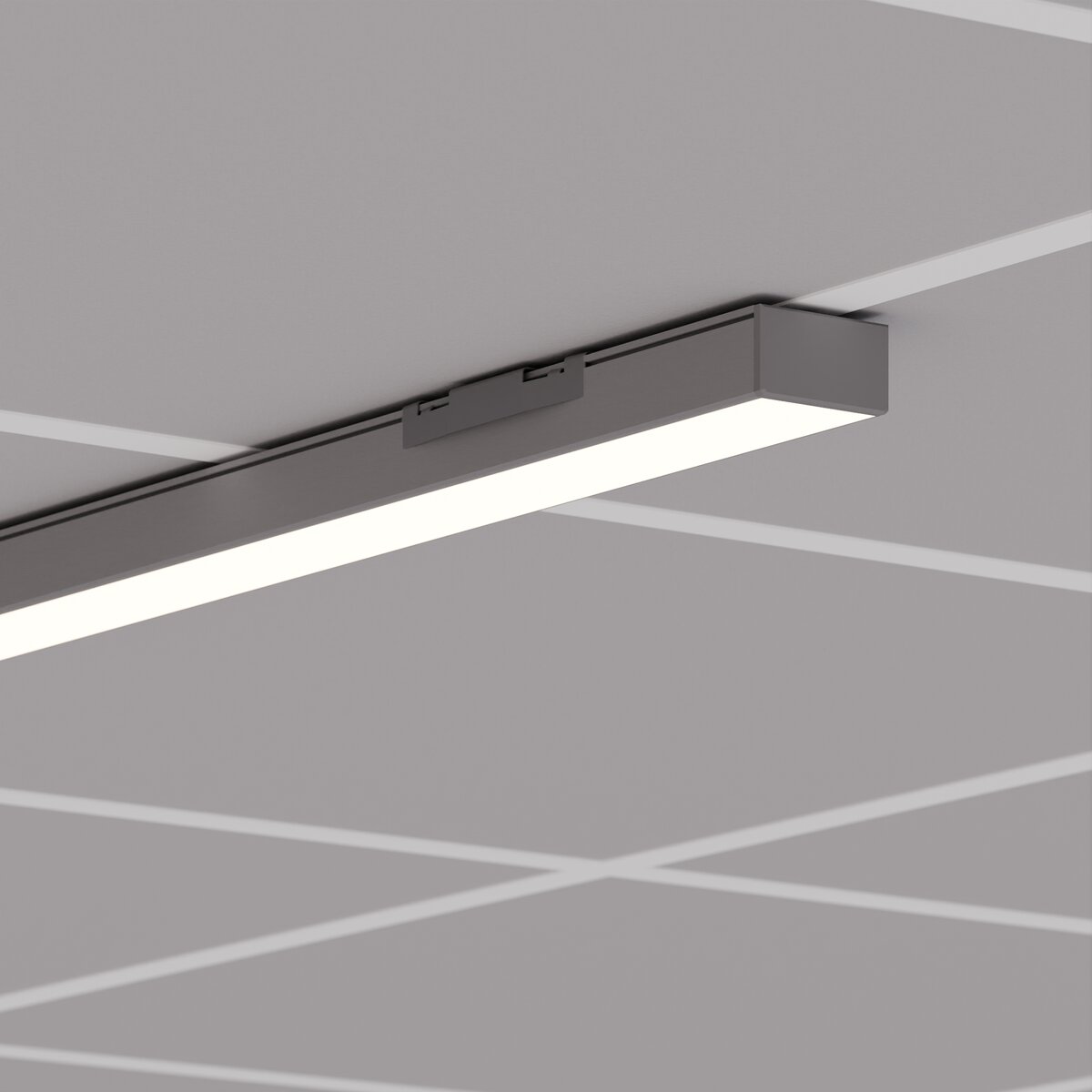

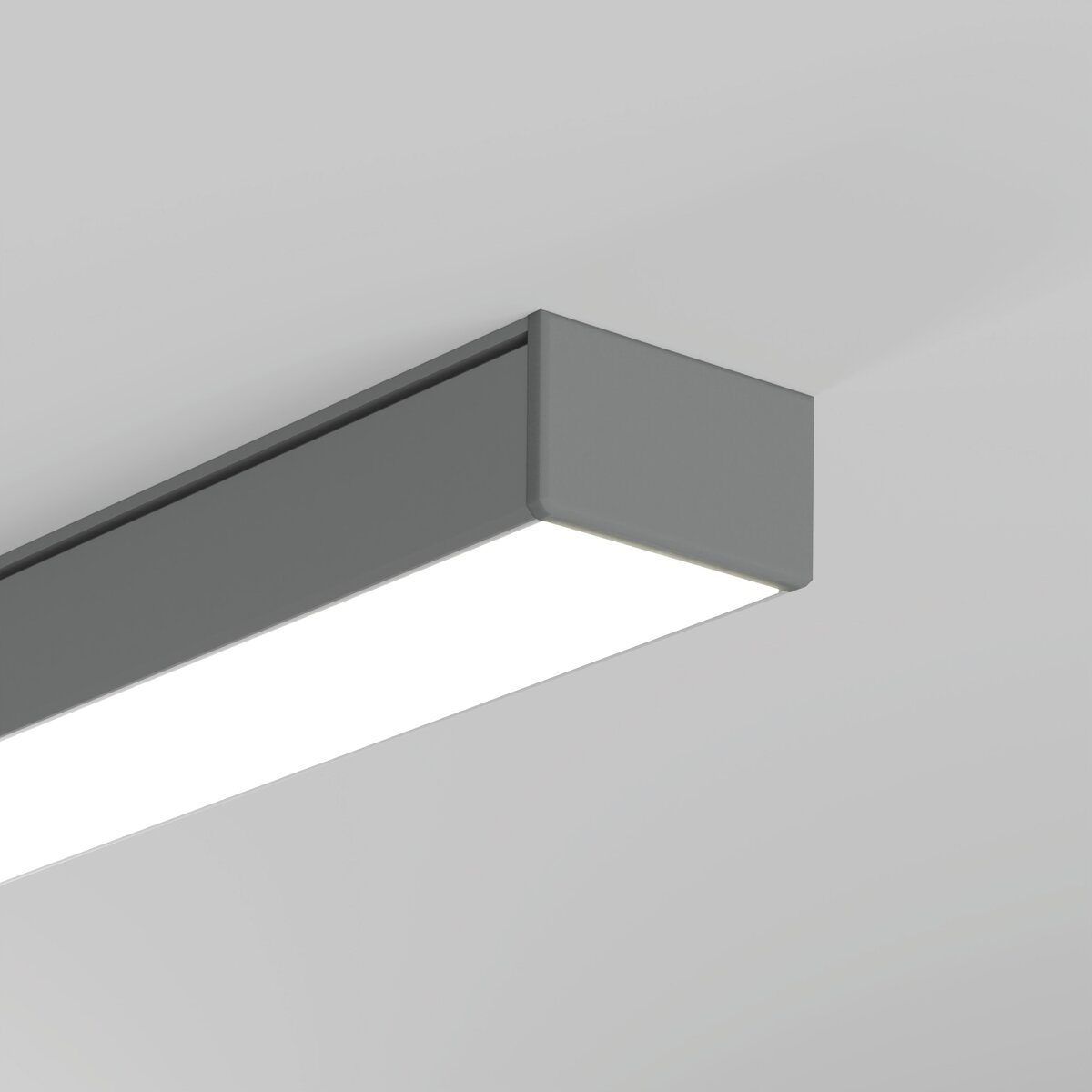

Mounting options

Line of Light Table for Pixel Free Illumination

LED Tapes		Covers
Categories	LED tape type	LIGER-22 Cover satin	HS-22 Cover frosted	G-22S Cover satin	G-22R Cover satin
High Efficacy	K-HEHD-0480-24	(2)	(2)	(1)	(1)
	K-HEHD-0960-24	(2)	(2)	(1)	(1)
	K-HEHD-1440-24	(2)	(2)	(1)	(1)
	K-HEHD-1920-24	(2)	(2)	(1)	(1)
	K-HEHD-0320-24	(2)	(2)	(1)	(1)
CRI 95+	K-CRHD-1820-24	(2)	(2)	(1)	(1)
CRI 95+	K-CRHD-1910-24	(2)	(2)	(1)	(1)
RGB / RGB-W / RGB-CTT	K-RGBW-1920-160-24	(2)	(2)	(1)	(1)
Single diode cuttable	K-SD-1440-24	(2)	(2)	(1)	(1)
Adjustable White / Dim to Warm	K-SDCR-22T50-1530-24	(2)	(2)	(1)	(1)
Adjustable White / Dim to Warm	KWP-SDCR-22T50-1530-24	(2)	(2)	(1)	(1)

Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes

Reference shapes

similar profiles
