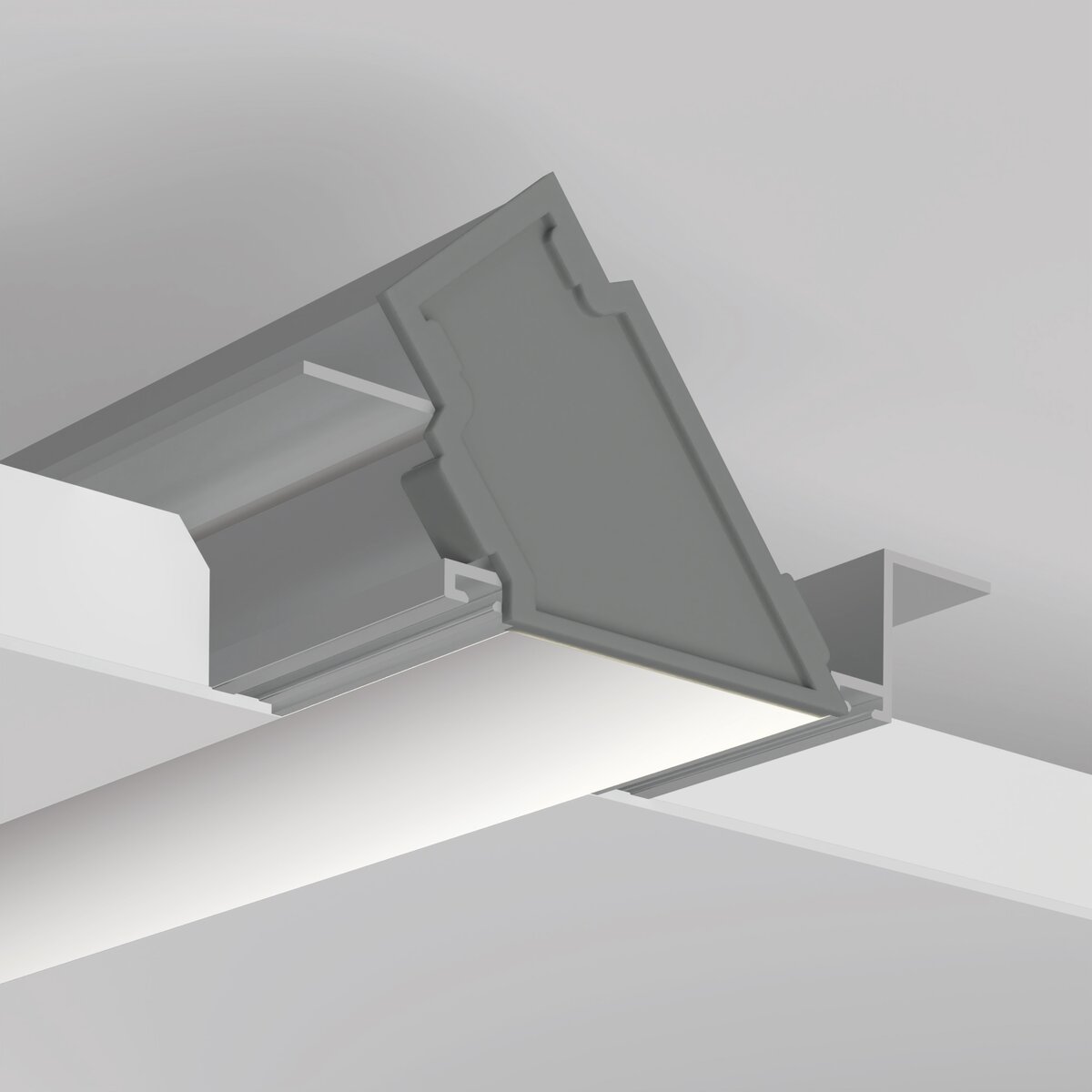

DIPOK-US Extrusion (A01233)

Compare

Compared

Linear gallery, stage or exhibition lighting
The lighting fixture integrates with the mounting surface
Hidden light source
Lighting angle: 50 Degrees
Mounting to 16 mm | 0.63" drywall
Stable mounting to a suspended ceiling

With the possibility of sealing up to IP20

Configure

WATCH INSTRUCTIONAL VIDEO

Color

Description

Linear gallery, stage or exhibition lighting
The lighting fixture integrates with the mounting surface
Hidden light source
Lighting angle: 50 Degrees
Mounting to 16 mm | 0.63" drywall
Stable mounting to a suspended ceiling

Application

- decorative lighting and functional

Mounting

- in drywall, with screws

Additional information

- the best results are achieved by using a single LED strip centrally placed in a fixture with a transparent cover
- in order to protect the lighting fixture during installation, a TECH-22 protective insert should be used
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

Usage examples

Description
download

Application

- decorative lighting and functional

Mounting

- in drywall, with screws

Additional information

- the best results are achieved by using a single LED strip centrally placed in a fixture with a transparent cover
- in order to protect the lighting fixture during installation, a TECH-22 protective insert should be used
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

Declaration of Conformity UKCA

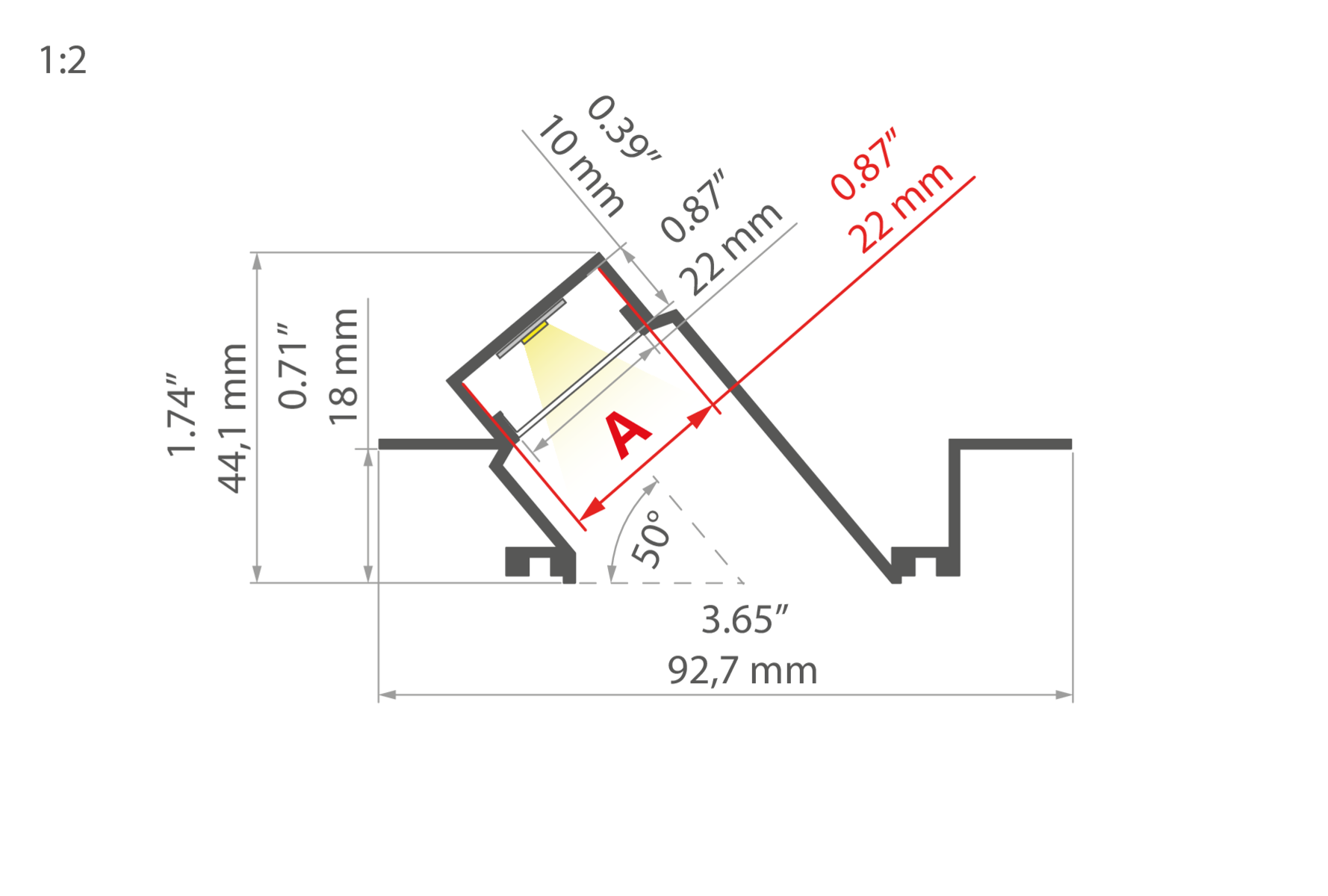

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

Possible fixture shapes

linear, polygonal

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

3.6" (92.7 mm)

Height

1.7" (44.1 mm)

LED gluing width A

0.9" (22 mm)

Max. number of LED strips A (0.31" wide)

Lighting at an angle

The cover is cut to the length of the profile

Yes

Can be easily connected into runs

Yes

Mounting to drywall

Yes

To cover with plaster

Yes

Wire out back of extrusion

Yes

Possibility of obtaining a line of light

Yes

Building type

Entertainment/ Arts, Retail, Hotel / Restaurant

Facility zone

exhibition / tradeshow / display

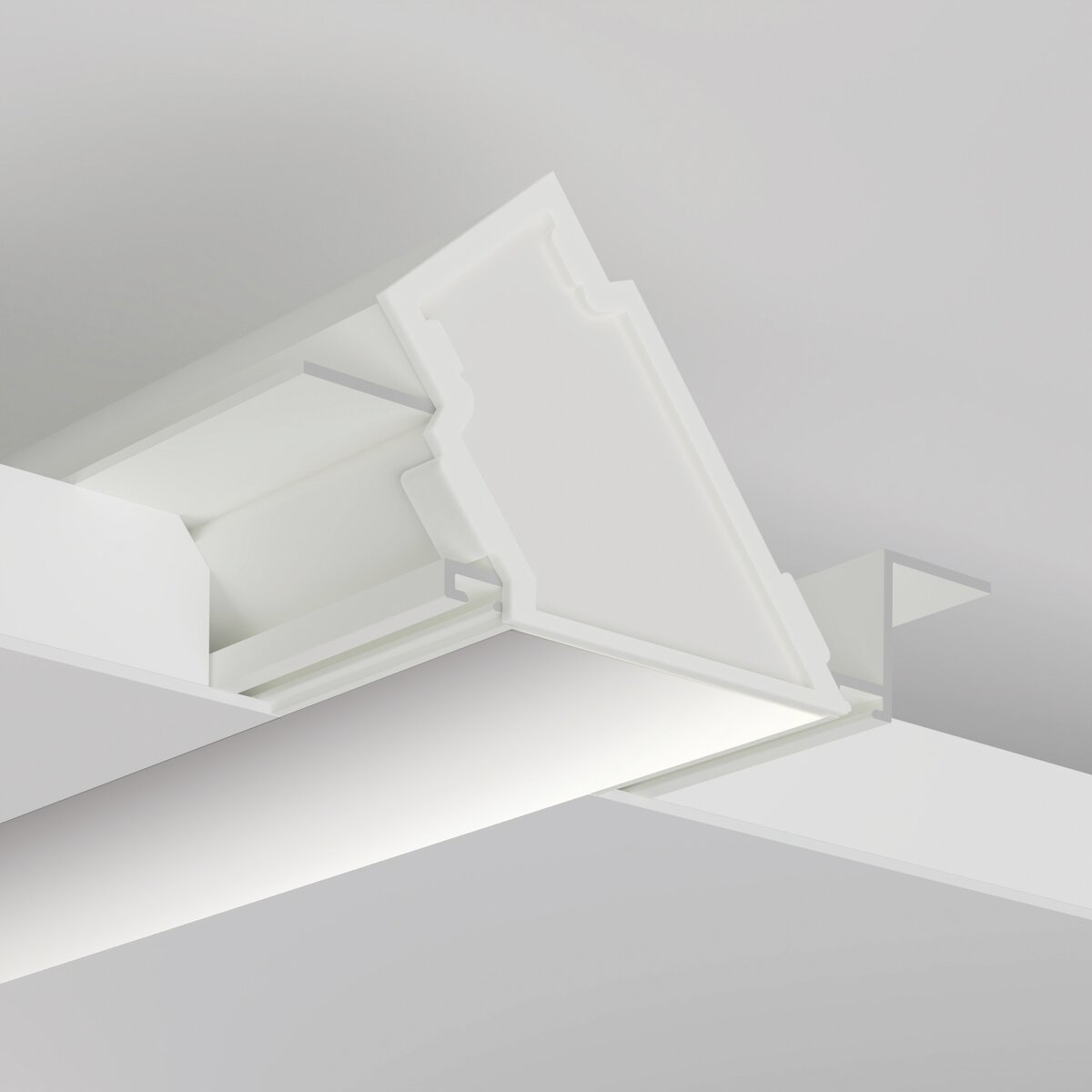

Color	Length	Ref No
silver non anodized	39.4" (1000 mm) 78.9" (2005 mm) 118.5" (3010 mm)	A01233N_1 A01233N_2 A01233N_3
white lacquered	78.9" (2005 mm) 118.5" (3010 mm)	A01233L10OD_2 A01233L10OD_3

Line of Light Table for Pixel Free Illumination

LED Tapes		Covers
Categories	LED tape type	HS-22 Cover frosted	LIGER-22 Cover satin
High Efficacy	K-HEHD-0480-24	(2)	(2)
	K-HEHD-0960-24	(2)	(2)
	K-HEHD-1440-24	(2)	(2)
	K-HEHD-1920-24	(2)	(2)
	K-HEHD-0320-24	(2)	(2)
RGB / RGB-W / RGB-CTT	K-RGBW-1920-160-24	(2)	(2)

Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
