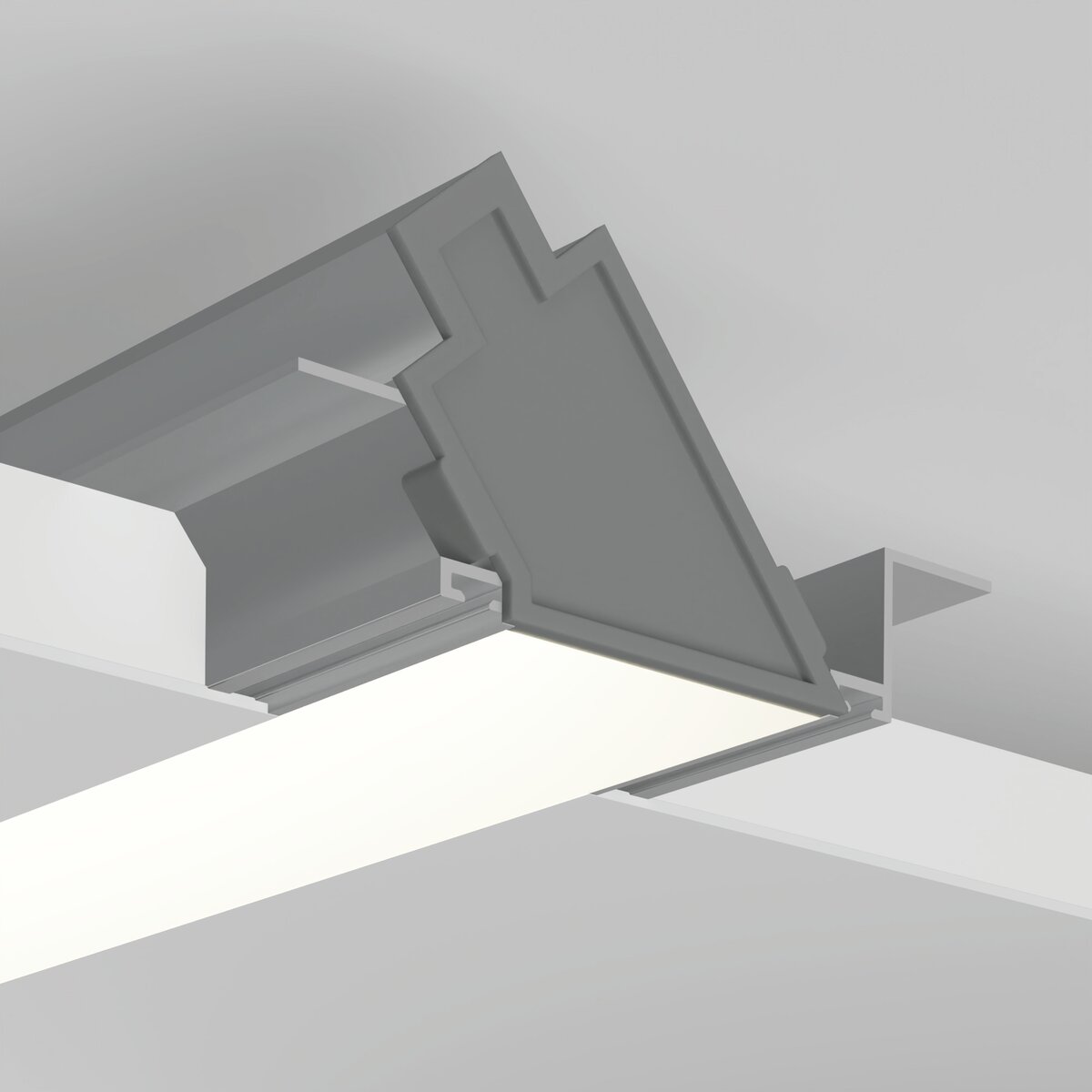

POK-US Extrusion (A01234) | KlusDesign.com

Compare

Compared

Linear gallery, stage or exhibition lighting
The lighting fixture integrates with the mounting surface
Hidden light source
Lighting angle: 50 Degrees
Mounting to 16 mm | 0.63" drywall

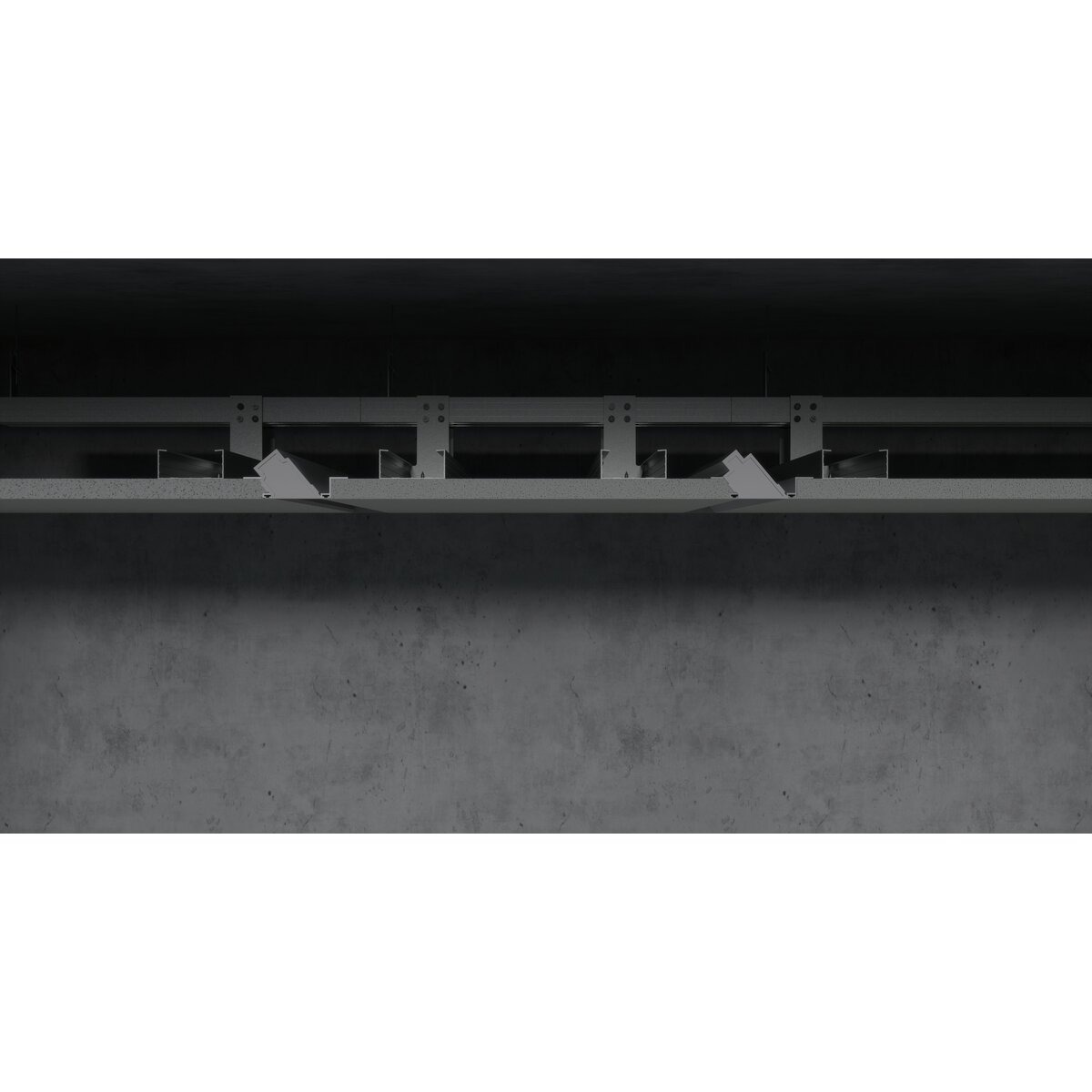

Stable mounting to a suspended ceiling

With the possibility of sealing up to IP20

Configure

WATCH INSTRUCTIONAL VIDEO

Color

Description

Linear gallery, stage or exhibition lighting
The lighting fixture integrates with the mounting surface
Hidden light source
Lighting angle: 50 Degrees
Mounting to 16 mm | 0.63" drywall
Stable mounting to a suspended ceiling

Application

- decorative lighting and functional

Mounting

- in drywall, with screws

Additional information

- in order to protect the lighting fixture during installation, a TECH-KA protective insert should be used
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
- the best results are achieved by using a single LED strip centrally placed in a fixture with a transparent cover

download

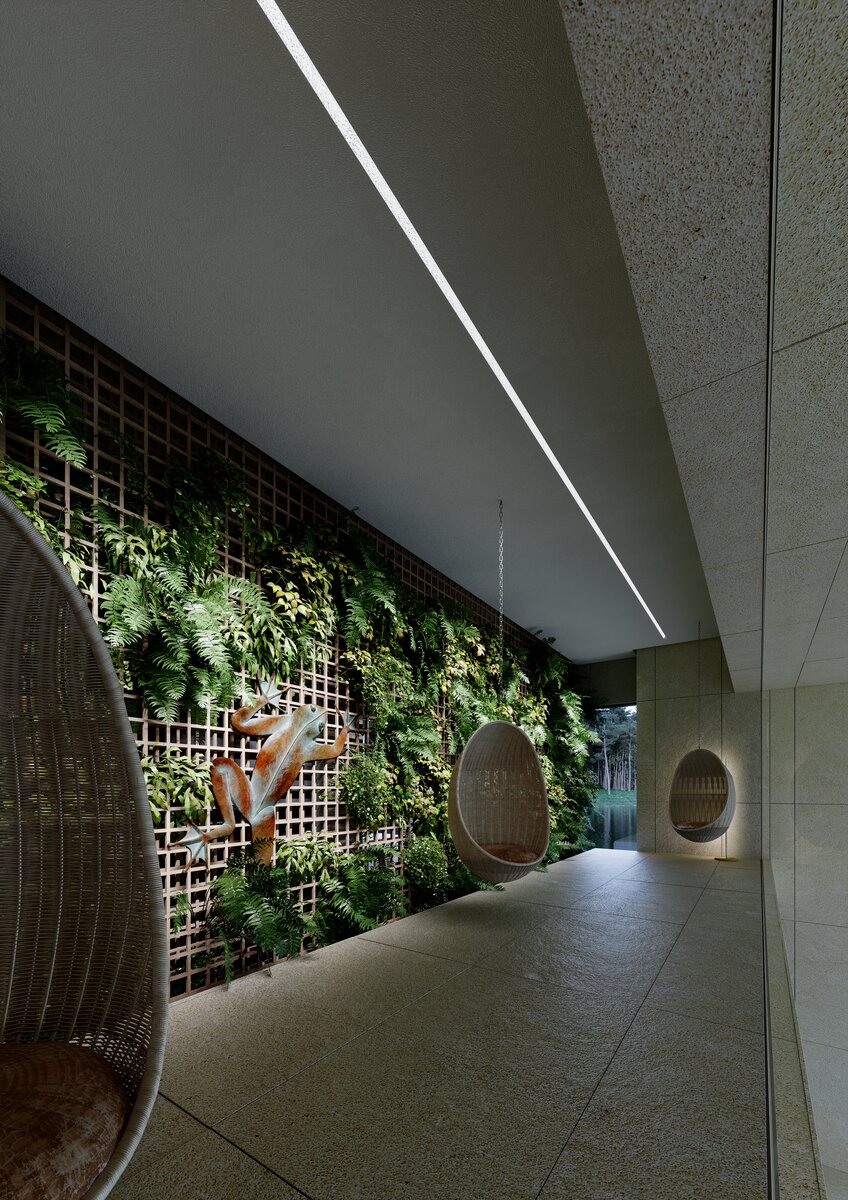

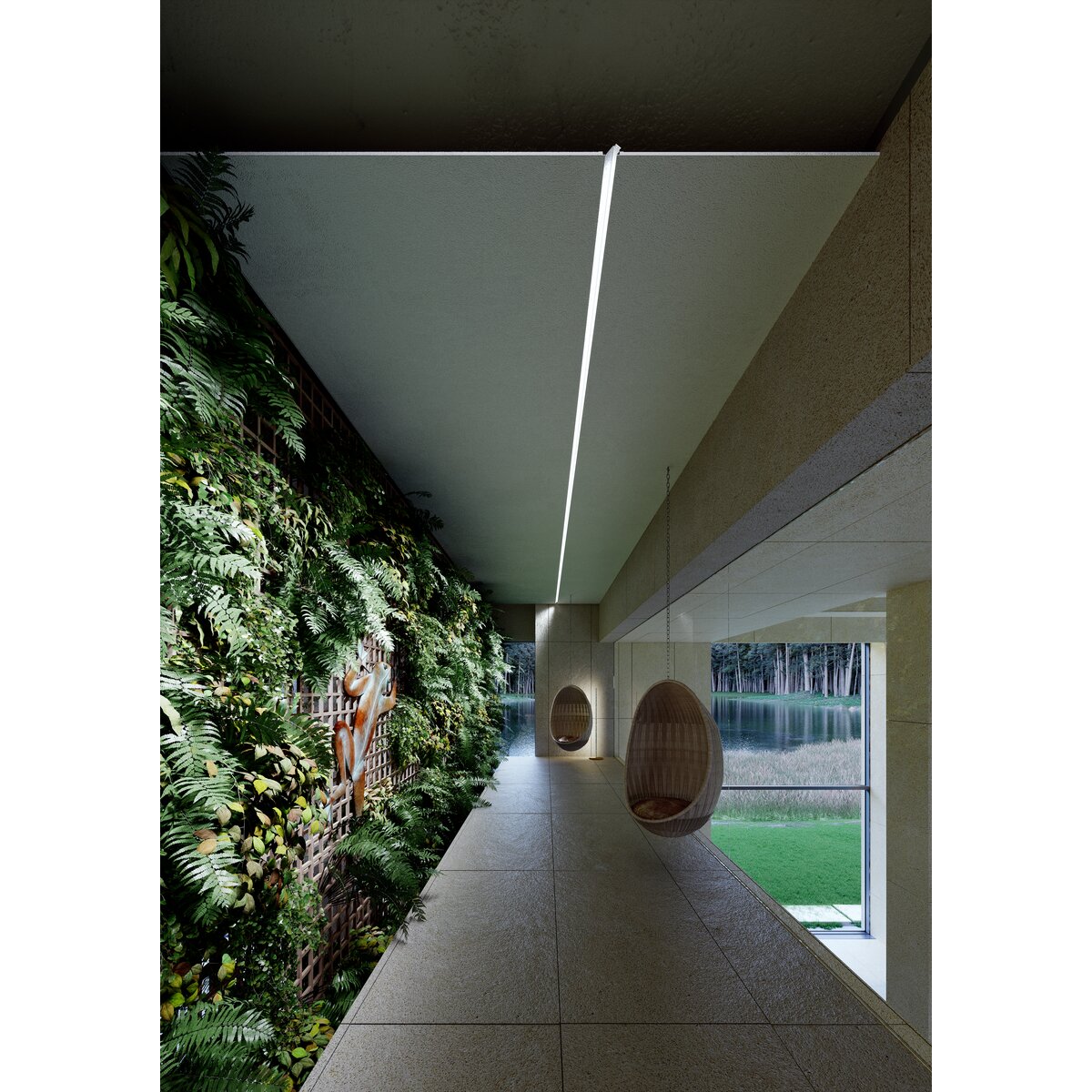

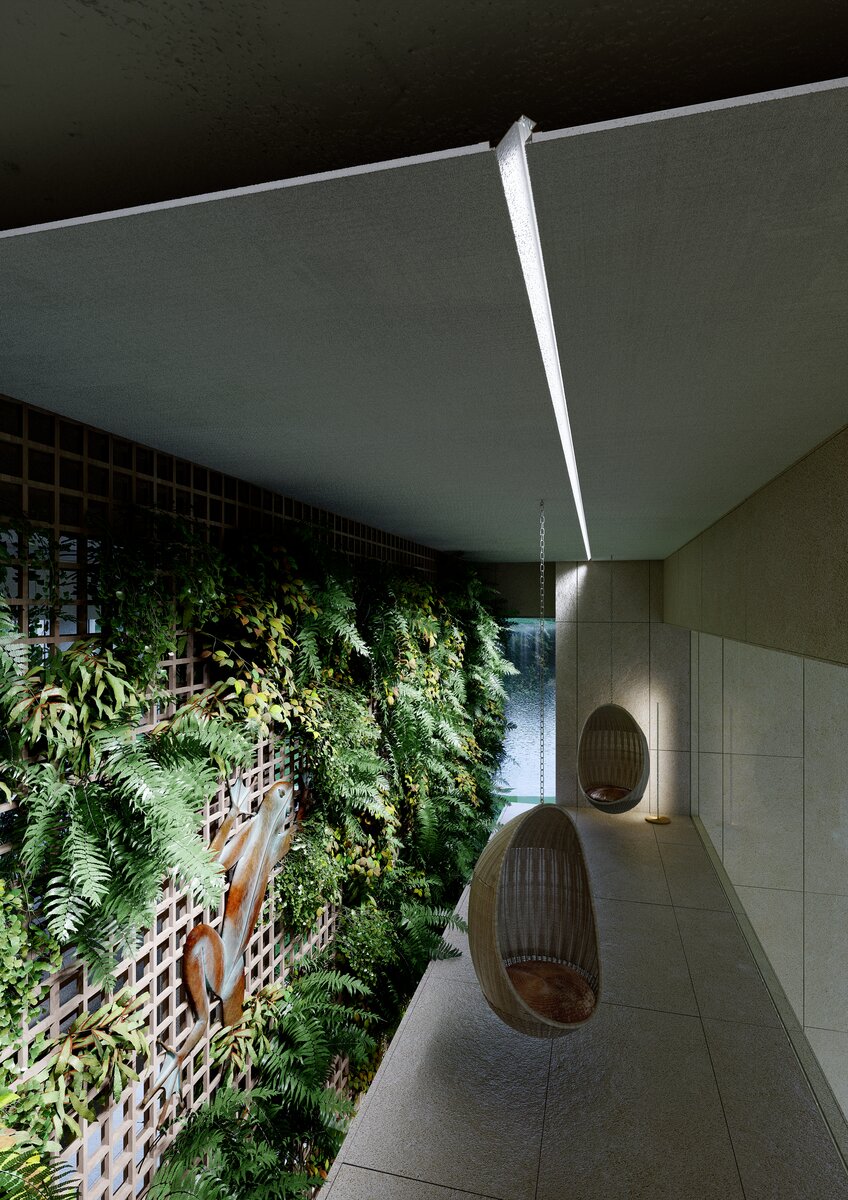

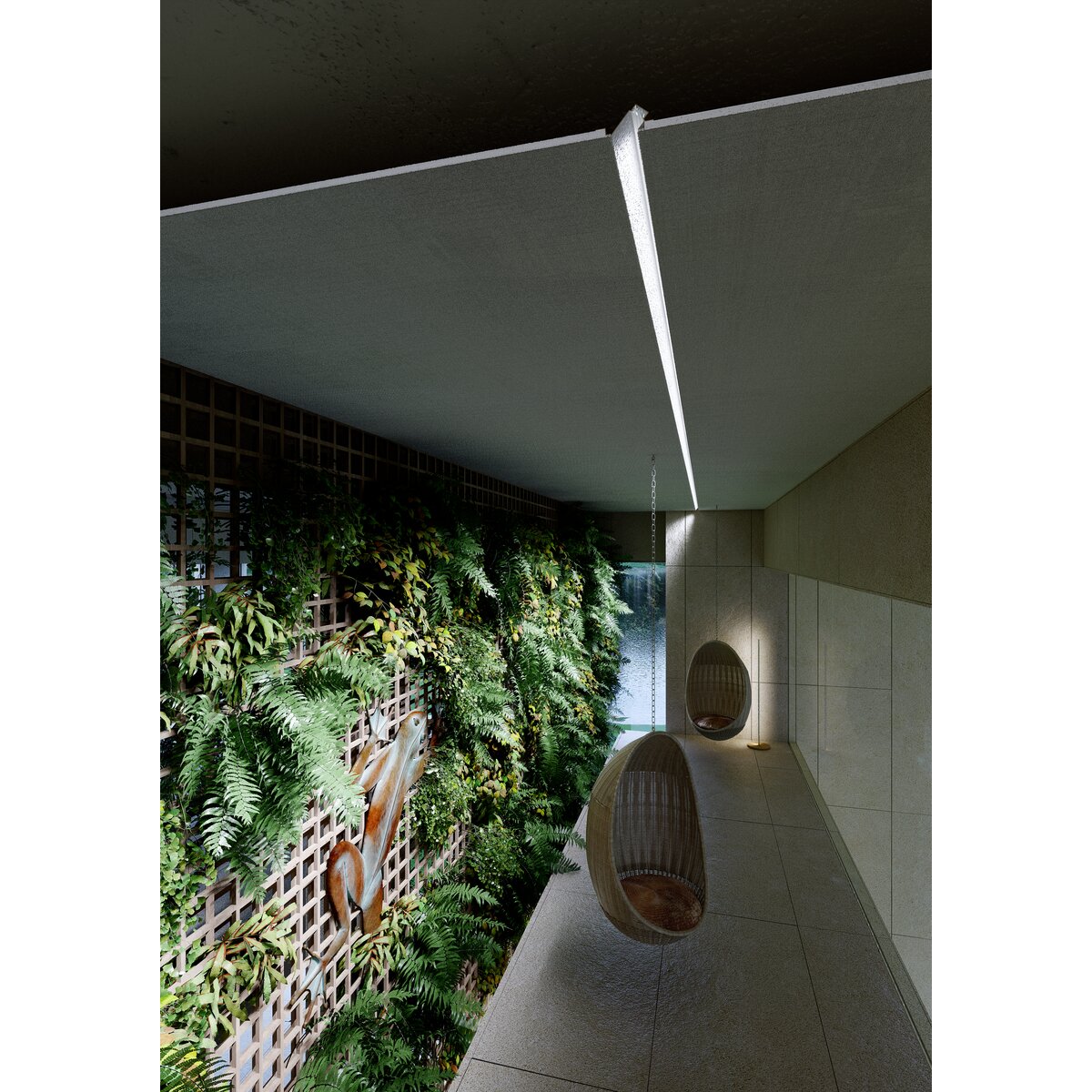

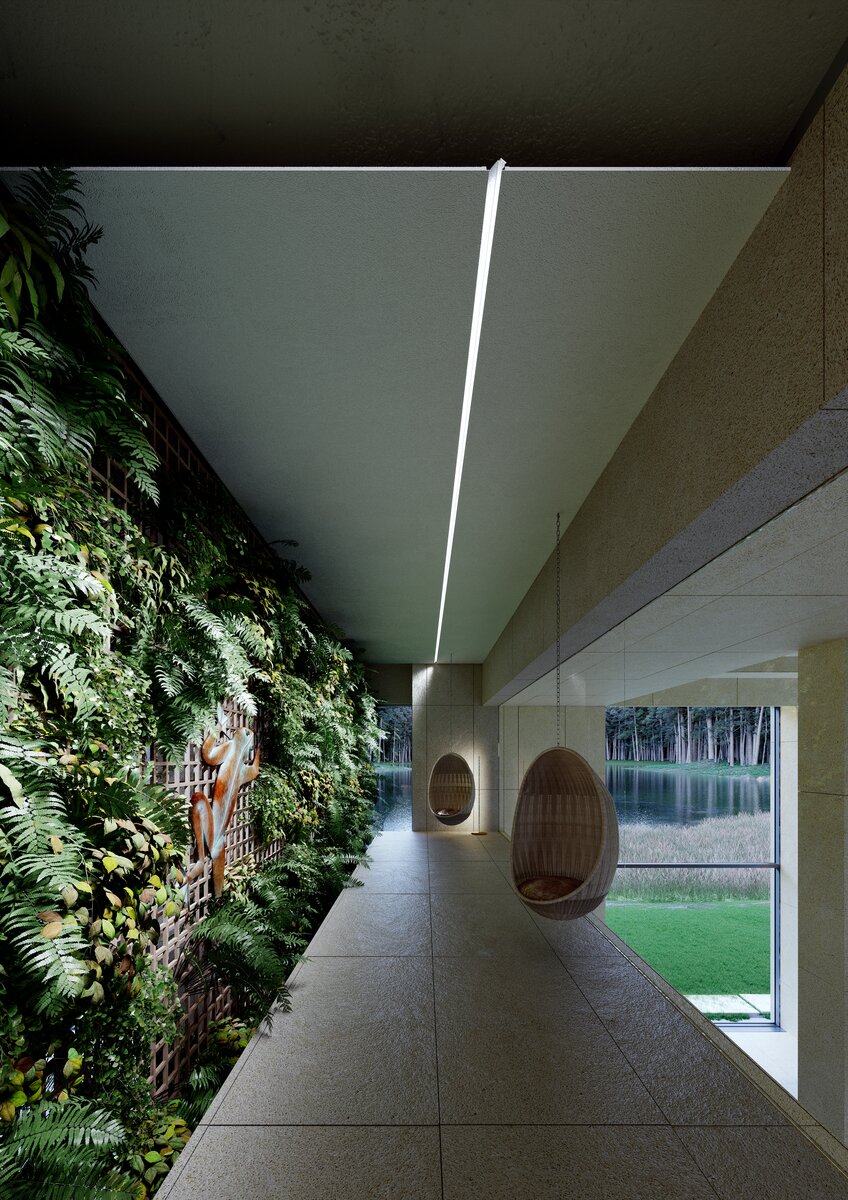

Usage examples

Description
download

Application

- decorative lighting and functional

Mounting

- in drywall, with screws

Additional information

- in order to protect the lighting fixture during installation, a TECH-KA protective insert should be used
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
- the best results are achieved by using a single LED strip centrally placed in a fixture with a transparent cover

Technical drawing

Technical specification

Finish

lacquered

Material

aluminum

Possible fixture IP

Possible fixture shapes

linear, polygonal

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

3.6" (92 mm)

Height

1.7" (44.2 mm)

LED gluing width A

0.5" (12 mm)

Max. number of LED strips A (0.31" wide)

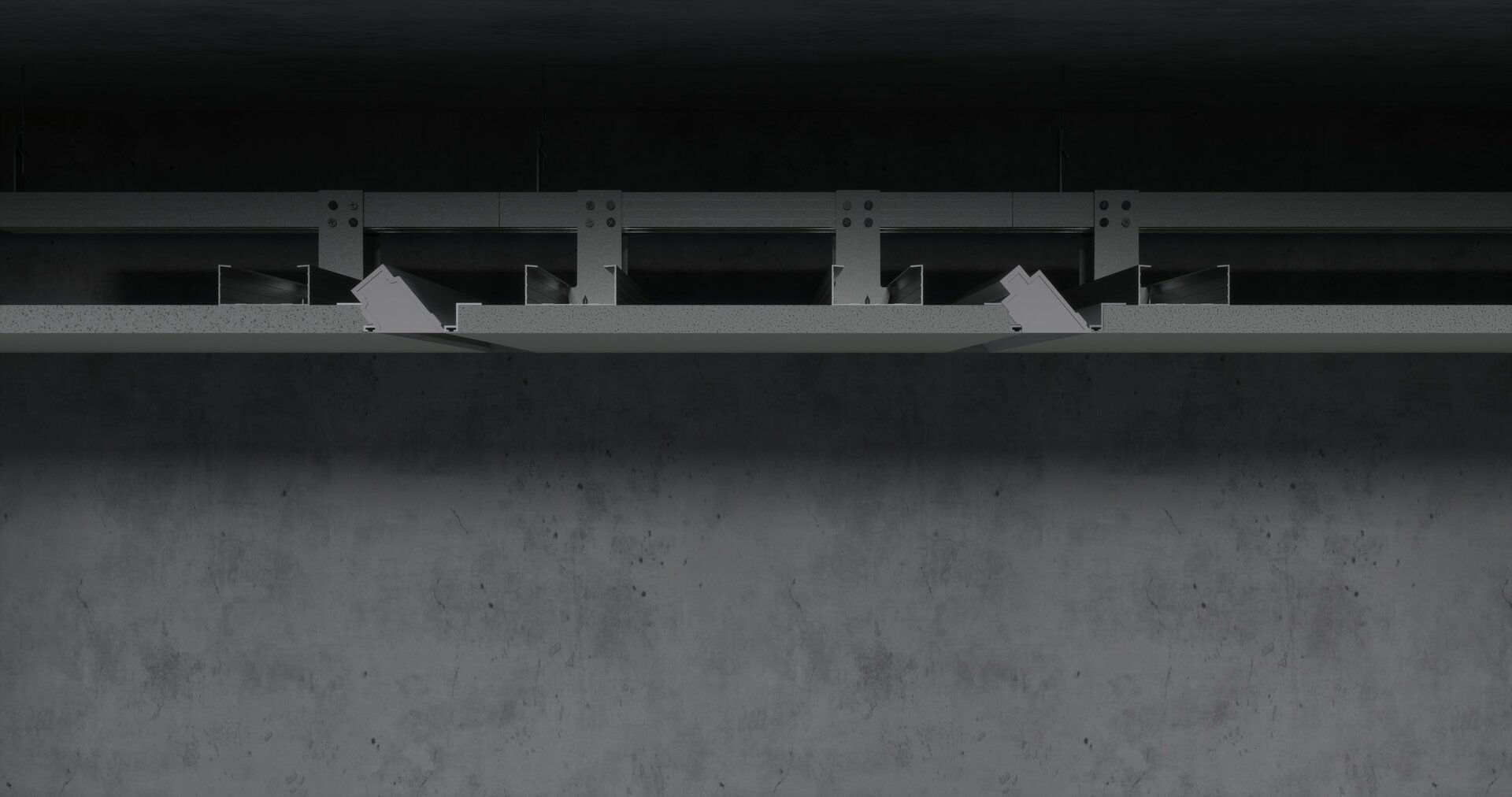

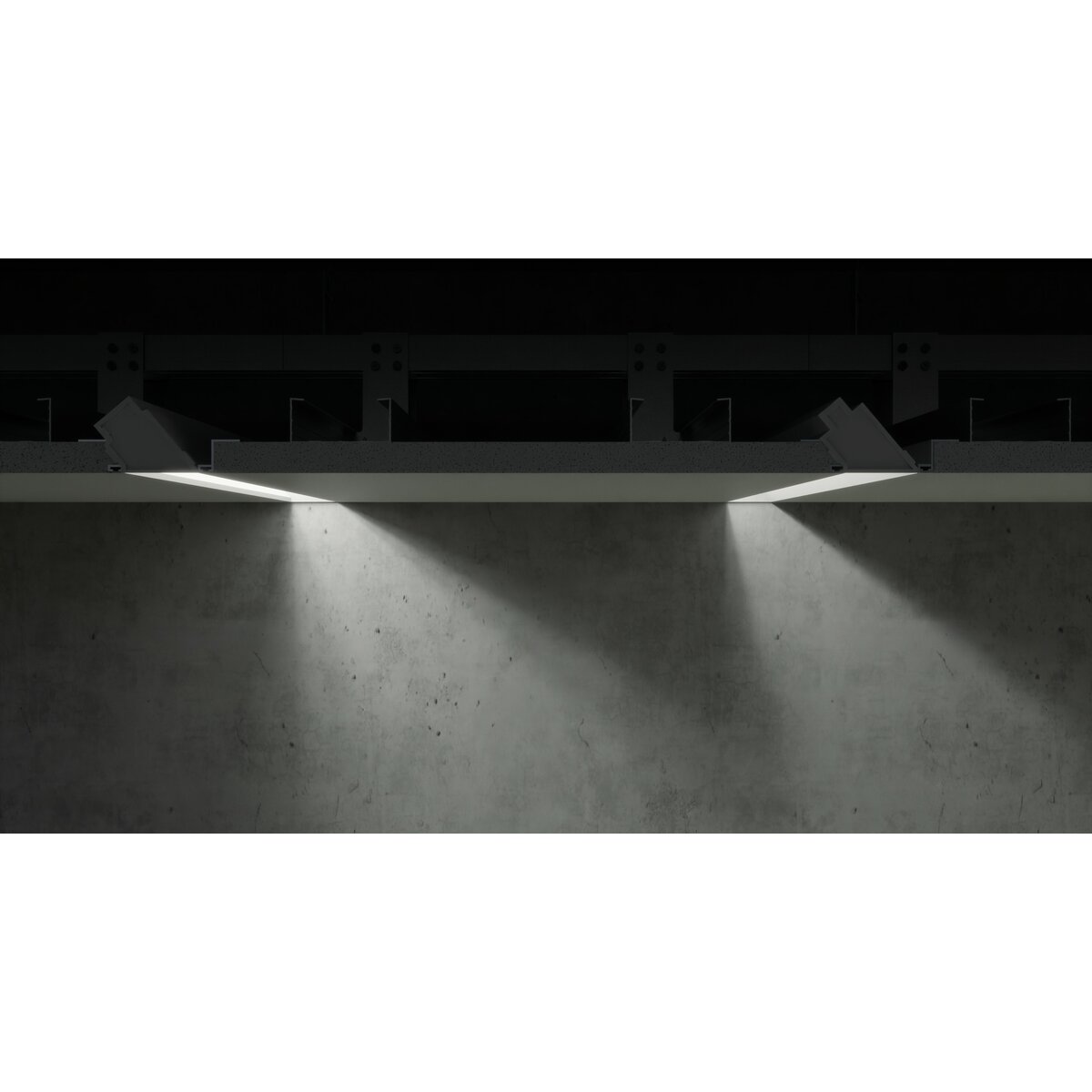

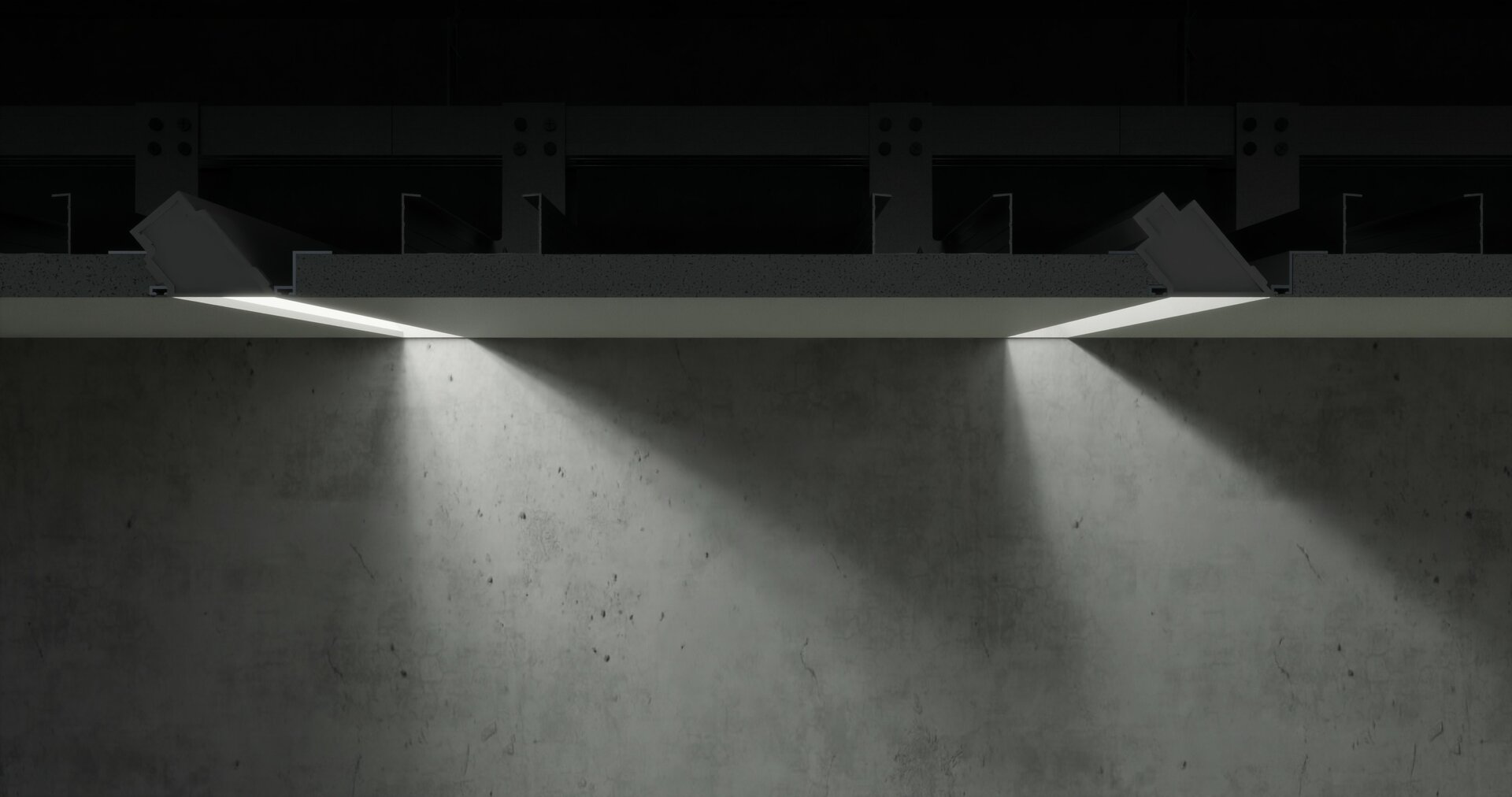

Lighting at an angle

The cover is cut to the length of the profile

Yes

Can be easily connected into runs

Yes

Mounting to drywall

Yes

To cover with plaster

Yes

Wire out back of extrusion

Yes

Possibility of obtaining a line of light

Yes

Building type

Entertainment/ Arts, Retail, Hotel / Restaurant

Facility zone

exhibition / tradeshow / display

Color	Length	Ref No
silver non anodized	39.4" (1000 mm) 78.9" (2005 mm)	A01234N_1 A01234N_2
white lacquered	39.4" (1000 mm) 78.9" (2005 mm)	A01234L10OD_1 A01234L10OD_2

Line of Light Table for Pixel Free Illumination

LED Tapes		Covers
Categories	LED tape type	HS-11 Cover frosted
High Efficacy	K-HEHD-0480-24	(1)
	K-HEHD-0960-24	(1)
	K-HEHD-1440-24	(1)
	K-HEHD-1920-24	(1)
	K-HEHD-0320-24	(1)
Adjustable White / Dim to Warm	K-30/18-1770-010V-24V	(1)
RGB / RGB-W / RGB-CTT	K-RGBW-1920-160-24	(1)

Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes

similar profiles

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
HS-11 Cover	PC	- For indoor and outdoor applications - UV resistant - hight durability	59 % 88 %	frosted clear	B17208F B17208C

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
High Efficacy

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0480-24 K-HEHD25-0480-24 K-HEHD27-0480-24 K-HEHD30-0480-24 K-HEHD35-0480-24 K-HEHD40-0480-24 K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0960-24 K-HEHD25-0960-24 K-HEHD27-0960-24 K-HEHD30-0960-24 K-HEHD35-0960-24 K-HEHD40-0960-24 K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1440-24 K-HEHD25-1440-24 K-HEHD27-1440-24 K-HEHD30-1440-24 K-HEHD35-1440-24 K-HEHD40-1440-24 K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,	20	-	5.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1920-24 K-HEHD25-1920-24 K-HEHD27-1920-24 K-HEHD30-1920-24 K-HEHD35-1920-24 K-HEHD40-1920-24 K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,	20	-	1 W/ft	2700K 3000K 3500K 4000K	- CRI over 95 - High Efficacy	K-HEHD27-0320-24 K-HEHD30-0320-24 K-HEHD35-0320-24 K-HEHD40-0320-24

LED tapes
RGB / RGB-W / RGB-CTT

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-120-24
K-RGB-0700-120-24 LED tape, 126 lm/ft, 2.1 W/ft, IP20	20	-	2.1 W/ft	RGB	- RGB	K-RGB-0700-120-24
K-RGB-1200-120-24 LED tape, 182 lm/ft, 3.7 W/ft, IP20,	20	-	3.7 W/ft	RGB	- RGB	K-RGB-1200-120-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,	65	silicon sleeve	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1920-120-24

LED tapes
Adjustable White / Dim to Warm

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-30/18-1770-010V-24V LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-010V-24V
KWP-G22/50-1728-24 LED tape, 2200K, 467 lm/ft, 5.3 W/ft, IP65	65	gel cover	5.3 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-G22/50-1728-24

Accessories
End caps
Standard end caps

Product name	Material	Color	Ref No
POKET End cap set	PP	gray white	C24460C02 C24460C10

Electronics
Switches

Product name	IP rating	Key features	Ref No(Ref. arch.)
UNI Proximity switch	20	- touchless switch - width only 7mm	E61579

Accessories
Accessories for connecting and securing lighting fixtures
Connectors

Product name	Material	Color	Ref No
ZM-NA Connector	stainless steel	silver	42339
ZM-NA-PION Connector	stainless steel	silver	42321 42315 42317
ZM Connector	stainless steel	silver black colorless	C28075N00 C28072N00 42720 42728 C24797C07 C28072C07 C28075C07 C28070C07 C28071C07 C28073C07 C28074C07 C24797N00

Accessories
Additional items

Product name	Material	Color	Ref No
Gland 6x1,2			C24517C07
