EC-MP Conductive connector

Ref No: EC-MP
EC-MP Conductive connector
EC-MP Conductive connector
IP20 protection rating
Color
-
Application

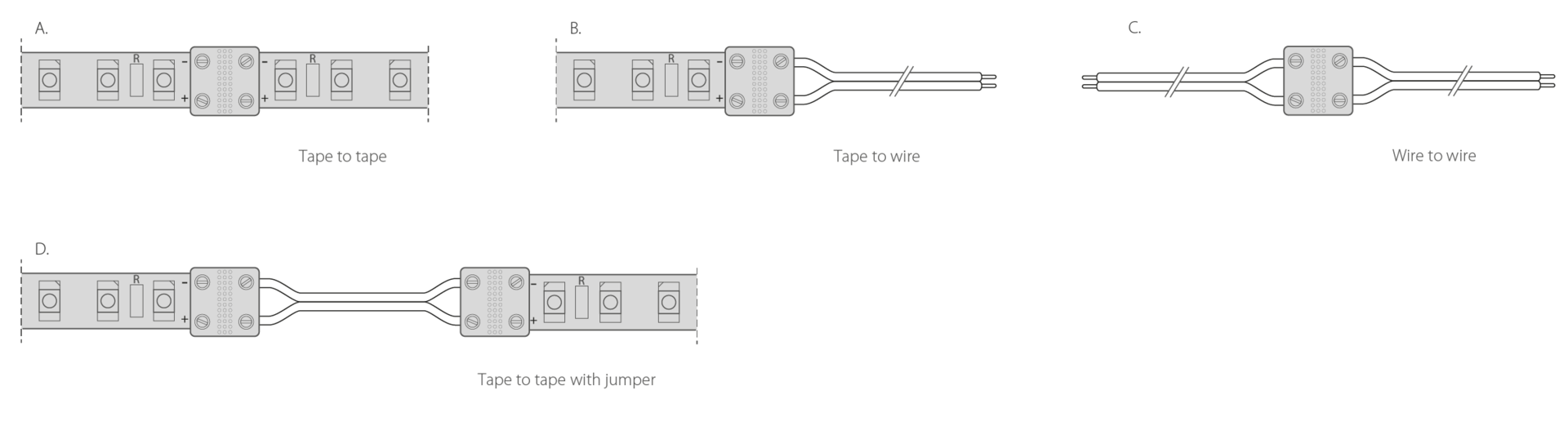

  • - multi-purpose connector: tape to tape, tape to wire, wire to wire, tape to tape with jumper (2 connectors needed). Max 5A. Fits 1210, 1220, 1275 series LEDs

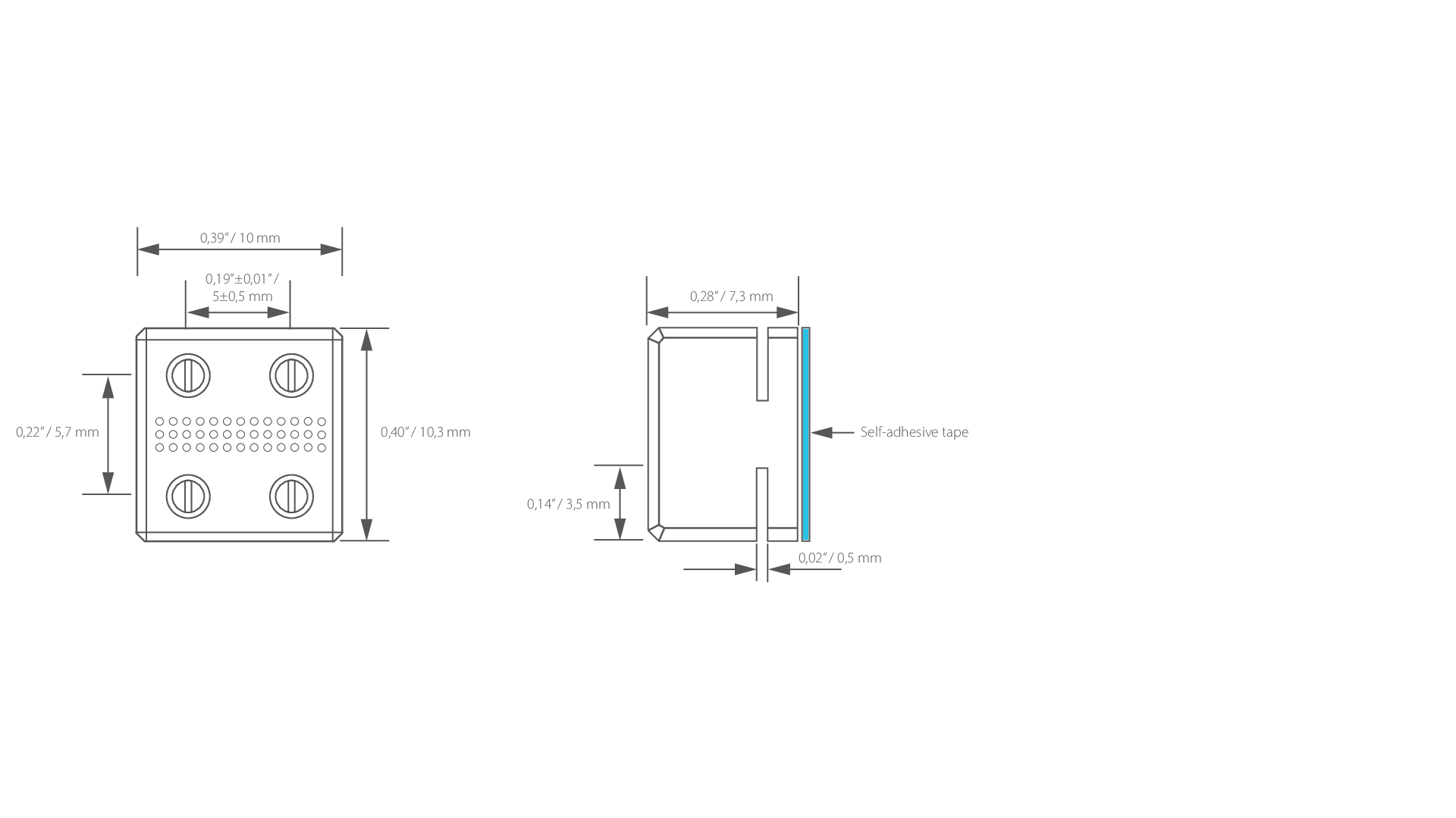

Technical drawing
EC-MP Conductive connector Technical drawing - EC-MP
EC-MP Conductive connector Technical drawing - EC-MP
Technical specification
IP protection rating
20
Dimensions
Width
0.4"
Height
0.4"
Length
0.3"
Related products
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,
20 - 1.5 W/ft
2200K
2700K
- CRI over 95
K-CR22-1210-24
K-CR27-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1220-24
K-CR25-1220-24
K-CR27-1220-24
K-CR30-1220-24
K-CR35-1220-24
K-CR40-1220-24
K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1275-24
K-CR25-1275-24
K-CR27-1275-24
K-CR30-1275-24
K-CR35-1275-24
K-CR40-1275-24
K-CR50-1275-24
