HR-OPTI Extrusion

Ref No: A01844
HR-OPTI Extrusion
HR-OPTI Extrusion
HR-OPTI Extrusion
HR-OPTI Extrusion
HR-OPTI Extrusion
HR-OPTI Extrusion
HR-OPTI Extrusion
HR-OPTI Extrusion
  • For installation on facades
  • Designed for IP68 and IK10 protection ratings
  • Corrosion resistance at high salinity
  • Corresponds to the width of the HR-MAX facade system
  • Adjustable lighting angle
Wall mounted

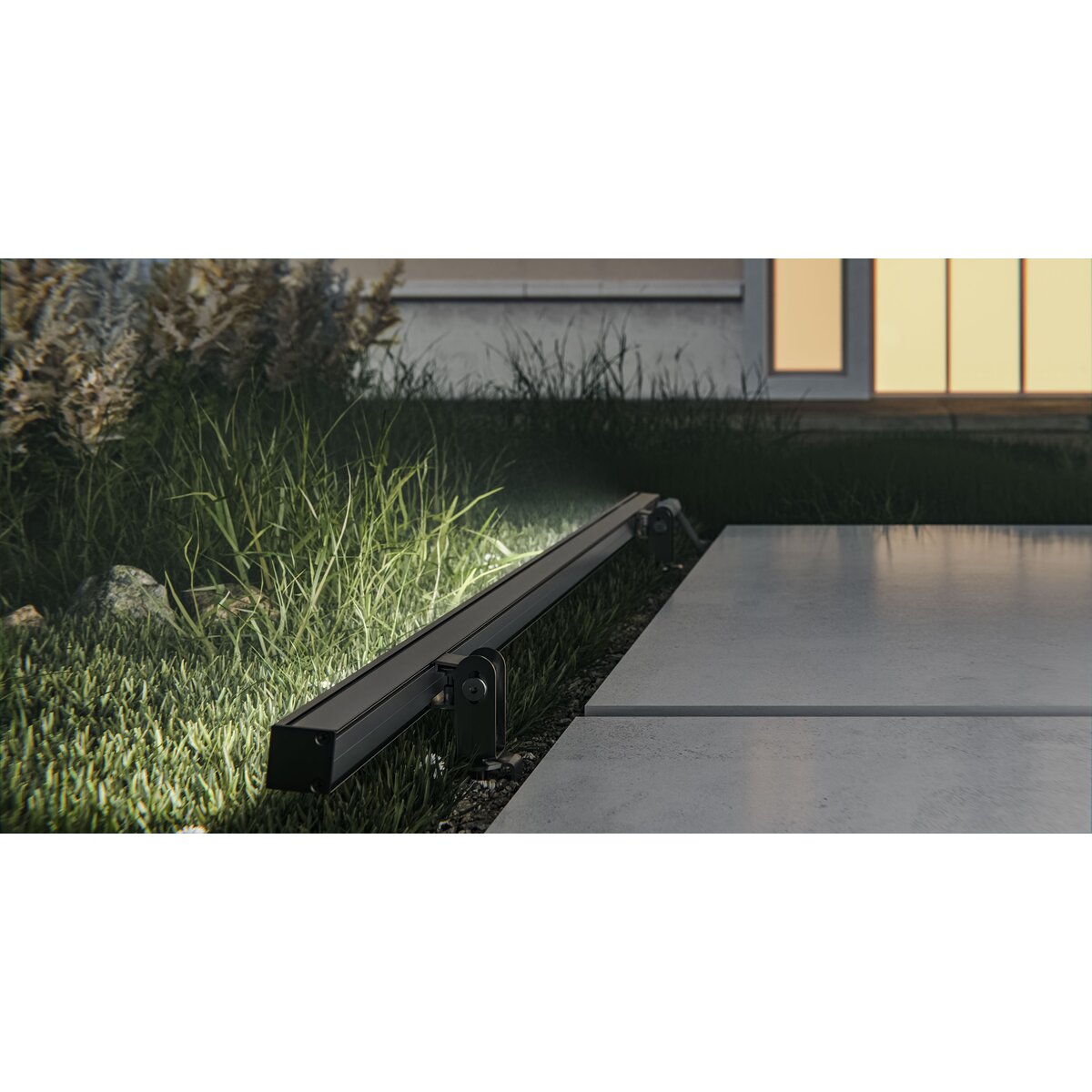

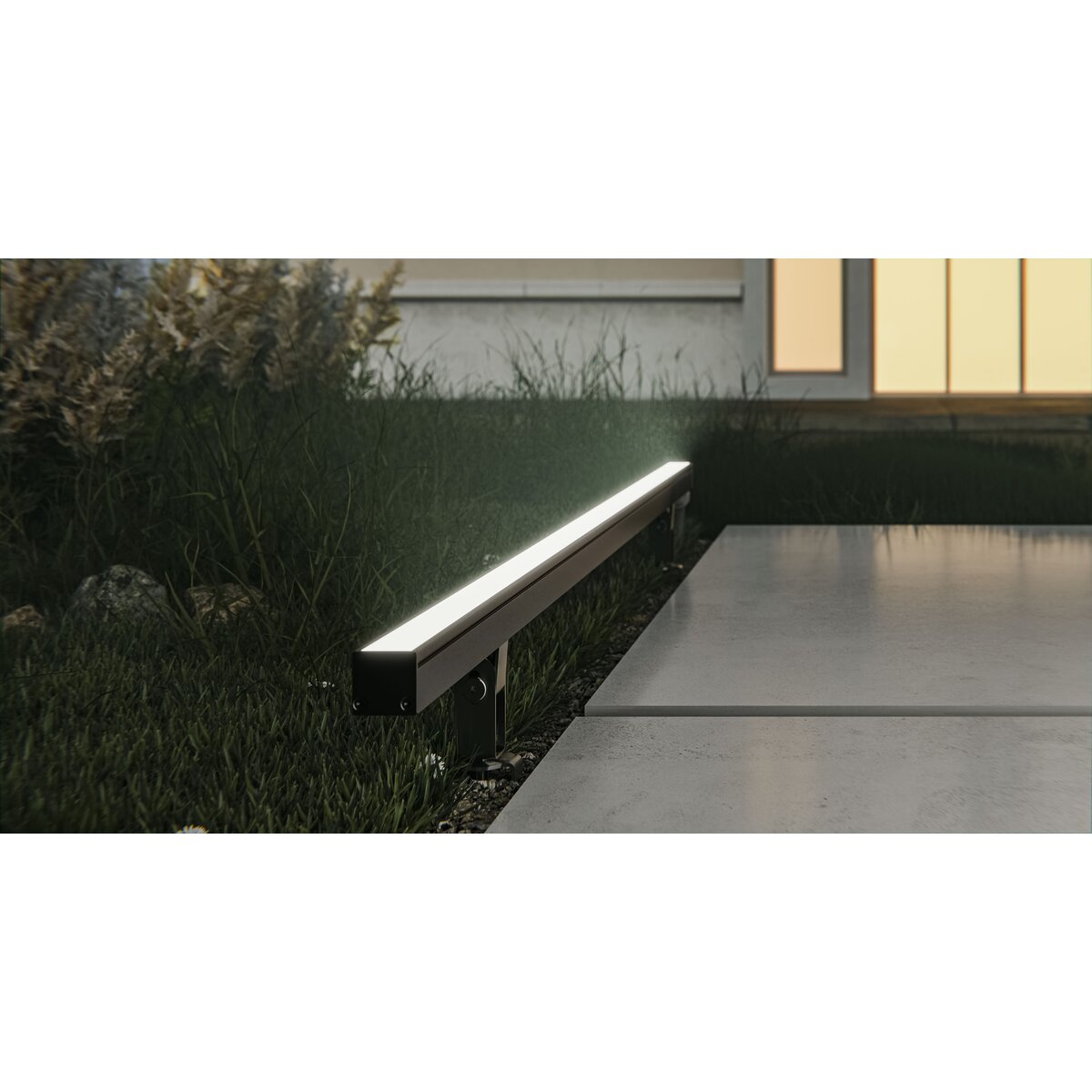

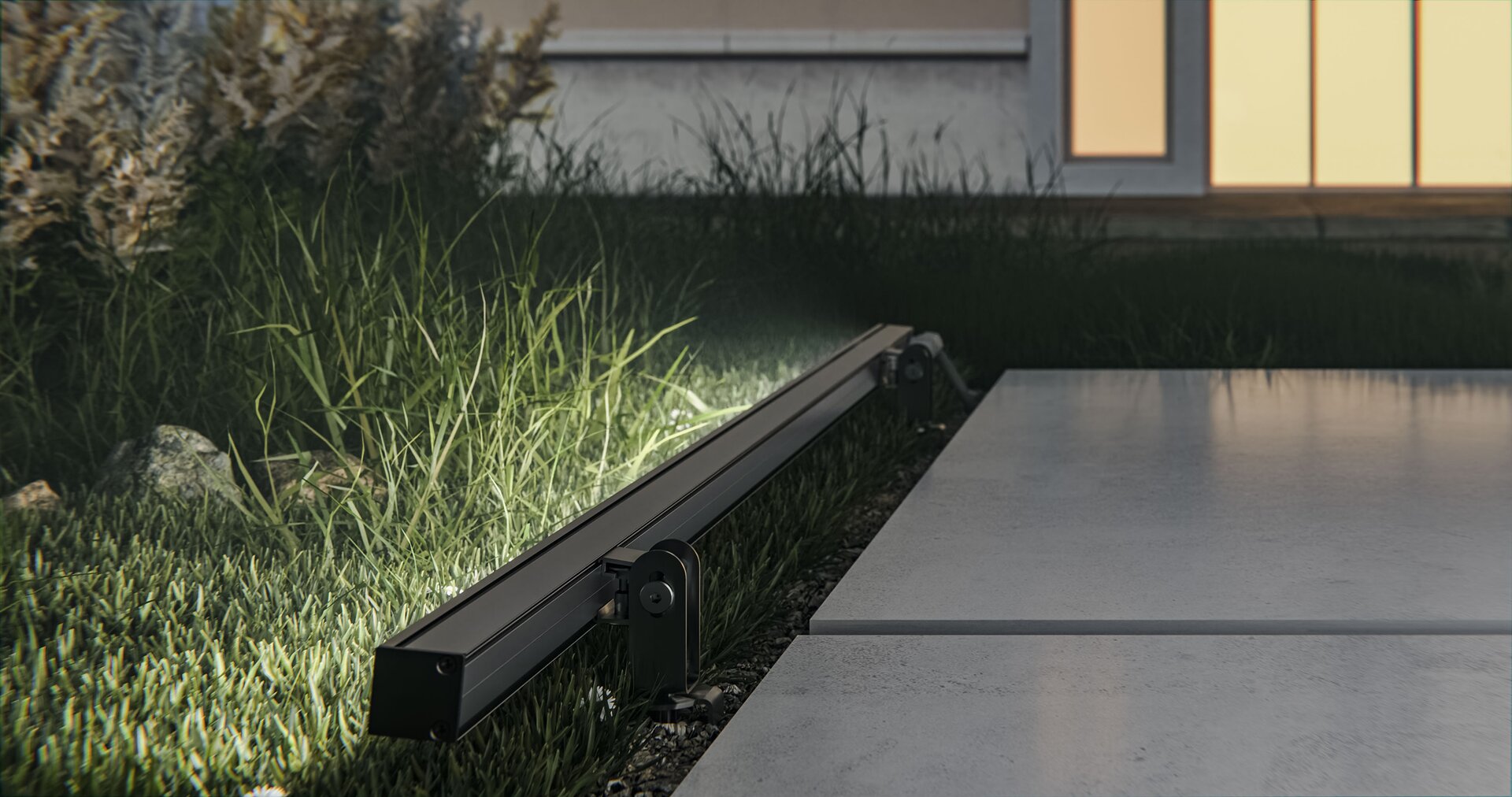

For ground
Corrosion resistance at high salinity
Impact protection IK10
With the possibility of sealing up to IP20
With the possibility of sealing up to IP65
With the possibility of sealing up to IP67
With the possibility of sealing up to IP68
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Configure
Color
silver
  • For installation on facades
  • Designed for IP68 and IK10 protection ratings
  • Corrosion resistance at high salinity
  • Corresponds to the width of the HR-MAX facade system
  • Adjustable lighting angle
Application
  • - decorative lighting
Mounting
  • - to the surface, using dedicated accessories
Additional information

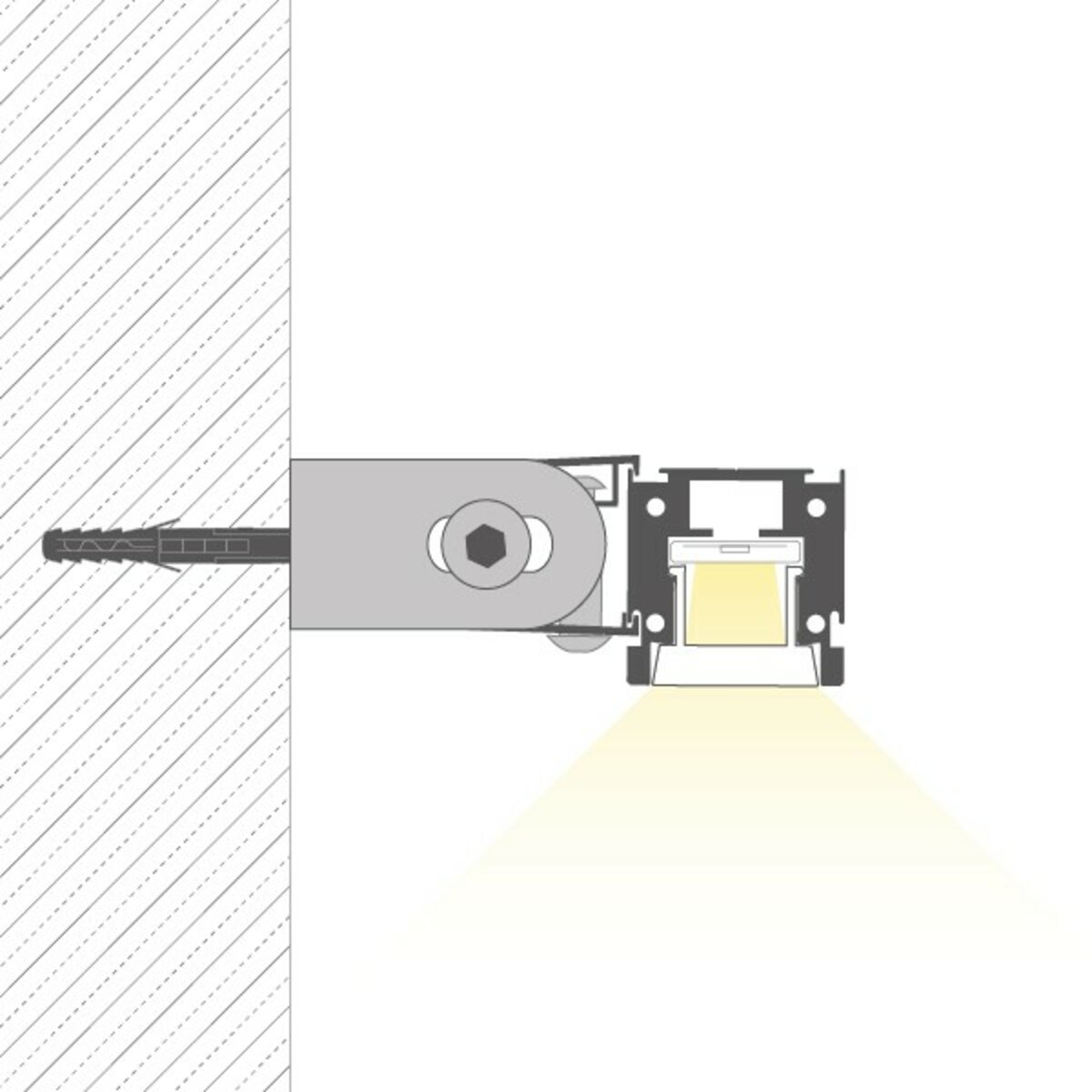

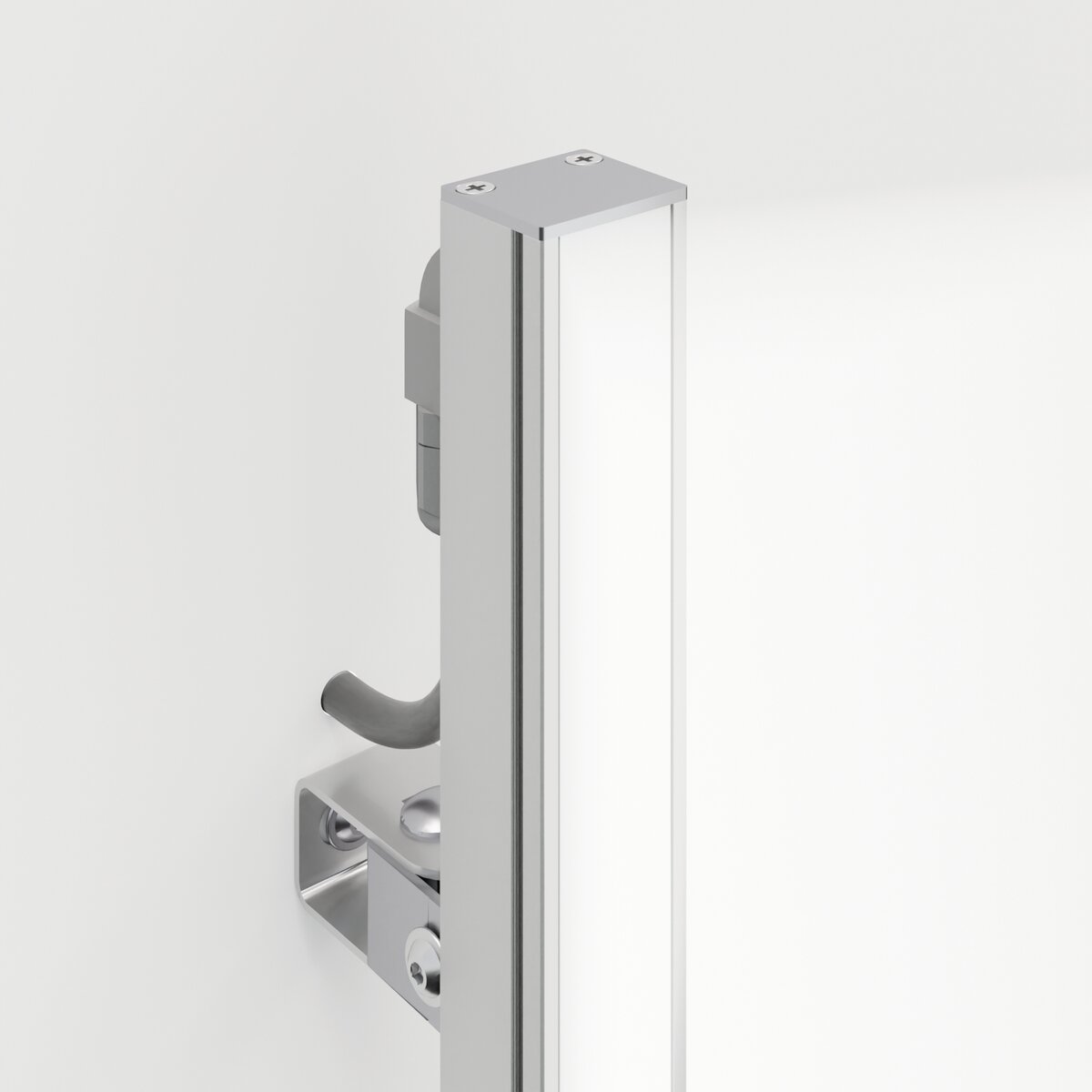

  • - possibility to fasten the lighting fixture with the back or side to the mounting surface
  • - possibility of smooth transition from a facade into an in-ground lighting fixture
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

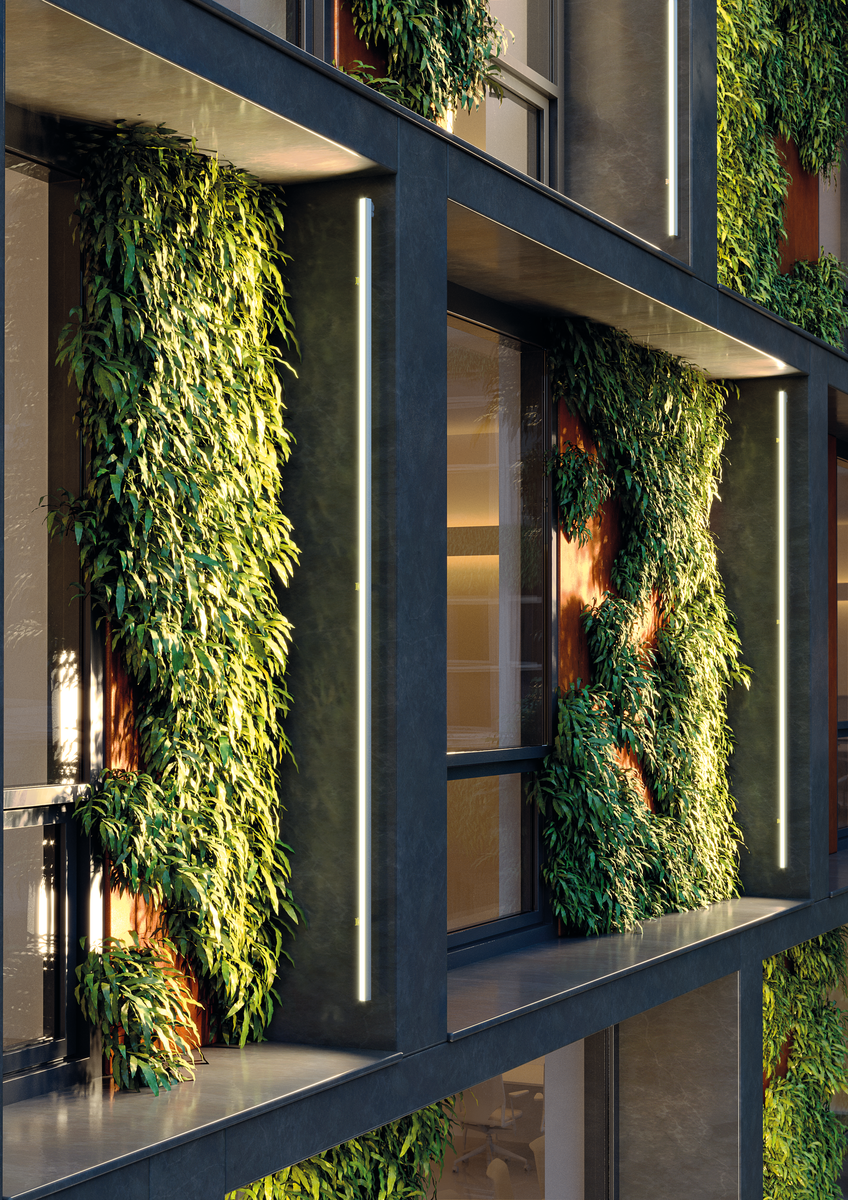

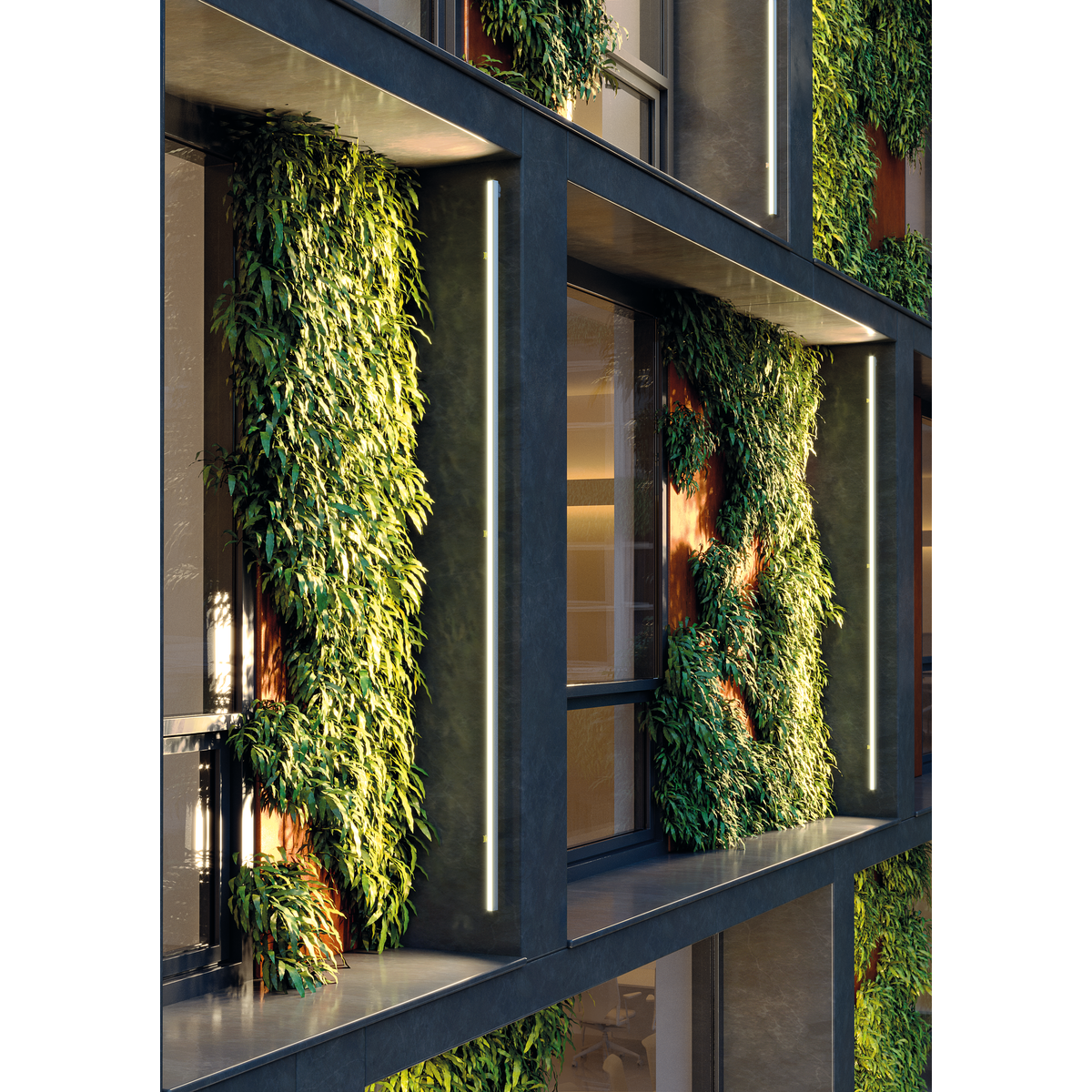

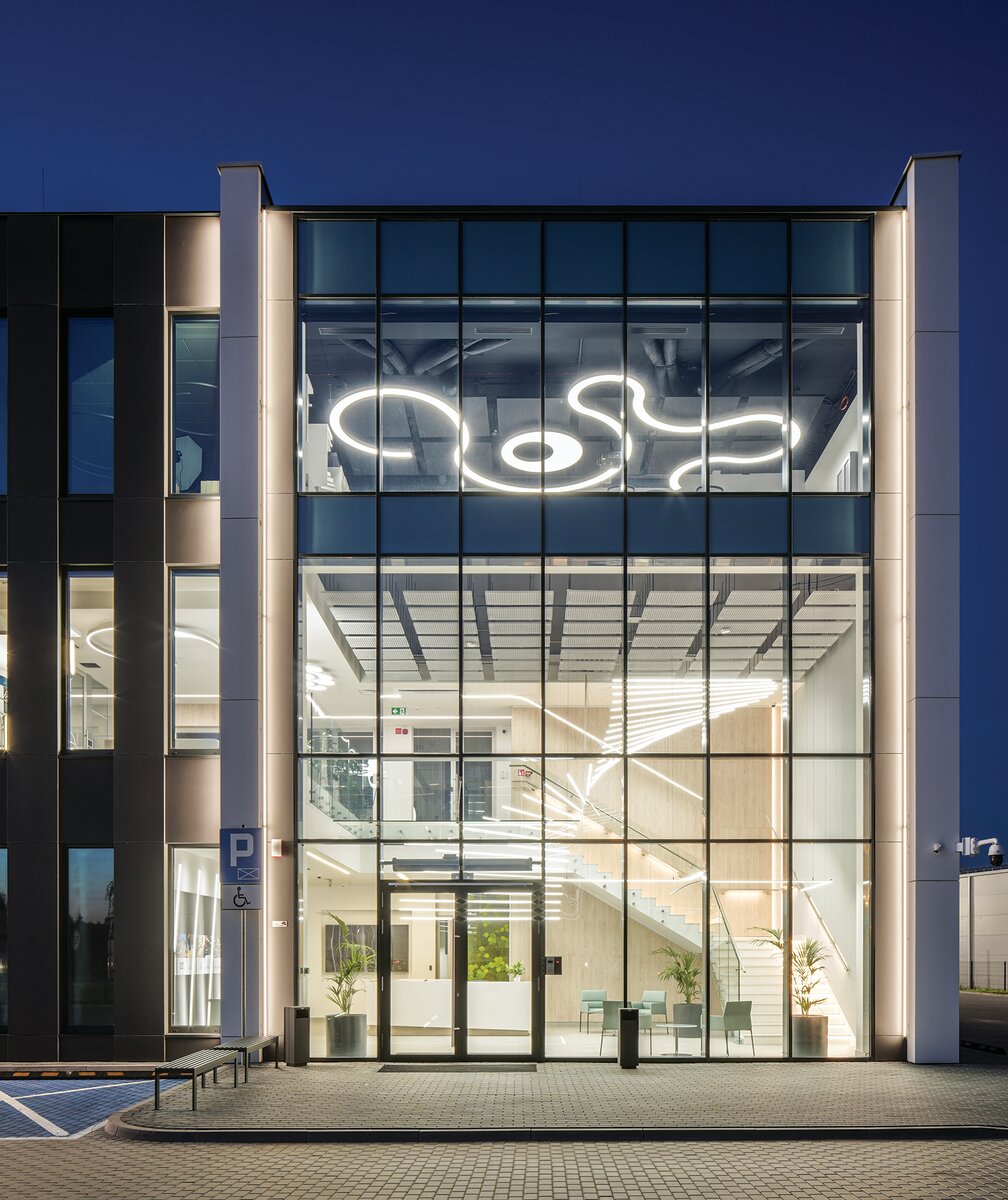

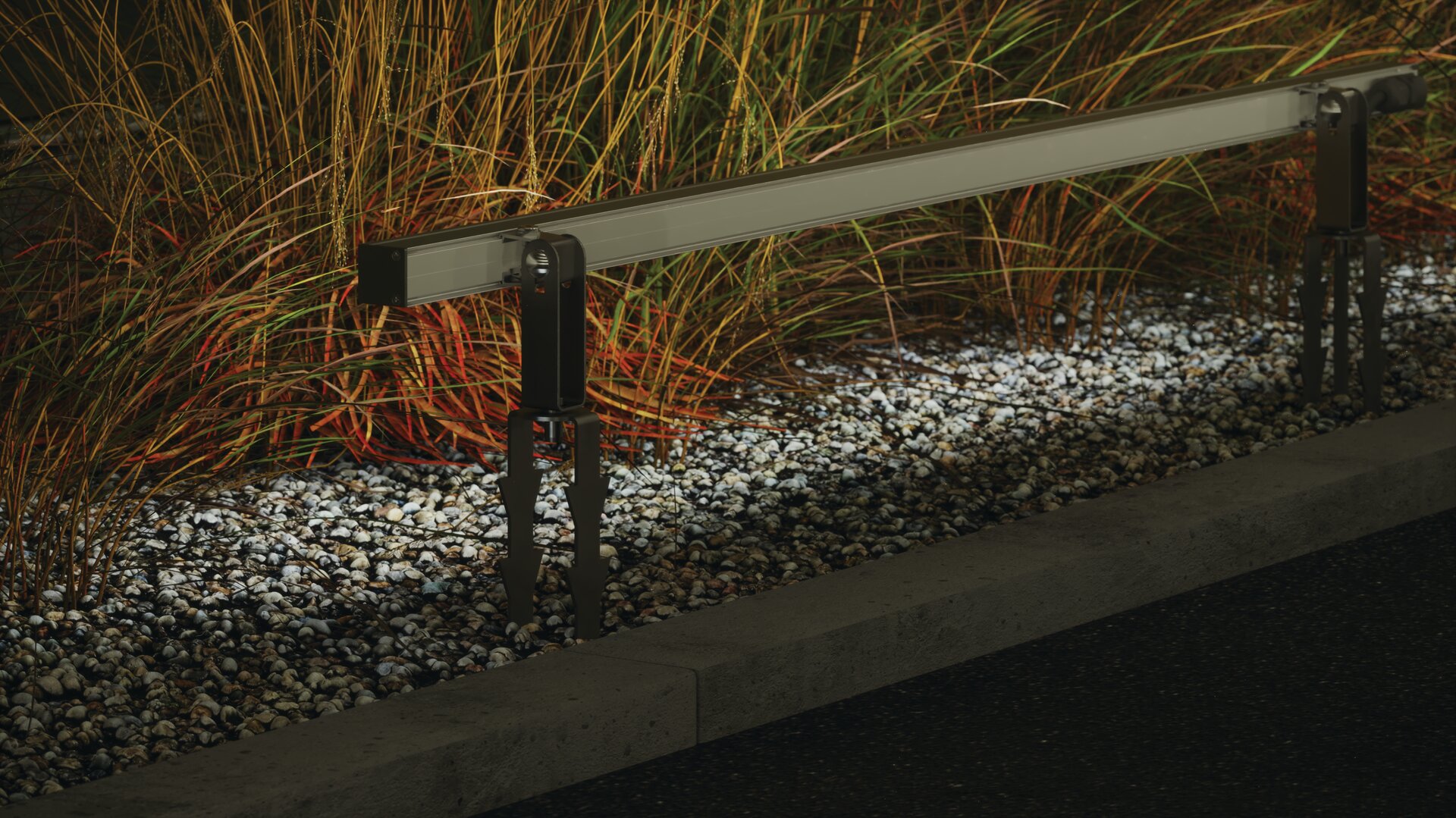

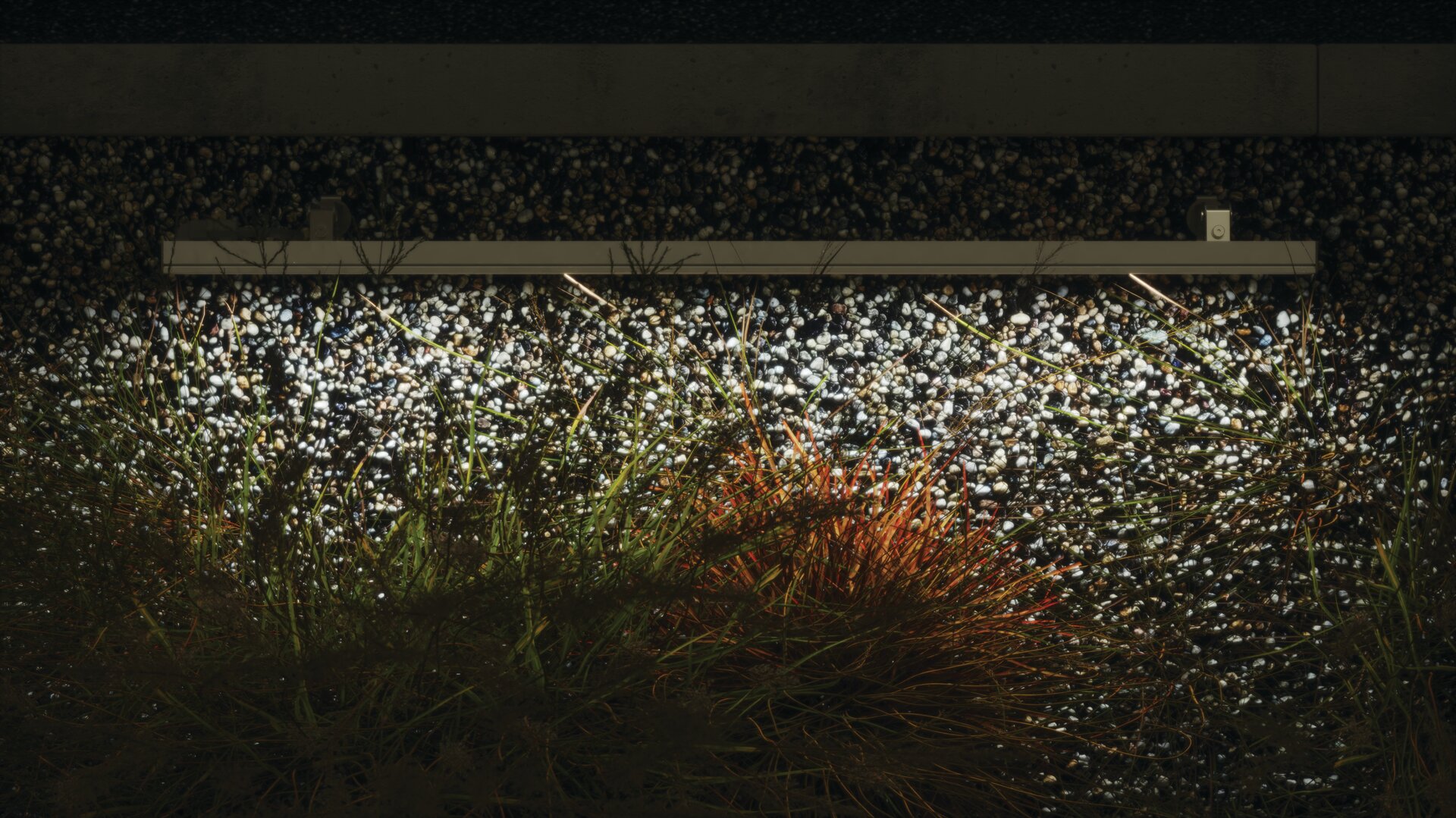

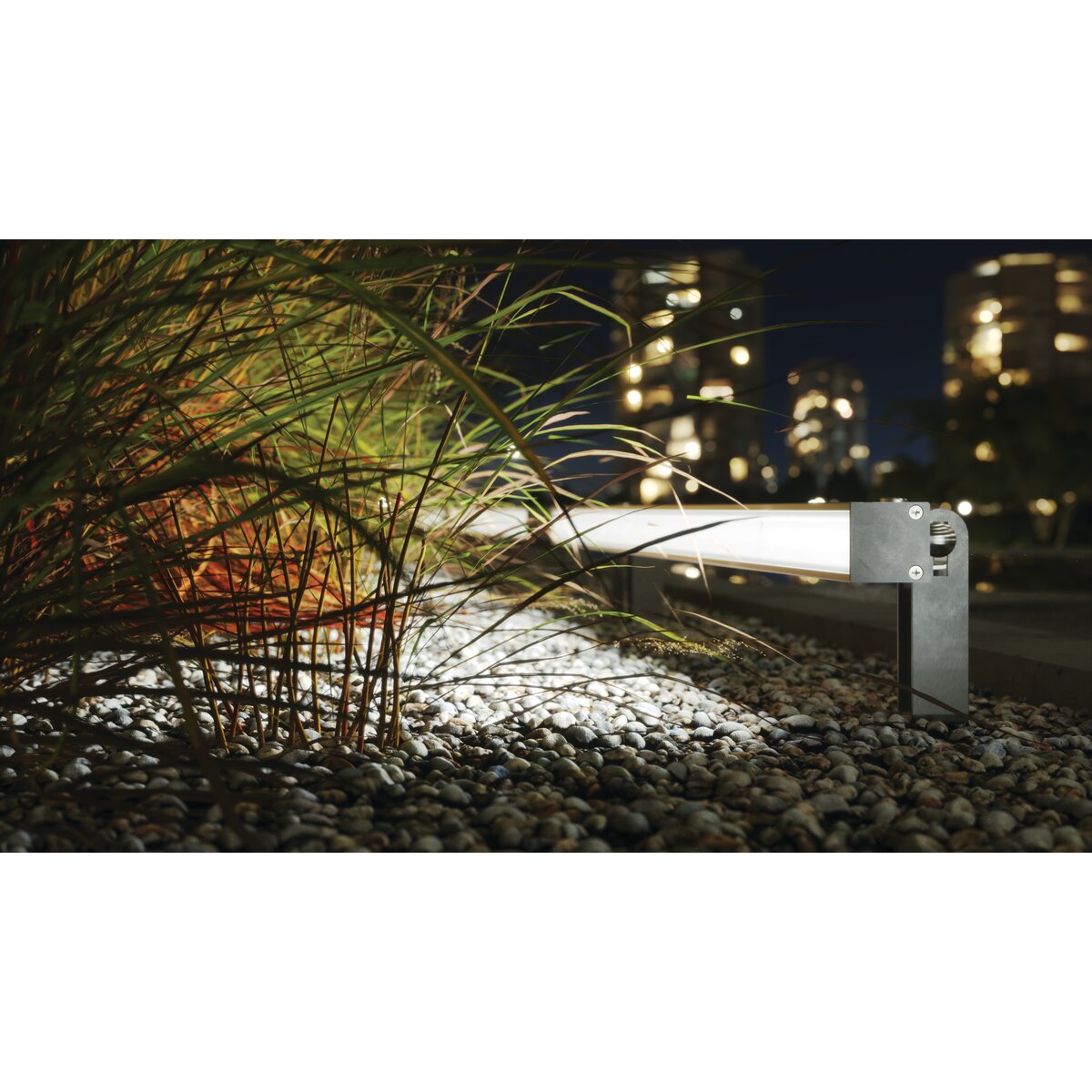

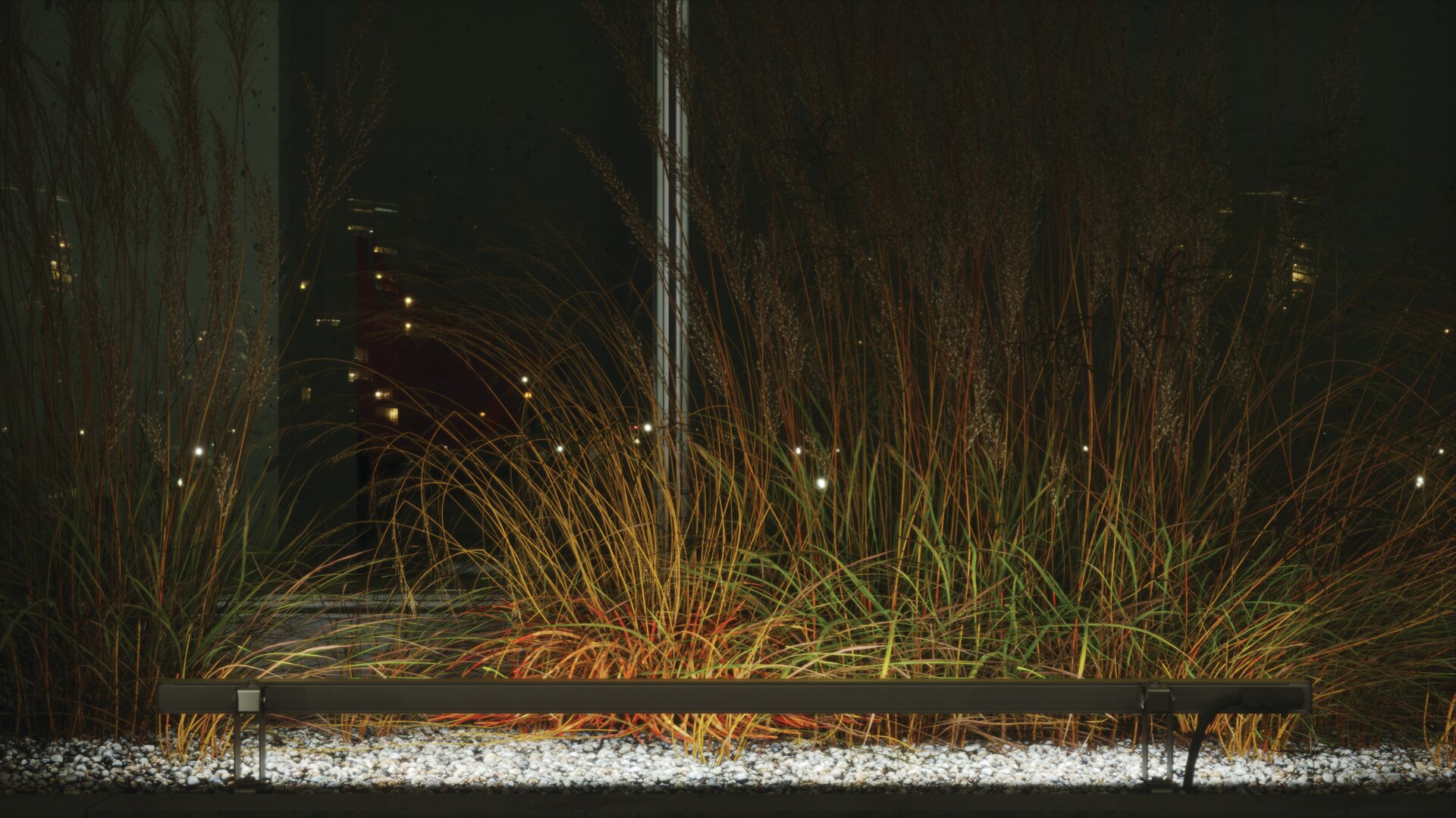

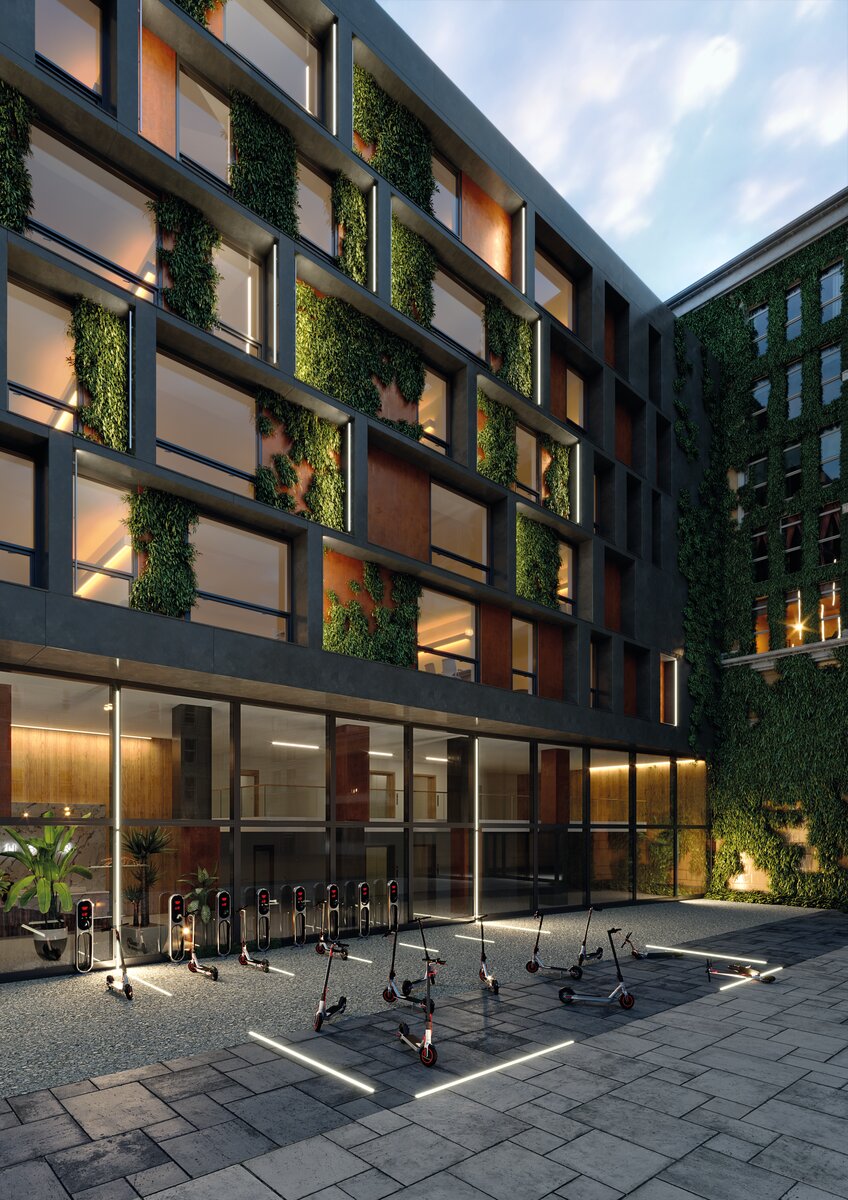

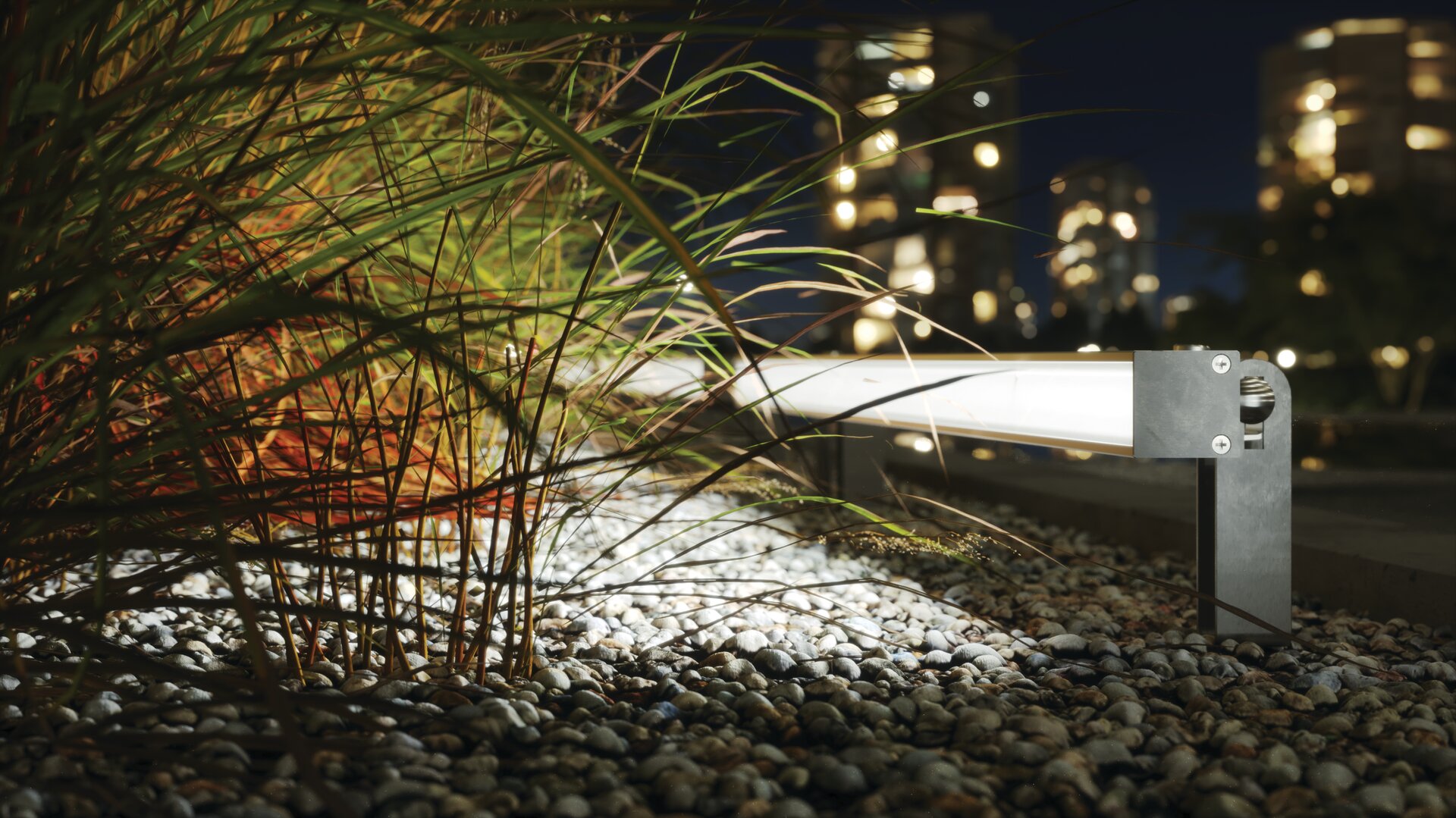

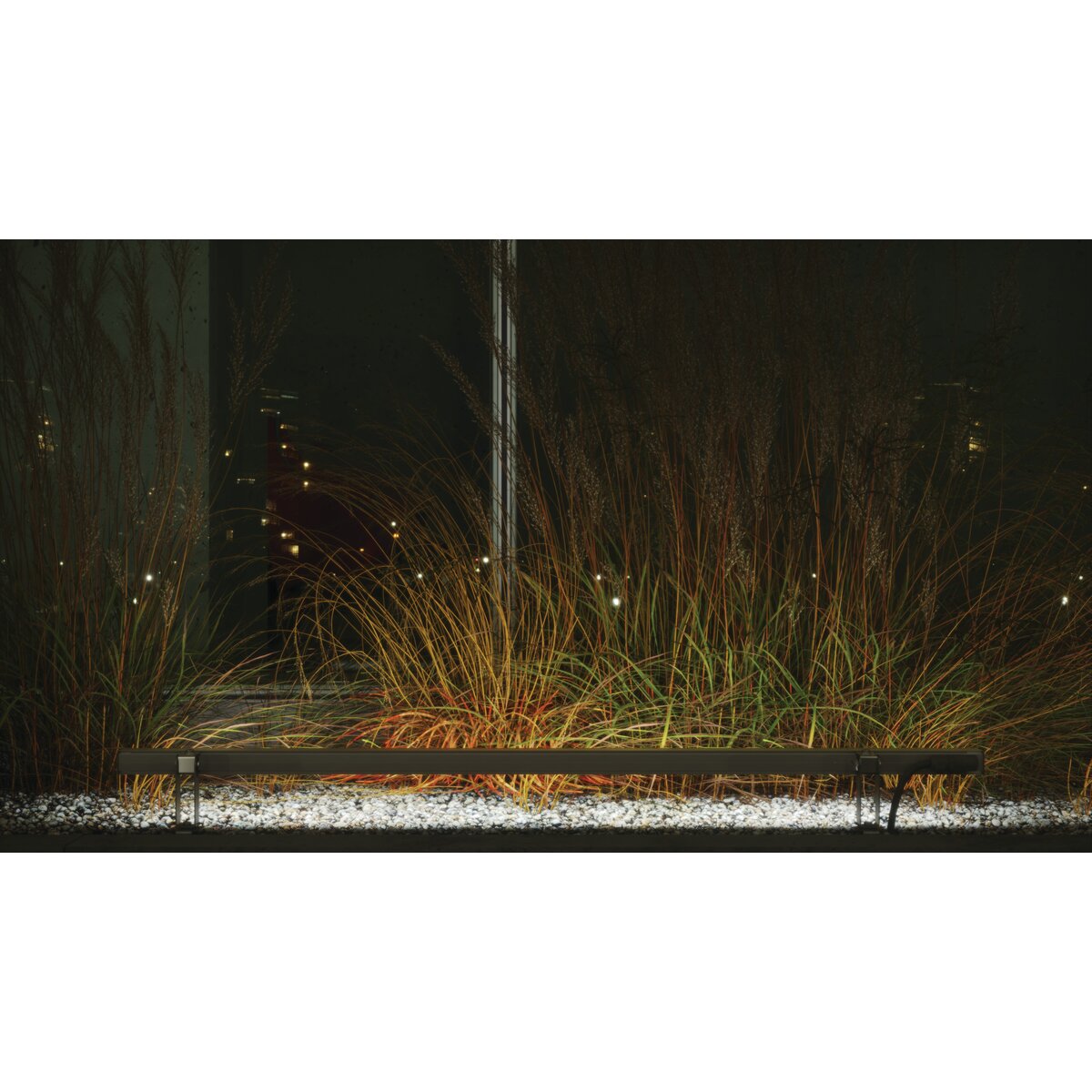

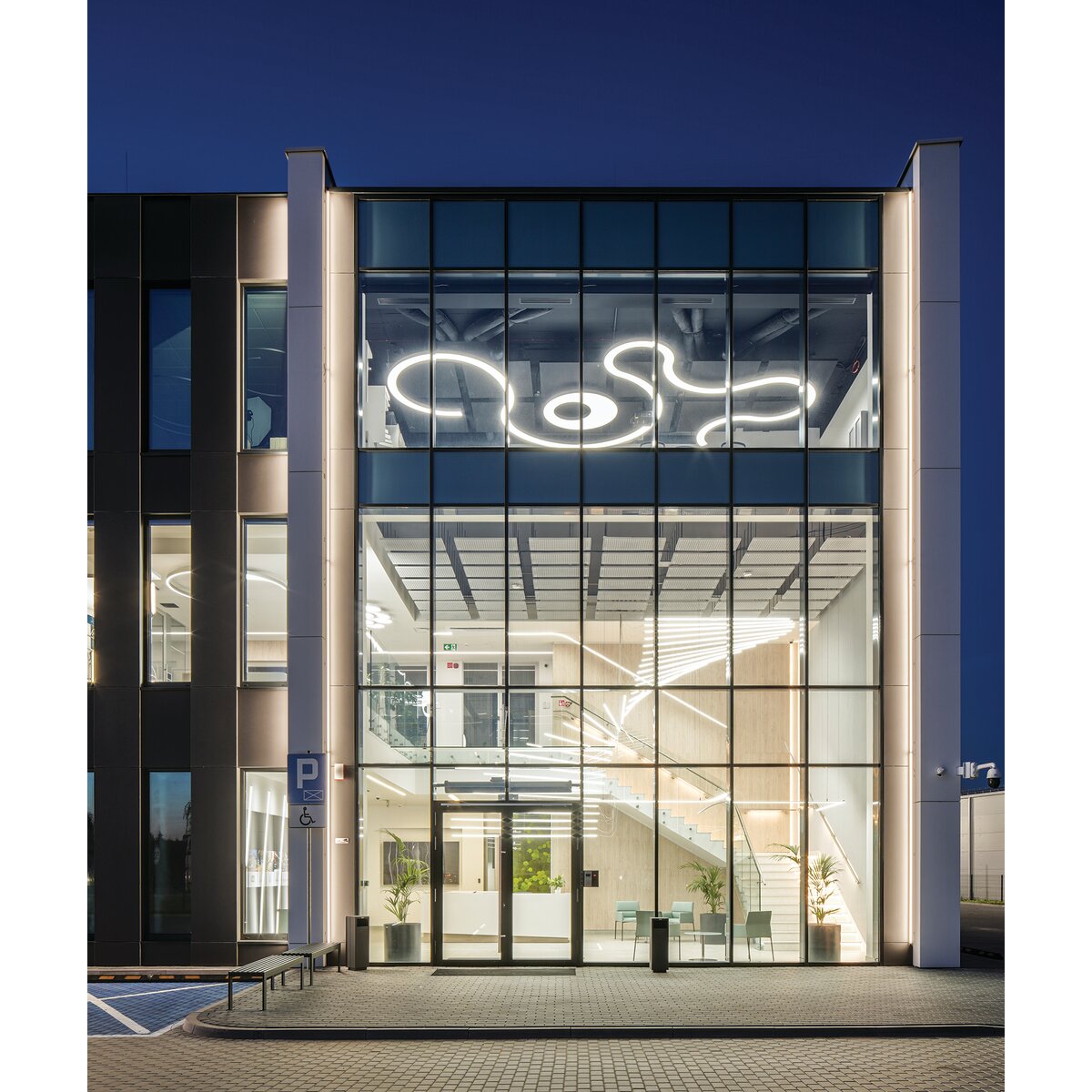

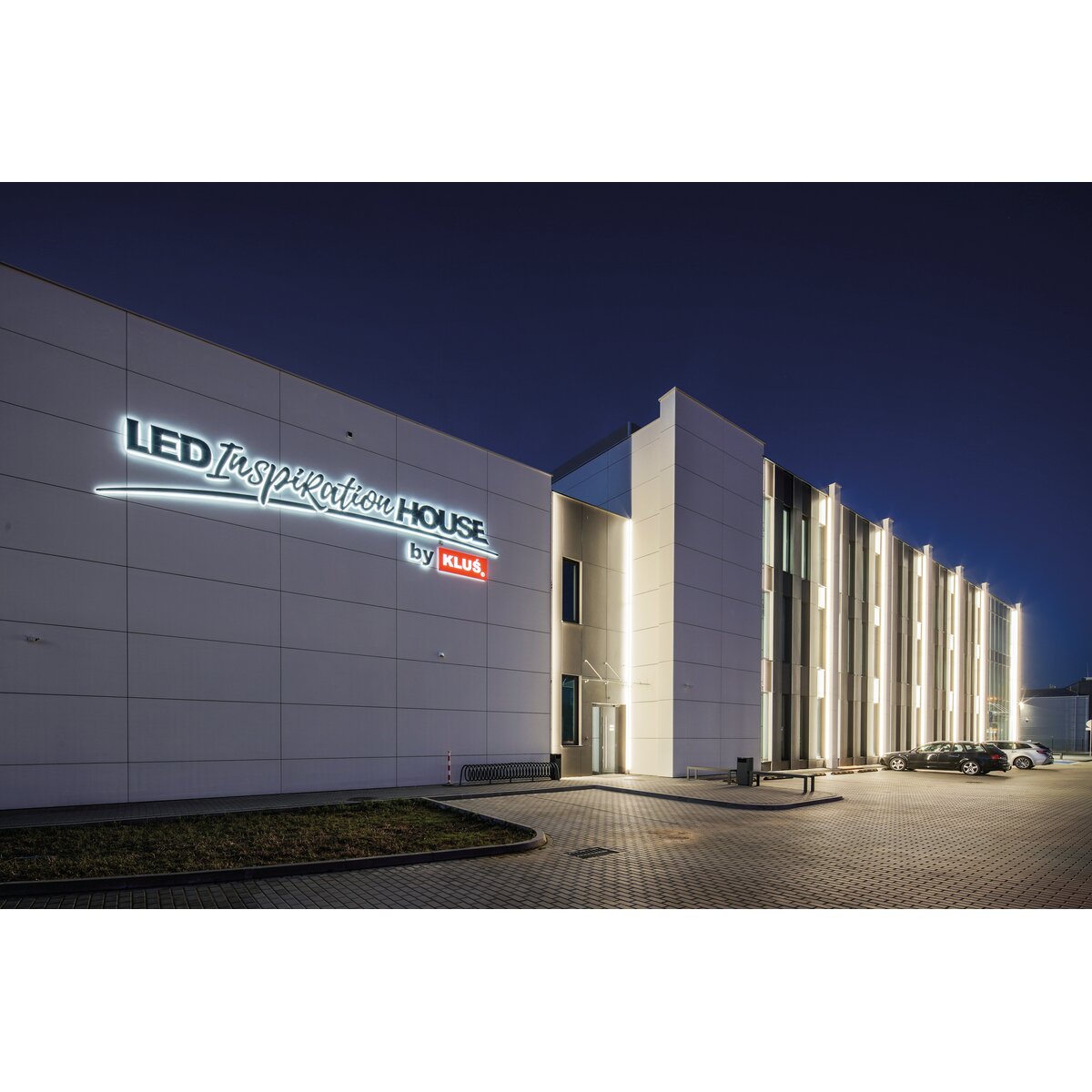

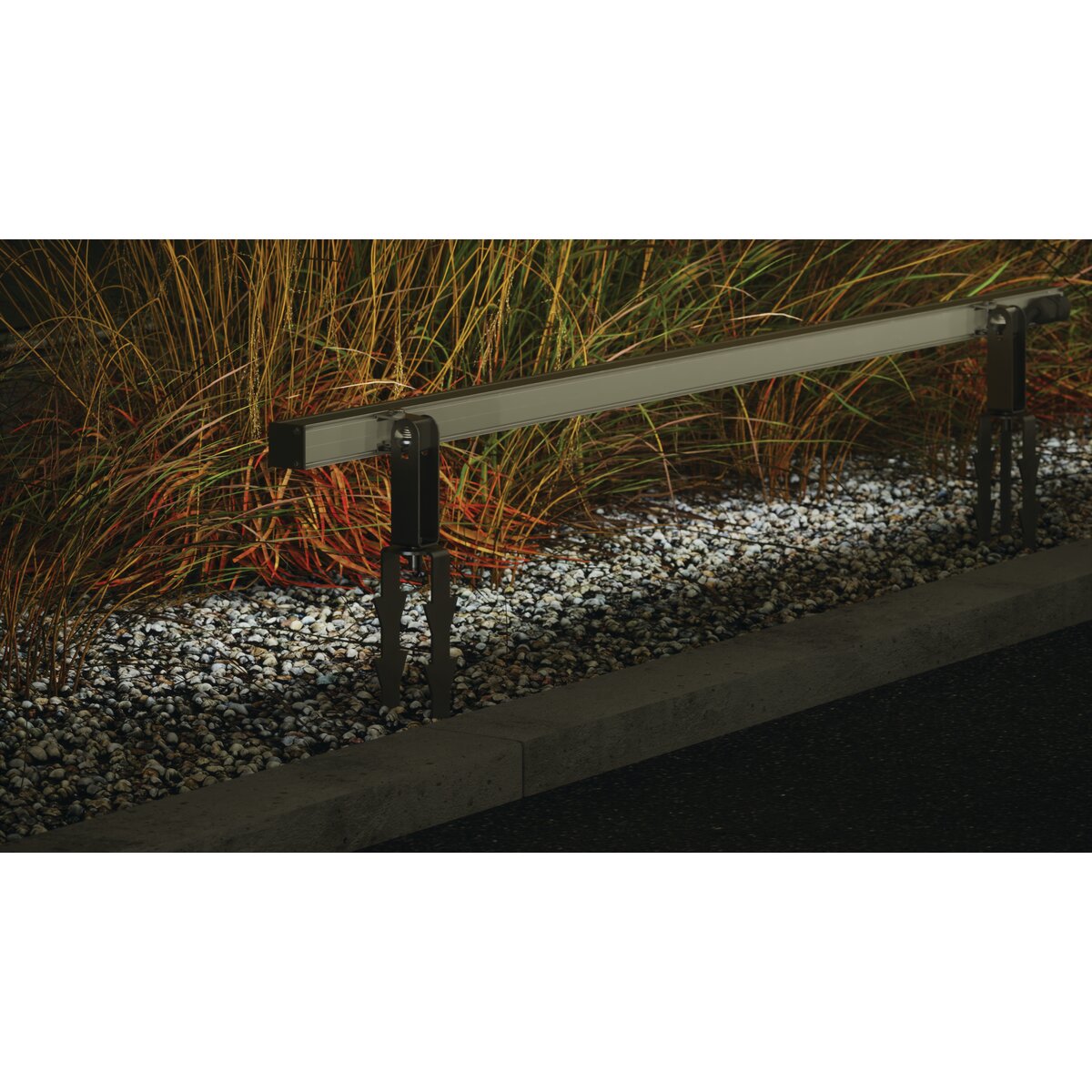

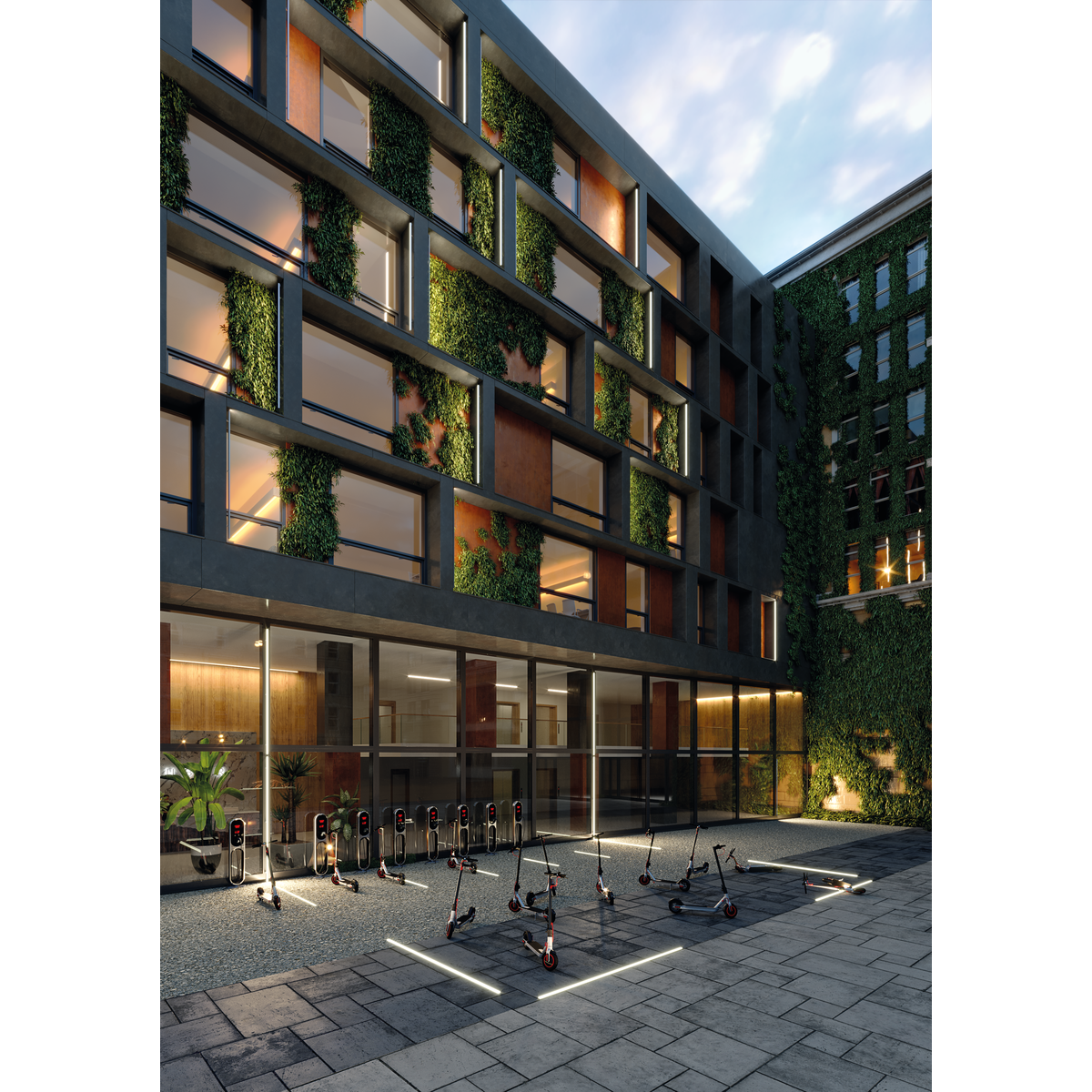

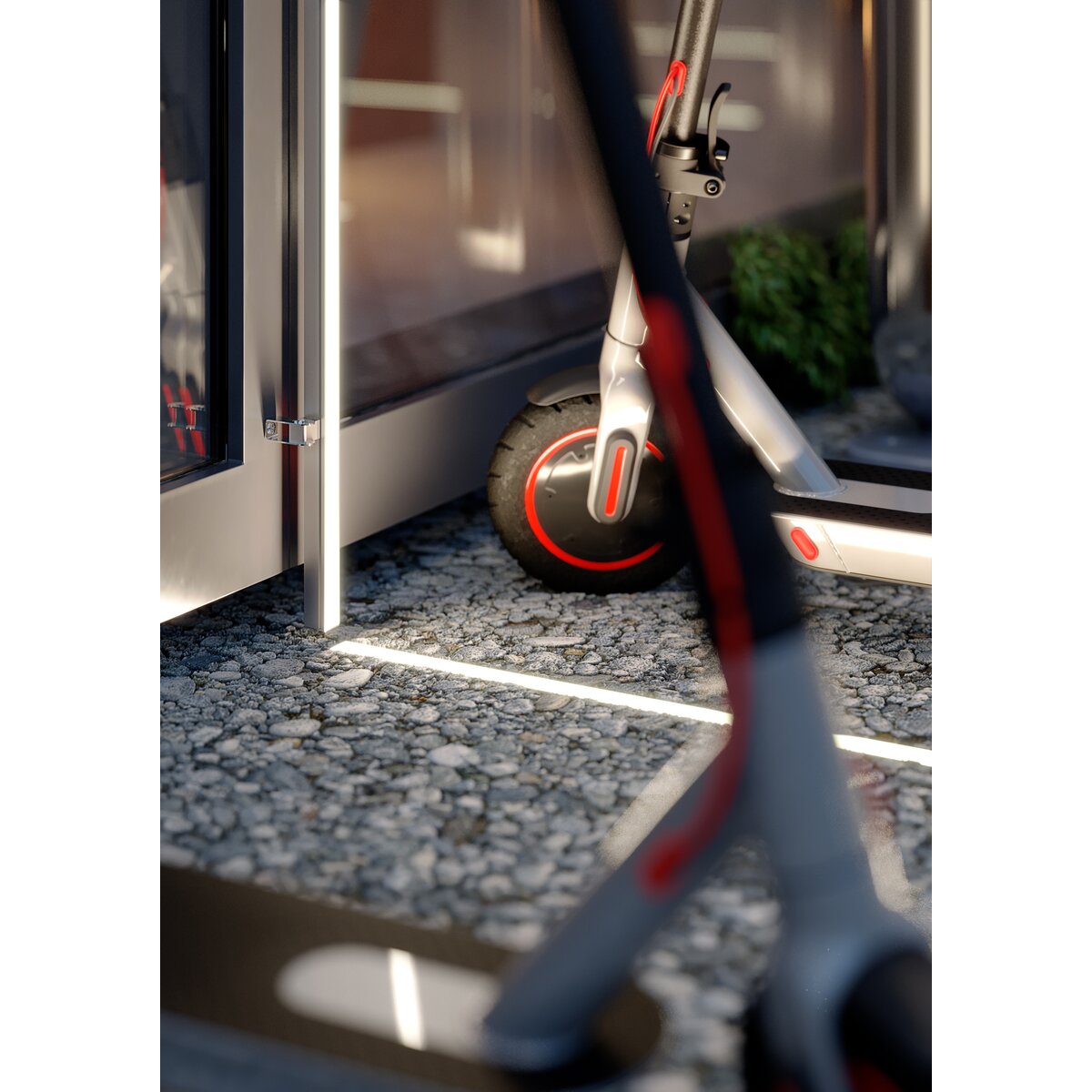

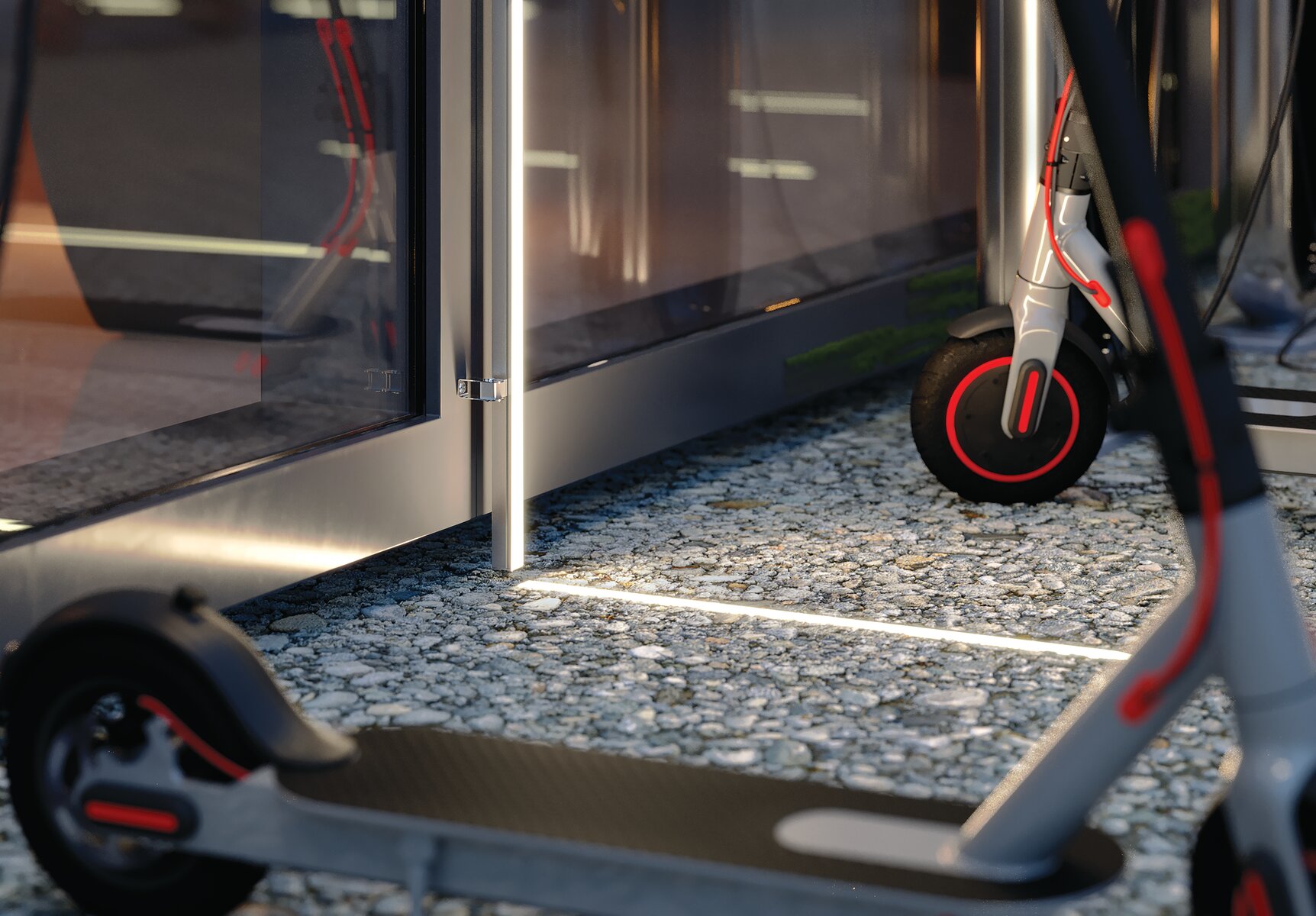

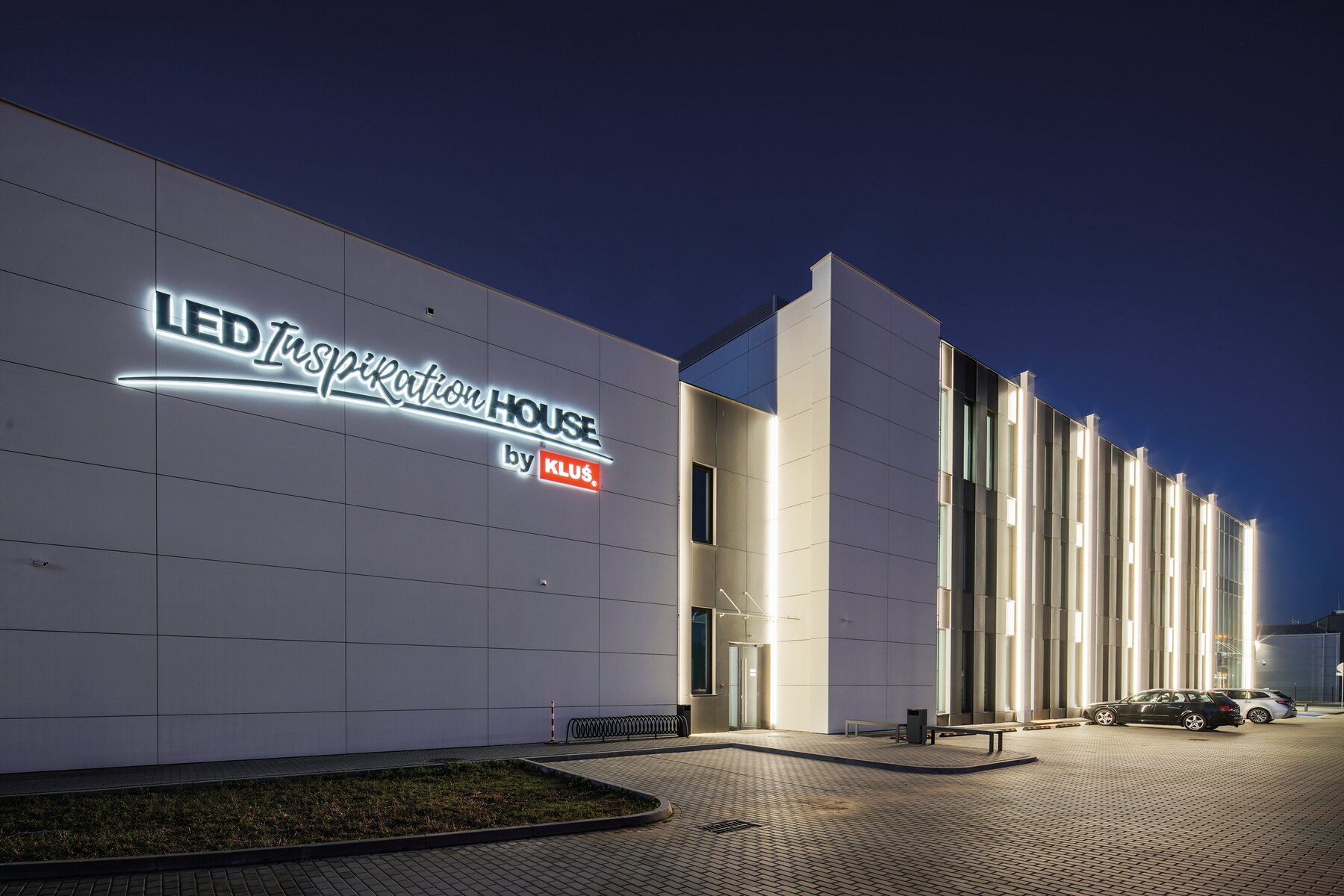

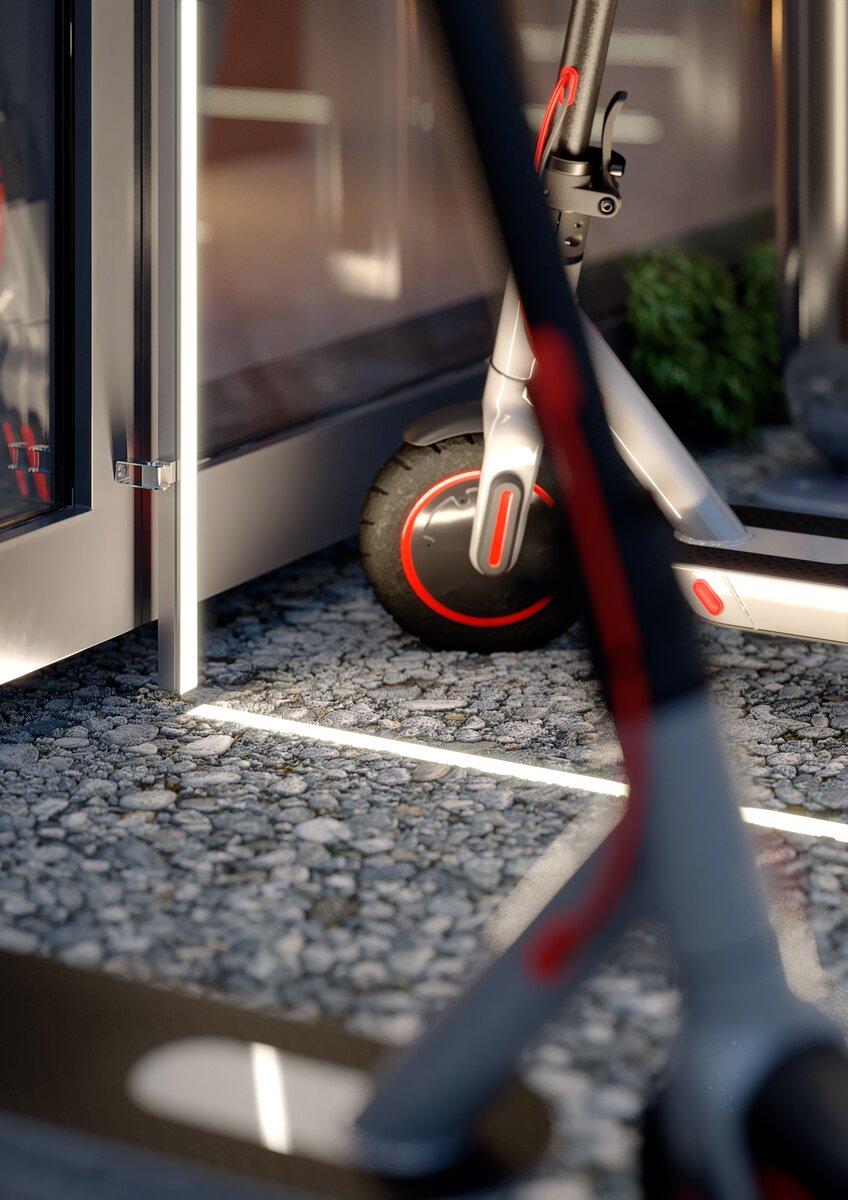

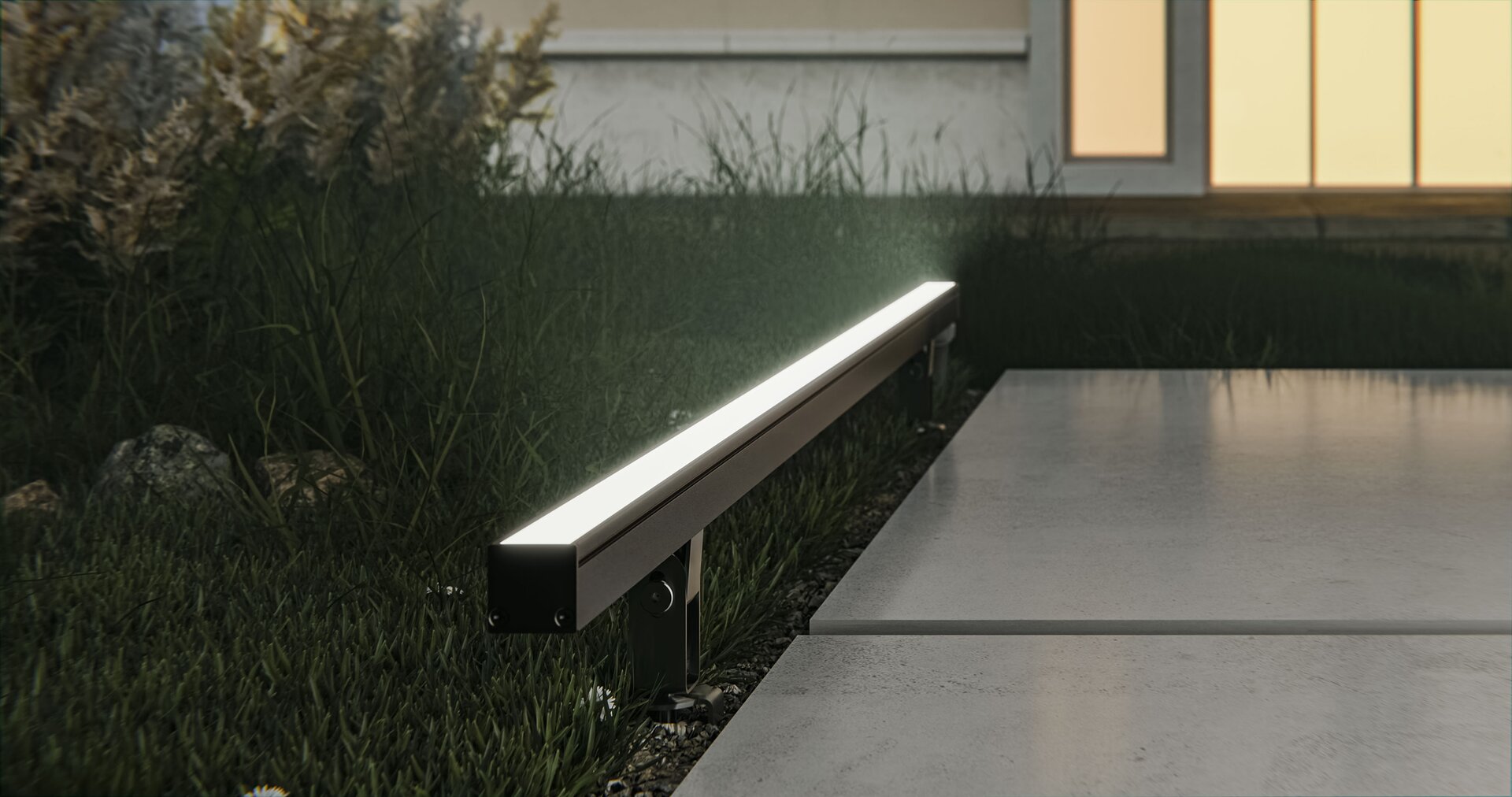

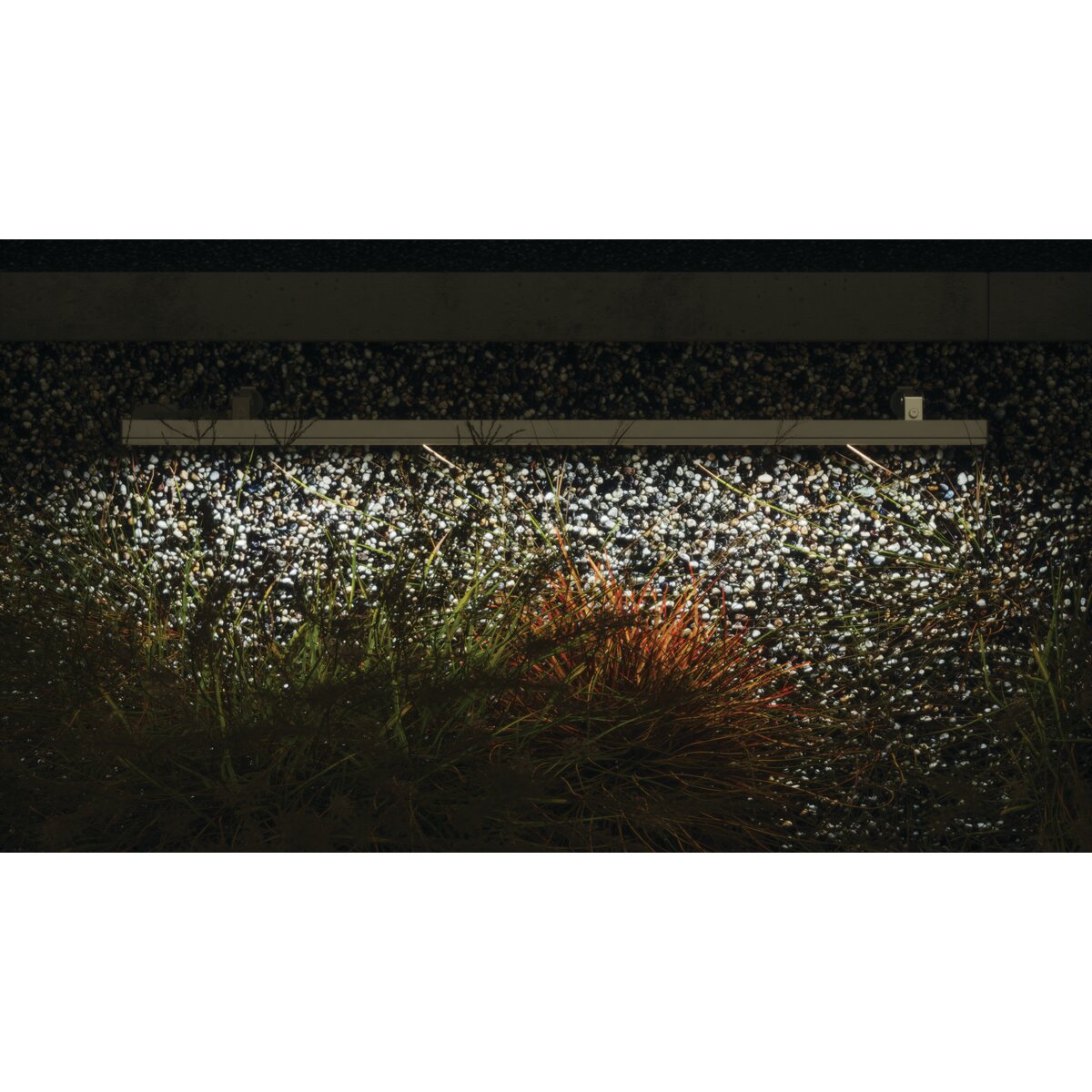

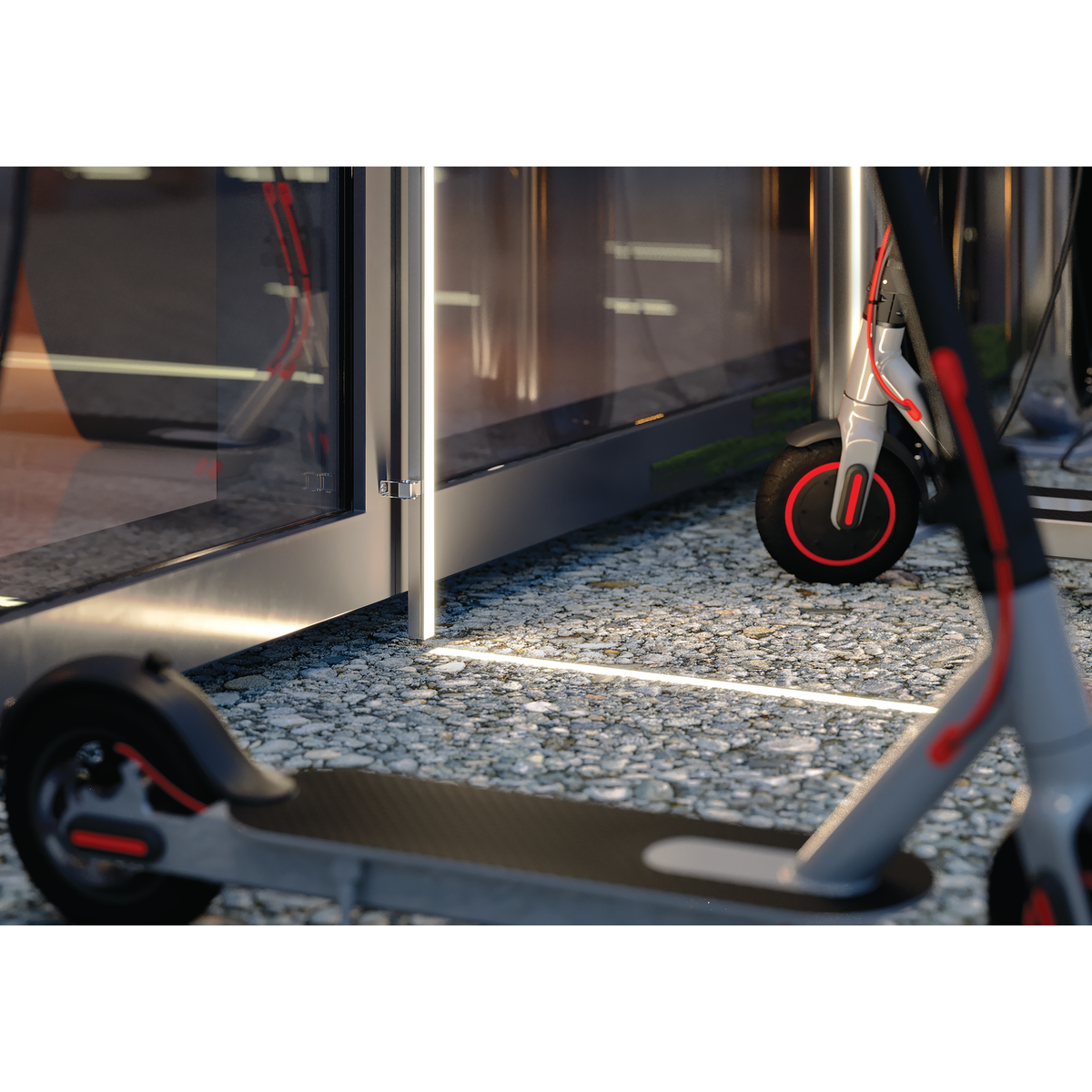

Usage examples

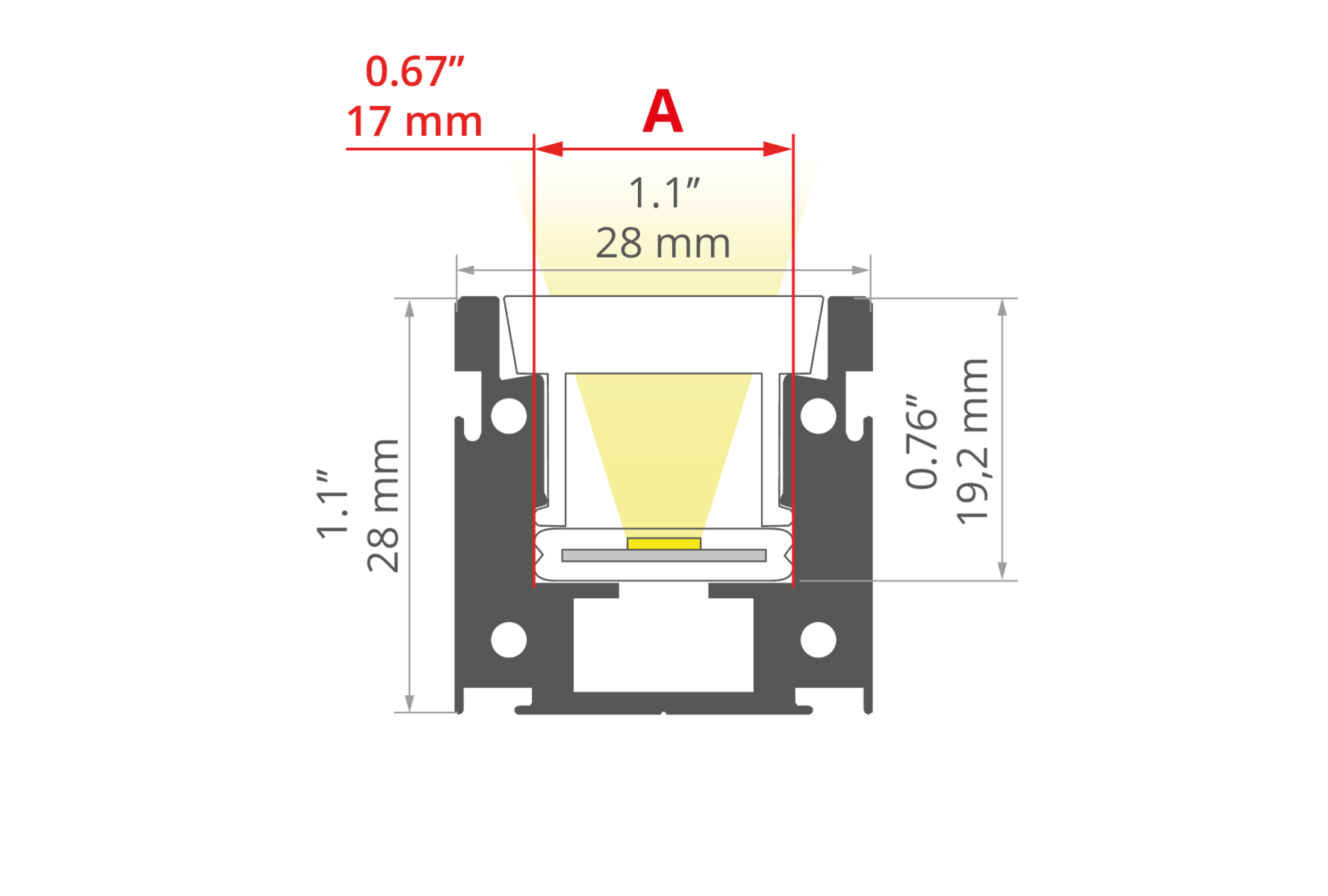

Technical drawing
HR-OPTI Extrusion aluminum Technical drawing - A01844
Technical specification
Material
aluminum
Possible fixture IP
20, 65, 67, 68
Possible fixture shapes
linear
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
4.7 W/ft
Width
1.1" (28 mm)
Height
1.1" (28 mm)
LED gluing width A
0.7" (17 mm)
Max. number of LED strips A (0.31" wide)
1
Lighting angle adjustment up to
240
The cover is cut to the length of the profile
Yes
Wire out back of extrusion
Yes
Corrosion resistance at high salinity
Yes
Impact protection IK10
Yes
Possibility of obtaining a line of light
Yes
Building type
Outdoor, Commercial, Retail, Hotel / Restaurant
Facility zone
outdoor spaces, fascade lighting
Color Length Ref No
silver anodized
39.4" (1000 mm)
78.9" (2005 mm)
118.5" (3010 mm)
A01844A_1
A01844A_2
A01844A_3
Line of Light Table for Pixel Free Illumination
LED Tapes Covers
Categories LED tape type HR-21 Cover frosted
High Efficacy KWP-14KHEHD-1440-24V Line of Light for a number (X) of rows (1)
CRI 95+ KWP-14KCRHD-1910-24V Line of Light for a number (X) of rows (1)
RGB / RGB-W / RGB-CTT K-RGBW-1920-160-24 None
Line of Light for a number (X) of rows
Line of Light for a number (X) of rows - Pixel free imaging
Centered Line of Light
Centered Line of Light - Concentrated in middle
None
None - Visible dotting from diodes
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
similar profiles
For ground
HR-MAX
Ref No: A01829
Recessed
HR-ALU
Ref No: A01889
Related products
Product name Material Key features Light transmittance [%] Color Ref No
HR-21 Focusing cover
PMMA - For indoor and outdoor applications
- focusing
79 %
semi-transparent
B17182T
HR-21 Cover
PMMA - For indoor and outdoor applications
- UV resistant
55 %
frosted
B17152F
No results found for the selected filters.
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
KWP-14KHEHD-1440-24V LED tape, 490-566 lm/ft, IP65,
65 silicon sleeve 4.4 W/ft
2700K
3000K
3500K
4000K
5000K
- High Efficacy
KWP-14KHEHD27-1440-24V
KWP-14KHEHD30-1440-24V
KWP-14KHEHD35-1440-24V
KWP-14KHDHE40-1440-24V
KWP-14KHEHD50-1440-24V
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
KWP-14KCRHD-1910-24V LED tape, 211-272 lm/ft, IP65,
65 silicon sleeve 2.8 W/ft
2700K
3500K
4000K
KWP-14KCRHD27-1910-24V
KWP-14KCRHD35-1910-24V
KWP-14KCRHD40-1910-24V
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-120-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,
65 silicon sleeve 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
KWP-GRGBW-1920-120-24
No results found for the selected filters.
Product name Material Color Ref No
End cap HR-OPTI-STN
stainless steel
gray
C28019N00
No results found for the selected filters.
Product name Key features Material Color Ref No
Mounting bracket HR-OPTI-60
- Aesthetic installation of linear fixtures
stainless steel
steel
C28090N00
No results found for the selected filters.
Product name Material Color Ref No
Gland M8x1
C42265N00
No results found for the selected filters.
Product name Material Color Ref No

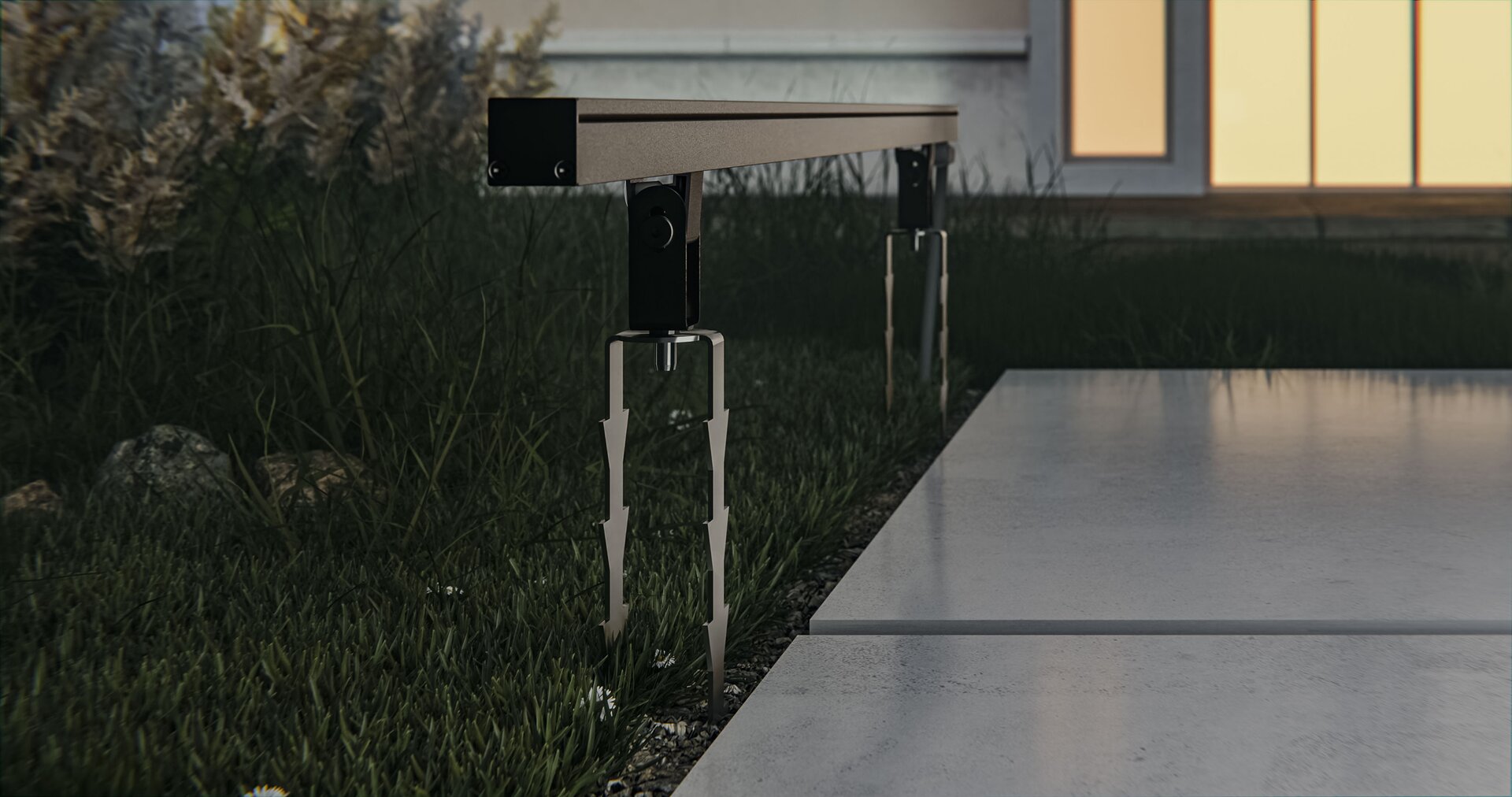

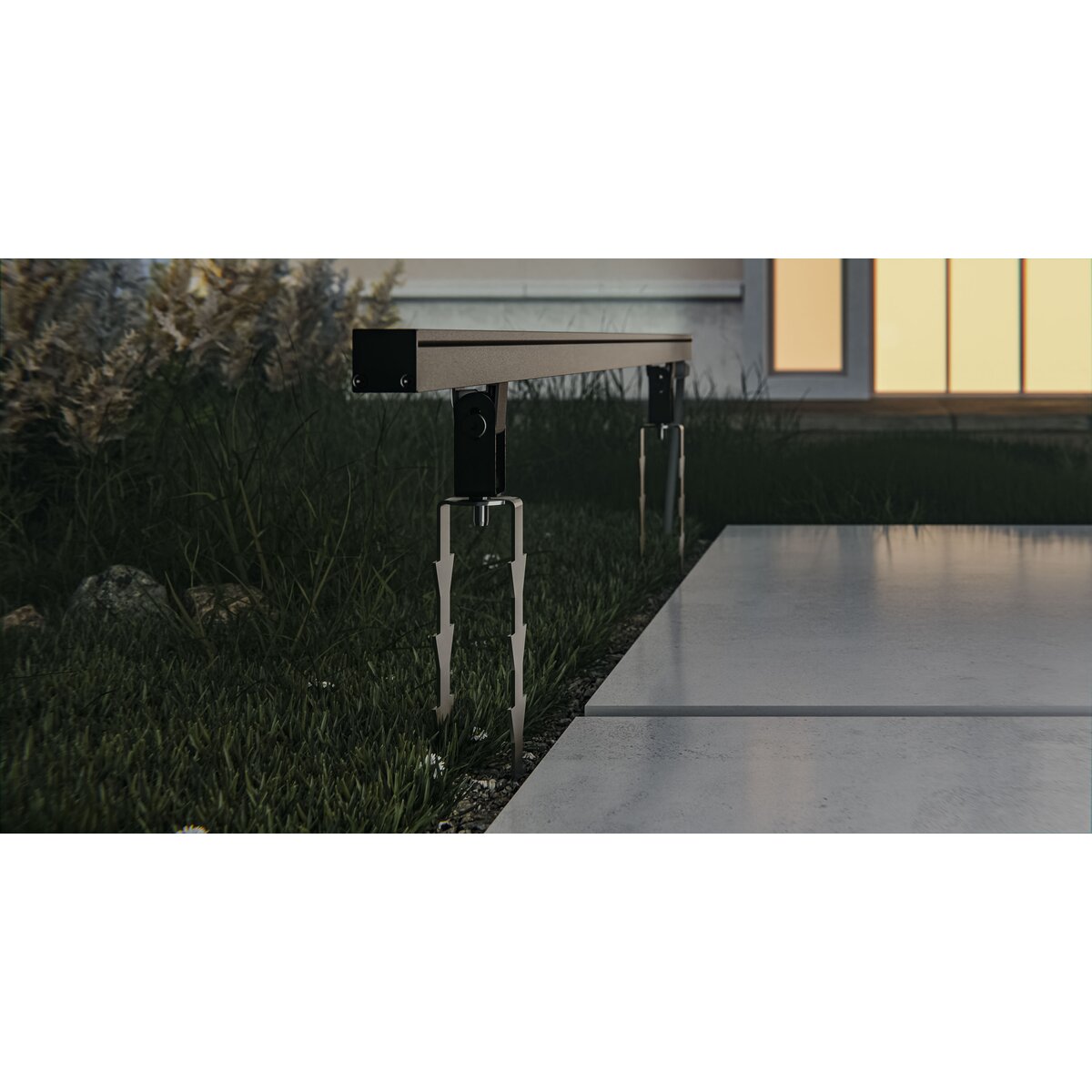

Mounting anchor DG
stainless steel
steel
C28273N00
No results found for the selected filters.
