PDS-4-PLUS Fixture surface mounted (FN01263)

The PDS-4-PLUS luminaire allows the installation of sealed LED strips from the 8K series and is characterized by a small bending radius, enabling circular designs. Ideal for direct and indirect surface mount applications. A wide selection of mounting options make this fixture ideal for undercabinet, millwork and other surface mount applications.

Possibility of mounting sealed LED strips of the 8K series
Small bending radius
Possibility of bending in the light plane

With the possibility of sealing up to IP20

With the possibility of sealing up to IP67

Configure

WATCH INSTRUCTIONAL VIDEO

Description

Possibility of mounting sealed LED strips of the 8K series
Small bending radius
Possibility of bending in the light plane

Application

- main, functional, furniture and decorative lighting

Mounting

- to the surface, suspended or recessed, using dedicated accessories, properly selected screws, with double-sided adhesive tape or mounting adhesive
- easy assembly and disassembly by snapping in and out

Additional information

- cover length equal to the extrusion length only with the use of a dedicated PDS-4-PLUS end cap
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
- NCS Premium paint option - minimum order quantity 30pcs - available immediately

download

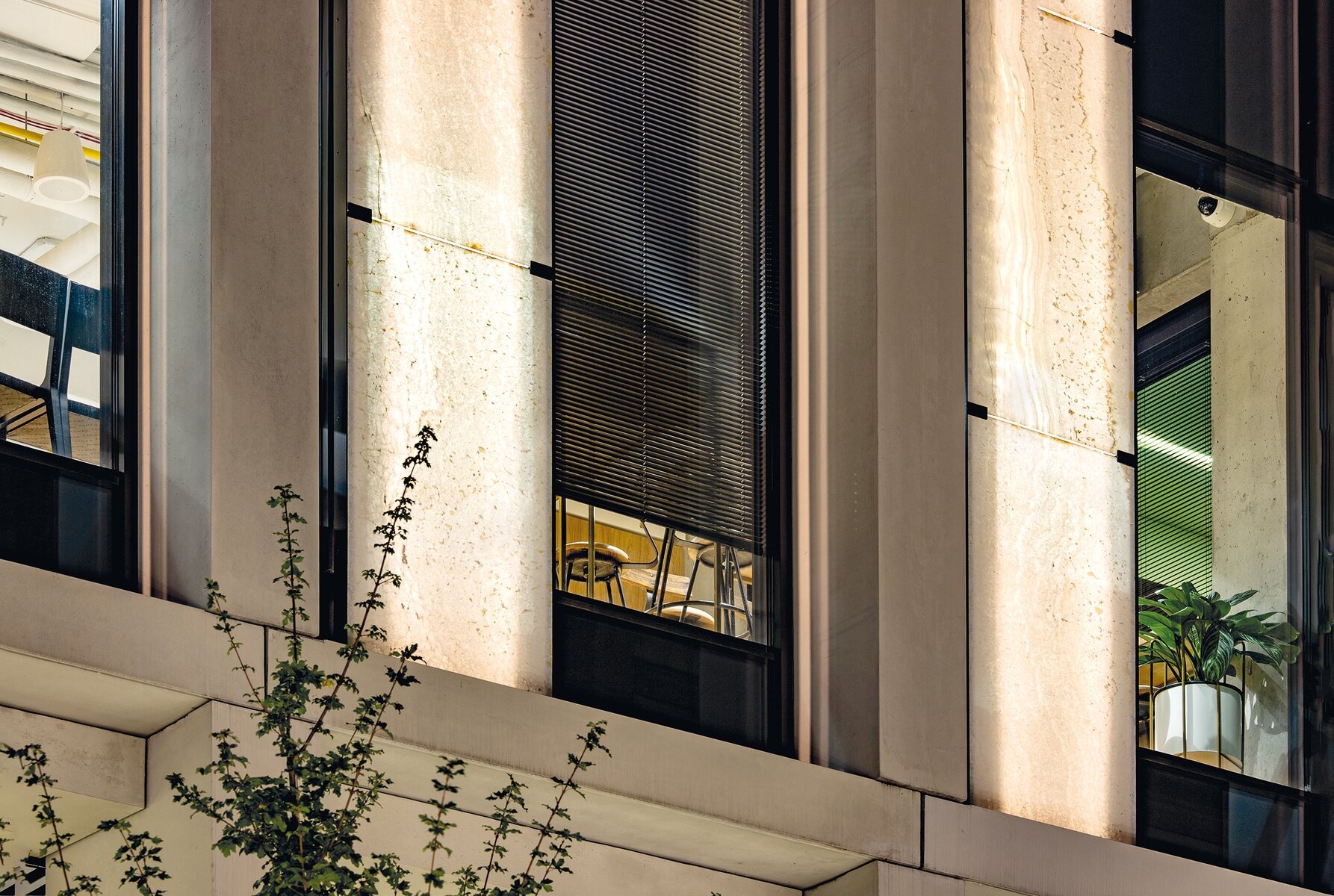

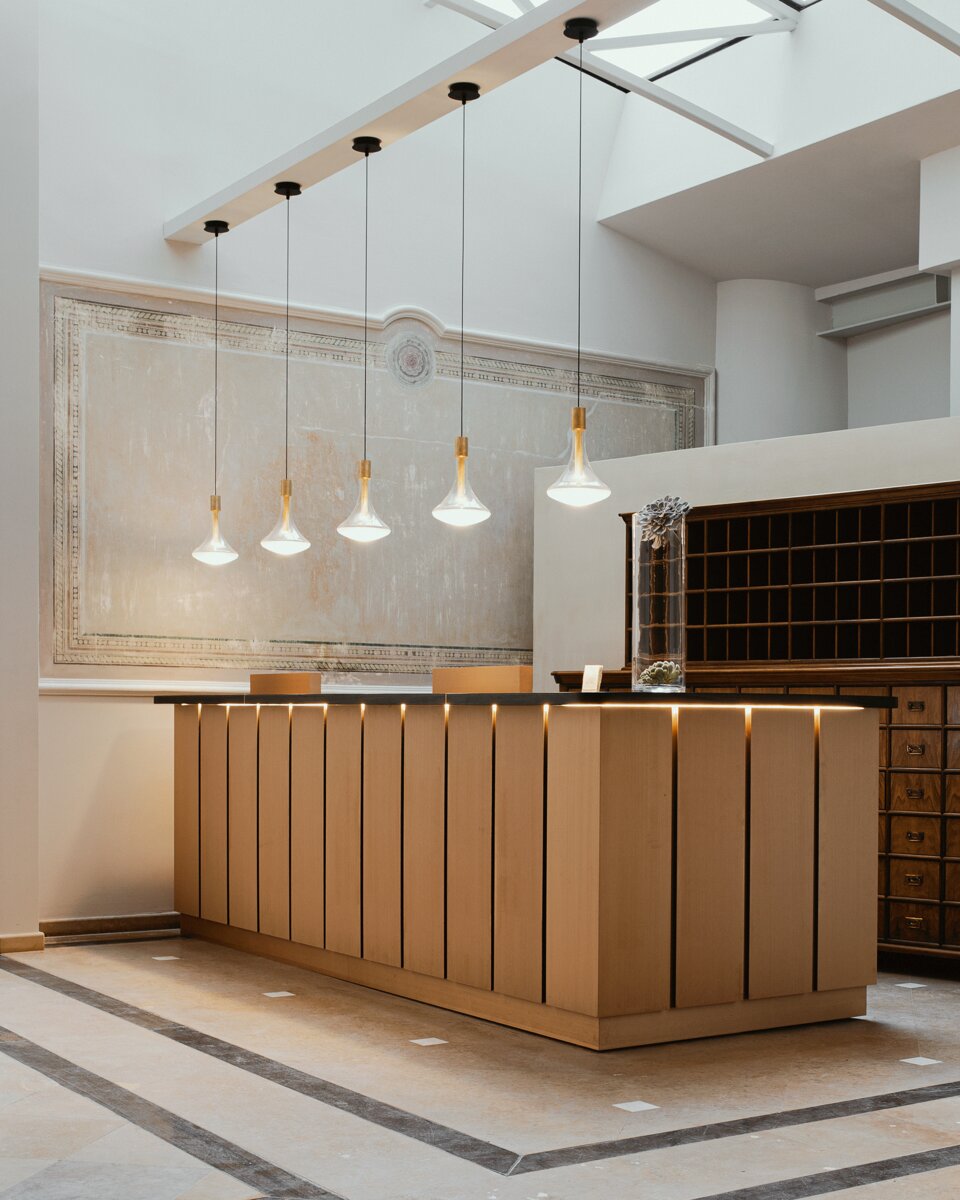

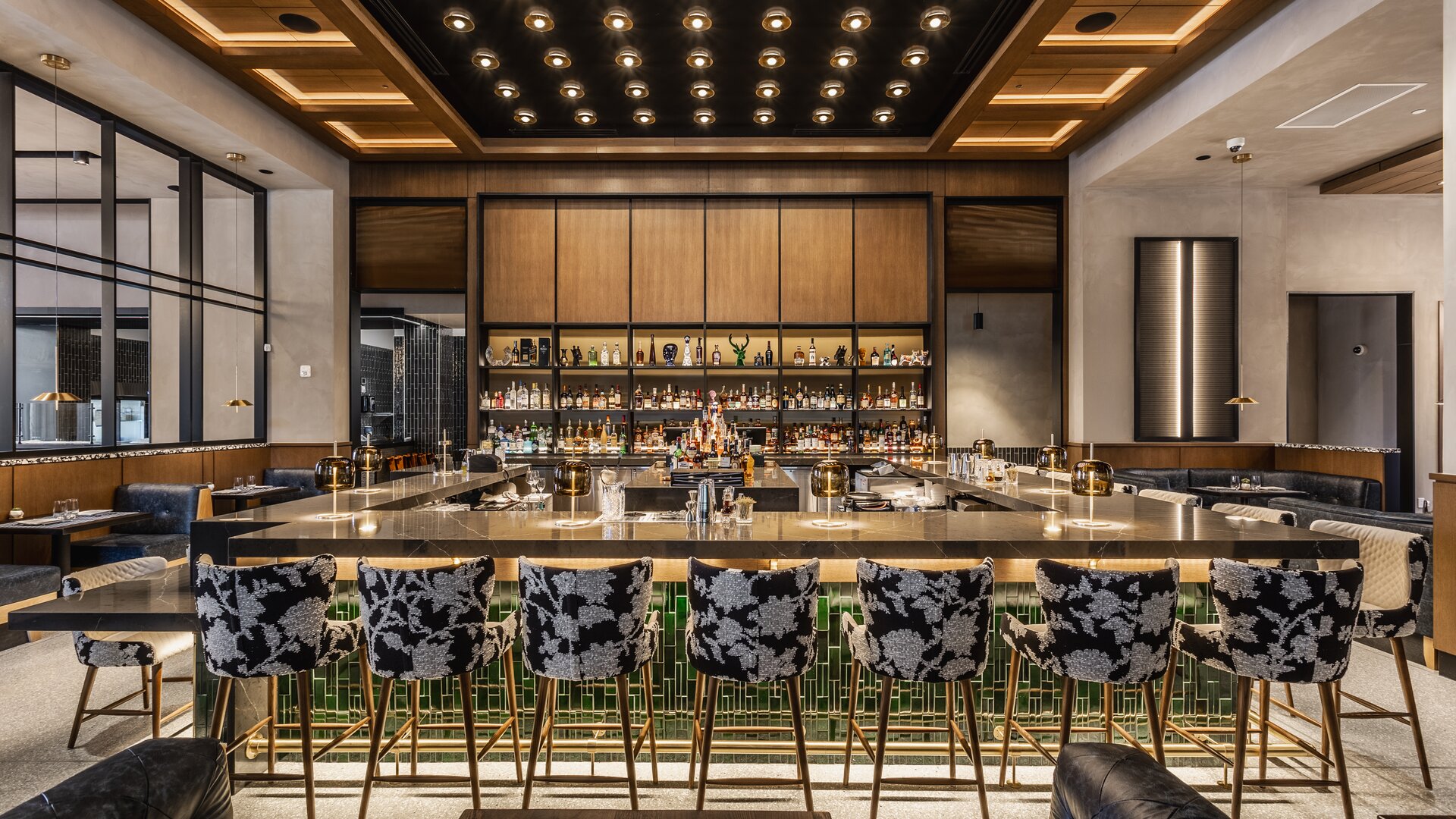

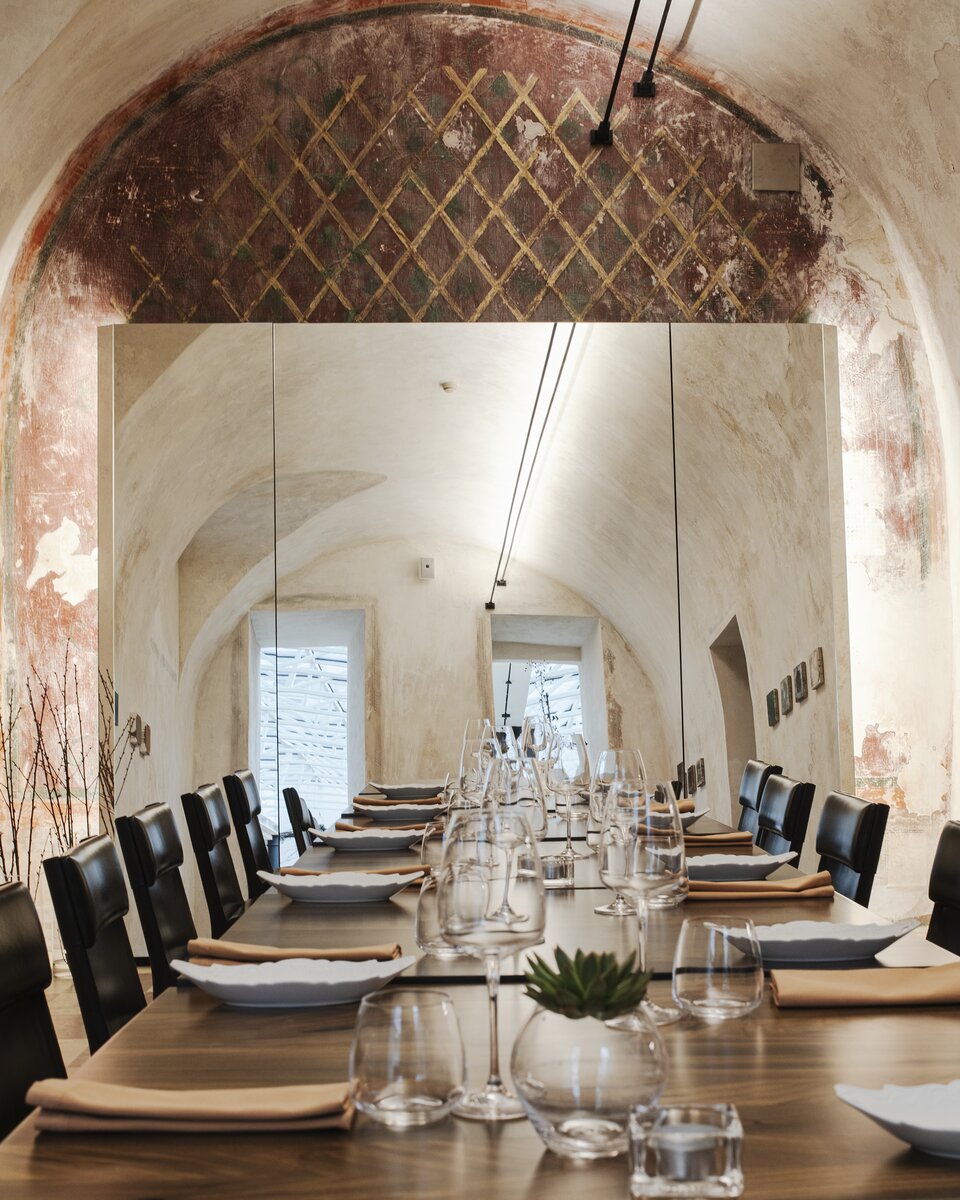

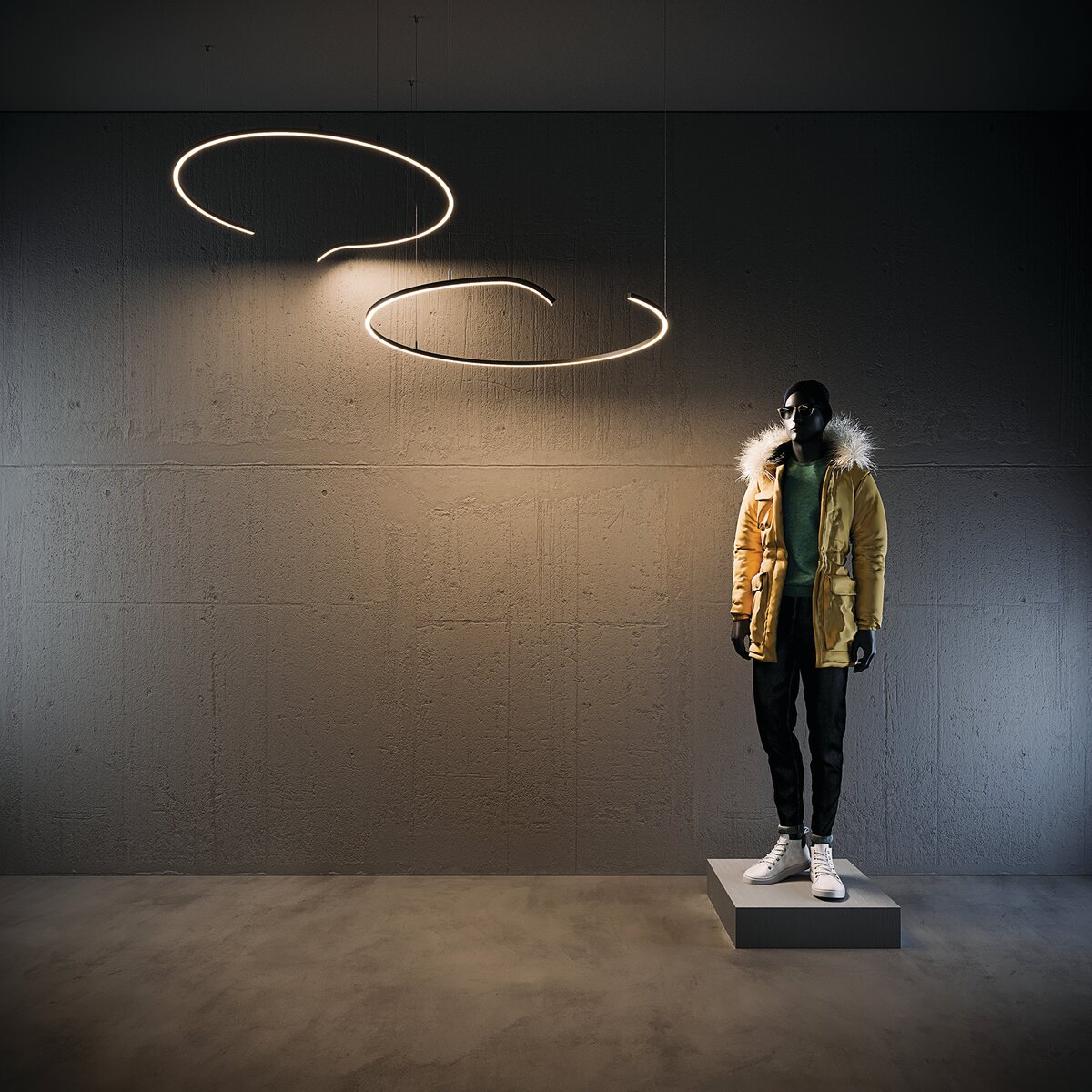

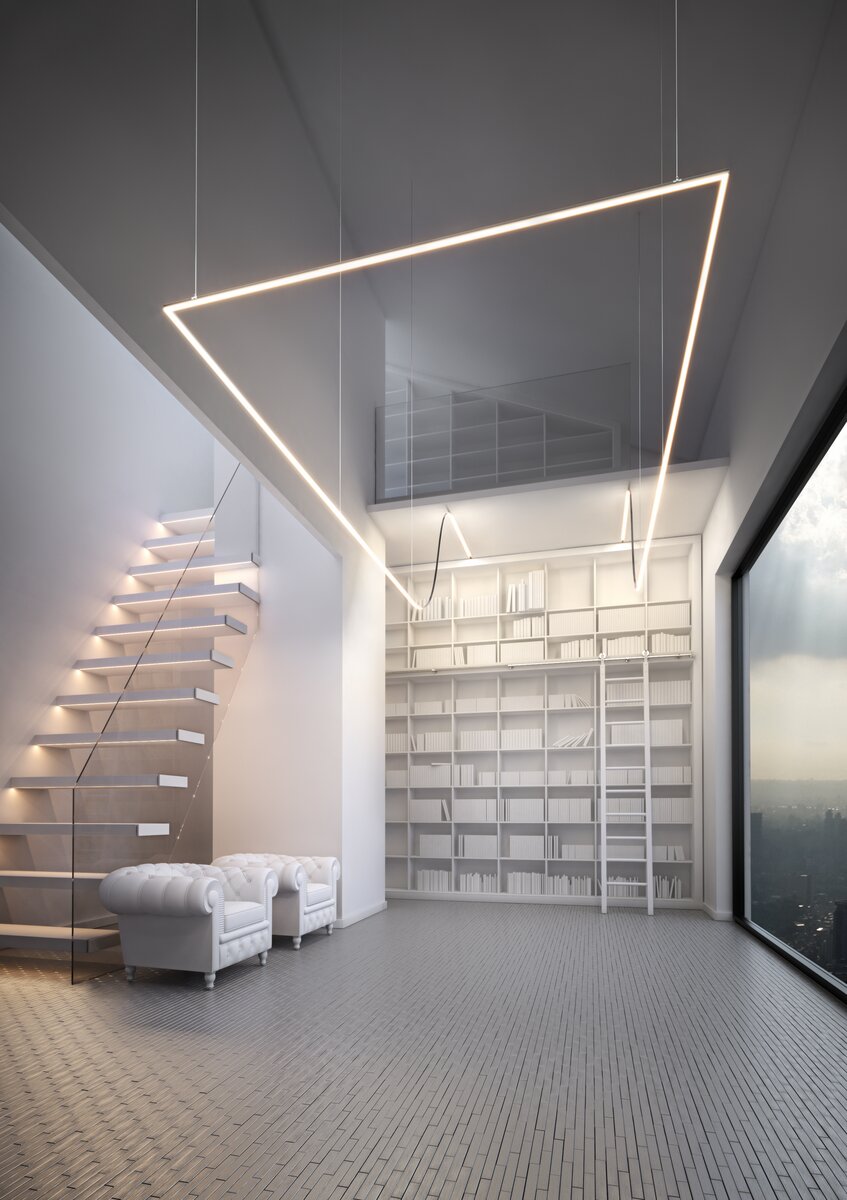

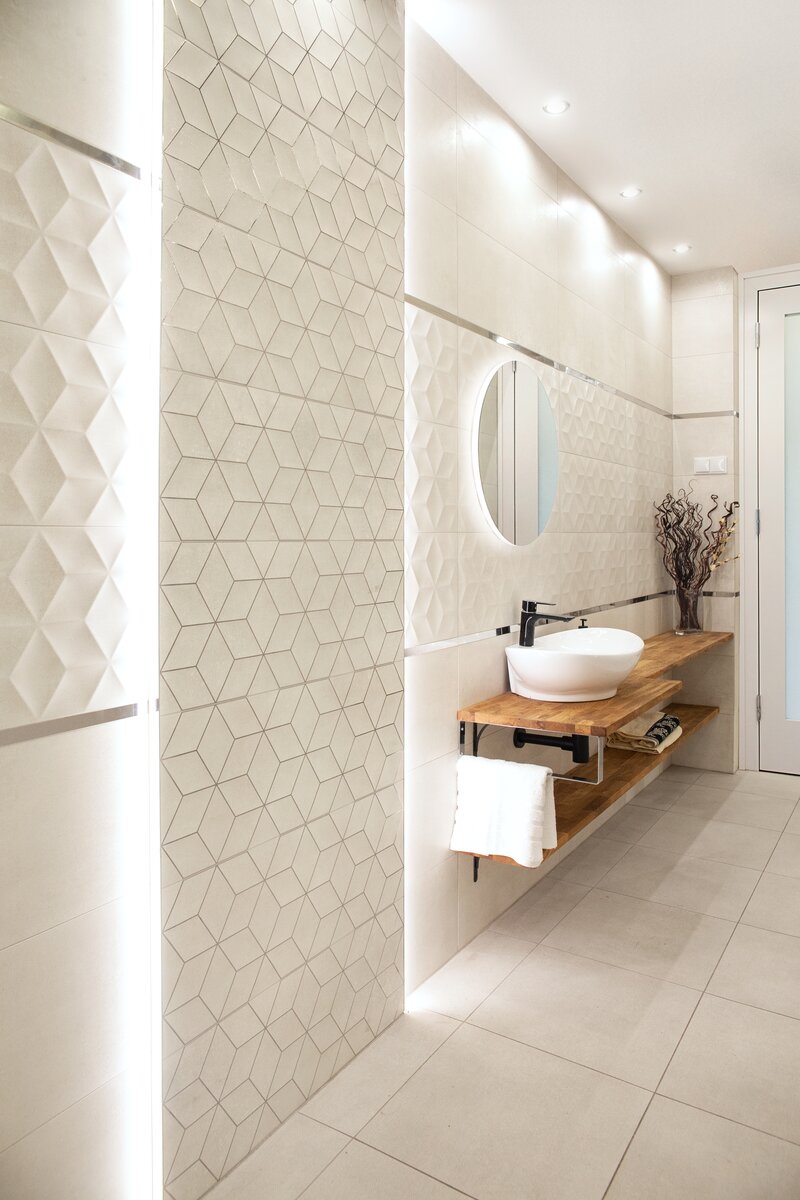

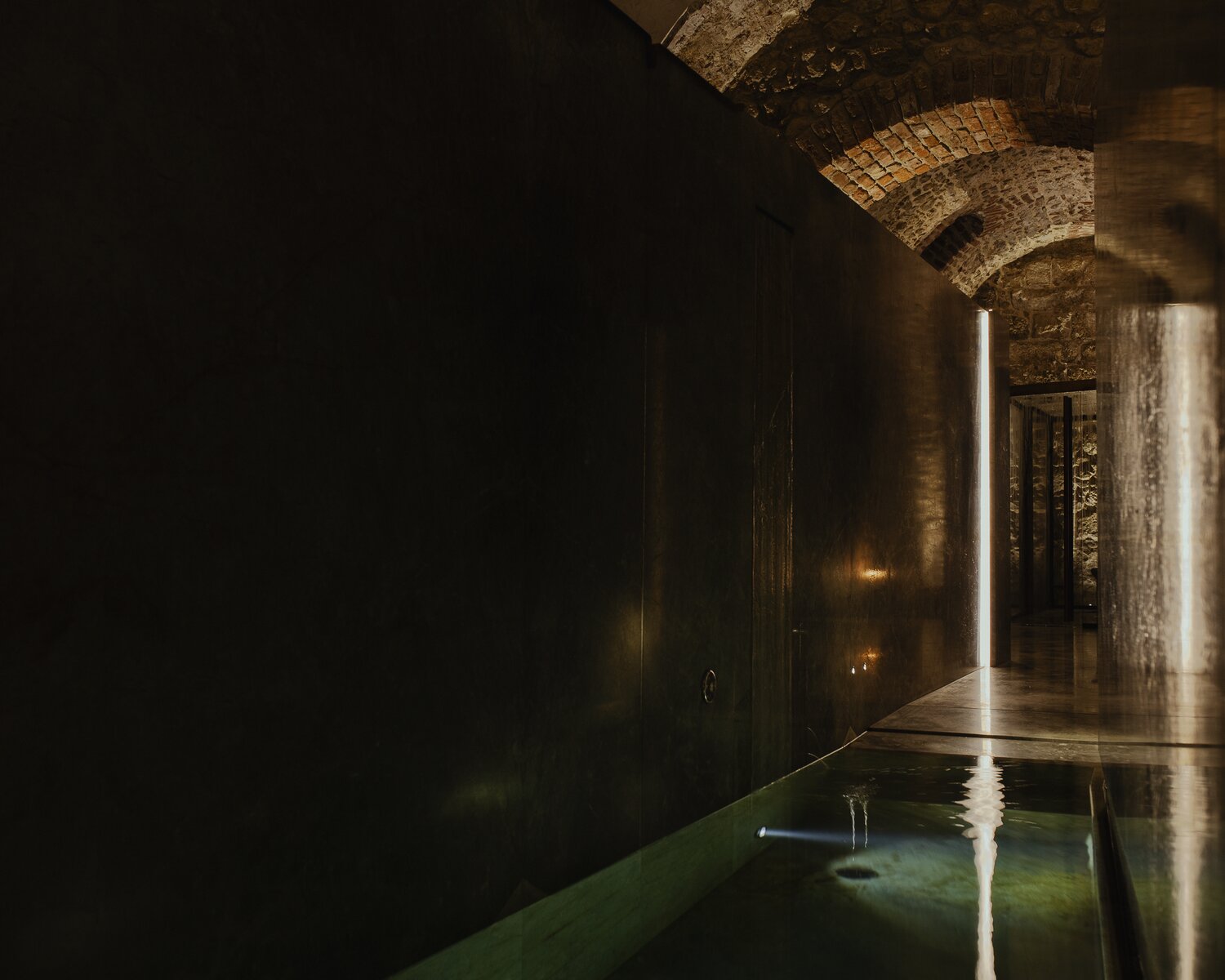

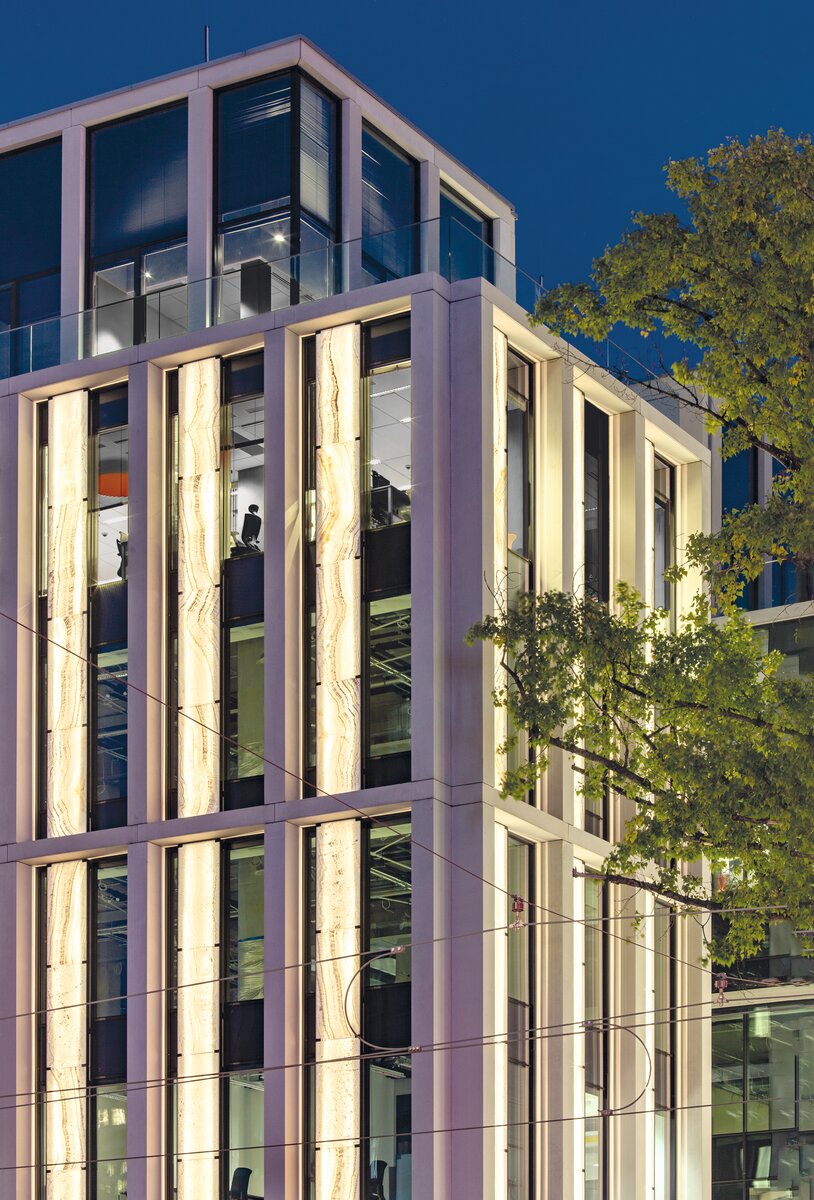

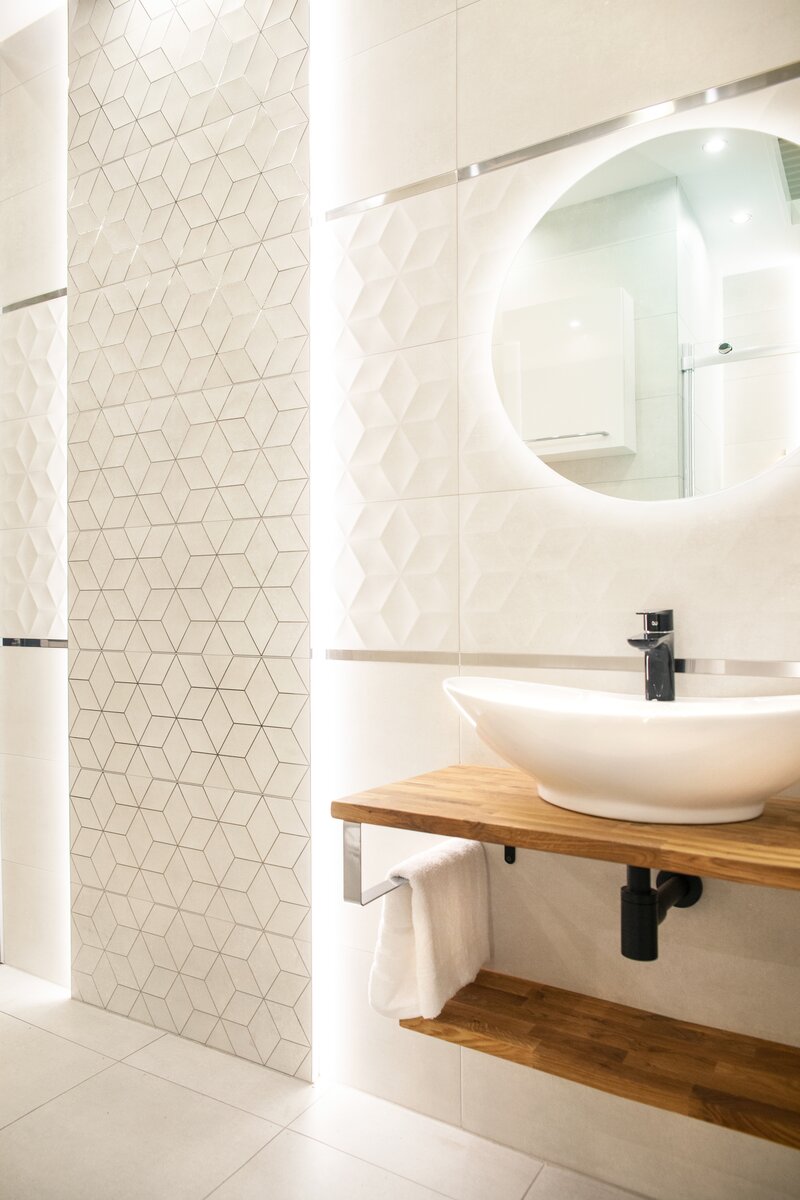

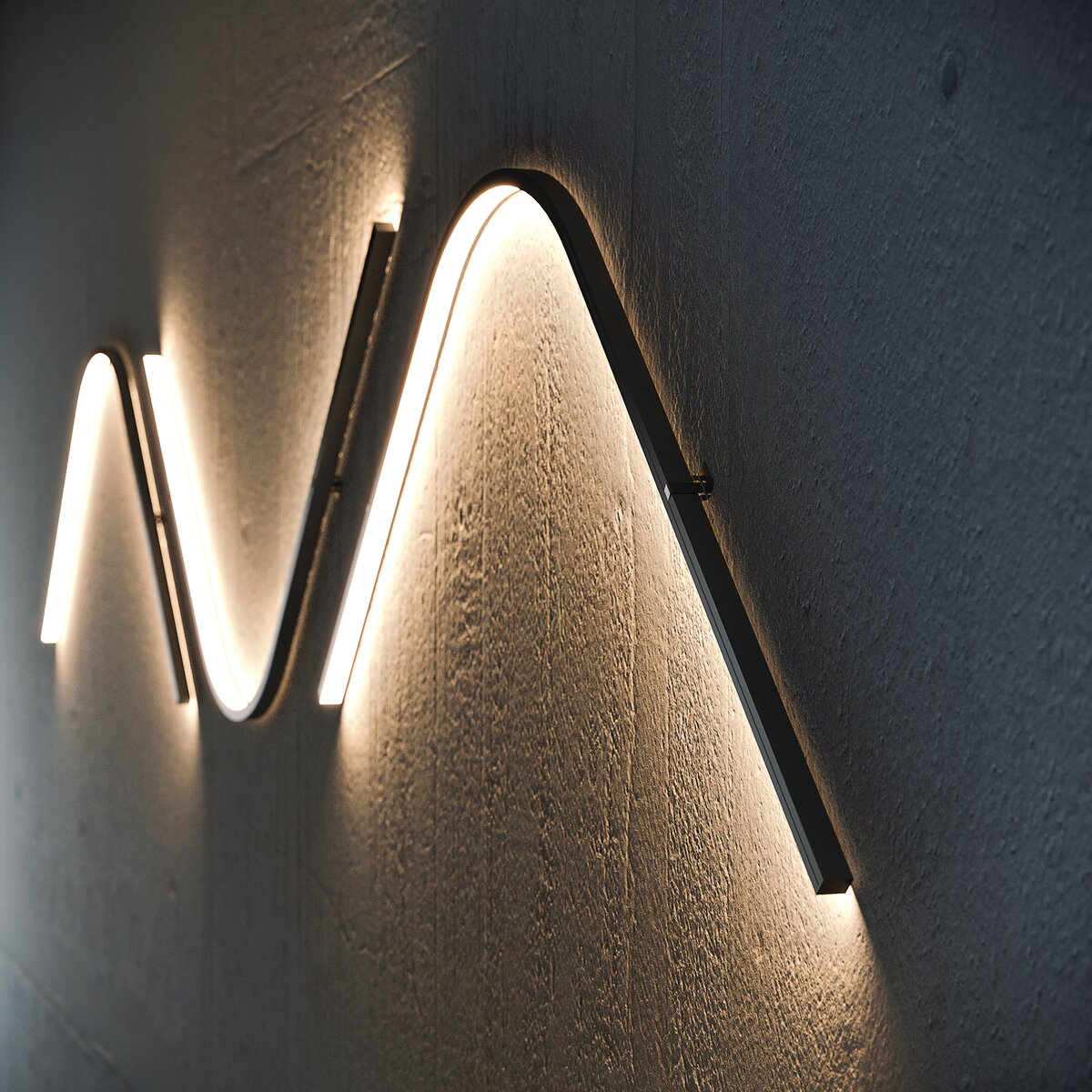

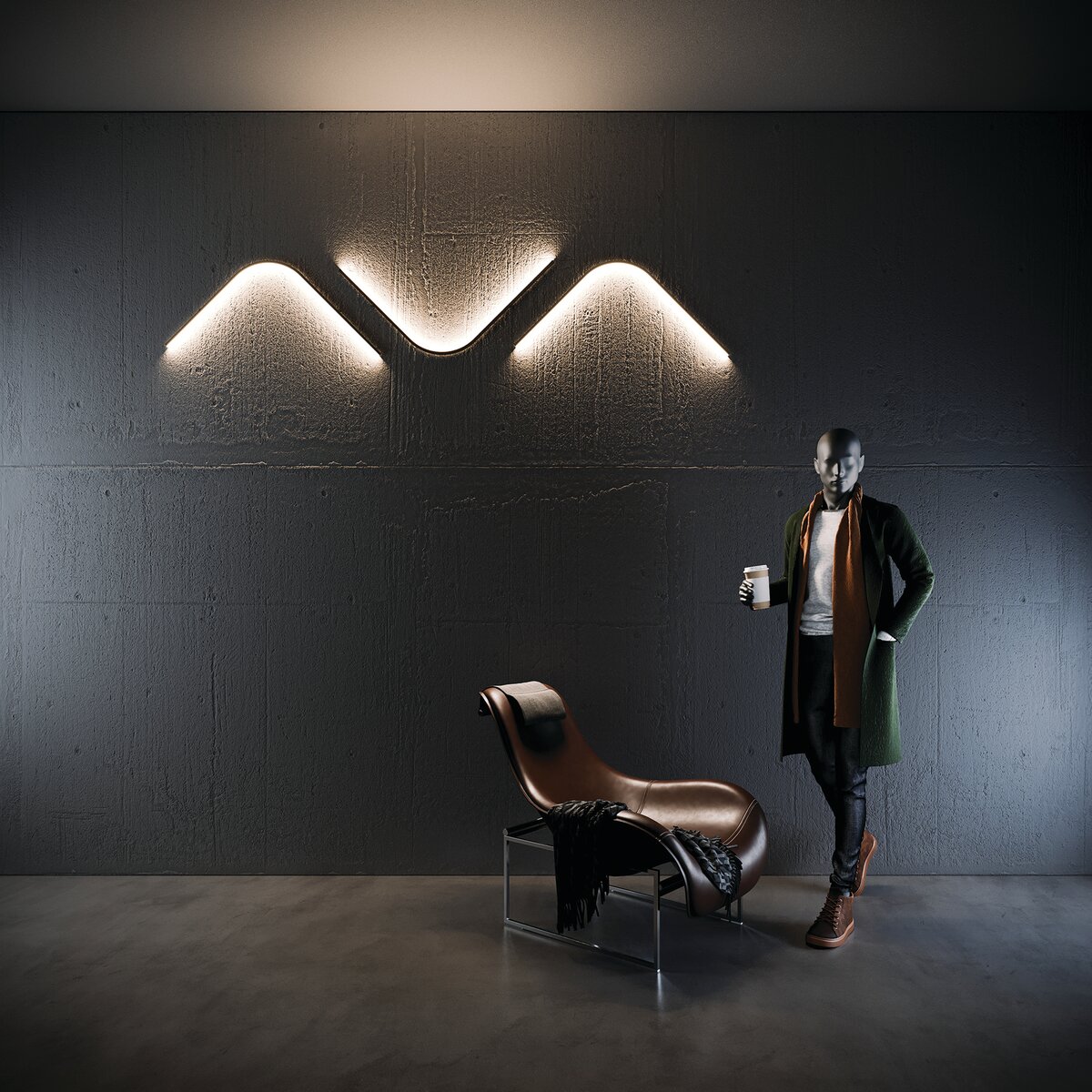

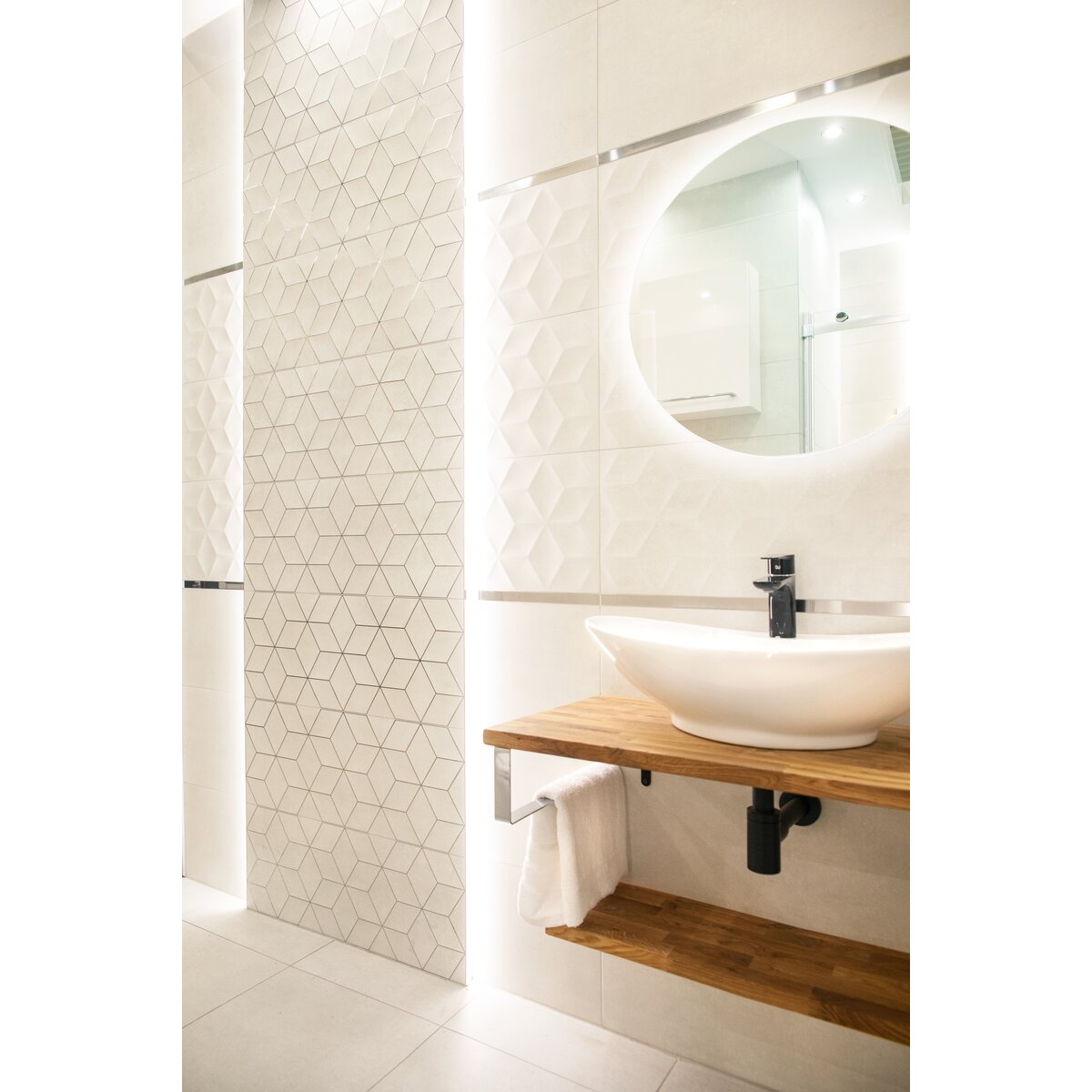

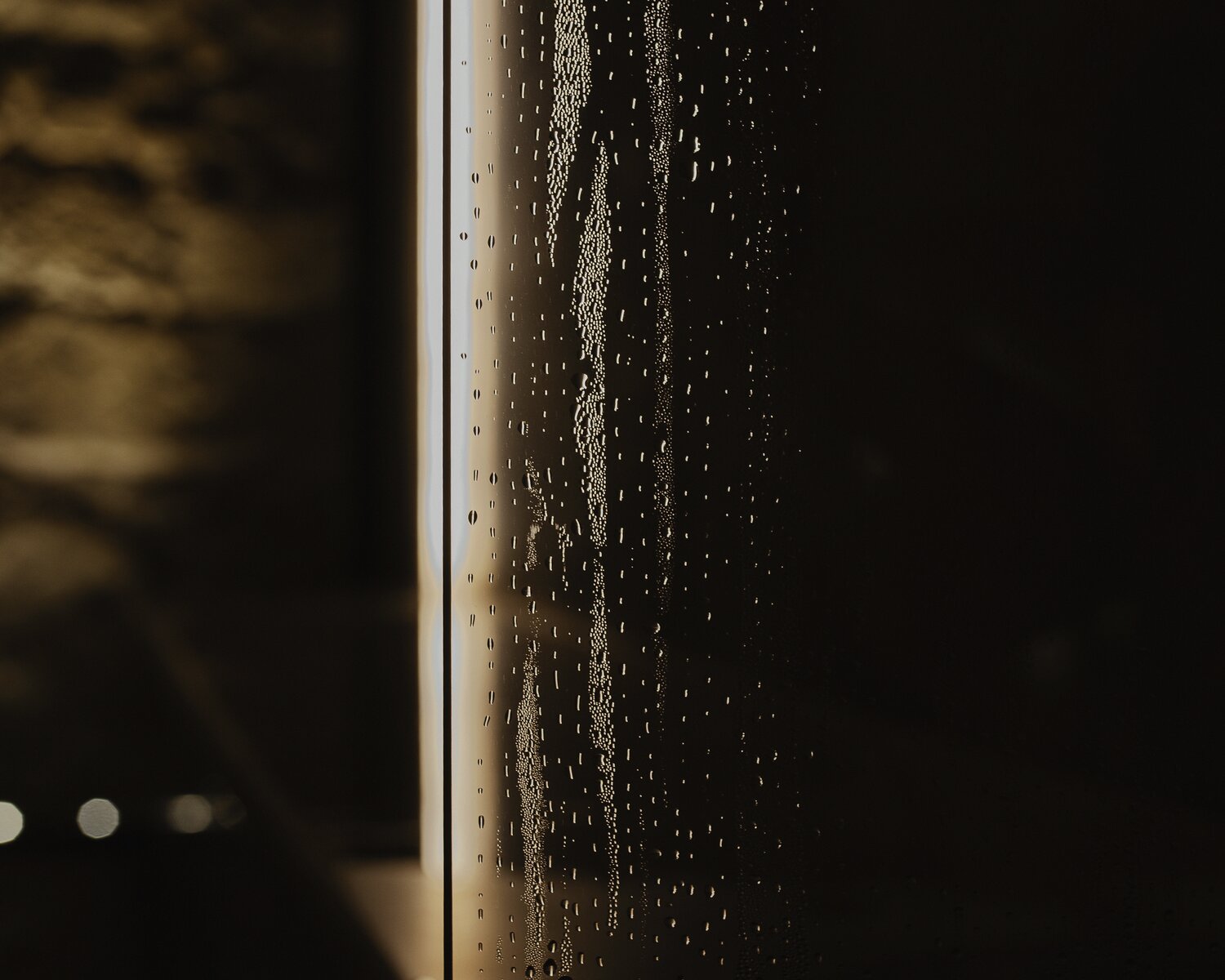

Usage examples

Description
download

Application

- main, functional, furniture and decorative lighting

Mounting

- to the surface, suspended or recessed, using dedicated accessories, properly selected screws, with double-sided adhesive tape or mounting adhesive
- easy assembly and disassembly by snapping in and out

Additional information

- cover length equal to the extrusion length only with the use of a dedicated PDS-4-PLUS end cap
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
- NCS Premium paint option - minimum order quantity 30pcs - available immediately

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

20, 67

Possible fixture shapes

linear, round

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

0.6" (16.2 mm)

Height

0.5" (12 mm)

LED gluing width A

0.6" (14 mm)

Max. number of LED strips A (0.31" wide)

Wire out end cap

Yes

Wire out back of extrusion

Yes

Minimum radius of the light arc

Radius of the light arc

Yes

Inside

180 mm

Outward

200 mm

Downward

500 mm

Building type

Commercial, Hotel / Restaurant, Retail, Residential, Entertainment/ Arts, Outdoor

Facility zone

office, kitchen, bathroom, cove / perimeter, fascade lighting, stairs / hallways, under-cabinet / furniture, outdoor spaces, media rooms / av, fitness / spa

Product name	Material	Color	Ref No
PDS Mounting bracket	stainless steel	white black	C24223C10 C24189C07
Mounting bracket PDS-STN	stainless steel	silver	C24190N00
Mounting bracket PL-PDM	PP	gray	C24041C02
Mounting bracket REG-PD	ASA	gray	C28055C02
PDS-STN-90G Mounting bracket	stainless steel	silver	C24370N00
PDS-STN-90D Mounting bracket	stainless steel	silver	C24367N00
