Mounting bracket PDS-STN

Ref No: C24190N00
  • High mechanical and weather resistance
Color
silver
  • High mechanical and weather resistance
Application
  • - for mounting LED lighting fixtures
Mounting
  • - to the surface, using a properly selected screw
  • - to the lighting fixture, with hooks
  • - easy installation and deinstallation of lighting fixtures by snapping in and out
Additional information
  • - For indoor and outdoor applications
  • - Countersunk screw recommended with max diameter of 5mm

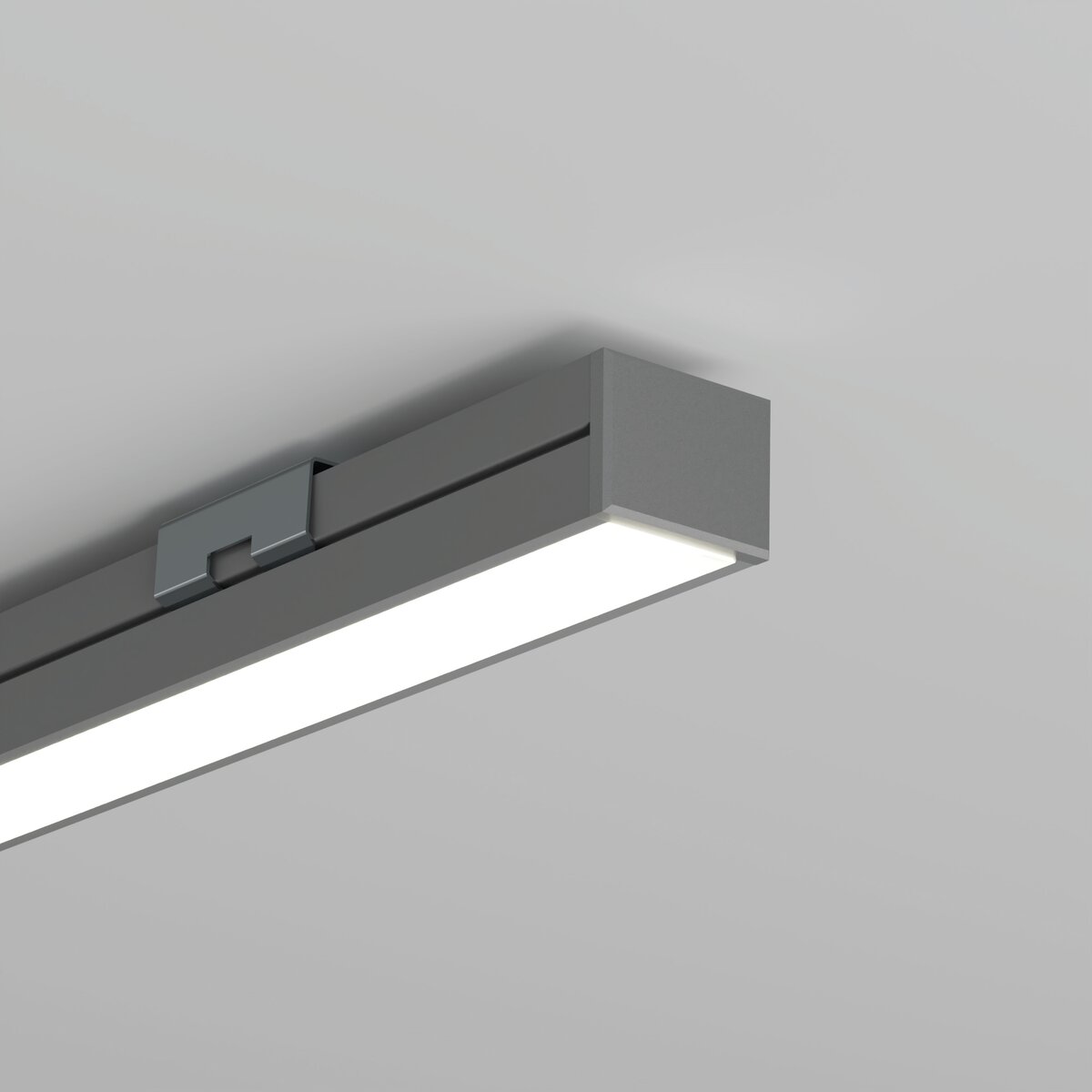

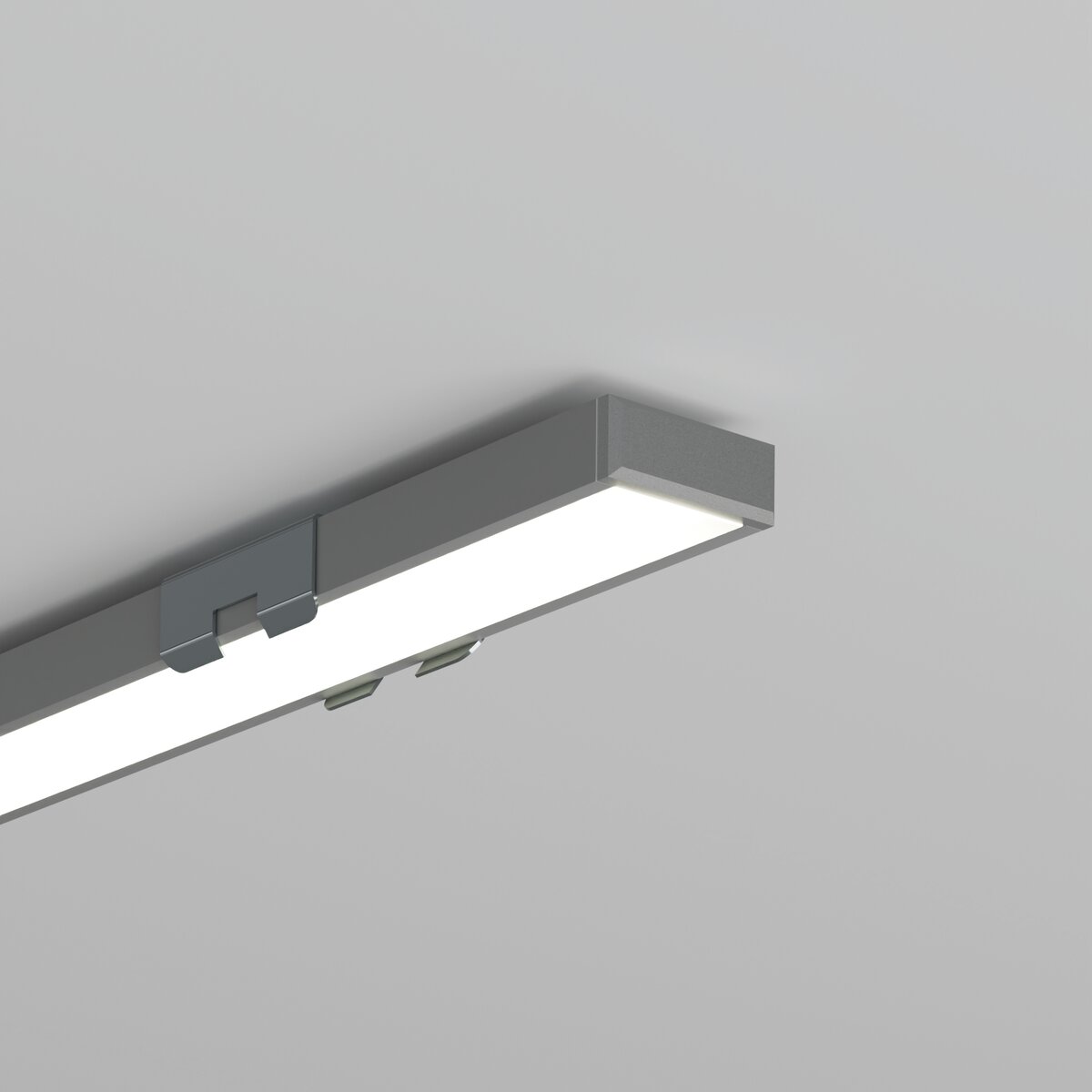

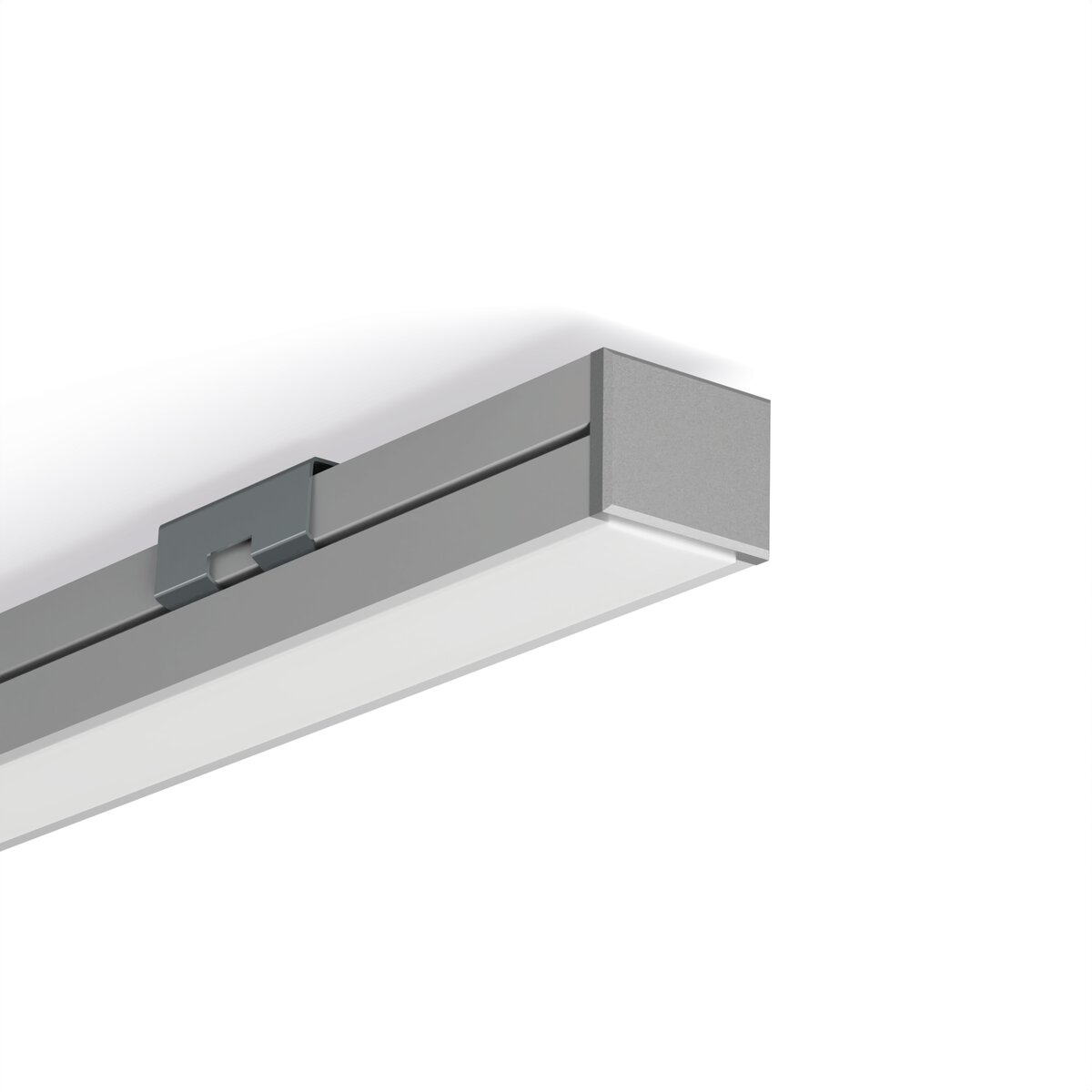

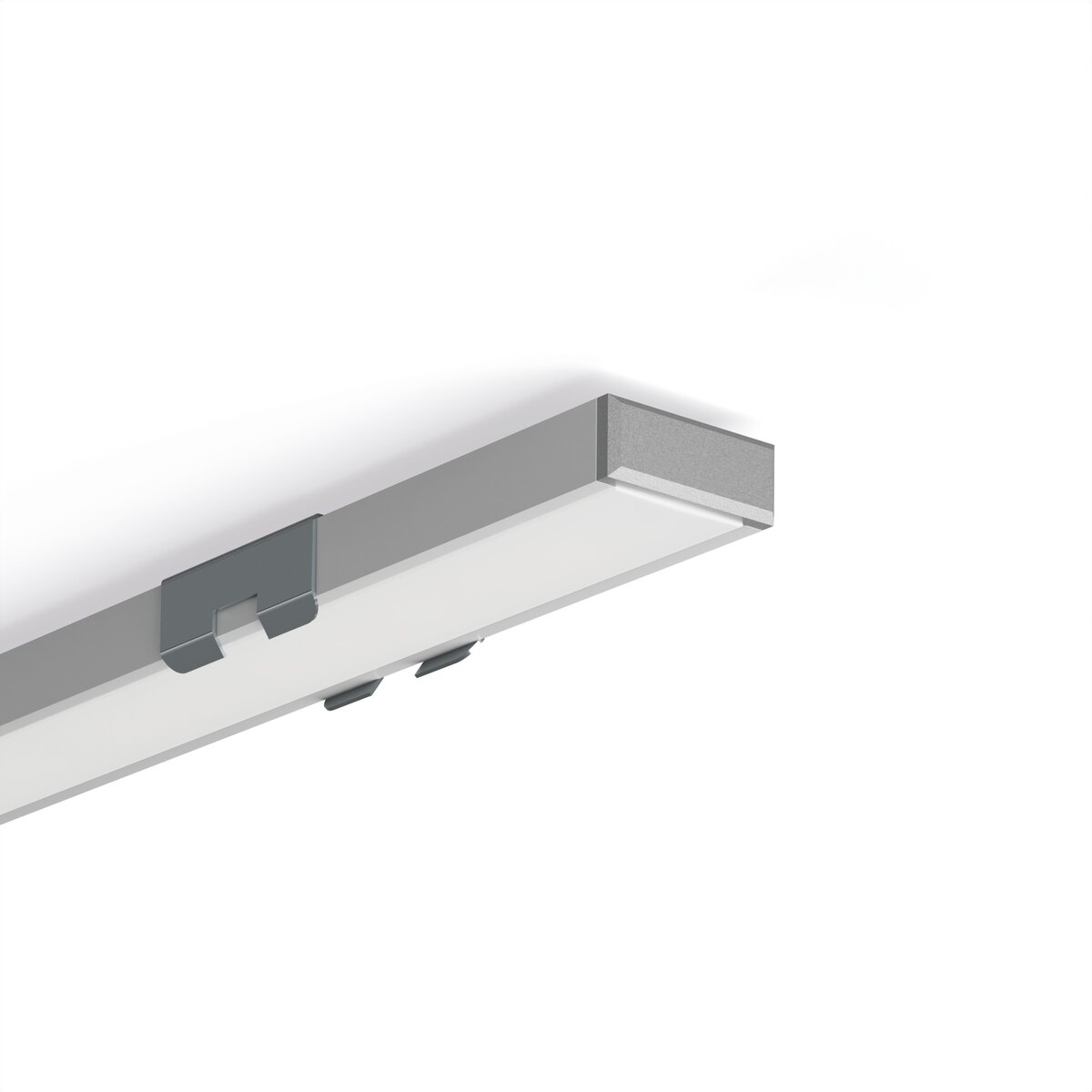

Usage examples

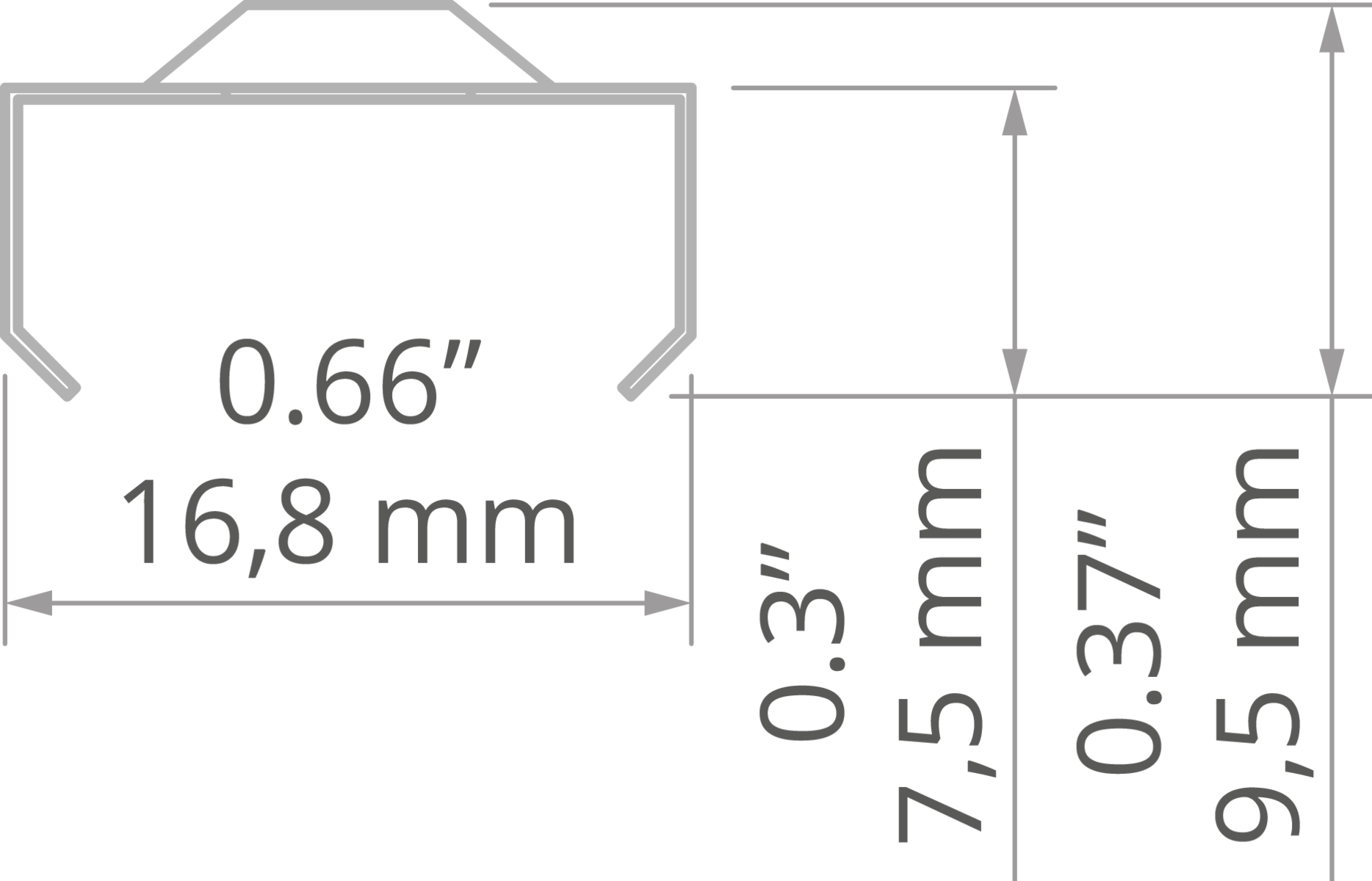

Technical drawing
Mounting bracket PDS-STN stainless steel Technical drawing - C24190N00
Technical specification
Material
stainless steel
Lifting capacity
11 lb
Width x Height
0.7" x 0.4"
