PDS-STN-90G Mounting bracket

Ref No: C24370
  • Lighting direction of the fixture parallel to the surface
  • Possibility of attaching to the extrusion before mounting to the surface
  • The position can be corrected after screwing into place
  • High mechanical and weather resistance
Corrosion resistance
UV radiation resistance
Color
silver
  • Lighting direction of the fixture parallel to the surface
  • Possibility of attaching to the extrusion before mounting to the surface
  • The position can be corrected after screwing into place
  • High mechanical and weather resistance
Application
  • - for mounting LED lighting fixtures
Mounting
  • - to the surface, using properly selected screws
  • - to the lighting fixture, with hooks
  • - easy installation and deinstallation of lighting fixtures by snapping in and out
Additional information
  • - Angular mount for indoor and outdoor applications

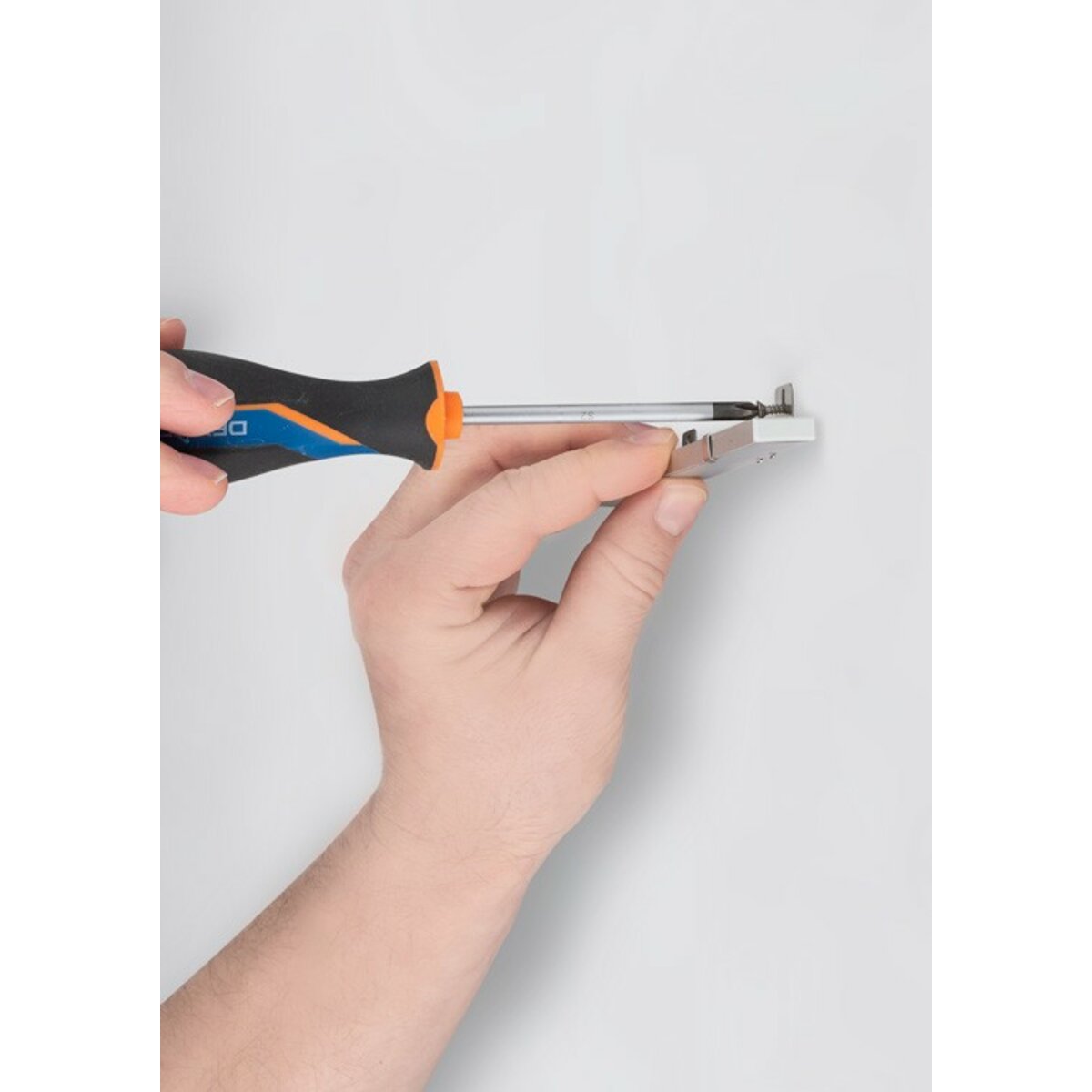

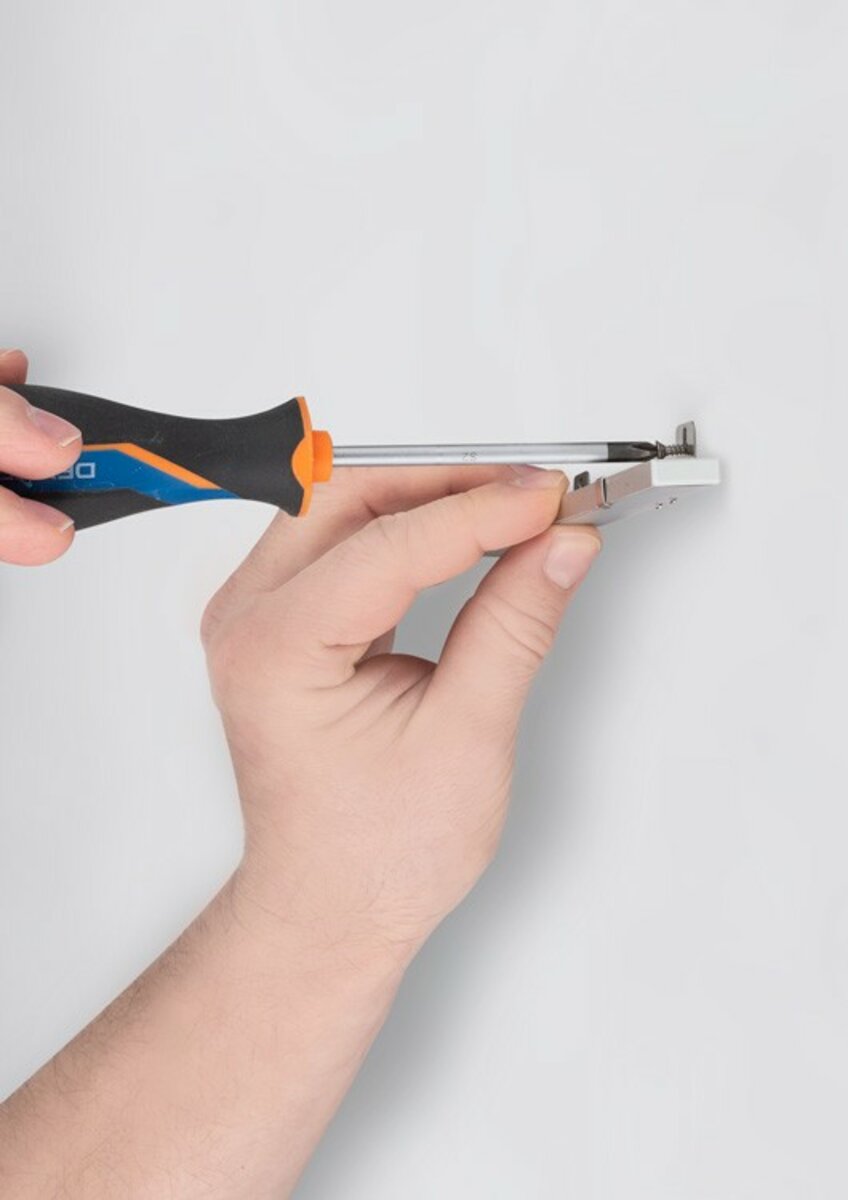

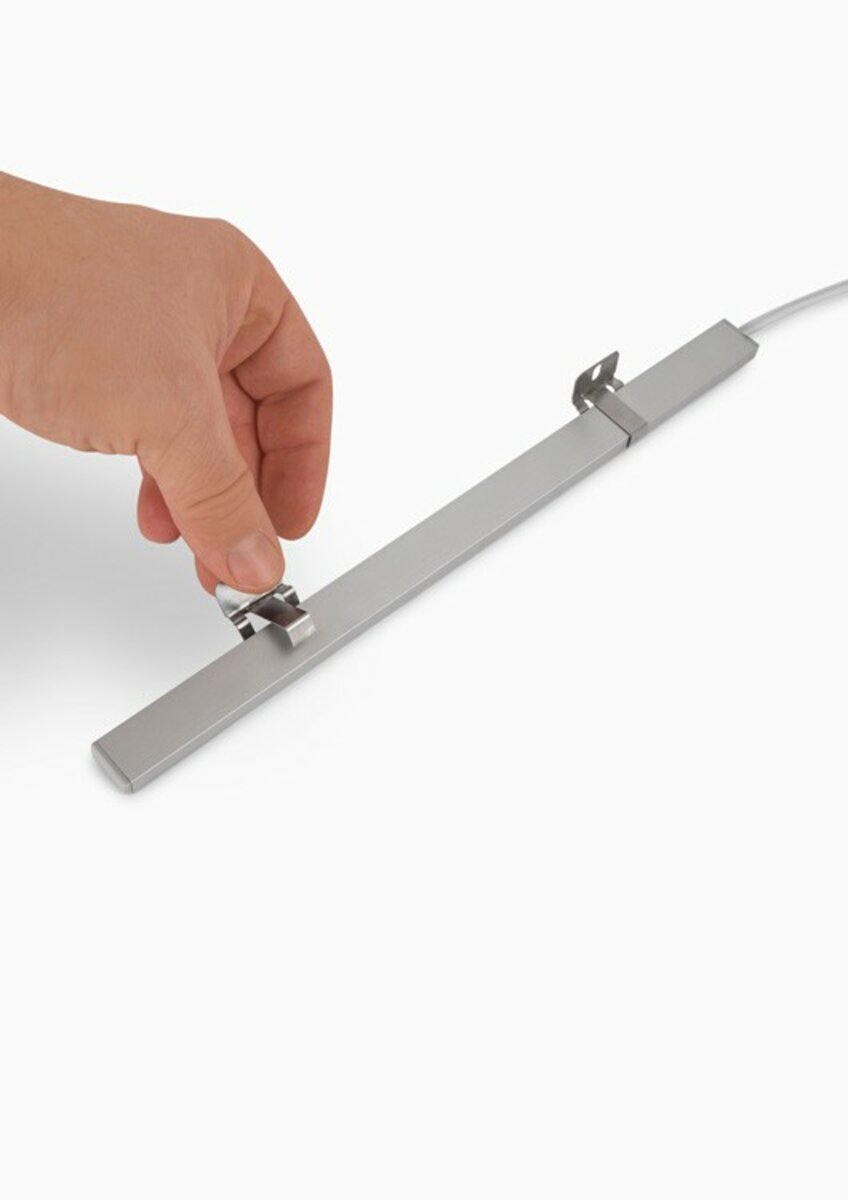

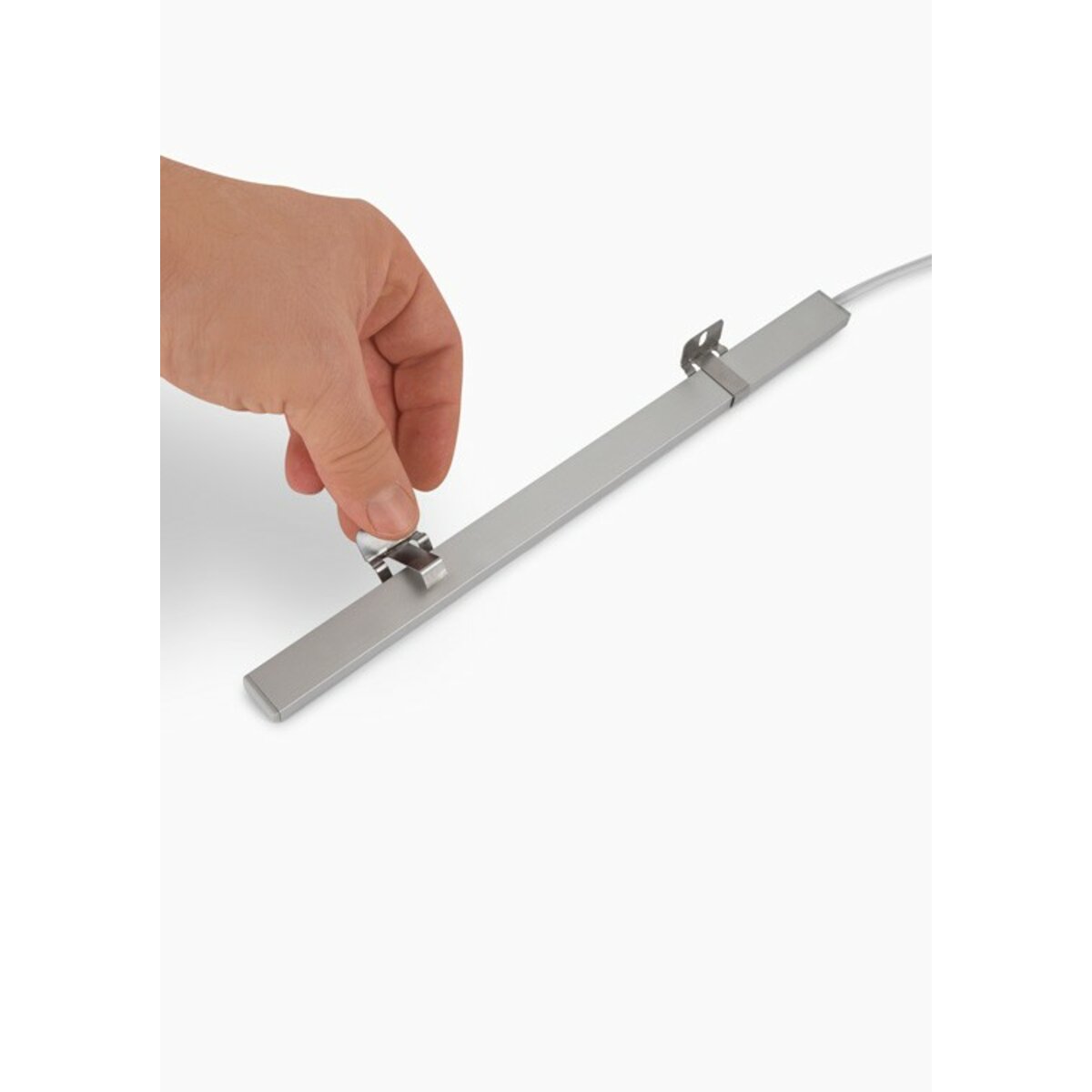

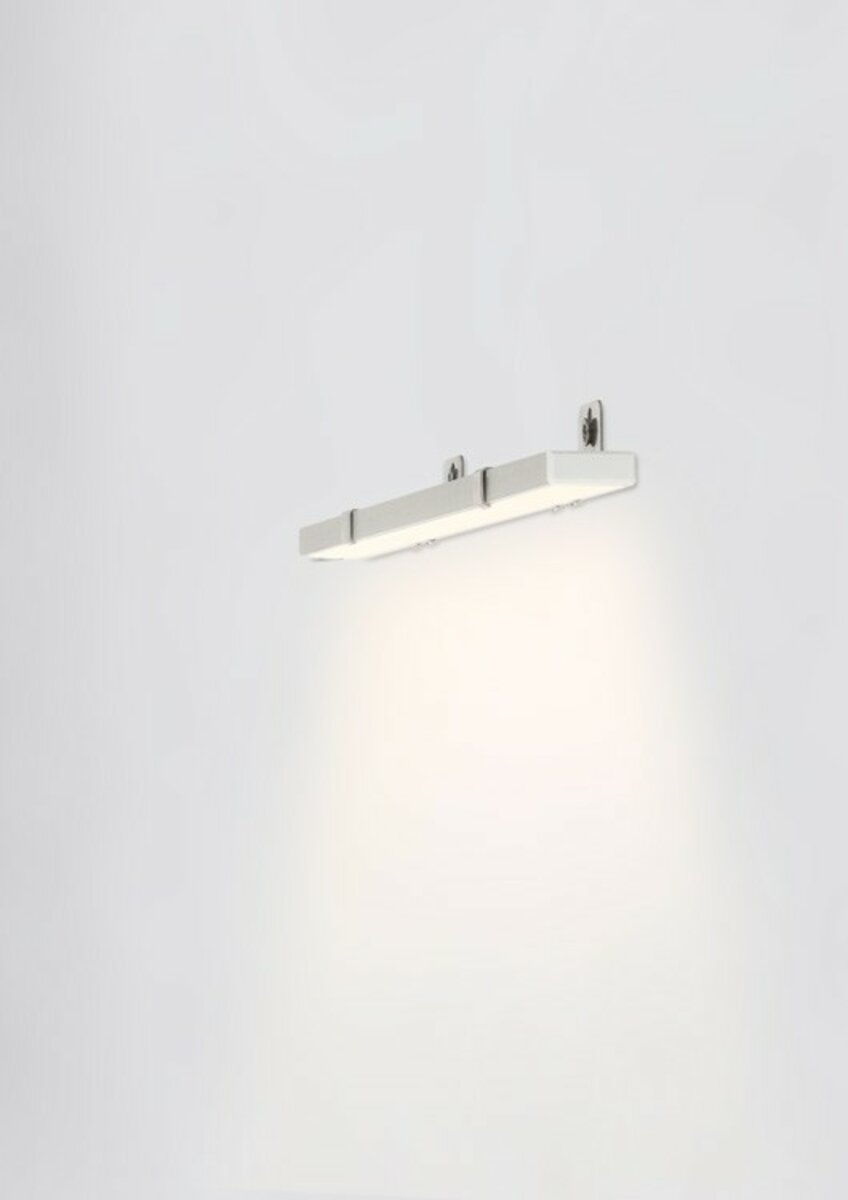

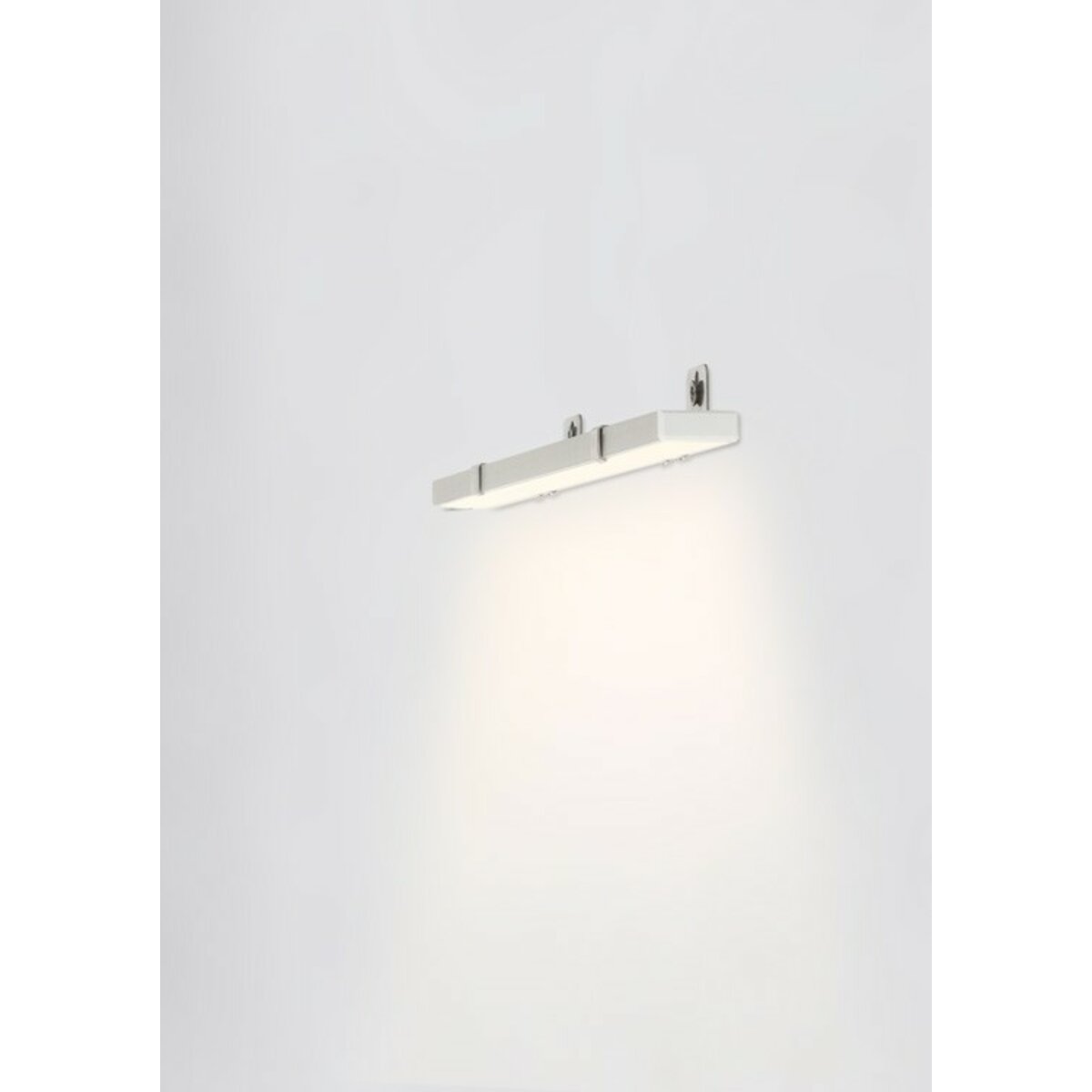

Usage examples
Technical drawing
PDS-STN-90G Mounting bracket stainless steel Technical drawing - C24370
Technical specification
Material
stainless steel
Corrosion resistance
Yes
UV radiation resistance
Yes
Lifting capacity
18.7 lb
Length x Width x Height
0.9" x 0.8" x 0.7"
Color Length Ref No
silver
0.9"
C24370N00
Related extrusions
MICRO-PLUS
Ref No: A02966
45-16
Ref No: A08504
MICRO-ALU
Ref No: A01888
PDS-4-ALU
Ref No: A01718
PDS-4-PLUS
Ref No: A01263
PDS-O
Ref No: B3777
REGULOR
Ref No: A18068
TAMI
Ref No: A05390
TAPO
Ref No: A01919
Related products
Product name Material Color Ref No
Adapters set ZM-16
PC
transparent
C29001C00
