Fastener DP-MOC-ZZ

Ref No: 00647
  • Longitudinal suspension on a rod or wire
  • Single pole conductivity possible
  • Power connector outside the lighting fixture
Conducting electricity
Color
silver
  • Longitudinal suspension on a rod or wire
  • Single pole conductivity possible
  • Power connector outside the lighting fixture
Application
  • - for suspending LED lighting fixtures
Mounting
  • - to the lighting fixture, using a mounting bracket
  • - to a rod or cable, using a set bolt

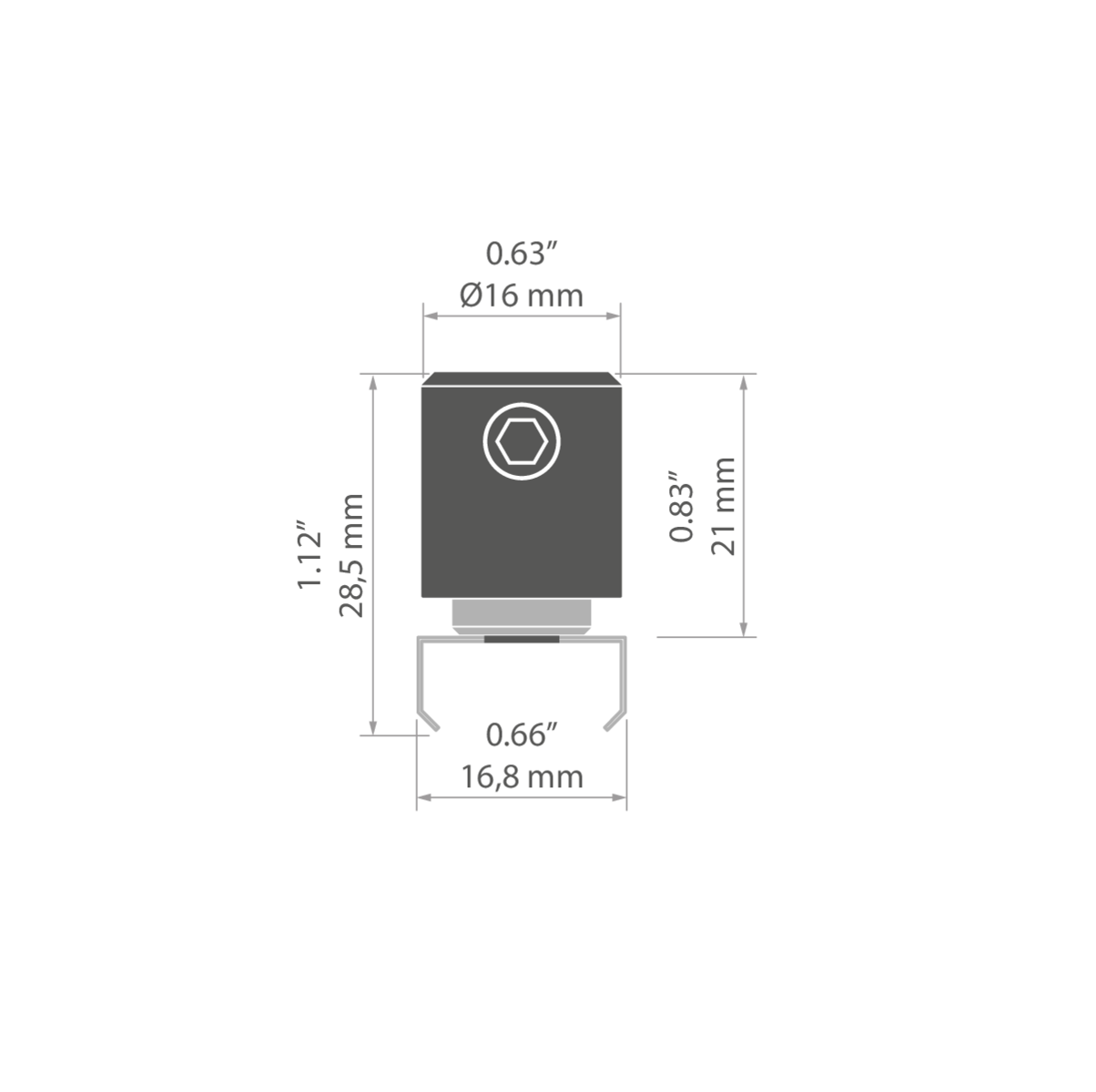

Technical drawing
Fastener DP-MOC-ZZ stainless steel Technical drawing - 00647
Technical specification
Material
stainless steel
Diameter
0.6"
Conducting electricity
Yes
Working temperature
140°F
Lifting capacity
12.3 lb
Maximum current intensity
10 A
Power loss
0.1 V
Width x Height
0.7" x 1.1"
