Simplified design
Minimum height

With the possibility of sealing up to IP20

WATCH INSTRUCTIONAL VIDEO

Color

Description

Simplified design
Minimum height

Application

- furniture and functional lighting

Mounting

- to the surface or recessed, using dedicated accessories, properly selected screws, with double-sided adhesive tape or mounting adhesive
- easy assembly and disassembly by snapping in and out

Additional information

- cover with a simplified structure
- not recommended to be used with LEDs exceeding 4.5w/ft
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

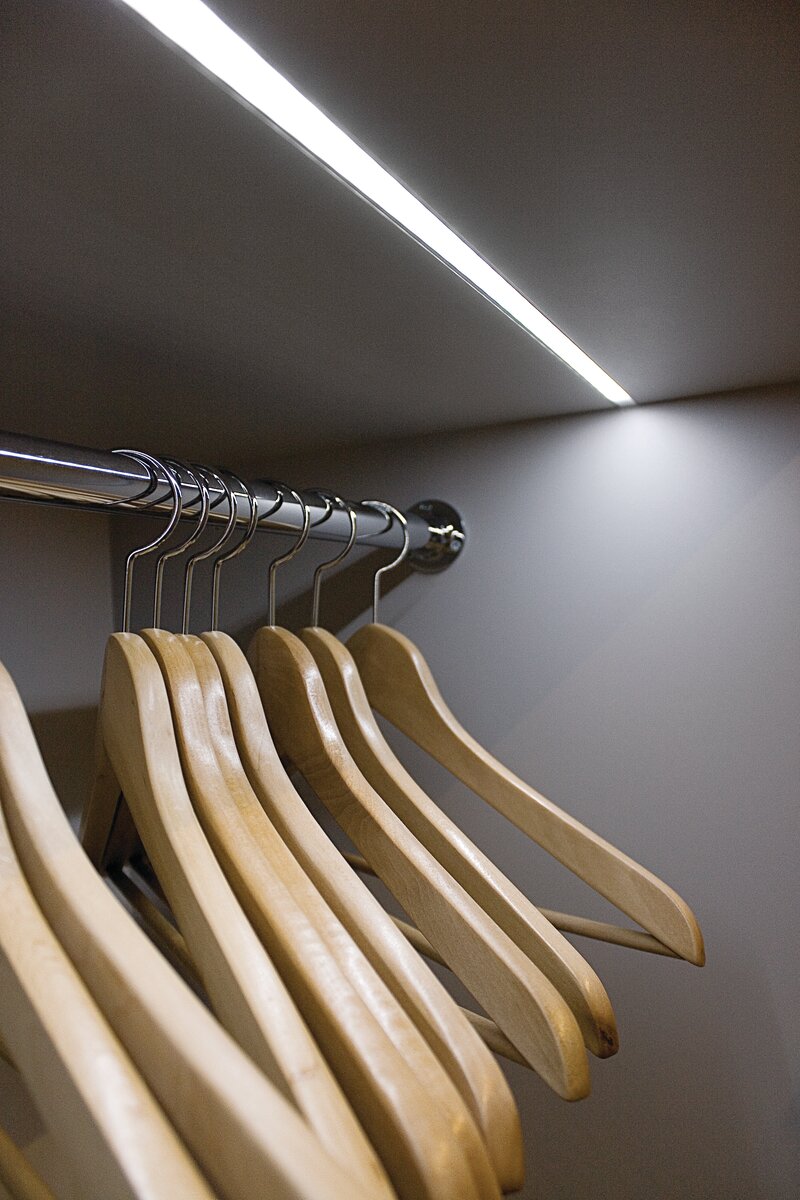

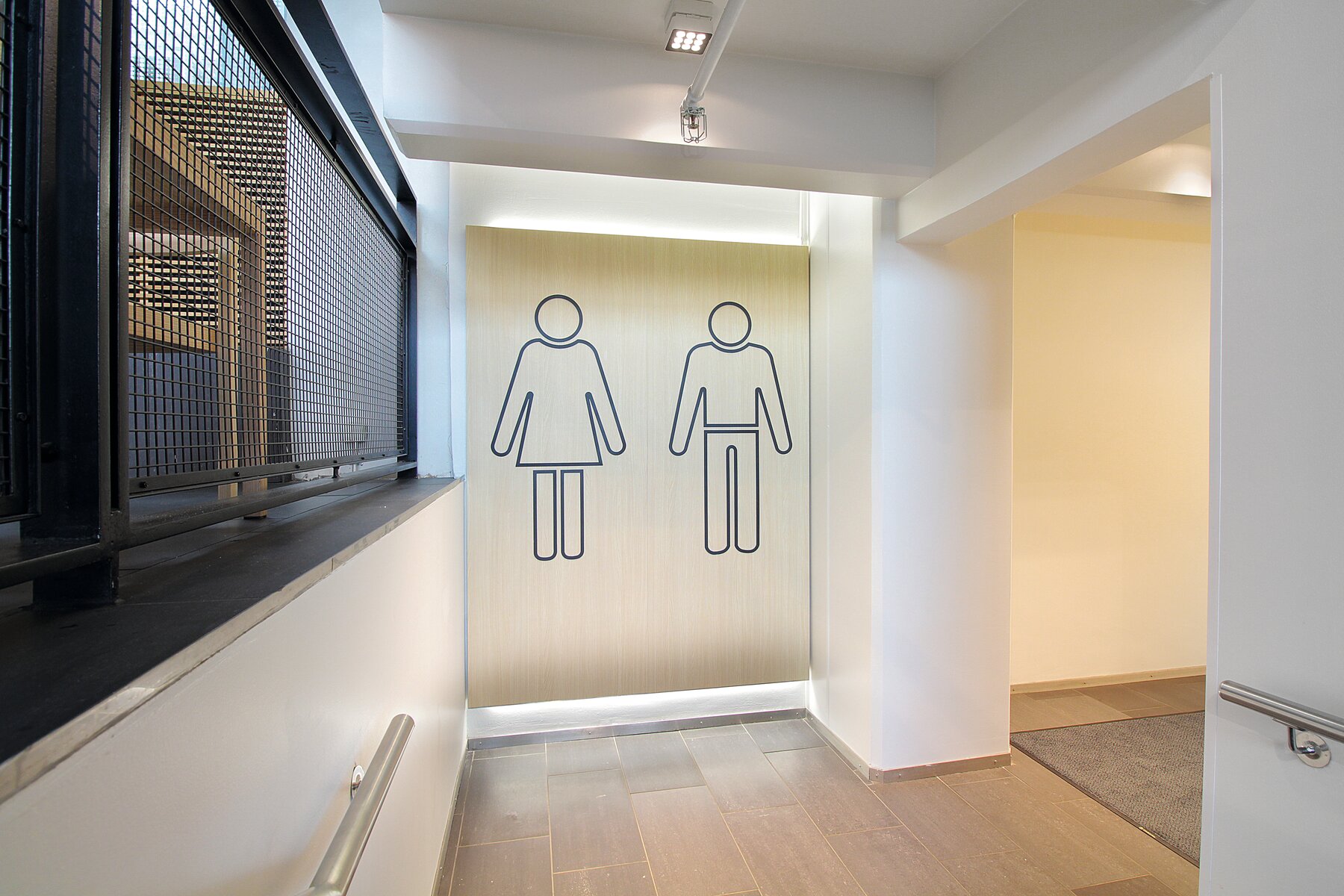

Usage examples

Description
download

Application

- furniture and functional lighting

Mounting

- to the surface or recessed, using dedicated accessories, properly selected screws, with double-sided adhesive tape or mounting adhesive
- easy assembly and disassembly by snapping in and out

Additional information

- cover with a simplified structure
- not recommended to be used with LEDs exceeding 4.5w/ft
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

Declaration of Conformity UKCA

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

Possible fixture shapes

linear, polygonal

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

4.6 W/ft

Width

0.6" (15.9 mm)

Height

0.3" (7 mm)

LED gluing width A

0.5" (13 mm)

Max. number of LED strips A (0.31" wide)

Easy assembly and disassembly by snapping in and out

Yes

The cover is cut to the length of the profile

Yes

Wire out end cap

Yes

Wire out back of extrusion

Yes

Building type

Residential, Retail, Hotel / Restaurant

Facility zone

kitchen, bathroom, under-cabinet / furniture, exhibition / tradeshow / display, cove / perimeter

Color	Length	Ref No
silver non anodized	39.4" (1000 mm) 78.9" (2005 mm)	A05390N_1 A05390N_2
silver anodized	39.4" (1000 mm) 78.9" (2005 mm)	A05390A_1 A05390A_2
