45-16 Extrusion (A08504) | KlusDesign.com

Compare

Compared

Installation in corners
Lighting at a 45° angle
Small width and height
Wide range of accessories

With the possibility of sealing up to IP20

With the possibility of sealing up to IP67

Configure

Color

Description

Installation in corners
Lighting at a 45° angle
Small width and height
Wide range of accessories

Application

- furniture, under-cabinet and decorative lighting

Mounting

- to the surface, using dedicated accessories or mounting adhesive
- easy assembly and disassembly by snapping in and out

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

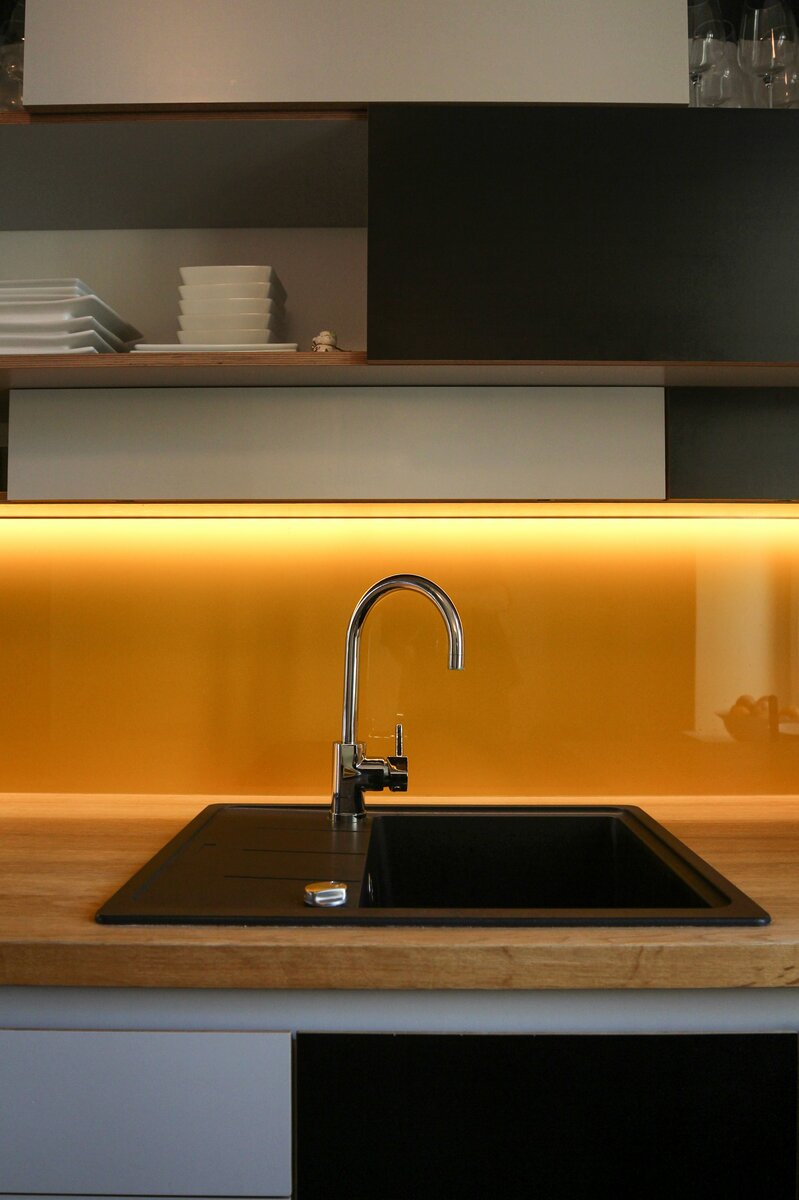

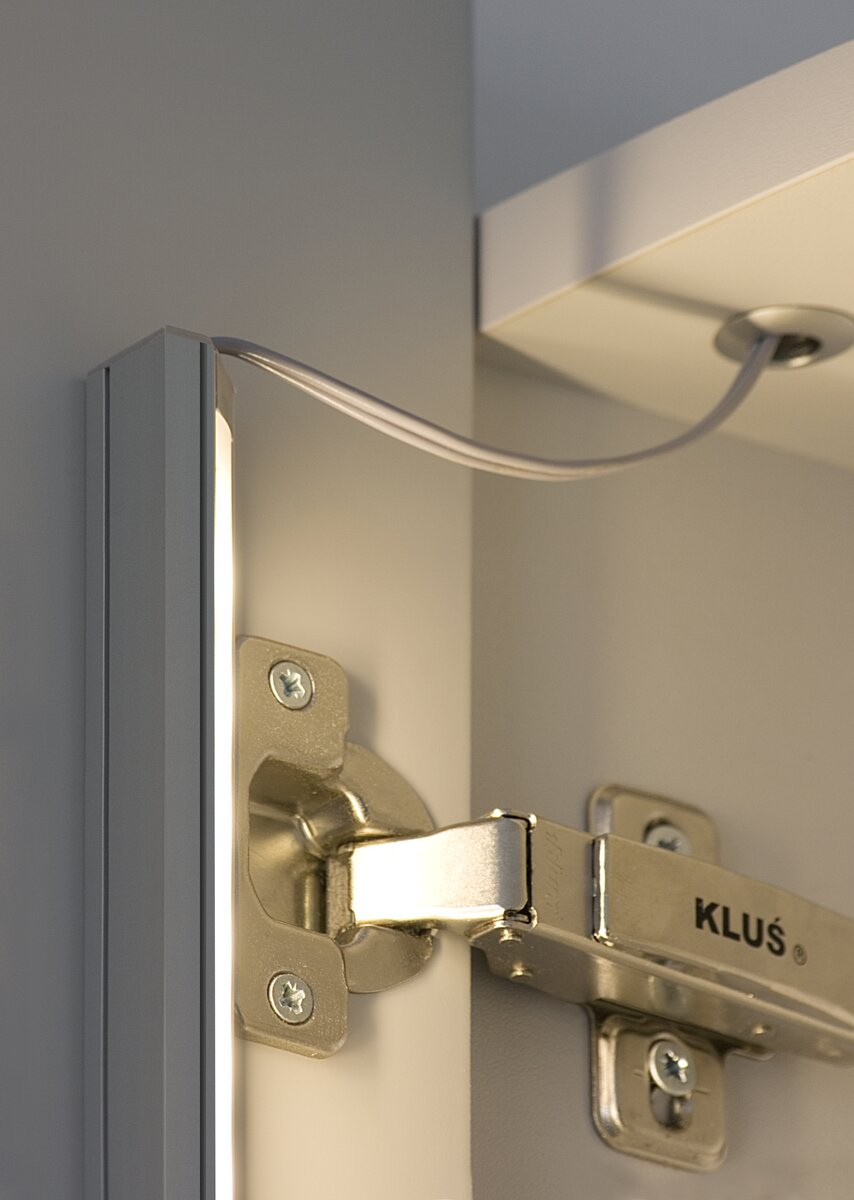

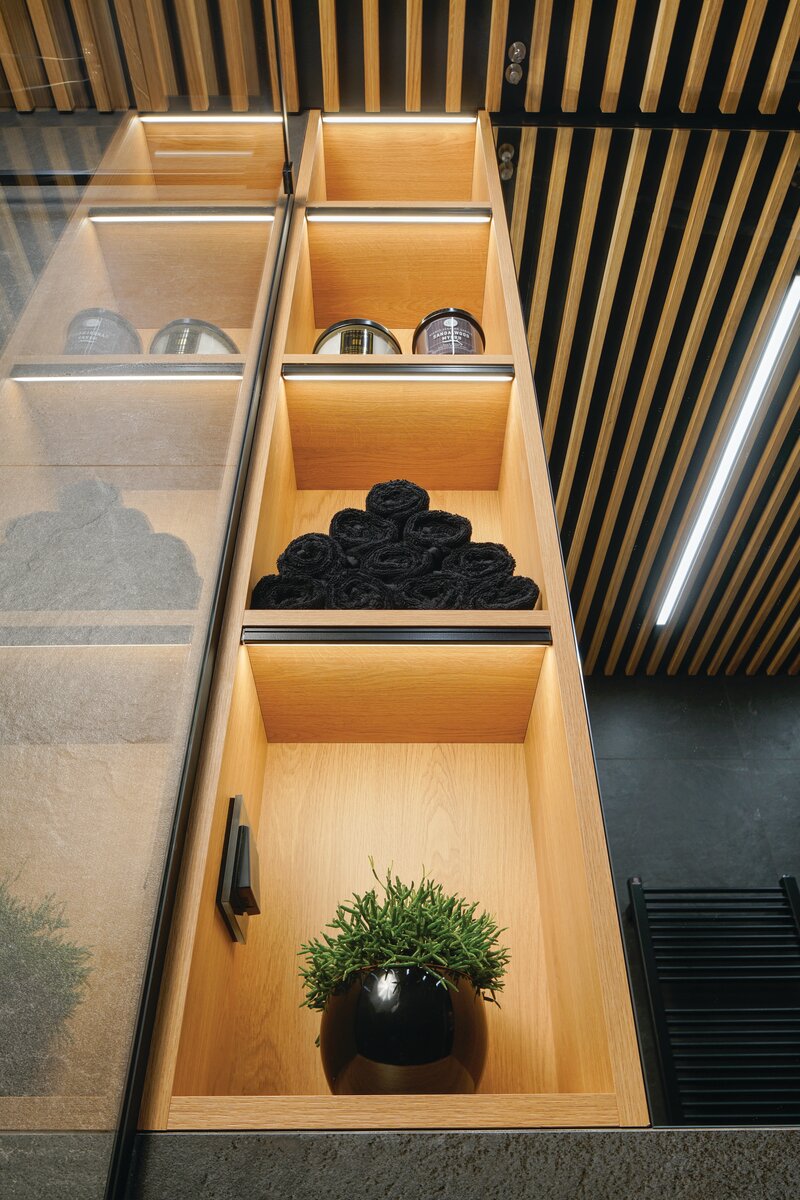

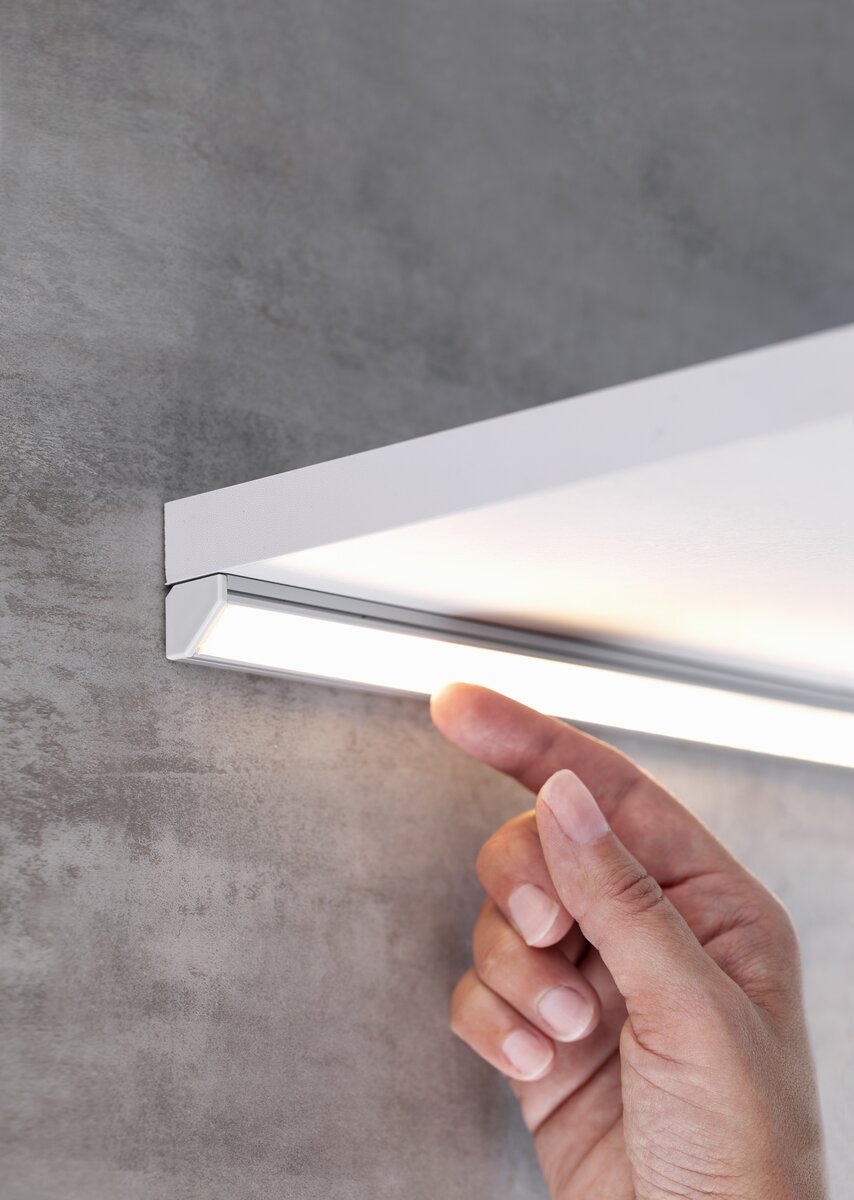

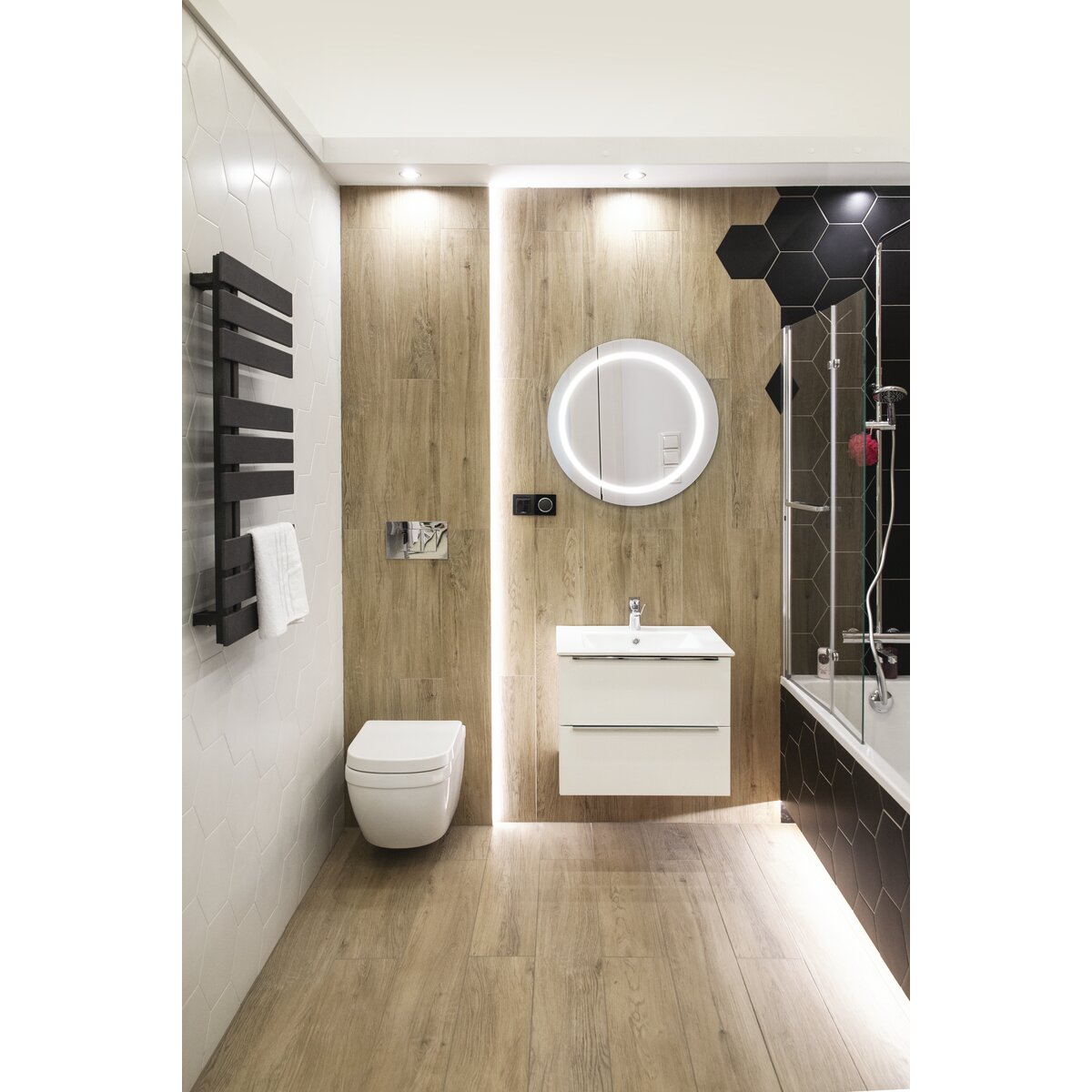

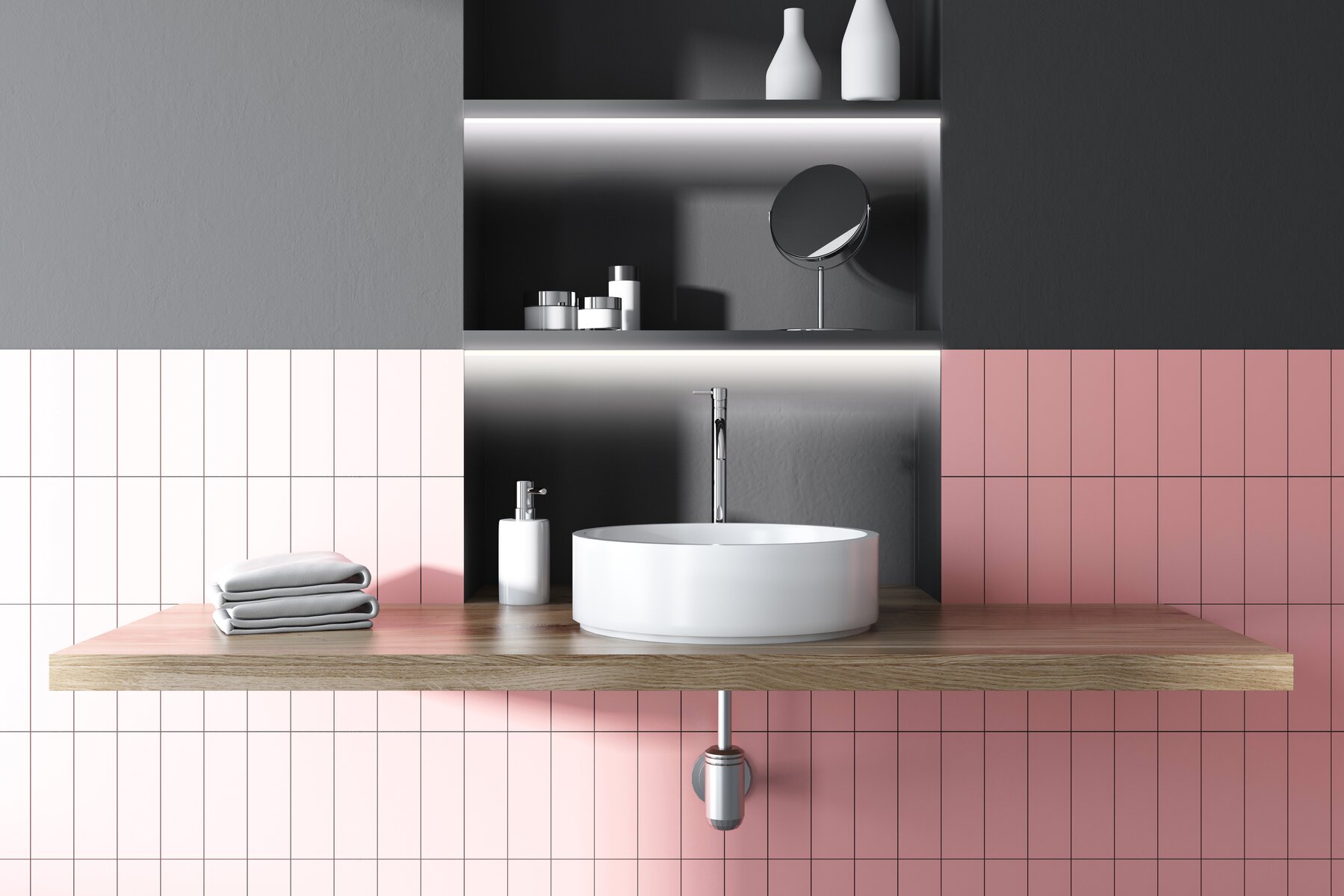

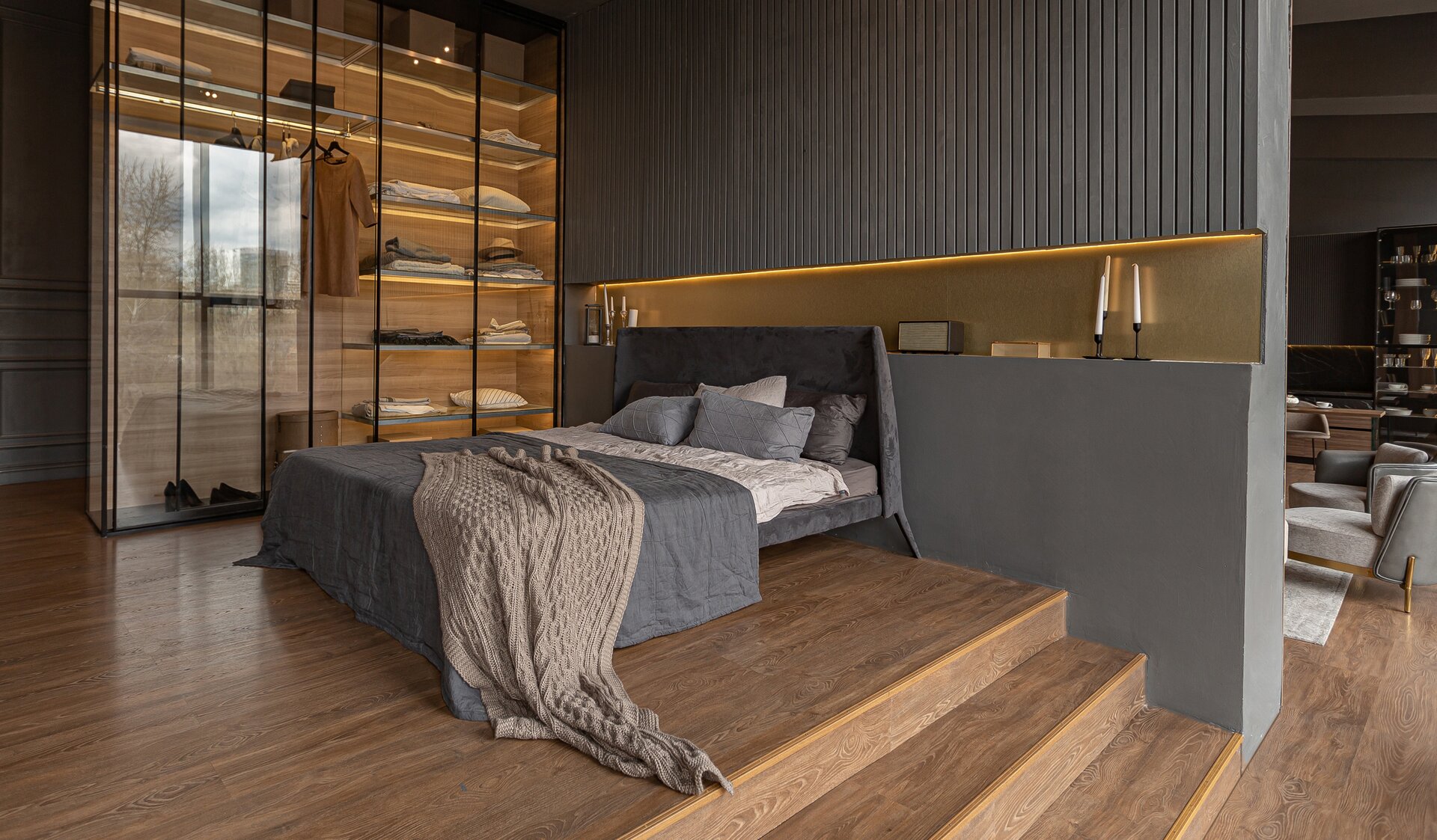

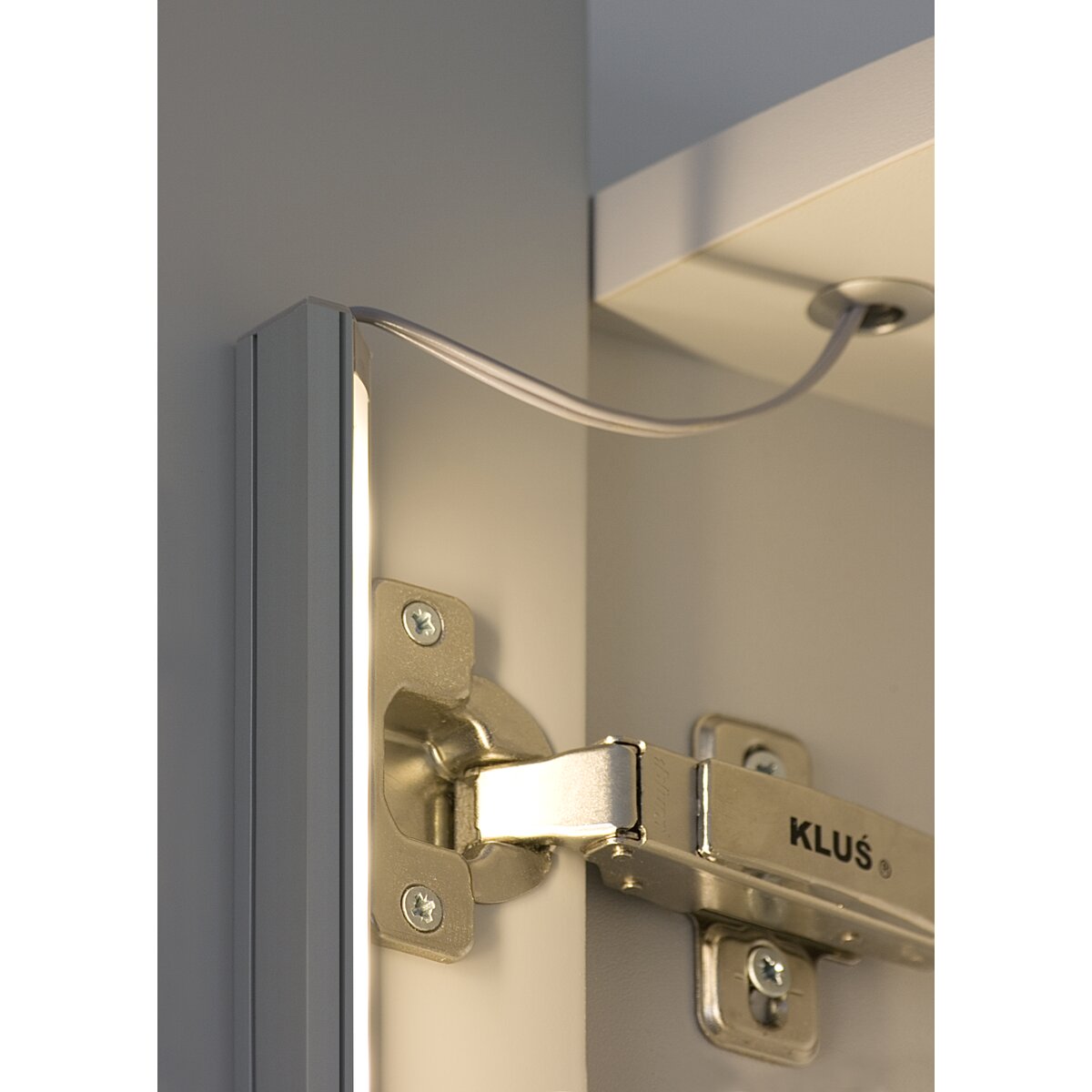

Usage examples

Description
download

Application

- furniture, under-cabinet and decorative lighting

Mounting

- to the surface, using dedicated accessories or mounting adhesive
- easy assembly and disassembly by snapping in and out

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

Declaration of Conformity UKCA

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

20, 67

Possible fixture shapes

linear

Profile cross-section

angled

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

0.6" (16 mm)

Height

0.6" (16 mm)

LED gluing width A

0.4" (11.2 mm)

Max. number of LED strips A (0.31" wide)

Lighting at an angle

The cover is cut to the length of the profile

Yes

Wire out back of extrusion

Yes

Closet Rated

Yes

Possibility of obtaining a line of light

Yes

Building type

Residential, Retail, Hotel / Restaurant, Entertainment/ Arts, Other

Facility zone

office, kitchen, bathroom, under-cabinet / furniture, cove / perimeter, exhibition / tradeshow / display, fitness / spa, media rooms / av
