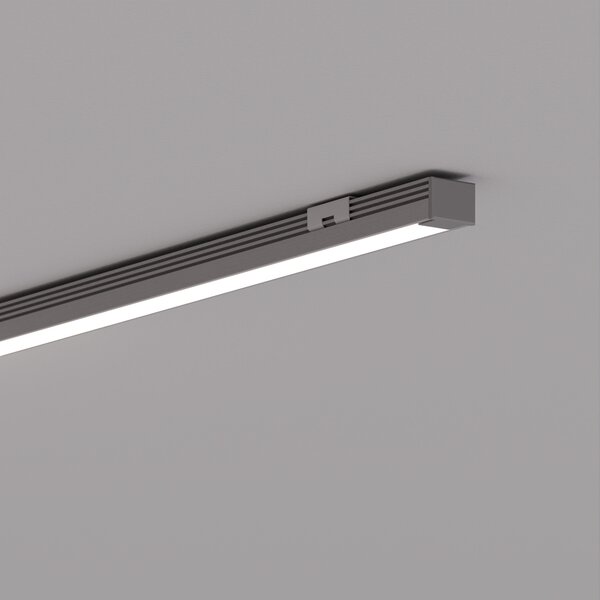

PDS-4-ALU Extrusion

Ref No: A01718
PDS-4-ALU Extrusion
PDS-4-ALU Extrusion
PDS-4-ALU Extrusion
PDS-4-ALU Extrusion
  • Wide range of accessories
  • Good heat dissipation
  • Small bending radius
  • Continuous lighting angle adjustment
Surface mounted
Possibility of bending
With the possibility of sealing up to IP20
With the possibility of sealing up to IP65
With the possibility of sealing up to IP67
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Closet Rated
Color
white
  • Wide range of accessories
  • Good heat dissipation
  • Small bending radius
  • Continuous lighting angle adjustment
Application
  • - main, furniture and functional lighting
Mounting
  • - to the surface, suspended or recessed, using dedicated accessories, properly selected screws, with double-sided adhesive tape or mounting adhesive
  • - easy assembly and disassembly by snapping in and out
Additional information
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

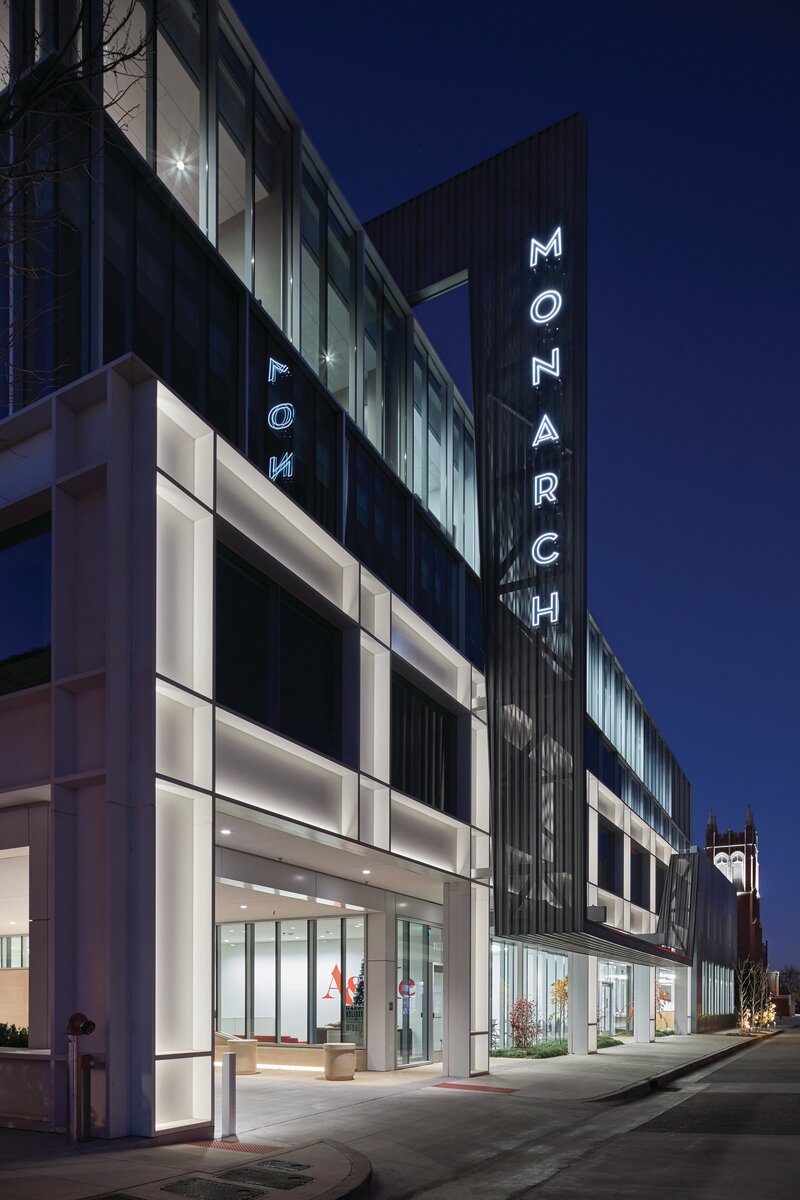

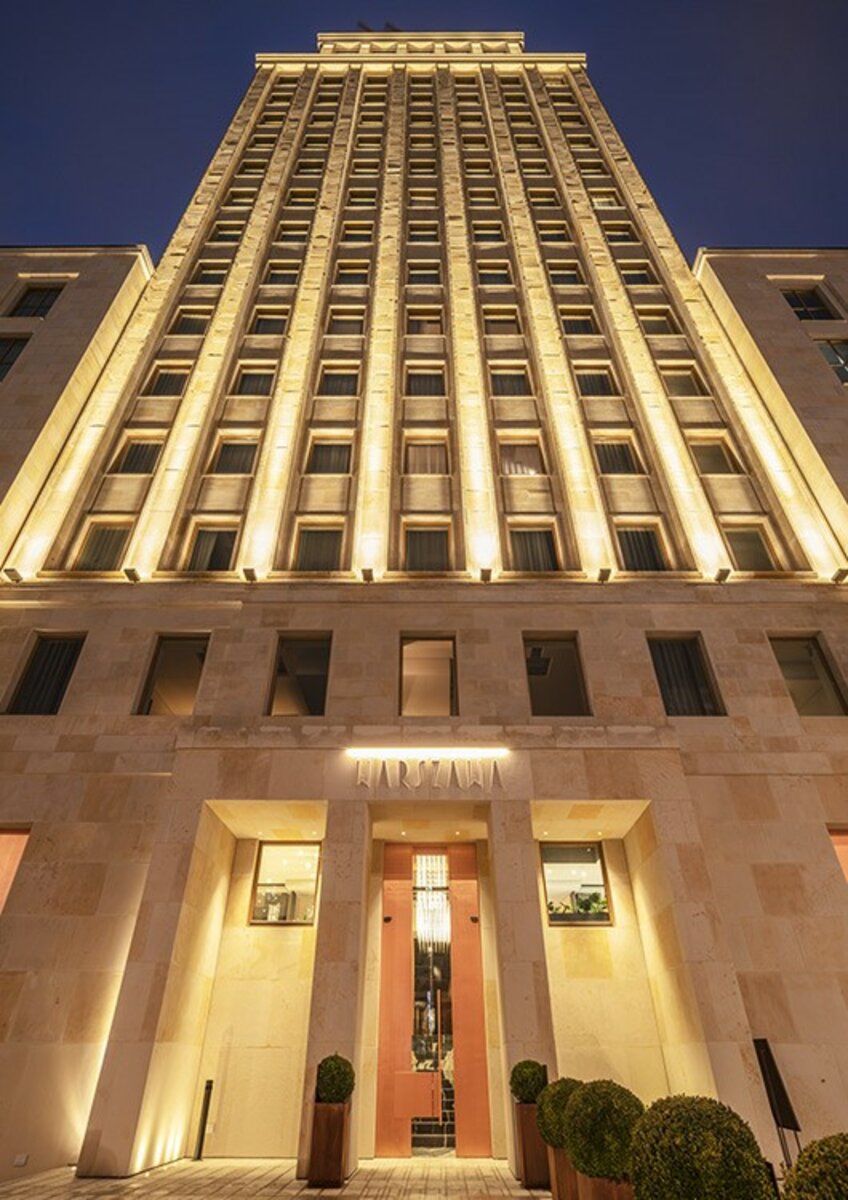

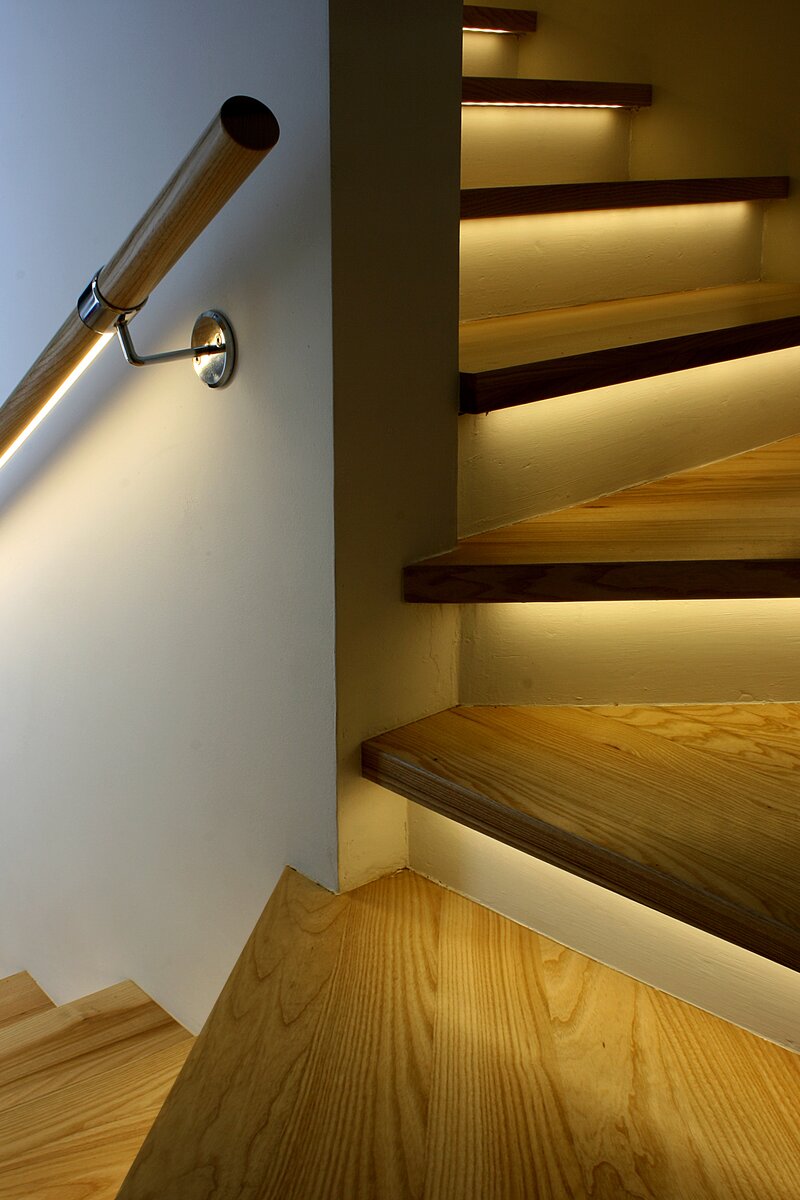

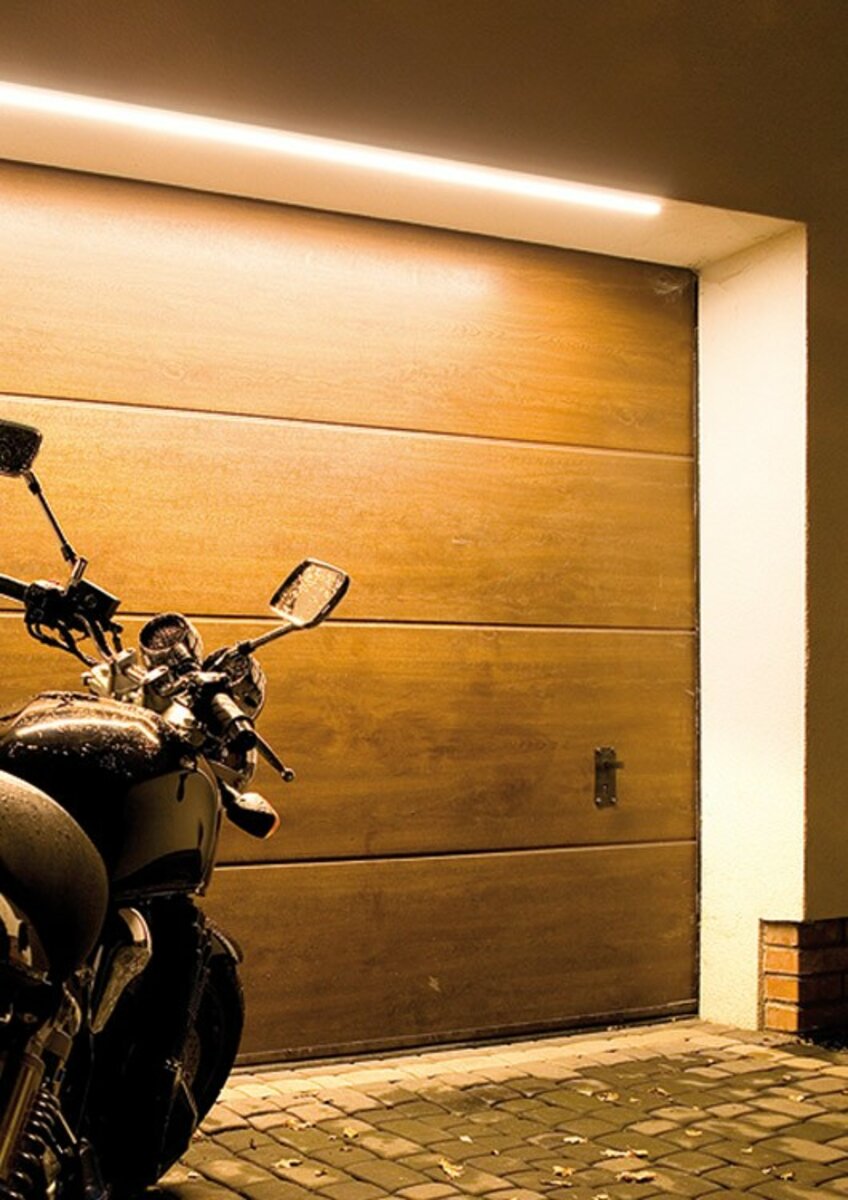

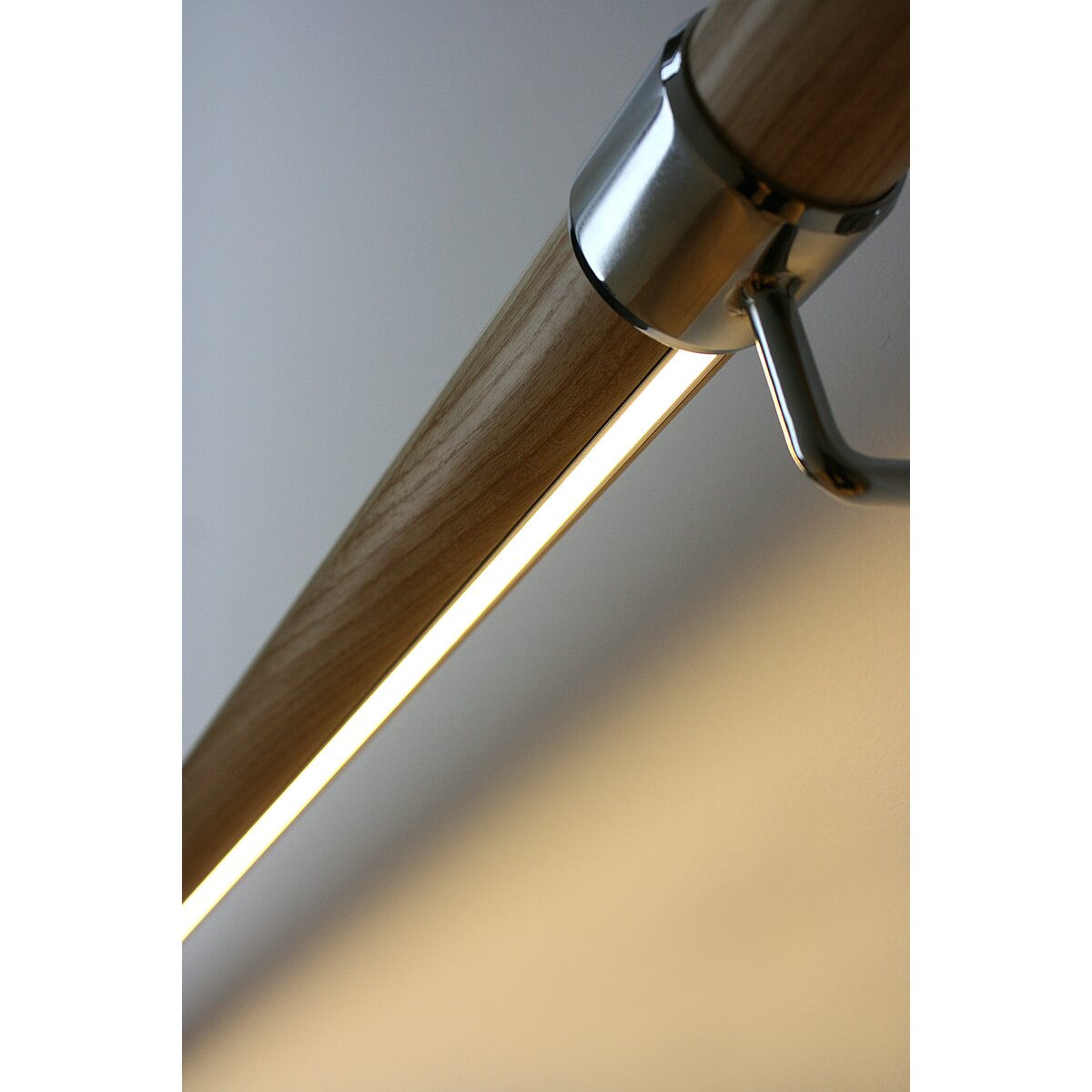

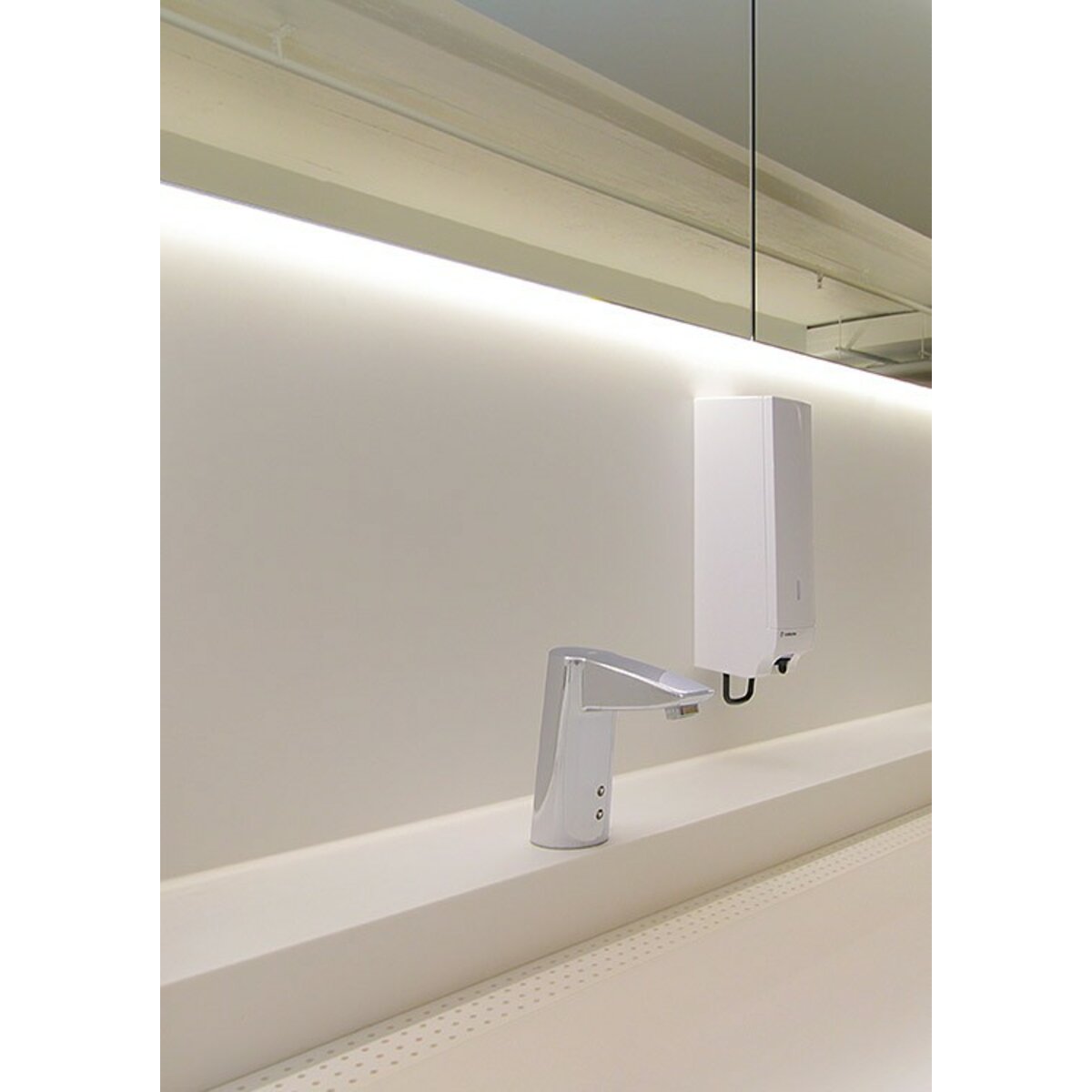

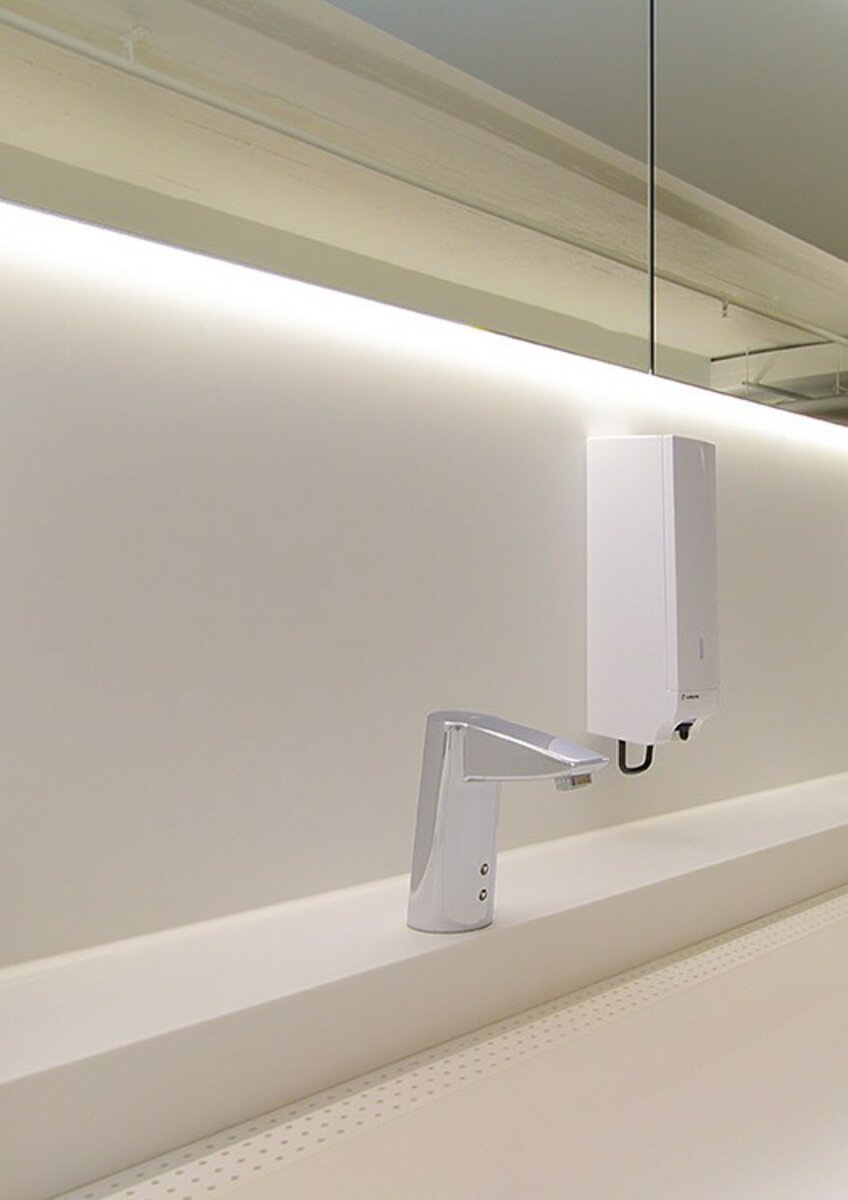

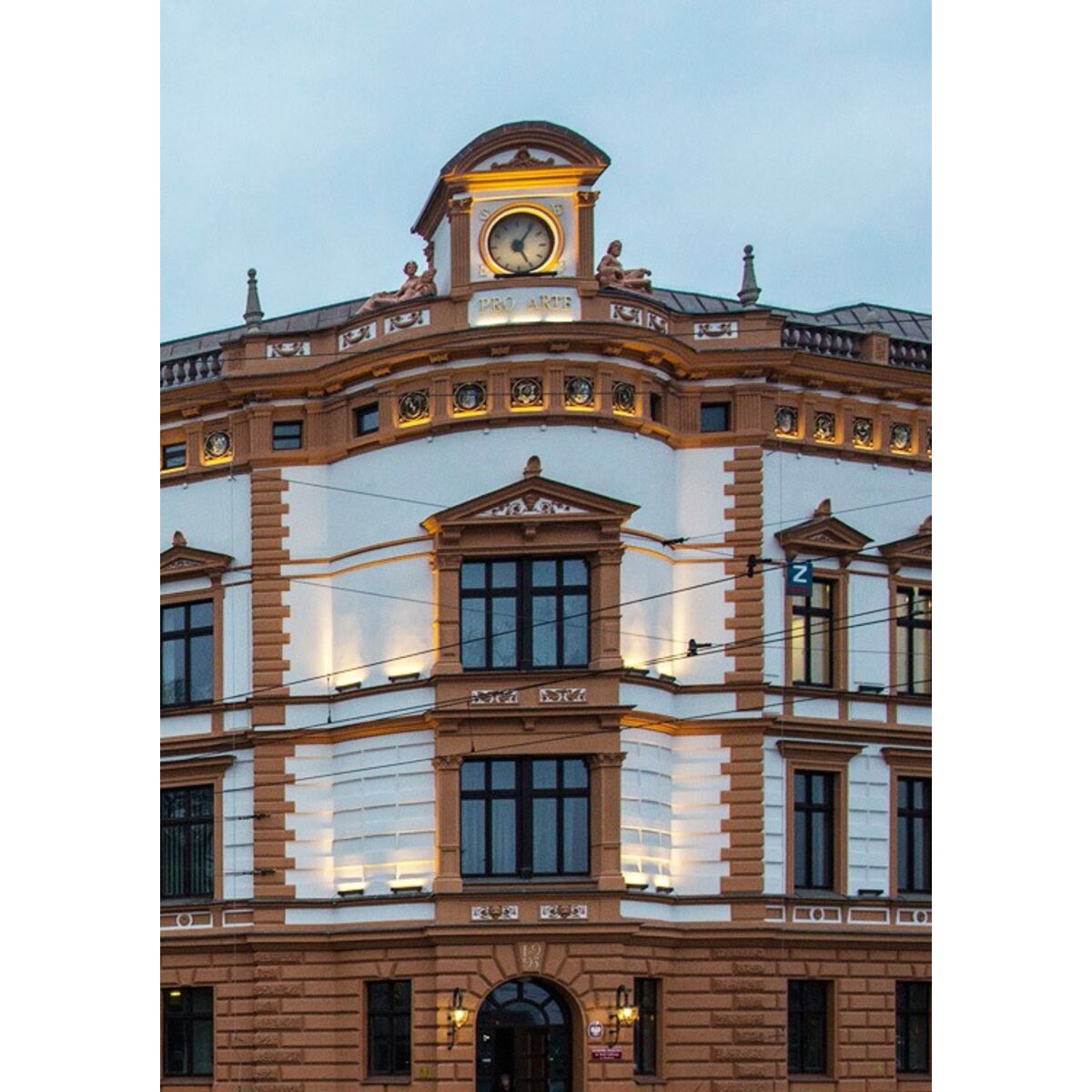

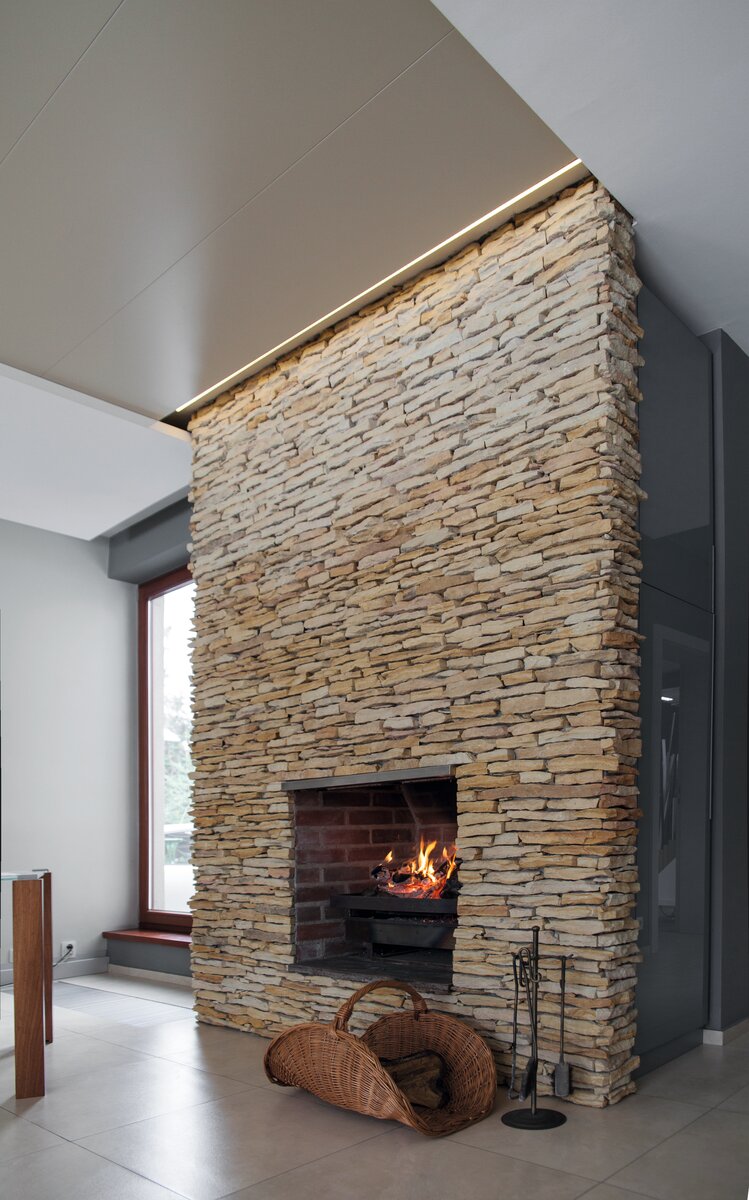

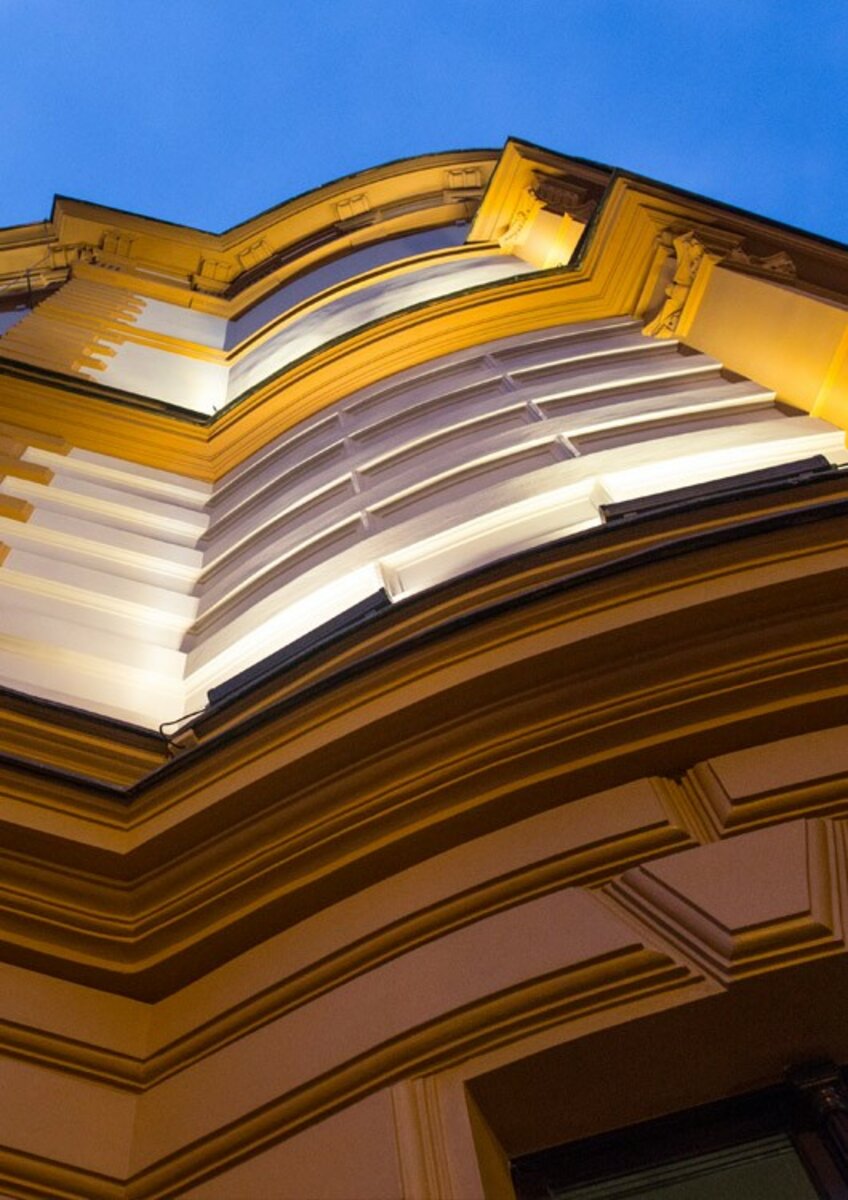

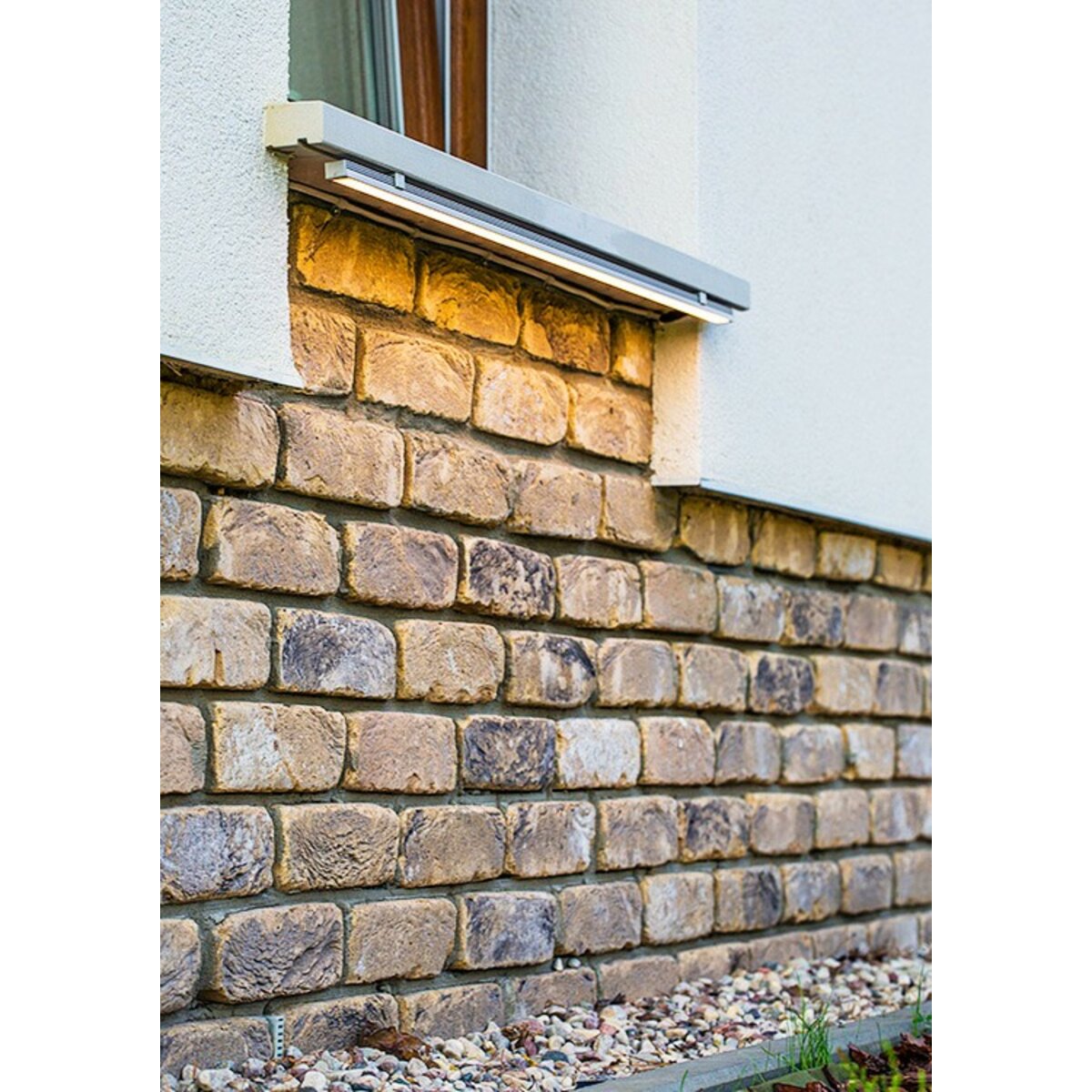

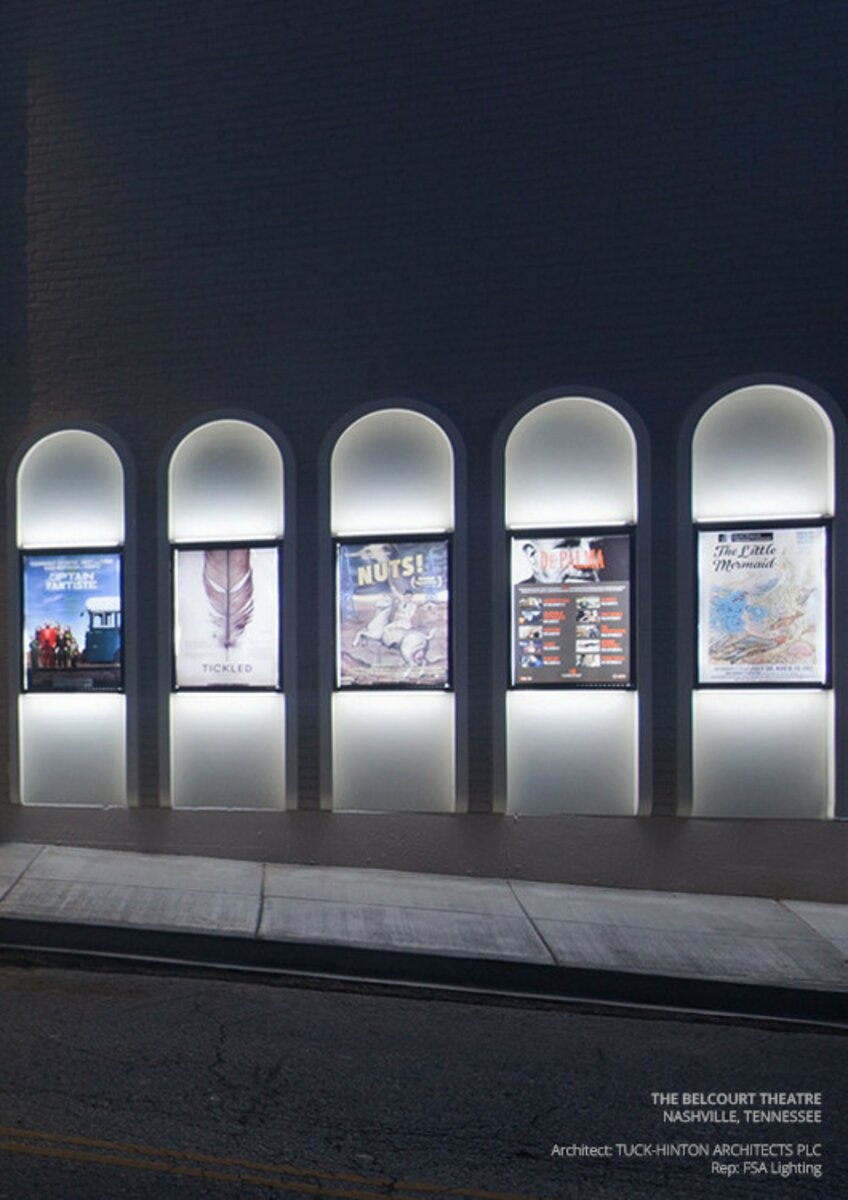

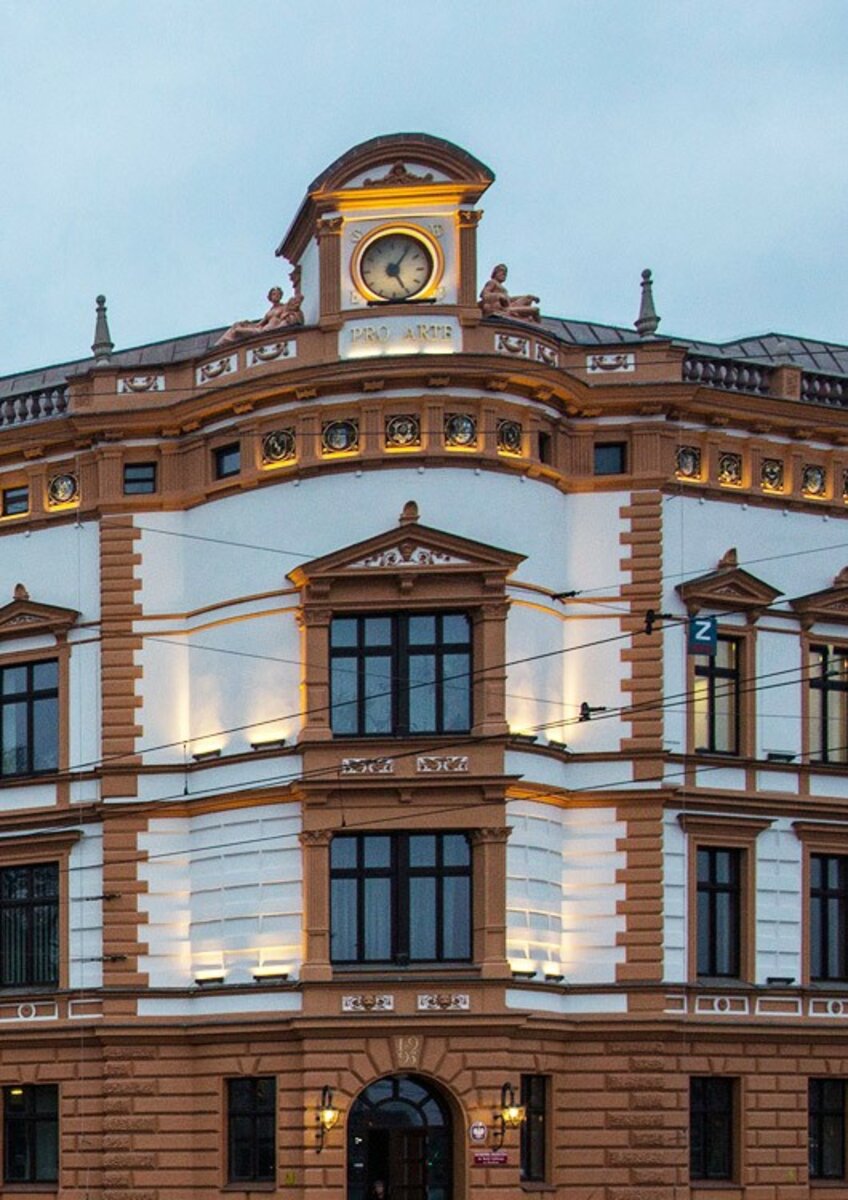

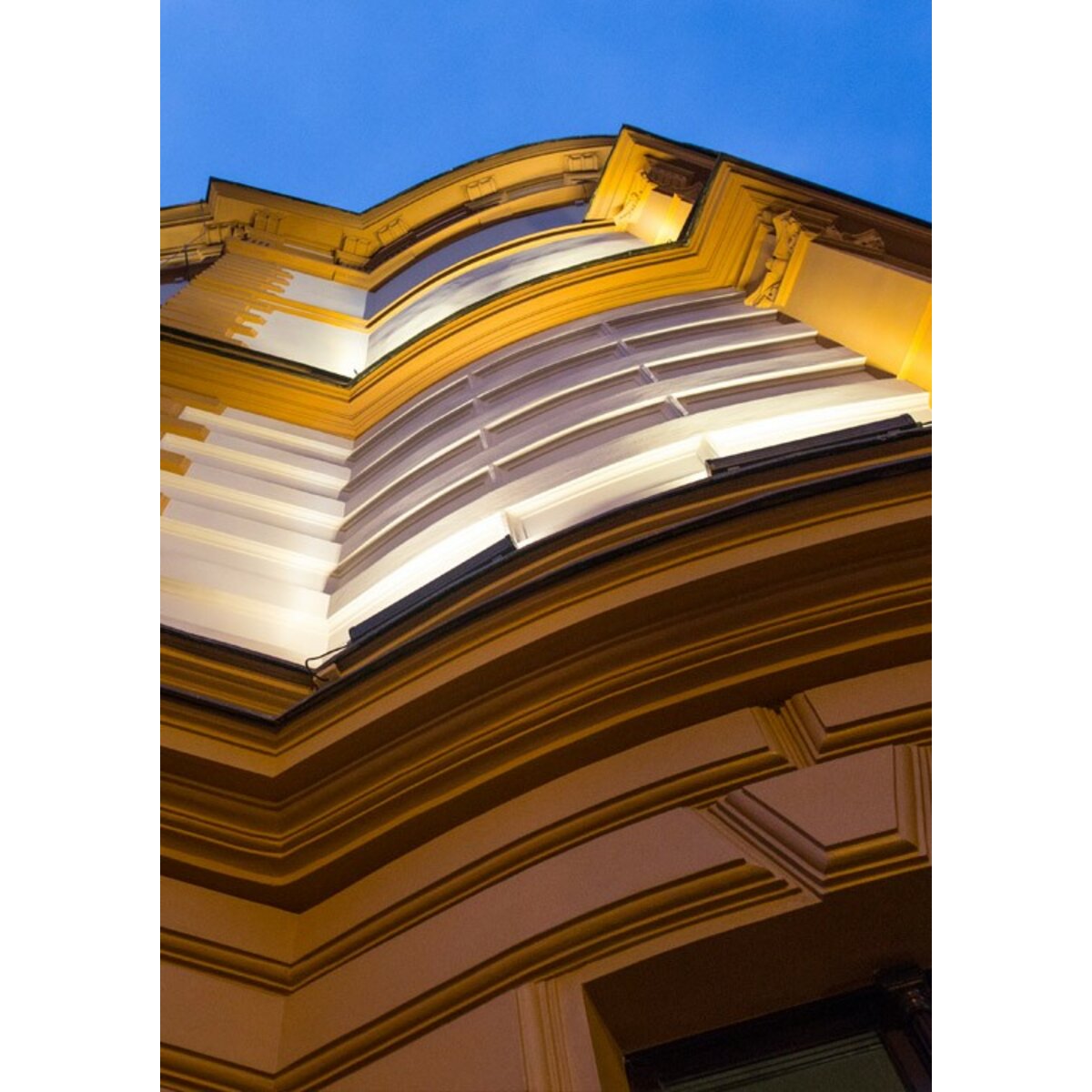

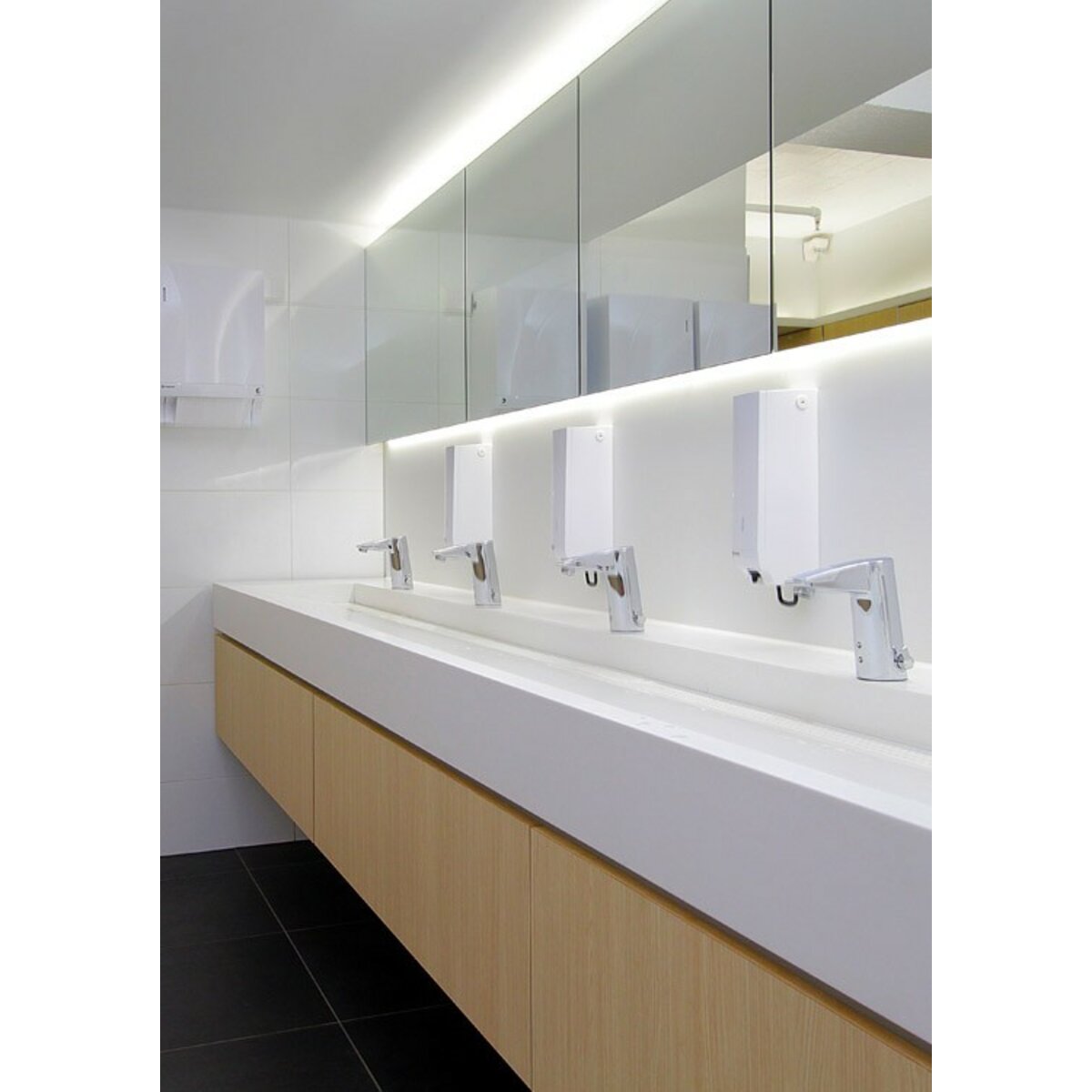

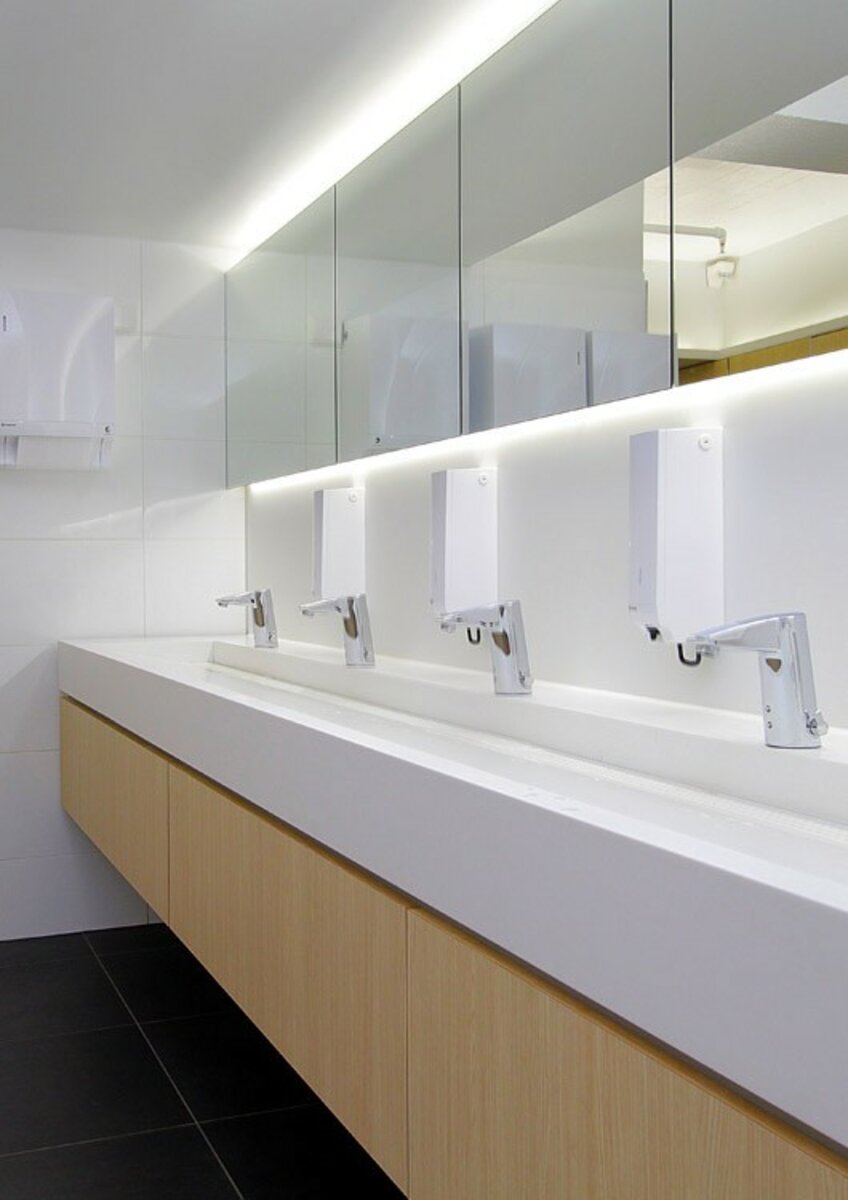

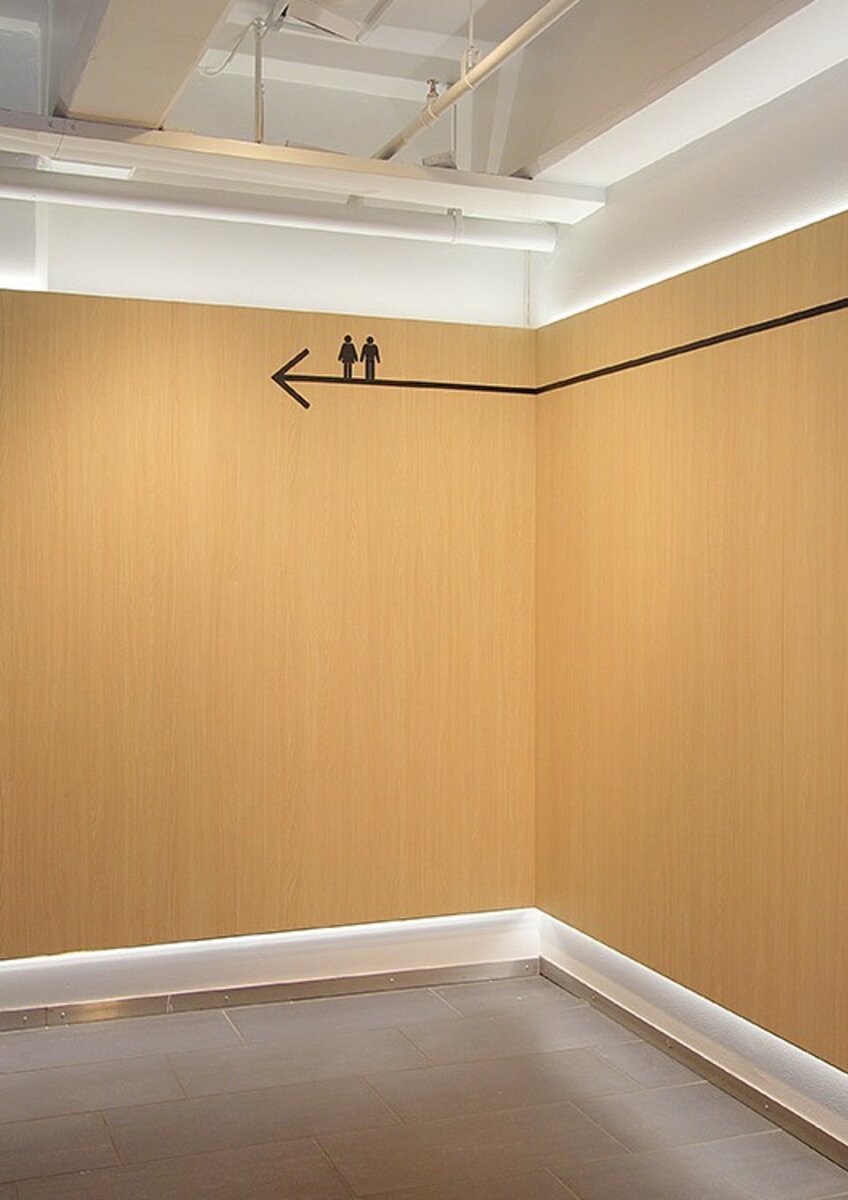

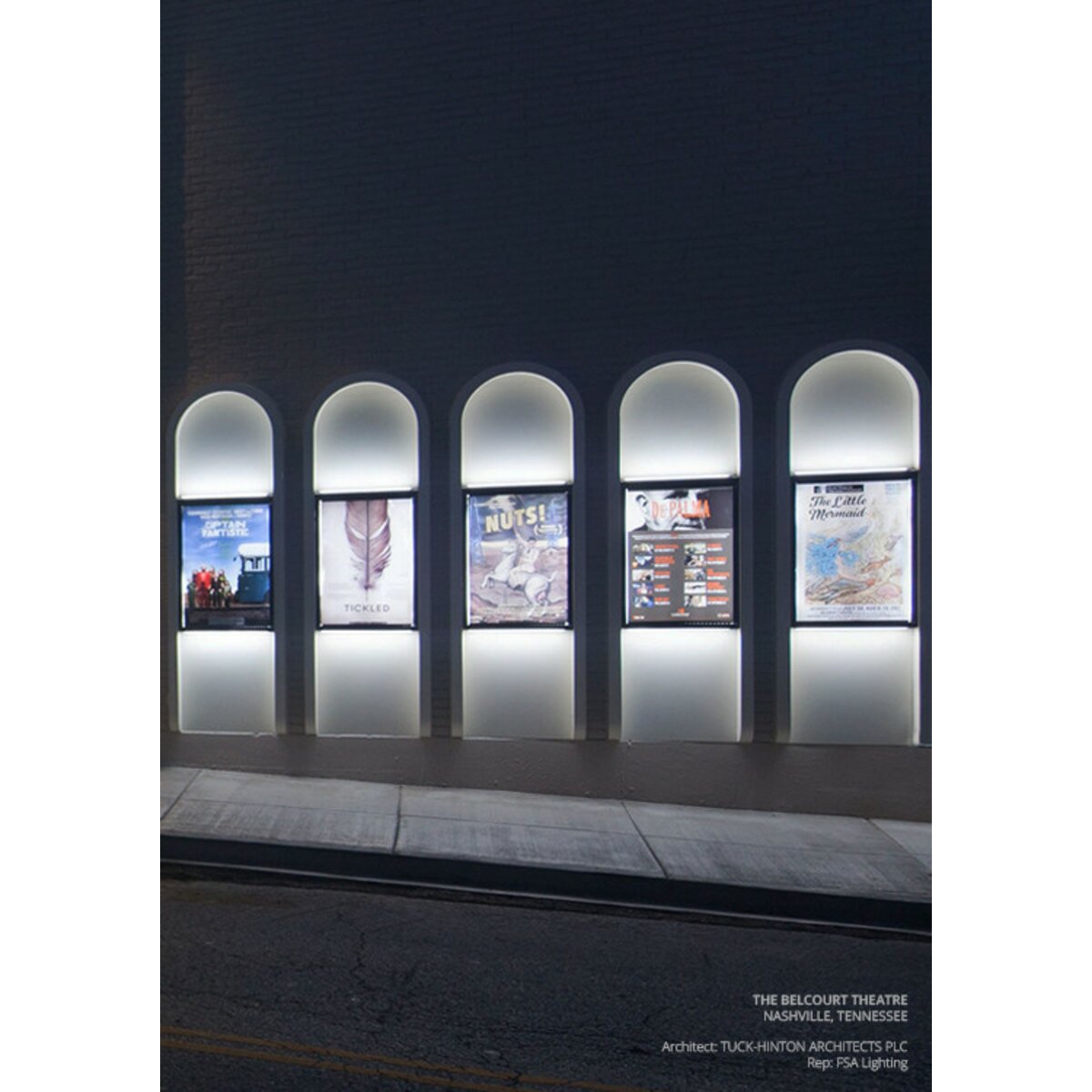

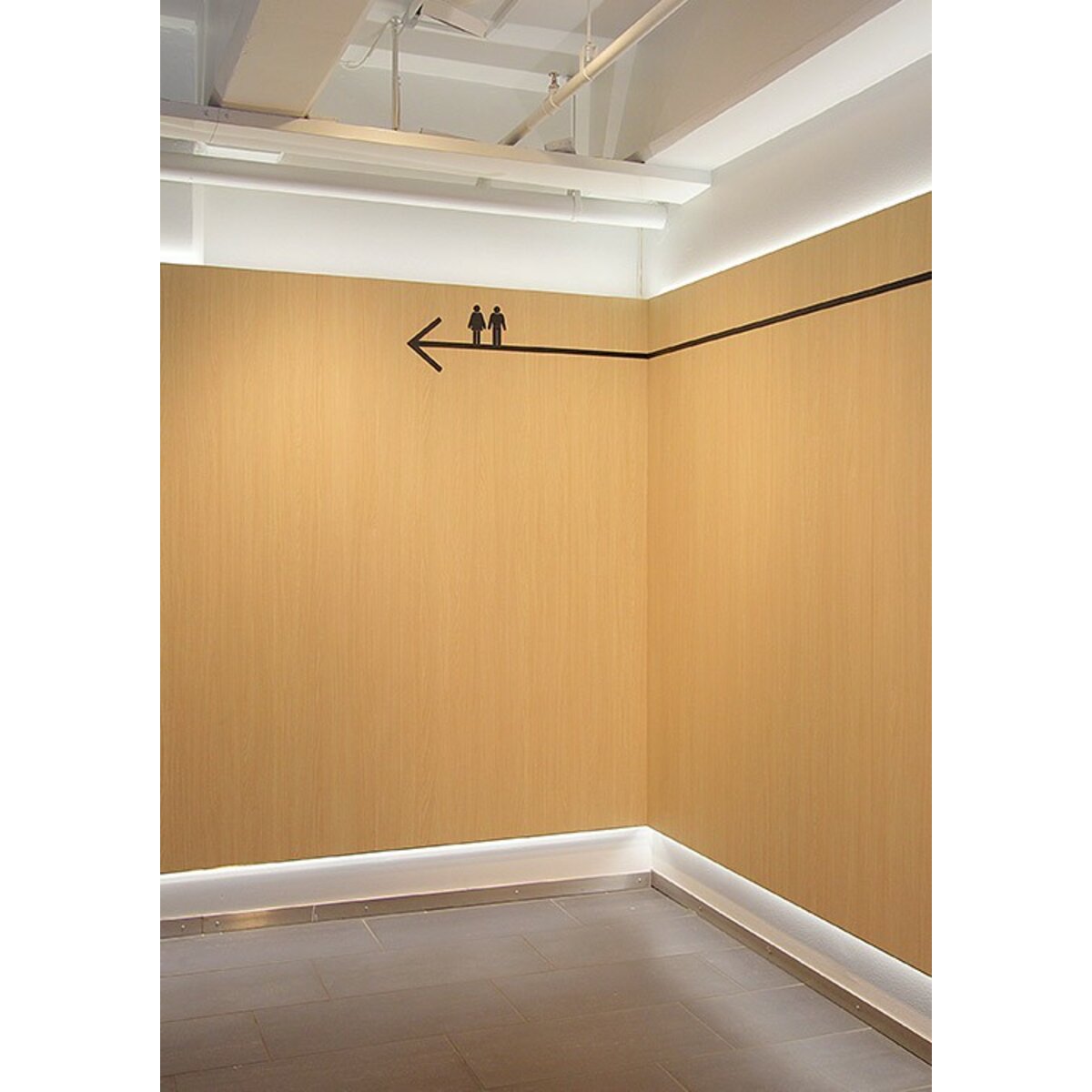

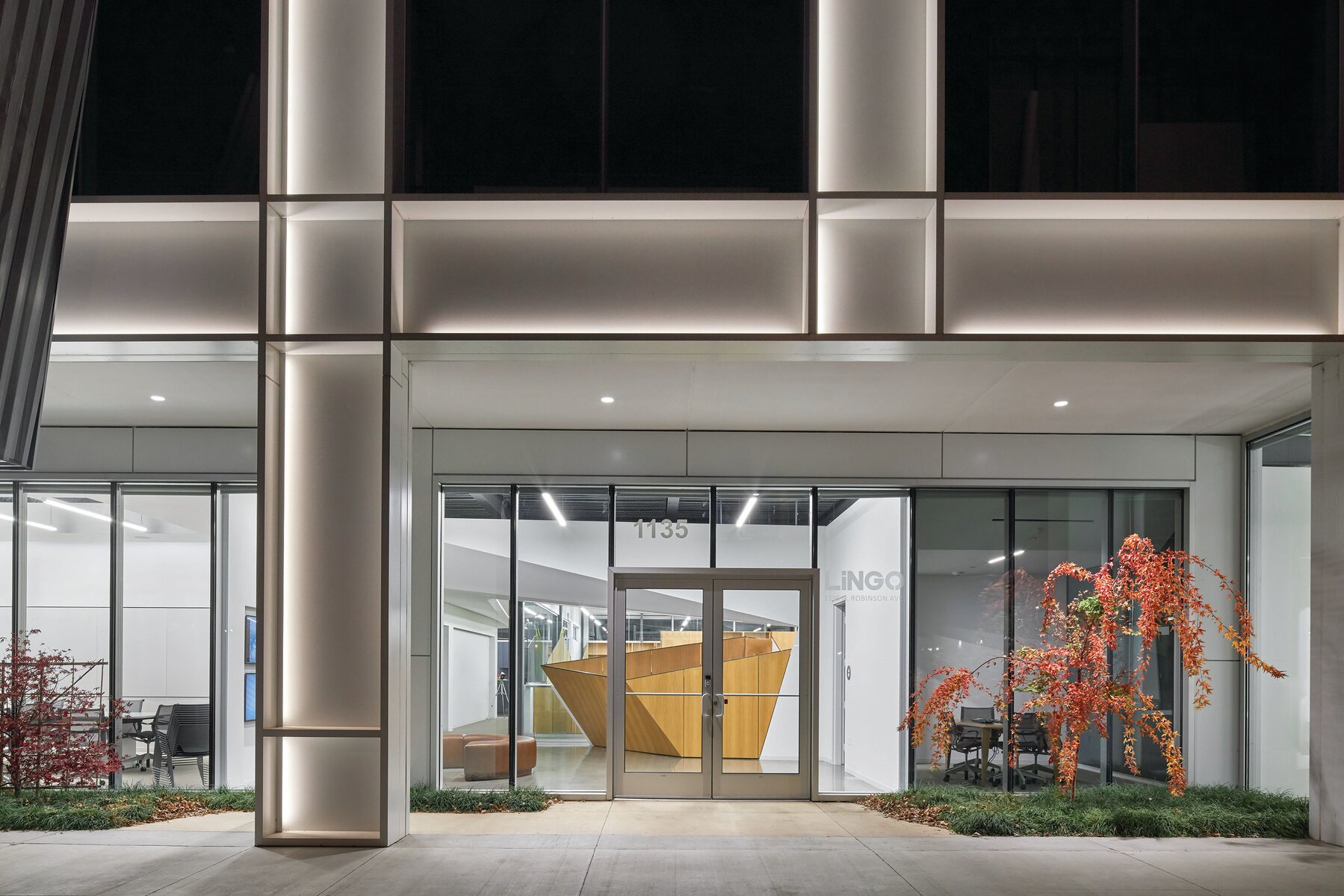

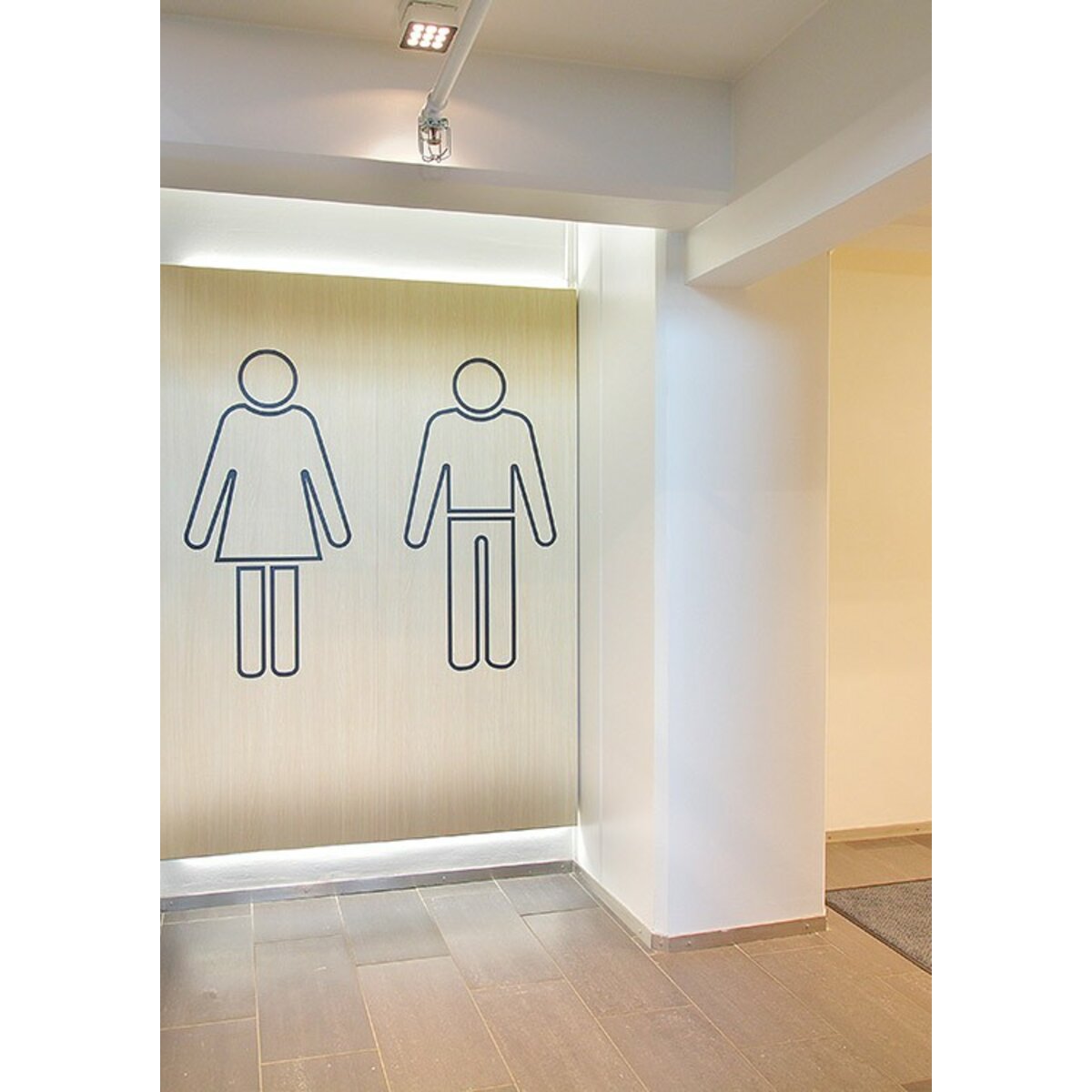

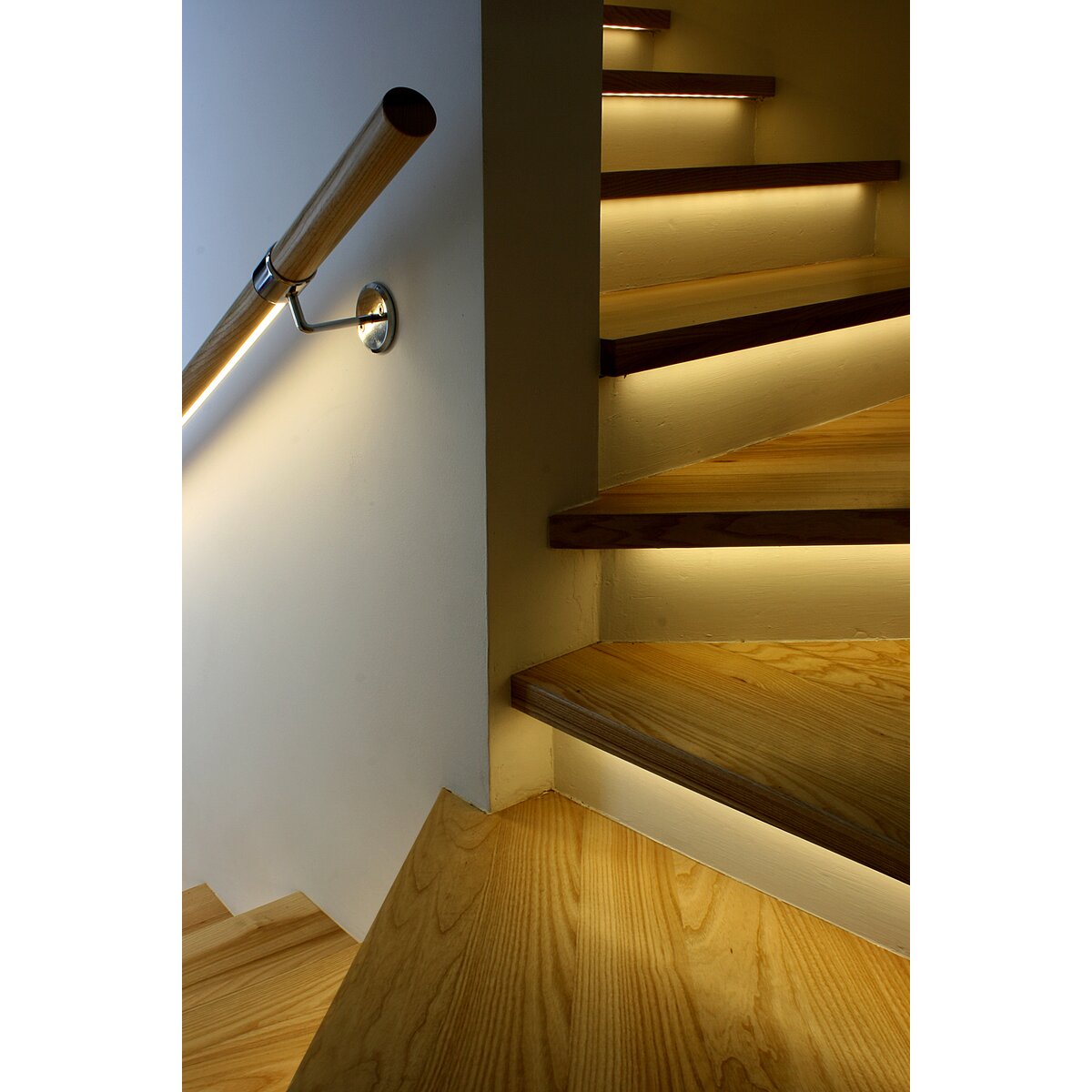

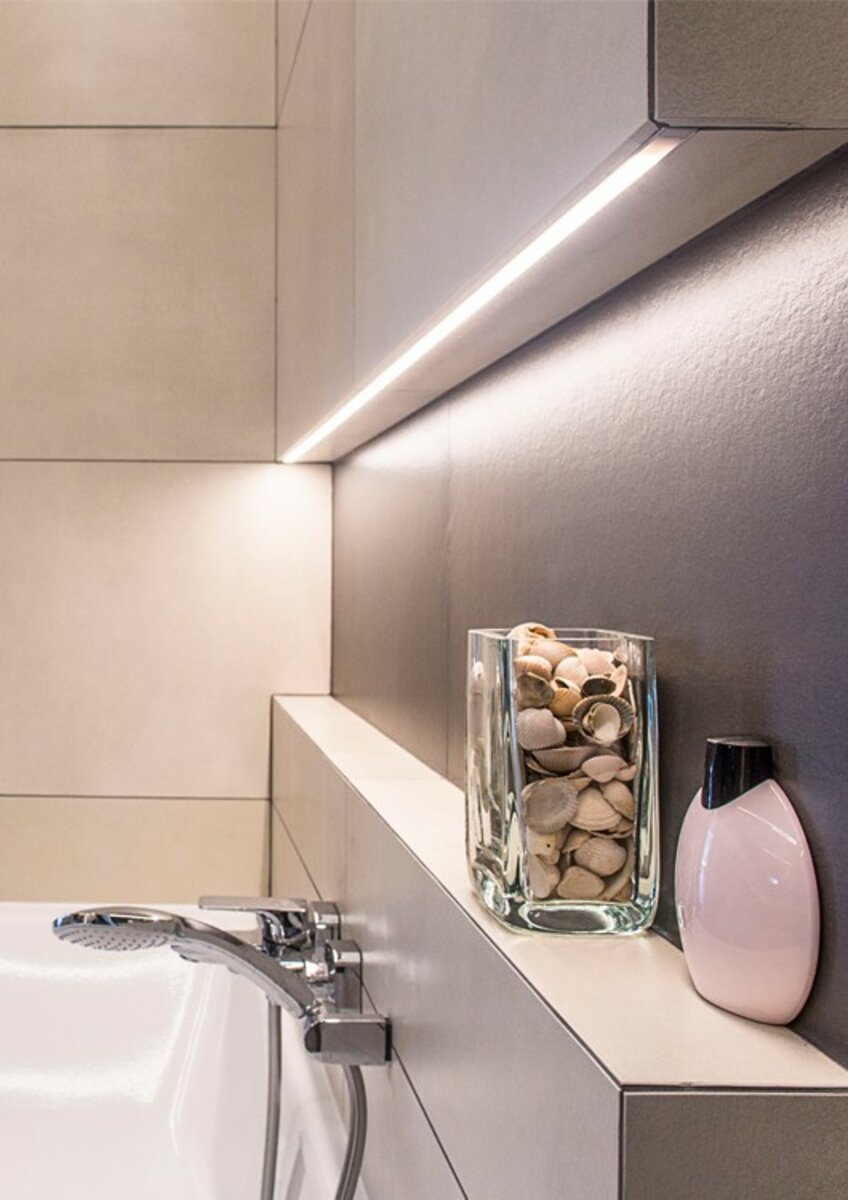

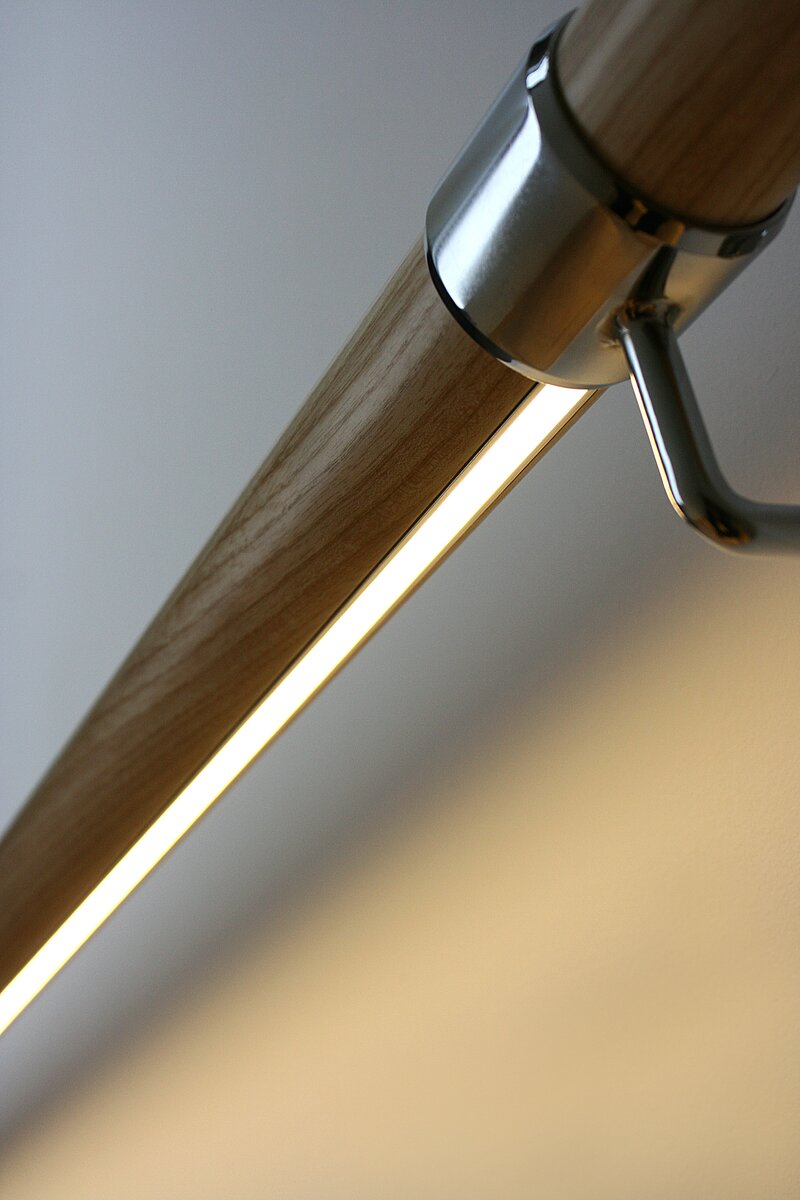

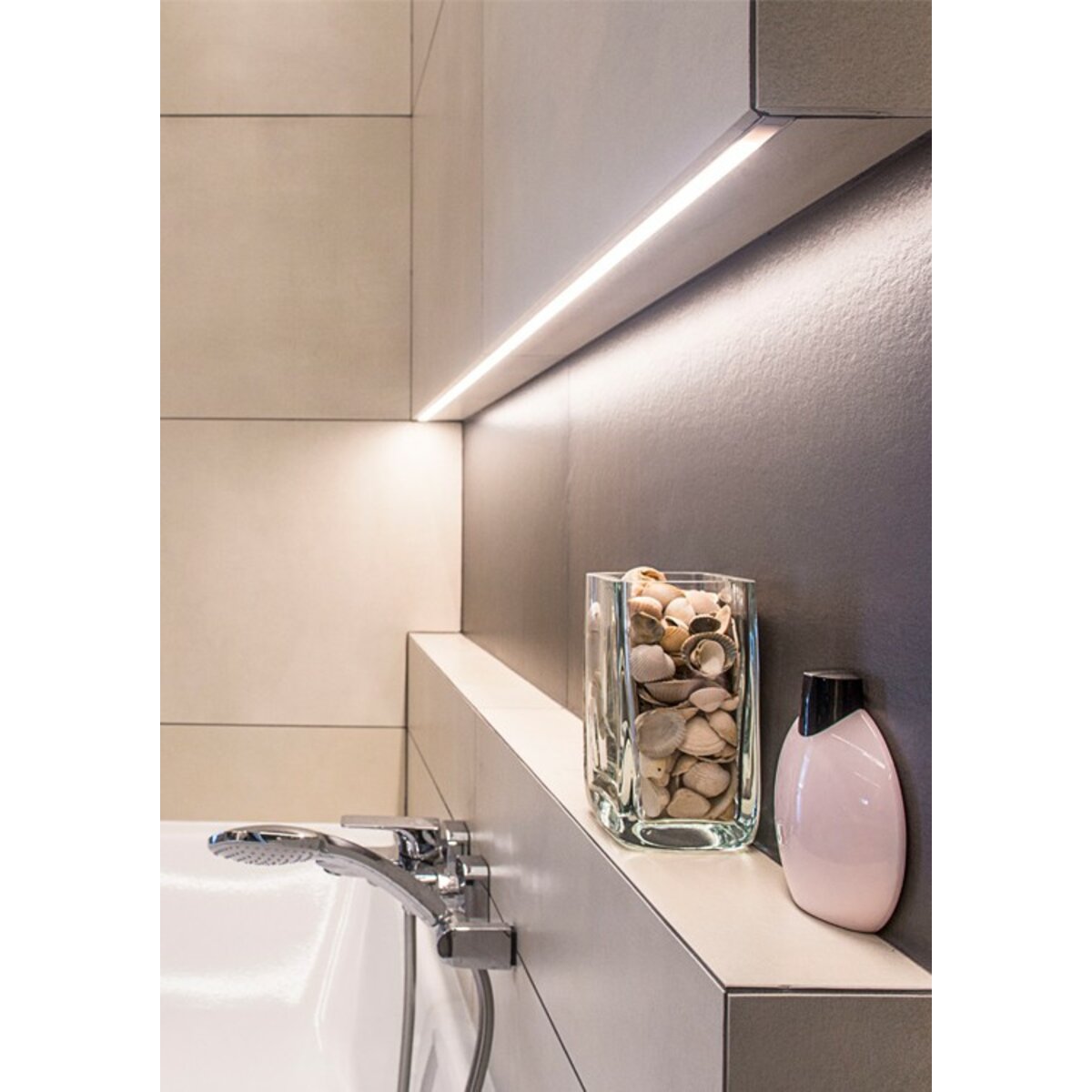

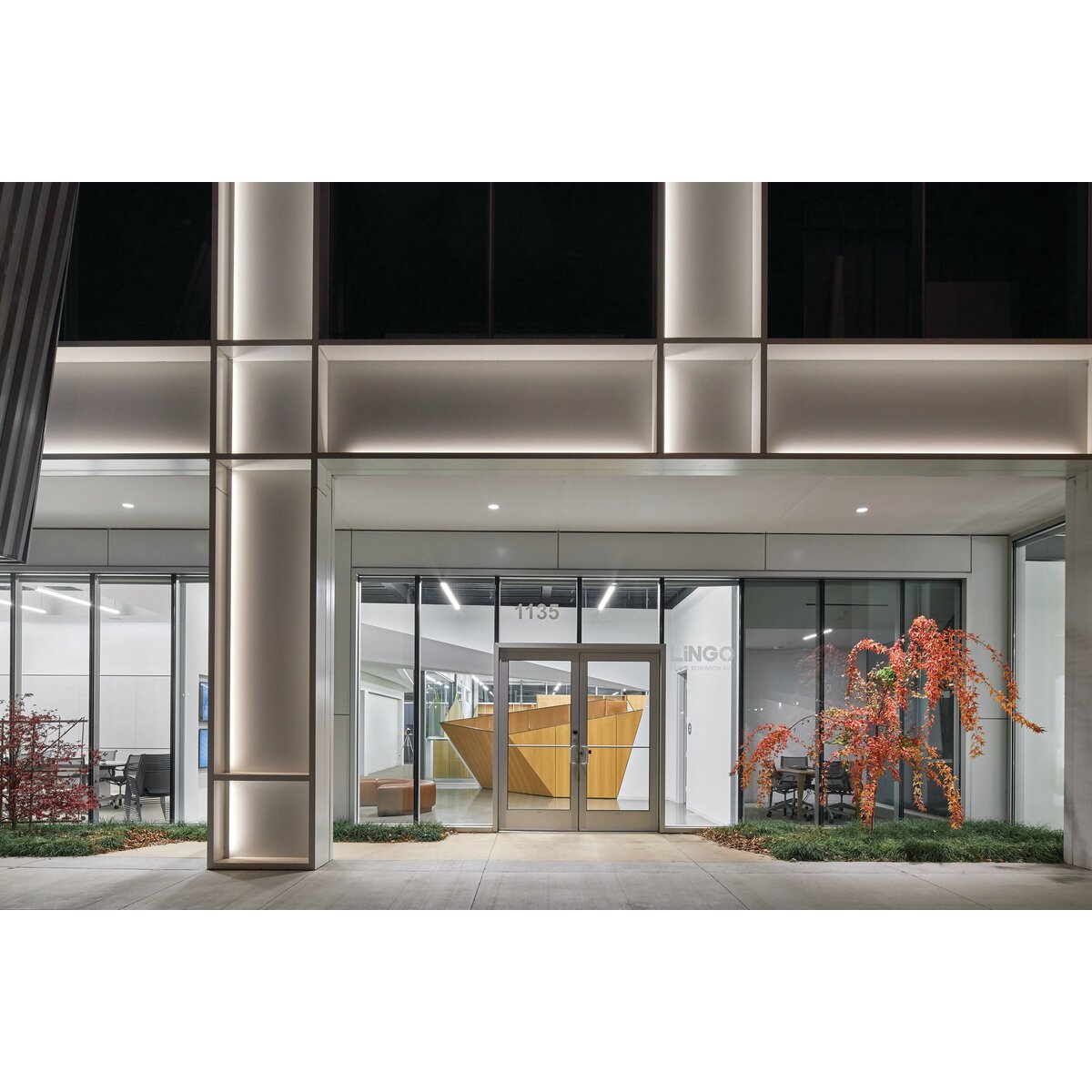

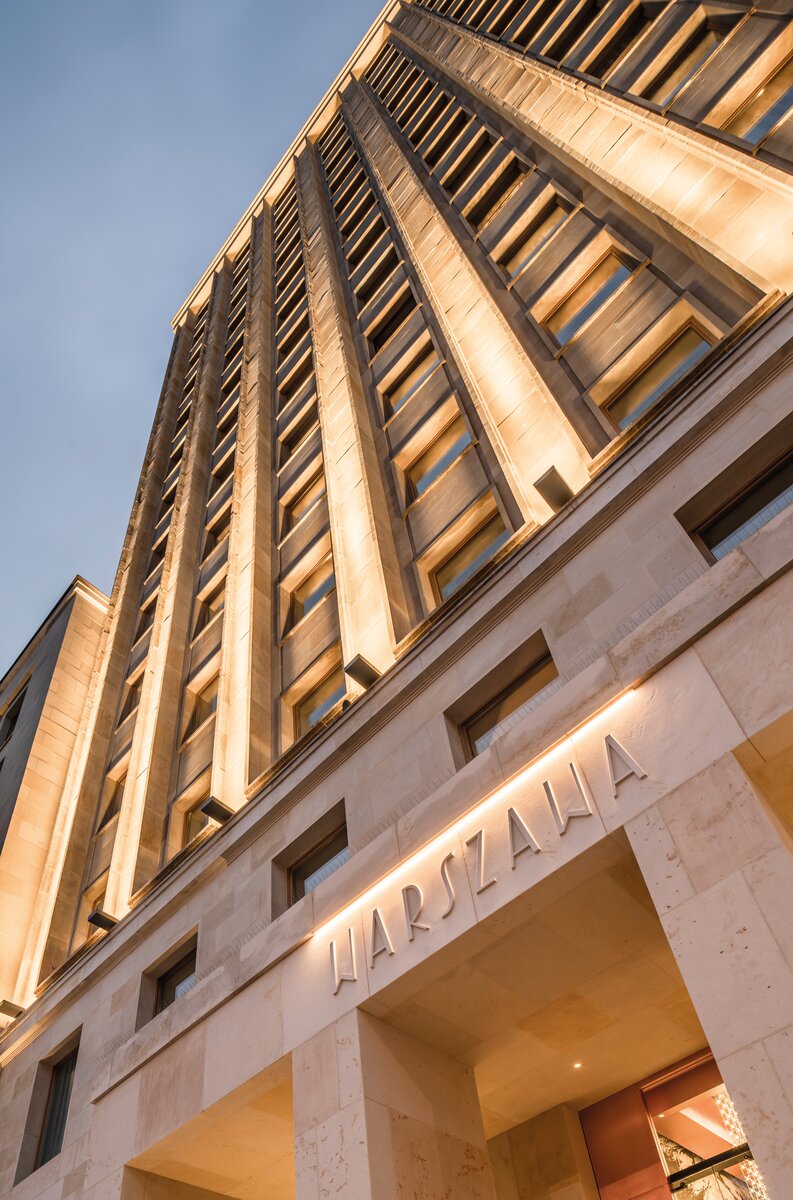

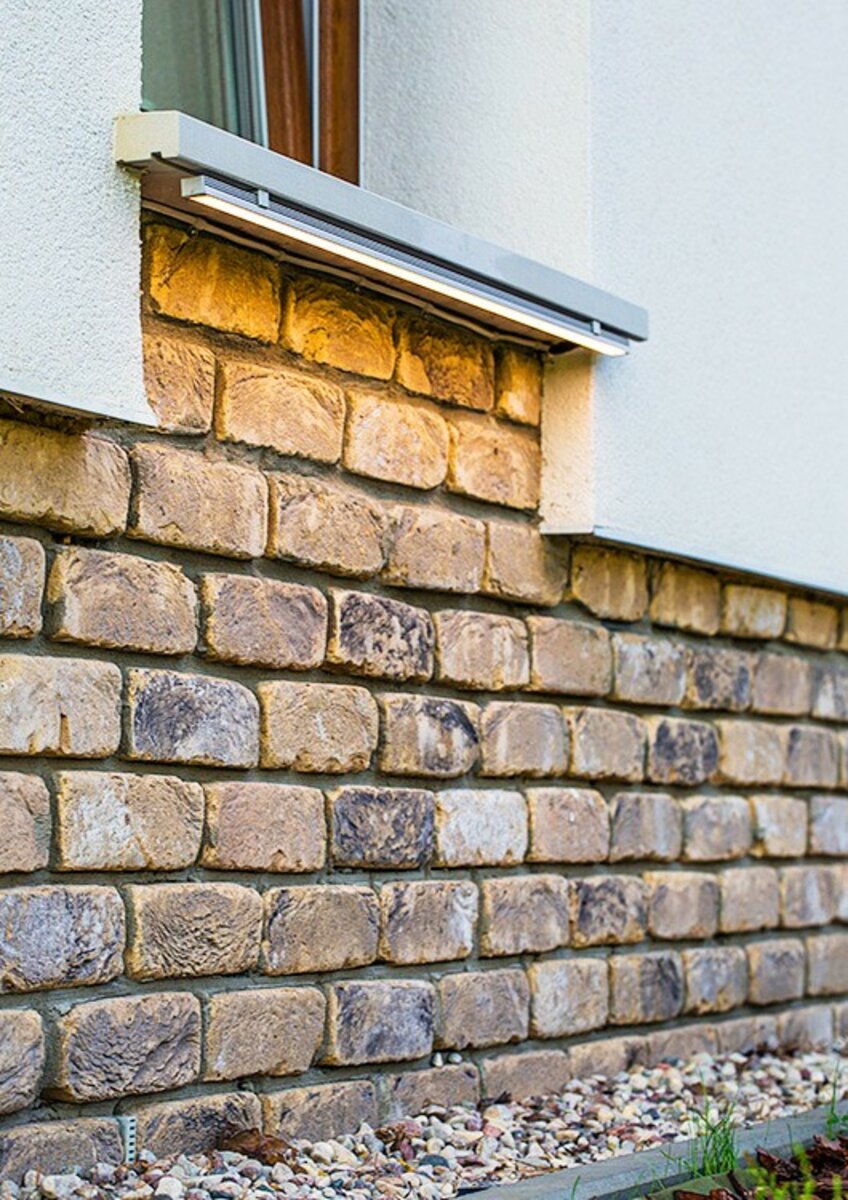

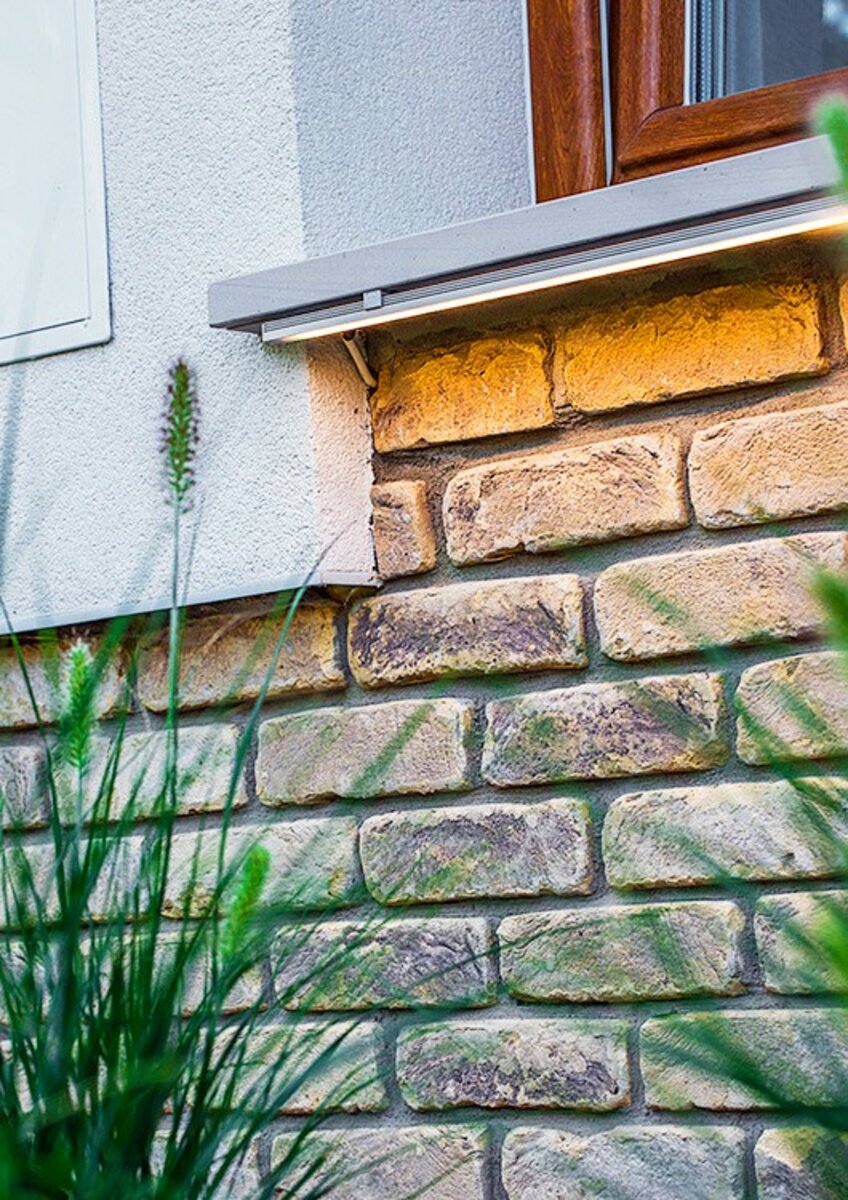

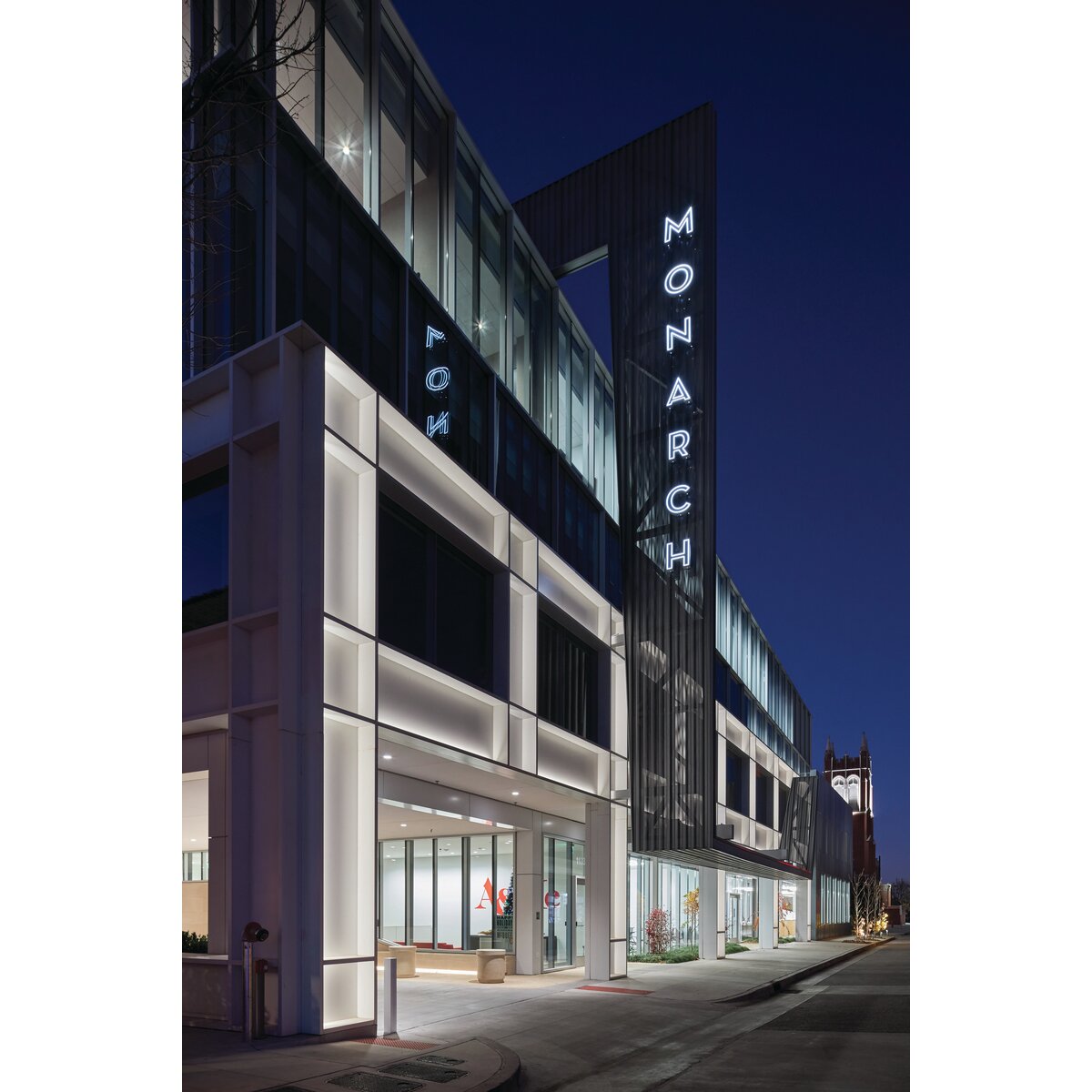

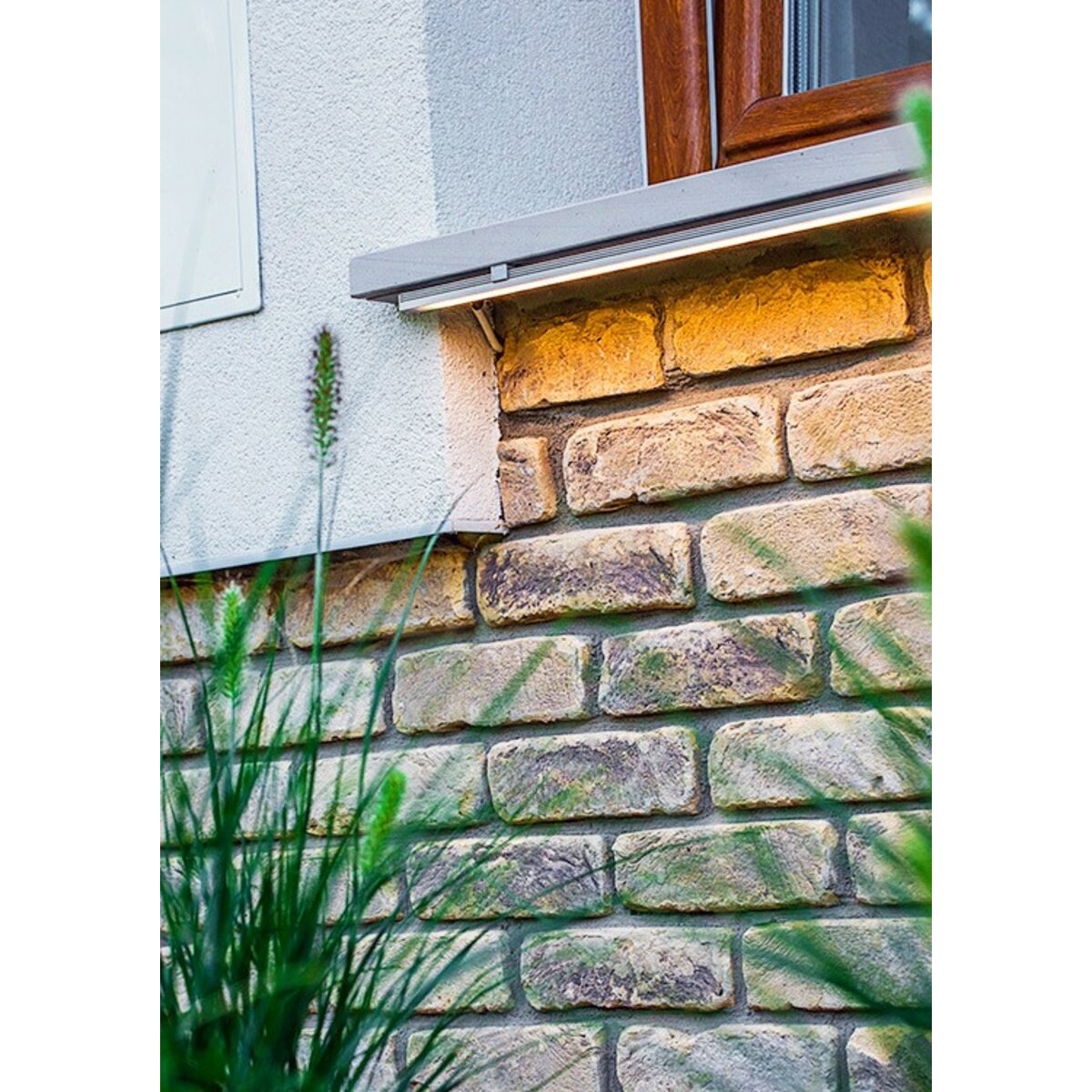

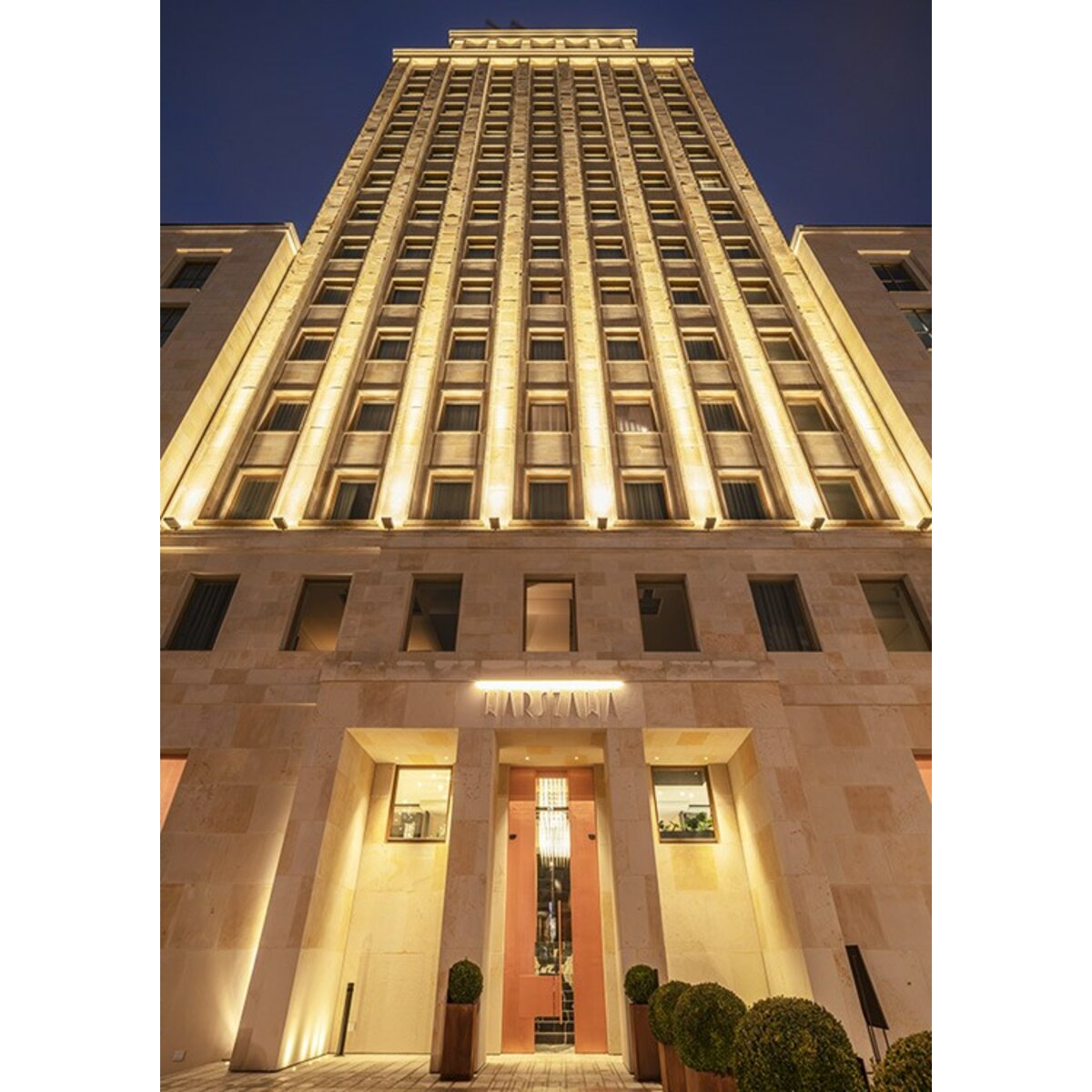

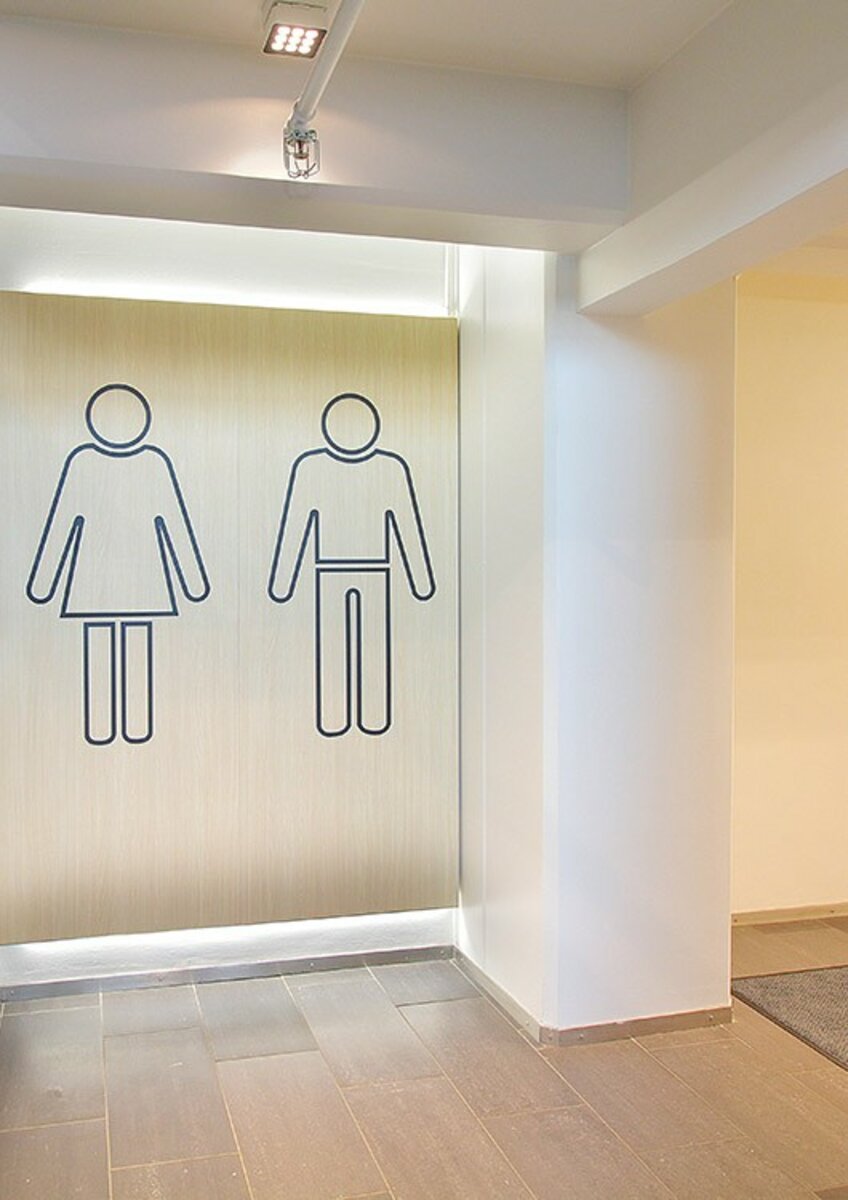

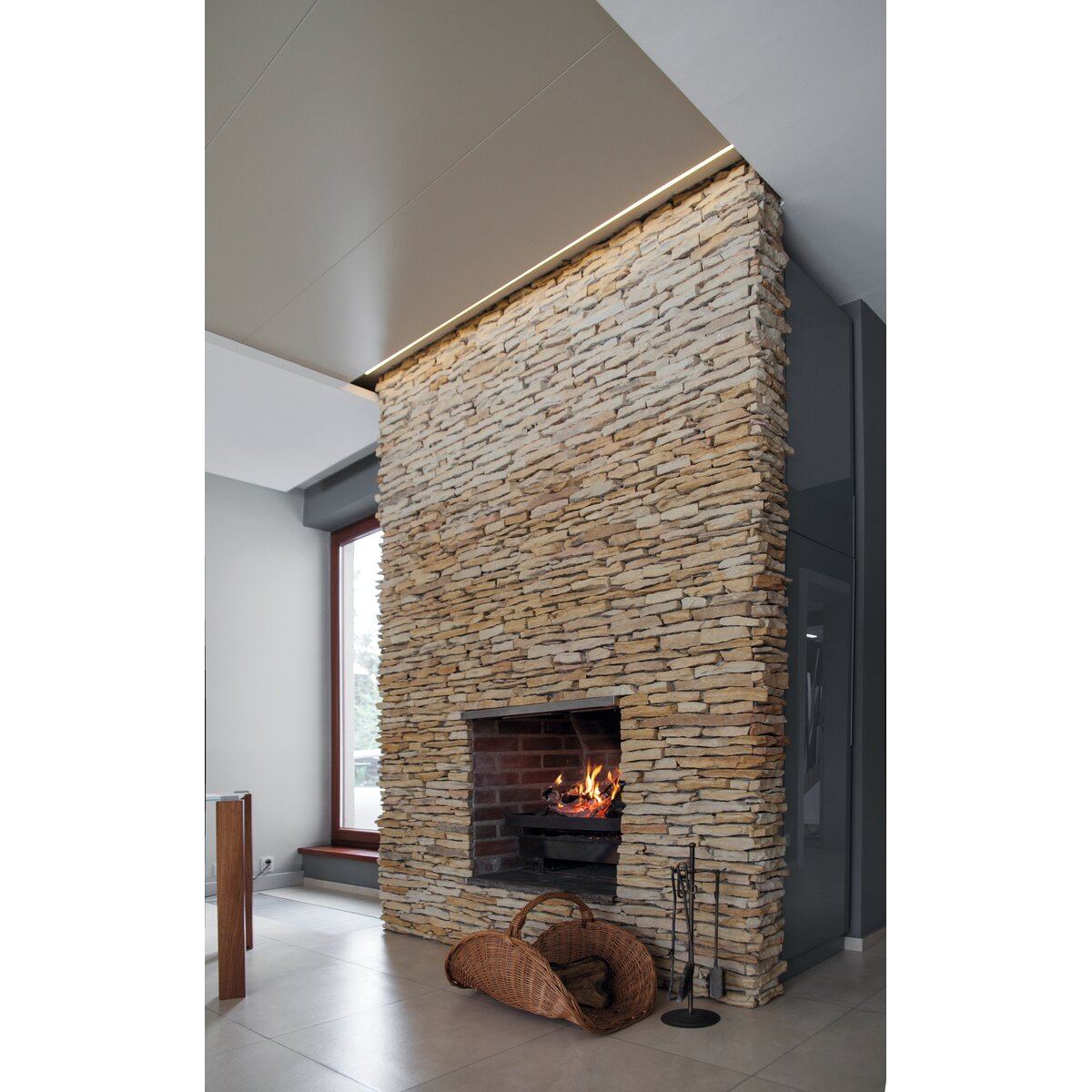

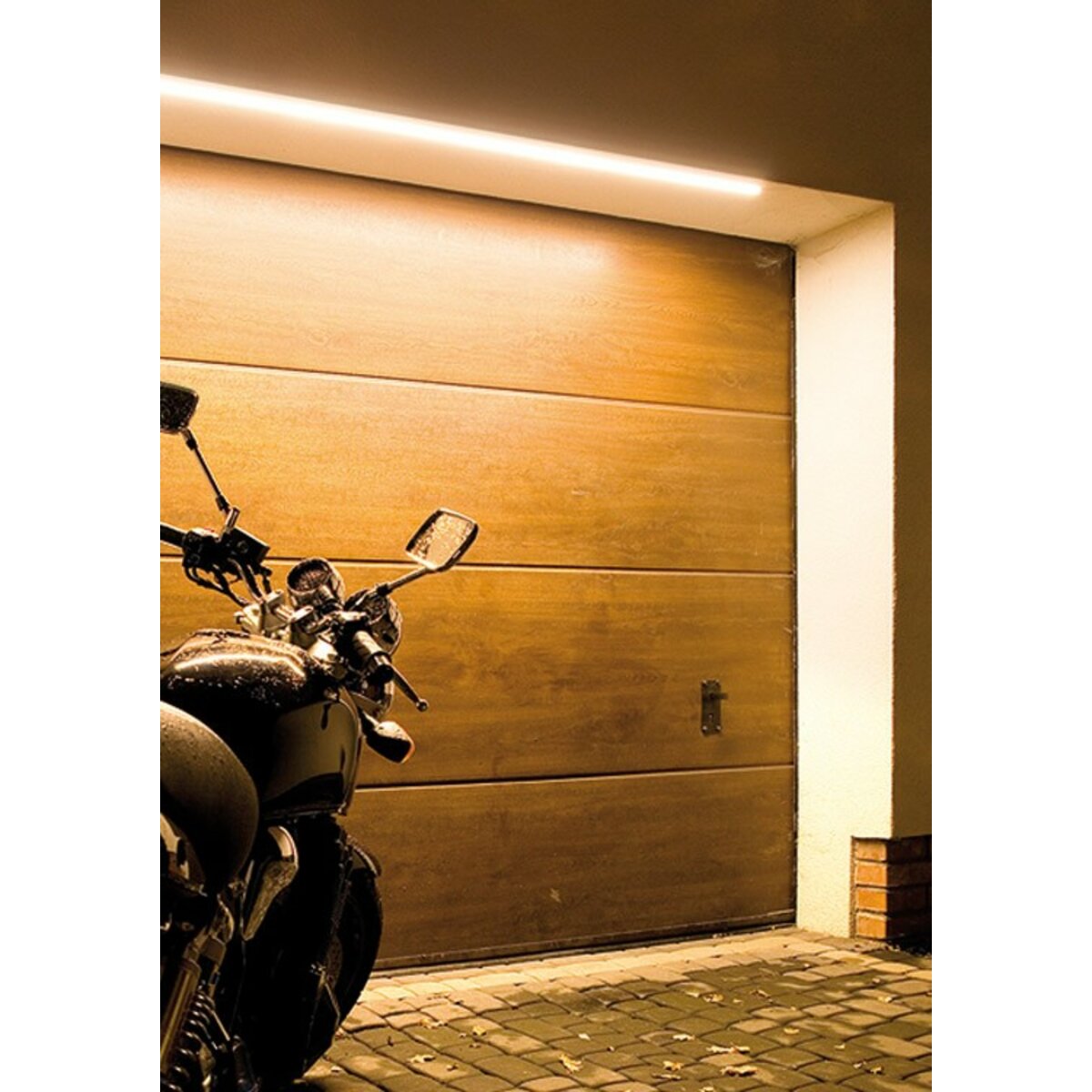

Usage examples

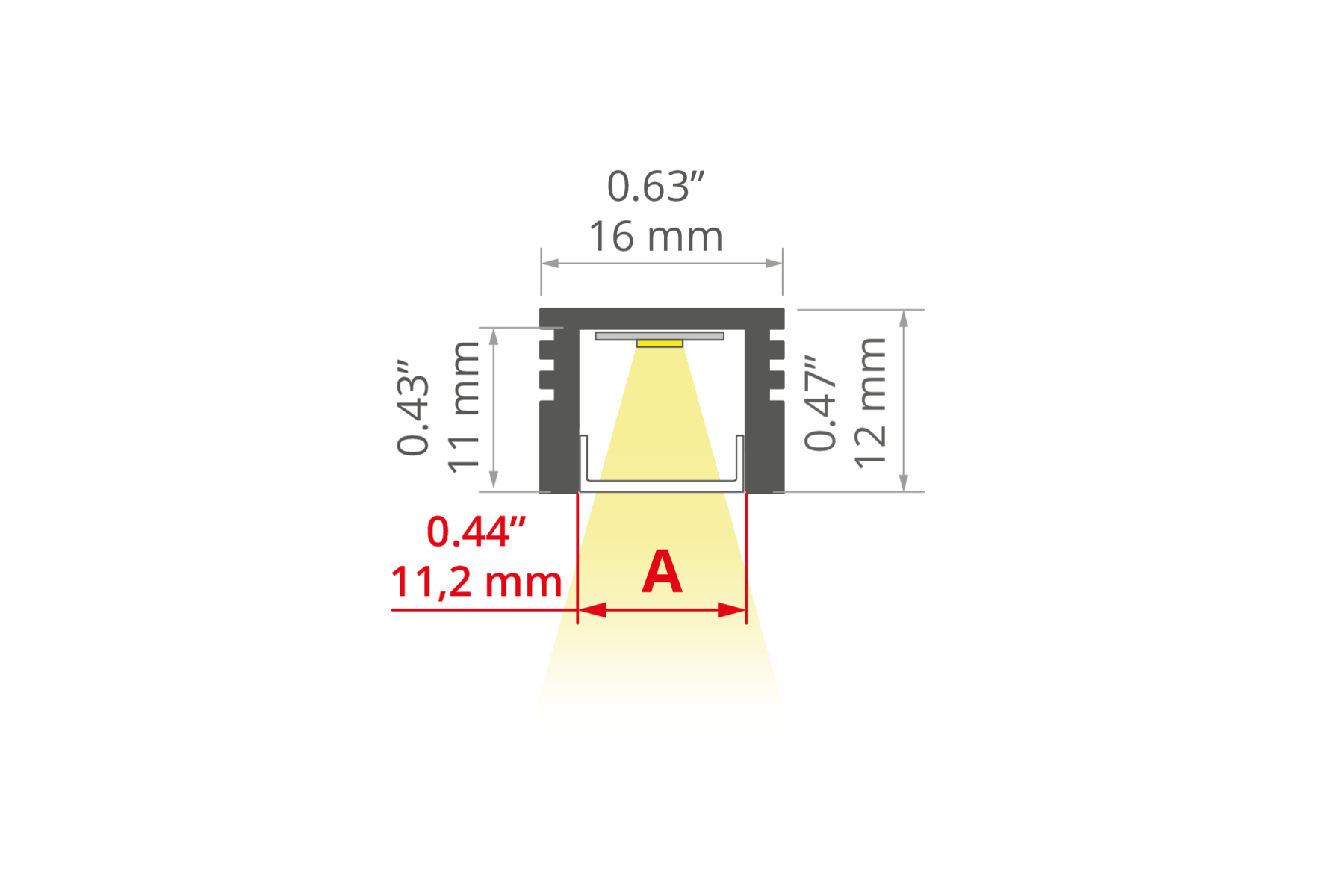

Technical drawing
PDS-4-ALU Extrusion aluminum Technical drawing - A01718
Technical specification
Material
aluminum
Possible fixture IP
20, 65, 67
Possible fixture shapes
linear, round
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
7.3 W/ft
Width
0.6" (16 mm)
Height
0.5" (12 mm)
LED gluing width A
0.4" (11.2 mm)
Max. number of LED strips A (0.31" wide)
1
Lighting angle adjustment up to
360
Easy assembly and disassembly by snapping in and out
Yes
Wire out end cap
Yes
Wire out back of extrusion
Yes
Closet Rated
Yes
Possibility of obtaining a line of light
Yes
Possibility of bending
Yes
Minimum radius of the light arc
Radius of the light arc
No
Inside
150 mm
Outward
350 mm
Building type
Commercial, Hotel / Restaurant, Retail, Residential, Entertainment/ Arts, Outdoor
Facility zone
office, kitchen, bathroom, cove / perimeter, fascade lighting, stairs / hallways, under-cabinet / furniture, outdoor spaces
Color Length Ref No
white lacquered
39.4" (1000 mm)
78.9" (2005 mm)
A01718L10NS_1
A01718L10NS_2
Line of Light Table for Pixel Free Illumination
LED Tapes Covers
Categories LED tape type LIGER-11 Cover satin HS-11 Cover frosted LIGER-11 Cover black
CRI 90+ KWP-GHD-1910-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-2400-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) None
KWP-GHD-1640-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
High Efficacy K-HEHD-0480-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) None
K-HEHD-0960-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) None
K-HEHD-1440-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) None
K-HEHD-1920-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) None
K-HEHD-0320-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) None
Adjustable White / Dim to Warm K-30/18-1770-24V Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-30/18-1770-010V-24V Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
KWP-G30/18-1770-010-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
KWP-G22/50-1728-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-SDCR-22T50-1530-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
KWP-SDCR-22T50-1530-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
RGB / RGB-W / RGB-CTT KWP-GRGBW-1530-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-RGBW-1920-160-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) None
CRI 95+ K-CRHD-1820-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-CRHD-1910-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
Bendable tape K-BT-0910-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
Single diode cuttable K-SD-1440-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) None
Line of Light for a number (X) of rows
Line of Light for a number (X) of rows - Pixel free imaging
Centered Line of Light
Centered Line of Light - Concentrated in middle
None
None - Visible dotting from diodes
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
