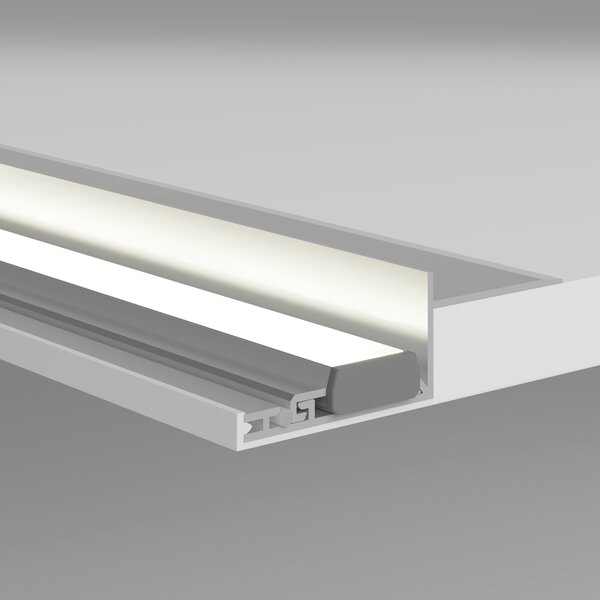

NISA-KRA Extrusion (A18026)

Compare

Compared

Illumination of the niche and cove edge

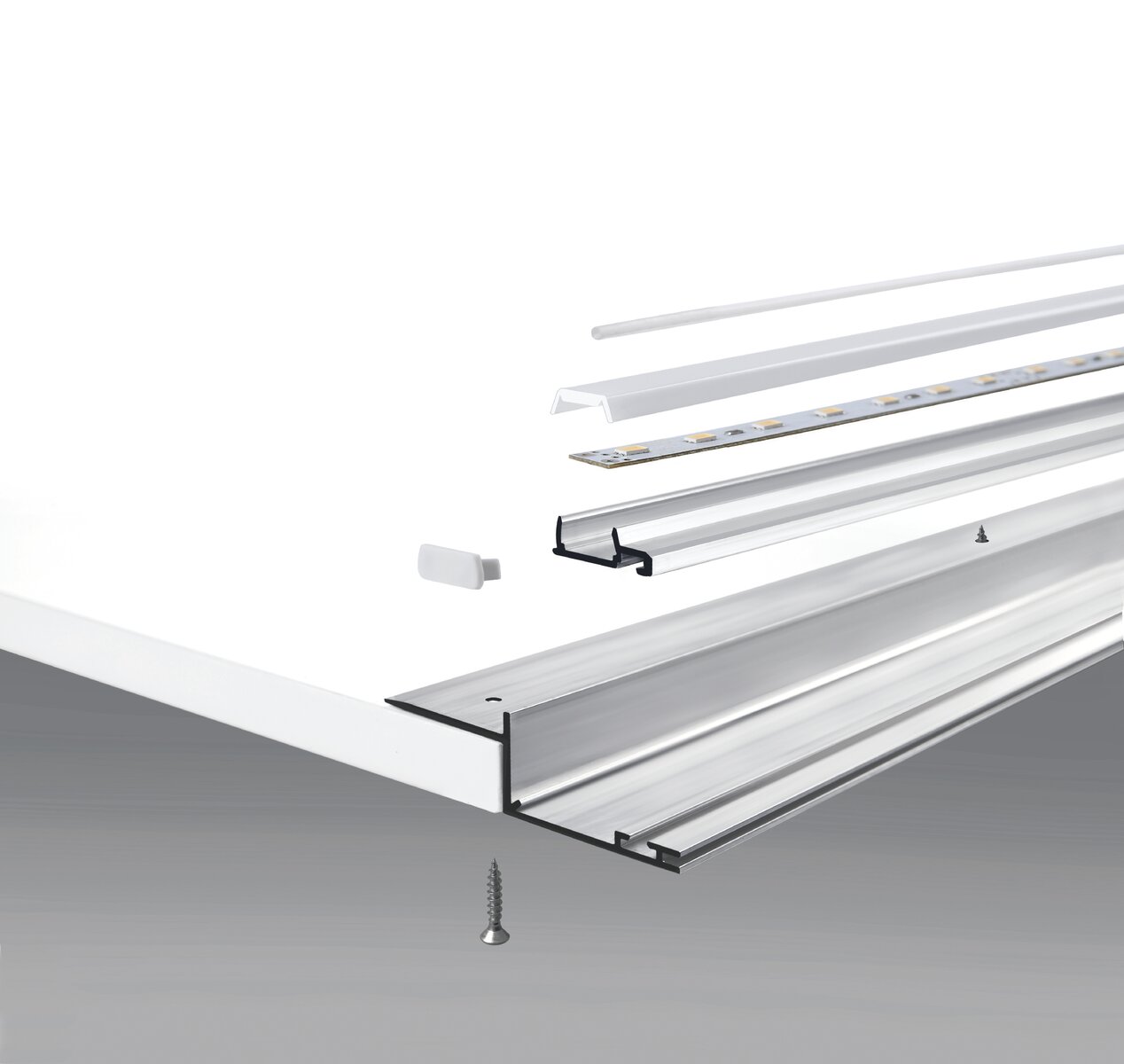

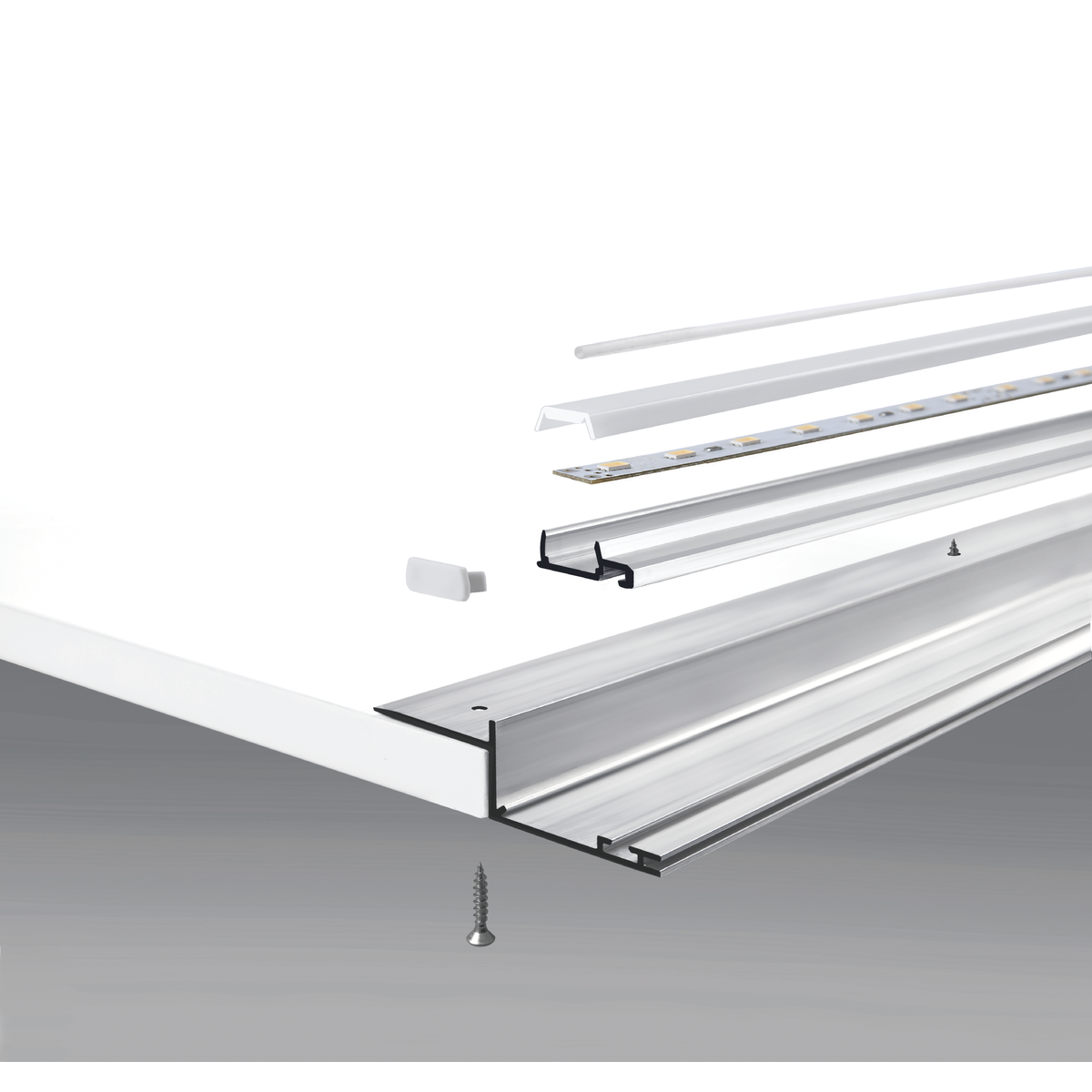

Easy maintenance
Effect of a thin edge of the suspended ceiling
Mounting to 12,5 mm - 0.50" drywall

With the possibility of sealing up to IP20

Configure

WATCH INSTRUCTIONAL VIDEO

Color

Description

Illumination of the niche and cove edge
Easy maintenance
Effect of a thin edge of the suspended ceiling

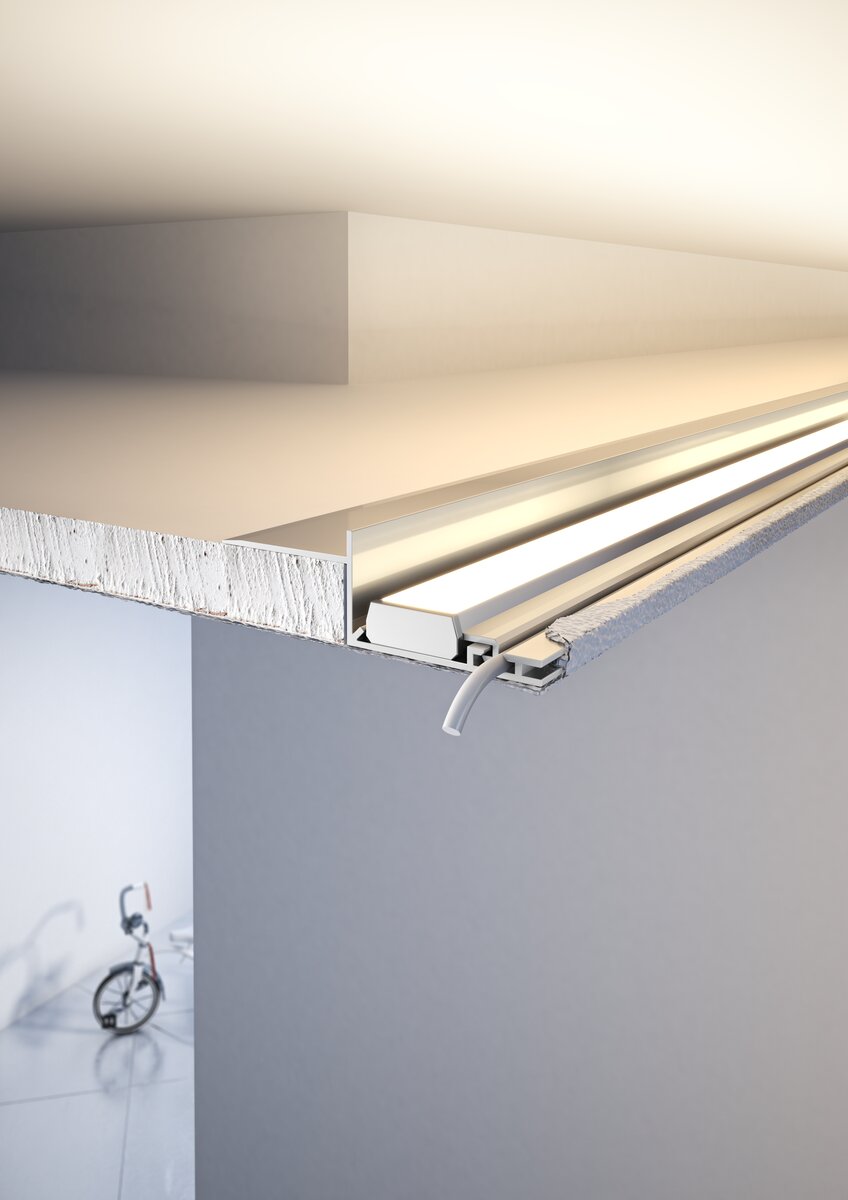

Mounting to 12,5 mm - 0.50" drywall

Application

- decorative lighting recessed in architectural niches

Mounting

- to the surface, using a dedicated mounting track and properly selected screws

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

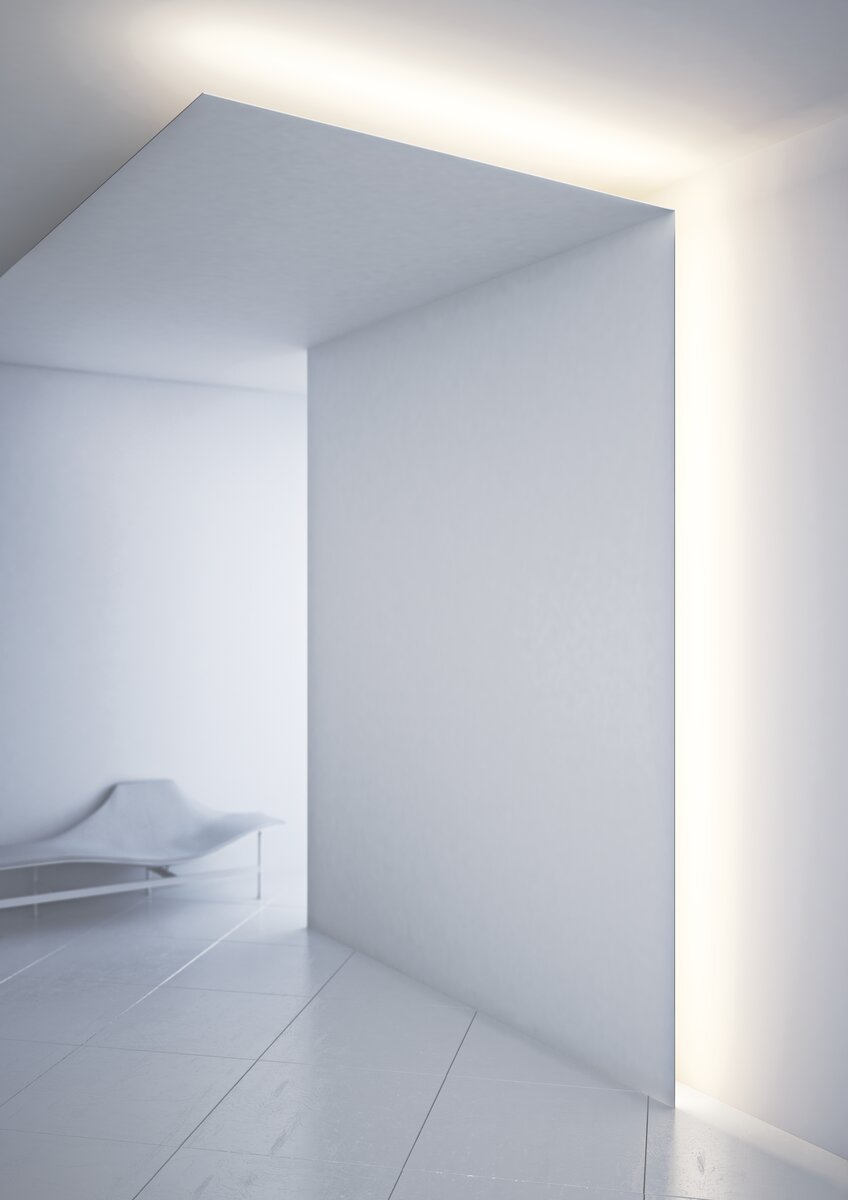

Usage examples

Description
download

Application

- decorative lighting recessed in architectural niches

Mounting

- to the surface, using a dedicated mounting track and properly selected screws

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

Declaration of Conformity UKCA

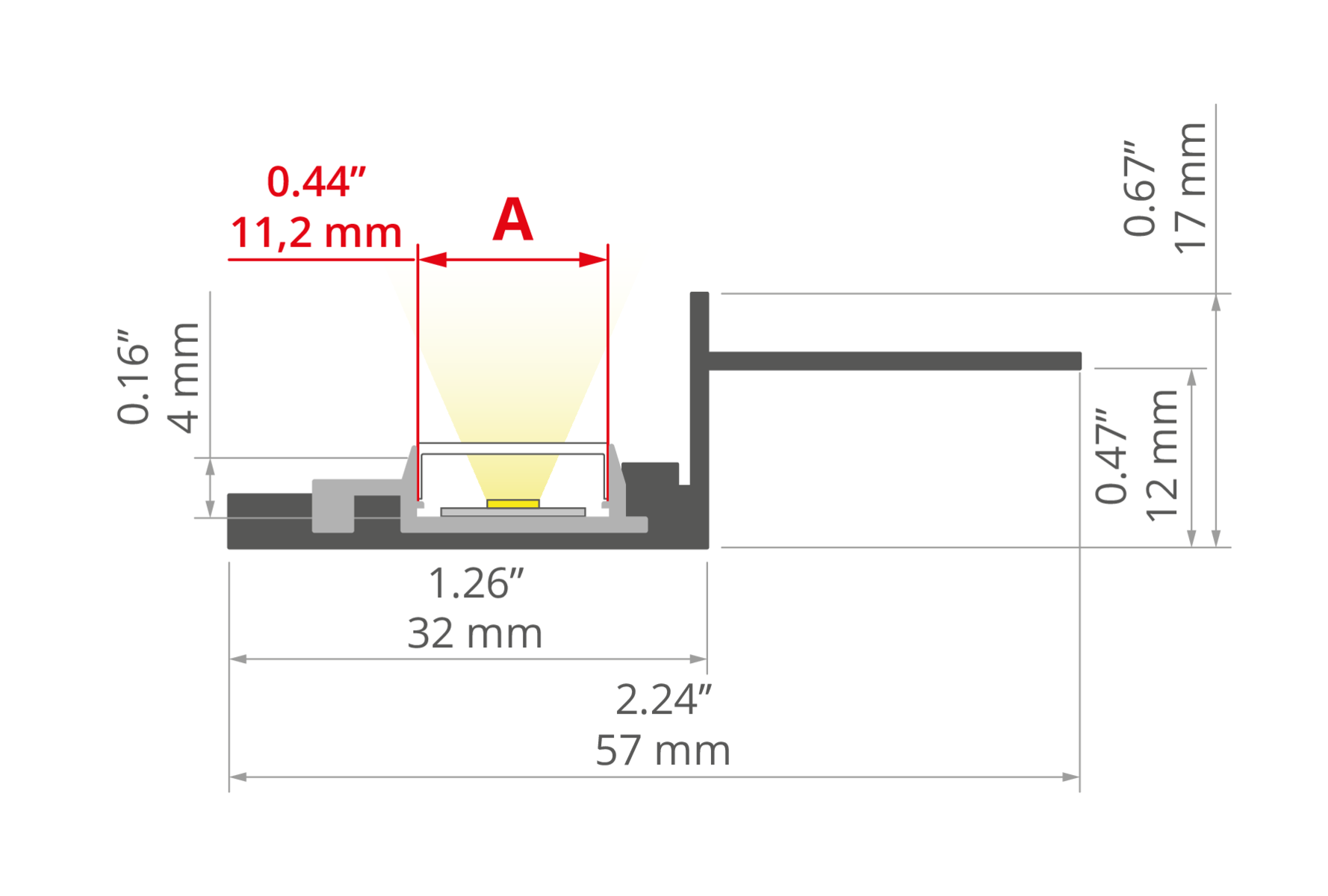

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

Possible fixture shapes

linear

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

2.2" (57 mm)

Height

0.7" (17 mm)

LED gluing width A

0.4" (11.2 mm)

Max. number of LED strips A (0.31" wide)

The cover is cut to the length of the profile

Yes

Can be easily connected into runs

Yes

Mounting to drywall

Yes

To cover with plaster

Yes

Wire out end cap

Yes

Closet Rated

Yes

Building type

Residential, Entertainment/ Arts, Hotel / Restaurant

Facility zone

cove / perimeter, fitness / spa, media rooms / av

Color	Length	Ref No
silver non anodized	39.4" (1000 mm) 78.9" (2005 mm)	A18026N_1 A18026N_2

similar profiles

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
HS-11 Cover	PC	- For indoor and outdoor applications - UV resistant - hight durability	59 % 88 %	frosted clear	B17208F B17208C
KA-11 Cover	PC	- maximum brightness - indoor use - basic - universal	67 % 89 %	frosted clear	B17064F B17064C
LIGER-11 Cover	PC	- hight light quality - Ease of obtaining a line of light - perfectly diffusing - For indoor and outdoor applications	59 % 21 %	satin black	B17037S B17037B

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
High Efficacy

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0480-24 K-HEHD25-0480-24 K-HEHD27-0480-24 K-HEHD30-0480-24 K-HEHD35-0480-24 K-HEHD40-0480-24 K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0960-24 K-HEHD25-0960-24 K-HEHD27-0960-24 K-HEHD30-0960-24 K-HEHD35-0960-24 K-HEHD40-0960-24 K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1440-24 K-HEHD25-1440-24 K-HEHD27-1440-24 K-HEHD30-1440-24 K-HEHD35-1440-24 K-HEHD40-1440-24 K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,	20	-	5.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1920-24 K-HEHD25-1920-24 K-HEHD27-1920-24 K-HEHD30-1920-24 K-HEHD35-1920-24 K-HEHD40-1920-24 K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,	20	-	1 W/ft	2700K 3000K 3500K 4000K	- CRI over 95 - High Efficacy	K-HEHD27-0320-24 K-HEHD30-0320-24 K-HEHD35-0320-24 K-HEHD40-0320-24

LED tapes
CRI 95+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-HEHD-1440-24-40C LED tape, 570-667 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- High Efficacy - cold weather -40F	K-HEHD22-1440-24-40C K-HEHD25-1440-24-40C K-HEHD27-1440-24-40C K-HEHD30-1440-24-40C K-HEHD35-1440-24-40C K-HEHD40-1440-24-40C K-HEHD50-1440-24-40C

LED tapes
CRI 90+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20	20	-	7.3 W/ft	2700K 3000K 3500K 4000K 5000K	- high power	K-27-2400-24 K-30-2400-24 K-35-2400-24 K-40-2400-24 K-50-2400-24

LED tapes
RGB / RGB-W / RGB-CTT

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-120-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,	65	silicon sleeve	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1920-120-24

LED tapes
Adjustable White / Dim to Warm

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-27/65-1920-24V LED tape, 2700K, 500 lm/ft, 5.9 W/ft, IP20	20	-	5.9 W/ft	2700K	- Tuneable white 2600K-6500K	K-27/65-1920-24
K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-24
K-30/18-1770-010V-24V LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-010V-24V
KWP-G30/18-1770-010-24 LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP65	65	gel cover	3.5 W/ft	1800K		KWP-G30/18-1770-010-24
KWP-G22/50-1728-24 LED tape, 2200K, 467 lm/ft, 5.3 W/ft, IP65	65	gel cover	5.3 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-G22/50-1728-24

Accessories
End caps
Standard end caps

Product name	Material	Color	Ref No
End cap ONISA	PP	gray	C24100C02

Accessories
Accessories for connecting and securing lighting fixtures
Connectors

Product name	Material	Color	Ref No
ZM-NA Connector	stainless steel	silver	42339
ZM-NA-PION Connector	stainless steel	silver	42321 42315 42317
ZM Connector	stainless steel	silver black colorless	C28075N00 C28072N00 42720 42728 C24797C07 C28072C07 C28075C07 C28070C07 C28071C07 C28073C07 C28074C07 C24797N00
ZM-PION Connector	stainless steel	silver black	42718 42719 42320 C28086N00 C28084N00 42314 C28086C07 C28084C07 C28088C07 C28087C07 C28085C07

Accessories
Additional items

Product name	Material	Color	Ref No
Gland 6x1,2			C24517C07
