K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20 3.5 W/ft

Ref No: K-30/18-1770-24
K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20

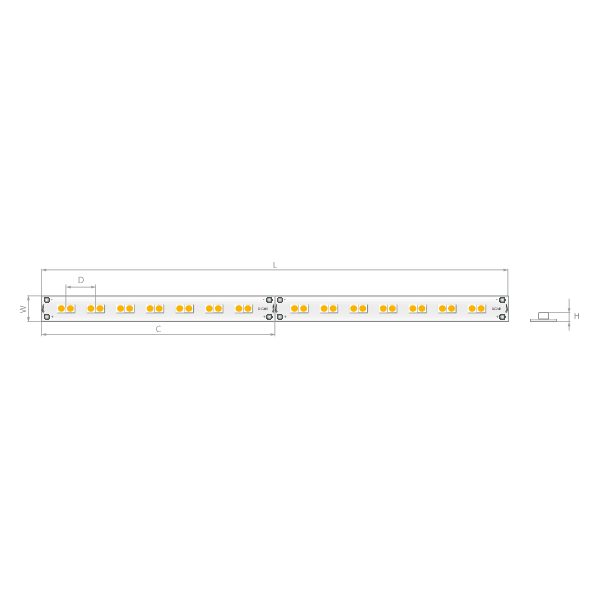

Dimensions:
|
Width [W]: 0.4" (10 mm)
|
Height [H]: 0.1" (3.5 mm)
|
Max run length [L]: 16'04" (5 m)
|
Cut every [C]: 2.5" (62.5 mm)
|
LED spacing: 0.3" (6.6 mm)
K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20
Dimensions:
|
Width [W]: 0.4" (10 mm)
|
Height [H]: 0.1" (3.5 mm)
|
Max run length [L]: 16'04" (5 m)
|
Cut every [C]: 2.5" (62.5 mm)
|
LED spacing: 0.3" (6.6 mm)
K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20
K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20
  • UL Listed
  • 90+ CRI
  • 3-Step MacAdam’s ellipse, single binning
  • Reverse voltage protection
CRI 90+
IP20 protection rating
Dimmable
Dim to warm
Does not contain mercury and lead
Warranty 7 years
JA8
  • UL Listed
  • 90+ CRI
  • 3-Step MacAdam’s ellipse, single binning
  • Reverse voltage protection
Additional information
  • - Only to be used with a PWM dimmable power supply

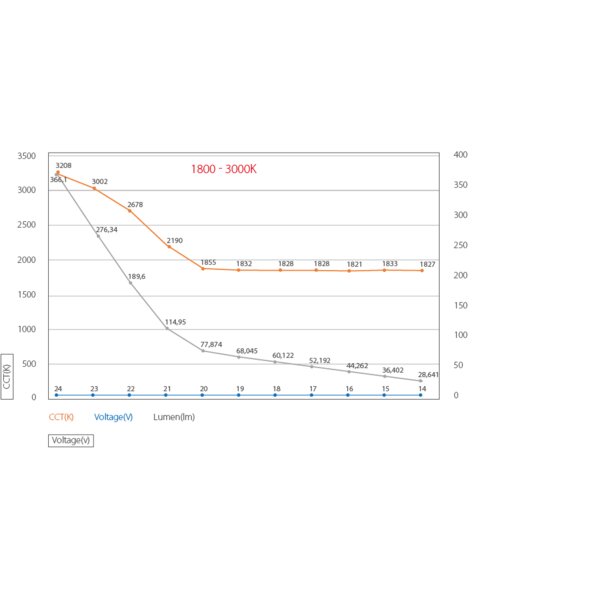

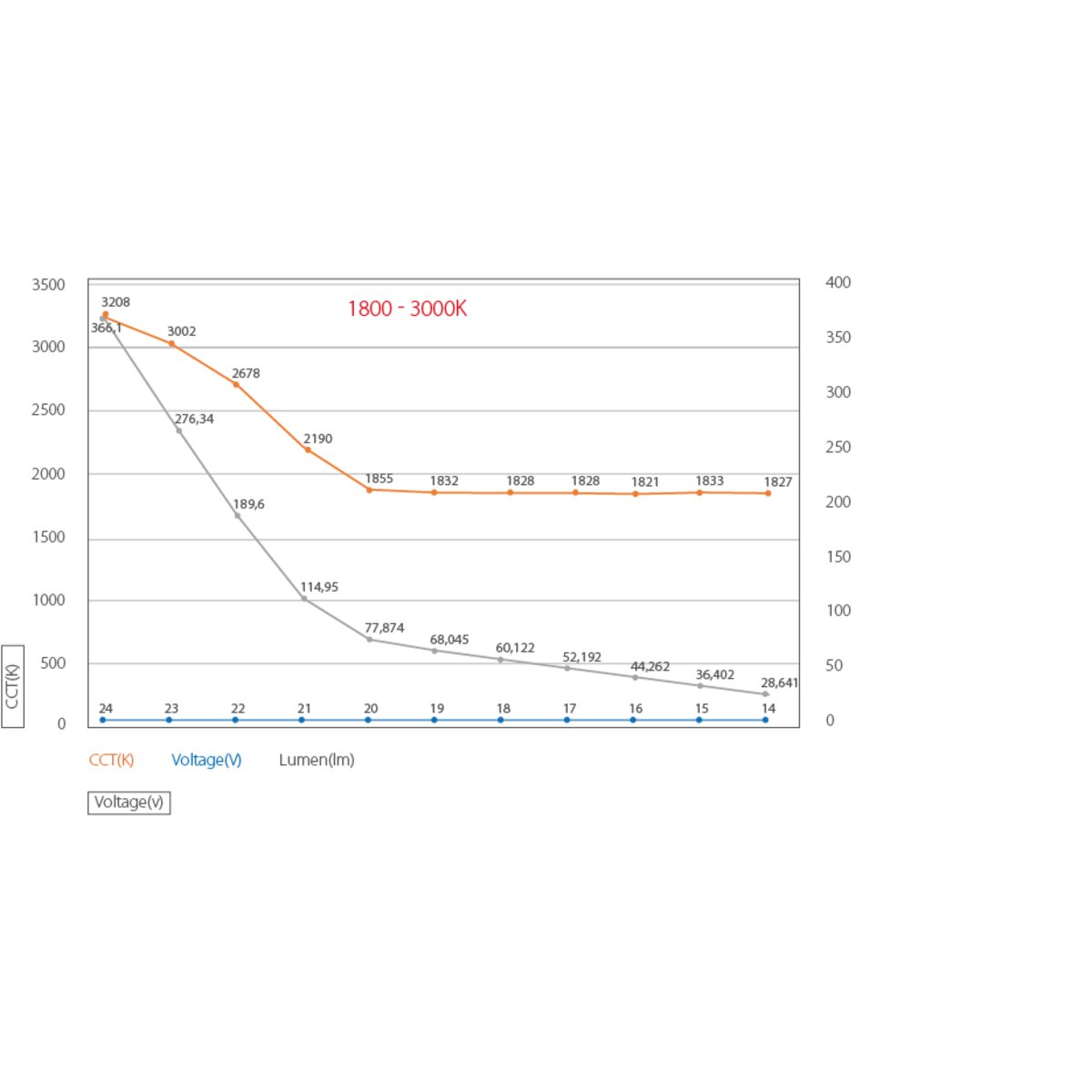

  • - Small profile Dim to Warm light strip following the smooth dimming curve from 3000K at full brightness to 1800K at the lowest dimming level. Creates a clean line of light when paired with a KLUS extrusion and Satin cover.
Technical specification
IP protection rating
20
CRI
90
Color temperature
1800 K
Color temperature
3000 K
Lumen output
279 lm/ft
Luminous efficiency
79 lm/W
Input voltage
24 V DC
Power consumption
3.5 W/ft
Beam angle
120°
MacAdam’s ellipse
3 SDCM
Height [H]
0.1" (3.5 mm)
Width [W]
0.4" (10 mm)
Cut every [C]
2.5" (62.5 mm)
LED spacing
0.3" (6.6 mm)
Number of LEDs per 1 ft
68
Number of LEDs per cut section
14 pcs
Max run length [L]
16'04" (5 m)
JA8 / TITLE24 Compliant
Yes
Dimmable
Yes
Dim To Warm
Yes
Working temperature
-22°F - 140°F
