OS22-DUO-PRET-Z Fastener

Ref No: C28185
OS22-DUO-PRET-Z Fastener
OS22-DUO-PRET-Z Fastener
  • Longitudinal suspension on rods
  • Mount to the light source side of the lighting fixture
  • Creating an installation from lighting fixtures suspended one under the other
  • Construction of sconces using standard linear lighting fixtures
  • Possibility to conduct two poles of current
Conducting electricity
Conducting electricity
Color
white black
  • Longitudinal suspension on rods
  • Mount to the light source side of the lighting fixture
  • Creating an installation from lighting fixtures suspended one under the other
  • Construction of sconces using standard linear lighting fixtures
  • Possibility to conduct two poles of current
Application
  • - for suspending LED lighting fixtures
Mounting
  • - to the lighting fixture, using a cover bracket
  • - to rods, using the pressure bolts
Additional information
  • - spare power connector included
  • - ATTENTION! in the case of installation in a extrusion without hooks at the cover bracket (e.g. GIZA-DUO-LL), remove the plastic holder in the lower part of the fastener

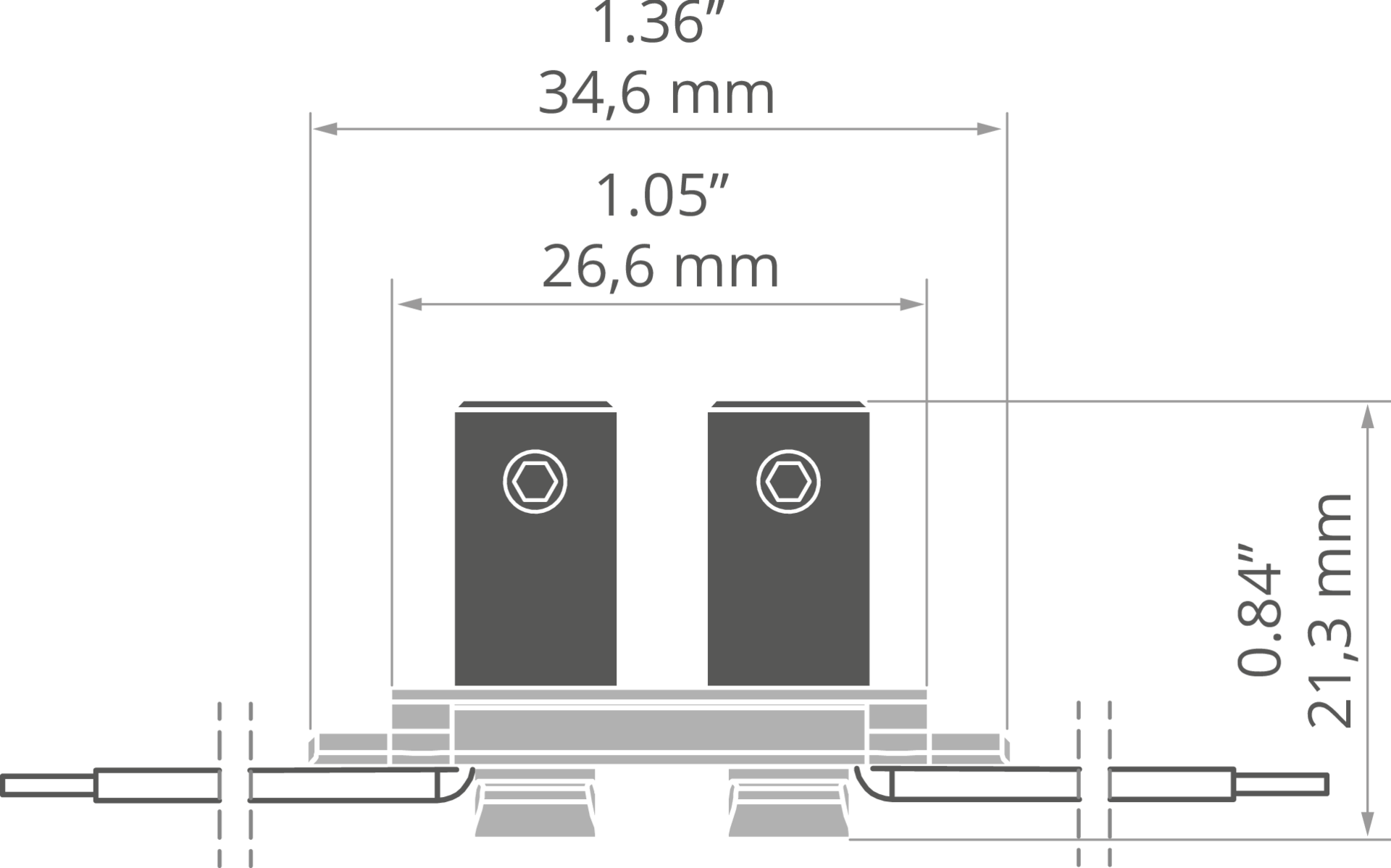

Technical drawing
OS22-DUO-PRET-Z Fastener PA Technical drawing - C28185
Technical specification
Conducting electricity
Yes
Material
stainless steel, PA
Conducting electricity
Yes
Working temperature
140°F
Lifting capacity
19.8 lb
Maximum current intensity
5 A
Power loss
0.05 V
Width x Height
1.4" x 0.8"
Color Ref No
white
C28185L10
black
C28185L07
