LIPOD Extrusion (A05554) | KlusDesign.com

Compare

Compared

Wide range of accessories
Luminaire direction adjustment
Small bending radius
Possibility to use current modules with efficiency up to 190lm/W and CRI>90. Available upon request.

With the possibility of sealing up to IP20

With the possibility of sealing up to IP65

Configure

WATCH INSTRUCTIONAL VIDEO

Color

Description

Wide range of accessories
Luminaire direction adjustment
Small bending radius
Possibility to use current modules with efficiency up to 190lm/W and CRI>90. Available upon request.

Application

- main, decorative and functional lighting

Mounting

- suspended, to the surface or recessed, using dedicated accessories, a dedicated mounting track, properly selected screws or mounting adhesive
- easy assembly and disassembly by snapping in and out

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
- NCS Premium paint option - minimum order quantity 30pcs - available immediately

download

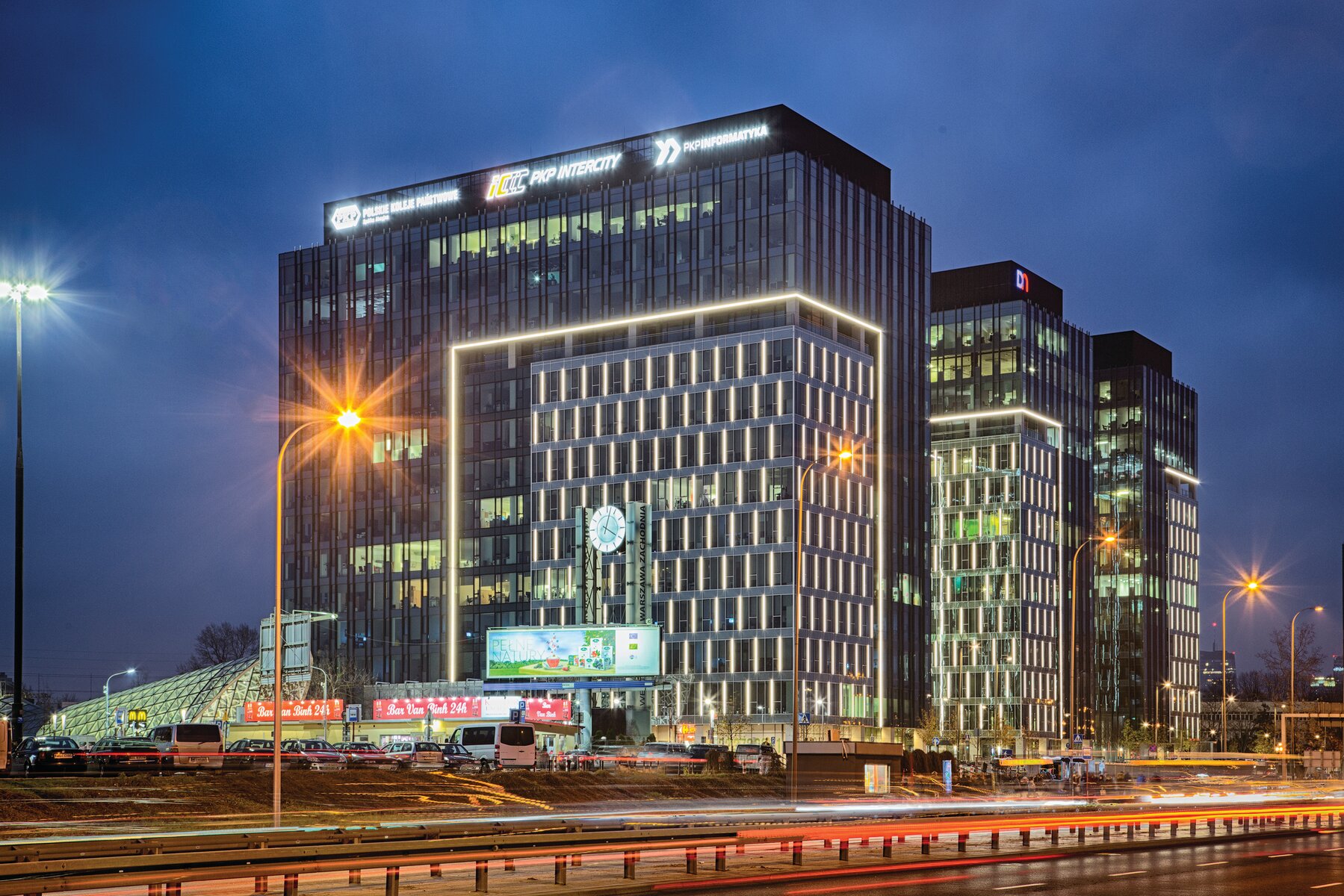

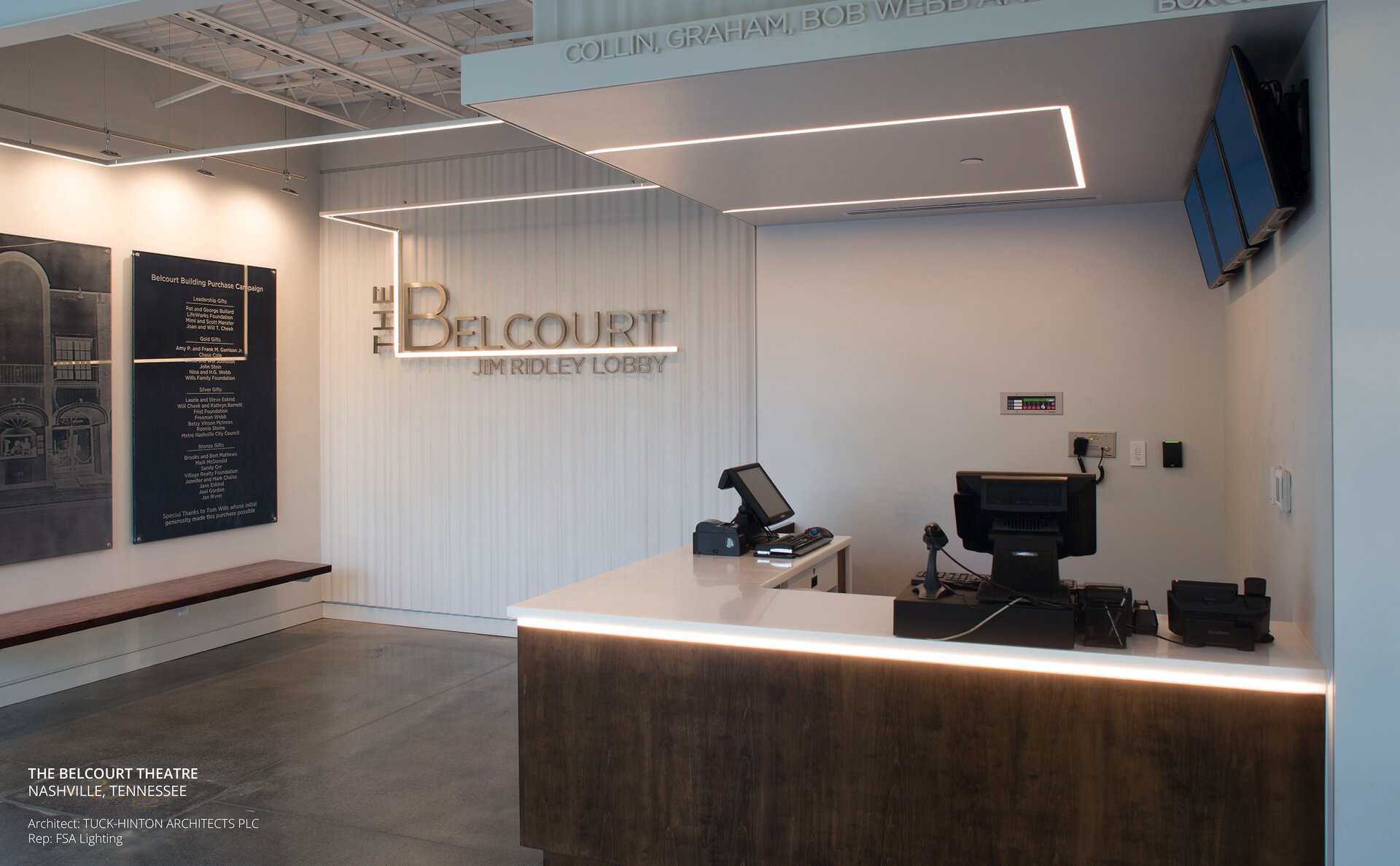

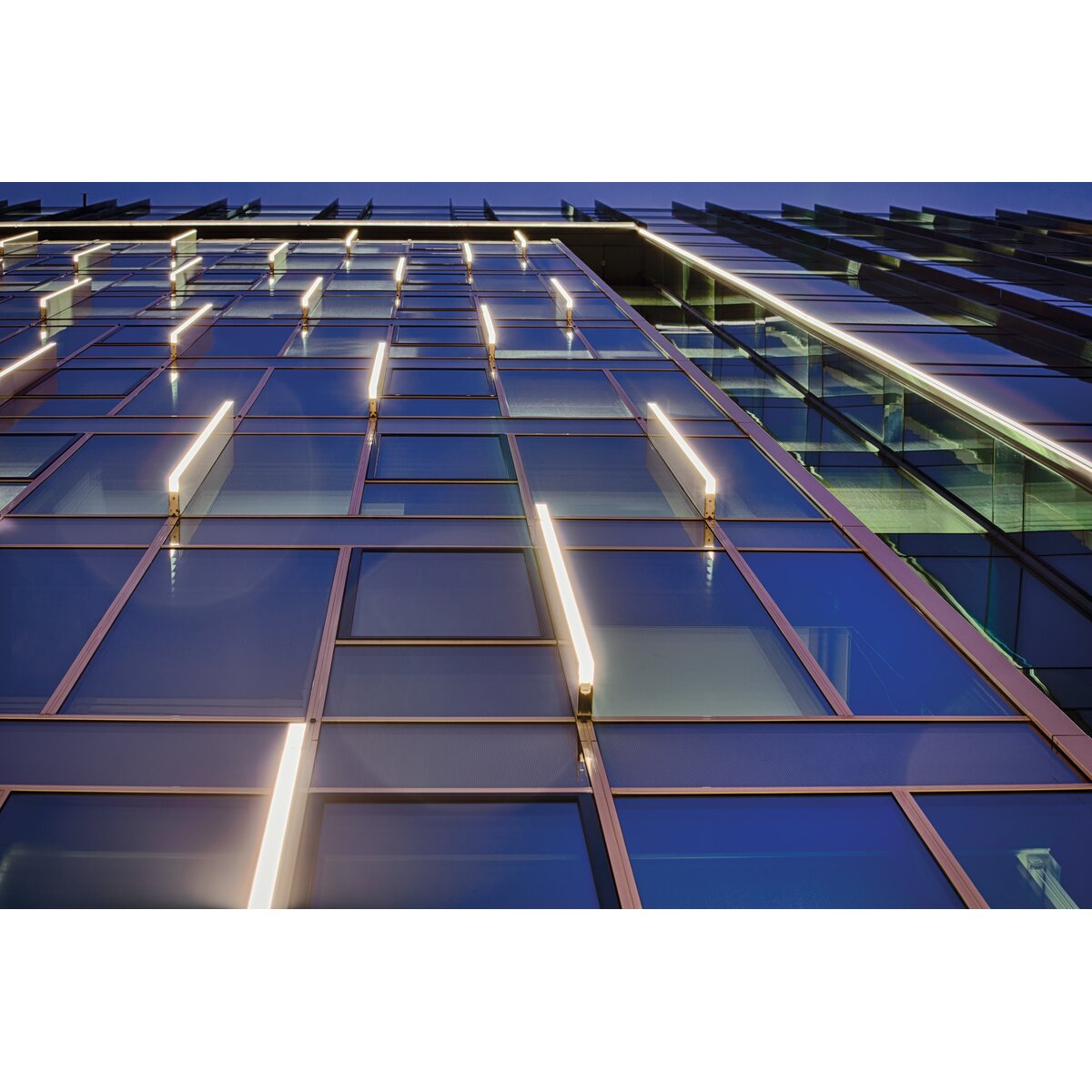

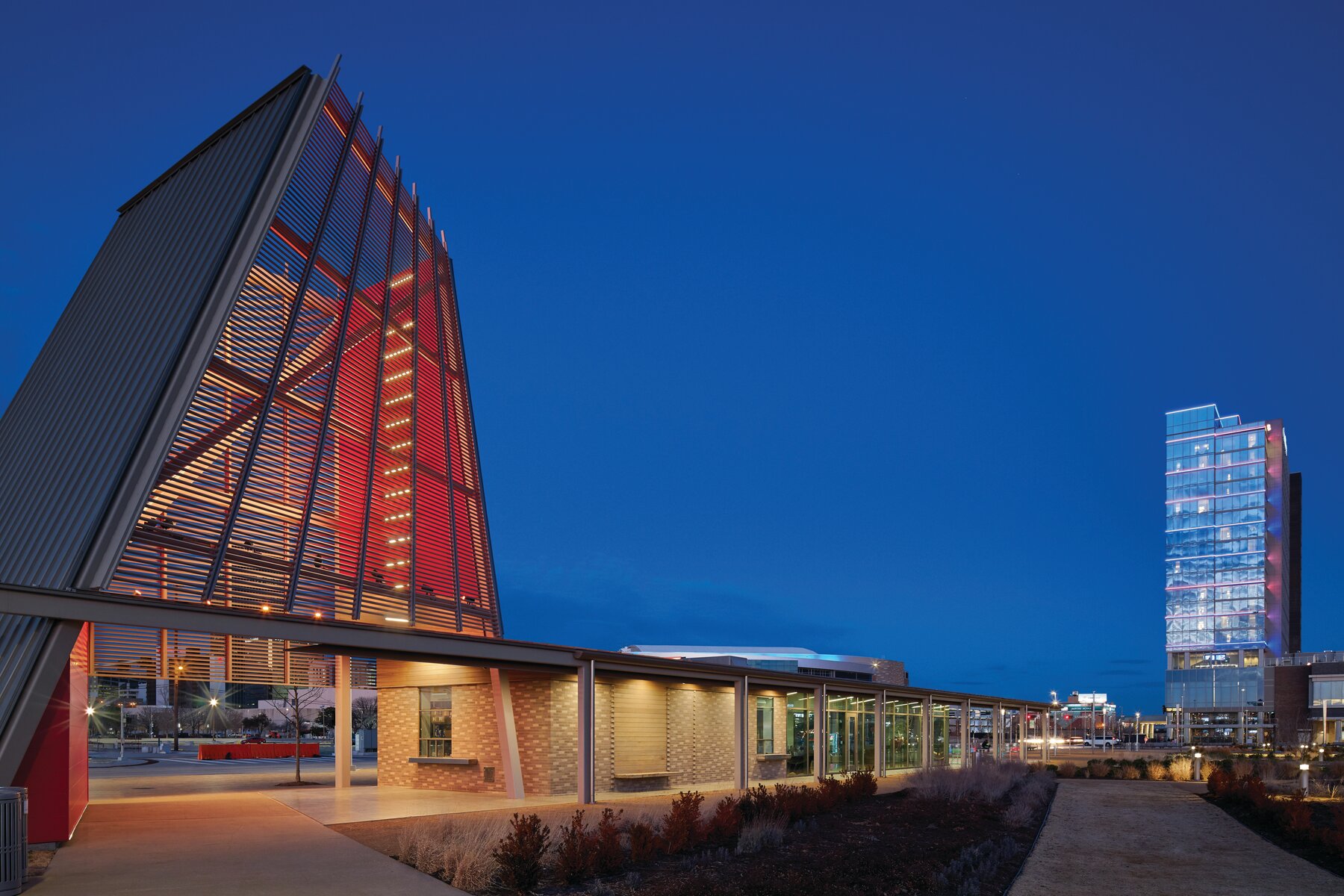

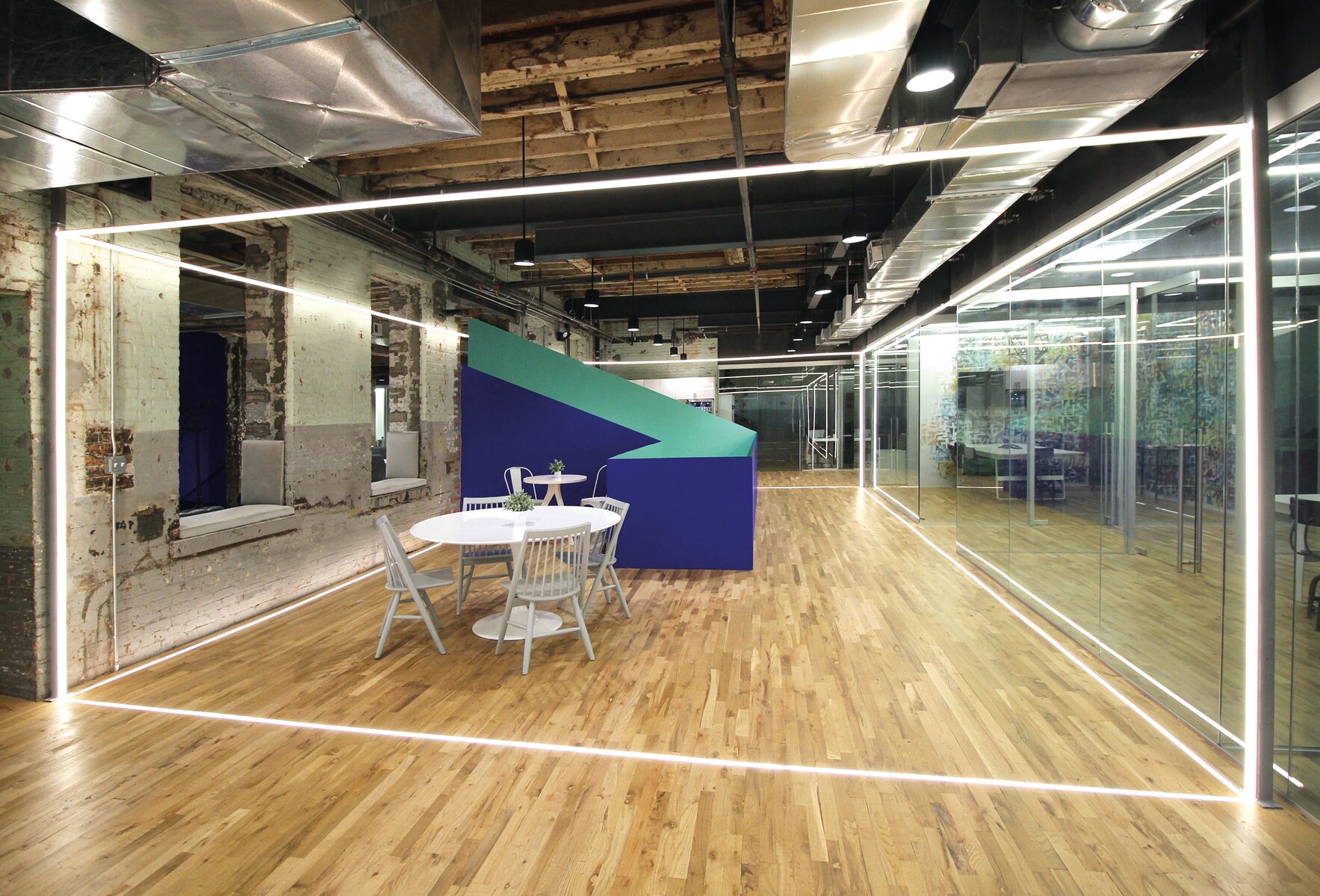

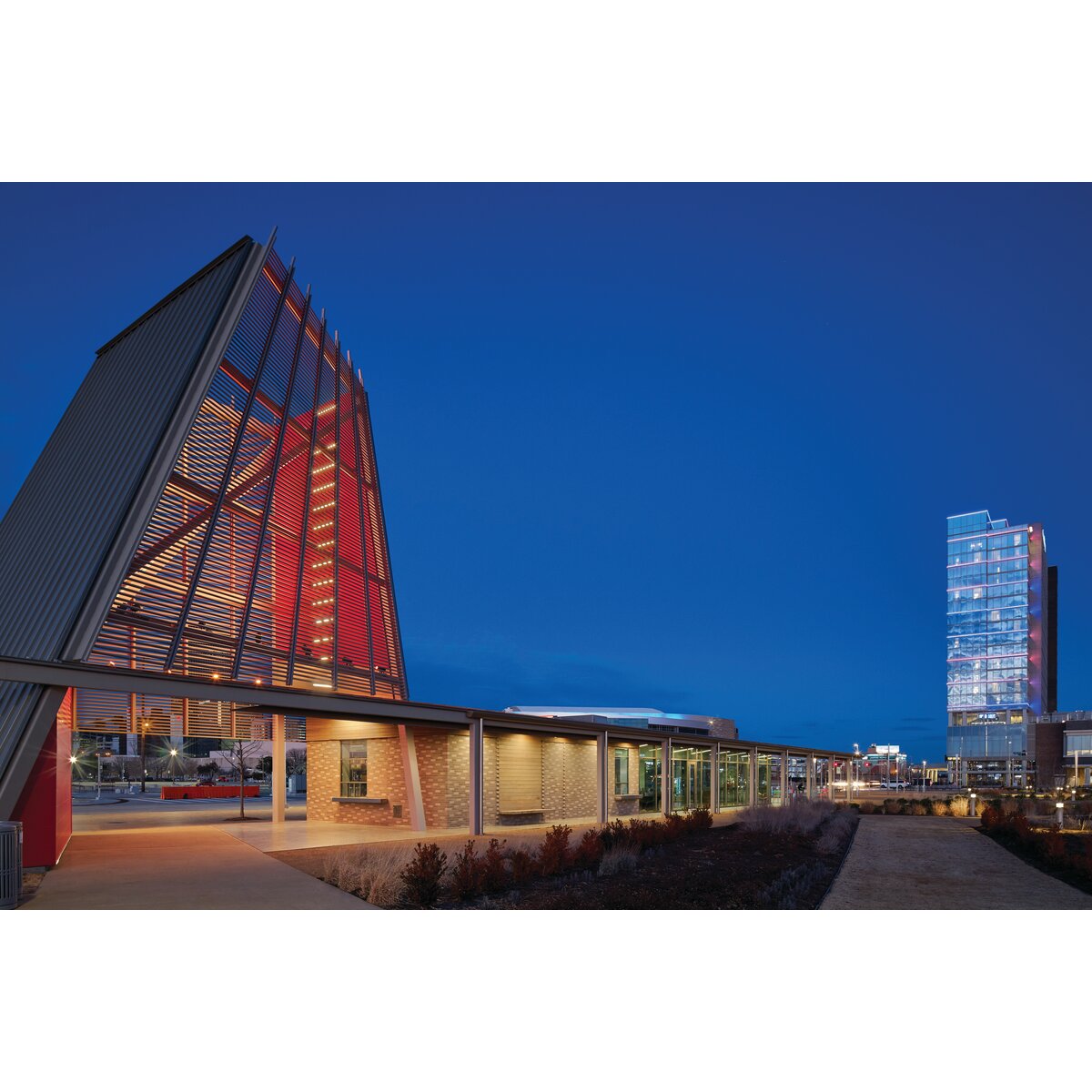

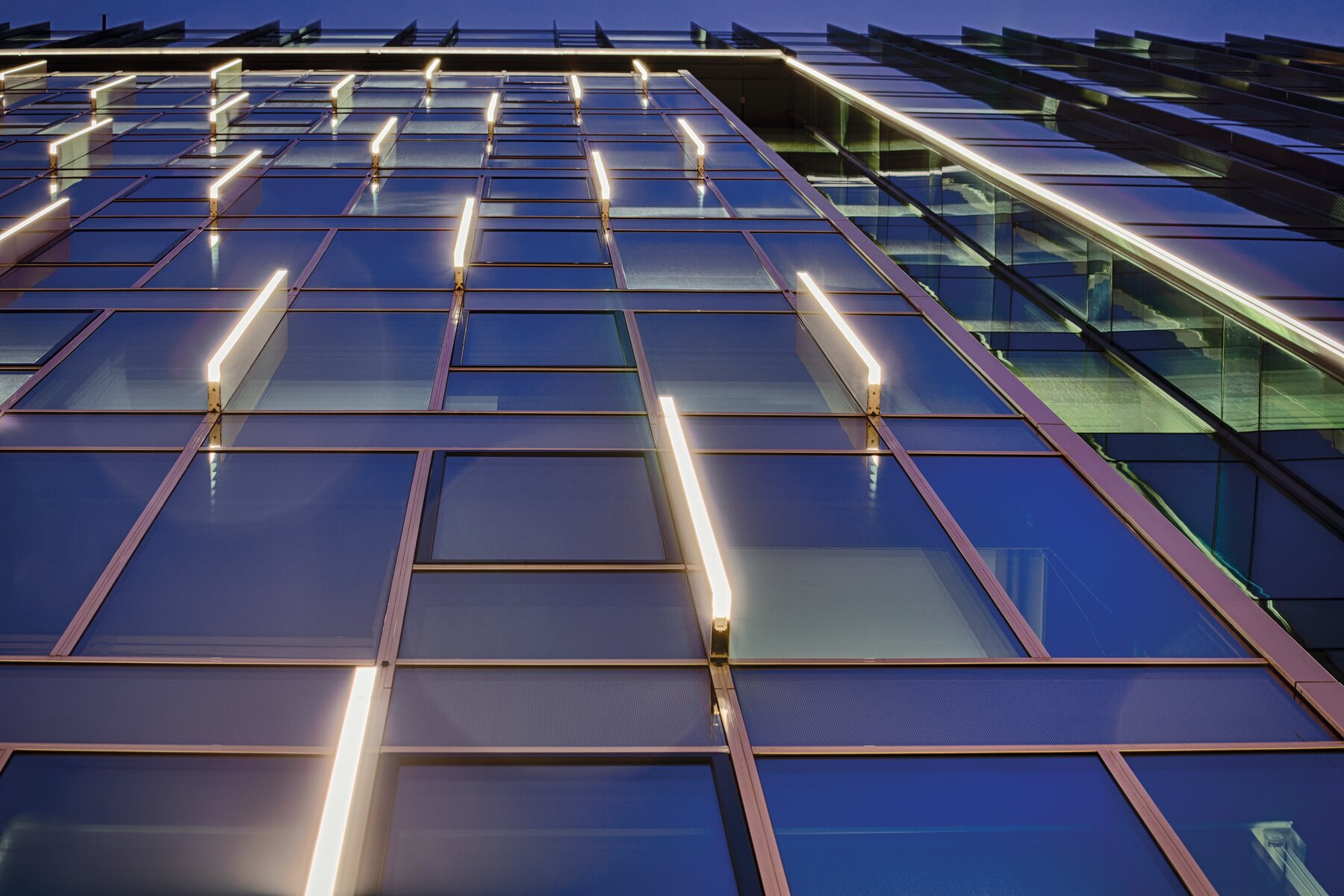

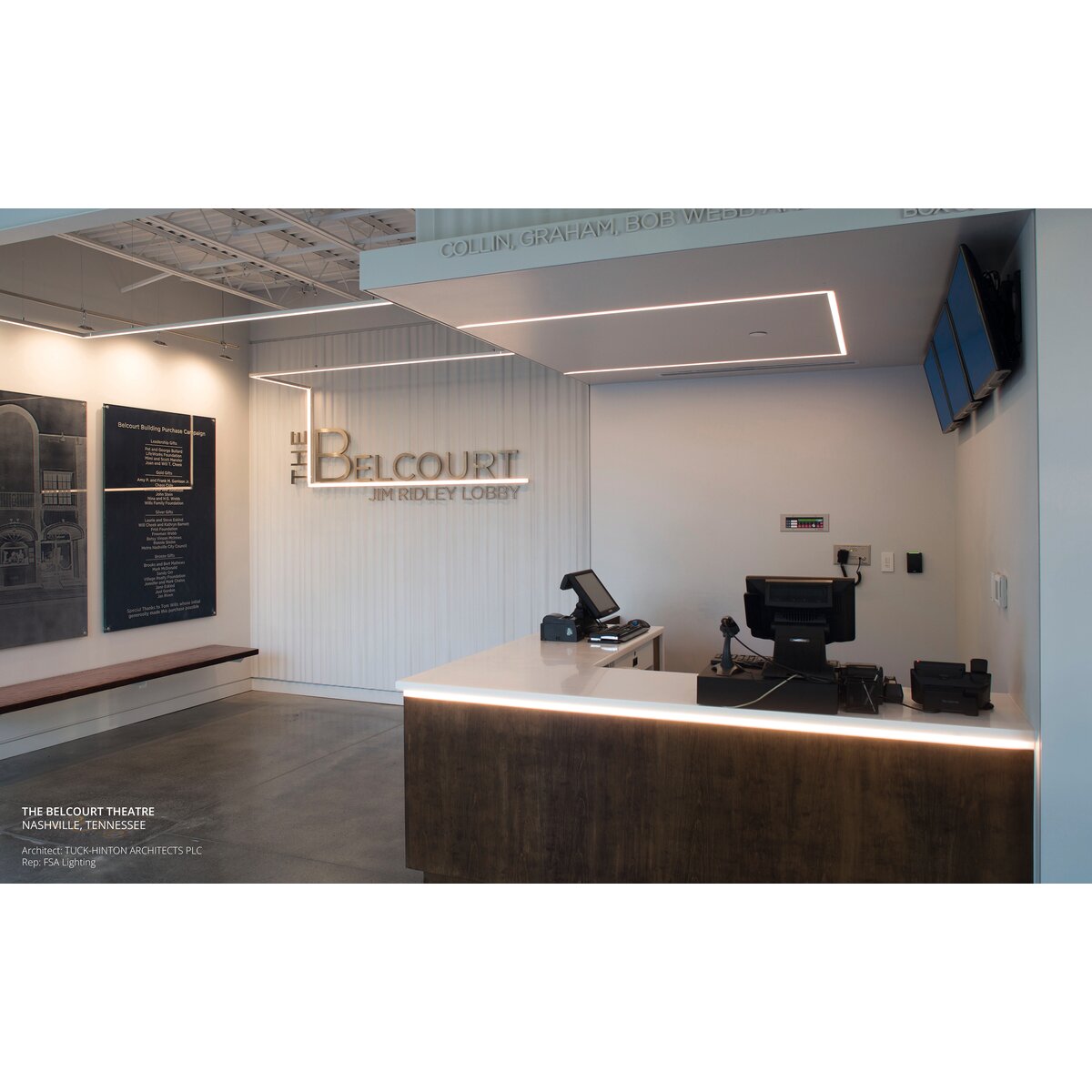

Usage examples

Description
download

Application

- main, decorative and functional lighting

Mounting

- suspended, to the surface or recessed, using dedicated accessories, a dedicated mounting track, properly selected screws or mounting adhesive
- easy assembly and disassembly by snapping in and out

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
- NCS Premium paint option - minimum order quantity 30pcs - available immediately

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

20, 65

Possible fixture shapes

linear, polygonal, round

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

1" (26.2 mm)

Height

1" (24.5 mm)

LED gluing width A

0.9" (24 mm)

Max. number of LED strips A (0.31" wide)

Lighting angle adjustment up to

240

Easy assembly and disassembly by snapping in and out

Yes

The cover is cut to the length of the profile

Yes

Can be easily connected into runs

Yes

Mounting to drywall

Yes

Wire out back of extrusion

Yes

Dedicated space for power supply

Yes

Closet Rated

Yes

Possibility of obtaining a line of light

Yes

Possibility of bending

Yes

Minimum radius of the light arc

Radius of the light arc

Yes

Inside

3000 mm

Outward

3000 mm

Building type

Commercial, Retail, Entertainment/ Arts, Hotel / Restaurant

Facility zone

office, lobby / foyer, decorative, fitness / spa, media rooms / av

Color	Length	Ref No
silver anodized	39.4" (1000 mm) 78.9" (2005 mm) 118.5" (3010 mm)	A05554A_1 A05554A_2 A05554A_3
white lacquered	118.5" (3010 mm)	A05554L10OD_3
black anodized	118.5" (3010 mm)	A05554A07_3

Mounting options

Line of Light Table for Pixel Free Illumination

LED Tapes		Covers
Categories	LED tape type	LIGER-22 Cover satin	HS-22 Cover frosted	G-22S Cover satin	G-22R Cover satin
High Efficacy	K-HEHD-0480-24	(1)	(2)	(1)	(1)
	K-HEHD-0960-24	(1)	(2)	(1)	(1)
	K-HEHD-1440-24	(1)	(2)	(1)	(1)
	K-HEHD-1920-24	(1)	(2)	(1)	(1)
	K-HEHD-0320-24	(1)	(2)	(1)	(1)
CRI 95+	K-CRHD-1820-24	(1)	(2)	(1)	(1)
	K-CRHD-1910-24	(1)	(2)	(1)	(1)
	K-HEHD-1440-24-40C	(1)	(2)	(1)	(1)
CRI 90+	K-2400-24	(1)	(2)	(1)	(1)
RGB / RGB-W / RGB-CTT	K-RGBW-1920-160-24	(1)	(2)	(1)	(1)
Single diode cuttable	K-SD-1440-24	(1)	(2)	(1)	(1)
Adjustable White / Dim to Warm	K-SDCR-22T50-1530-24	(1)	(2)	(1)	(1)
Adjustable White / Dim to Warm	KWP-SDCR-22T50-1530-24	(1)	(2)	(1)	(1)

Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes

similar profiles

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
G-22S Cover	PMMA	- indoor use - perfectly diffusing	86 % 89 % 15 %	satin semi-transparent black	B17013S B17013T B17013B
G-22R Cover	PMMA	- indoor use - perfectly diffusing	71 % 89 % 20 %	satin semi-transparent black	B17006S B17006T B17006B
HS-22 Cover	PC	- For indoor and outdoor applications - UV resistant	65 % 88 % 90.5 %	frosted clear microprism	B17011F B17011C B17011M
LIGER-22 Cover	PC	- hight light quality - For indoor and outdoor applications - Ease of obtaining a line of light - perfectly diffusing	70 % 22 %	satin black	B17032S B17032B

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
High Efficacy

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0480-24 K-HEHD25-0480-24 K-HEHD27-0480-24 K-HEHD30-0480-24 K-HEHD35-0480-24 K-HEHD40-0480-24 K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0960-24 K-HEHD25-0960-24 K-HEHD27-0960-24 K-HEHD30-0960-24 K-HEHD35-0960-24 K-HEHD40-0960-24 K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1440-24 K-HEHD25-1440-24 K-HEHD27-1440-24 K-HEHD30-1440-24 K-HEHD35-1440-24 K-HEHD40-1440-24 K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,	20	-	5.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1920-24 K-HEHD25-1920-24 K-HEHD27-1920-24 K-HEHD30-1920-24 K-HEHD35-1920-24 K-HEHD40-1920-24 K-HEHD50-1920-24
KWP-HEHD-0480-24 LED tape, 134-185 lm/ft, IP65,	65	silicon sleeve	1.5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- High Efficacy	KWP-HEHD22-0480-24 KWP-HEHD25-0480-24 KWP-HEHD27-0480-24 KWP-HEHD30-0480-24 KWP-HEHD35-0480-24 KWP-HEHD40-0480-24 KWP-HEHD50-0480-24
KWP-HEHD-0960-24 LED tape, 268-377 lm/ft, IP65,	65	silicon sleeve	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	KWP-HEHD22-0960-24 KWP-HEHD25-0960-24 KWP-HEHD27-0960-24 KWP-HEHD30-0960-24 KWP-HEHD35-0960-24 KWP-HEHD40-0960-24 KWP-HEHD50-0960-24
KWP-HEHD-1440-24 LED tape, 402-566 lm/ft, IP65,	65	silicon sleeve	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	KWP-HEHD22-1440-24 KWP-HEHD25-1440-24 KWP-HEHD27-1440-24 KWP-HEHD30-1440-24 KWP-HEHD35-1440-24 KWP-HEHD40-1440-24 KWP-HEHD50-1440-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,	20	-	1 W/ft	2700K 3000K 3500K 4000K	- CRI over 95 - High Efficacy	K-HEHD27-0320-24 K-HEHD30-0320-24 K-HEHD35-0320-24 K-HEHD40-0320-24

LED tapes
CRI 95+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2700K	- CRI over 95	K-CR22-1210-24 K-CR27-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1220-24 K-CR25-1220-24 K-CR27-1220-24 K-CR30-1220-24 K-CR35-1220-24 K-CR40-1220-24 K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1275-24 K-CR25-1275-24 K-CR27-1275-24 K-CR30-1275-24 K-CR35-1275-24 K-CR40-1275-24 K-CR50-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,	20	-	5.6 W/ft	2700K	- CRI over 95 - high LED density	K-CRHD27-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,	20	-	2.8 W/ft	2700K 3500K 4000K	- CRI over 95 - high LED density	K-CRHD27-1910-24 K-CRHD35-1910-24 K-CRHD40-1910-24
KWP-CR-1220-24 LED tape, 151-227 lm/ft, IP65,	65	silicon sleeve	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	KWP-CR22-1220-24 KWP-CR25-1220-24 KWP-CR27-1220-24 KWP-CR30-1220-24 KWP-CR35-1220-24 KWP-CR40-1220-24 KWP-CR50-1220-24
KWP-CR-1275-24 LED tape, 381-464 lm/ft, IP65,	65	silicon sleeve	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	KWP-CR22-1275-24 KWP-CR25-1275-24 KWP-CR27-1275-24 KWP-CR30-1275-24 KWP-CR35-1275-24 KWP-CR40-1275-24 KWP-CR50-1275-24
KWP-CRHD-1910-24 LED tape, 196-253 lm/ft, IP65,	65	silicon sleeve	2.8 W/ft	2700K 3500K	- CRI over 95 - high LED density	KWP-CRHD27-1910-24 KWP-CRHD35-1910-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,	20	-	1.6 W/ft	3500K	- CRI over 95	K-CRHD35-0530-24
K-HEHD-1440-24-40C LED tape, 570-667 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- High Efficacy - cold weather -40F	K-HEHD22-1440-24-40C K-HEHD25-1440-24-40C K-HEHD27-1440-24-40C K-HEHD30-1440-24-40C K-HEHD35-1440-24-40C K-HEHD40-1440-24-40C K-HEHD50-1440-24-40C
KWP-HEHD-1440-24-40C LED tape, 520-607 lm/ft, IP65,	65	gel cover	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- High Efficacy - cold weather -40F	KWP-HEHD22-1440-24-40C KWP-HEHD25-1440-24-40C KWP-HEHD27-1440-24-40C KWP-HEHD30-1440-24-40C KWP-HEHD35-1440-24-40C KWP-HEHD40-1440-24-40C KWP-HEHD50-1440-24-40C

LED tapes
CRI 90+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20	20	-	7.3 W/ft	2700K 3000K 3500K 4000K 5000K	- high power	K-27-2400-24 K-30-2400-24 K-35-2400-24 K-40-2400-24 K-50-2400-24
KWP-GHD-1640-24 LED tape, 364-503 lm/ft, IP65,	65	gel cover	5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- high LED density	KWP-GHD22-1640-24 KWP-GHD25-1640-24 KWP-GHD27-1640-24 KWP-GHD30-1640-24 KWP-GHD35-1640-24 KWP-GHD40-1640-24 KWP-GHD50-1640-24
KWP-GHD-1910-24 LED tape, 227-279 lm/ft, IP65,	65	gel cover	2.8 W/ft	2200K 2700K 3000K 3500K 4000K	- high LED density	KWP-GHD22-1910-24 KWP-GHD27-1910-24 KWP-GHD30-1910-24 KWP-GHD35-1910-24 KWP-GHD40-1910-24

LED tapes
RGB / RGB-W / RGB-CTT

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-RGB27T65-1200-24 LED tape, 2700K, 122 lm/ft, 3.7 W/ft, IP20	20	-	3.7 W/ft	RGB 2700K	- RGB+Tunable White	K-RGB27T65-1200-24
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-120-24
KWP-RGB27T65-1200-24 LED tape , 2700K, 113 lm/m, 3.7 W/m, IP65	65	silicon sleeve	3.7 W/ft	RGB 2700K	- RGB+Tunable White	KWP-RGB27T65-1200-24
KWP-GRGBW-1530-24 LED tape, 3000K, 193 lm/ft, 4.7 W/ft, IP65	65	gel cover	4.7 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1530-24
KWP-RGB-1920-24 LED tape, 187 lm/ft, 5.9 W/ft, IP65	65	silicon sleeve	5.9 W/ft	RGB	- RGB	KWP-RGB-1920-24
LED tape KWP-RGB-1200-24, 23 lm/m, 3.7 W/m, IP65	65	silicon sleeve	3.7 W/ft	RGB	- RGB	KWP-RGB-1200-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,	65	silicon sleeve	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1920-120-24

LED tapes
Adjustable White / Dim to Warm

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-27/65-1920-24V LED tape, 2700K, 500 lm/ft, 5.9 W/ft, IP20	20	-	5.9 W/ft	2700K	- Tuneable white 2600K-6500K	K-27/65-1920-24
K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-24
KWP-27/65-1920-24 LED tape, 2700K, 246 lm/ft, 5.9 W/ft, IP65	65	silicon sleeve	5.9 W/ft	2700K	- Tuneable white 2600K-6500K	KWP-27/65-1920-24
KWP-30/18-1770-24 LED tape, 3000K, 279 lm/ft, 3.5 W/ft, IP65	65	silicon sleeve	3.5 W/ft	3000K		KWP-30/18-1770-24
K-30/18-1770-010V-24V LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-010V-24V
KWP-30/18-1770-010-24 LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP65	65	silicon sleeve	3.5 W/ft	1800K		KWP-30/18-1770-010-24
KWP-G22/50-1728-24 LED tape, 2200K, 467 lm/ft, 5.3 W/ft, IP65	65	gel cover	5.3 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-G22/50-1728-24
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20	20	-	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65	65	silicon sleeve	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-SDCR-22T50-1530-24

LED tapes
Single diode cuttable

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,	20	-	4.4 W/ft	2700K 3000K 3500K 4000K		K-SD27-1440-24 K-SD30-1440-24 K-SD35-1440-24 K-SD40-1440-24

Accessories
End caps
Standard end caps

Product name	Material	Color	Ref No
KOMPENSA-K End cap	PP	gray	C24020C02
KOMPENSA-L End cap	PP	gray	C24015C02
LIPOD End cap	PP	gray silver white black	C24004C02 C24004L01 C24004C10 C24004C07

LED extrusions
Mounting tracks

Product name	Key features	Material	Color	Ref No
TEKNIK-ZM Extrusion		aluminum		A00399
TEKUS-ZM Extrusion		aluminum		A01293

Accessories
Mounting accessories
Mounting brackets

Product name	Key features	Material	Color	Ref No
GIP-STN-90D Mounting bracket	- For indoor and outdoor applications	stainless steel	silver white black	C20002N00 C20002L10 C20002L07
AM-15 Mounting bracket	- Compatible with 9/16" ceiling grids	steel	silver	C24606N00
AM-24 Mounting bracket	- Compatible with 15/16” ceiling grids	steel	silver	C24235N00
GIP Mounting bracket	- Aesthetic installation of linear fixtures	ASA	gray black	C24310C02 C24328C07
Mounting bracket REGIP	- Mounting with angle adjustment function	ABS	gray	C28057C02
NEO-ZM-3 Fastener set	- 3 pieces for heavy fixtures	magnet	silver	C28105N00
NEO-ZM-4 Fastener set	- 4 pieces for light fixtures	magnet	silver	C28106N00
Fastener set NEO-ZM-PLUS-3	- 3 pieces for heavy fixtures	magnet	silver	C28107N00
Fastener set NEO-ZM-PLUS-4	- 4 pieces for heavy fixtures	magnet	silver	C28108N00
Mounting bracket GIP-STN	- For indoor and outdoor applications	stainless steel	silver	C24447N00

Accessories
Mounting accessories
Latches

Product name	Key features	Material	Color	Ref No
TEKNIK Latch		PP	white	C24003C10

Accessories
Mounting accessories
Isolating bases

Product name	Material	Color	Ref No
Isolating bases FI-3	nylon	white	42203
Isolating bases FI-5	nylon	white	42204
Isolating bases FI-6	nylon	white	C28109C00

Accessories
Mounting accessories
Surface springs

Product name	Key features	Material	Color	Ref No
Spring GP		stainless steel	silver	C24500N00

Accessories
Suspension accessories
Fasteners and heads for extrusions

Product name	Key features	Material	Color	Ref No
Head BZP		stainless steel	silver	C28113N00
FI-10-ZM-P Fastener	- Cross mounting	stainless steel	silver	C28117N00
FI-10-ZM-W Fastener		stainless steel	silver	C28116N00
FI-8-LIN-ZM Fastener	- Installation in the ZM system	stainless steel, PA	silver black	C28170N00 C28170L07
FI-8-PRET-ZM Fastener	- Installation in the ZM system		silver white black	C28189N00 C28189L10 C28189L07

Accessories
Suspension accessories
Conductive fasteners and heads for extrusions

Product name	Key features	Material	Color	Ref No
Head BZP-ZZ		stainless steel	gray	42215
FI-8-LIN-ZMZ Fastener	- Power supply - mounting in the ZM system	stainless steel, aluminum, rubber, PCV	silver white black	C28171N00 C28171L10 C28171L07
PUSZ-PRET-ZM Fastener	- Power supply cable - mounting in the ZM system	stainless steel, brass, nylon, aluminum	silver white black	C28161N00 C28161L10 C28161L07
Fastener PUSZ-PRET-ZM		stainless steel	silver	42250
OS22-LIN-Z Fastener	- Power supply cable	stainless steel, PA	white black	C28184L10 C28184L07
OS22-PRET-Z Fastener	- Power supply rod	PA, stainless steel	white black	C28186L10 C28186L07
OS22-DUO-LIN-Z Fastener	- Power supply cable, two poles	stainless steel, PA	white black	C28183L10 C28183L07
OS22-DUO-PRET-Z Fastener	- Power supply cable, two poles	stainless steel, PA	white black	C28185L10 C28185L07

Accessories
Suspension accessories
Canopies

Product name	Key features	Material	Color	Ref No
Fi-60mm Canopy	- Convenient cable length adjustment, in the ZM system	steel	gray white black	C24540L01 C24540L10 C24540L07

Accessories
Suspension accessories
Suspension and mounting sets

Product name	Key features	Material	Color	Ref No
RD-1 Fastener set	- Smooth cable adjustment, cable included	brass	silver white black	C28231P00 C28231P01 C28231L10 C28231L07
RG-1 Fastener set	- Cable adjustment at the ceiling, cable included	brass	silver black	C28230P00 C28230L07
FI-8-ZM-2 Fastener set	- Convenient cable length adjustment, in the ZM system	stainless steel, aluminum	silver white black	C28135N00 C28135L10 C28135L07

Electronics
Switches

Product name	IP rating	Key features	Ref No(Ref. arch.)
UNI Proximity switch	20	- touchless switch - width only 7mm	E61579

Accessories
Accessories for connecting and securing lighting fixtures
Connectors

Product name	Material	Color	Ref No
ZM-NA Connector	stainless steel	silver	42339
ZM-NA-PION Connector	stainless steel	silver	42321 42315 42317
ZM Connector	stainless steel	silver black colorless	C28075N00 C28072N00 42720 42728 C24797C07 C28072C07 C28075C07 C28070C07 C28071C07 C28073C07 C28074C07 C24797N00
ZM-PION Connector	stainless steel	silver black	42718 42719 42320 C28086N00 C28084N00 42314 C28086C07 C28084C07 C28088C07 C28087C07 C28085C07

Accessories
Masking covers and inserts
Extrusion masking covers

Product name	Material	Color	Ref No
MP-22 Masking cover	PC	gray white black	C28261L01 C28261L10 C28261L07

Accessories
Accessories for connecting and securing lighting fixtures
Couplers

Product name	Material	Color	Ref No
Coupler L135	aluminum	silver	L135
Coupler L135PW	aluminum	silver	L135PW
Coupler L135PZ	aluminum	silver	L135PZ
Coupler L90	aluminum	silver	L90
Coupler L90PW	aluminum	silver	L90PW
Coupler L90PZ	aluminum	silver	L90PZ
Coupler T135L	aluminum	silver	T135L
Coupler T135R	aluminum	silver	T135R
Coupler T90	aluminum	silver	T90
Coupler X135	aluminum	silver	X135
Coupler X90	aluminum	silver	X90
