OS22-PRET-Z Fastener

Ref No: C28186
OS22-PRET-Z Fastener
OS22-PRET-Z Fastener
  • Lengthwise suspension on a rod
  • Mount to the light source side of the lighting fixture
  • Creating an installation from lighting fixtures suspended one under the other
  • Construction of sconces using standard linear lighting fixtures
  • Single pole conductivity possible
Conducting electricity
Color
white black
  • Lengthwise suspension on a rod
  • Mount to the light source side of the lighting fixture
  • Creating an installation from lighting fixtures suspended one under the other
  • Construction of sconces using standard linear lighting fixtures
  • Single pole conductivity possible
Application
  • - for suspending LED lighting fixtures
Mounting
  • - to the lighting fixture, using a cover bracket
  • - to the rod with a pressure screw
Additional information
  • - spare power connector included
  • - ATTENTION! in the case of installation in a extrusion without hooks at the cover bracket (e.g. GIZA-DUO-LL), remove the plastic holder in the lower part of the fastener

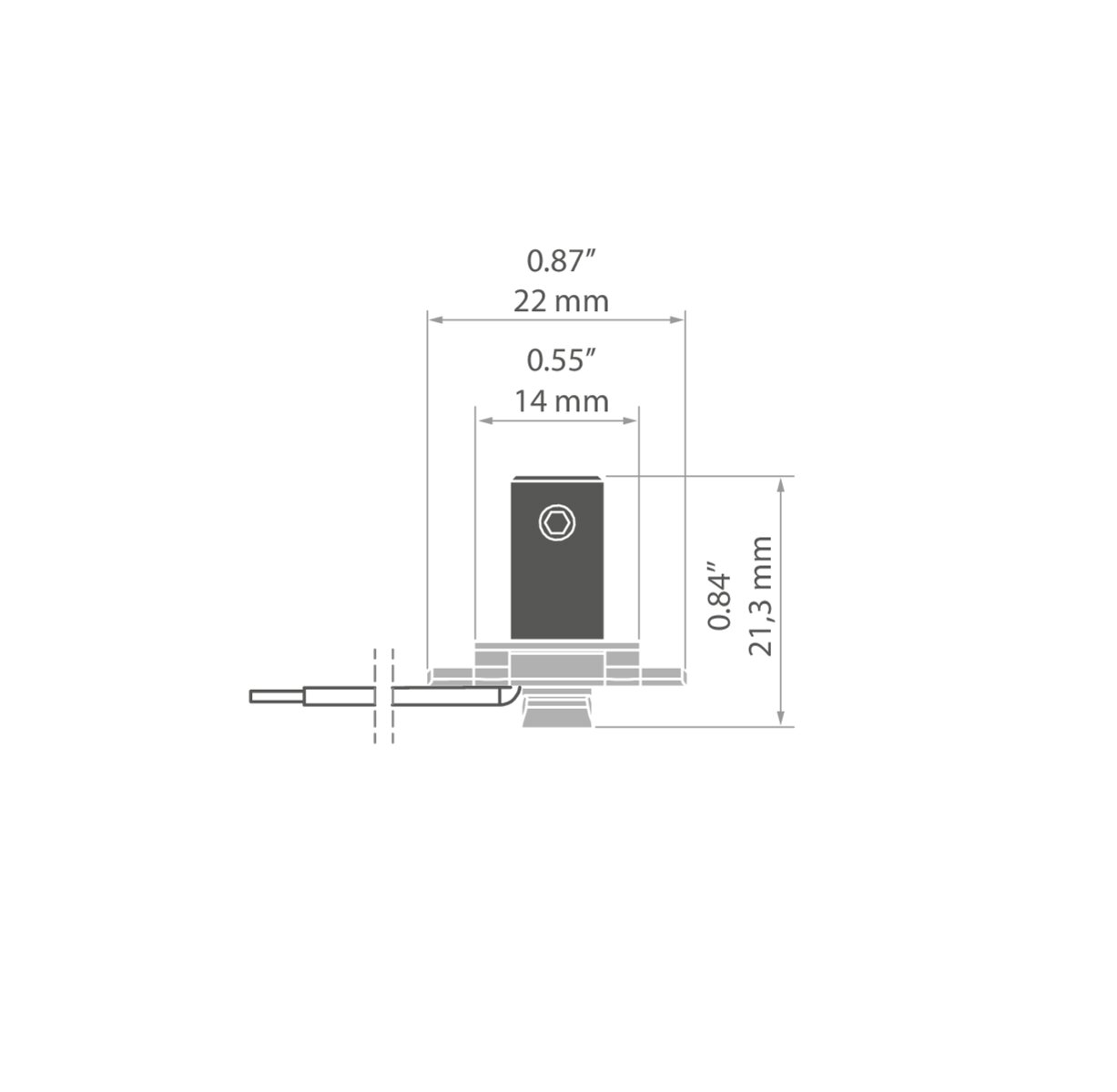

Technical drawing
OS22-PRET-Z Fastener stainless steel Technical drawing - C28186
Technical specification
Material
PA, stainless steel
Conducting electricity
Yes
Working temperature
132.8°F
Lifting capacity
22 lb
Maximum current intensity
5 A
Power loss
0.07 V
Width x Height
0.9" x 0.8"
Color Ref No
white
C28186L10
black
C28186L07
Related extrusions
GIZA
Ref No: A05556
GIZA-DUO-LL
Ref No: A02162
GIZA-LL
Ref No: A00758
GIZA-LL-T
Ref No: A02479
GIZA-LL-UST
Ref No: A02724
GLAZA-DUO
Ref No: A03059
GLAZA-LL
Ref No: A02627
LIPOD
Ref No: A05554
