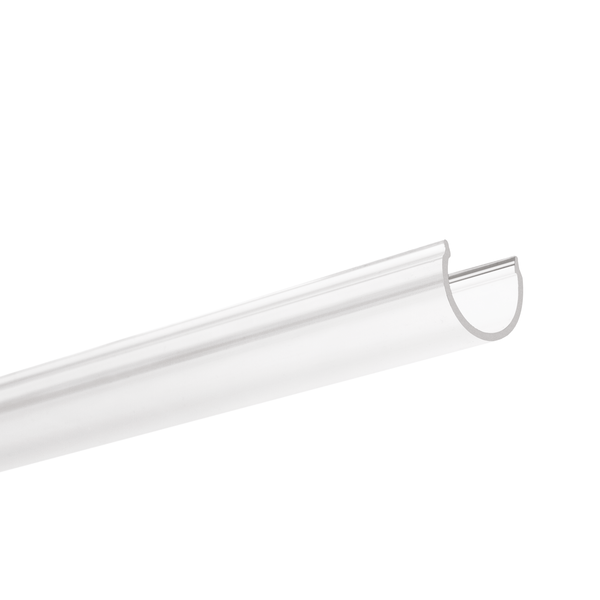

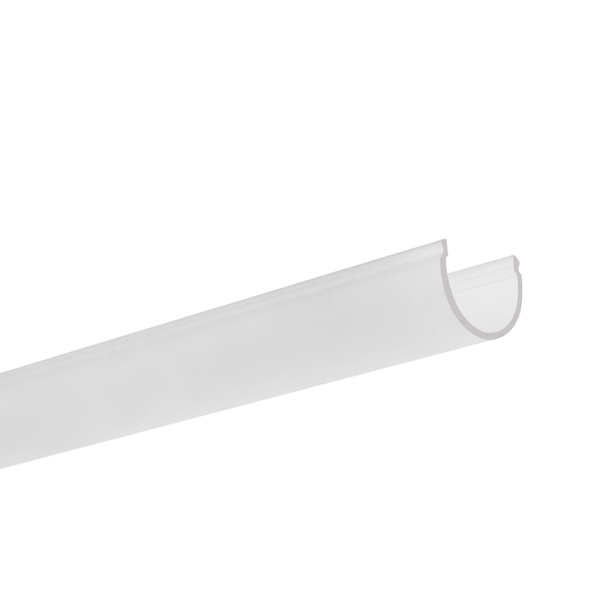

G-22R Cover (B17006) | KlusDesign.com

Application

Mounting

Additional information

- ATTENTION! rigid cover, not intended for bending or deformation
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

Color

Application

Mounting

Additional information

- ATTENTION! rigid cover, not intended for bending or deformation
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

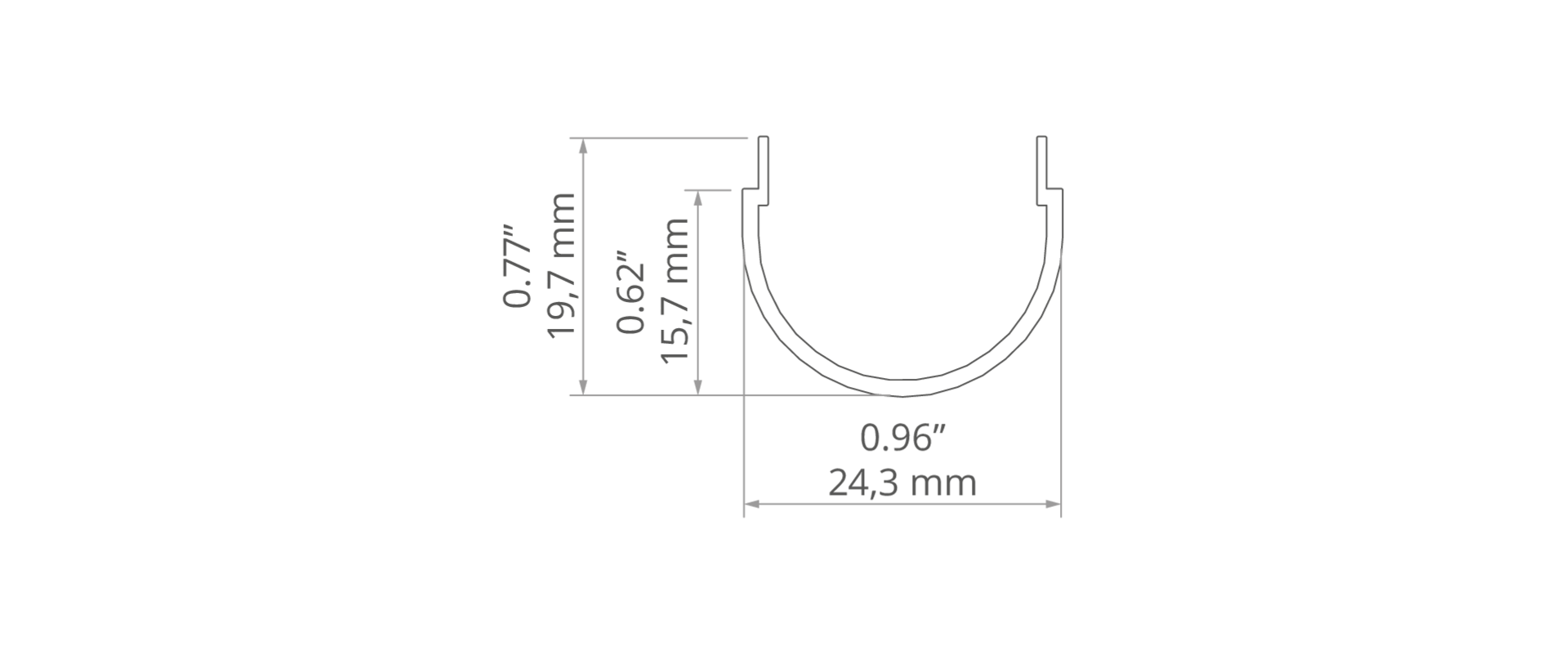

Technical drawing

Technical specification

Material

PMMA

Shape

round

Maximum length on request

19'08" (6000 mm)

High mechanical resistance

Yes

UV resistance

Yes

Width x Height

1" x 0.8"

Color	Light transmittance [%]	Length	Ref No
satin	71 %	39.4" (1000 mm) 78.9" (2005 mm) 118.5" (3010 mm)	B17006S_1 B17006S_2 B17006S_3
semi-transparent	89 %	78.9" (2005 mm)	B17006T_2
black	20 %	39.4" (1000 mm) 78.9" (2005 mm)	B17006B_1 B17006B_2
