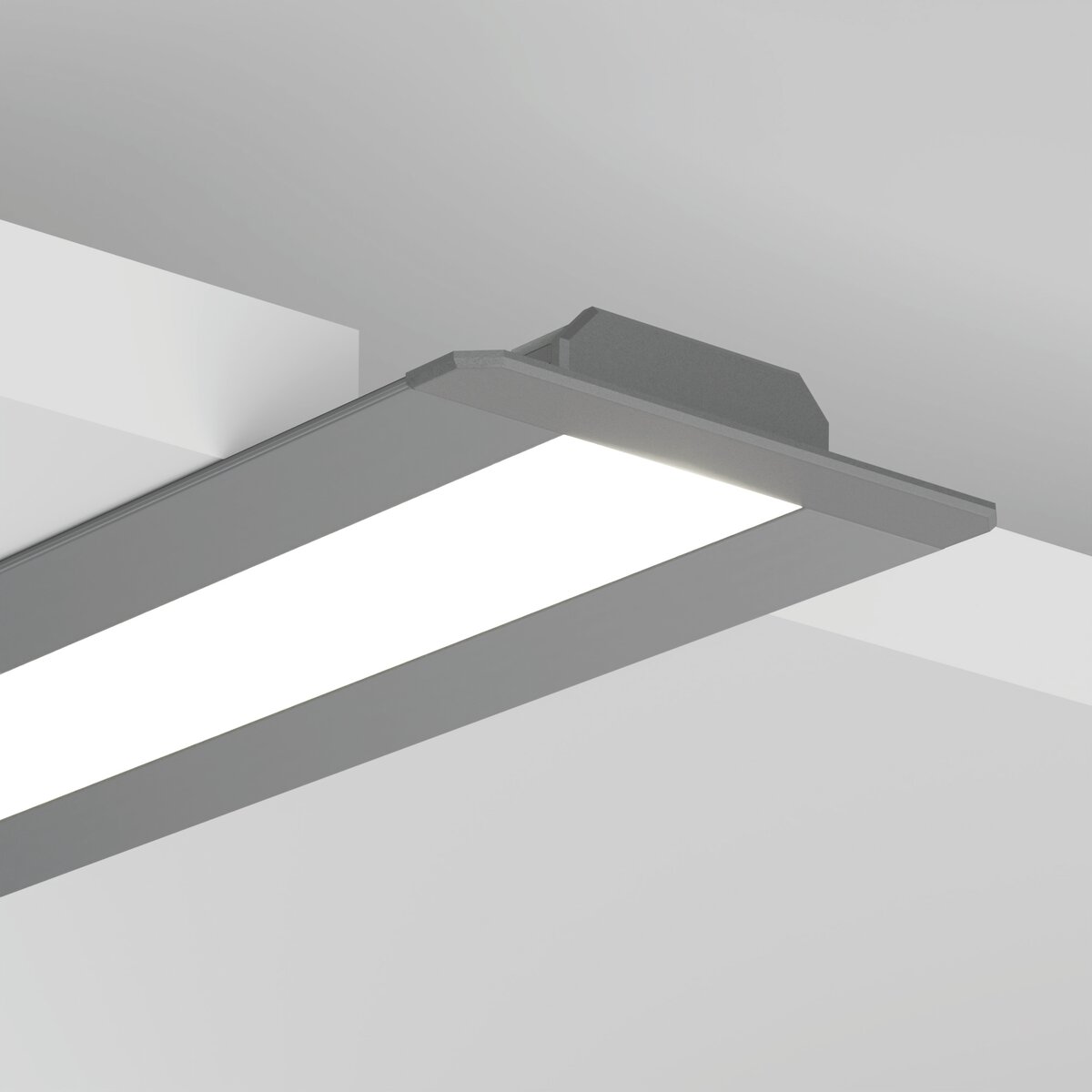

OPAC-30 Extrusion (A06164)

Compare

Compared

Mounting to drywall
Invisible groove edge
Low height

With the possibility of sealing up to IP20

With the possibility of sealing up to IP65

WATCH INSTRUCTIONAL VIDEO

Color

Description

Mounting to drywall
Invisible groove edge
Low height

Application

- main and functional lighting

Mounting

- recessed, using dedicated accessories or mounting adhesive

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

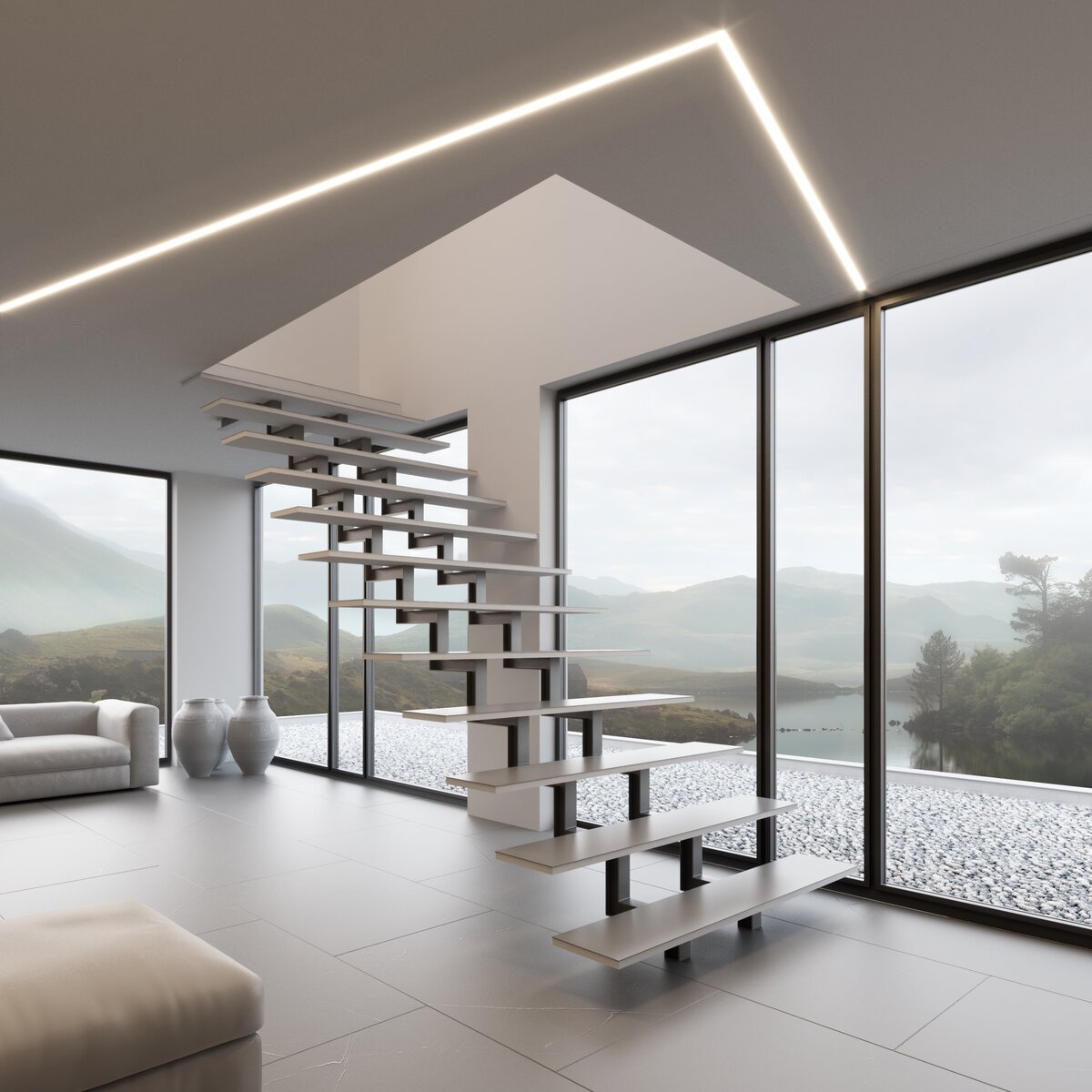

Usage examples

Description
download

Application

- main and functional lighting

Mounting

- recessed, using dedicated accessories or mounting adhesive

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

Declaration of Conformity UKCA

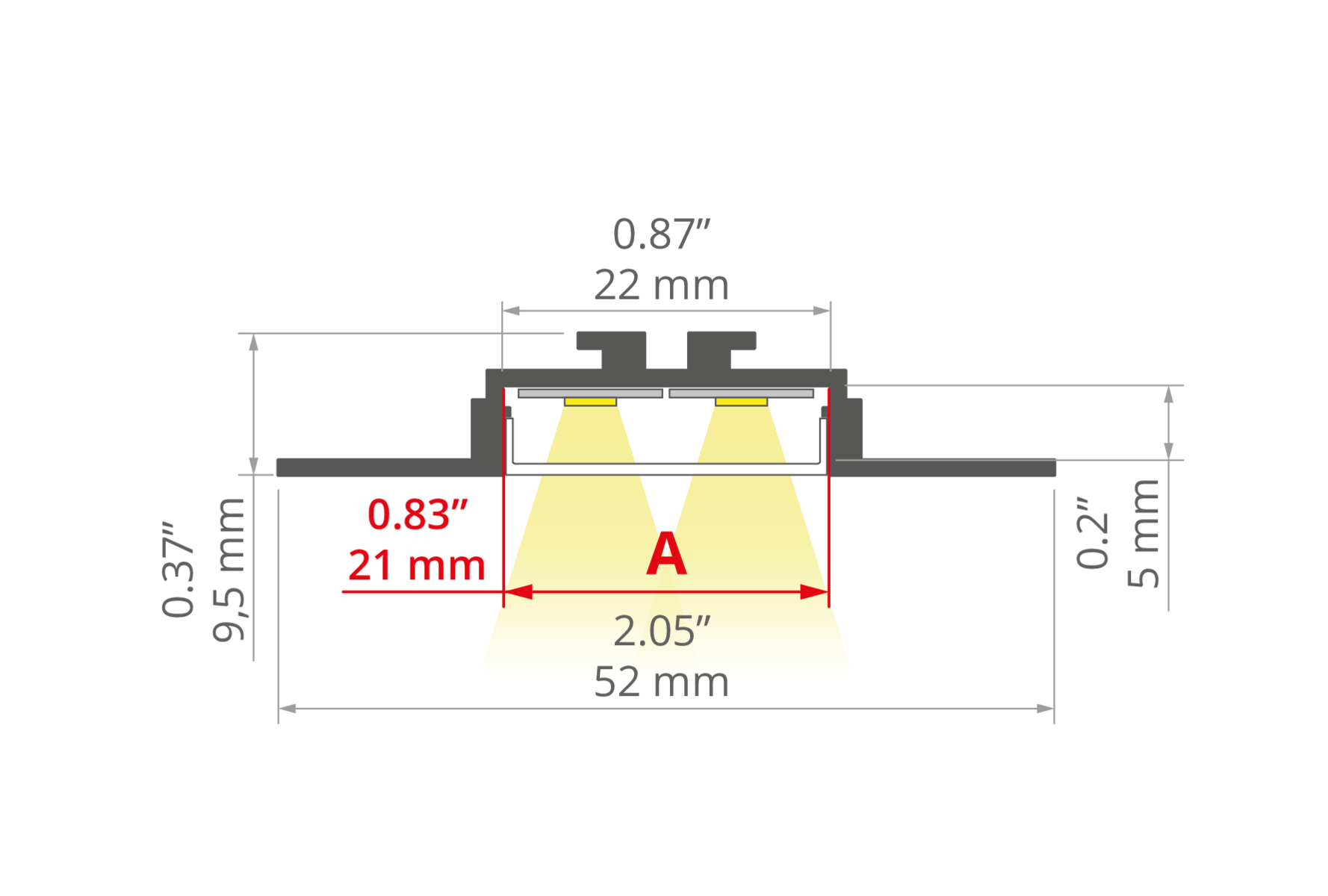

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

20, 65

Possible fixture shapes

linear, polygonal

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

2" (52 mm)

Height

0.4" (9.5 mm)

LED gluing width A

0.8" (21 mm)

Max. number of LED strips A (0.31" wide)

The cover is cut to the length of the profile

Yes

Can be easily connected into runs

Yes

Wire out back of extrusion

Yes

Possibility of obtaining a line of light

Yes

Building type

Residential, Commercial, Hotel / Restaurant

Facility zone

office, lobby / foyer, exhibition / tradeshow / display

Color	Length	Ref No
silver anodized	39.4" (1000 mm) 78.9" (2005 mm)	A06164A_1 A06164A_2

Line of Light Table for Pixel Free Illumination

LED Tapes		Covers
Categories	LED tape type	LIGER-22 Cover satin	HS-22 Cover frosted	G-22S Cover satin	G-22S Cover black	G-22R Cover satin	G-22R Cover black
High Efficacy	K-HEHD-0480-24			(2)		(2)
	K-HEHD-0960-24			(2)		(2)
	K-HEHD-1440-24			(2)		(2)
	K-HEHD-1920-24			(2)		(2)
	K-HEHD-0320-24			(2)		(2)
CRI 95+	K-CRHD-1820-24			(2)		(2)
CRI 95+	K-CRHD-1910-24			(2)		(2)
RGB / RGB-W / RGB-CTT	K-RGBW-1920-160-24			(2)		(2)
Single diode cuttable	K-SD-1440-24			(2)		(2)
Adjustable White / Dim to Warm	K-SDCR-22T50-1530-24			(2)		(2)
Adjustable White / Dim to Warm	KWP-SDCR-22T50-1530-24			(2)		(2)

Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes

similar profiles

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
G-22S Cover	PMMA	- indoor use - perfectly diffusing	86 % 89 % 15 %	satin semi-transparent black	B17013S B17013T B17013B
G-22R Cover	PMMA	- indoor use - perfectly diffusing	71 % 89 % 20 %	satin semi-transparent black	B17006S B17006T B17006B
HS-22 Cover	PC	- For indoor and outdoor applications - UV resistant	65 % 88 % 90.5 %	frosted clear microprism	B17011F B17011C B17011M
LIGER-22 Cover	PC	- hight light quality - For indoor and outdoor applications - Ease of obtaining a line of light - perfectly diffusing	70 % 22 %	satin black	B17032S B17032B

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
High Efficacy

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0480-24 K-HEHD25-0480-24 K-HEHD27-0480-24 K-HEHD30-0480-24 K-HEHD35-0480-24 K-HEHD40-0480-24 K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0960-24 K-HEHD25-0960-24 K-HEHD27-0960-24 K-HEHD30-0960-24 K-HEHD35-0960-24 K-HEHD40-0960-24 K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1440-24 K-HEHD25-1440-24 K-HEHD27-1440-24 K-HEHD30-1440-24 K-HEHD35-1440-24 K-HEHD40-1440-24 K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,	20	-	5.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1920-24 K-HEHD25-1920-24 K-HEHD27-1920-24 K-HEHD30-1920-24 K-HEHD35-1920-24 K-HEHD40-1920-24 K-HEHD50-1920-24
KWP-HEHD-0480-24 LED tape, 134-185 lm/ft, IP65,	65	silicon sleeve	1.5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- High Efficacy	KWP-HEHD22-0480-24 KWP-HEHD25-0480-24 KWP-HEHD27-0480-24 KWP-HEHD30-0480-24 KWP-HEHD35-0480-24 KWP-HEHD40-0480-24 KWP-HEHD50-0480-24
KWP-HEHD-0960-24 LED tape, 268-377 lm/ft, IP65,	65	silicon sleeve	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	KWP-HEHD22-0960-24 KWP-HEHD25-0960-24 KWP-HEHD27-0960-24 KWP-HEHD30-0960-24 KWP-HEHD35-0960-24 KWP-HEHD40-0960-24 KWP-HEHD50-0960-24
KWP-HEHD-1440-24 LED tape, 402-566 lm/ft, IP65,	65	silicon sleeve	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	KWP-HEHD22-1440-24 KWP-HEHD25-1440-24 KWP-HEHD27-1440-24 KWP-HEHD30-1440-24 KWP-HEHD35-1440-24 KWP-HEHD40-1440-24 KWP-HEHD50-1440-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,	20	-	1 W/ft	2700K 3000K 3500K 4000K	- CRI over 95 - High Efficacy	K-HEHD27-0320-24 K-HEHD30-0320-24 K-HEHD35-0320-24 K-HEHD40-0320-24

LED tapes
CRI 95+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2700K	- CRI over 95	K-CR22-1210-24 K-CR27-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1220-24 K-CR25-1220-24 K-CR27-1220-24 K-CR30-1220-24 K-CR35-1220-24 K-CR40-1220-24 K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1275-24 K-CR25-1275-24 K-CR27-1275-24 K-CR30-1275-24 K-CR35-1275-24 K-CR40-1275-24 K-CR50-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,	20	-	5.6 W/ft	2700K	- CRI over 95 - high LED density	K-CRHD27-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,	20	-	2.8 W/ft	2700K 3500K 4000K	- CRI over 95 - high LED density	K-CRHD27-1910-24 K-CRHD35-1910-24 K-CRHD40-1910-24
KWP-CR-1220-24 LED tape, 151-227 lm/ft, IP65,	65	silicon sleeve	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	KWP-CR22-1220-24 KWP-CR25-1220-24 KWP-CR27-1220-24 KWP-CR30-1220-24 KWP-CR35-1220-24 KWP-CR40-1220-24 KWP-CR50-1220-24
KWP-CR-1275-24 LED tape, 381-464 lm/ft, IP65,	65	silicon sleeve	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	KWP-CR22-1275-24 KWP-CR25-1275-24 KWP-CR27-1275-24 KWP-CR30-1275-24 KWP-CR35-1275-24 KWP-CR40-1275-24 KWP-CR50-1275-24
KWP-CRHD-1910-24 LED tape, 196-253 lm/ft, IP65,	65	silicon sleeve	2.8 W/ft	2700K 3500K	- CRI over 95 - high LED density	KWP-CRHD27-1910-24 KWP-CRHD35-1910-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,	20	-	1.6 W/ft	3500K	- CRI over 95	K-CRHD35-0530-24
KWP-HEHD-1440-24-40C LED tape, 520-607 lm/ft, IP65,	65	gel cover	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- High Efficacy - cold weather -40F	KWP-HEHD22-1440-24-40C KWP-HEHD25-1440-24-40C KWP-HEHD27-1440-24-40C KWP-HEHD30-1440-24-40C KWP-HEHD35-1440-24-40C KWP-HEHD40-1440-24-40C KWP-HEHD50-1440-24-40C

LED tapes
CRI 90+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20	20	-	7.3 W/ft	2700K 3000K 3500K 4000K 5000K	- high power	K-27-2400-24 K-30-2400-24 K-35-2400-24 K-40-2400-24 K-50-2400-24
KWP-GHD-1640-24 LED tape, 364-503 lm/ft, IP65,	65	gel cover	5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- high LED density	KWP-GHD22-1640-24 KWP-GHD25-1640-24 KWP-GHD27-1640-24 KWP-GHD30-1640-24 KWP-GHD35-1640-24 KWP-GHD40-1640-24 KWP-GHD50-1640-24
KWP-GHD-1910-24 LED tape, 227-279 lm/ft, IP65,	65	gel cover	2.8 W/ft	2200K 2700K 3000K 3500K 4000K	- high LED density	KWP-GHD22-1910-24 KWP-GHD27-1910-24 KWP-GHD30-1910-24 KWP-GHD35-1910-24 KWP-GHD40-1910-24

LED tapes
RGB / RGB-W / RGB-CTT

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-RGB27T65-1200-24 LED tape, 2700K, 122 lm/ft, 3.7 W/ft, IP20	20	-	3.7 W/ft	RGB 2700K	- RGB+Tunable White	K-RGB27T65-1200-24
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-120-24
KWP-RGB27T65-1200-24 LED tape , 2700K, 113 lm/m, 3.7 W/m, IP65	65	silicon sleeve	3.7 W/ft	RGB 2700K	- RGB+Tunable White	KWP-RGB27T65-1200-24
KWP-GRGBW-1530-24 LED tape, 3000K, 193 lm/ft, 4.7 W/ft, IP65	65	gel cover	4.7 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1530-24
KWP-RGB-1920-24 LED tape, 187 lm/ft, 5.9 W/ft, IP65	65	silicon sleeve	5.9 W/ft	RGB	- RGB	KWP-RGB-1920-24
LED tape KWP-RGB-1200-24, 23 lm/m, 3.7 W/m, IP65	65	silicon sleeve	3.7 W/ft	RGB	- RGB	KWP-RGB-1200-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,	65	silicon sleeve	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1920-120-24

LED tapes
Adjustable White / Dim to Warm

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-27/65-1920-24V LED tape, 2700K, 500 lm/ft, 5.9 W/ft, IP20	20	-	5.9 W/ft	2700K	- Tuneable white 2600K-6500K	K-27/65-1920-24
K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-24
KWP-27/65-1920-24 LED tape, 2700K, 246 lm/ft, 5.9 W/ft, IP65	65	silicon sleeve	5.9 W/ft	2700K	- Tuneable white 2600K-6500K	KWP-27/65-1920-24
KWP-30/18-1770-24 LED tape, 3000K, 279 lm/ft, 3.5 W/ft, IP65	65	silicon sleeve	3.5 W/ft	3000K		KWP-30/18-1770-24
K-30/18-1770-010V-24V LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-010V-24V
KWP-30/18-1770-010-24 LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP65	65	silicon sleeve	3.5 W/ft	1800K		KWP-30/18-1770-010-24
KWP-G22/50-1728-24 LED tape, 2200K, 467 lm/ft, 5.3 W/ft, IP65	65	gel cover	5.3 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-G22/50-1728-24
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20	20	-	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65	65	silicon sleeve	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-SDCR-22T50-1530-24

LED tapes
Single diode cuttable

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,	20	-	4.4 W/ft	2700K 3000K 3500K 4000K		K-SD27-1440-24 K-SD30-1440-24 K-SD35-1440-24 K-SD40-1440-24

Accessories
End caps
Standard end caps

Product name	Material	Color	Ref No
OPAC-30 End cap	PP	gray	C24045C02

Accessories
Mounting accessories
Springs for recessed mount and mounting tracks

Product name	Key features	Material	Color	Ref No
Spring KMA		stainless steel	silver	C24503N00

Electronics
Switches

Product name	IP rating	Key features	Ref No(Ref. arch.)
UNI Proximity switch	20	- touchless switch - width only 7mm	E61579

Accessories
Accessories for connecting and securing lighting fixtures
Connectors

Product name	Material	Color	Ref No
ZM-G Connector	stainless steel	silver	42308 42304 42328 42330 42332 42334 42336 42338 42310 42324 42326
ZM Connector	stainless steel	silver black colorless	C28075N00 C28072N00 42720 42728 C24797C07 C28072C07 C28075C07 C28070C07 C28071C07 C28073C07 C28074C07 C24797N00

Accessories
Masking covers and inserts
Extrusion masking covers

Product name	Material	Color	Ref No
MP-22 Masking cover	PC	gray white black	C28261L01 C28261L10 C28261L07

Accessories
Additional items

Product name	Material	Color	Ref No
Gland 6,4x3			C42264C07
