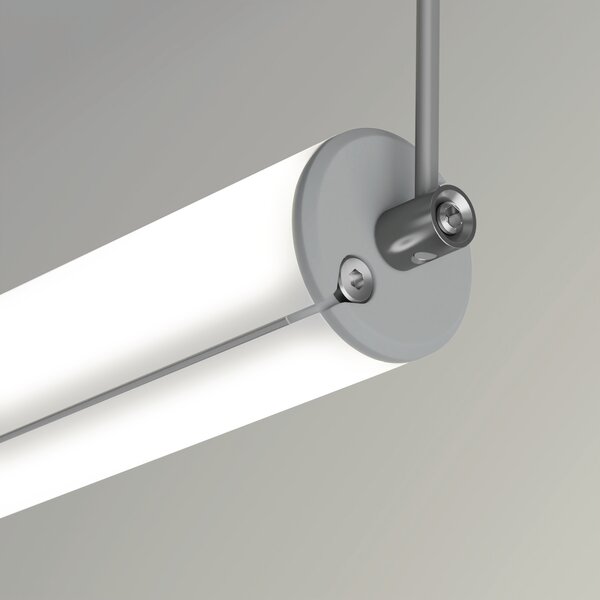

JAZ-DUO Extrusion

Ref No: A00788
JAZ-DUO Extrusion
JAZ-DUO Extrusion
JAZ-DUO Extrusion
JAZ-DUO Extrusion
JAZ-DUO Extrusion
JAZ-DUO Extrusion
JAZ-DUO Extrusion
JAZ-DUO Extrusion
  • Up/down lighting
  • Slightly visible aluminum components
  • Wide lighting angle
  • Lighting fixture with round cross-section
  • Wide range of accessories
Suspended
Two directional lighting for suspended fixtures
With the possibility of sealing up to IP20
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Configure
Color
silver white black
  • Up/down lighting
  • Slightly visible aluminum components
  • Wide lighting angle
  • Lighting fixture with round cross-section
  • Wide range of accessories
Application
  • - main and decorative lighting
Mounting
  • - suspended, using dedicated accessories
Additional information
  • - a wide range of accessories that allows various mounting of the lighting fixture in any direction
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
  • - profile with covers over 1000 mm requires an additional suspension placed symmetrically using - LIN hanger; ref no: C28178N00

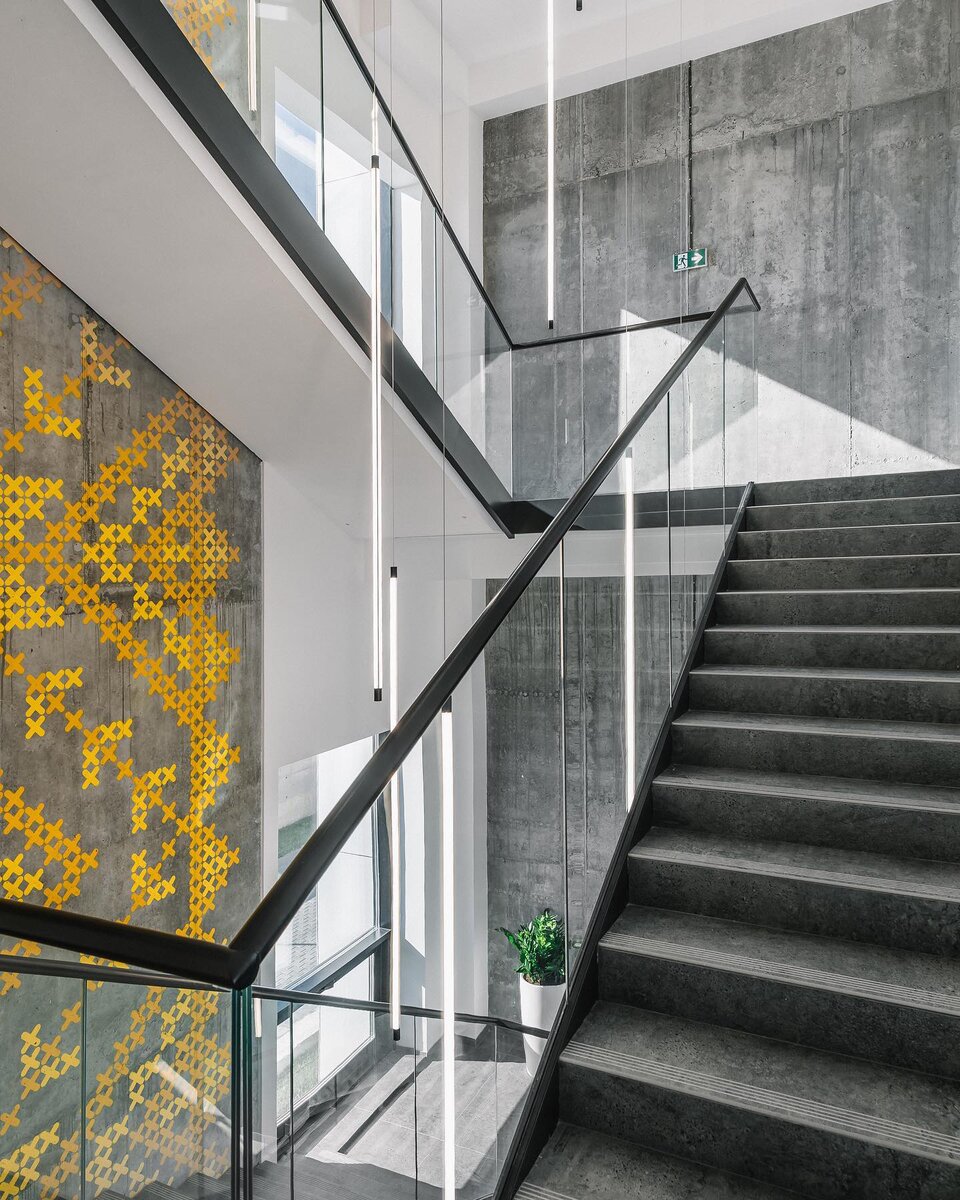

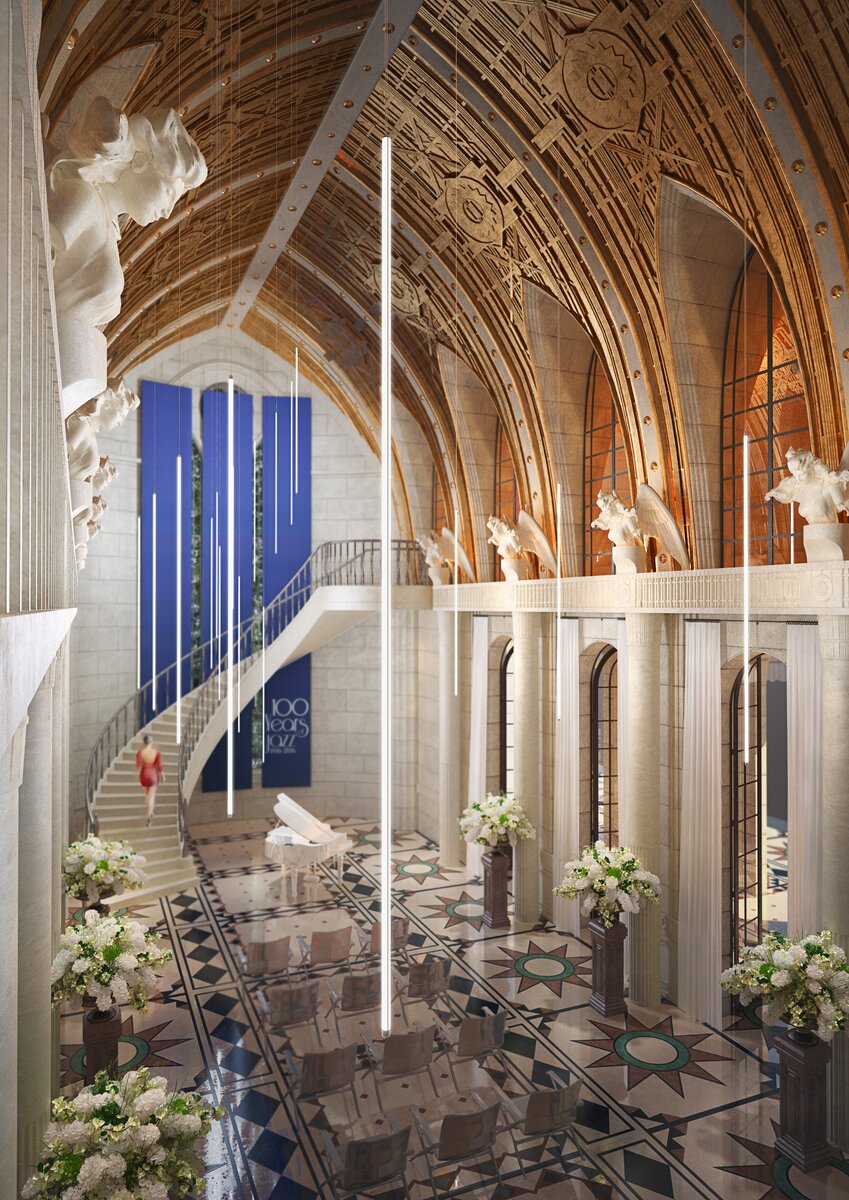

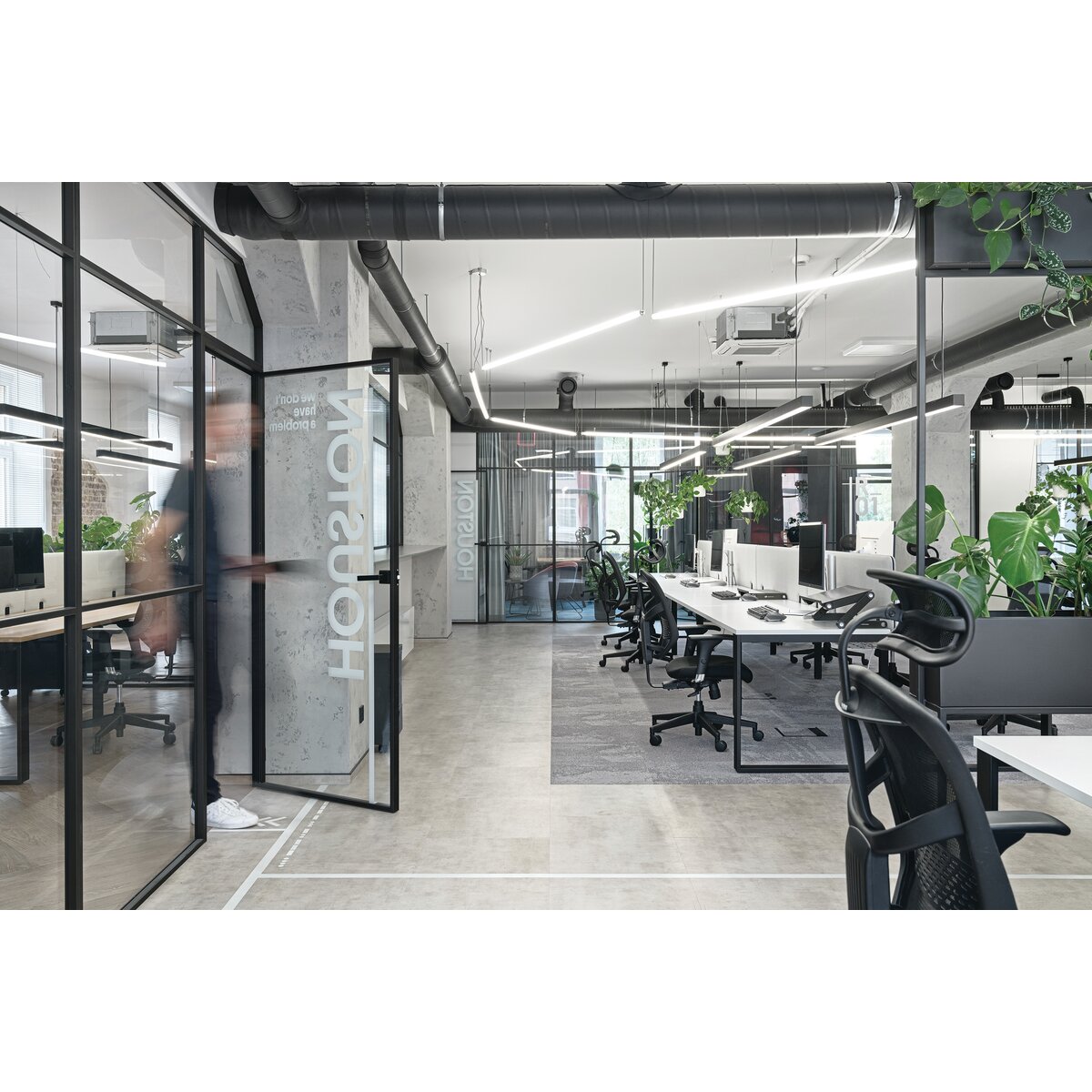

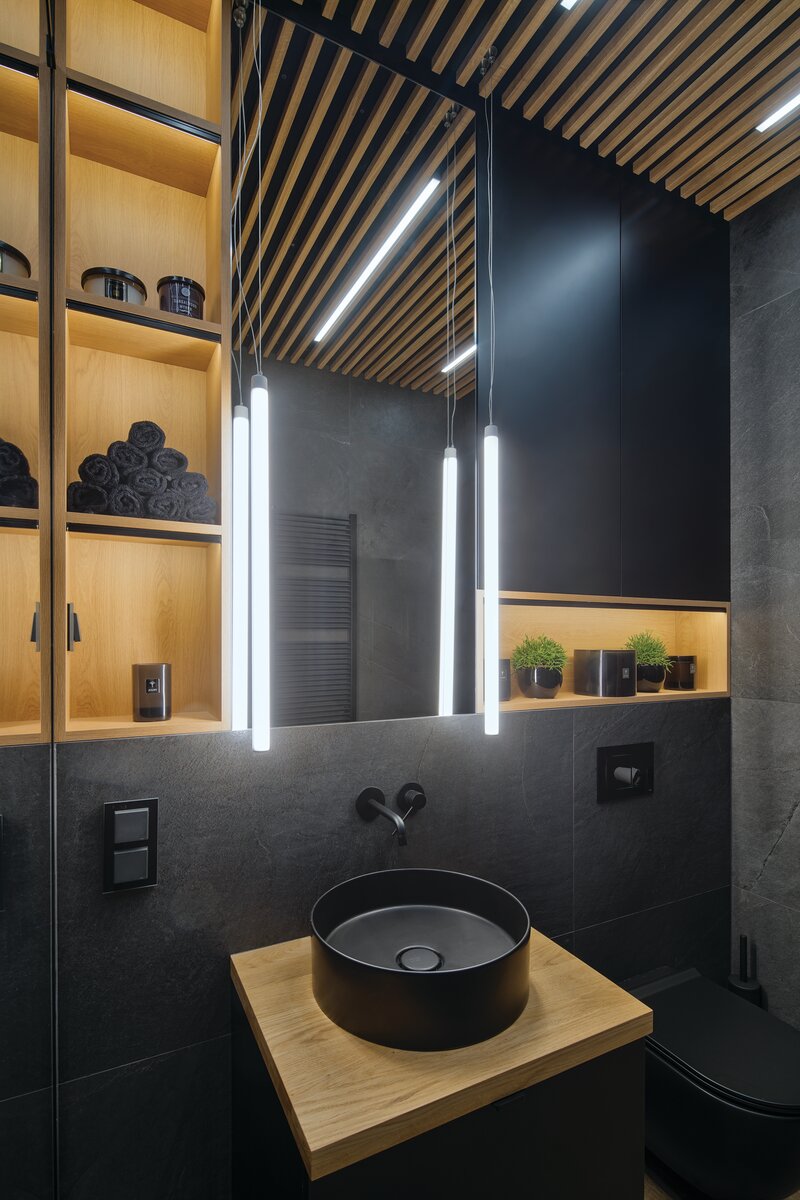

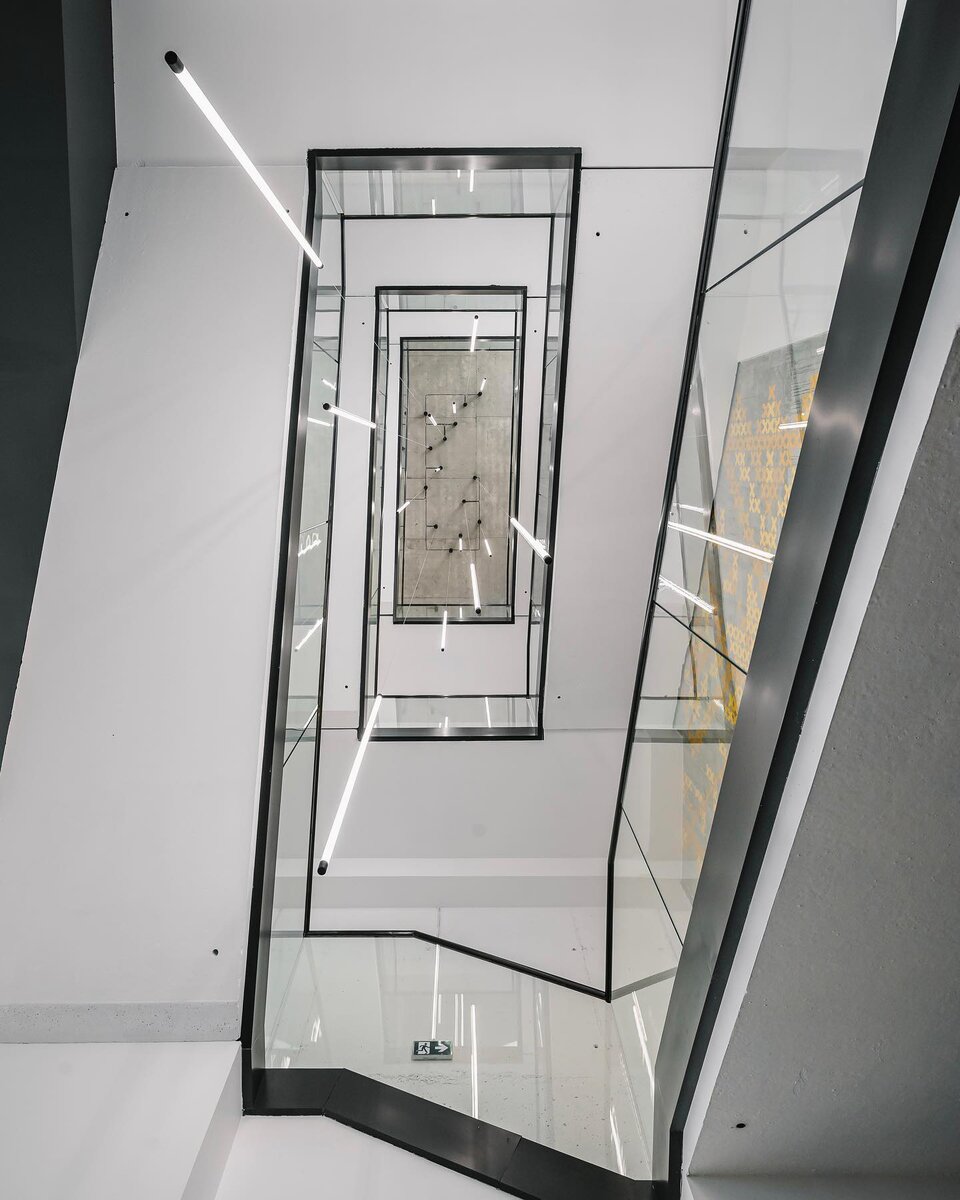

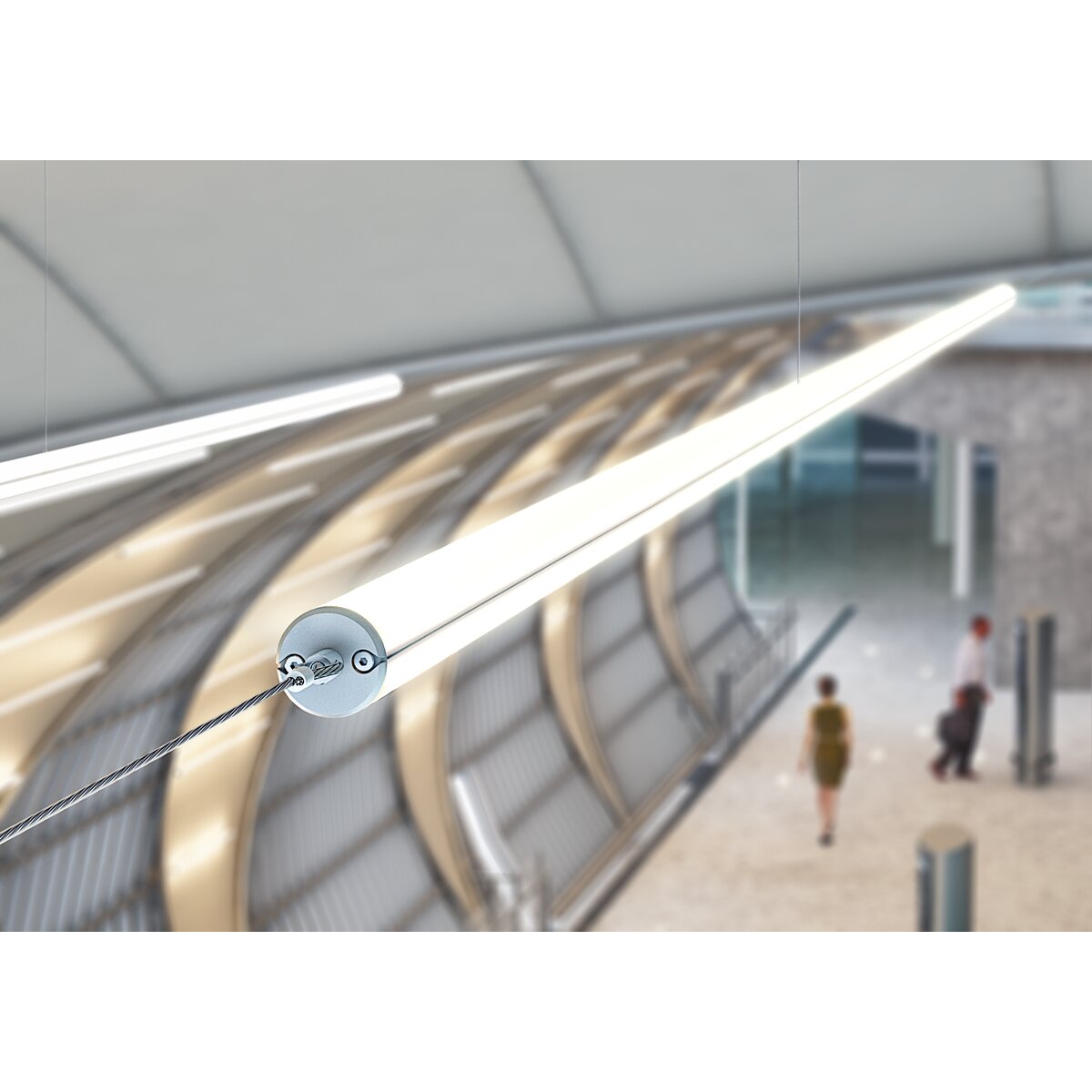

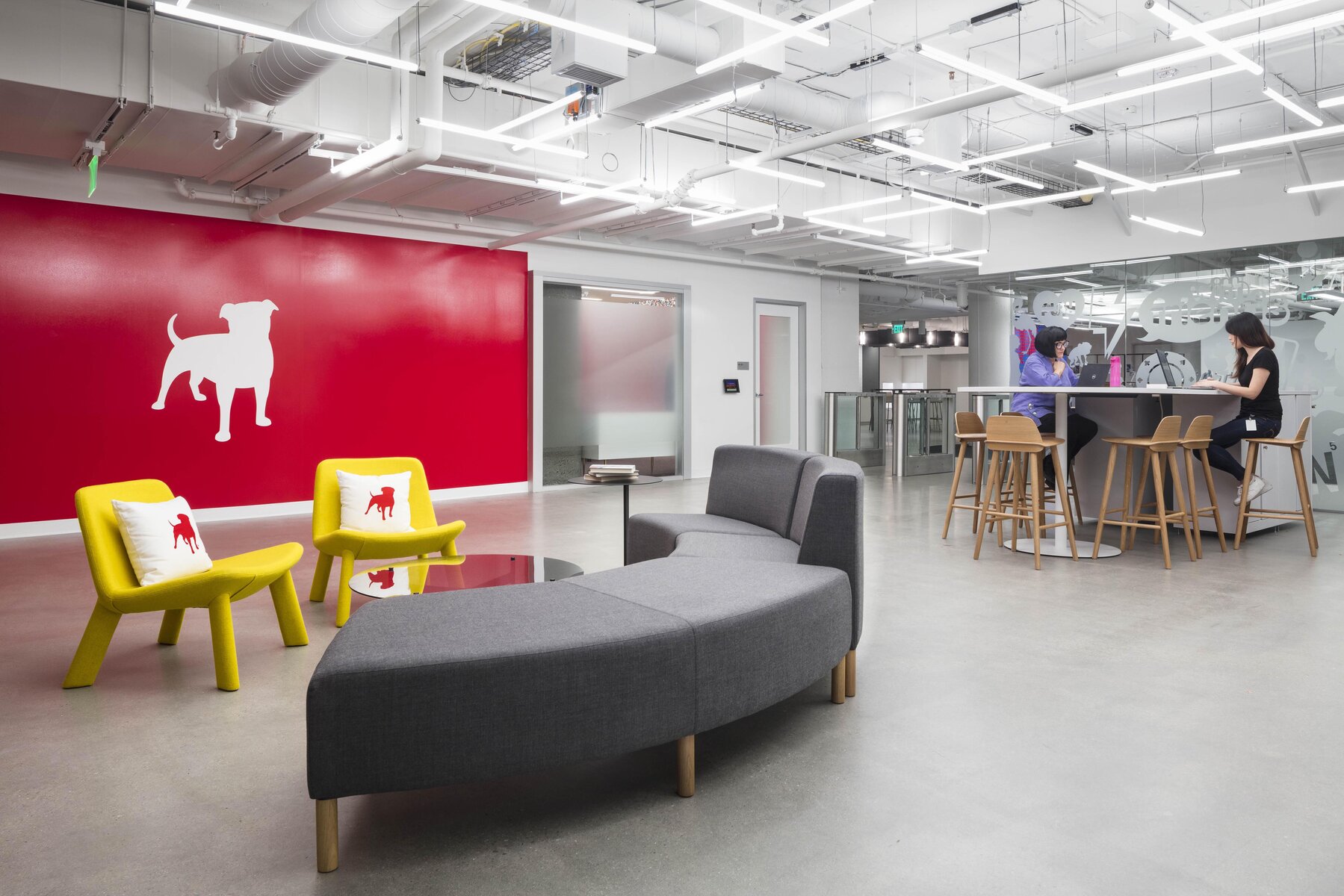

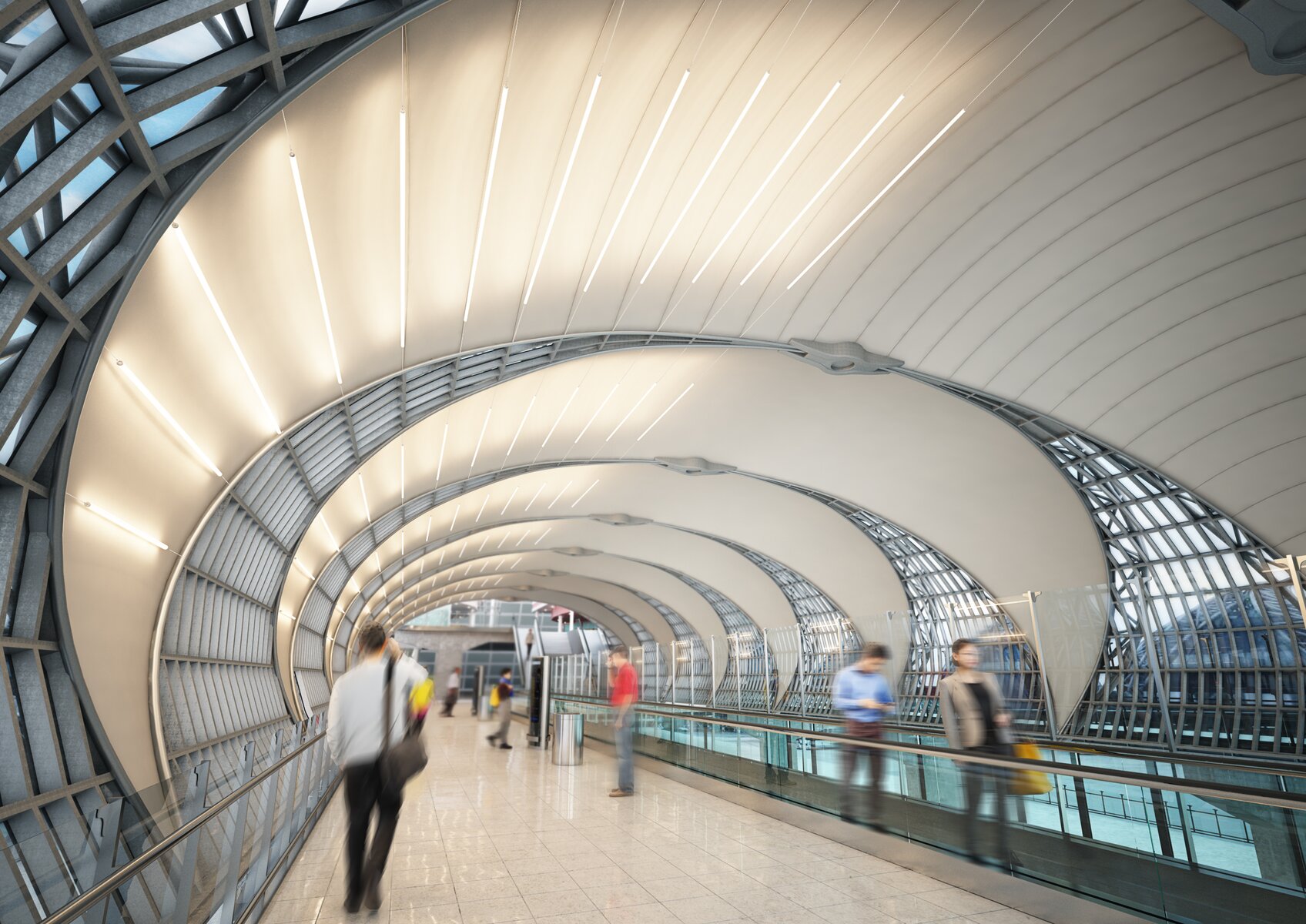

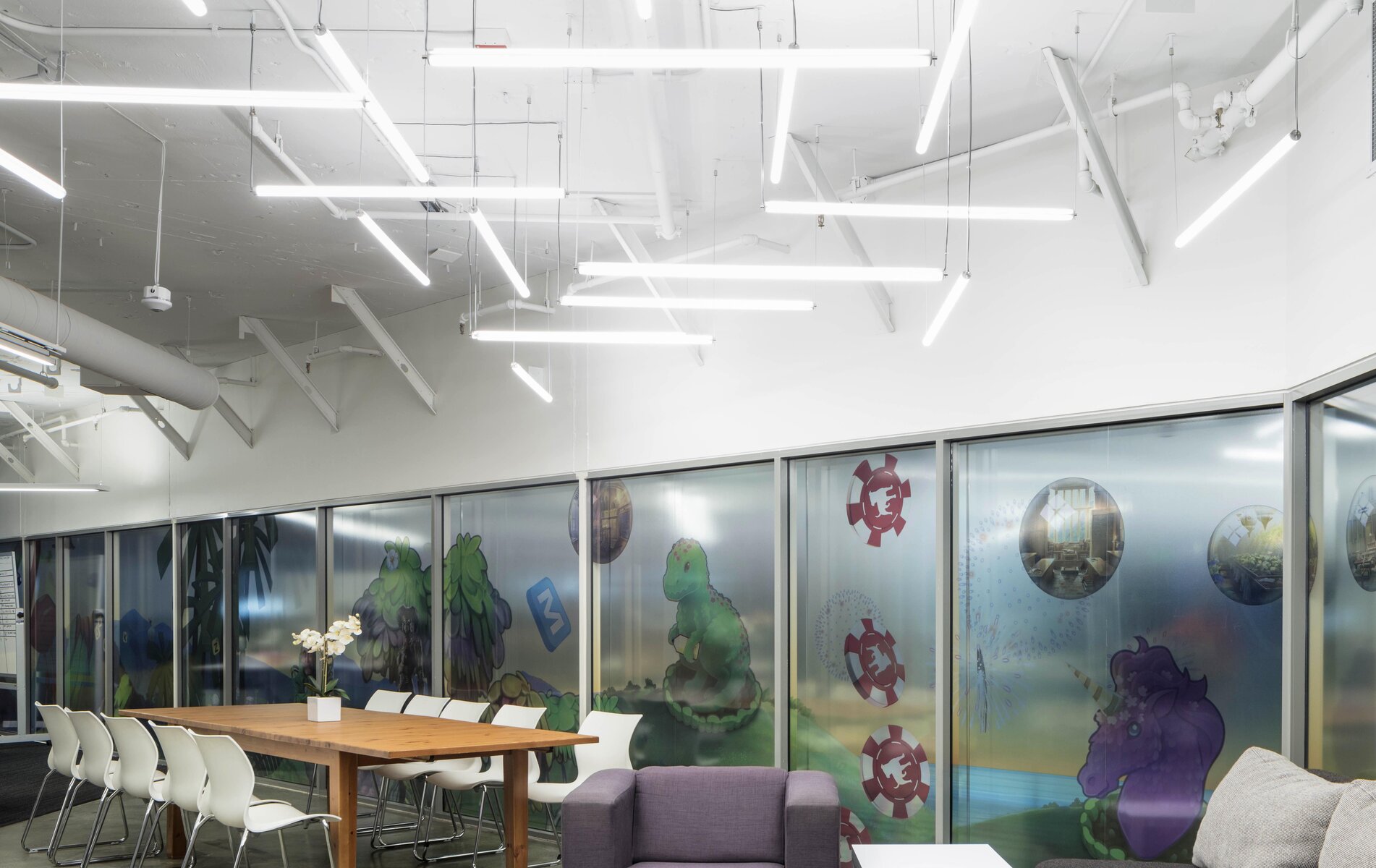

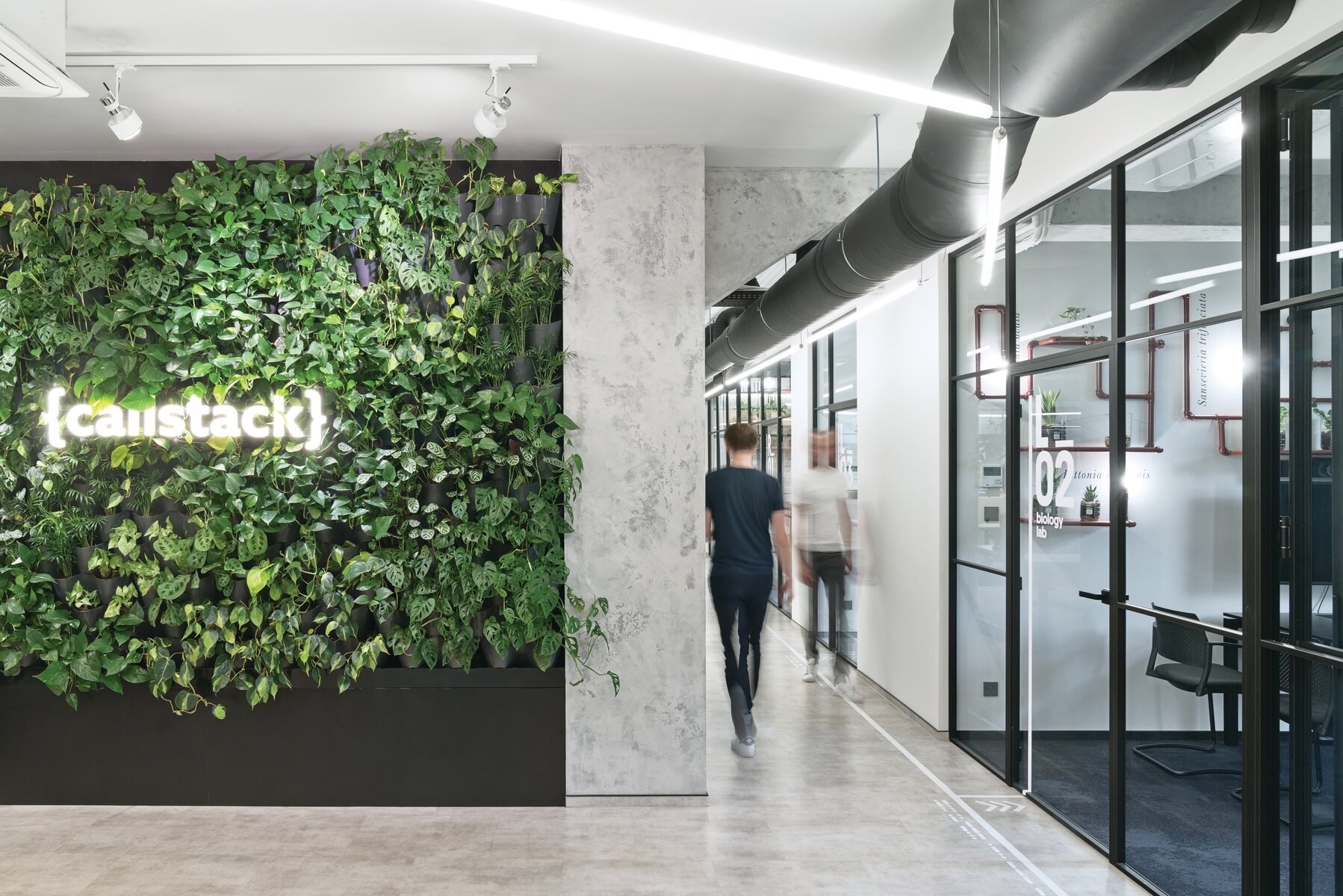

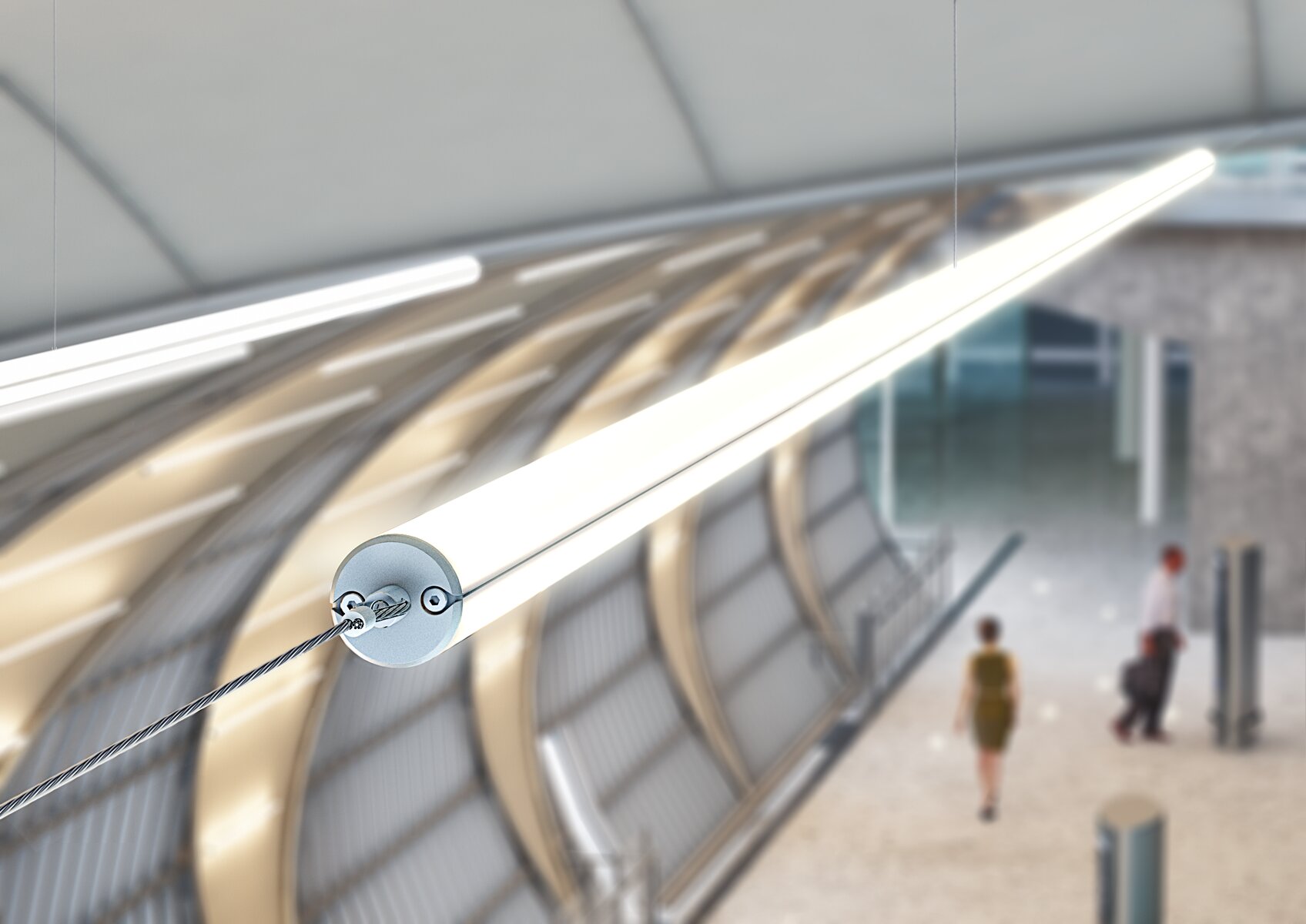

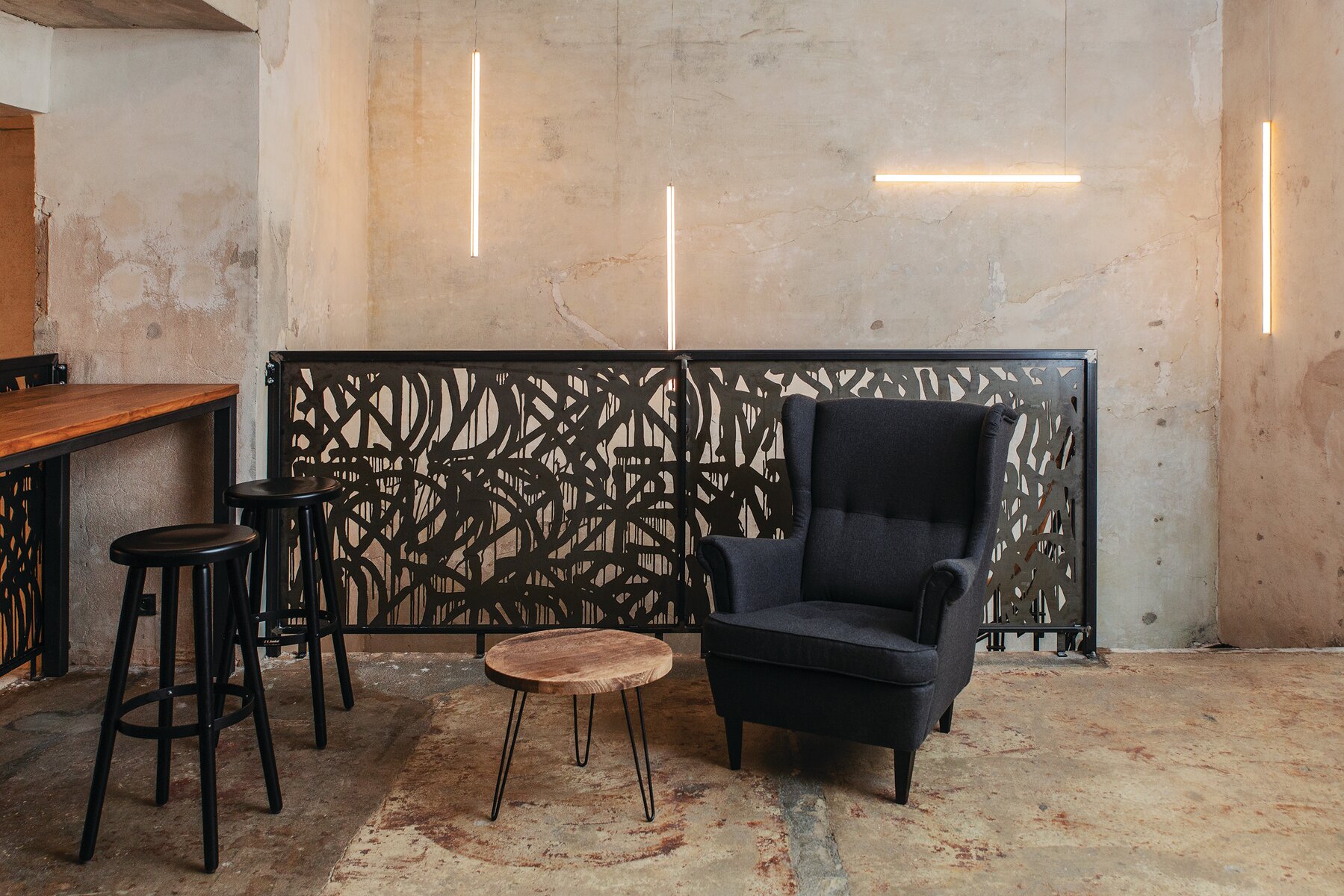

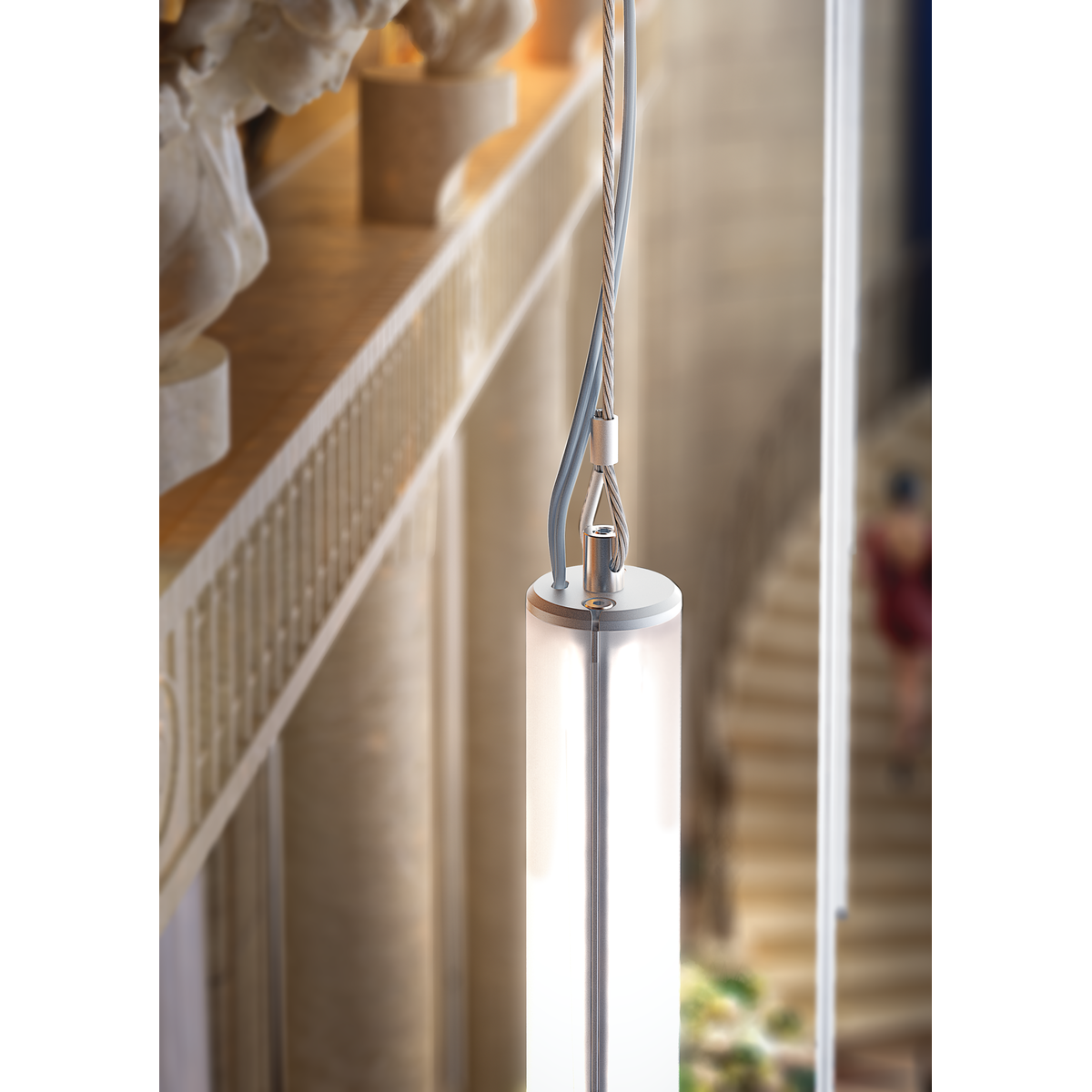

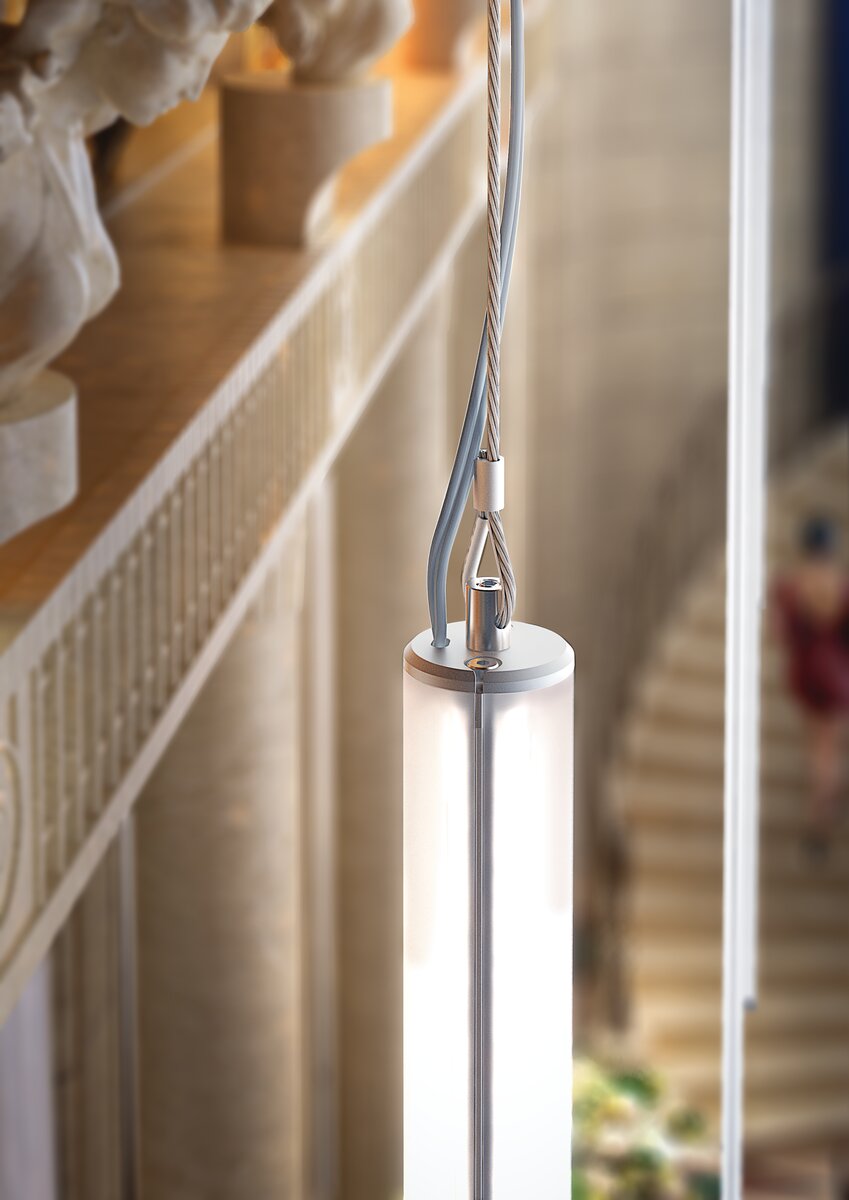

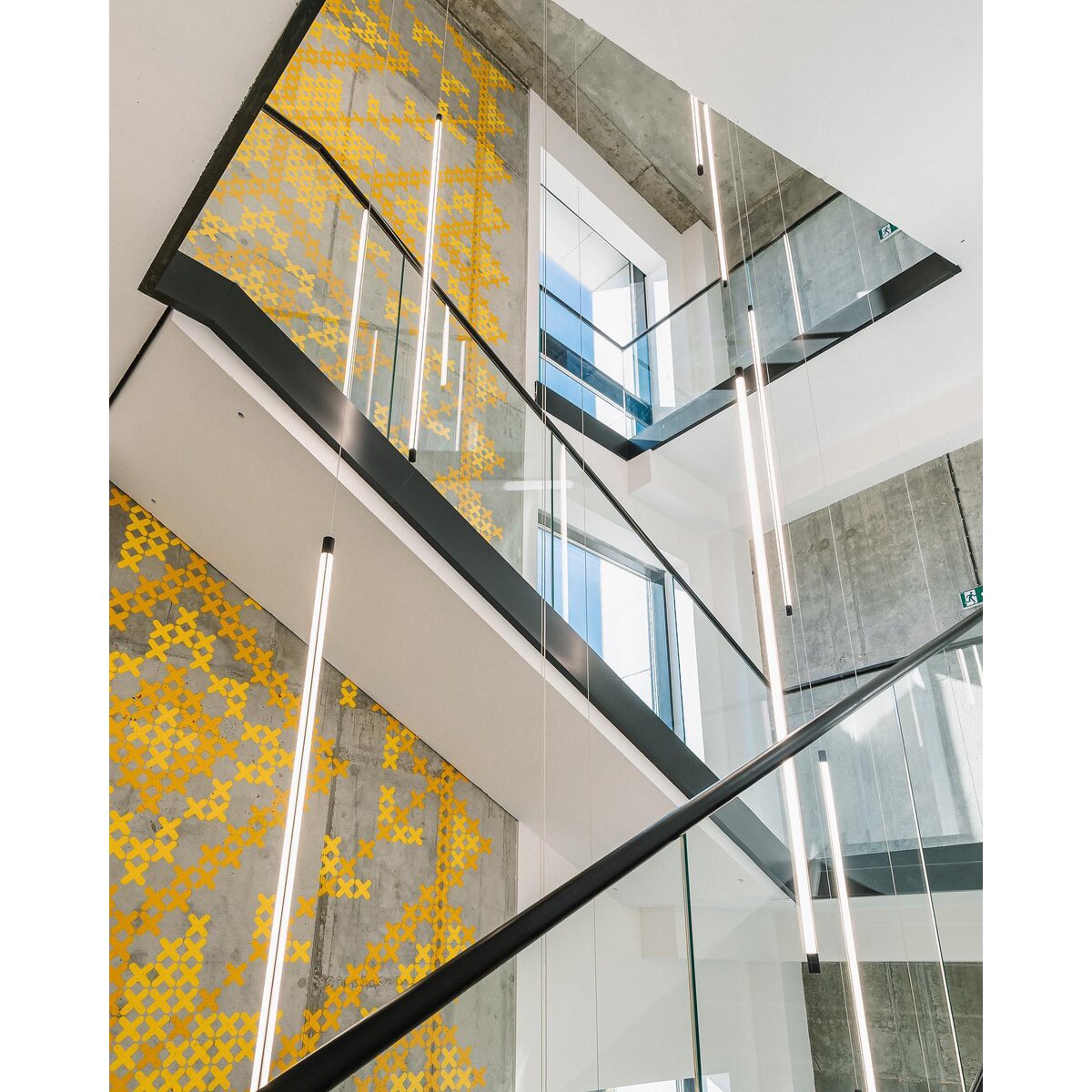

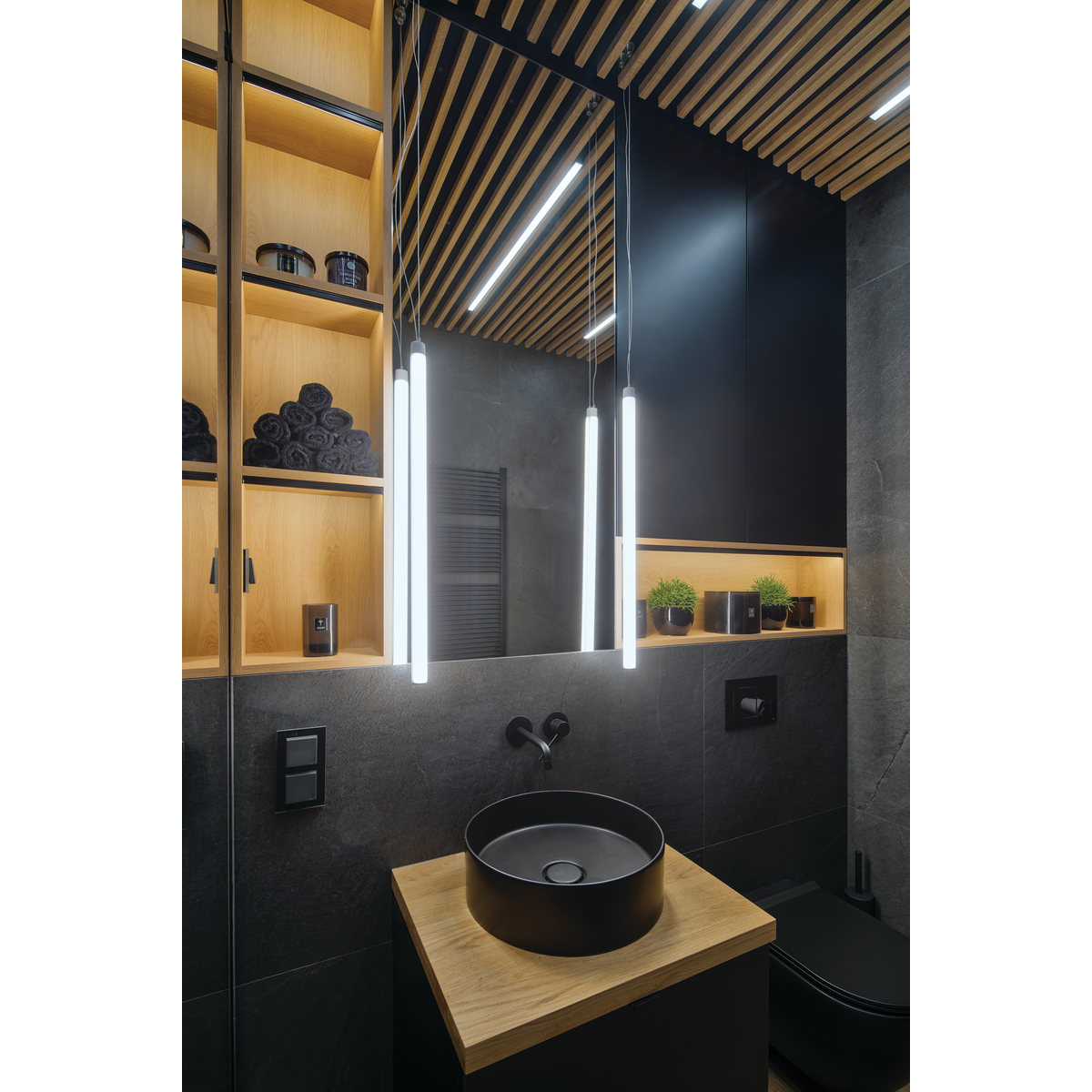

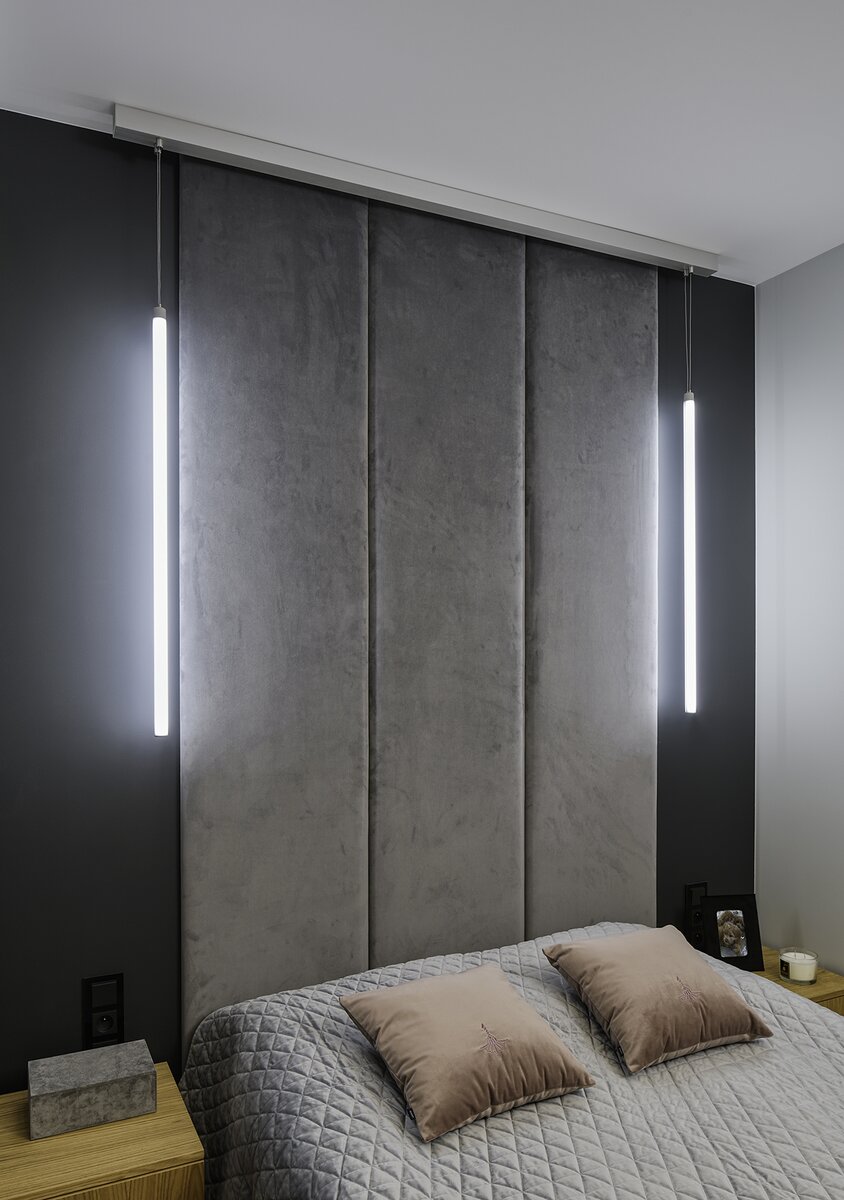

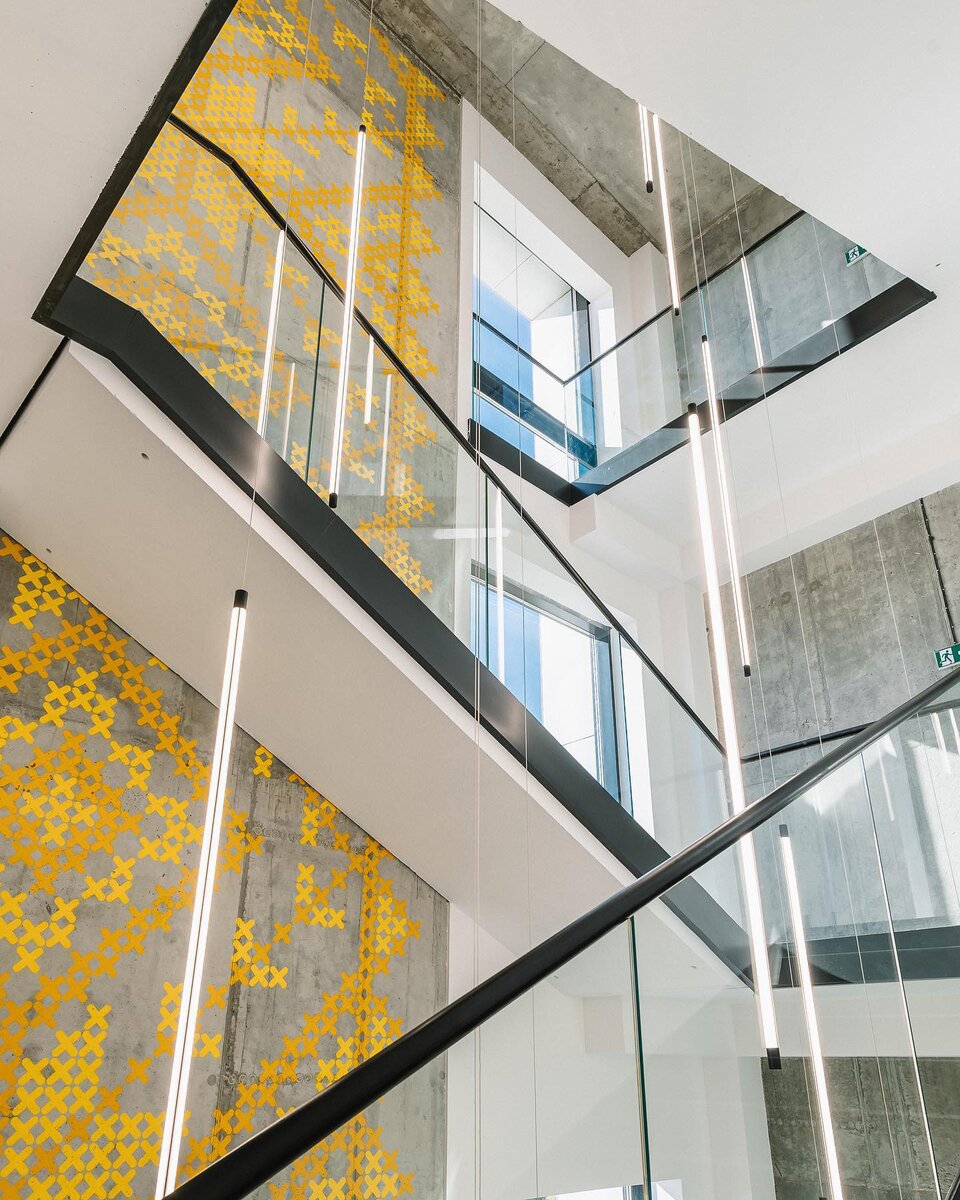

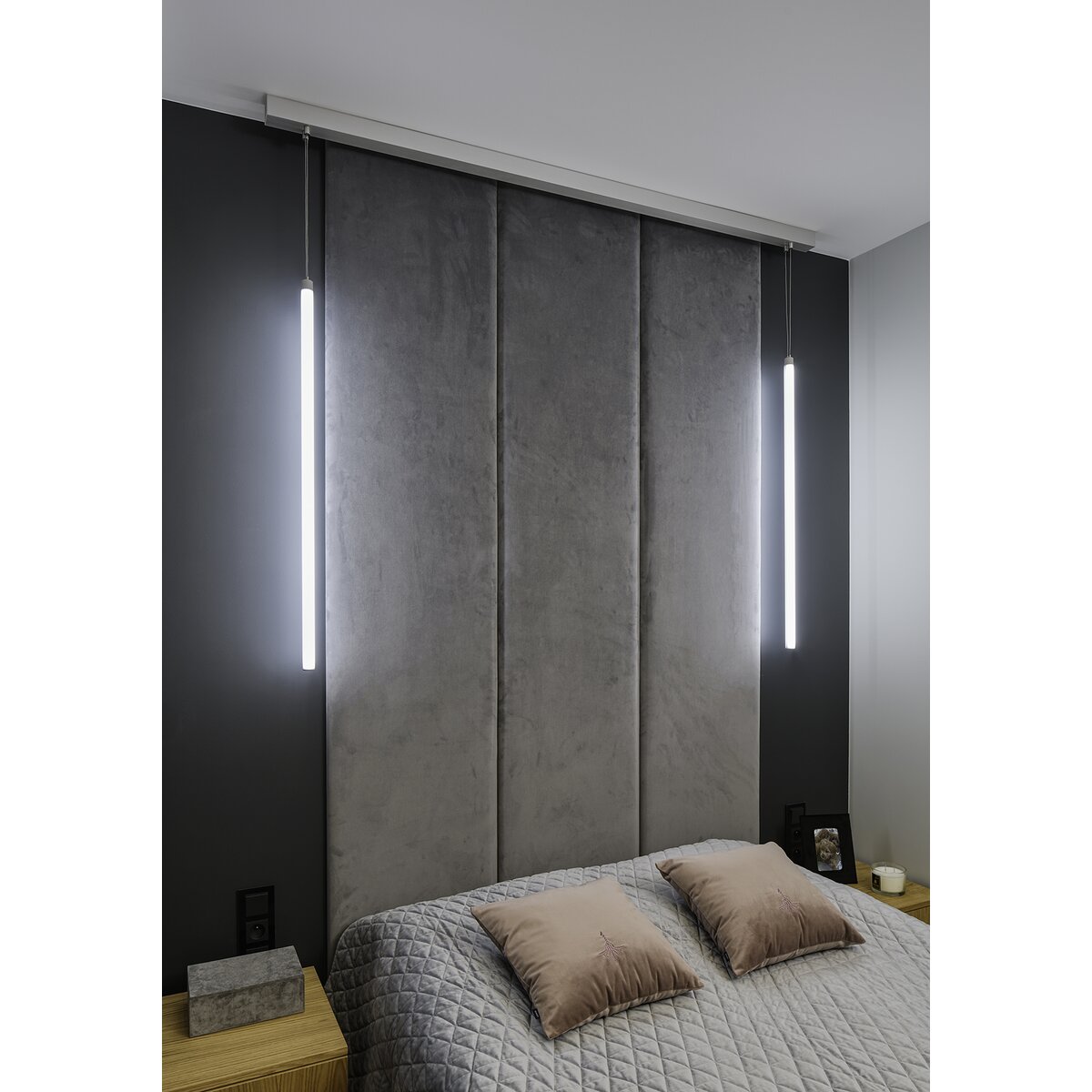

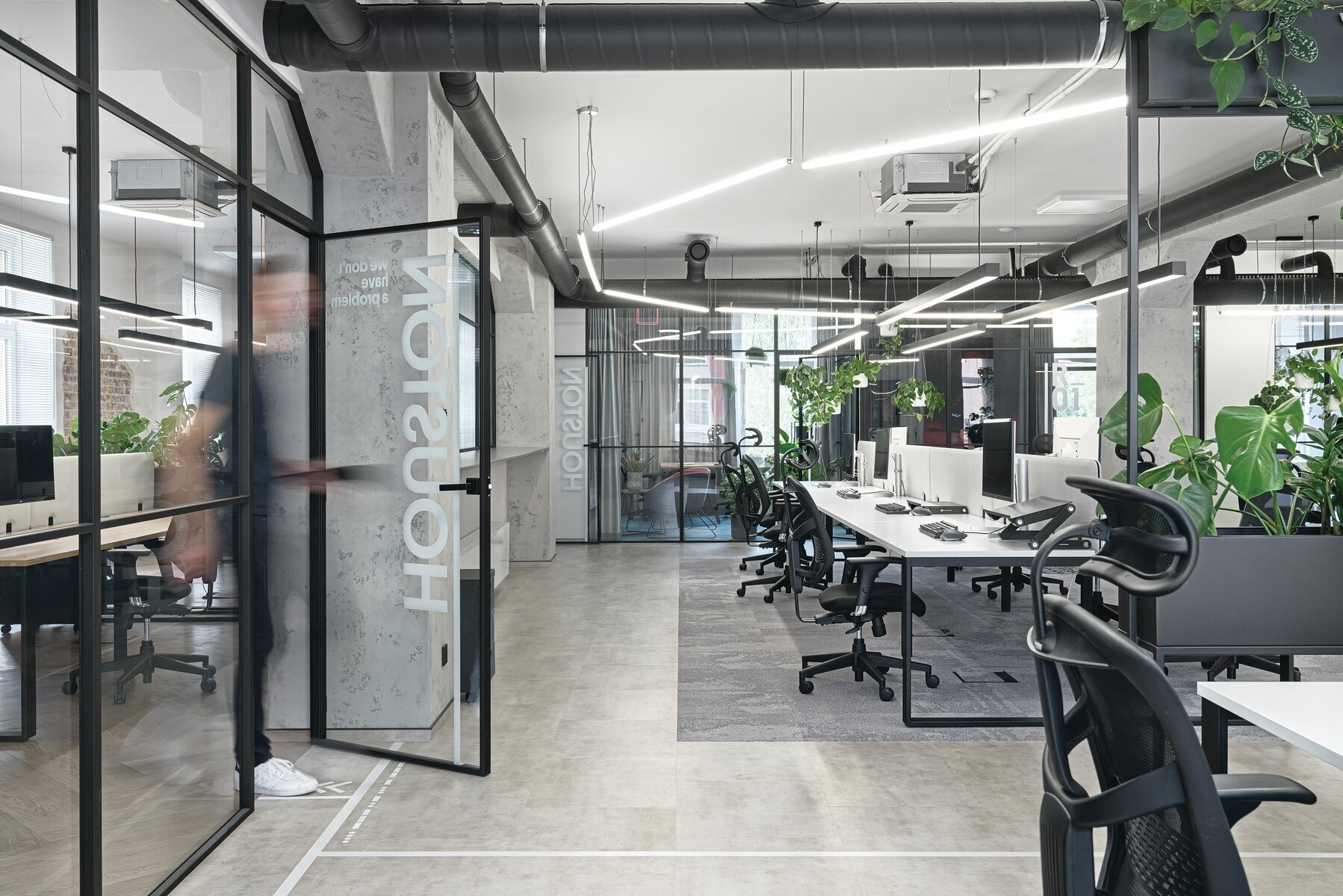

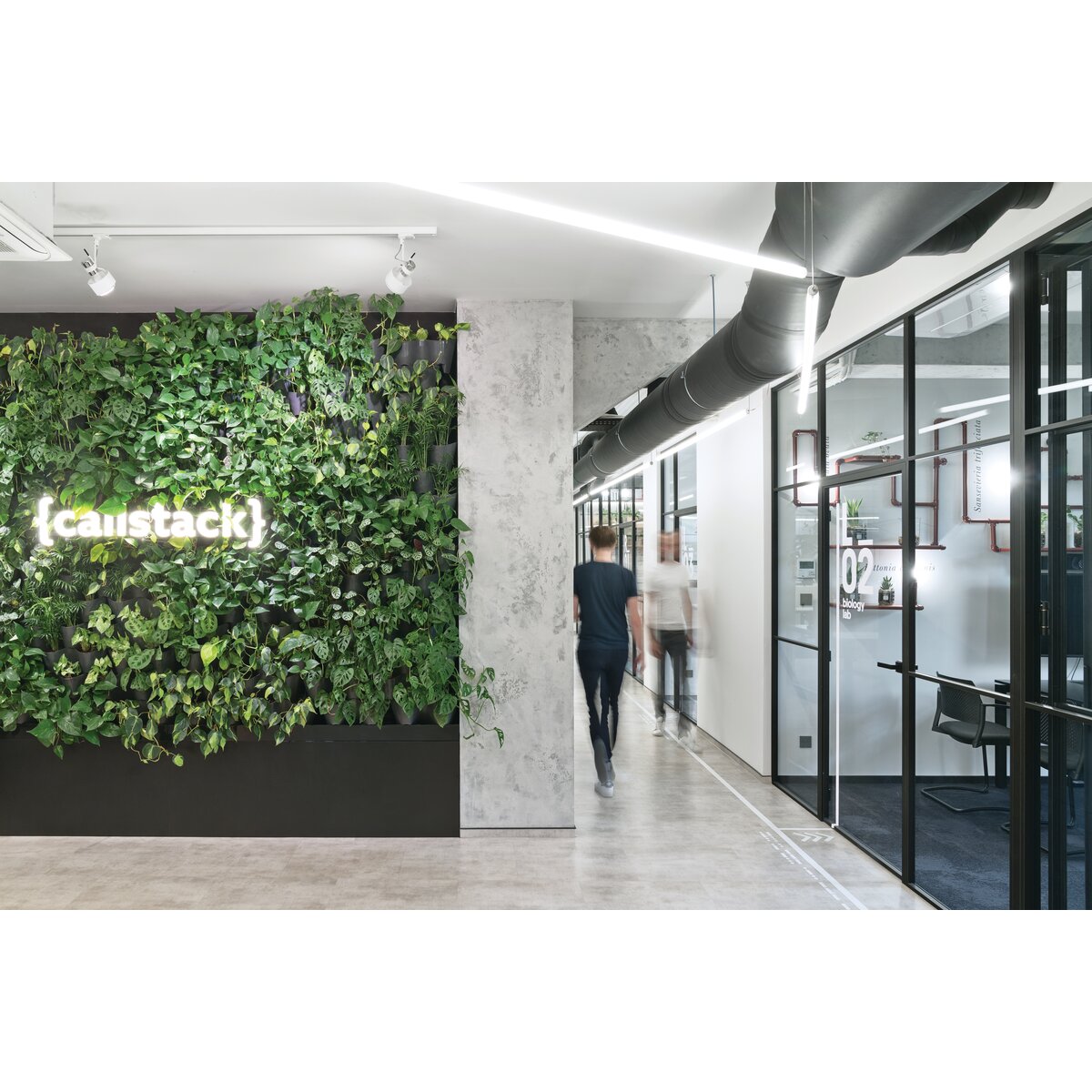

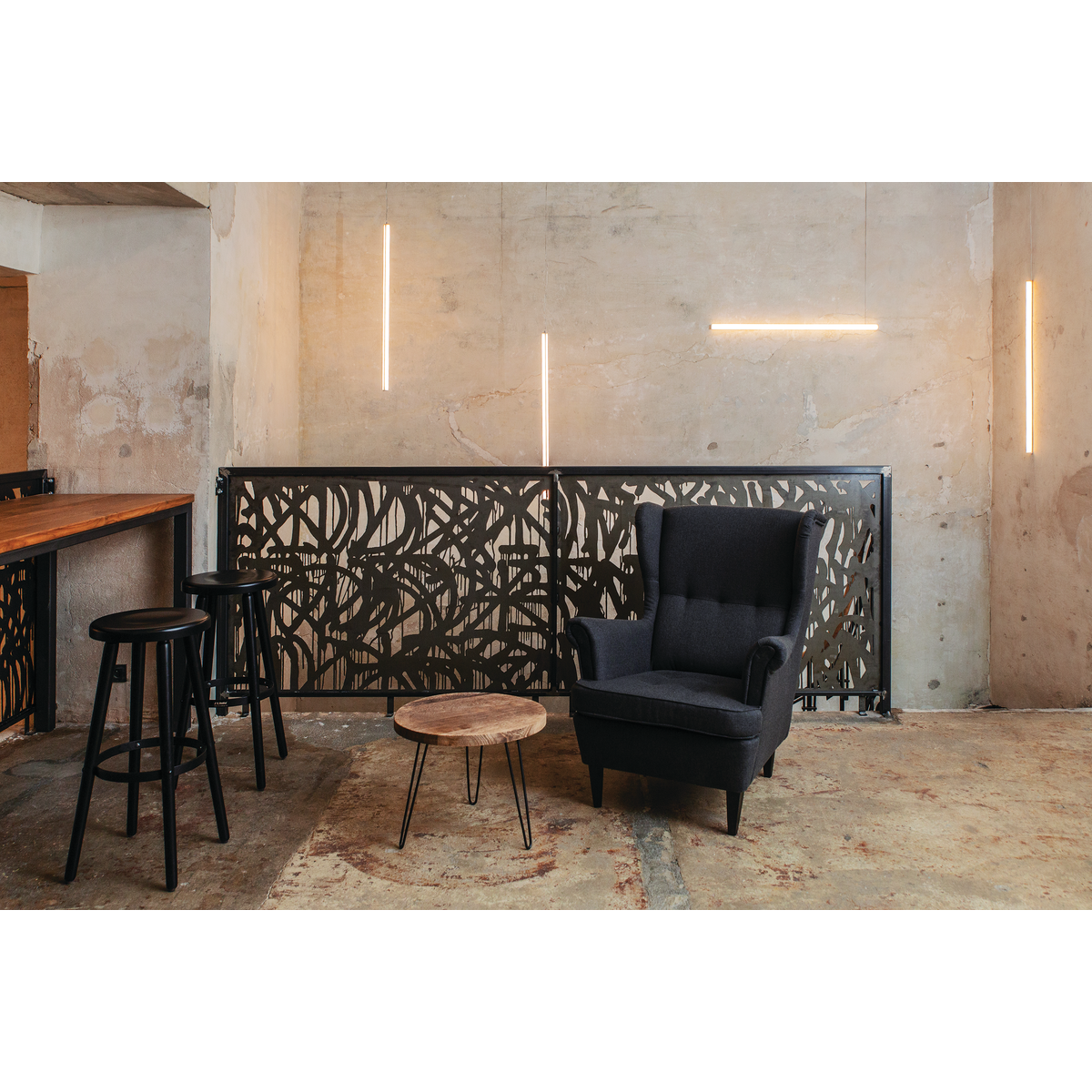

Usage examples

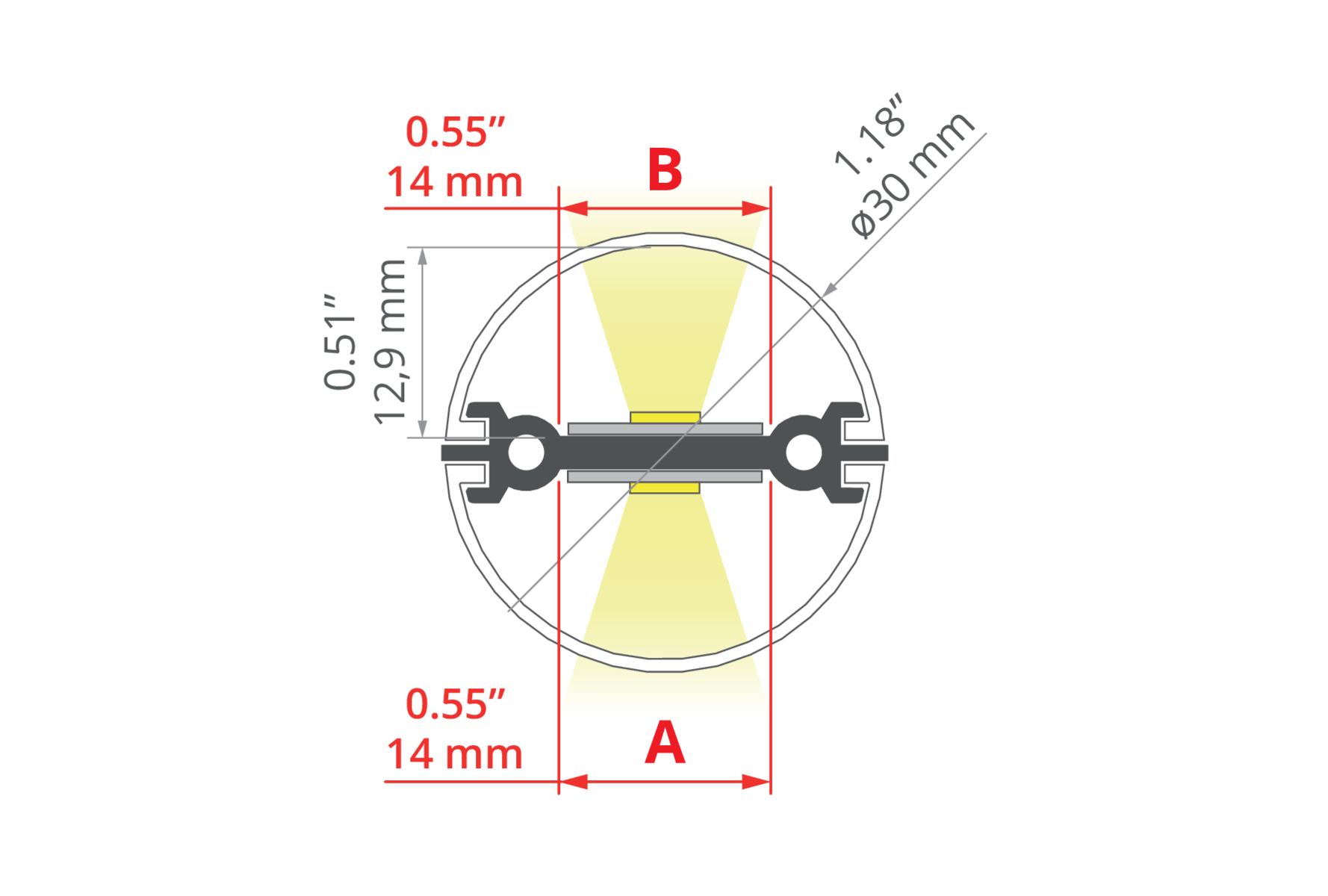

Technical drawing
JAZ-DUO Extrusion aluminum Technical drawing - A00788
Technical specification
Material
aluminum
Possible fixture IP
20
Possible fixture shapes
linear
Profile cross-section
round
Max power of a single KLUŚ LED strip
7.3 W/ft
Width
1.2" (30 mm)
Height
0.3" (6.8 mm)
LED gluing width A
0.6" (14 mm)
LED mounting width B [inch]
0.6" (14 mm)
Max. number of LED strips A (0.31" wide)
1
Max. number of LED strips B (0.31" wide)
1
Wire out end cap
Yes
Possibility of obtaining a line of light
Yes
Building type
Entertainment/ Arts, Commercial, Hotel / Restaurant, Residential
Facility zone
office, lobby / foyer, decorative
Color Length Ref No
silver anodized
39.4" (1000 mm)
78.9" (2005 mm)
118.5" (3010 mm)
A00788A_1
A00788A_2
A00788A_3
white lacquered
79.1" (2010 mm)
A00788L10OD_2
black lacquered
79.1" (2010 mm)
A00788L10L07_2
Line of Light Table for Pixel Free Illumination
LED Tapes Covers
Categories LED tape type JAZ-DUO-27R Cover satin
High Efficacy K-HEHD-0480-24 Line of Light for a number (X) of rows (2)
K-HEHD-0960-24 Line of Light for a number (X) of rows (2)
K-HEHD-1440-24 Line of Light for a number (X) of rows (2)
K-HEHD-1920-24 Line of Light for a number (X) of rows (2)
K-HEHD-0320-24 Line of Light for a number (X) of rows (2)
CRI 95+ K-CRHD-1820-24 Line of Light for a number (X) of rows (2)
K-CRHD-1910-24 Line of Light for a number (X) of rows (2)
RGB / RGB-W / RGB-CTT K-RGBW-1920-160-24 Line of Light for a number (X) of rows (2)
Single diode cuttable K-SD-1440-24 Line of Light for a number (X) of rows (2)
Adjustable White / Dim to Warm K-SDCR-22T50-1530-24 Line of Light for a number (X) of rows (2)
KWP-SDCR-22T50-1530-24 Line of Light for a number (X) of rows (2)
Line of Light for a number (X) of rows
Line of Light for a number (X) of rows - Pixel free imaging
Centered Line of Light
Centered Line of Light - Concentrated in middle
None
None - Visible dotting from diodes
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
similar profiles
Suspended
JAZ
Ref No: A08547
Related products
Product name Material Key features Light transmittance [%] Color Ref No
JAZ-DUO-27R Cover
PC - indoor use
- semi-circular
71 %
satin
B17163S
No results found for the selected filters.
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,
20 - 1.5 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-0480-24
K-HEHD25-0480-24
K-HEHD27-0480-24
K-HEHD30-0480-24
K-HEHD35-0480-24
K-HEHD40-0480-24
K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-0960-24
K-HEHD25-0960-24
K-HEHD27-0960-24
K-HEHD30-0960-24
K-HEHD35-0960-24
K-HEHD40-0960-24
K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-1440-24
K-HEHD25-1440-24
K-HEHD27-1440-24
K-HEHD30-1440-24
K-HEHD35-1440-24
K-HEHD40-1440-24
K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,
20 - 5.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-1920-24
K-HEHD25-1920-24
K-HEHD27-1920-24
K-HEHD30-1920-24
K-HEHD35-1920-24
K-HEHD40-1920-24
K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,
20 - 1 W/ft
2700K
3000K
3500K
4000K
- CRI over 95
- High Efficacy
K-HEHD27-0320-24
K-HEHD30-0320-24
K-HEHD35-0320-24
K-HEHD40-0320-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,
20 - 1.5 W/ft
2200K
2700K
- CRI over 95
K-CR22-1210-24
K-CR27-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1220-24
K-CR25-1220-24
K-CR27-1220-24
K-CR30-1220-24
K-CR35-1220-24
K-CR40-1220-24
K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1275-24
K-CR25-1275-24
K-CR27-1275-24
K-CR30-1275-24
K-CR35-1275-24
K-CR40-1275-24
K-CR50-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,
20 - 5.6 W/ft
2700K
- CRI over 95
- high LED density
K-CRHD27-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,
20 - 2.8 W/ft
2700K
3500K
4000K
- CRI over 95
- high LED density
K-CRHD27-1910-24
K-CRHD35-1910-24
K-CRHD40-1910-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,
20 - 1.6 W/ft
3500K
- CRI over 95
K-CRHD35-0530-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20
20 - 7.3 W/ft
2700K
3000K
3500K
4000K
5000K
- high power
K-27-2400-24
K-30-2400-24
K-35-2400-24
K-40-2400-24
K-50-2400-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-RGB27T65-1200-24 LED tape, 2700K, 122 lm/ft, 3.7 W/ft, IP20
20 - 3.7 W/ft
RGB
2700K
- RGB+Tunable White
K-RGB27T65-1200-24
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-120-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-160-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
KWP-18D30-0960-24 LED tape , 1800K, 208 lm/m, 2.9 W/m, IP65
65 silicon sleeve 2.9 W/ft
1800K
KWP-18D30-0960-24
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20
20 - 4.7 W/ft
2200K
- Tuneable white 2200K-5000K
K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65
65 silicon sleeve 4.7 W/ft
2200K
- Tuneable white 2200K-5000K
KWP-SDCR-22T50-1530-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,
20 - 4.4 W/ft
2700K
3000K
3500K
4000K
K-SD27-1440-24
K-SD30-1440-24
K-SD35-1440-24
K-SD40-1440-24
No results found for the selected filters.
Product name Material Color Ref No

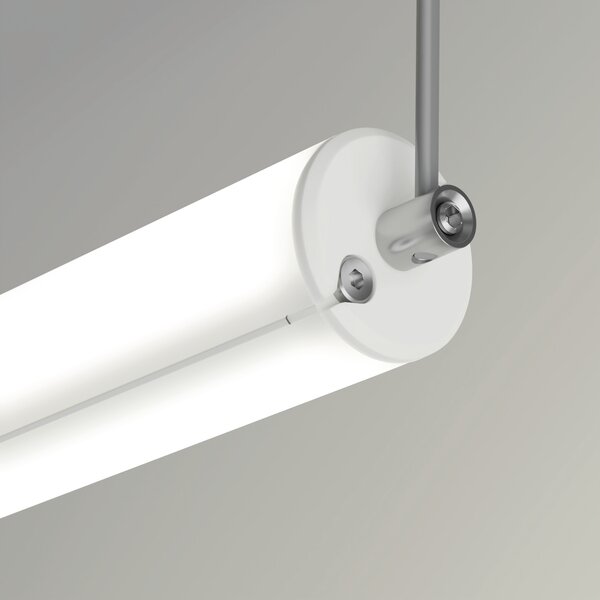

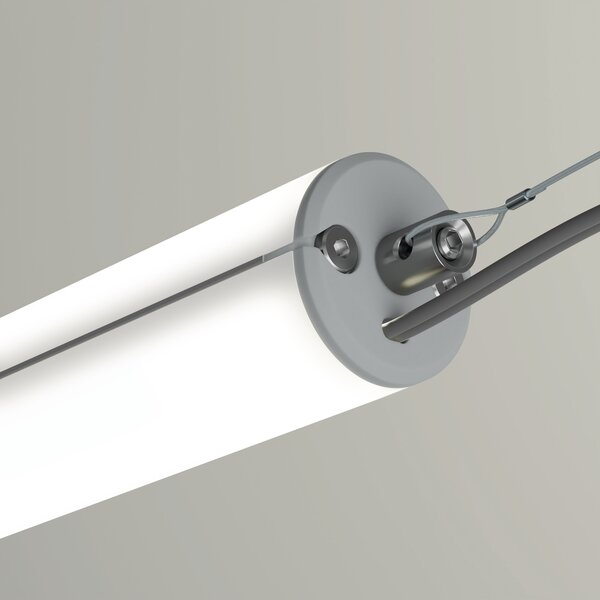

JAZ-DUO-N Electricity conductive end cap
ABS, stainless steel
gray
white
C28224C02P
C28224L10P
Product name Material Color Ref No
JAZ-DUO-N-FI-6.5
ABS
gray
C28224C02TW6,5
No results found for the selected filters.
Product name Key features Material Color Ref No
RG-1 Fastener set
- Cable adjustment at the ceiling, cable included
brass
silver
black
C28230P00
C28230L07
Product name Key features Material Color Ref No
Fi-60mm Canopy
- Convenient cable length adjustment, in the ZM system
steel
gray
white
black
C24540L01
C24540L10
C24540L07
Product name Key features Material Color Ref No
Wire FI-1,35mm
copper, FEP
silver
Z70310
Product name Key features Material Color Ref No
Fastener LIN
- Universal mounting
stainless steel
silver
C28178N00
No results found for the selected filters.
Product name IP rating Key features Ref No(Ref. arch.)
UNI Proximity switch
20 - touchless switch
- width only 7mm
E61579
No results found for the selected filters.
Product name Material Color Ref No
Gland 11x3
C24497C07
Gland 6x1,2
C24517C07
Gland 6,4x3
C42264C07
No results found for the selected filters.
