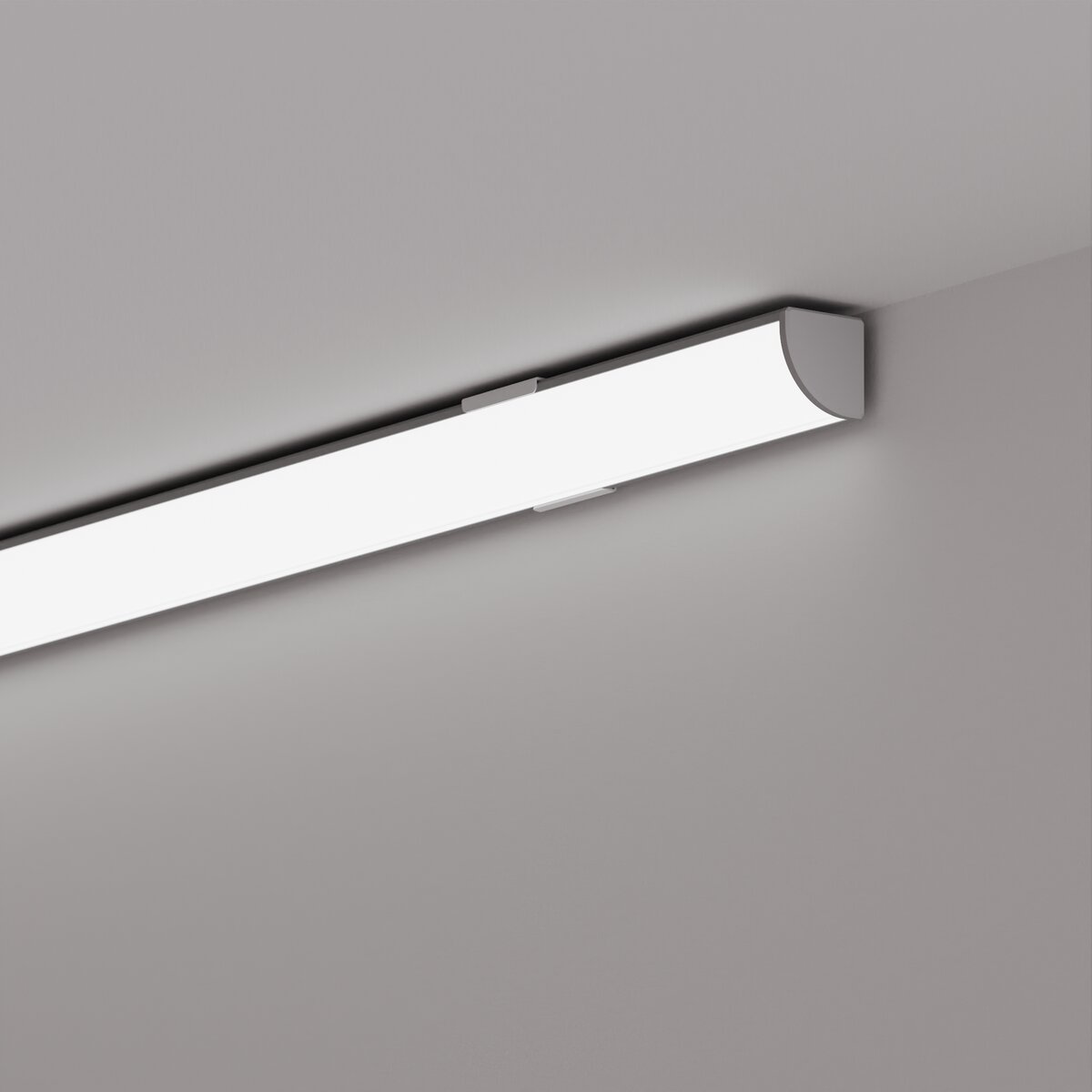

KOPROMA Extrusion (A00033)

Compare

Compared

Installation in corners
Lighting at a 45° angle
Small dimensions
Wide line of light
Slightly visible aluminum components

With the possibility of sealing up to IP20

Configure

Color

Description

Installation in corners
Lighting at a 45° angle
Small dimensions
Wide line of light
Slightly visible aluminum components

Application

- furniture, under-cabinet and decorative lighting

Mounting

- to the surface, using dedicated accessories or mounting adhesive
- easy assembly and disassembly by snapping in and out

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

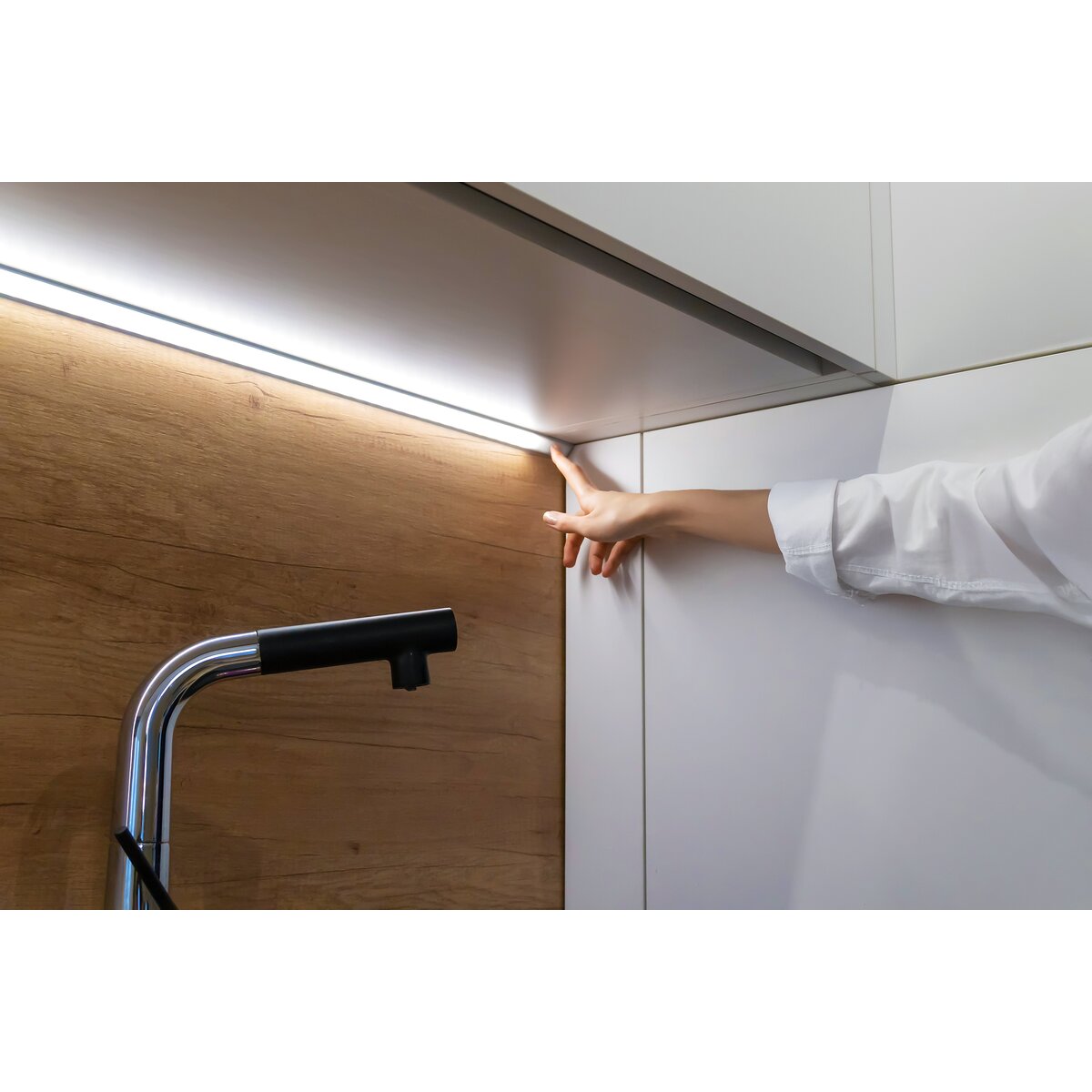

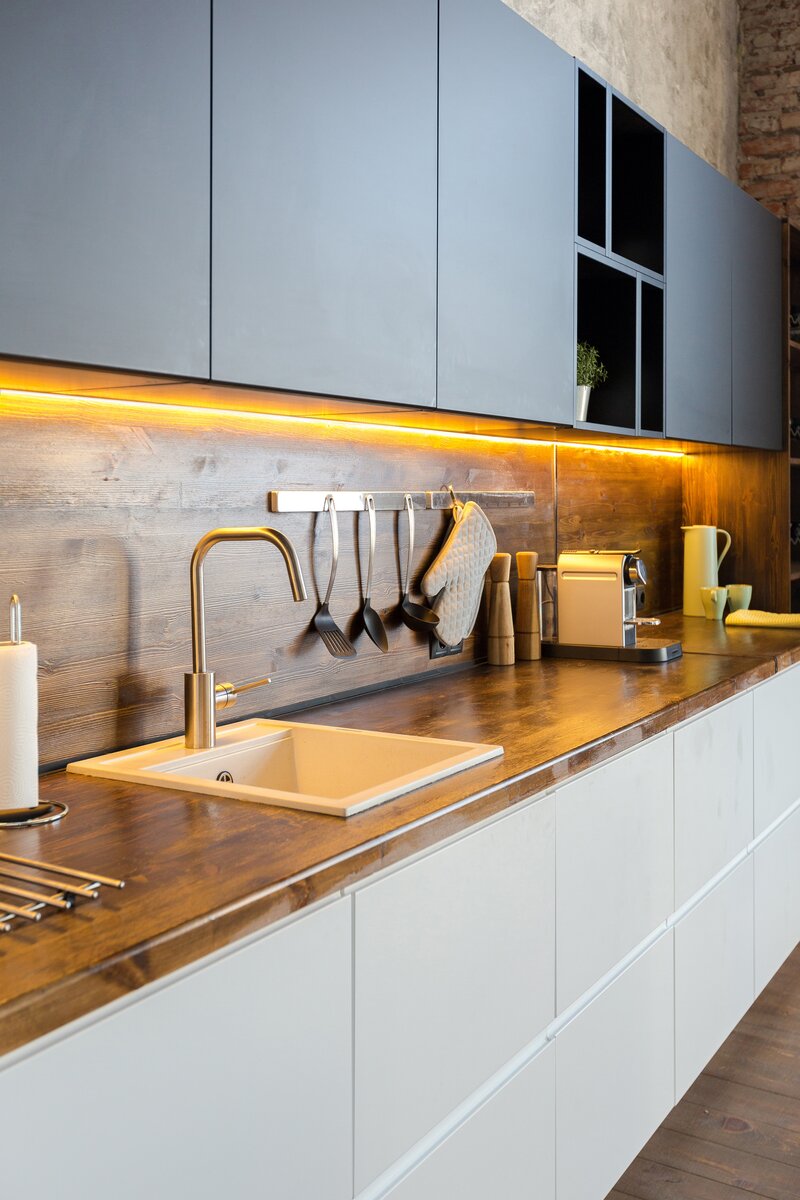

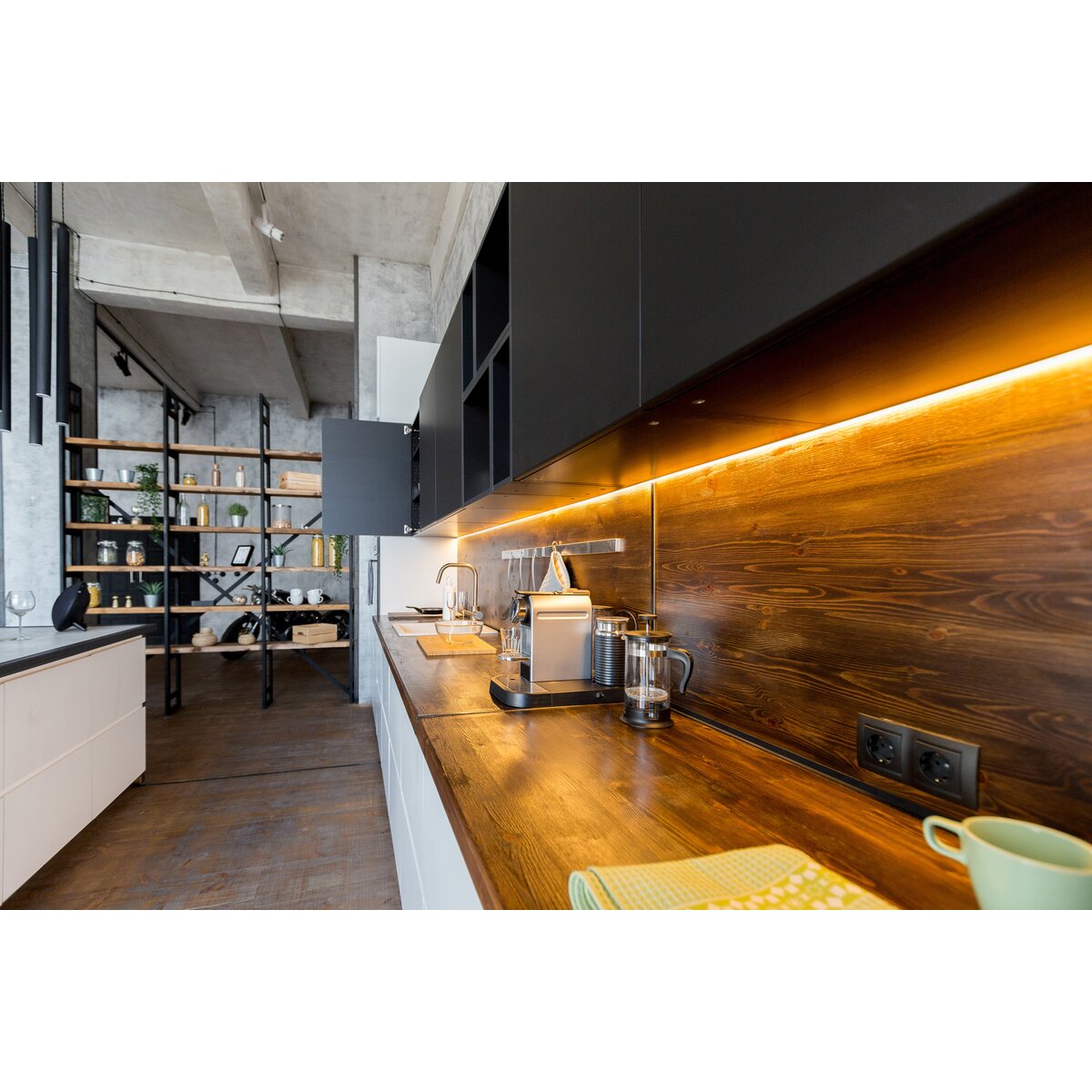

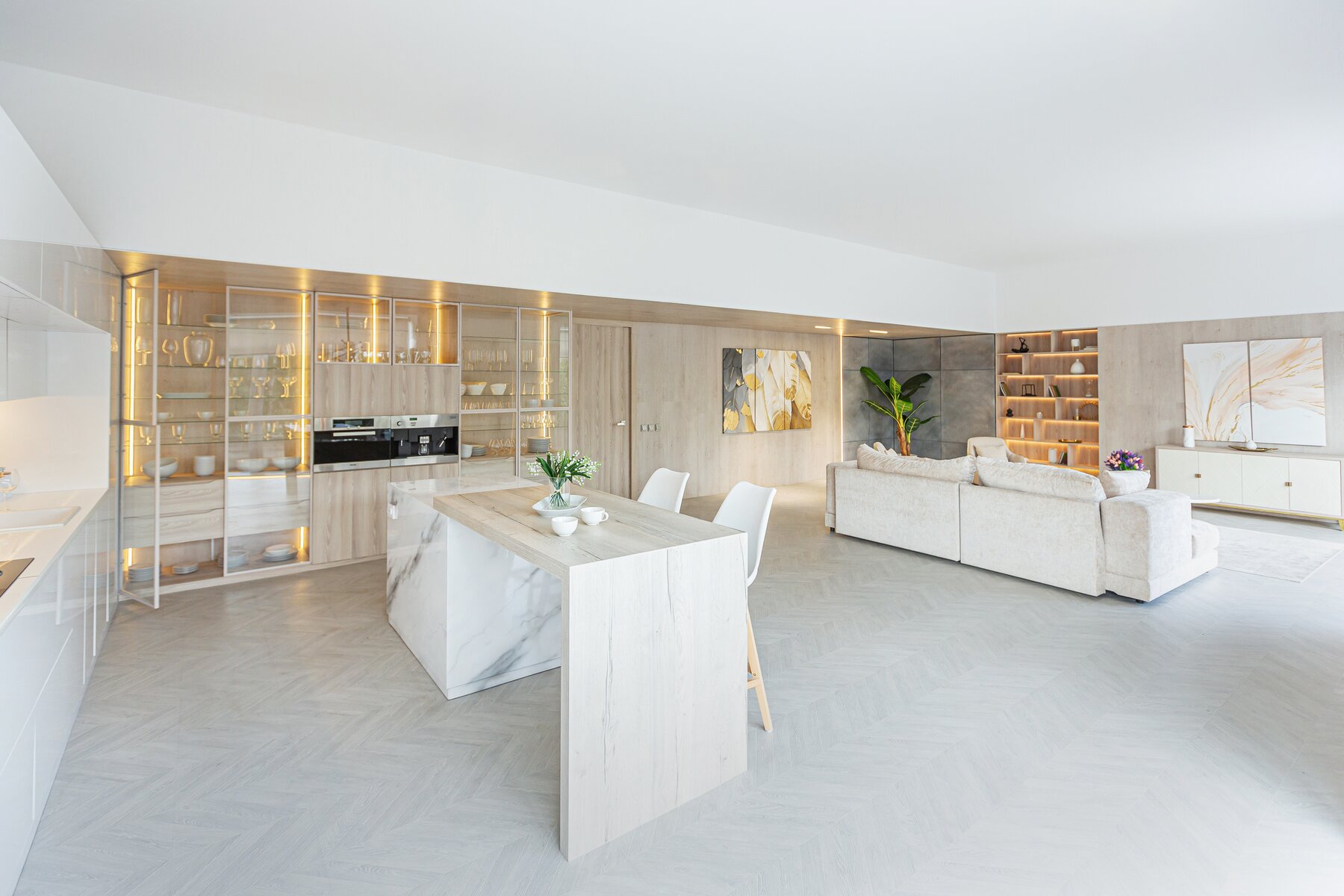

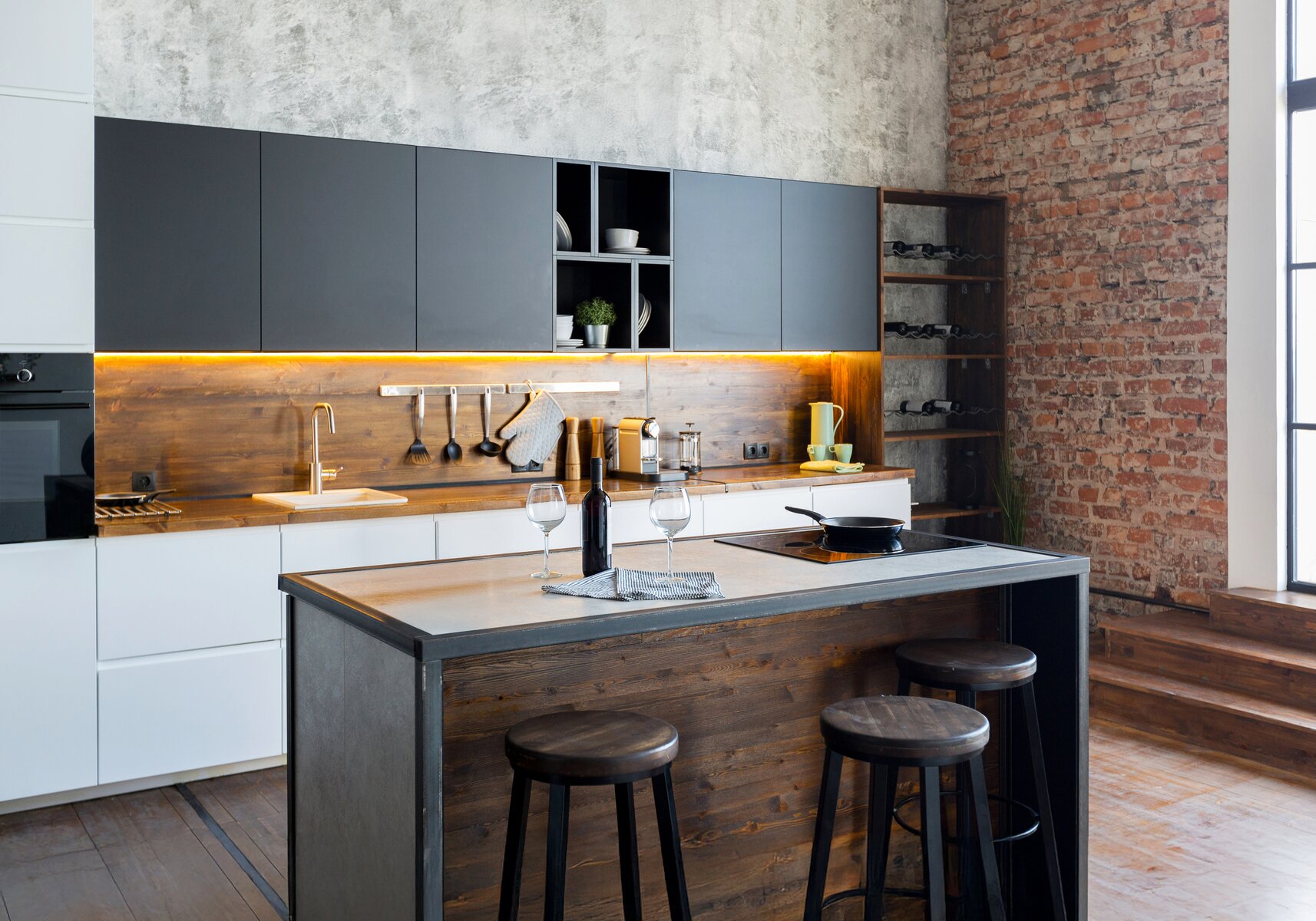

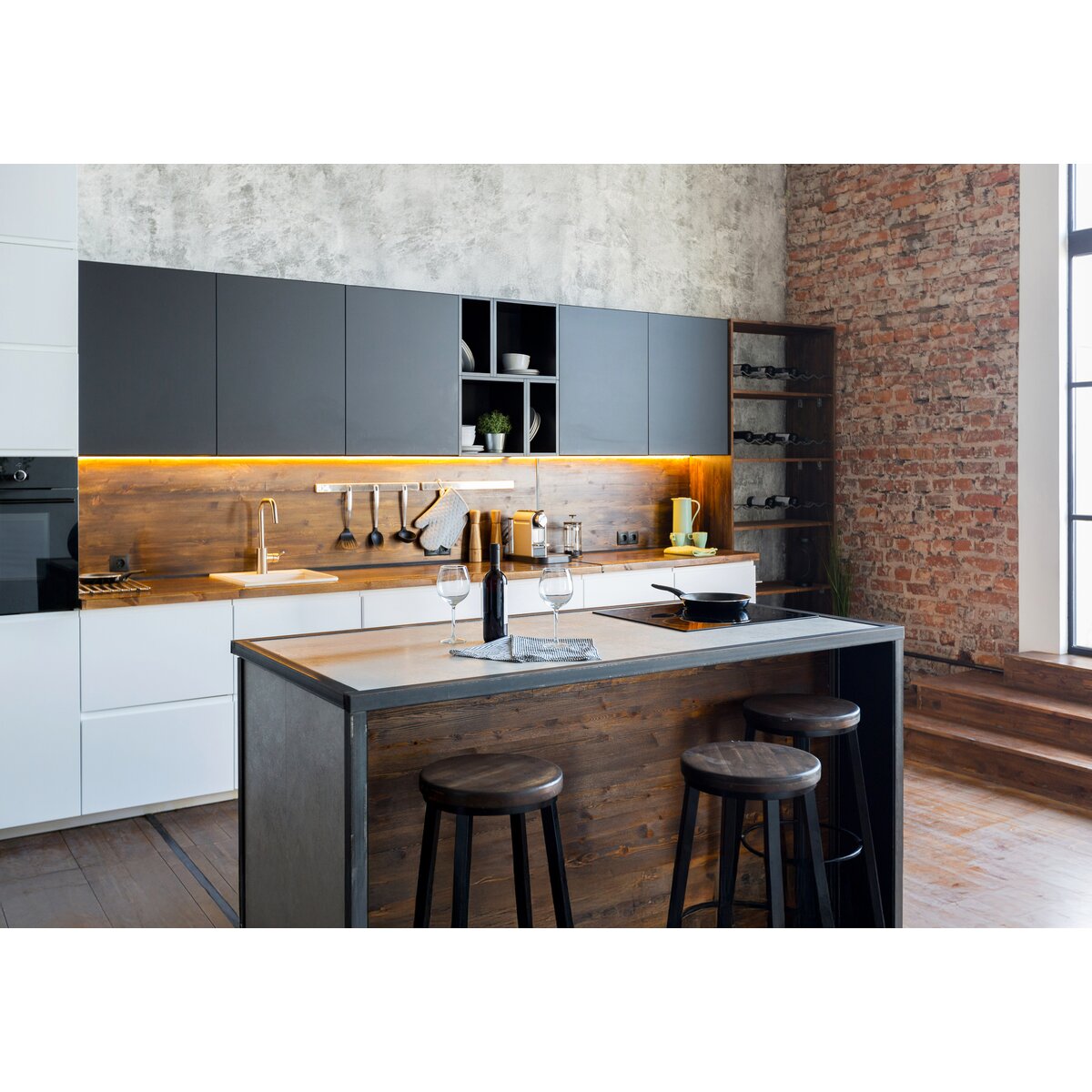

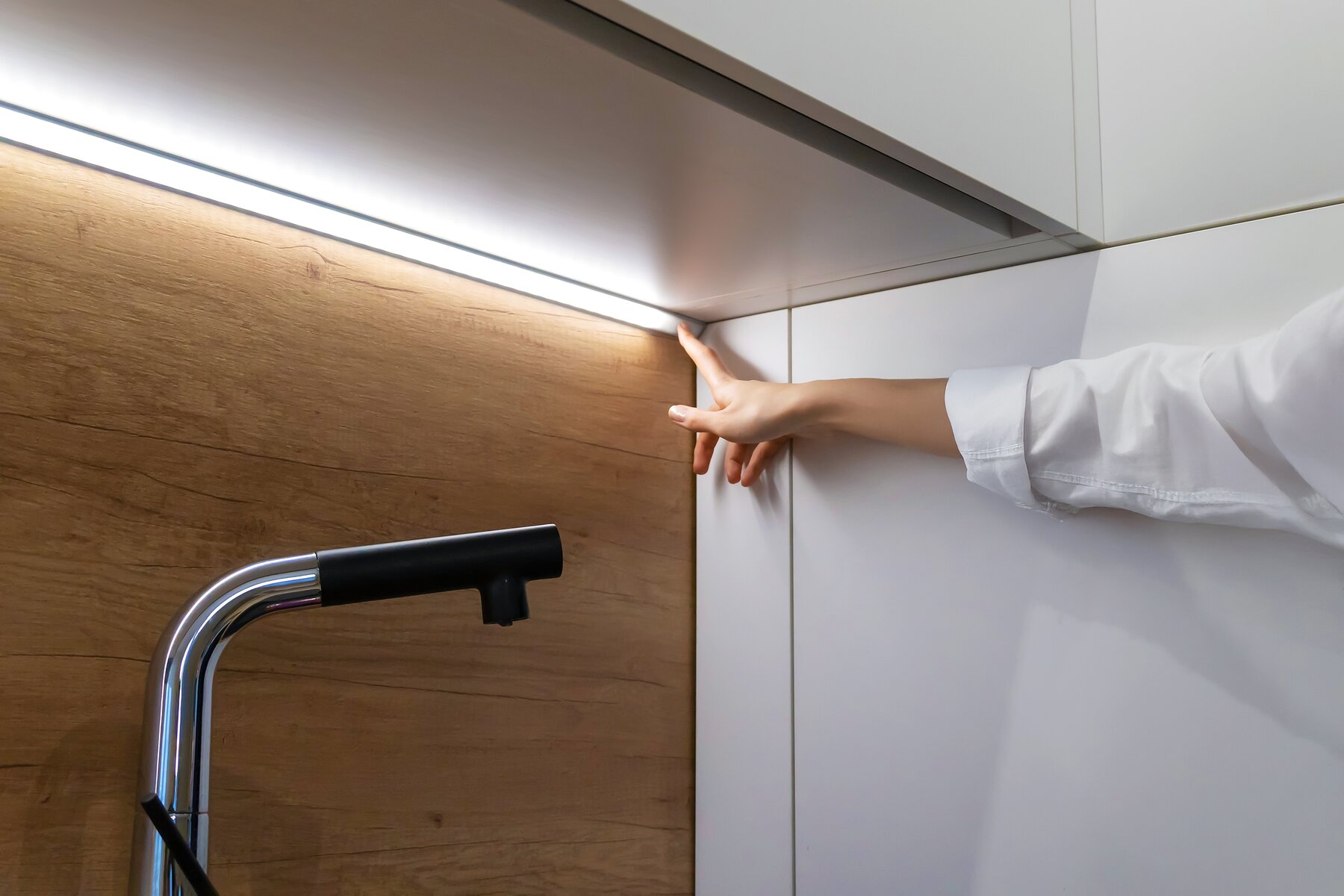

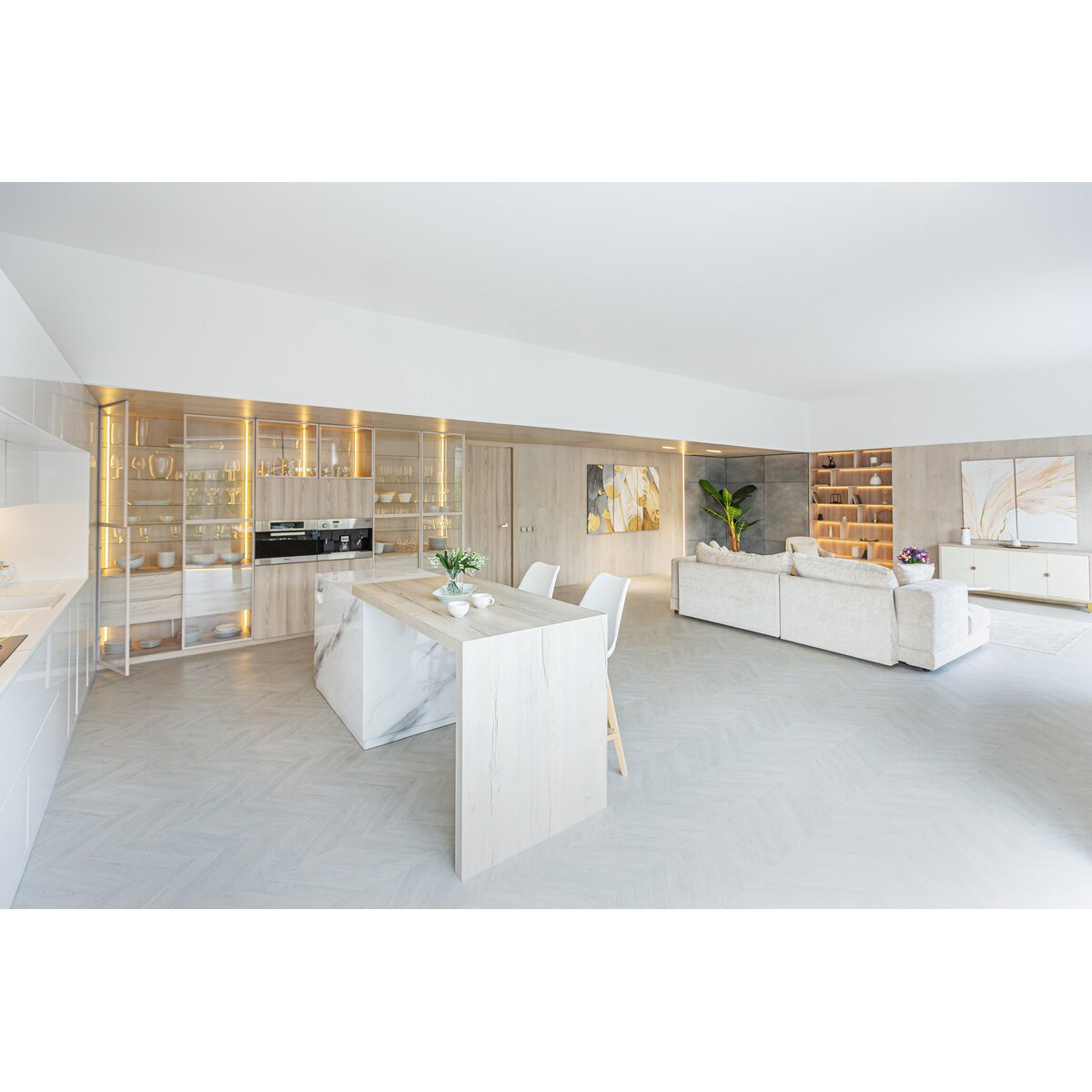

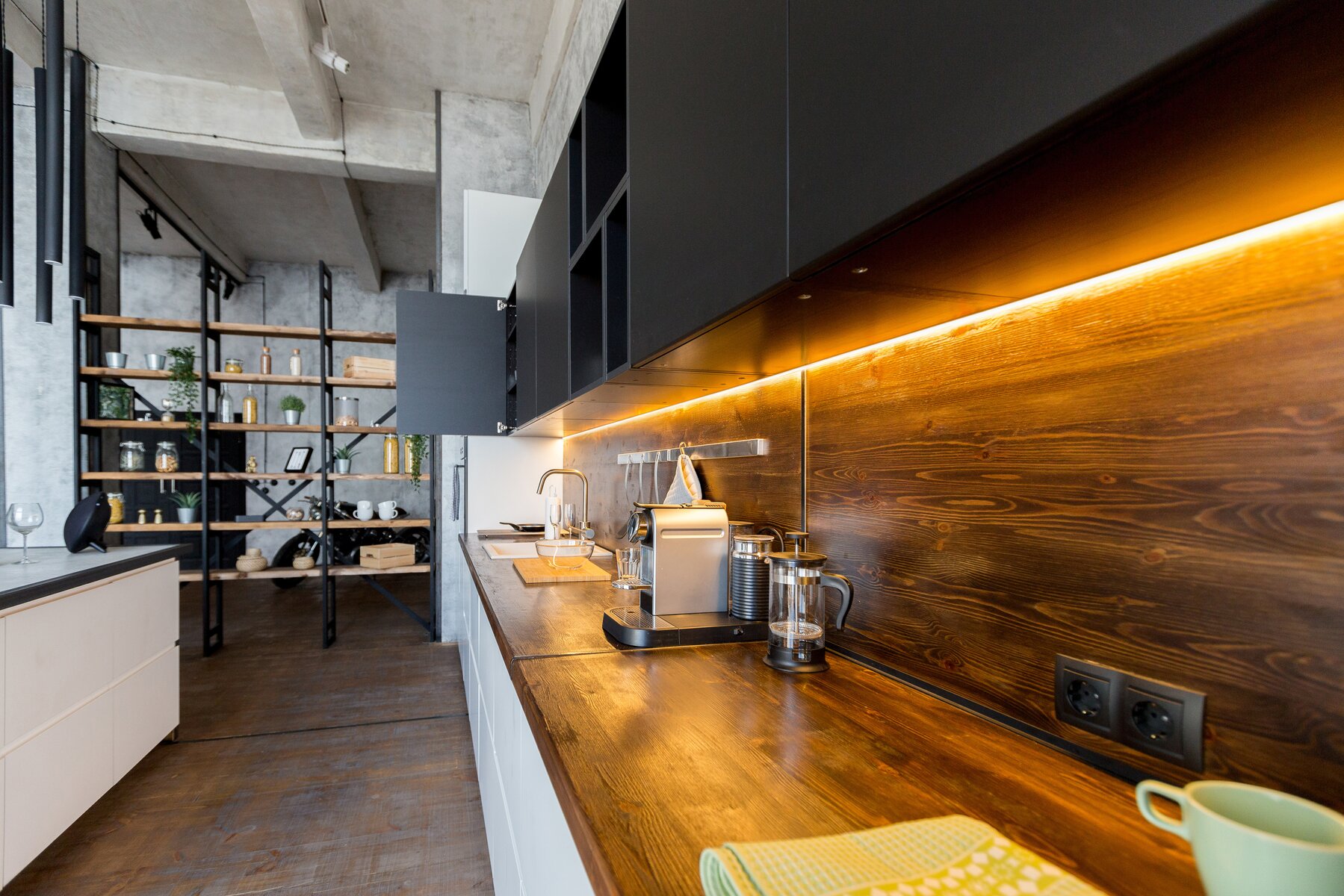

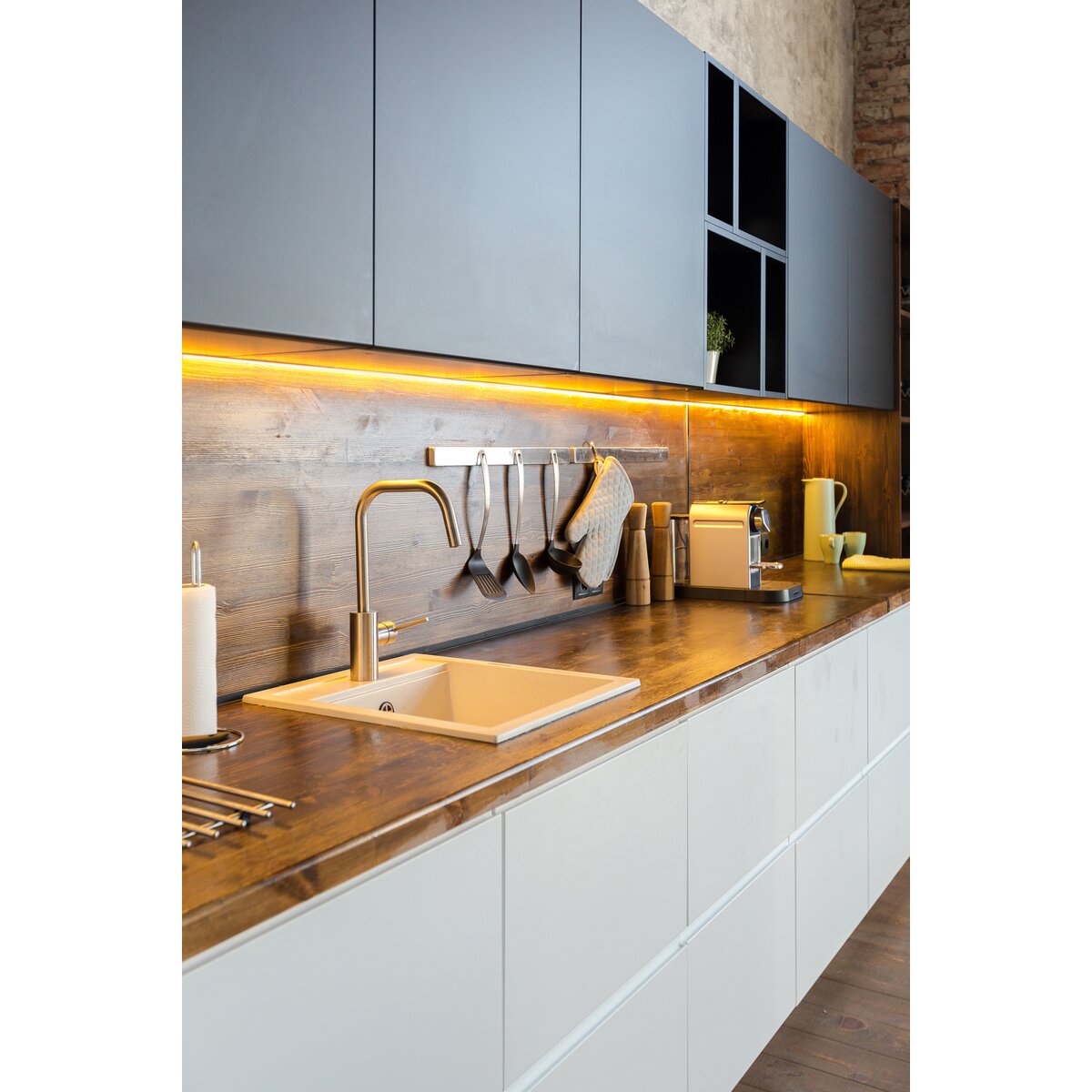

Usage examples

Description
download

Application

- furniture, under-cabinet and decorative lighting

Mounting

- to the surface, using dedicated accessories or mounting adhesive
- easy assembly and disassembly by snapping in and out

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

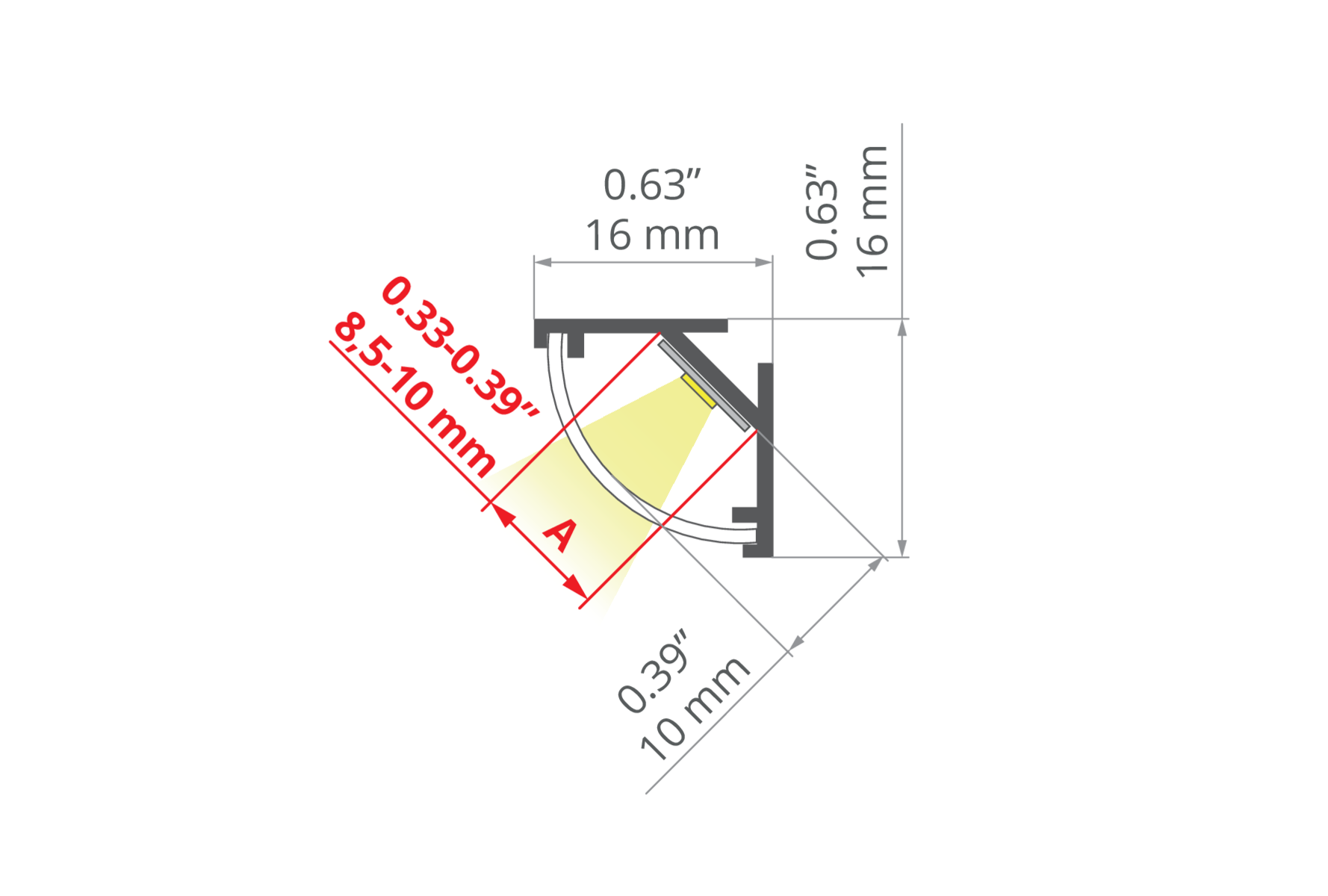

Technical drawing

Technical specification

Finish

anodized

Material

aluminum

Possible fixture IP

Possible fixture shapes

linear

Profile cross-section

angled

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

0.6" (16 mm)

Height

0.6" (16 mm)

LED gluing width A

0.4" (10 mm)

Max. number of LED strips A (0.31" wide)

Lighting at an angle

The cover is cut to the length of the profile

Yes

Under-cabinet lighting

Yes

Wire out end cap

Yes

Wire out back of extrusion

Yes

Possibility of obtaining a line of light

Yes

Building type

Commercial, Residential, Hotel / Restaurant, Retail

Facility zone

kitchen, bathroom, under-cabinet / furniture, exhibition / tradeshow / display

Color	Length	Ref No
silver anodized	78.9" (2005 mm) 118.1" (3000 mm)	A00033A_2 A00033A_3

Line of Light Table for Pixel Free Illumination

LED Tapes		Covers
Categories	LED tape type	KOPROMA-19R Cover frosted
High Efficacy	K-HEHD-0320-24	(1)
	K-HEHD-0480-24	(1)
	K-HEHD-0960-24	(1)
	K-HEHD-1920-24	(1)
CRI 95+	K-HEHD-1440-24-40C	(1)
	K-CRHD-1820-24	(1)
	K-CRHD-1910-24	(1)
	K-CRHD-0530-24	(1)
CRI 90+	K-2400-24	(1)
Single diode cuttable	K-SD-1440-24	(1)
Adjustable White / Dim to Warm	K-SDCR-22T50-1530-24	(1)

Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
KOPROMA-19R Cover	PC		71 %	frosted	B17211F

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
High Efficacy

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0480-24 K-HEHD25-0480-24 K-HEHD27-0480-24 K-HEHD30-0480-24 K-HEHD35-0480-24 K-HEHD40-0480-24 K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0960-24 K-HEHD25-0960-24 K-HEHD27-0960-24 K-HEHD30-0960-24 K-HEHD35-0960-24 K-HEHD40-0960-24 K-HEHD50-0960-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,	20	-	5.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1920-24 K-HEHD25-1920-24 K-HEHD27-1920-24 K-HEHD30-1920-24 K-HEHD35-1920-24 K-HEHD40-1920-24 K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,	20	-	1 W/ft	2700K 3000K 3500K 4000K	- CRI over 95 - High Efficacy	K-HEHD27-0320-24 K-HEHD30-0320-24 K-HEHD35-0320-24 K-HEHD40-0320-24

LED tapes
CRI 95+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2700K	- CRI over 95	K-CR22-1210-24 K-CR27-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1220-24 K-CR25-1220-24 K-CR27-1220-24 K-CR30-1220-24 K-CR35-1220-24 K-CR40-1220-24 K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1275-24 K-CR25-1275-24 K-CR27-1275-24 K-CR30-1275-24 K-CR35-1275-24 K-CR40-1275-24 K-CR50-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,	20	-	5.6 W/ft	2700K	- CRI over 95 - high LED density	K-CRHD27-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,	20	-	2.8 W/ft	2700K 3500K 4000K	- CRI over 95 - high LED density	K-CRHD27-1910-24 K-CRHD35-1910-24 K-CRHD40-1910-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,	20	-	1.6 W/ft	3500K	- CRI over 95	K-CRHD35-0530-24
K-HEHD-1440-24-40C LED tape, 570-667 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- High Efficacy - cold weather -40F	K-HEHD22-1440-24-40C K-HEHD25-1440-24-40C K-HEHD27-1440-24-40C K-HEHD30-1440-24-40C K-HEHD35-1440-24-40C K-HEHD40-1440-24-40C K-HEHD50-1440-24-40C

LED tapes
CRI 90+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20	20	-	7.3 W/ft	2700K 3000K 3500K 4000K 5000K	- high power	K-27-2400-24 K-30-2400-24 K-35-2400-24 K-40-2400-24 K-50-2400-24

LED tapes
RGB / RGB-W / RGB-CTT

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-120-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,	65	silicon sleeve	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1920-120-24

LED tapes
Adjustable White / Dim to Warm

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-27/65-1920-24V LED tape, 2700K, 500 lm/ft, 5.9 W/ft, IP20	20	-	5.9 W/ft	2700K	- Tuneable white 2600K-6500K	K-27/65-1920-24
K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-24
K-30/18-1770-010V-24V LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-010V-24V
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20	20	-	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65	65	silicon sleeve	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-SDCR-22T50-1530-24

LED tapes
Single diode cuttable

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,	20	-	4.4 W/ft	2700K 3000K 3500K 4000K		K-SD27-1440-24 K-SD30-1440-24 K-SD35-1440-24 K-SD40-1440-24

Accessories
End caps
Standard end caps

Product name	Material	Color	Ref No
KOPROMA-R End cap	ASA	gray	C28301C02

Accessories
Mounting accessories
Mounting brackets

Product name	Key features	Material	Color	Ref No
KOPROMA Mounting bracket		stainless steel	colorless	C24660N00

Electronics
Switches

Product name	IP rating	Key features	Ref No(Ref. arch.)
UNI Proximity switch	20	- touchless switch - width only 7mm	E61579

Accessories
Masking covers and inserts
Technical and protective Inserts

Product name	Material	Color	Ref No
Base MW 11x5	aluminum	silver	C24511A
