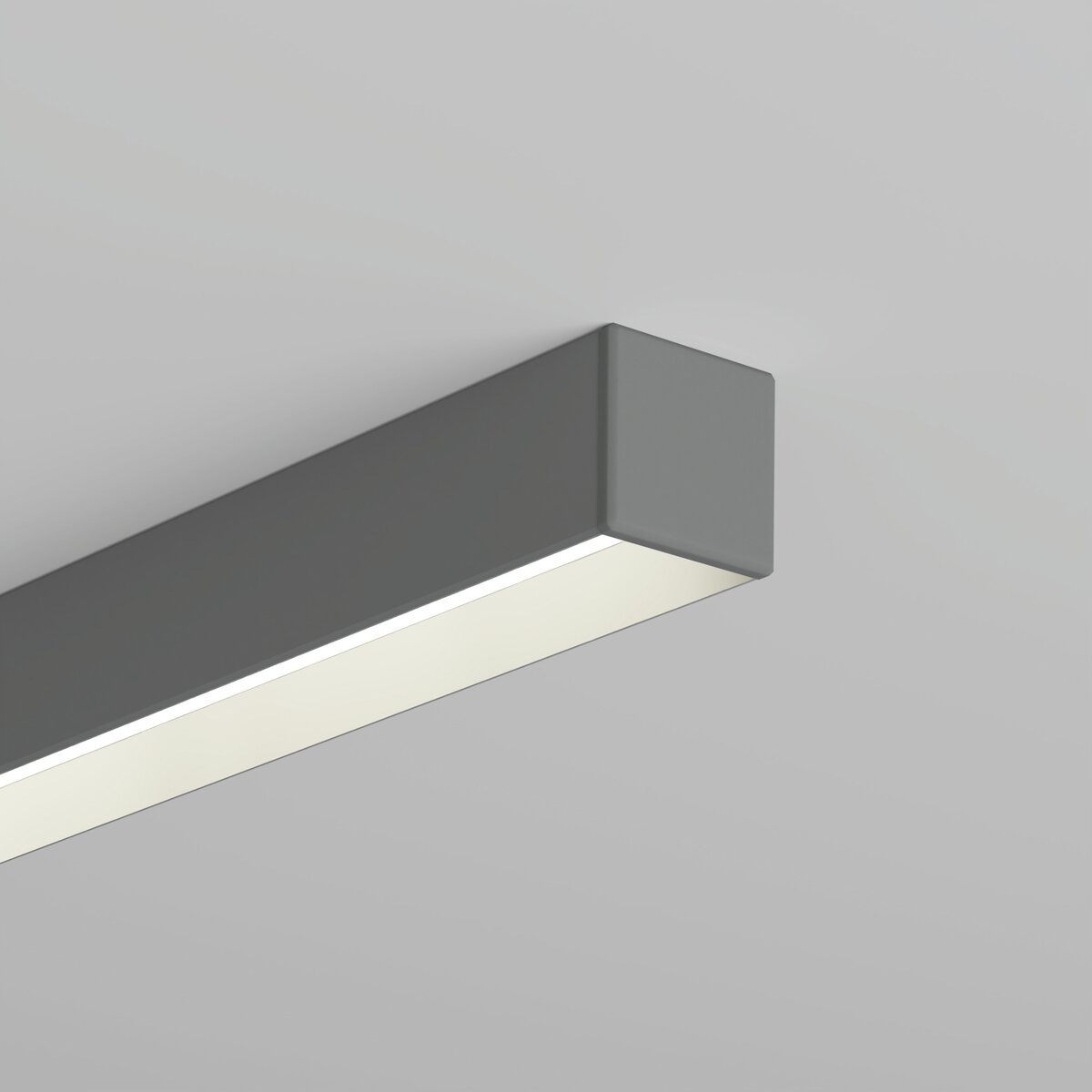

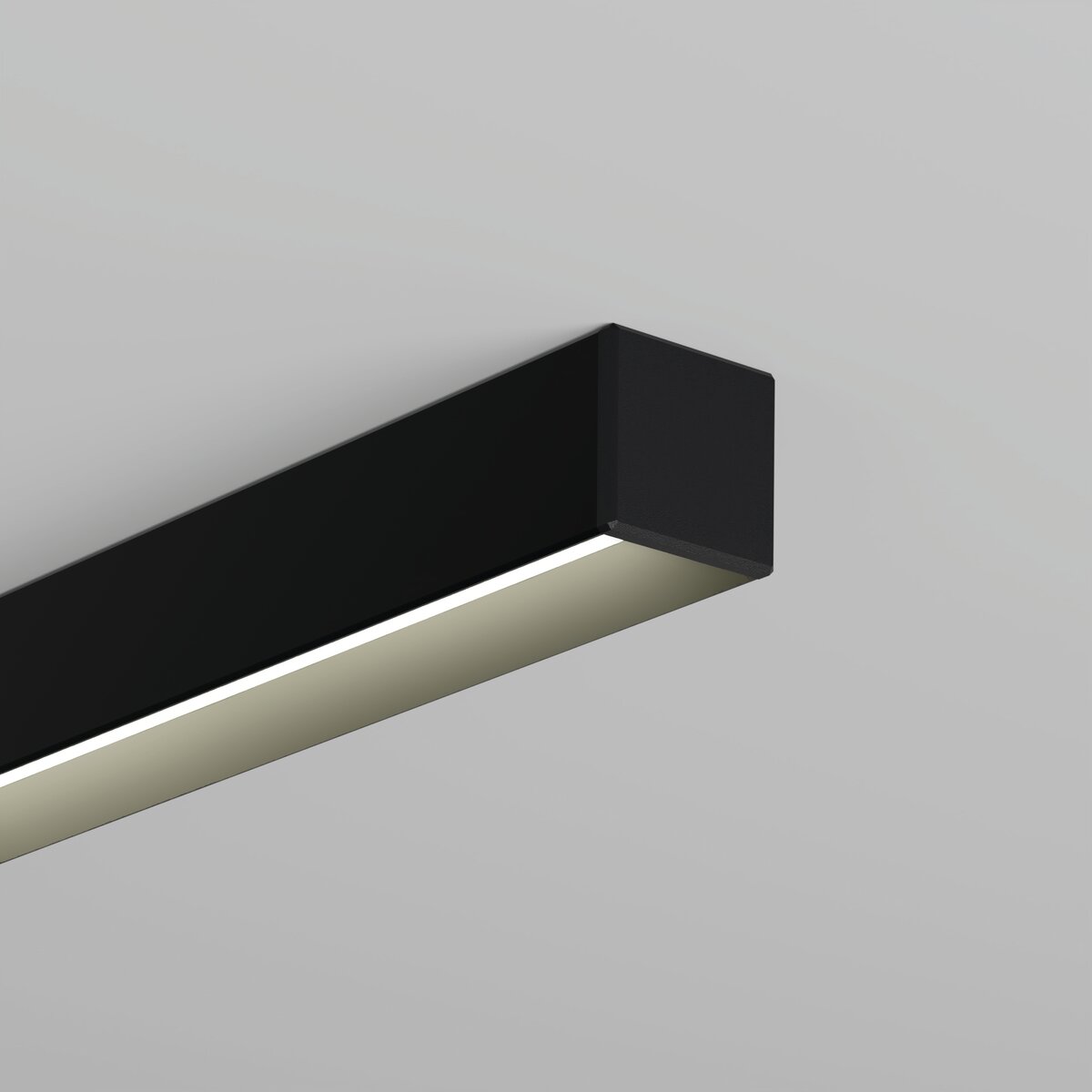

MICRO-HG Extrusion (A01419)

Compare

Compared

Hidden light source
Invisible mounting bracket
Smooth extrusions walls

With the possibility of sealing up to IP20

Configure

WATCH INSTRUCTIONAL VIDEO

Color

Description

Hidden light source
Invisible mounting bracket
Smooth extrusions walls

Application

- furniture and decorative lighting

Mounting

- to the surface or suspended, using dedicated accessories
- easy assembly and disassembly by snapping in and out

Additional information

- the installation of the cover in the recess reduces the effect of glare
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

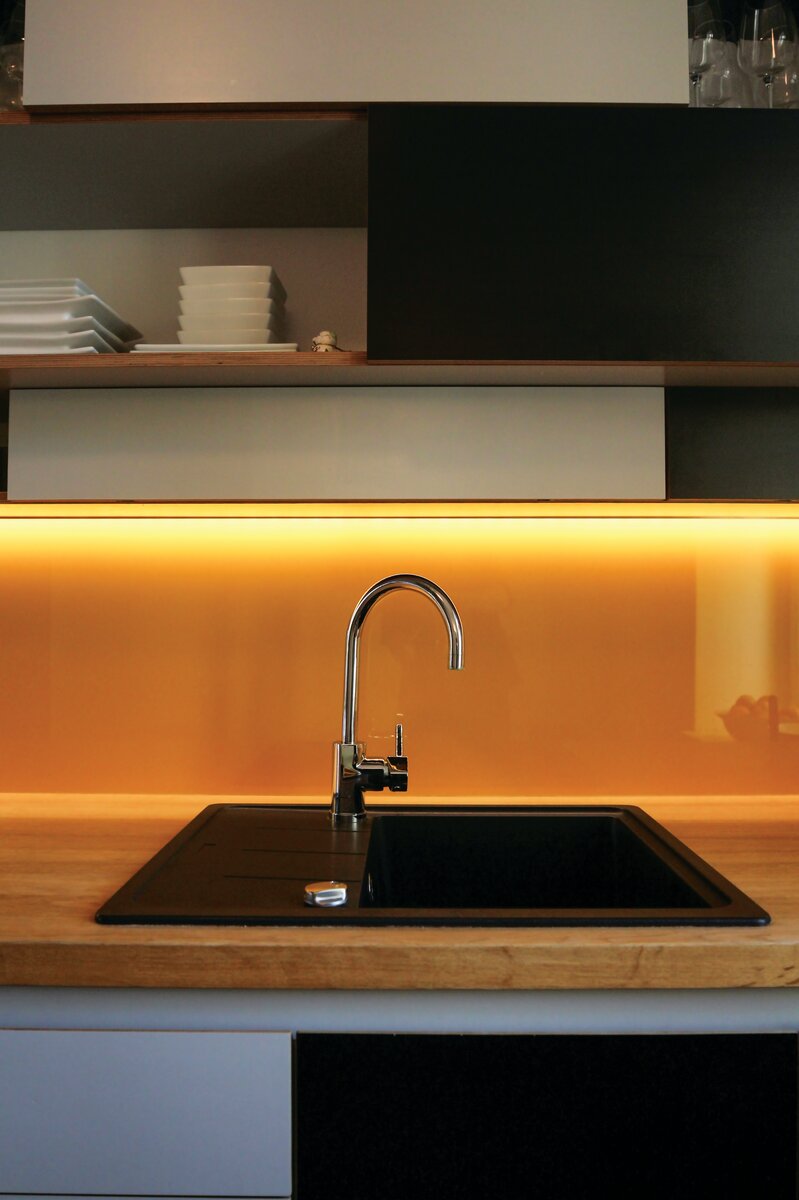

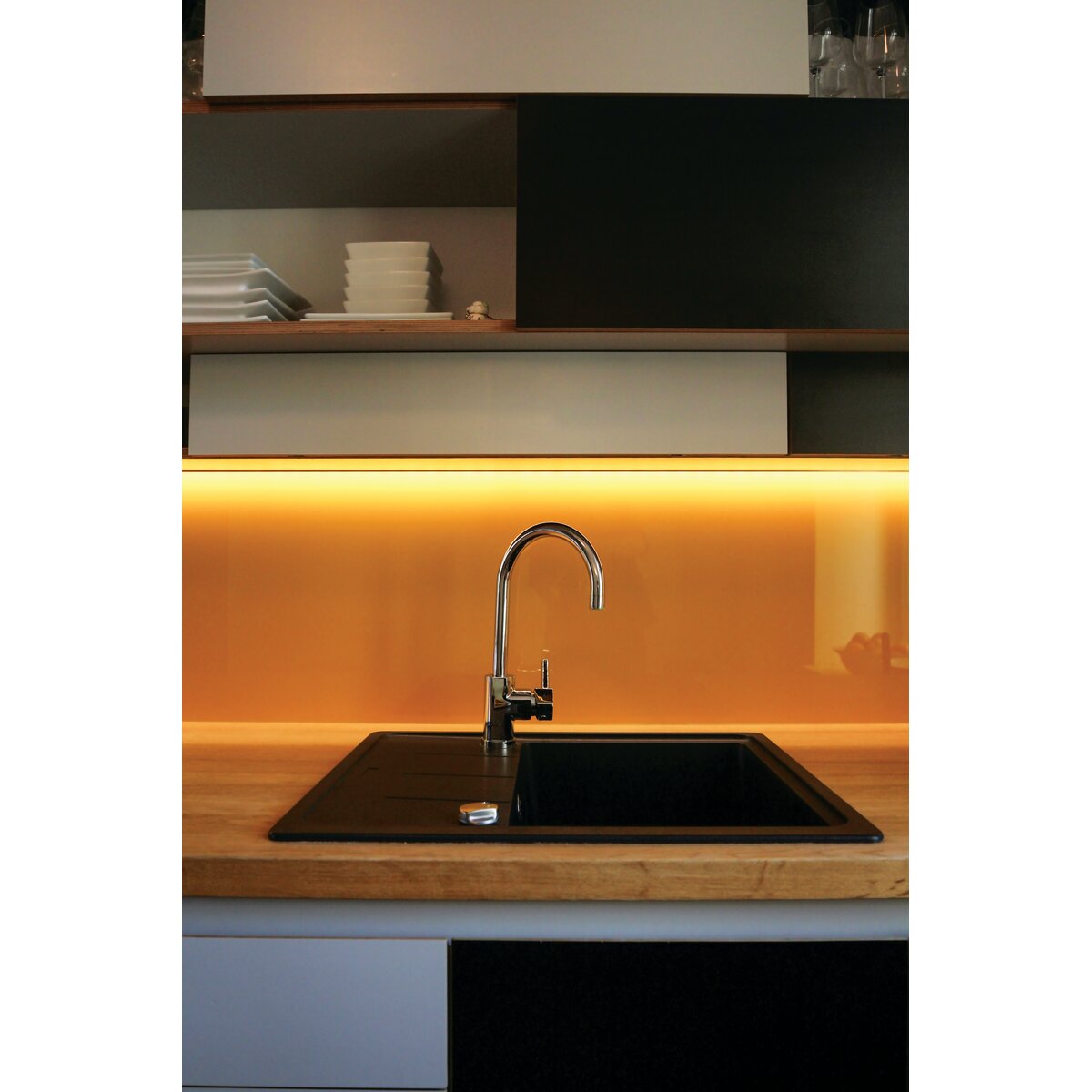

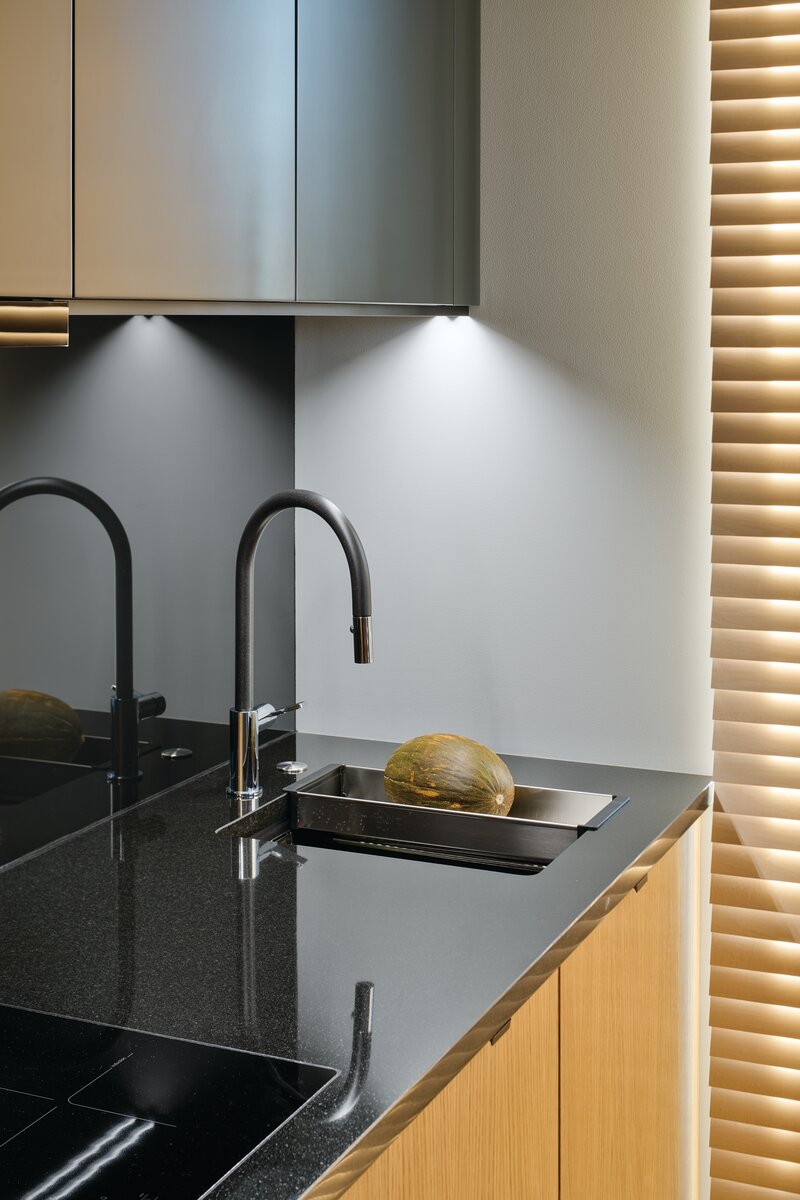

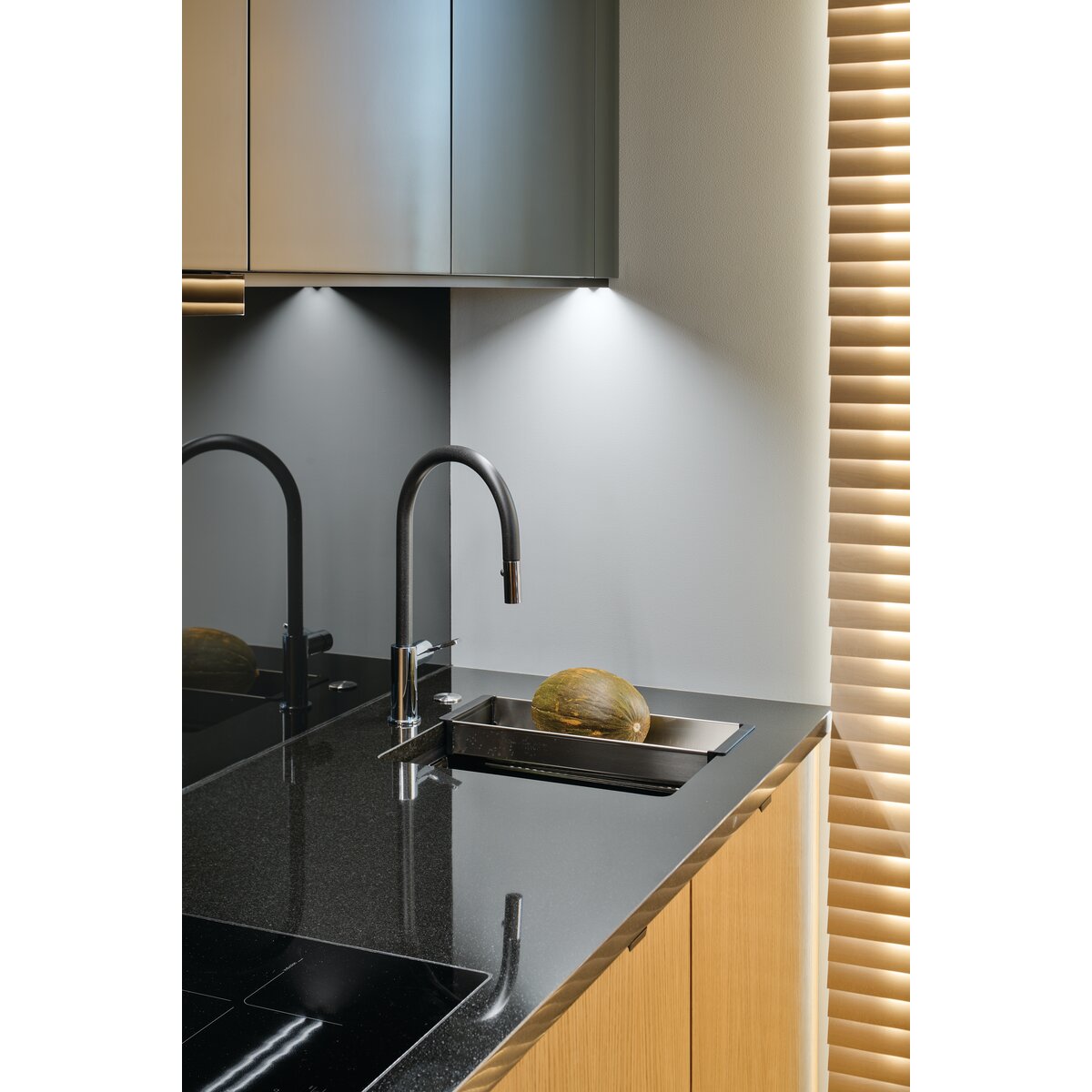

Usage examples

Description
download

Application

- furniture and decorative lighting

Mounting

- to the surface or suspended, using dedicated accessories
- easy assembly and disassembly by snapping in and out

Additional information

- the installation of the cover in the recess reduces the effect of glare
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

Declaration of Conformity UKCA

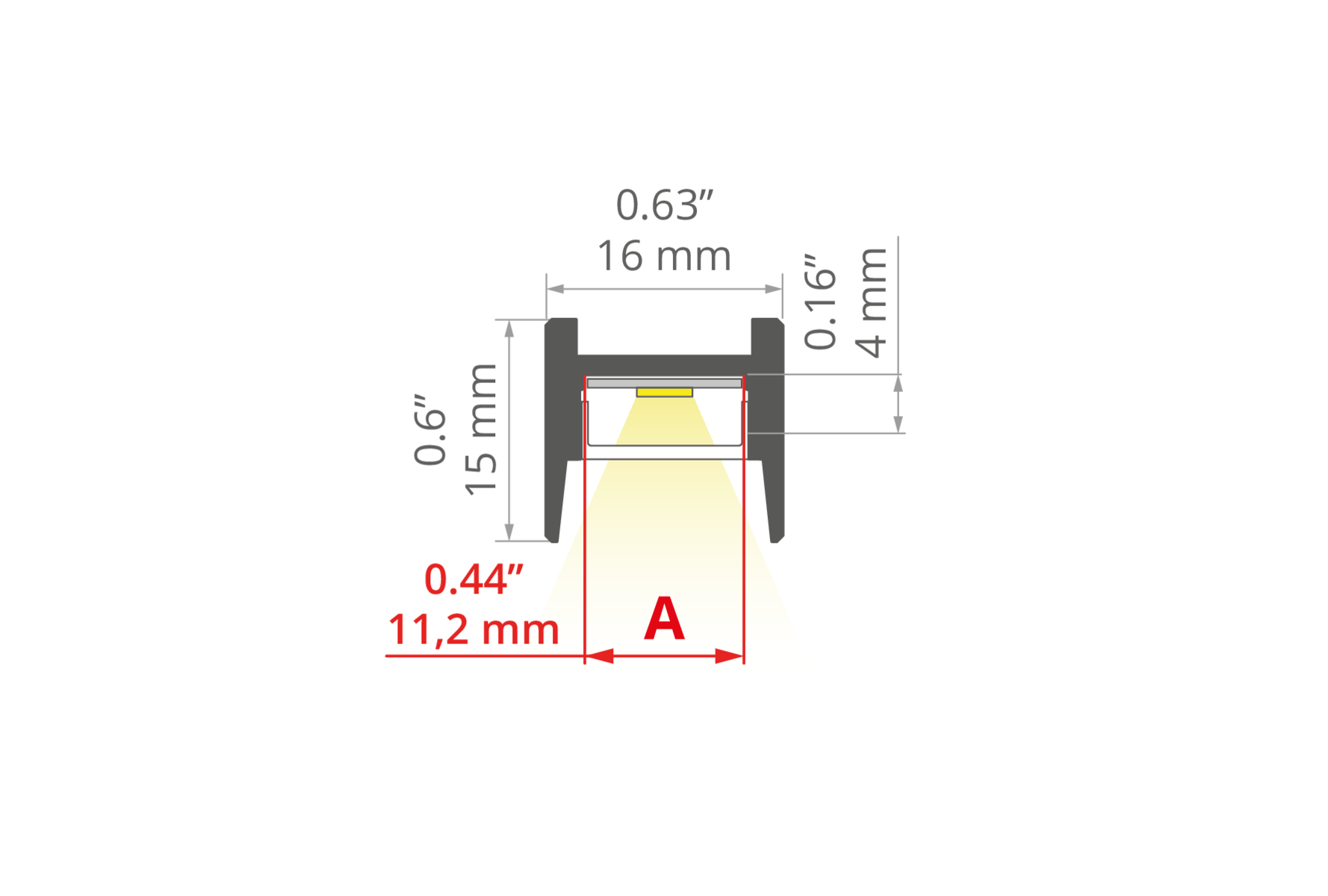

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

Possible fixture shapes

linear

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

0.6" (16 mm)

Height

0.6" (15 mm)

LED gluing width A

0.4" (11.2 mm)

Max. number of LED strips A (0.31" wide)

Wire out back of extrusion

Yes

Building type

Commercial, Residential, Hotel / Restaurant, Entertainment/ Arts

Facility zone

kitchen, bathroom, under-cabinet / furniture, office, media rooms / av

Color	Length	Ref No
silver anodized	39.4" (1000 mm) 78.9" (2005 mm)	A01419A_1 A01419A_2
black anodized	39.4" (1000 mm) 78.9" (2005 mm)	A01419A07_1 A01419A07_2
