Note: Archival product

MICRO-K Extrusion

Ref No: A03775

We offer the following substitutes:

MICRO-NK Extrusion
MICRO-K Extrusion
MICRO-K Extrusion
  • Invisible groove edge
  • Wide range of accessories
  • Minimum height
  • Small bending radius
Recessed
Possibility of bending
With the possibility of sealing up to IP20
With the possibility of sealing up to IP67
CE Certificate
UKCA Certificate
RoHS Certificate
Color
silver
  • Invisible groove edge
  • Wide range of accessories
  • Minimum height
  • Small bending radius
Application
  • - furniture and decorative lighting
Mounting
  • - recessed, with mounting adhesive or double-sided adhesive tape

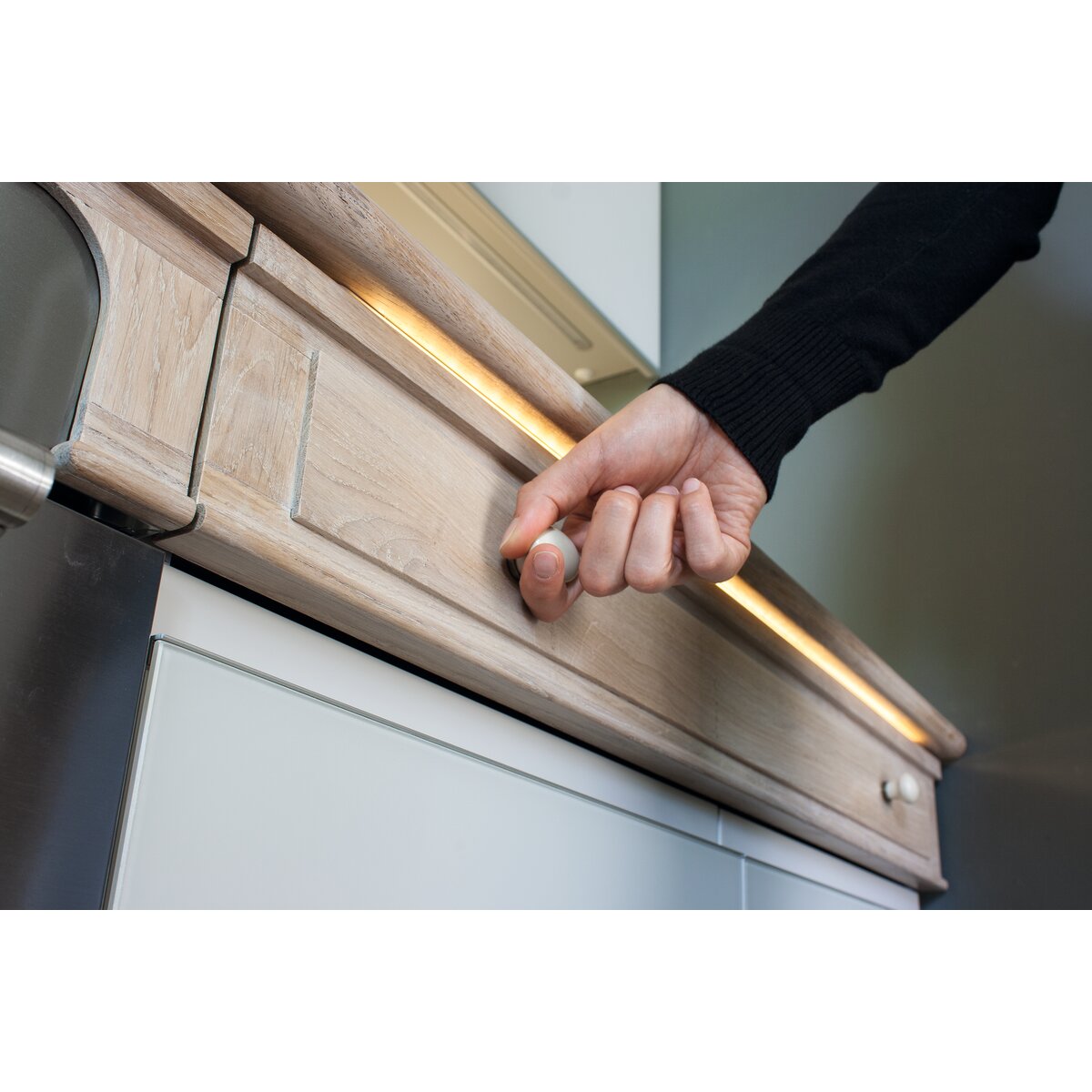

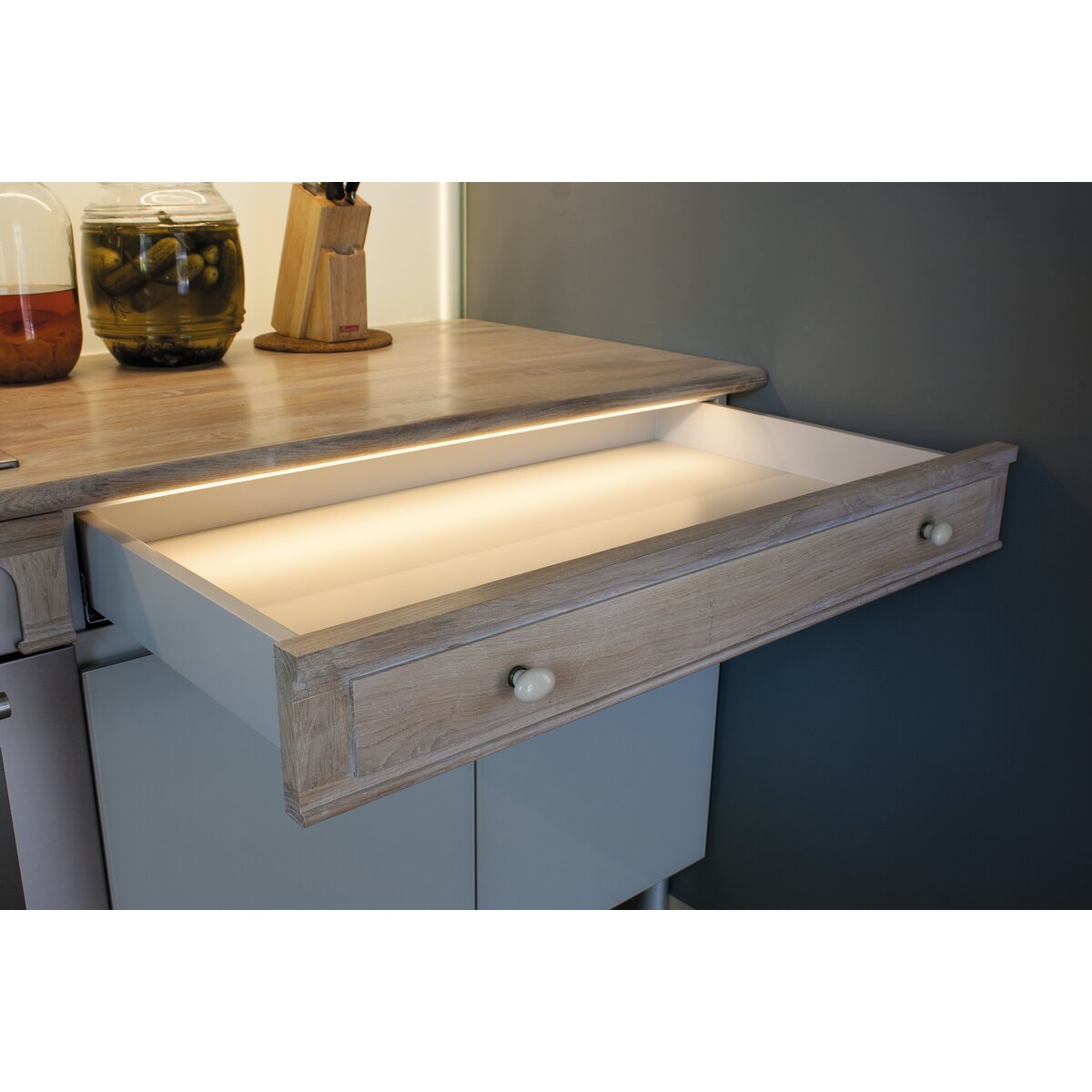

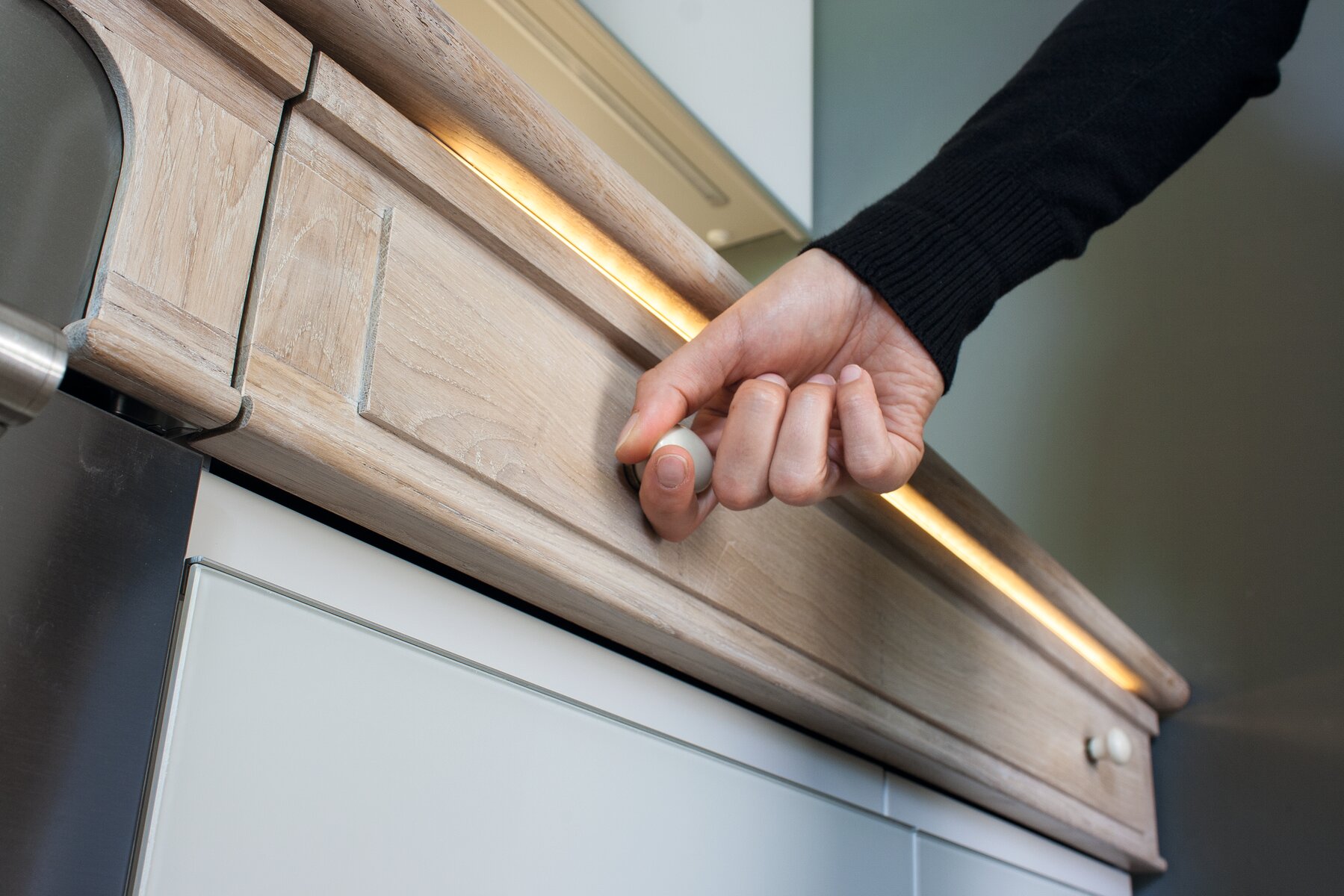

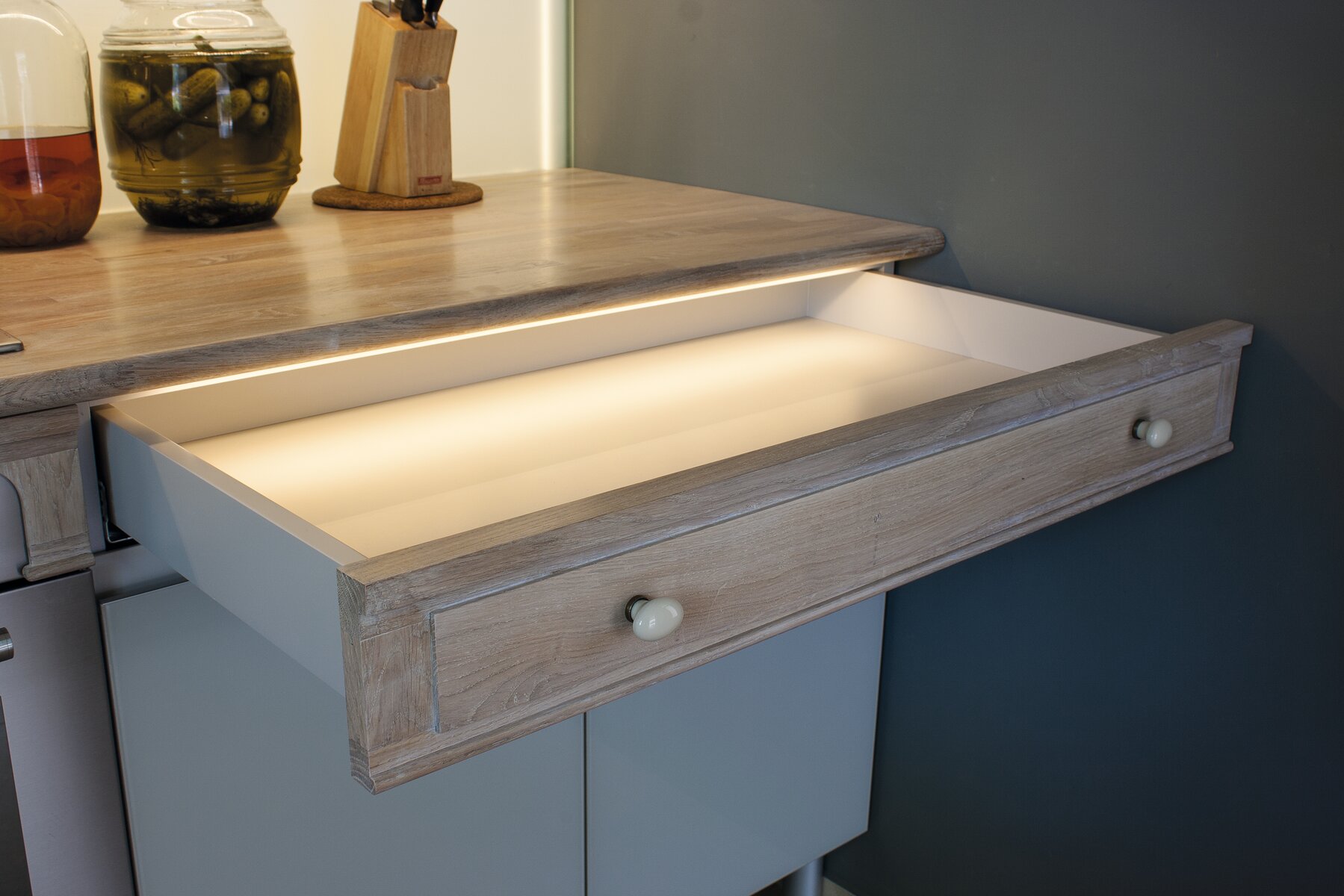

Usage examples

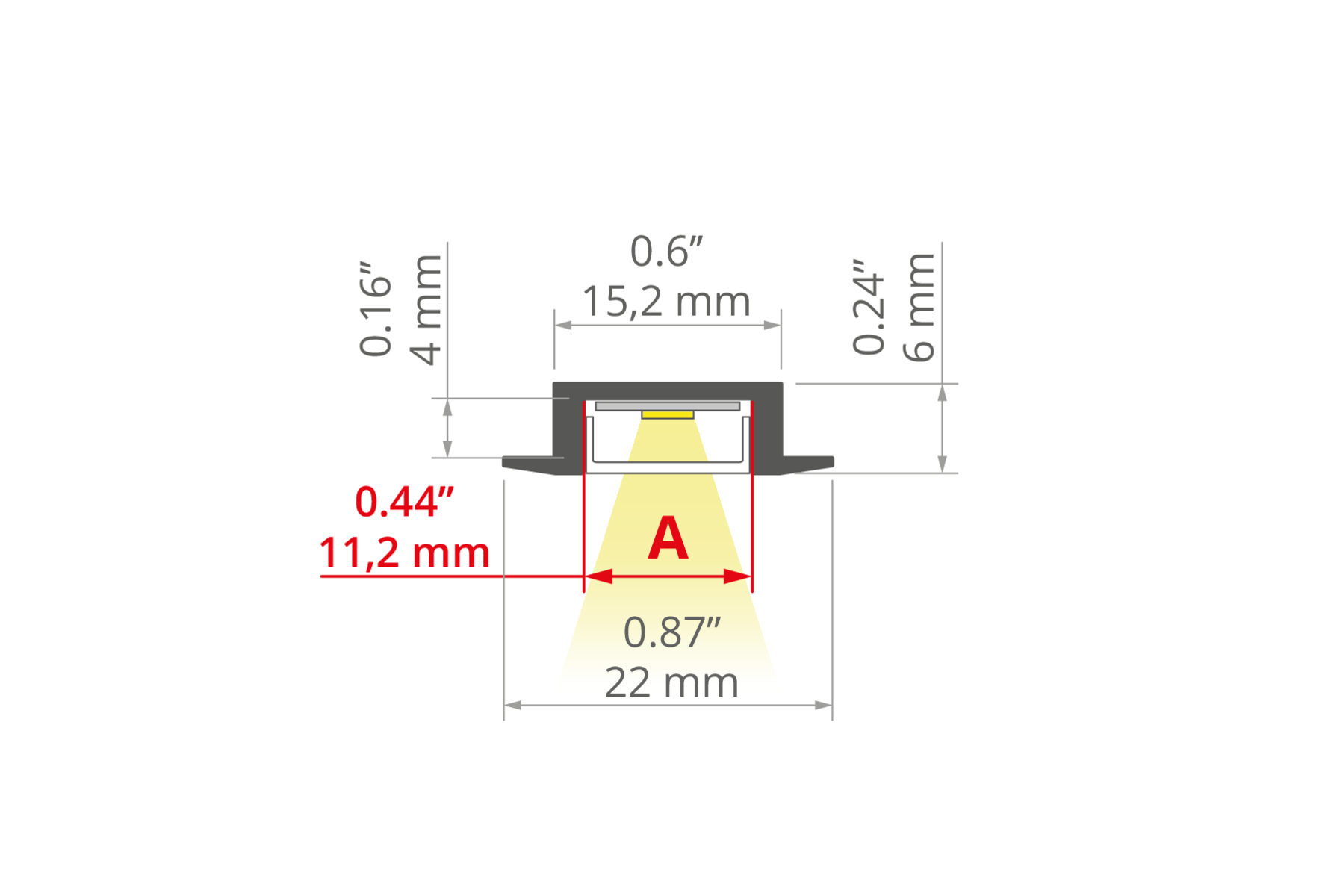

Technical drawing
MICRO-K Extrusion aluminum Technical drawing - A03775
Technical specification
Material
aluminum
Possible fixture IP
20, 67
Possible fixture shapes
linear, round
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
7.3 W/ft
Width
0.9" (22 mm)
Height
0.2" (6 mm)
LED gluing width A
0.4" (11.2 mm)
Max. number of LED strips A (0.31" wide)
1
Wire out end cap
Yes
Wire out back of extrusion
Yes
Possibility of bending
Yes
Minimum radius of the light arc
Radius of the light arc
Yes
Inside
150 mm
Outward
150 mm
Building type
Commercial, Residential, Hotel / Restaurant, Entertainment/ Arts
Facility zone
kitchen, bathroom, under-cabinet / furniture, exhibition / tradeshow / display, cove / perimeter
Color Length Ref No
silver anodized
39.4" (1000 mm)
78.9" (2005 mm)
118.5" (3010 mm)
A03775A_1
A03775A_2
A03775A_3
Related extrusions
MICRO-ALU
Ref No: A01888
Related products
Product name Material Key features Light transmittance [%] Color Ref No
HS-11 Cover
PC - For indoor and outdoor applications
- UV resistant
- hight durability
B17208
KA-11 Cover
PC - maximum brightness
- indoor use
- basic
- universal
B17064
LIGER-11 Cover
PC - hight light quality
- Ease of obtaining a line of light
- perfectly diffusing
- For indoor and outdoor applications
B17037
No results found for the selected filters.
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,
20 - 1.5 W/ft - - CRI over 95
- High Efficacy
K-HEHD-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,
20 - 2.9 W/ft - - CRI over 95
- High Efficacy
K-HEHD-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,
20 - 4.4 W/ft - - CRI over 95
- High Efficacy
K-HEHD-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,
20 - 5.9 W/ft - - CRI over 95
- High Efficacy
K-HEHD-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,
20 - 1 W/ft - - CRI over 95
- High Efficacy
K-HEHD-0320-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,
20 - 1.5 W/ft
2500K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR25-1210-24
K-CR30-1210-24
K-CR35-1210-24
K-CR40-1210-24
K-CR50-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,
20 - 2.9 W/ft - - CRI over 95
K-CR-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,
20 - 4.4 W/ft - - CRI over 95
K-CR-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,
20 - 5.6 W/ft
2200K
2500K
3000K
3500K
4000K
5000K
- CRI over 95
- high LED density
K-CRHD22-1820-24
K-CRHD25-1820-24
K-CRHD30-1820-24
K-CRHD35-1820-24
K-CRHD40-1820-24
K-CRHD50-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,
20 - 2.8 W/ft
2200K
2500K
3000K
5000K
- CRI over 95
- high LED density
K-CRHD22-1910-24
K-CRHD25-1910-24
K-CRHD30-1910-24
K-CRHD50-1910-24
KWP-CR-1220-24 LED tape, 151-227 lm/ft, IP65,
65 silicon sleeve 2.9 W/ft - - CRI over 95
KWP-CR-1220-24
KWP-CR-1275-24 LED tape, 381-464 lm/ft, IP65,
65 silicon sleeve 4.4 W/ft - - CRI over 95
KWP-CR-1275-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,
20 - 1.6 W/ft
2200K
2500K
2700K
3000K
4000K
5000K
- CRI over 95
K-CRHD22-0530-24
K-CRHD25-0530-24
K-CRHD27-0530-24
K-CRHD30-0530-24
K-CRHD40-0530-24
K-CRHD50-0530-24
K-HEHD-1440-24-40C LED tape, 570-667 lm/ft, IP20,
20 - 4.4 W/ft - - High Efficacy
- cold weather -40F
K-HEHD-1440-24-40C
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20
20 - 7.3 W/ft - - high power
K-2400-24
KWP-GHD-1640-24 LED tape, 364-503 lm/ft, IP65,
65 gel cover 5 W/ft - - high LED density
KWP-GHD-1640-24
KWP-GHD-1910-24 LED tape, 227-279 lm/ft, IP65,
65 gel cover 2.8 W/ft
2500K
5000K
- high LED density
KWP-GHD25-1910-24
KWP-GHD50-1910-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-120-24
KWP-GRGBW-1530-24 LED tape, 3000K, 193 lm/ft, 4.7 W/ft, IP65
65 gel cover 4.7 W/ft
RGB+W
3000K
- RGBW (3000K)
KWP-GRGBW-1530-24
KWP-RGB-1920-24 LED tape, 187 lm/ft, 5.9 W/ft, IP65
65 silicon sleeve 5.9 W/ft
RGB
- RGB
KWP-RGB-1920-24
LED tape KWP-RGB-1200-24, 23 lm/m, 3.7 W/m, IP65
65 silicon sleeve 3.7 W/ft
RGB
- RGB
KWP-RGB-1200-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,
65 silicon sleeve 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
KWP-GRGBW-1920-120-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-27/65-1920-24V LED tape, 2700K, 500 lm/ft, 5.9 W/ft, IP20
20 - 5.9 W/ft
2700K
- Tuneable white 2600K-6500K
K-27/65-1920-24
K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20
20 - 3.5 W/ft
1800K
K-30/18-1770-24
KWP-27/65-1920-24 LED tape, 2700K, 246 lm/ft, 5.9 W/ft, IP65
65 silicon sleeve 5.9 W/ft
2700K
- Tuneable white 2600K-6500K
KWP-27/65-1920-24
KWP-G22/50-1728-24 LED tape, 2200K, 467 lm/ft, 5.3 W/ft, IP65
65 gel cover 5.3 W/ft
2200K
- Tuneable white 2200K-5000K
KWP-G22/50-1728-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-VBT-0720-24 LED tape, 323-338 lm/ft, IP20,
20 - 2.2 W/ft - - LED tape for bent profiles
K-VBT-0720-24
K-BT-0910-24 LED tape, 237-282 lm/ft, IP20,
20 - 2.8 W/ft - - LED tape for bent profiles
K-BT-0910-24
No results found for the selected filters.
Product name IP rating Key features Ref No(Ref. arch.)
Switch MICRO 96W IP20
20 - push button switch
- factory pre-soldered wires
1576
No results found for the selected filters.
Product name Material Color Ref No
Gland 19x1,6
C24519C07
Gland 6x1,2
C24517C07
Gland M8x1
C42265N00
Gland 8x1,6
C42290C07
No results found for the selected filters.
