Note: Archival product

OPK-4 Extrusion

Ref No: A00370
OPK-4 Extrusion
OPK-4 Extrusion
OPK-4 Extrusion
OPK-4 Extrusion
OPK-4 Extrusion
  • Wide range of accessories
  • Easy maintenance
  • Small bending radius
  • Possibility of bending in the light plane

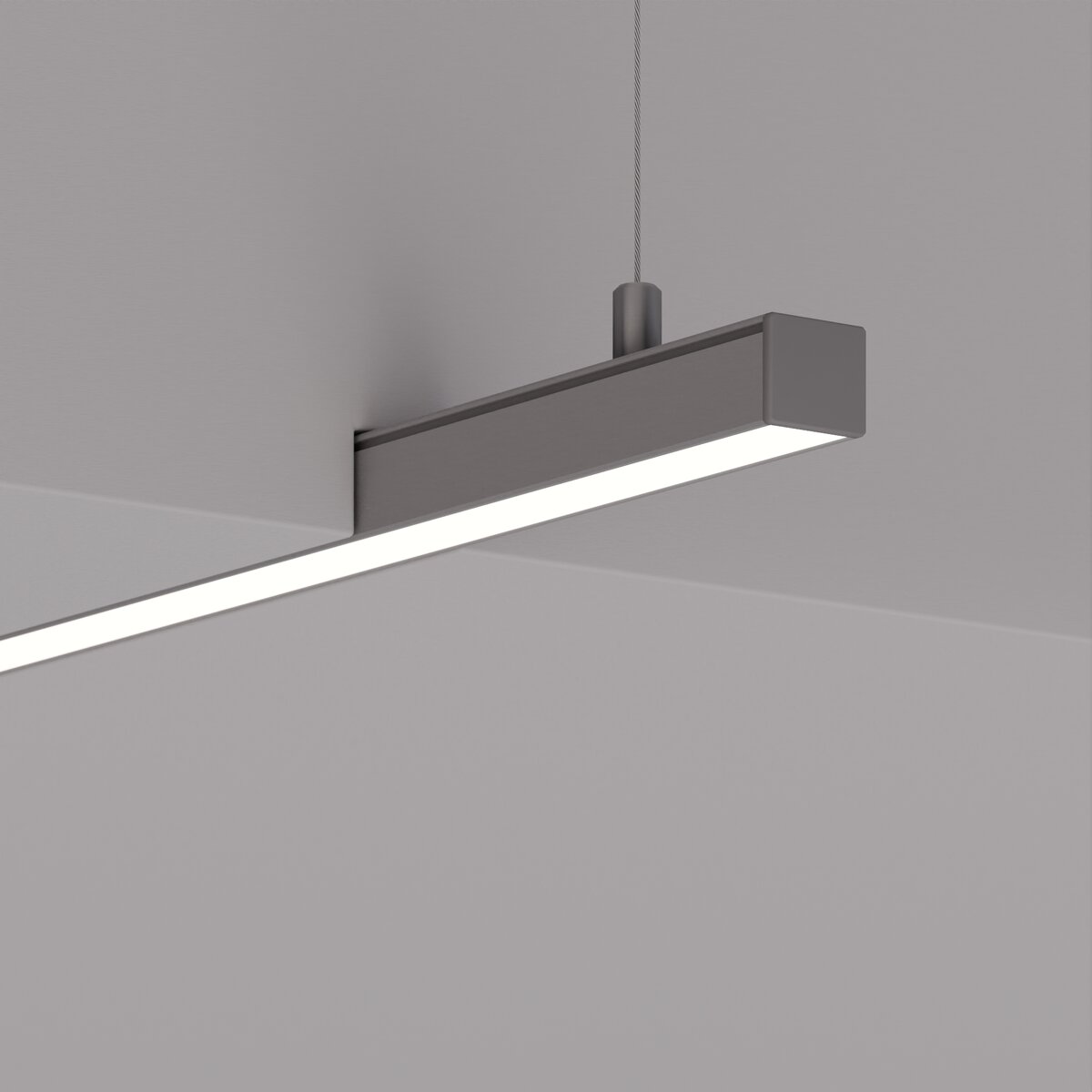

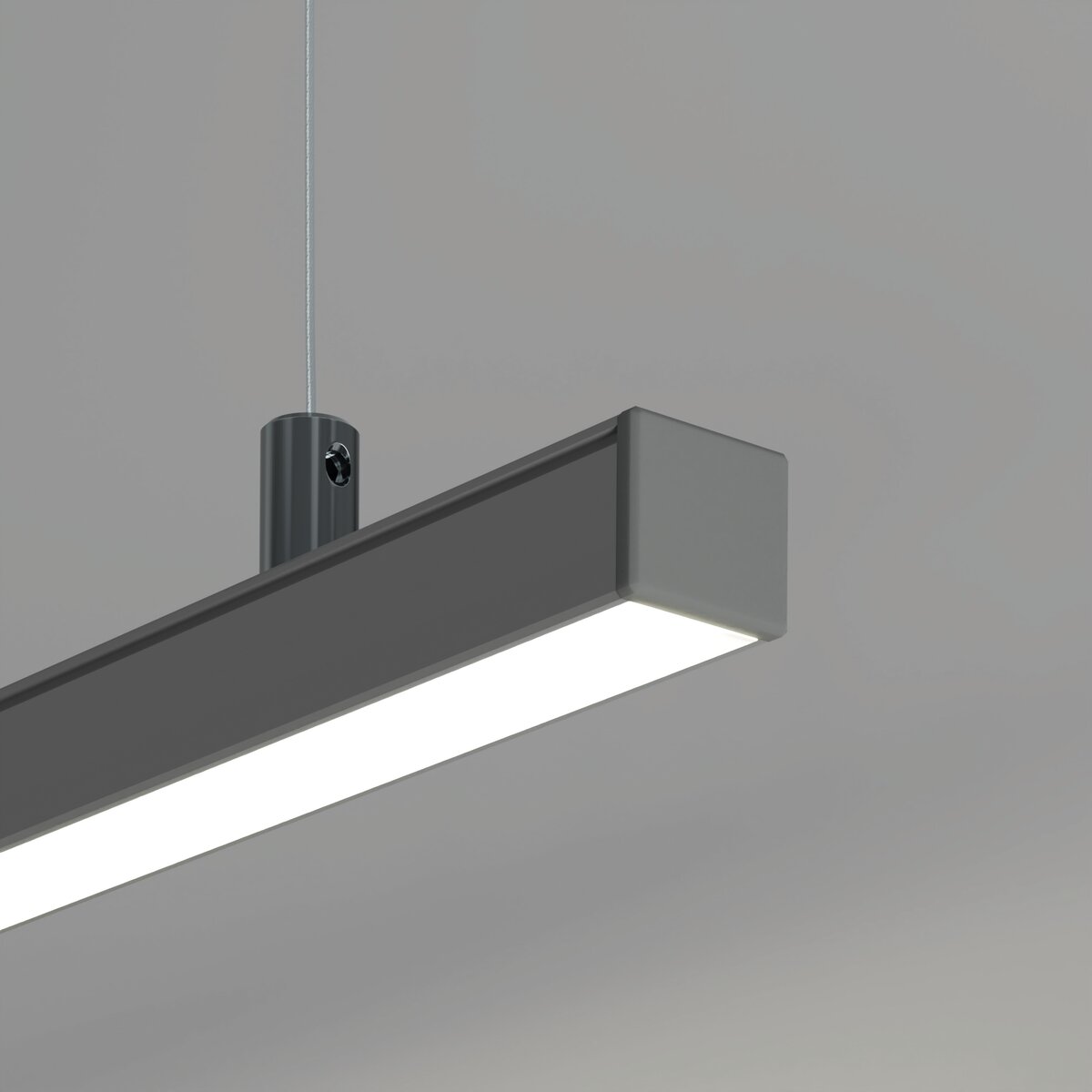

Suspended

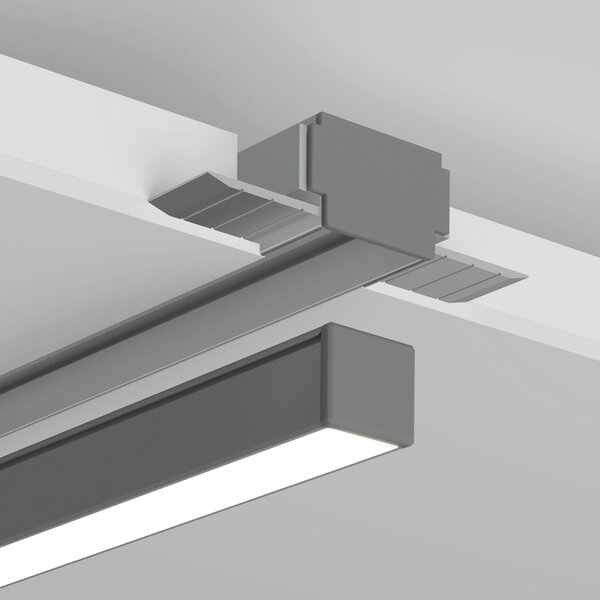

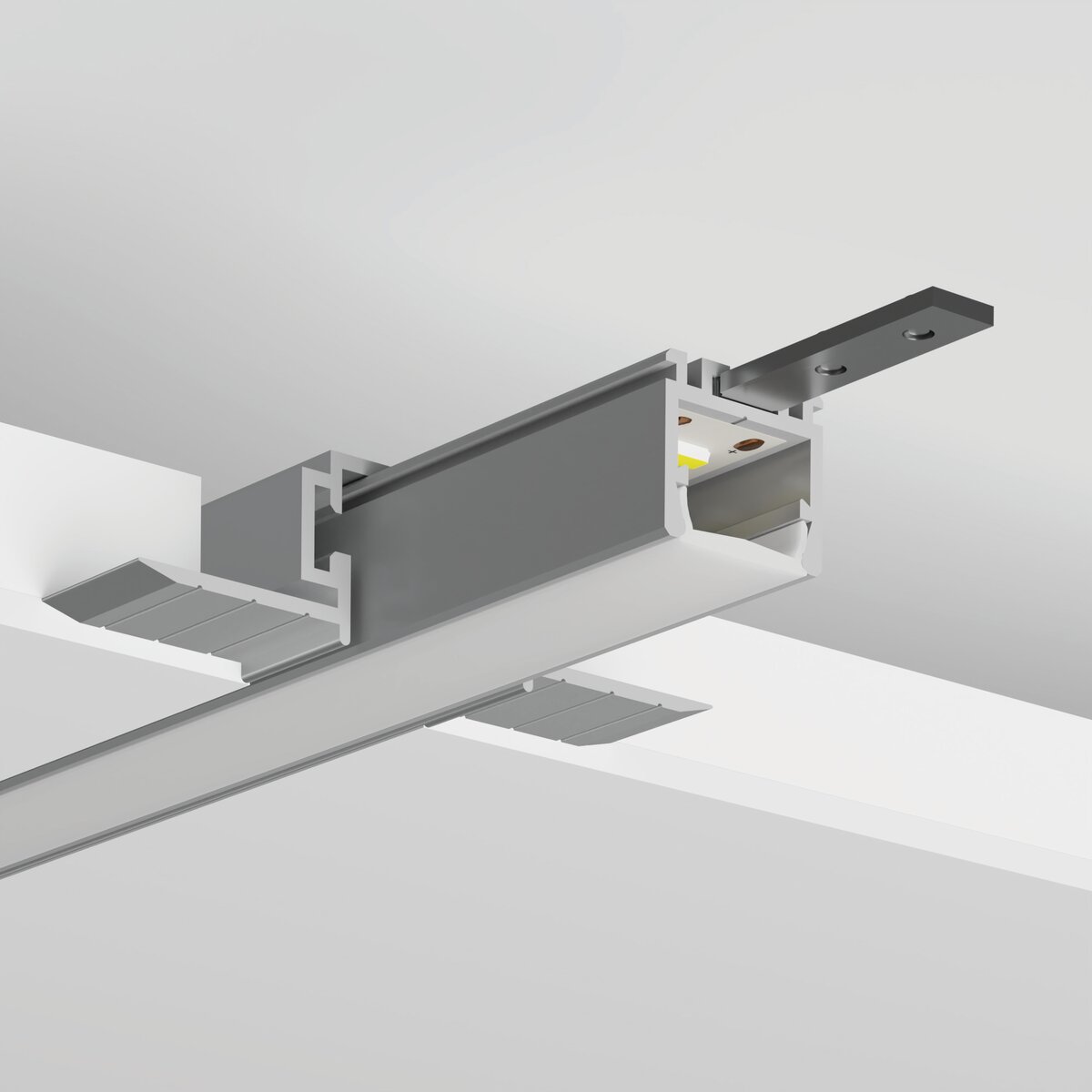

Recessed with suspension function
Possibility of bending
With the possibility of sealing up to IP20
With the possibility of sealing up to IP67
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Color
silver
  • Wide range of accessories
  • Easy maintenance
  • Small bending radius
  • Possibility of bending in the light plane
Application
  • - main and decorative lighting
Mounting
  • - recessed, using a dedicated mounting track
Additional information
  • - disassembly from the mounting track using special plates
  • - smooth transition from a recessed into a suspended fixture
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

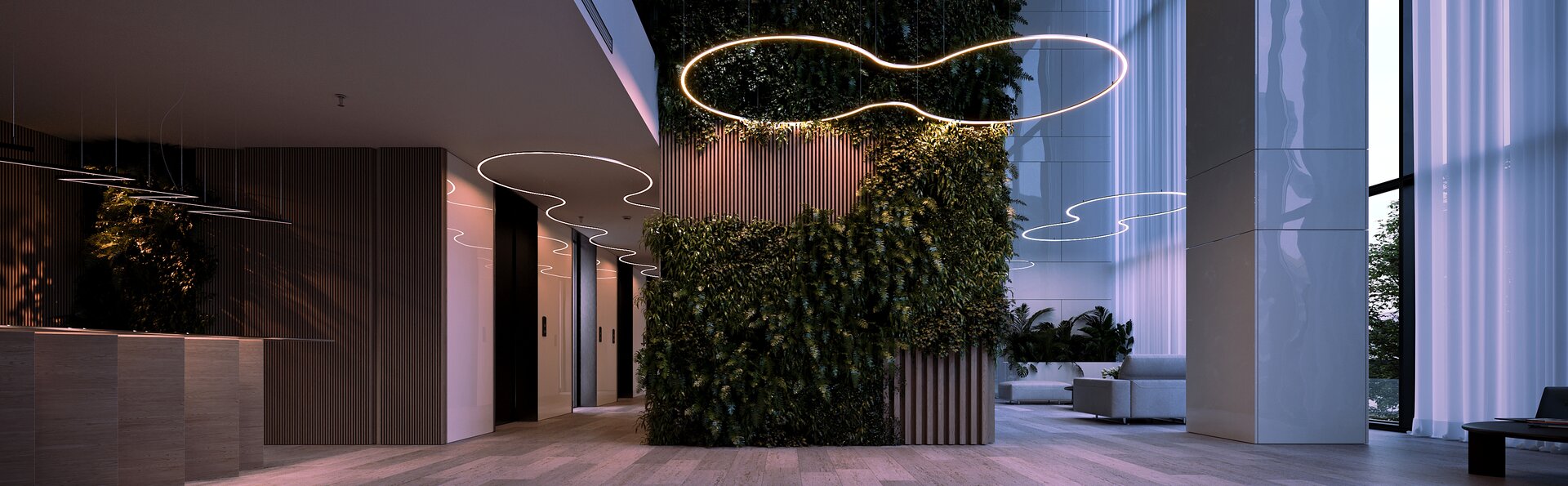

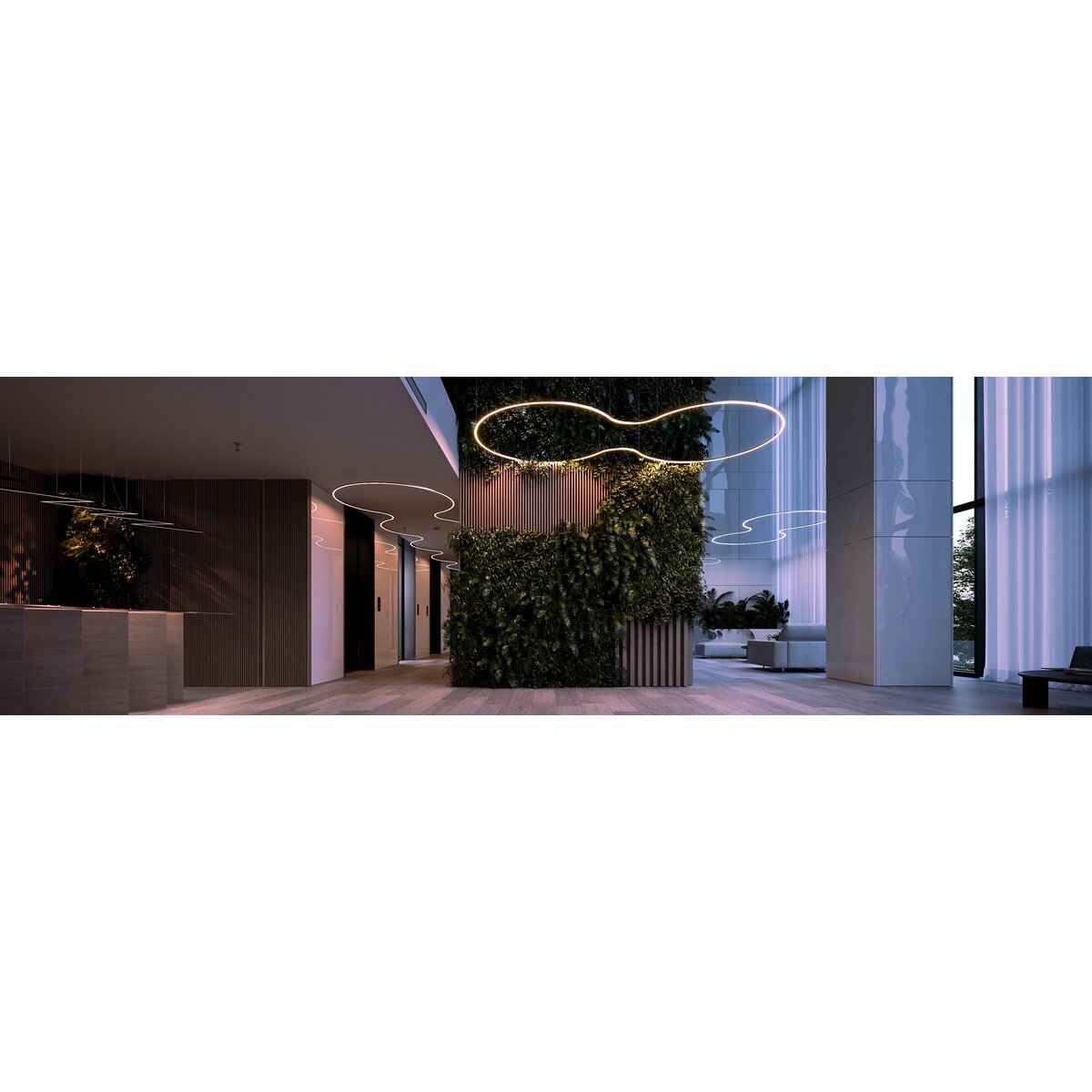

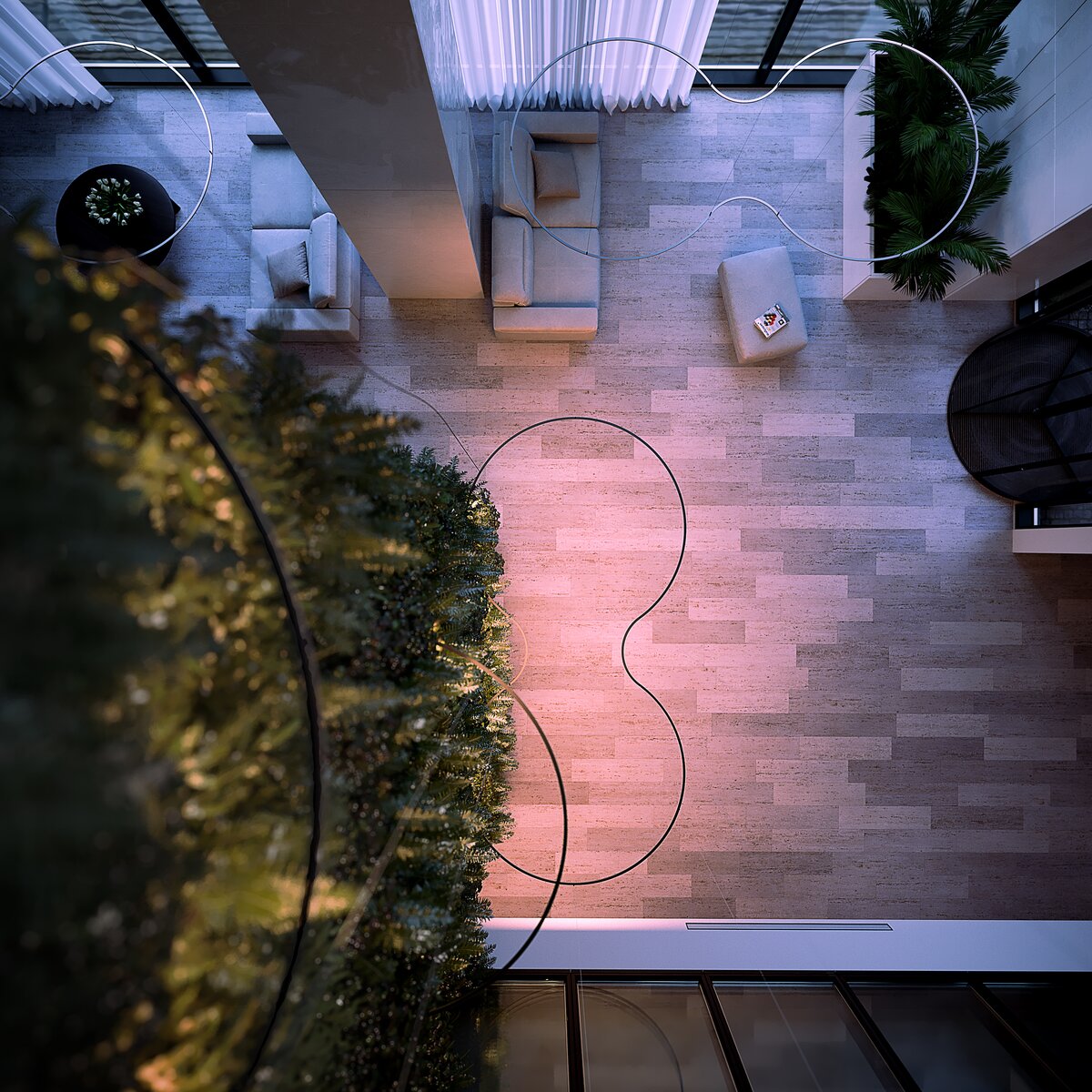

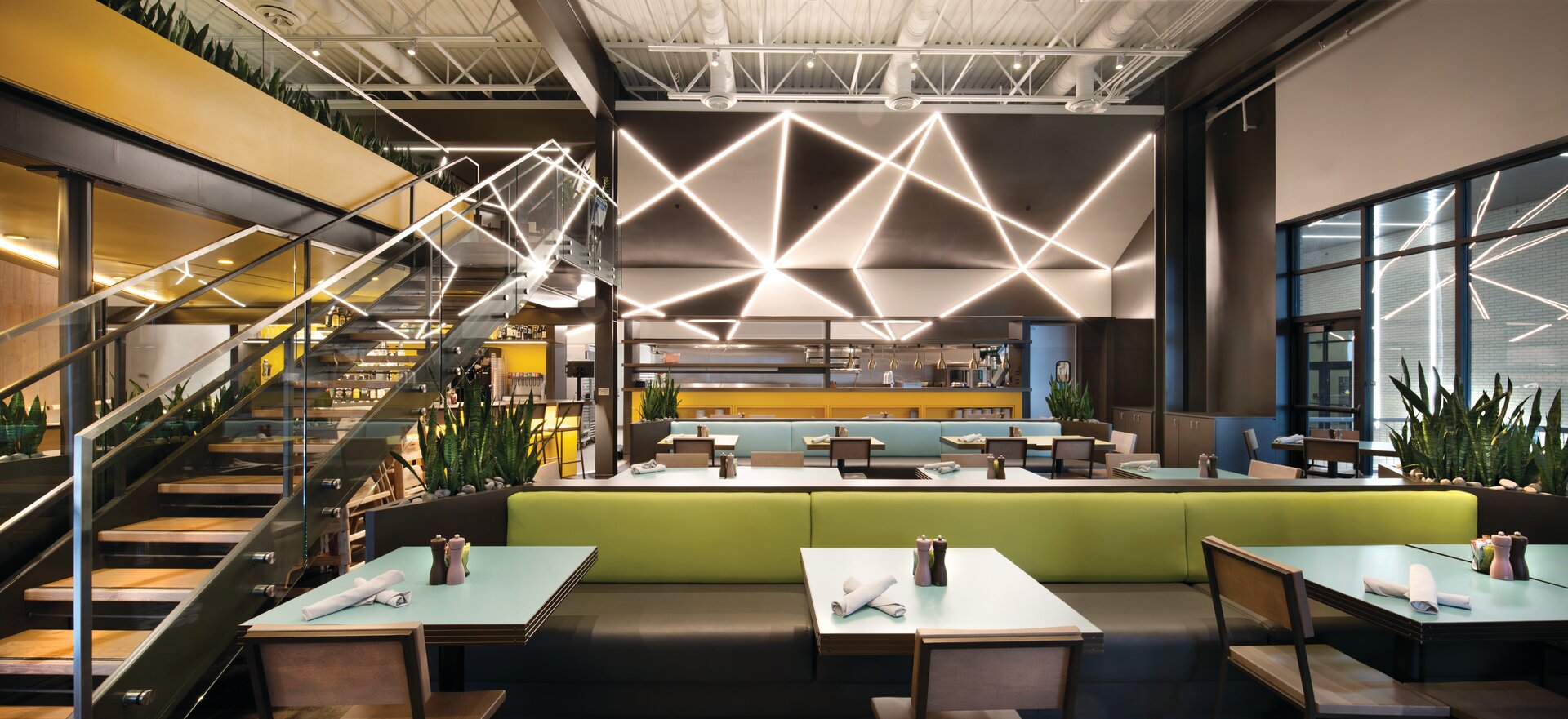

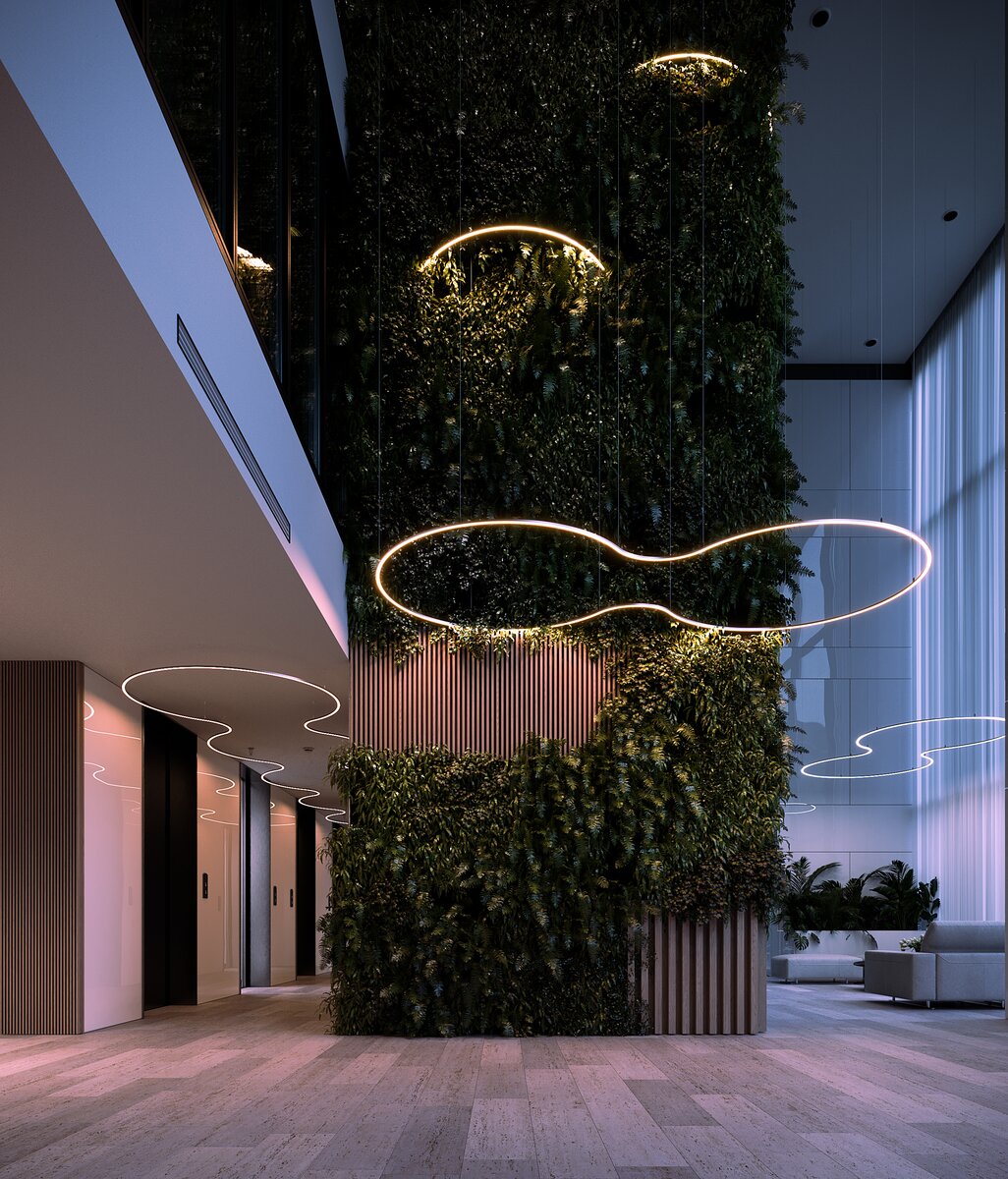

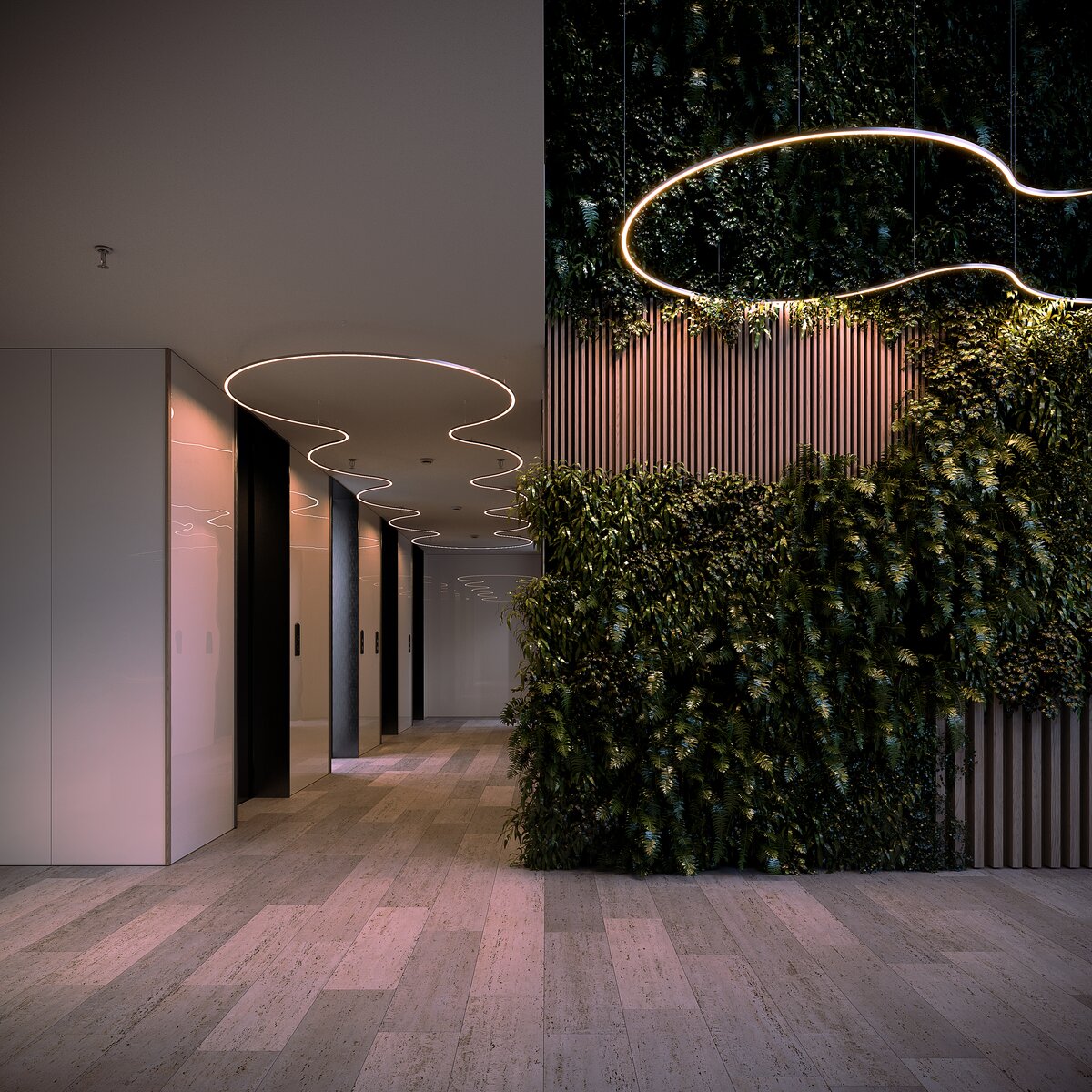

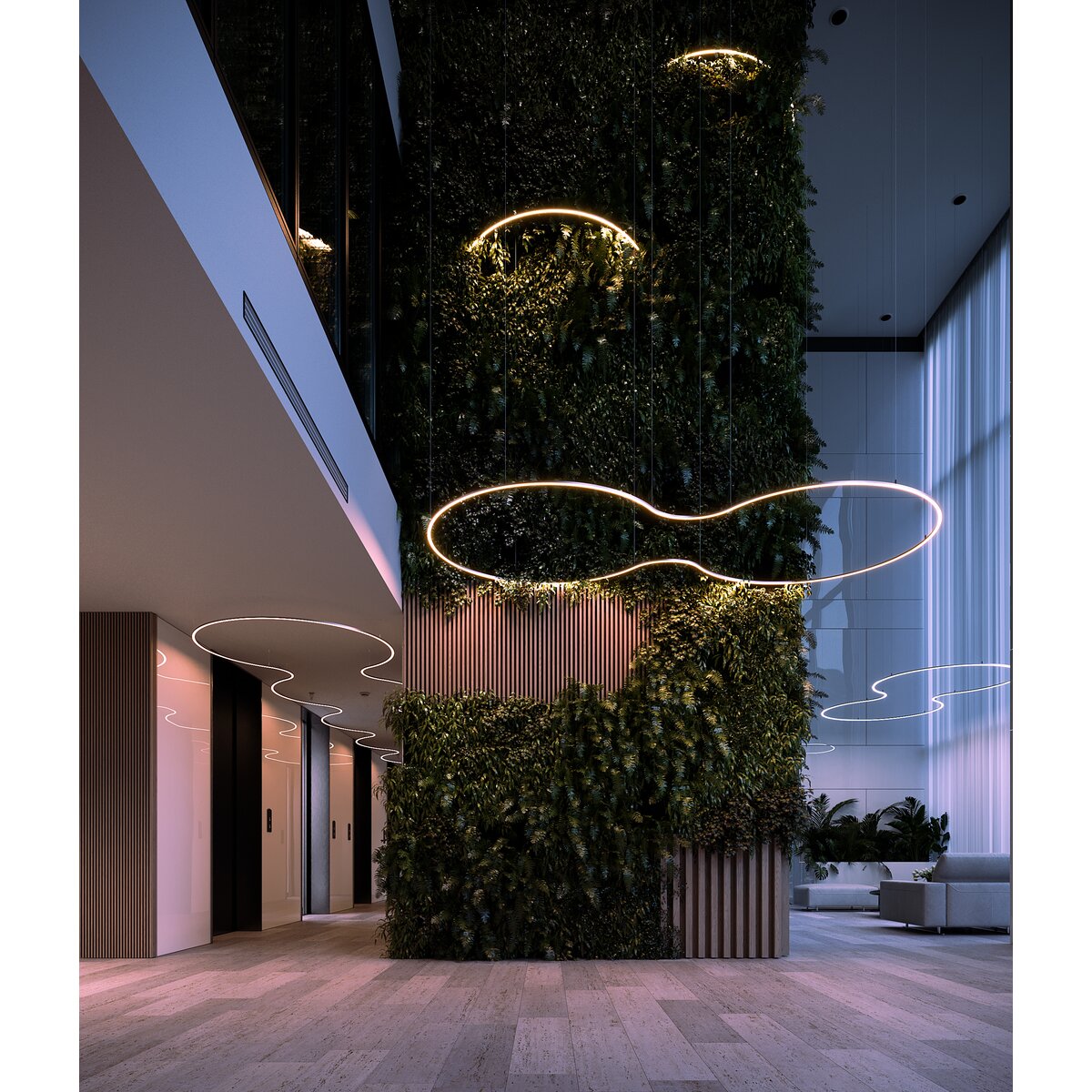

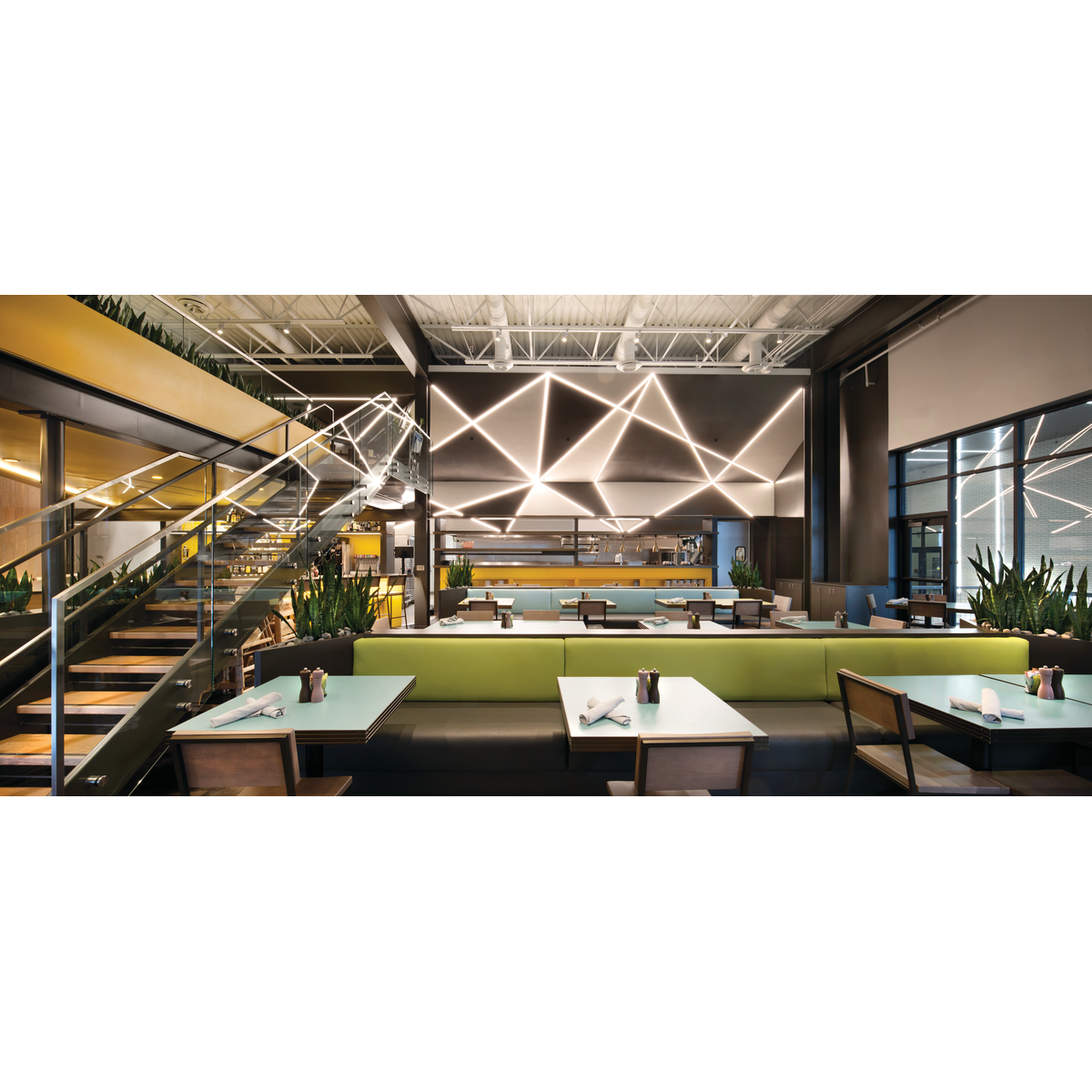

Usage examples

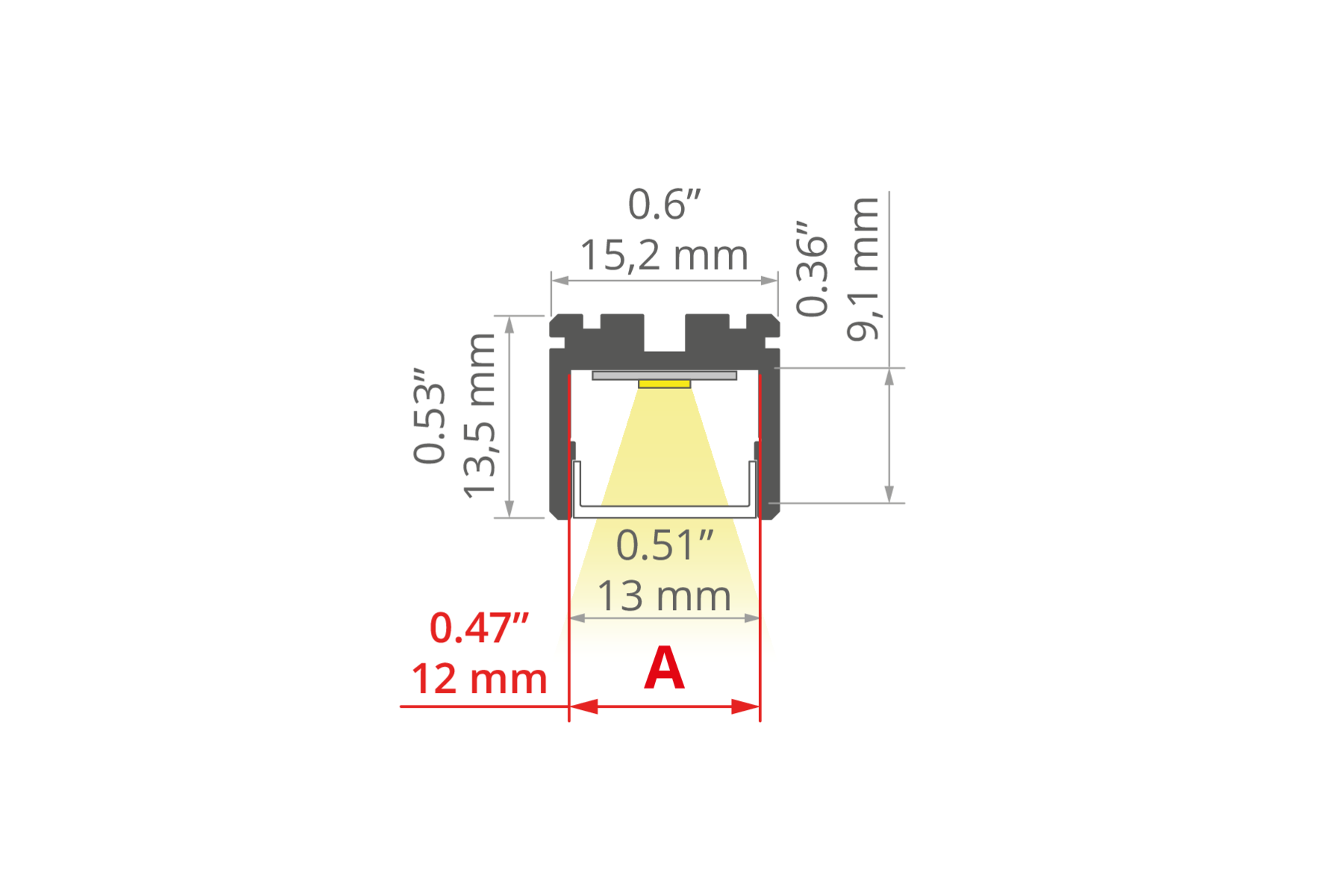

Technical drawing
OPK-4 Extrusion aluminum Technical drawing - A00370
Technical specification
Material
aluminum
Possible fixture IP
20, 67
Possible fixture shapes
linear, polygonal
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
7.3 W/ft
Width
0.6" (15.2 mm)
Height
0.5" (13.5 mm)
LED gluing width A
0.5" (12 mm)
Max. number of LED strips A (0.31" wide)
1
The cover is cut to the length of the profile
Yes
Can be easily connected into runs
Yes
Mounting to drywall
Yes
Wire out back of extrusion
Yes
Possibility of obtaining a line of light
Yes
Possibility of bending
Yes
Minimum radius of the light arc
Radius of the light arc
Yes
Inside
300 mm
Outward
300 mm
Downward
500 mm
Building type
Residential, Retail, Hotel / Restaurant
Facility zone
kitchen, under-cabinet / furniture
Color Length Ref No
silver anodized
39.4" (1000 mm)
78.9" (2005 mm)
A00370A_1
A00370A_2
Line of Light Table for Pixel Free Illumination
LED Tapes Covers
Categories LED tape type LIGER-11 Cover satin LIGER-11 Cover black HS-11 Cover frosted KA-11 Cover frosted
High Efficacy K-HEHD-0480-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-HEHD-0960-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-HEHD-1440-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-HEHD-1920-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-HEHD-0320-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
CRI 95+ K-CRHD-1820-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-CRHD-1910-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-CRHD-0530-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
CRI 90+ K-2400-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
Bendable tape K-BT-0910-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
RGB / RGB-W / RGB-CTT K-RGBW-1920-160-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
Line of Light for a number (X) of rows
Line of Light for a number (X) of rows - Pixel free imaging
Centered Line of Light
Centered Line of Light - Concentrated in middle
None
None - Visible dotting from diodes
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
Reference shapes
Related products
Product name Material Key features Light transmittance [%] Color Ref No
Cover -11 BENCO
silicon - For indoor and outdoor applications
- UV resistant
50 %
frosted
B17215F
HS-11 Cover
PC - For indoor and outdoor applications
- UV resistant
- hight durability
B17208
KA-11 Cover
PC - maximum brightness
- indoor use
- basic
- universal
B17064
LIGER-11 Cover
PC - hight light quality
- Ease of obtaining a line of light
- perfectly diffusing
- For indoor and outdoor applications
B17037
No results found for the selected filters.
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,
20 - 1.5 W/ft - - CRI over 95
- High Efficacy
K-HEHD-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,
20 - 2.9 W/ft - - CRI over 95
- High Efficacy
K-HEHD-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,
20 - 4.4 W/ft - - CRI over 95
- High Efficacy
K-HEHD-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,
20 - 5.9 W/ft - - CRI over 95
- High Efficacy
K-HEHD-1920-24
KWP-HEHD-0480-24 LED tape, 134-185 lm/ft, IP65,
65 silicon sleeve 1.5 W/ft - - High Efficacy
KWP-HEHD-0480-24
KWP-HEHD-0960-24 LED tape, 268-377 lm/ft, IP65,
65 silicon sleeve 2.9 W/ft - - CRI over 95
- High Efficacy
KWP-HEHD-0960-24
KWP-HEHD-1440-24 LED tape, 402-566 lm/ft, IP65,
65 silicon sleeve 4.4 W/ft - - CRI over 95
- High Efficacy
KWP-HEHD-1440-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,
20 - 1 W/ft - - CRI over 95
- High Efficacy
K-HEHD-0320-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,
20 - 1.5 W/ft
2500K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR25-1210-24
K-CR30-1210-24
K-CR35-1210-24
K-CR40-1210-24
K-CR50-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,
20 - 2.9 W/ft - - CRI over 95
K-CR-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,
20 - 4.4 W/ft - - CRI over 95
K-CR-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,
20 - 5.6 W/ft
2200K
2500K
3000K
3500K
4000K
5000K
- CRI over 95
- high LED density
K-CRHD22-1820-24
K-CRHD25-1820-24
K-CRHD30-1820-24
K-CRHD35-1820-24
K-CRHD40-1820-24
K-CRHD50-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,
20 - 2.8 W/ft
2200K
2500K
3000K
5000K
- CRI over 95
- high LED density
K-CRHD22-1910-24
K-CRHD25-1910-24
K-CRHD30-1910-24
K-CRHD50-1910-24
KWP-CR-1220-24 LED tape, 151-227 lm/ft, IP65,
65 silicon sleeve 2.9 W/ft - - CRI over 95
KWP-CR-1220-24
KWP-CR-1275-24 LED tape, 381-464 lm/ft, IP65,
65 silicon sleeve 4.4 W/ft - - CRI over 95
KWP-CR-1275-24
KWP-CRHD-1910-24 LED tape, 196-253 lm/ft, IP65,
65 silicon sleeve 2.8 W/ft
2200K
2500K
3000K
4000K
5000K
- CRI over 95
- high LED density
KWP-CRHD22-1910-24
KWP-CRHD25-1910-24
KWP-CRHD30-1910-24
KWP-CRHD40-1910-24
KWP-CRHD50-1910-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,
20 - 1.6 W/ft
2200K
2500K
2700K
3000K
4000K
5000K
- CRI over 95
K-CRHD22-0530-24
K-CRHD25-0530-24
K-CRHD27-0530-24
K-CRHD30-0530-24
K-CRHD40-0530-24
K-CRHD50-0530-24
KWP-HEHD-1440-24-40C LED tape, 520-607 lm/ft, IP65,
65 gel cover 4.4 W/ft - - High Efficacy
- cold weather -40F
KWP-HEHD-1440-24-40C
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20
20 - 7.3 W/ft - - high power
K-2400-24
KWP-GHD-1640-24 LED tape, 364-503 lm/ft, IP65,
65 gel cover 5 W/ft - - high LED density
KWP-GHD-1640-24
KWP-GHD-1910-24 LED tape, 227-279 lm/ft, IP65,
65 gel cover 2.8 W/ft
2500K
5000K
- high LED density
KWP-GHD25-1910-24
KWP-GHD50-1910-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-RGB27T65-1200-24 LED tape, 2700K, 122 lm/ft, 3.7 W/ft, IP20
20 - 3.7 W/ft
RGB
2700K
- RGB+Tunable White
K-RGB27T65-1200-24
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-120-24
KWP-GRGBW-1530-24 LED tape, 3000K, 193 lm/ft, 4.7 W/ft, IP65
65 gel cover 4.7 W/ft
RGB+W
3000K
- RGBW (3000K)
KWP-GRGBW-1530-24
KWP-RGB-1920-24 LED tape, 187 lm/ft, 5.9 W/ft, IP65
65 silicon sleeve 5.9 W/ft
RGB
- RGB
KWP-RGB-1920-24
LED tape KWP-RGB-1200-24, 23 lm/m, 3.7 W/m, IP65
65 silicon sleeve 3.7 W/ft
RGB
- RGB
KWP-RGB-1200-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,
65 silicon sleeve 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
KWP-GRGBW-1920-120-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-VBT-0720-24 LED tape, 323-338 lm/ft, IP20,
20 - 2.2 W/ft - - LED tape for bent profiles
K-VBT-0720-24
K-BT-0910-24 LED tape, 237-282 lm/ft, IP20,
20 - 2.8 W/ft - - LED tape for bent profiles
K-BT-0910-24
No results found for the selected filters.
Product name Key features Material Color Ref No
NEO-ZM-3 Fastener set
- 3 pieces for heavy fixtures
magnet
silver
C28105N00
NEO-ZM-4 Fastener set
- 4 pieces for light fixtures
magnet
silver
C28106N00
Product name Key features Material Color Ref No
Spring GP
stainless steel
silver
C24500N00
Product name Key features Material Color Ref No
RD-1 Fastener set
- Smooth cable adjustment, cable included
brass
C28231
RG-1 Fastener set
- Cable adjustment at the ceiling, cable included
brass
C28230
FI-8-ZM-2 Fastener set
- Convenient cable length adjustment, in the ZM system
stainless steel, aluminum
C28135
Product name Key features Material Color Ref No
Head BZP-ZZ
stainless steel
gray
42215
FI-8-LIN-ZMZ Fastener
- Power supply - mounting in the ZM system
stainless steel, aluminum, rubber, PCV
C28171
PUSZ-LIN-MR Fastener
- Power supply cable - mounting in thin walls (from 1mm)
stainless steel, brass, nylon
C28163
PUSZ-PRET-ZM Fastener
- Power supply cable - mounting in the ZM system
stainless steel, brass, nylon, aluminum
C28161
Fastener PUSZ-PRET-ZM
stainless steel
silver
42250
Product name Key features Material Color Ref No
Head BZP
stainless steel
silver
C28113N00
FI-10-ZM-P Fastener
- Cross mounting
stainless steel
silver
C28117N00
FI-10-ZM-W Fastener
stainless steel
silver
C28116N00
FI-8-LIN-ZM Fastener
- Installation in the ZM system
stainless steel, PA
C28170
Product name Key features Material Color Ref No
Fi-60mm Canopy
- Convenient cable length adjustment, in the ZM system
steel
C24540
No results found for the selected filters.
Product name IP rating Key features Ref No(Ref. arch.)
Switch MICRO 96W IP20
20 - push button switch
- factory pre-soldered wires
1576
UNI Proximity switch
20 - touchless switch
- width only 7mm
E61579
No results found for the selected filters.
Product name Material Color Ref No
ZM-G Connector
stainless steel
silver
42306
ZM Connector
stainless steel
silver
42717
42716
ZM-PION Connector
stainless steel
C28088N00
C28087N00
C28086N00
C28085N00
C28084N00
Product name Material Color Ref No
Adapters set ZM-16
PC
transparent
C29001C00
Gland 6x1,2
C24517C07
No results found for the selected filters.
