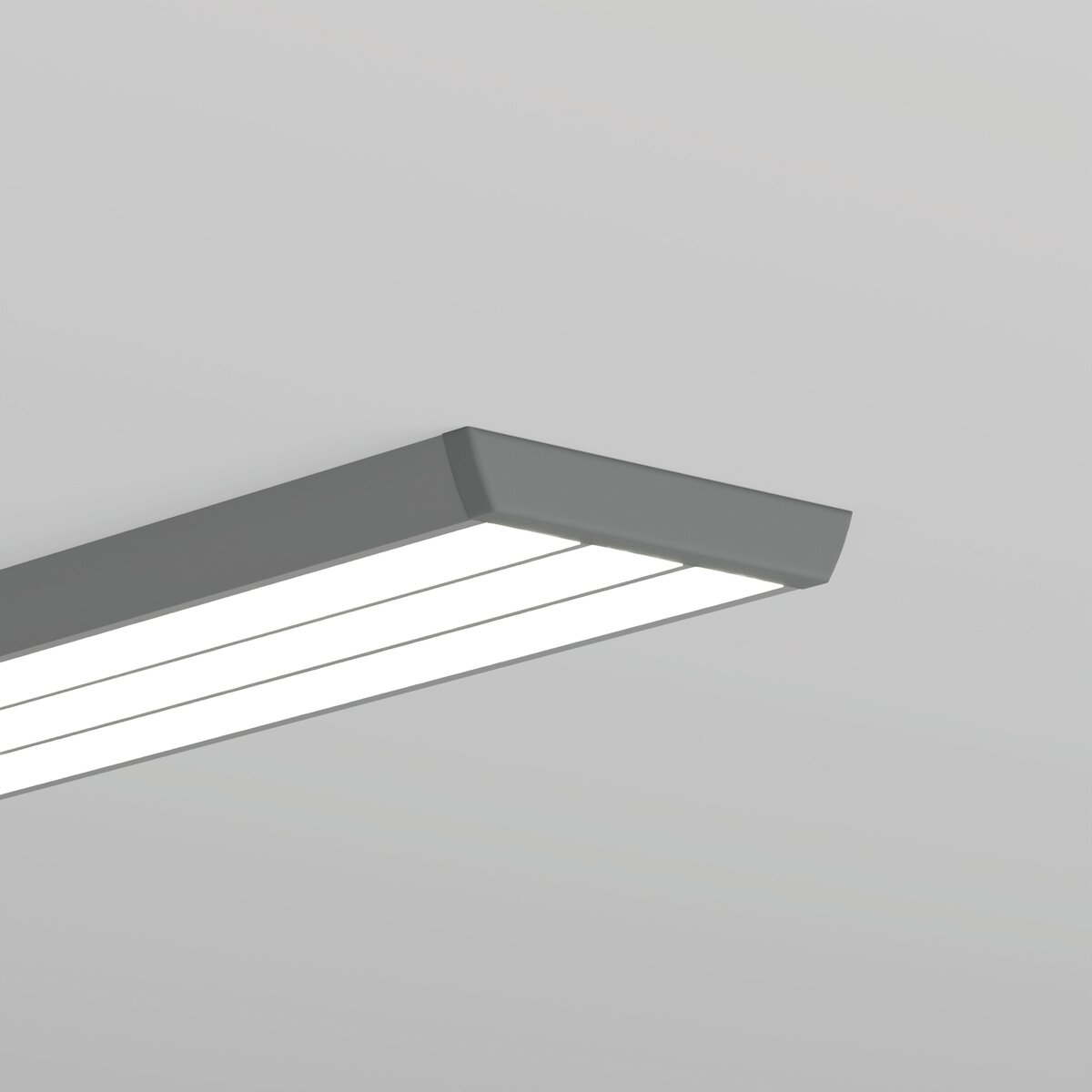

TRIADA Extrusion (A04476) | KlusDesign.com

Compare

Compared

High lumen output
Smooth extrusions walls
Wide range of accessories
Small bending radius

With the possibility of sealing up to IP20

With the possibility of sealing up to IP67

WATCH INSTRUCTIONAL VIDEO

Color

Description

High lumen output
Smooth extrusions walls
Wide range of accessories
Small bending radius

Application

- main and functional lighting

Mounting

- suspended or to the surface, using a dedicated mounting track, dedicated accessories or properly selected screws

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

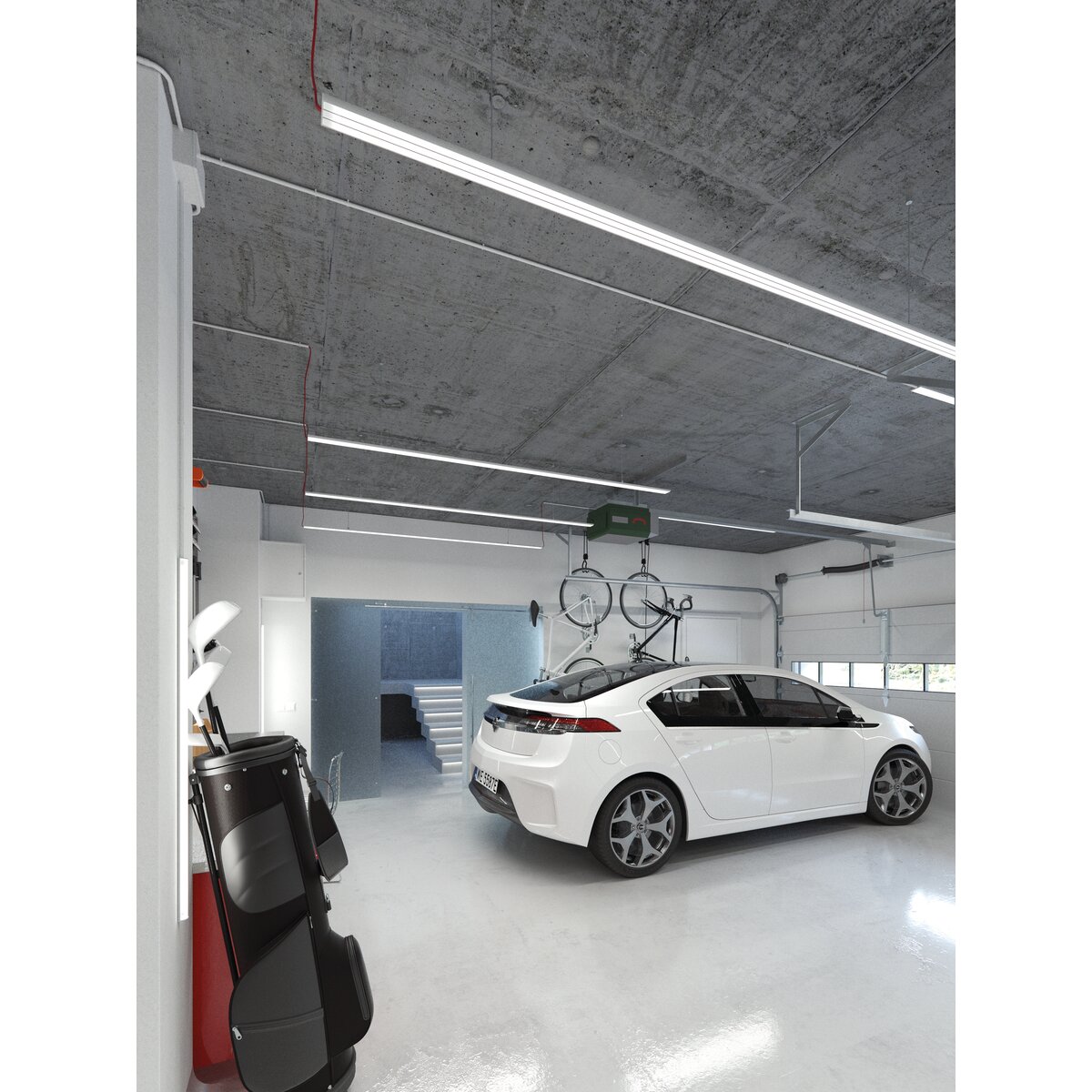

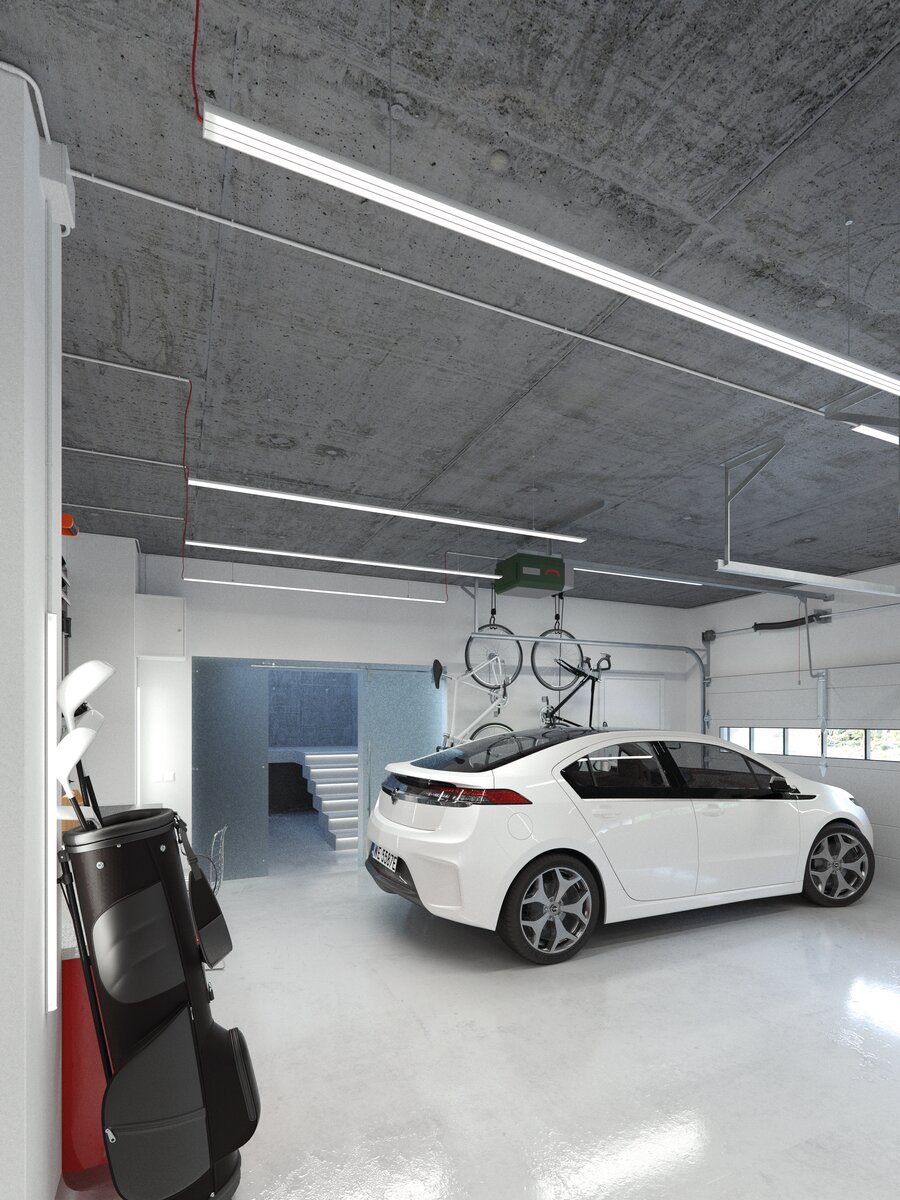

Usage examples

Description
download

Application

- main and functional lighting

Mounting

- suspended or to the surface, using a dedicated mounting track, dedicated accessories or properly selected screws

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

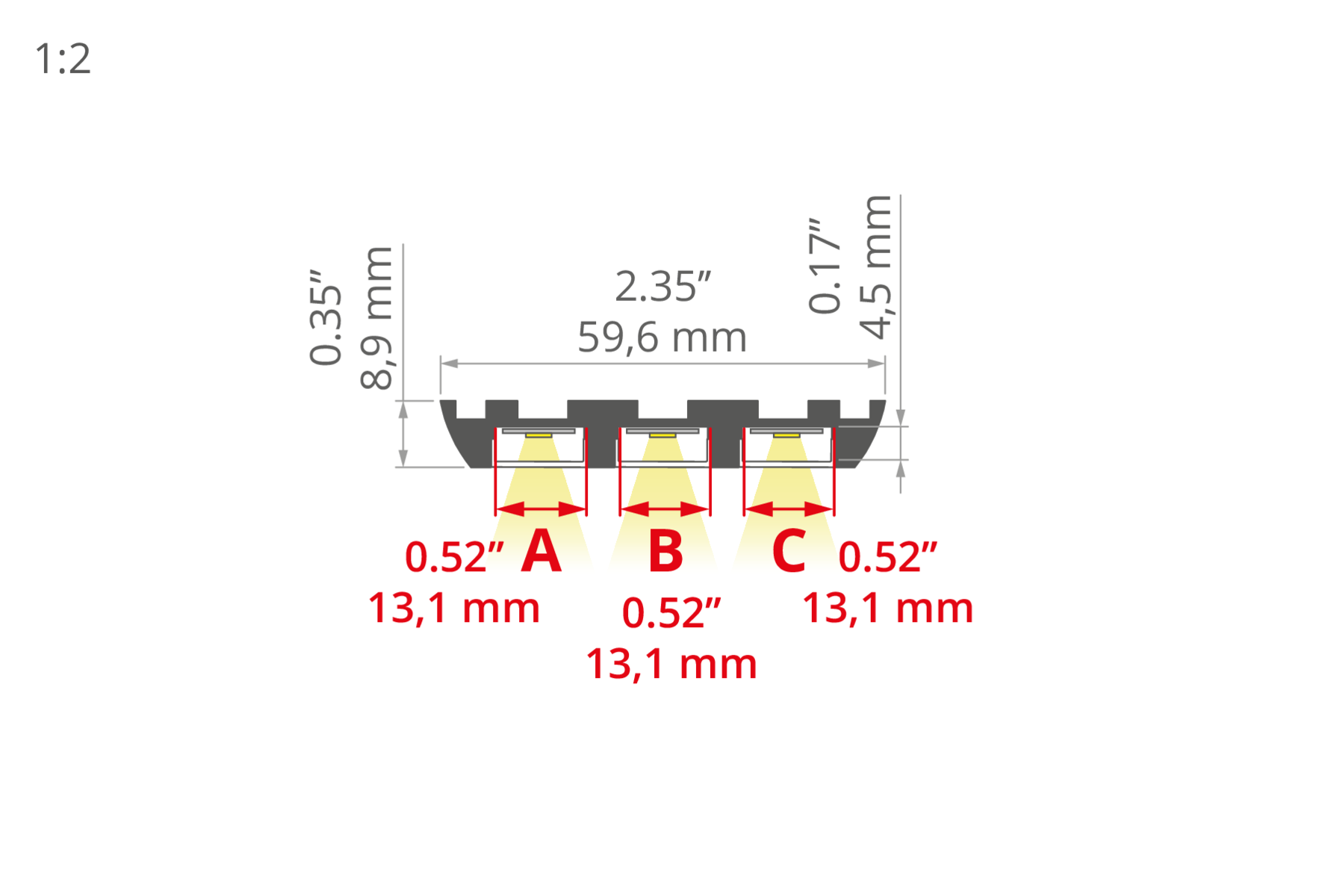

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

20, 67

Possible fixture shapes

linear, polygonal

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

2.3" (59.6 mm)

Height

0.4" (8.9 mm)

LED gluing width A

0.5" (13.1 mm)

LED mounting width B [inch]

0.5" (13.1 mm)

LED mounting width C [inch]

0.5" (13.1 mm)

Max. number of LED strips A (0.31" wide)

Max. number of LED strips B (0.31" wide)

Max. number of LED strips C (0.31" wide)

The cover is cut to the length of the profile

Yes

Can be easily connected into runs

Yes

Wire out back of extrusion

Yes

Possibility of bending

Yes

Minimum radius of the light arc

Radius of the light arc

Yes

Inside

200 mm

Outward

200 mm

Building type

Commercial, Entertainment/ Arts

Facility zone

exhibition / tradeshow / display

Color	Length	Ref No
silver anodized	39.4" (1000 mm) 78.9" (2005 mm)	A04476A_1 A04476A_2
