45-PLUS Extrusion (A00005)

Compare

Compared

Installation in corners

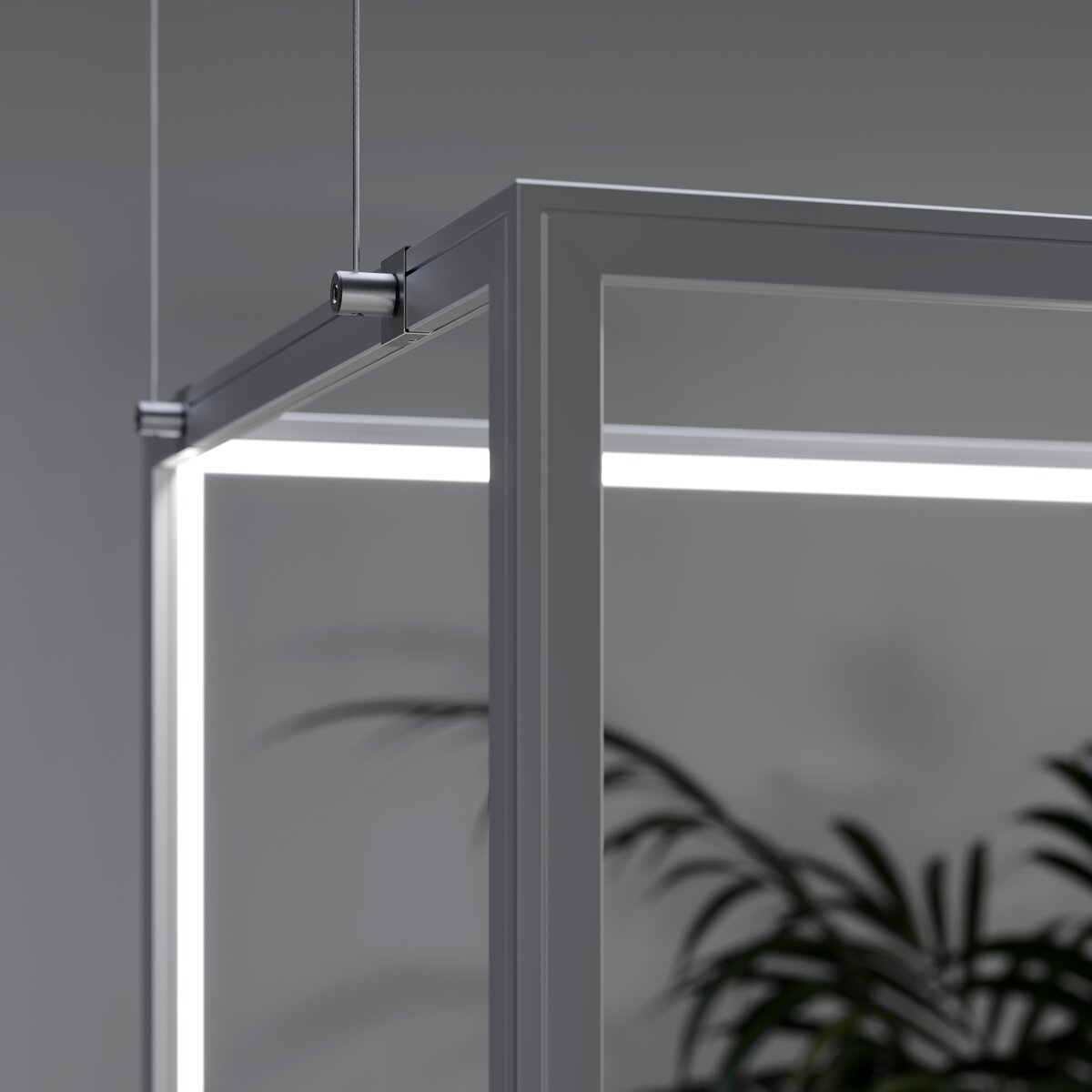

Lighting at a 45° angle
Wide range of accessories
Ease of creating geometric figures
Possibility of mounting sealed LED strips of the 8K series

With the possibility of sealing up to IP20

With the possibility of sealing up to IP67

Configure

Color

Description

Installation in corners
Lighting at a 45° angle
Wide range of accessories
Ease of creating geometric figures
Possibility of mounting sealed LED strips of the 8K series

Application

- furniture, under-cabinet and decorative lighting

Mounting

- to the surface or suspended, using dedicated accessories

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

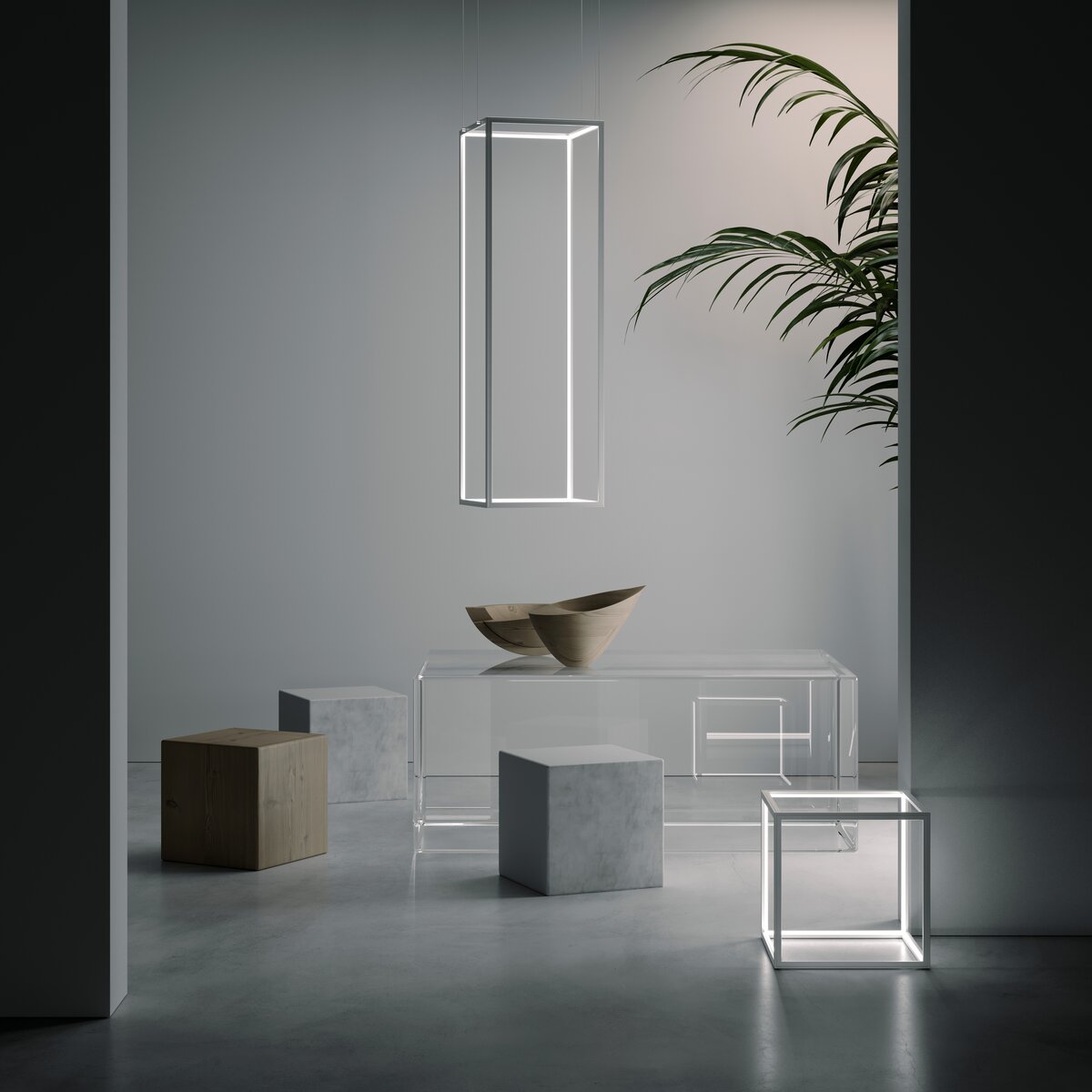

Usage examples

Description
download

Application

- furniture, under-cabinet and decorative lighting

Mounting

- to the surface or suspended, using dedicated accessories

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

20, 67

Possible fixture shapes

linear

Profile cross-section

angled

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

0.7" (19 mm)

Height

0.7" (19 mm)

LED gluing width A

0.3" (8.5 mm)

Max. number of LED strips A (0.31" wide)

Lighting at an angle

Easy assembly and disassembly by snapping in and out

Yes

The cover is cut to the length of the profile

Yes

Can be easily connected into runs

Yes

Furniture lighting

Yes

Decorative lighting

Yes

Functional lighting

Yes

Wire out end cap

Yes

Wire out back of extrusion

Yes

Possibility of obtaining a line of light

Yes

Building type

Residential, Retail, Hotel / Restaurant, Entertainment/ Arts, Other

Facility zone

office, kitchen, bathroom, under-cabinet / furniture, cove / perimeter, exhibition / tradeshow / display

Color	Length	Ref No
silver anodized	39.4" (1000 mm) 78.9" (2005 mm) 118.5" (3010 mm)	A00005A_1 A00005A_2 A00005A_3
white lacquered	78.9" (2005 mm)	A00005L10OD_2
black anodized	78.9" (2005 mm)	A00005A07_2

Line of Light Table for Pixel Free Illumination

LED Tapes		Covers
Categories	LED tape type	LIGER-11 Cover satin	LIGER-11 Cover black	HS-11 Cover frosted	KA-11R Cover frosted
CRI 95+	K-CRHD-1820-24	(1)	(1)	(1)	(1)
	K-HEHD-1440-24-40C	(1)		(1)	(1)
	K-CRHD-1910-24	(1)	(1)	(1)	(1)
High Efficacy	K-HEHD-0320-24	(1)		(1)	(1)
	K-HEHD-0480-24	(1)		(1)	(1)
	K-HEHD-0960-24	(1)		(1)	(1)
	K-HEHD-1440-24	(1)		(1)	(1)
	K-HEHD-1920-24	(1)		(1)	(1)
CRI 90+	K-2400-24	(1)		(1)	(1)
Adjustable White / Dim to Warm	K-30/18-1770-24V	(1)	(1)	(1)	(1)
	K-30/18-1770-010V-24V	(1)	(1)	(1)	(1)
	K-SDCR-22T50-1530-24	(1)	(1)	(1)	(1)
Single diode cuttable	K-SD-1440-24	(1)		(1)	(1)

Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
HS-11 Cover	PC	- For indoor and outdoor applications - UV resistant - hight durability	59 % 88 %	frosted clear	B17208F B17208C
KA-11 Cover	PC	- maximum brightness - indoor use - basic - universal	67 % 89 %	frosted clear	B17064F B17064C
LIGER-11 Cover	PC	- hight light quality - Ease of obtaining a line of light - perfectly diffusing - For indoor and outdoor applications	59 % 21 %	satin black	B17037S B17037B
KA-11R Cover	PC	- maximum brightness - hight durability - hight light quality - indoor use - perfectly diffusing	62 %	frosted	B17076F

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
High Efficacy

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0480-24 K-HEHD25-0480-24 K-HEHD27-0480-24 K-HEHD30-0480-24 K-HEHD35-0480-24 K-HEHD40-0480-24 K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0960-24 K-HEHD25-0960-24 K-HEHD27-0960-24 K-HEHD30-0960-24 K-HEHD35-0960-24 K-HEHD40-0960-24 K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1440-24 K-HEHD25-1440-24 K-HEHD27-1440-24 K-HEHD30-1440-24 K-HEHD35-1440-24 K-HEHD40-1440-24 K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,	20	-	5.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1920-24 K-HEHD25-1920-24 K-HEHD27-1920-24 K-HEHD30-1920-24 K-HEHD35-1920-24 K-HEHD40-1920-24 K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,	20	-	1 W/ft	2700K 3000K 3500K 4000K	- CRI over 95 - High Efficacy	K-HEHD27-0320-24 K-HEHD30-0320-24 K-HEHD35-0320-24 K-HEHD40-0320-24

LED tapes
CRI 95+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2700K	- CRI over 95	K-CR22-1210-24 K-CR27-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1220-24 K-CR25-1220-24 K-CR27-1220-24 K-CR30-1220-24 K-CR35-1220-24 K-CR40-1220-24 K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1275-24 K-CR25-1275-24 K-CR27-1275-24 K-CR30-1275-24 K-CR35-1275-24 K-CR40-1275-24 K-CR50-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,	20	-	5.6 W/ft	2700K	- CRI over 95 - high LED density	K-CRHD27-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,	20	-	2.8 W/ft	2700K 3500K 4000K	- CRI over 95 - high LED density	K-CRHD27-1910-24 K-CRHD35-1910-24 K-CRHD40-1910-24
KWP-CR-1220-24 LED tape, 151-227 lm/ft, IP65,	65	silicon sleeve	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	KWP-CR22-1220-24 KWP-CR25-1220-24 KWP-CR27-1220-24 KWP-CR30-1220-24 KWP-CR35-1220-24 KWP-CR40-1220-24 KWP-CR50-1220-24
KWP-CR-1275-24 LED tape, 381-464 lm/ft, IP65,	65	silicon sleeve	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	KWP-CR22-1275-24 KWP-CR25-1275-24 KWP-CR27-1275-24 KWP-CR30-1275-24 KWP-CR35-1275-24 KWP-CR40-1275-24 KWP-CR50-1275-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,	20	-	1.6 W/ft	3500K	- CRI over 95	K-CRHD35-0530-24
KWP-8KCR-1210-24 LED tape, 74-93 lm/ft, IP65,	65	silicon sleeve	1.5 W/ft	2200K 2700K	- universal for basic applications - easy snap-in installation - CRI over 95	KWP-8K-CR22-1210-24 KWP-8K-CR27-1210-24
KWP-8KCR-1220-24 LED tape, 151-240 lm/ft, IP65,	65	silicon sleeve	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- universal for basic applications - easy snap-in installation - CRI over 95	KWP-8K-CR22-1220-24 KWP-8K-CR25-1220-24 8K-KWP-CR27-1220-24 8K-KWP-CR30-1220-24 KWP-8K-CR35-1220-24 KWP-8K-CR40-1220-24 KWP-8K-CR50-1220-24
KWP-8KCR-1275-24 LED tape, 381-480 lm/ft, IP65,	65	silicon sleeve	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- universal for basic applications - easy snap-in installation - CRI over 95	KWP-8K-CR22-1275-24 KWP-8K-CR25-1275-24 KWP-8K-CR27-1275-24 KWP-8K-CR30-1275-24 KWP-8K-CR35-1275-24 KWP-8K-CR40-1275-24 KWP-8K-CR50-1275-24
K-HEHD-1440-24-40C LED tape, 570-667 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- High Efficacy - cold weather -40F	K-HEHD22-1440-24-40C K-HEHD25-1440-24-40C K-HEHD27-1440-24-40C K-HEHD30-1440-24-40C K-HEHD35-1440-24-40C K-HEHD40-1440-24-40C K-HEHD50-1440-24-40C

LED tapes
CRI 90+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20	20	-	7.3 W/ft	2700K 3000K 3500K 4000K 5000K	- high power	K-27-2400-24 K-30-2400-24 K-35-2400-24 K-40-2400-24 K-50-2400-24
KWP-GHD-1640-24 LED tape, 364-503 lm/ft, IP65,	65	gel cover	5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- high LED density	KWP-GHD22-1640-24 KWP-GHD25-1640-24 KWP-GHD27-1640-24 KWP-GHD30-1640-24 KWP-GHD35-1640-24 KWP-GHD40-1640-24 KWP-GHD50-1640-24
KWP-GHD-1910-24 LED tape, 227-279 lm/ft, IP65,	65	gel cover	2.8 W/ft	2200K 2700K 3000K 3500K 4000K	- high LED density	KWP-GHD22-1910-24 KWP-GHD27-1910-24 KWP-GHD30-1910-24 KWP-GHD35-1910-24 KWP-GHD40-1910-24

LED tapes
RGB / RGB-W / RGB-CTT

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-120-24
KWP-GRGBW-1530-24 LED tape, 3000K, 193 lm/ft, 4.7 W/ft, IP65	65	gel cover	4.7 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1530-24
KWP-RGB-1920-24 LED tape, 187 lm/ft, 5.9 W/ft, IP65	65	silicon sleeve	5.9 W/ft	RGB	- RGB	KWP-RGB-1920-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,	65	silicon sleeve	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1920-120-24

LED tapes
Adjustable White / Dim to Warm

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-27/65-1920-24V LED tape, 2700K, 500 lm/ft, 5.9 W/ft, IP20	20	-	5.9 W/ft	2700K	- Tuneable white 2600K-6500K	K-27/65-1920-24
K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-24
KWP-27/65-1920-24 LED tape, 2700K, 246 lm/ft, 5.9 W/ft, IP65	65	silicon sleeve	5.9 W/ft	2700K	- Tuneable white 2600K-6500K	KWP-27/65-1920-24
K-30/18-1770-010V-24V LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-010V-24V
KWP-G22/50-1728-24 LED tape, 2200K, 467 lm/ft, 5.3 W/ft, IP65	65	gel cover	5.3 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-G22/50-1728-24
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20	20	-	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65	65	silicon sleeve	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-SDCR-22T50-1530-24

LED tapes
Single diode cuttable

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,	20	-	4.4 W/ft	2700K 3000K 3500K 4000K		K-SD27-1440-24 K-SD30-1440-24 K-SD35-1440-24 K-SD40-1440-24

Accessories
End caps
Standard end caps

Product name	Material	Color	Ref No
45-PLUS End cap	ABS	gray white black	C20007C02 C20007C10 C20007C07
45-PLUS-R End cap	ABS	gray white black	C20008C02 C20008C10 C20008C07

Accessories
End caps
End caps with holes

Product name	Material	Color	Ref No
45-PLUS-OTW	ABS	gray white black	C20007C02TW C20007C10TW C20007C07TW
45-PLUS-R-OTW	ABS	gray white black	C20008C02TW C20008C10TW C20008C07TW

Accessories
Mounting accessories
Mounting brackets

Product name	Key features	Material	Color	Ref No
45-STN Mounting bracket	- For indoor and outdoor applications	stainless steel	silver white black	C24144N00 C24265L10 C24262L07

Accessories
Suspension accessories
Fasteners and heads for extrusions

Product name	Key features	Material	Color	Ref No
Head 45-ST		stainless steel	silver	C28111N00

Electronics
Switches

Product name	IP rating	Key features	Ref No(Ref. arch.)
Switch MICRO 96W IP20	20	- push button switch - factory pre-soldered wires	1576
UNI Proximity switch	20	- touchless switch - width only 7mm	E61579

Accessories
Accessories for connecting and securing lighting fixtures
Connectors

Product name	Material	Color	Ref No
ZM-NA Connector	stainless steel	silver	42339
ZM-NA-PION Connector	stainless steel	silver	42321 42315 42317
ZM Connector	stainless steel	silver black colorless	C28075N00 C28072N00 42720 42728 C24797C07 C28072C07 C28075C07 C28070C07 C28071C07 C28073C07 C28074C07 C24797N00
ZM-PION Connector	stainless steel	silver black	42718 42719 42320 C28086N00 C28084N00 42314 C28086C07 C28084C07 C28088C07 C28087C07 C28085C07

Accessories
Additional items

Product name	Material	Color	Ref No
Gland 11x3			C24497C07
Gland 6,4x3			C42264C07
Gland M8x1			C42265N00
