4050 Extrusion

Ref No: A18050
4050 Extrusion
4050 Extrusion
4050 Extrusion
4050 Extrusion

The 4050 pendant luminaire features a minimalist design, uniform light line, UGR <19, adjustable height, and CRI up to 95+. Ideal for offices, hotels, and premium interiors.

  • Installation from below, wall to wall
  • Increased space for cable routing
  • Easy maintenance
  • Possibility to use current modules with efficiency up to 190lm/W and CRI>90. Available upon request.
  • Possiblity to obtain UGR < 19
Suspended
With the possibility of sealing up to IP20
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Configure
Color
silver
  • Installation from below, wall to wall
  • Increased space for cable routing
  • Easy maintenance
  • Possibility to use current modules with efficiency up to 190lm/W and CRI>90. Available upon request.
  • Possiblity to obtain UGR < 19
Application
  • - main and decorative lighting
Mounting
  • - to the surface or suspended, using dedicated accessories
Additional information
  • - both LED strips and LED current modules can be used
  • - safety due to high vibration resistance
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

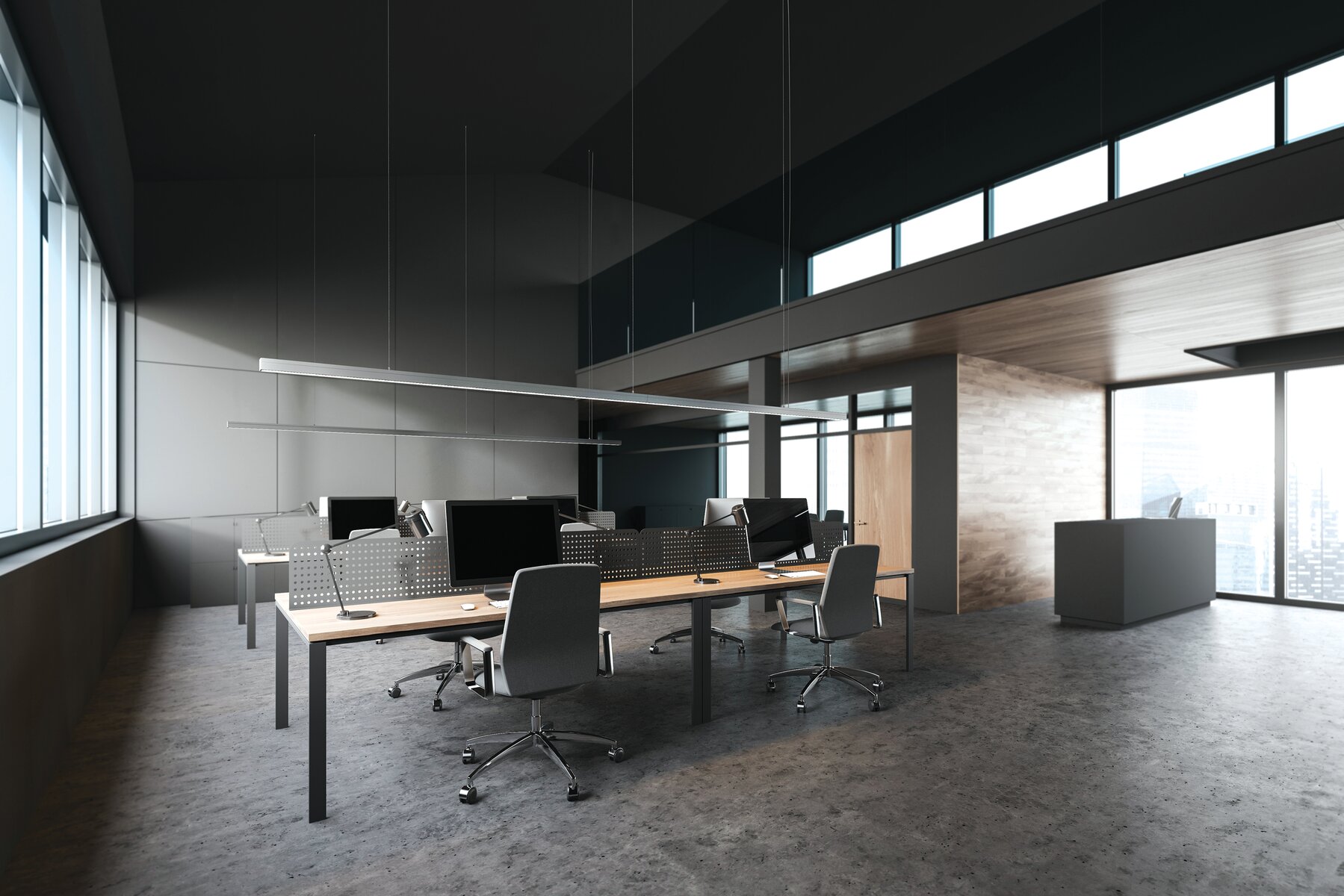

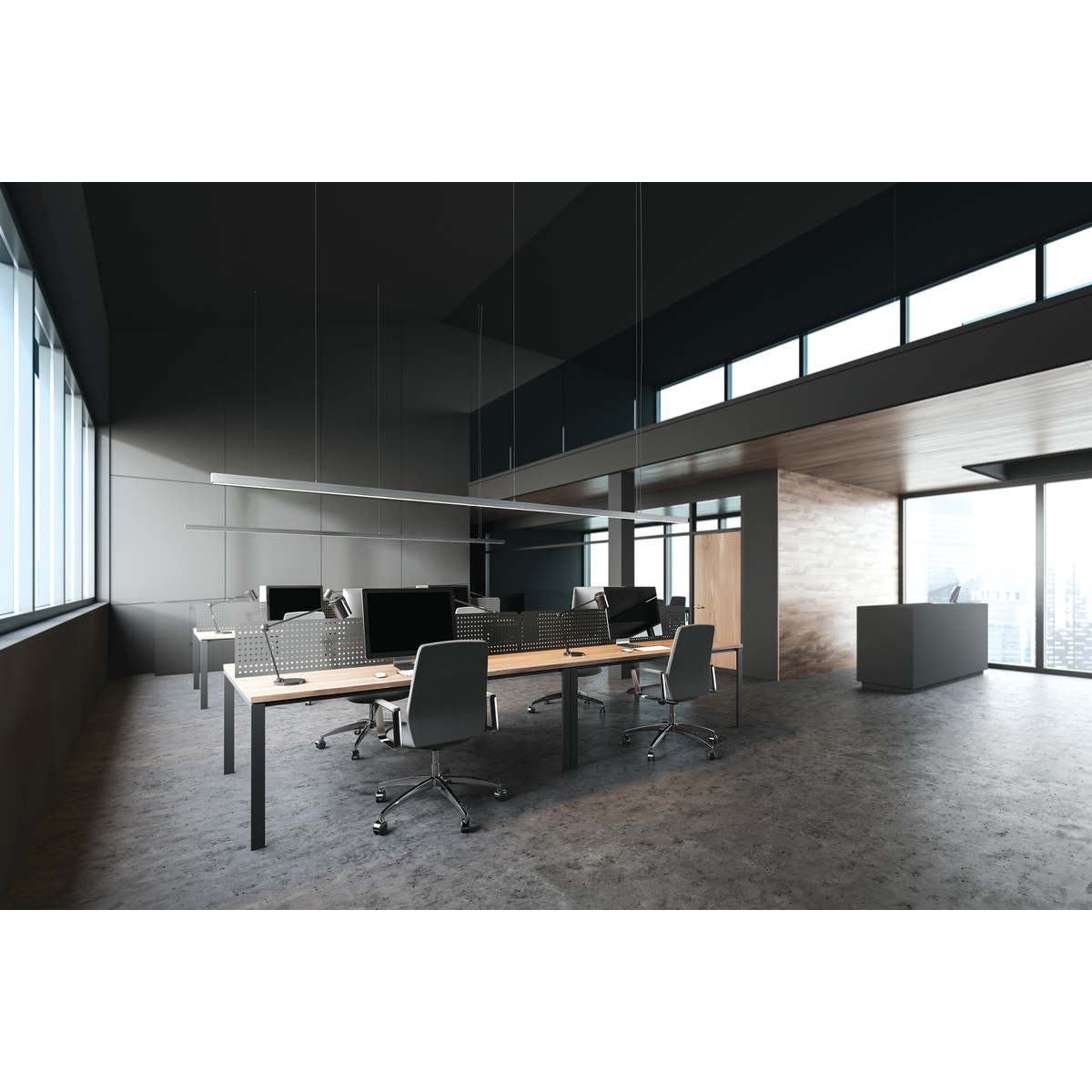

Usage examples

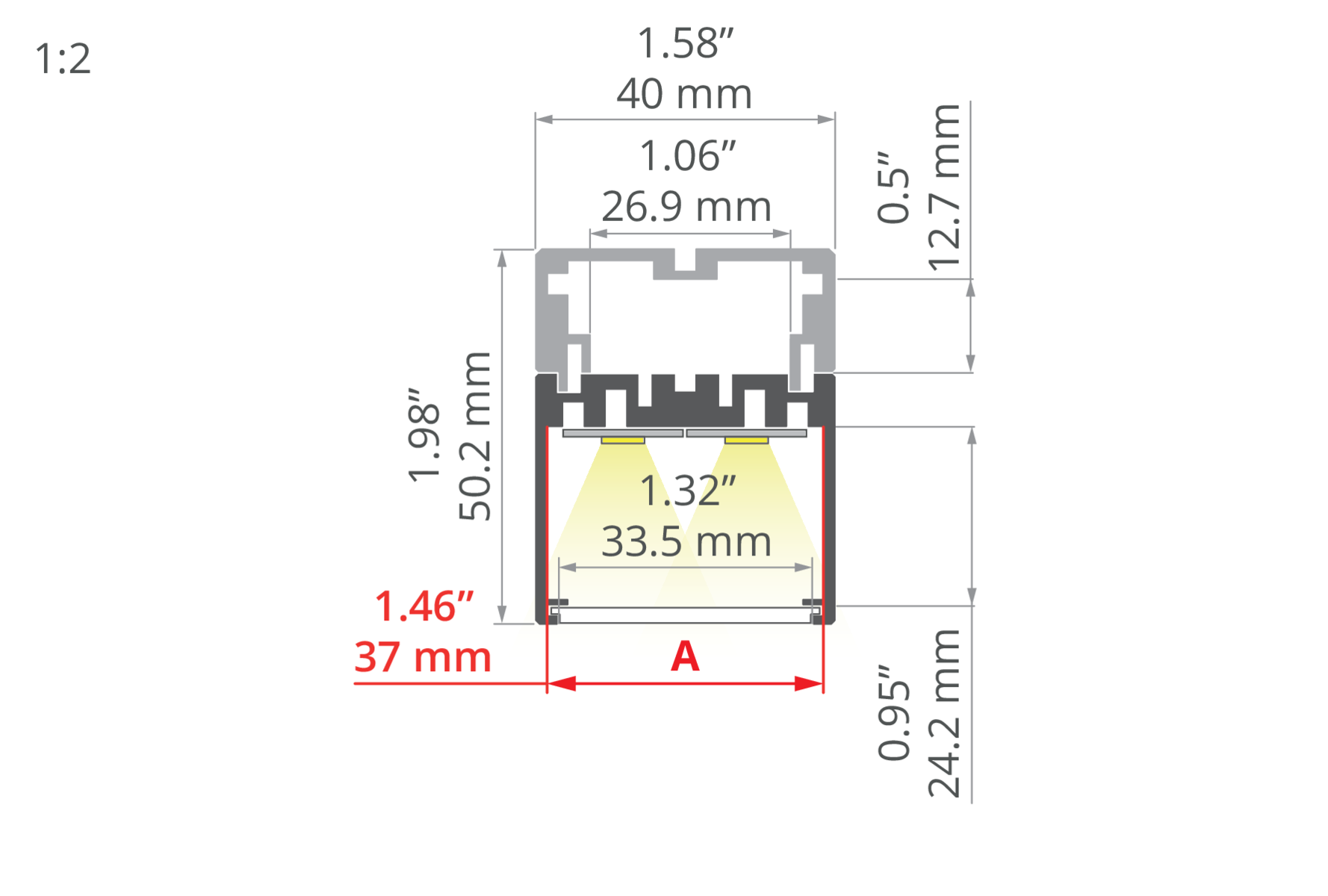

Technical drawing
4050 Extrusion aluminum Technical drawing - A18050
Technical specification
Material
aluminum
Possible fixture IP
20
Possible fixture shapes
linear, polygonal
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
7.3 W/ft
Width
1.6" (40 mm)
Height
2" (50.2 mm)
LED gluing width A
1.5" (37 mm)
Max. number of LED strips A (0.31" wide)
3
The cover is cut to the length of the profile
Yes
Can be easily connected into runs
Yes
Wire out back of extrusion
Yes
Possibility of obtaining a line of light
Yes
Building type
Commercial, Retail, Entertainment/ Arts, Hotel / Restaurant
Facility zone
office, lobby / foyer
Color Length Ref No
silver anodized
39.4" (1000 mm)
78.9" (2005 mm)
118.5" (3010 mm)
A18050A_1
A18050A_2
A18050A_3
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
Related products
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,
20 - 1.5 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-0480-24
K-HEHD25-0480-24
K-HEHD27-0480-24
K-HEHD30-0480-24
K-HEHD35-0480-24
K-HEHD40-0480-24
K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-0960-24
K-HEHD25-0960-24
K-HEHD27-0960-24
K-HEHD30-0960-24
K-HEHD35-0960-24
K-HEHD40-0960-24
K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-1440-24
K-HEHD25-1440-24
K-HEHD27-1440-24
K-HEHD30-1440-24
K-HEHD35-1440-24
K-HEHD40-1440-24
K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,
20 - 5.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-1920-24
K-HEHD25-1920-24
K-HEHD27-1920-24
K-HEHD30-1920-24
K-HEHD35-1920-24
K-HEHD40-1920-24
K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,
20 - 1 W/ft
2700K
3000K
3500K
4000K
- CRI over 95
- High Efficacy
K-HEHD27-0320-24
K-HEHD30-0320-24
K-HEHD35-0320-24
K-HEHD40-0320-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,
20 - 1.5 W/ft
2200K
2700K
- CRI over 95
K-CR22-1210-24
K-CR27-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1220-24
K-CR25-1220-24
K-CR27-1220-24
K-CR30-1220-24
K-CR35-1220-24
K-CR40-1220-24
K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1275-24
K-CR25-1275-24
K-CR27-1275-24
K-CR30-1275-24
K-CR35-1275-24
K-CR40-1275-24
K-CR50-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,
20 - 5.6 W/ft
2700K
- CRI over 95
- high LED density
K-CRHD27-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,
20 - 2.8 W/ft
2700K
3500K
4000K
- CRI over 95
- high LED density
K-CRHD27-1910-24
K-CRHD35-1910-24
K-CRHD40-1910-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,
20 - 1.6 W/ft
3500K
- CRI over 95
K-CRHD35-0530-24
K-HEHD-1440-24-40C LED tape, 570-667 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- High Efficacy
- cold weather -40F
K-HEHD22-1440-24-40C
K-HEHD25-1440-24-40C
K-HEHD27-1440-24-40C
K-HEHD30-1440-24-40C
K-HEHD35-1440-24-40C
K-HEHD40-1440-24-40C
K-HEHD50-1440-24-40C
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20
20 - 7.3 W/ft
2700K
3000K
3500K
4000K
5000K
- high power
K-27-2400-24
K-30-2400-24
K-35-2400-24
K-40-2400-24
K-50-2400-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-RGB27T65-1200-24 LED tape, 2700K, 122 lm/ft, 3.7 W/ft, IP20
20 - 3.7 W/ft
RGB
2700K
- RGB+Tunable White
K-RGB27T65-1200-24
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-120-24
K-RGB-0700-120-24 LED tape, 126 lm/ft, 2.1 W/ft, IP20
20 - 2.1 W/ft
RGB
- RGB
K-RGB-0700-120-24
K-RGB-1200-120-24 LED tape, 182 lm/ft, 3.7 W/ft, IP20,
20 - 3.7 W/ft
RGB
- RGB
K-RGB-1200-120-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,
65 silicon sleeve 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
KWP-GRGBW-1920-120-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-27/65-1920-24V LED tape, 2700K, 500 lm/ft, 5.9 W/ft, IP20
20 - 5.9 W/ft
2700K
- Tuneable white 2600K-6500K
K-27/65-1920-24
K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20
20 - 3.5 W/ft
1800K
K-30/18-1770-24
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20
20 - 4.7 W/ft
2200K
- Tuneable white 2200K-5000K
K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65
65 silicon sleeve 4.7 W/ft
2200K
- Tuneable white 2200K-5000K
KWP-SDCR-22T50-1530-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,
20 - 4.4 W/ft
2700K
3000K
3500K
4000K
K-SD27-1440-24
K-SD30-1440-24
K-SD35-1440-24
K-SD40-1440-24
No results found for the selected filters.
Product name Material Color Ref No
End cap 4050
ABS
gray
C28017C02
No results found for the selected filters.
Product name Key features Material Color Ref No
Spring GP
stainless steel
silver
C24500N00
Product name Key features Material Color Ref No
Fastener set NEO-ZM-PLUS-3
- 3 pieces for heavy fixtures
magnet
silver
C28107N00
Fastener set NEO-ZM-PLUS-4
- 4 pieces for heavy fixtures
magnet
silver
C28108N00
Product name Key features Material Color Ref No
RD-1 Fastener set
- Smooth cable adjustment, cable included
brass
silver
white
black
C28231P00
C28231P01
C28231L10
C28231L07
RG-1 Fastener set
- Cable adjustment at the ceiling, cable included
brass
silver
black
C28230P00
C28230L07
FI-8-ZM-2 Fastener set
- Convenient cable length adjustment, in the ZM system
stainless steel, aluminum
silver
white
black
C28135N00
C28135L10
C28135L07
Product name Key features Material Color Ref No
Head BZP-ZZ
stainless steel
gray
42215
FI-8-LIN-ZMZ Fastener
- Power supply - mounting in the ZM system
stainless steel, aluminum, rubber, PCV
silver
white
black
C28171N00
C28171L10
C28171L07
PUSZ-LIN-MR Fastener
- Power supply cable - mounting in thin walls (from 1mm)
stainless steel, brass, nylon
silver
white
black
C28163N00
C28163L10
C28163L07
PUSZ-PRET-ZM Fastener
- Power supply cable - mounting in the ZM system
stainless steel, brass, nylon, aluminum
silver
white
black
C28161N00
C28161L10
C28161L07
Product name Key features Material Color Ref No
Head BZP
stainless steel
silver
C28113N00
FI-10-ZM-P Fastener
- Cross mounting
stainless steel
silver
C28117N00
FI-10-ZM-W Fastener
stainless steel
silver
C28116N00
Product name Key features Material Color Ref No
Fi-60mm Canopy
- Convenient cable length adjustment, in the ZM system
steel
gray
white
black
C24540L01
C24540L10
C24540L07
No results found for the selected filters.
Product name IP rating Key features Ref No(Ref. arch.)
UNI Proximity switch
20 - touchless switch
- width only 7mm
E61579
No results found for the selected filters.
Product name Material Color Ref No
ZM-G Connector
stainless steel
silver
42308
42304
42328
42330
42332
42334
42336
42338
42310
42324
42326
ZM Connector
stainless steel
silver
black
colorless
C28075N00
C28072N00
42720
42728
C24797C07
C28072C07
C28075C07
C28070C07
C28071C07
C28073C07
C28074C07
C24797N00
Product name Material Color Ref No
Block ZM
silicon
gray
C28194N00
Product name Material Color Ref No
Adapters set ZM-16
PC
transparent
C29001C00
Gland 11x3
C24497C07
Gland 19x1,6
C24519C07
Gland 6x1,2
C24517C07
Gland 6,4x3
C42264C07
Gland M8x1
C42265N00
Gland 8x1,6
C42290C07
No results found for the selected filters.
