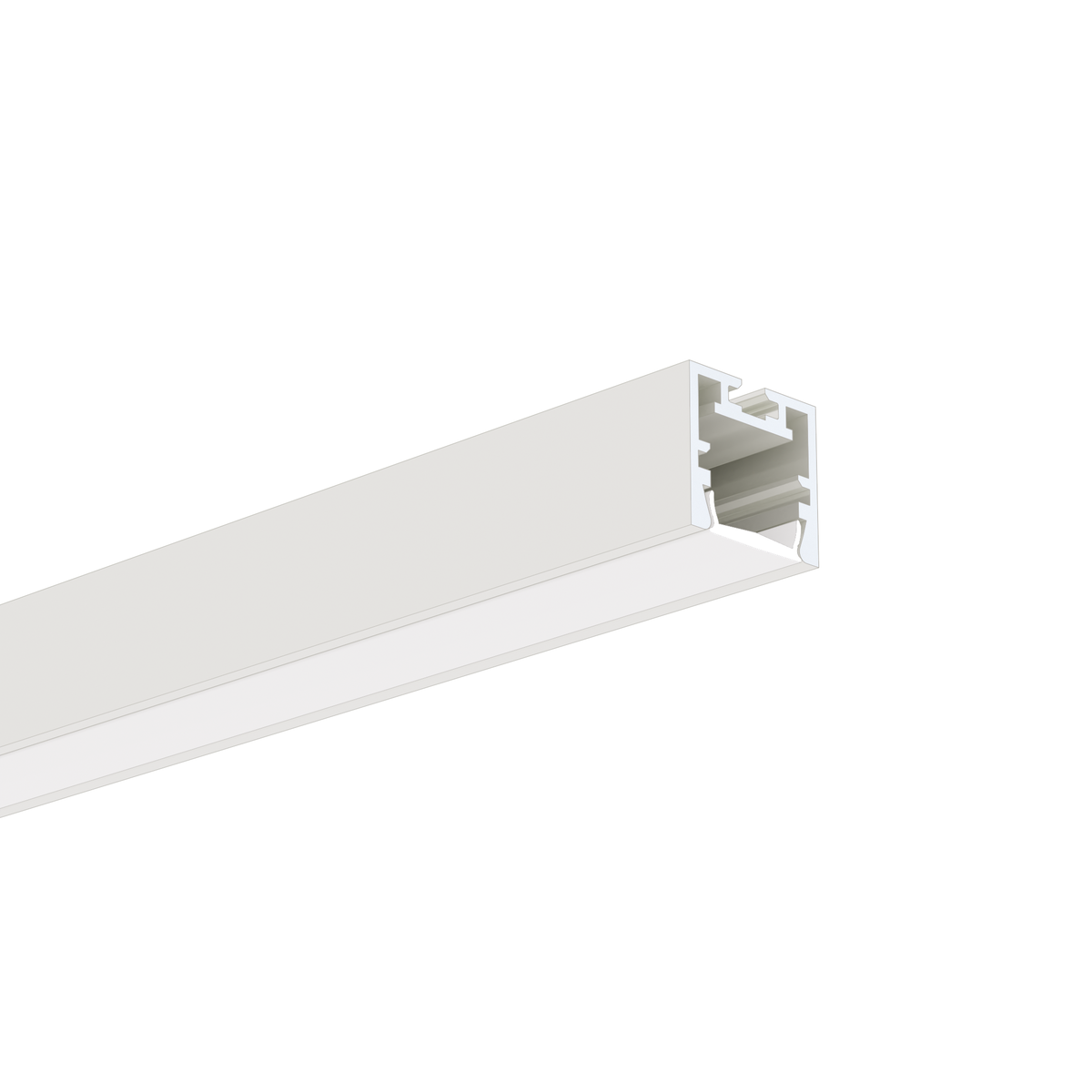

PDS-ZM-PLUS Extrusion

Ref No: A02056
PDS-ZM-PLUS Extrusion
PDS-ZM-PLUS Extrusion
PDS-ZM-PLUS Extrusion
PDS-ZM-PLUS Extrusion
PDS-ZM-PLUS Extrusion
PDS-ZM-PLUS Extrusion
PDS-ZM-PLUS Extrusion
  • Possibility of mounting sealed LED strips of the 8K series
  • Wide range of accessories
  • Smooth extrusions walls
  • Small bending radius

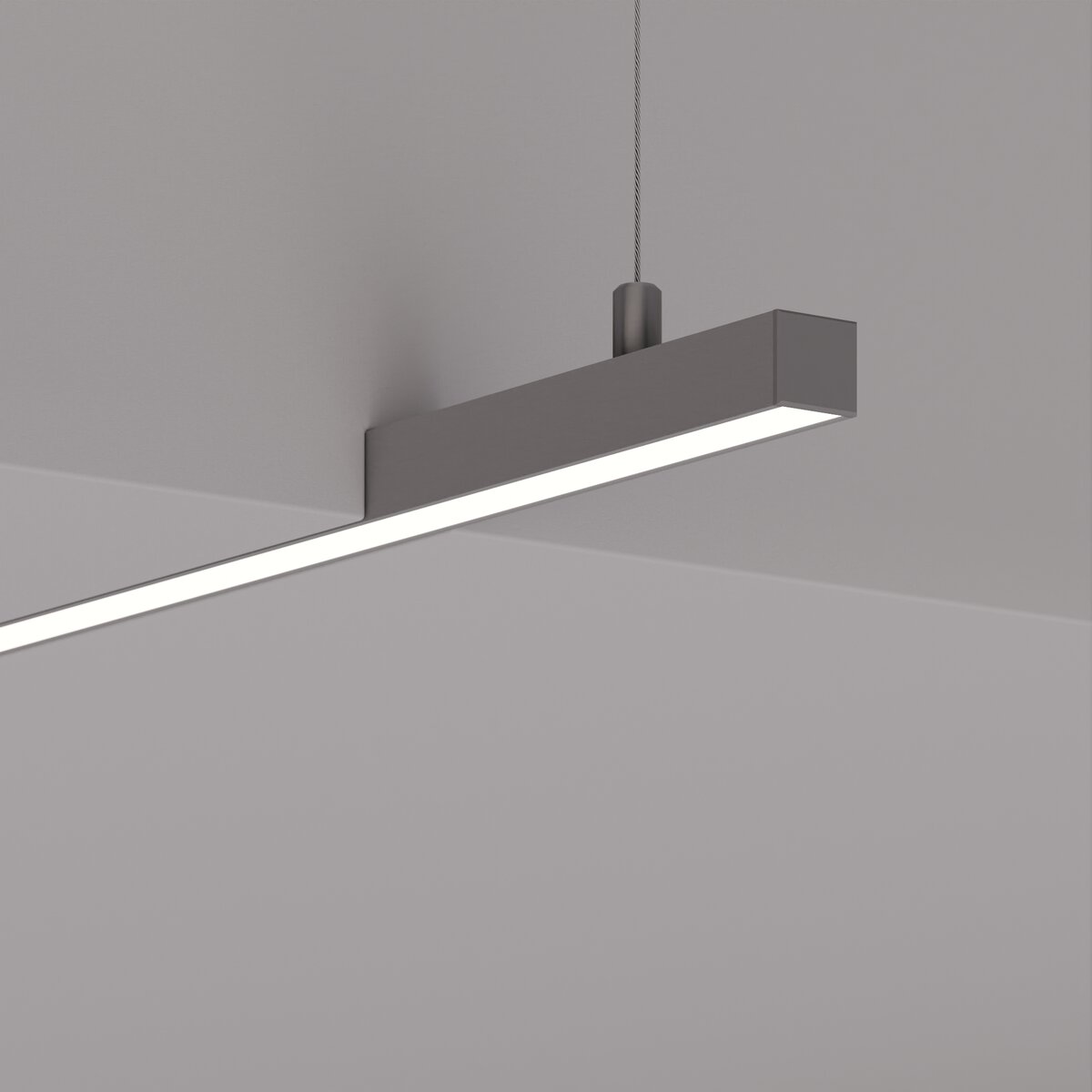

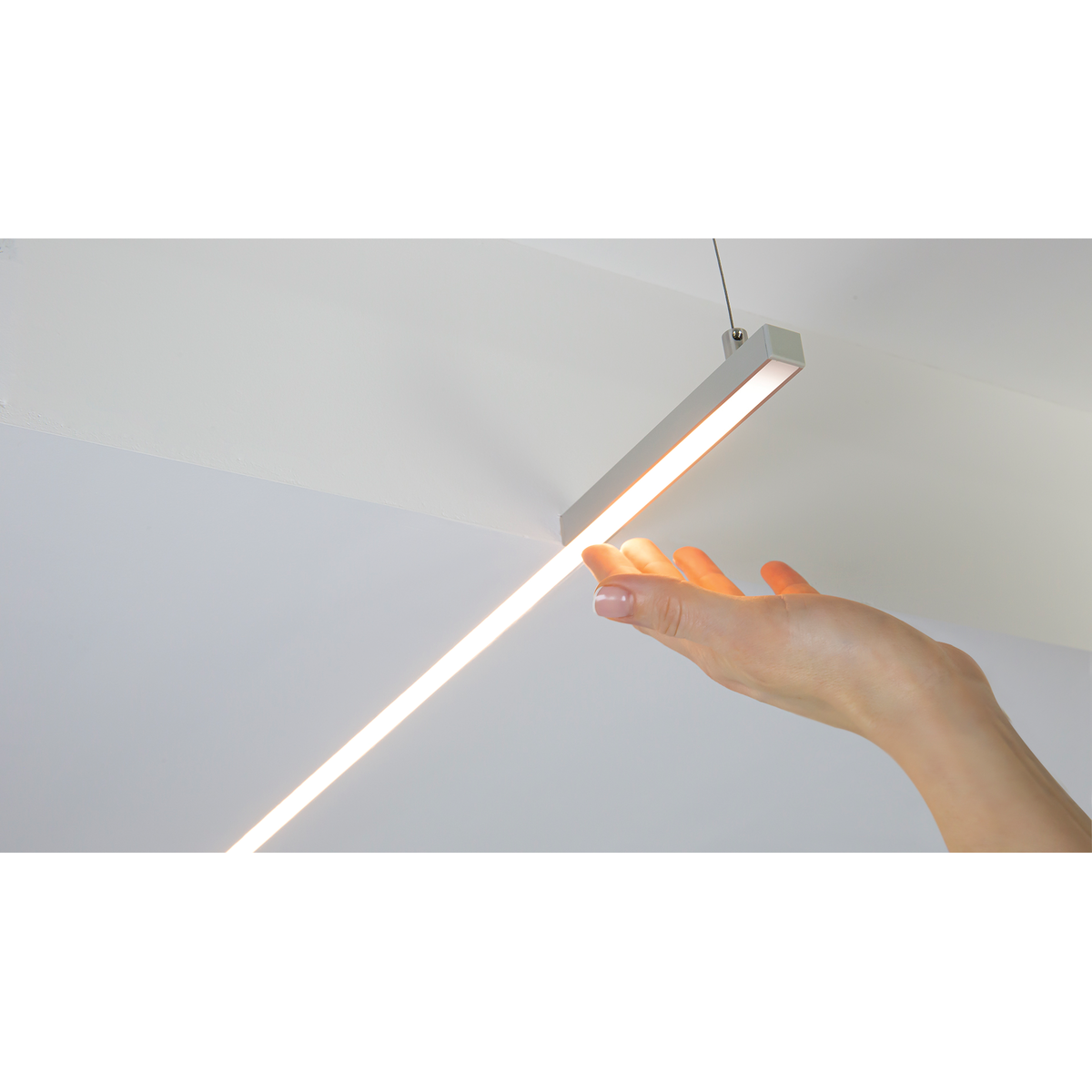

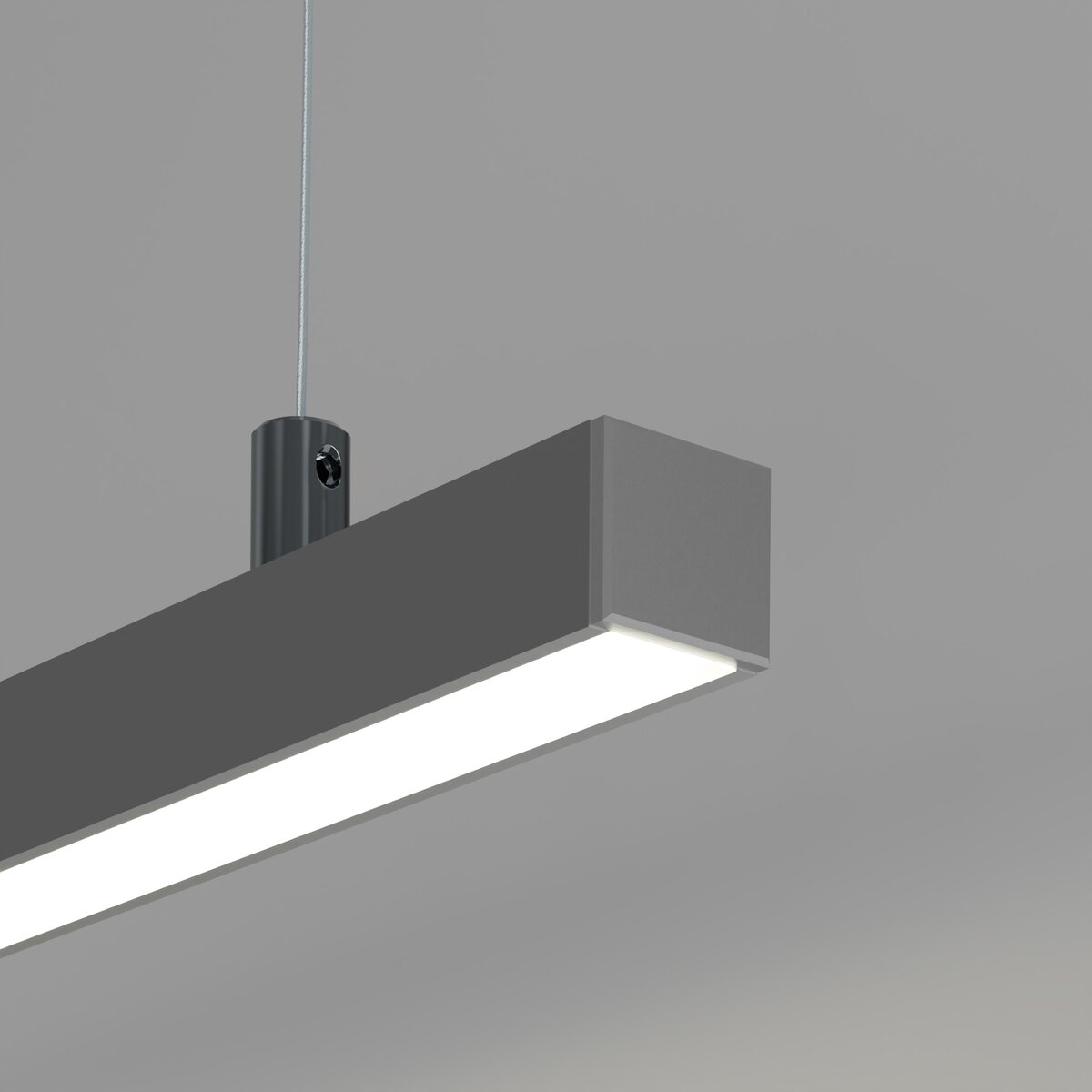

Suspended
Possibility of bending
With the possibility of sealing up to IP20
With the possibility of sealing up to IP67
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Closet Rated
Configure
Color
silver black
  • Possibility of mounting sealed LED strips of the 8K series
  • Wide range of accessories
  • Smooth extrusions walls
  • Small bending radius
Application
  • - main and decorative lighting
Mounting
  • - to the surface or suspended, using dedicated accessories, mounting adhesive or properly selected screws
Additional information
  • - possibility of smooth transition from an in-ground into a facade lighting fixture

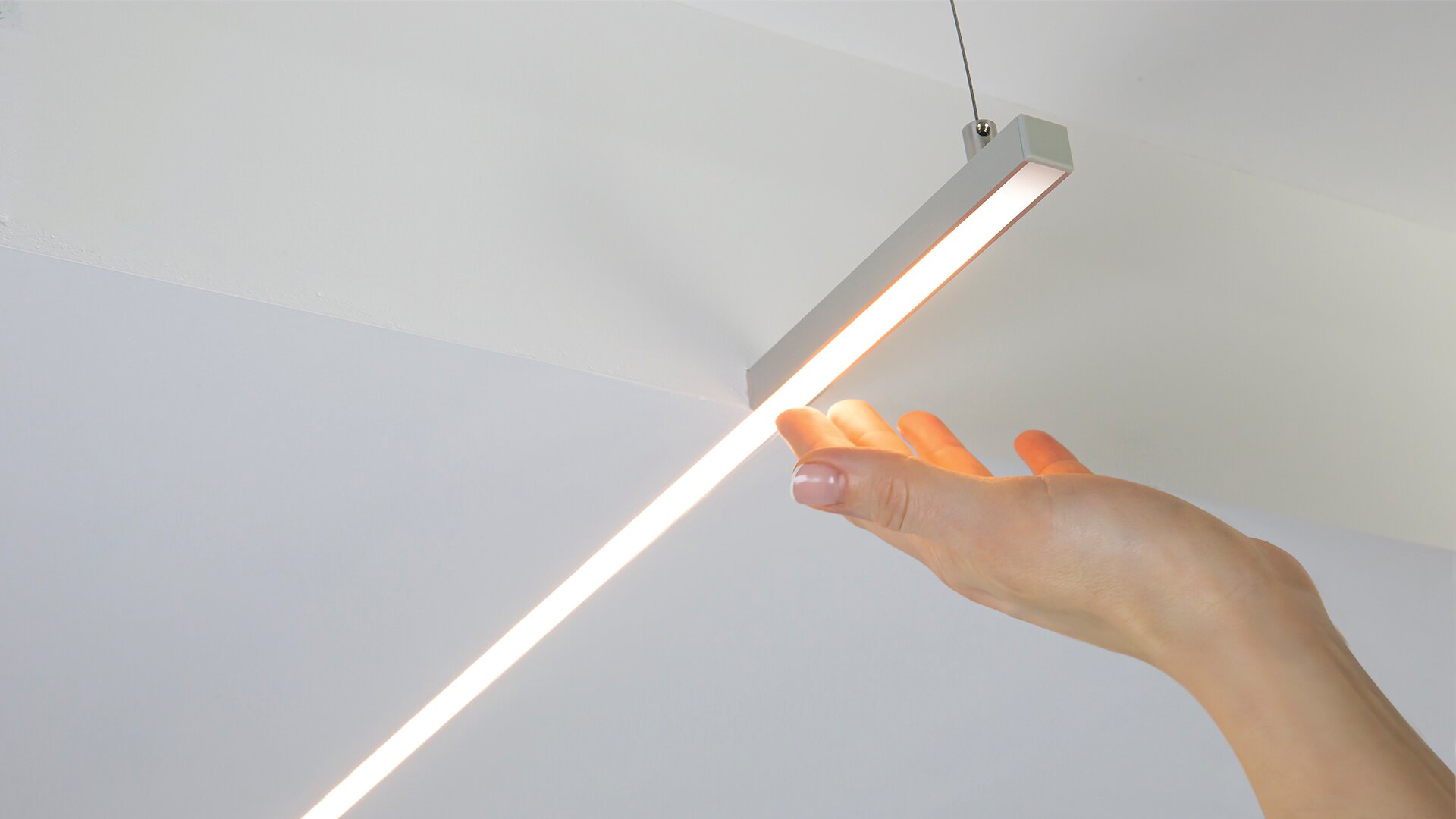

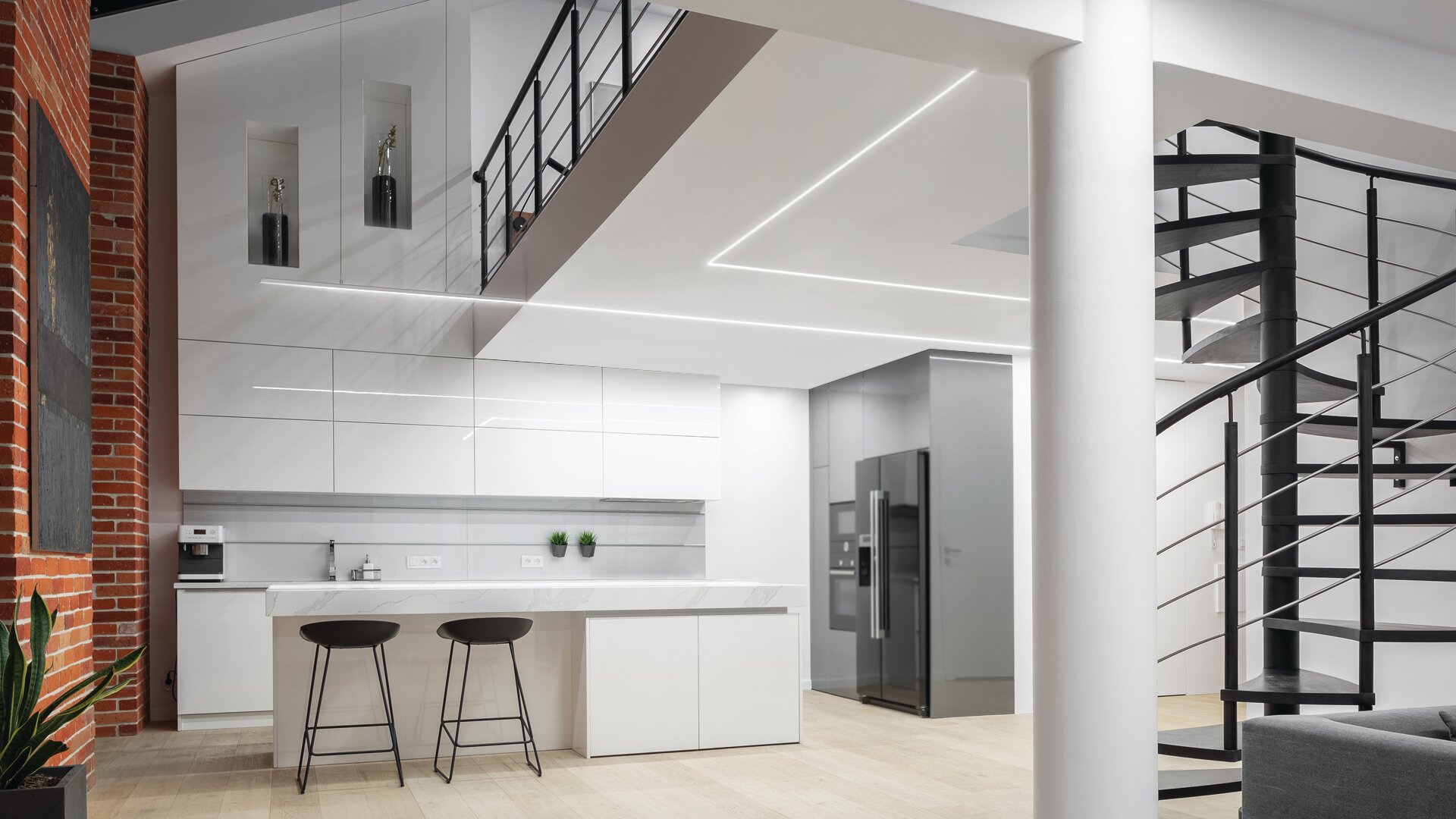

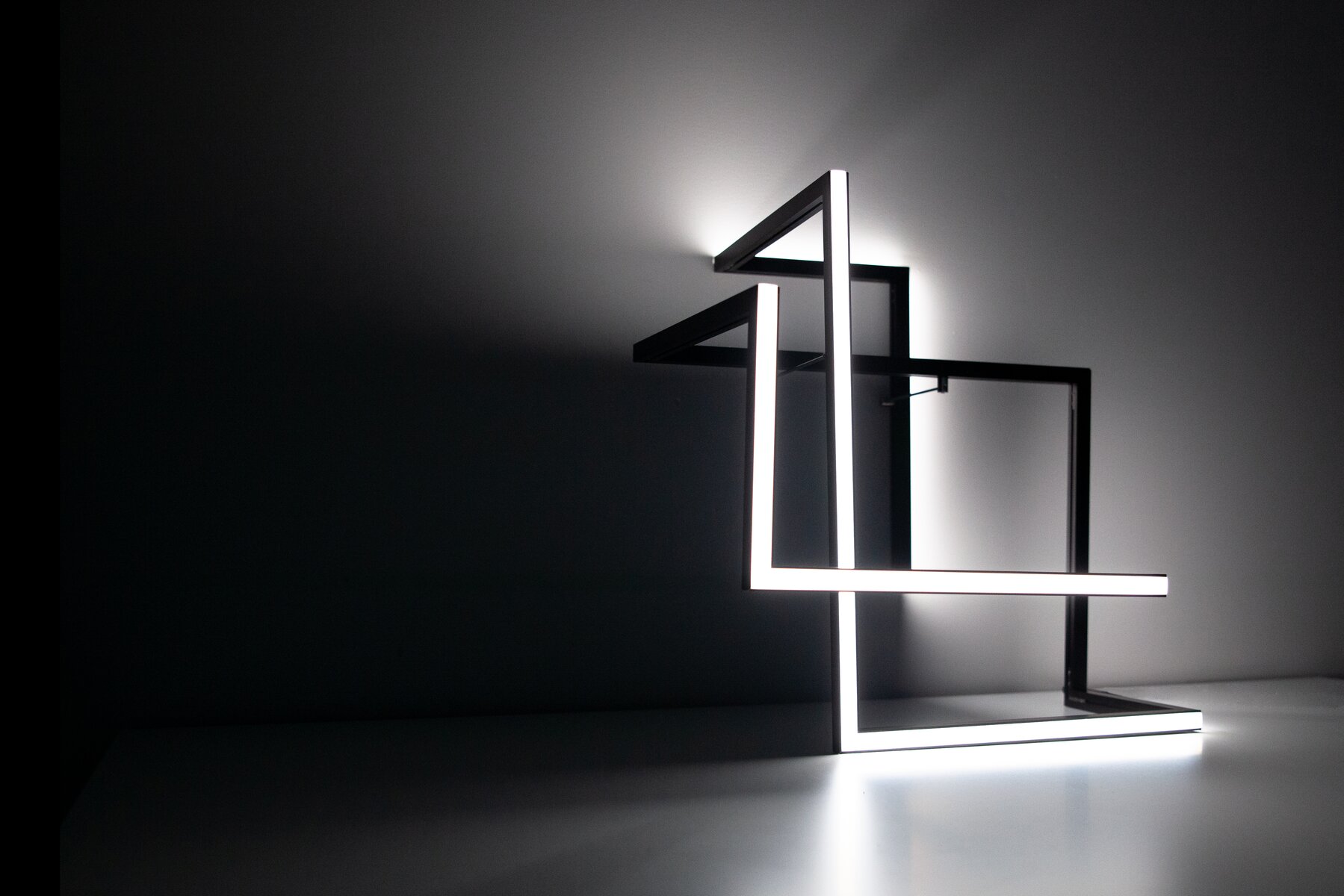

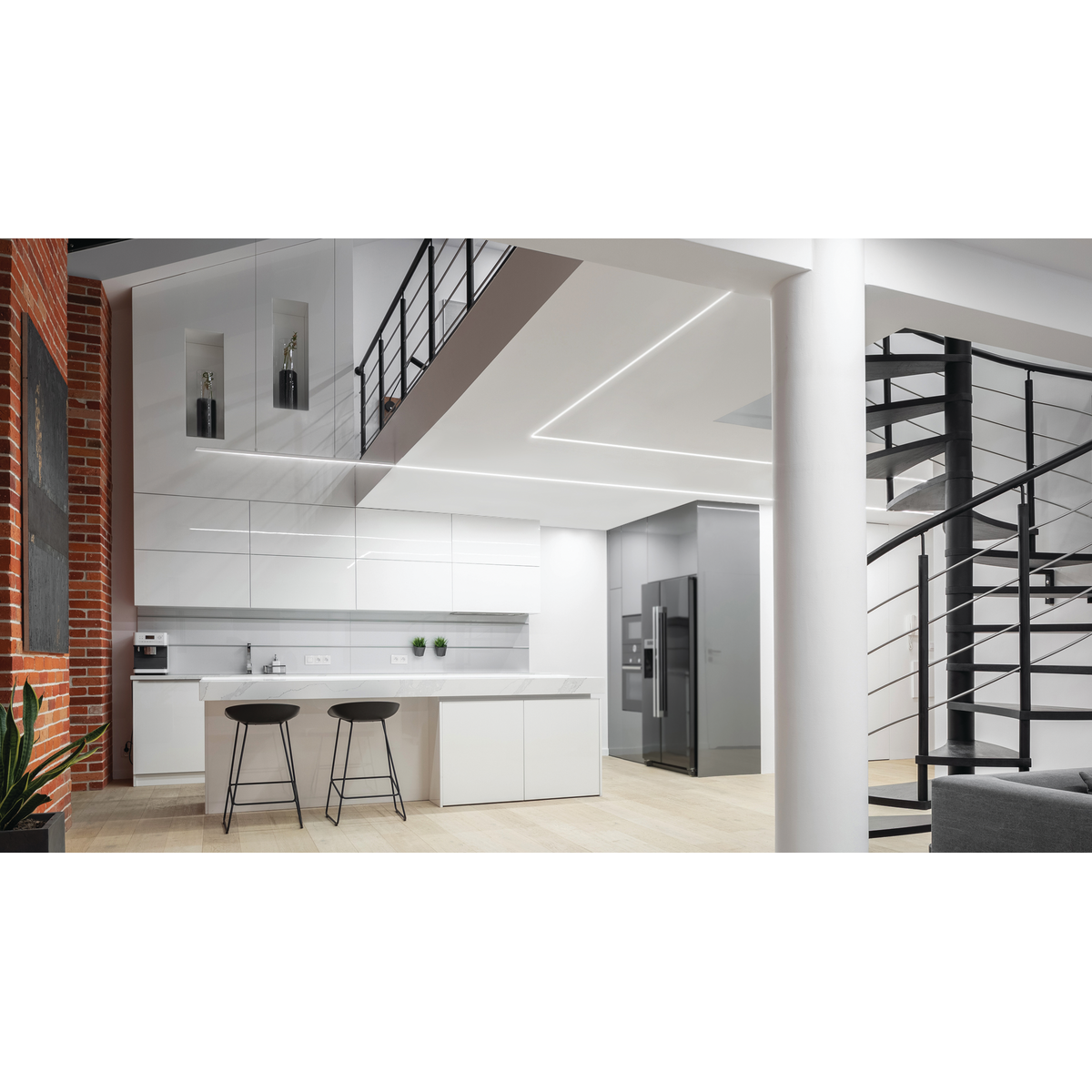

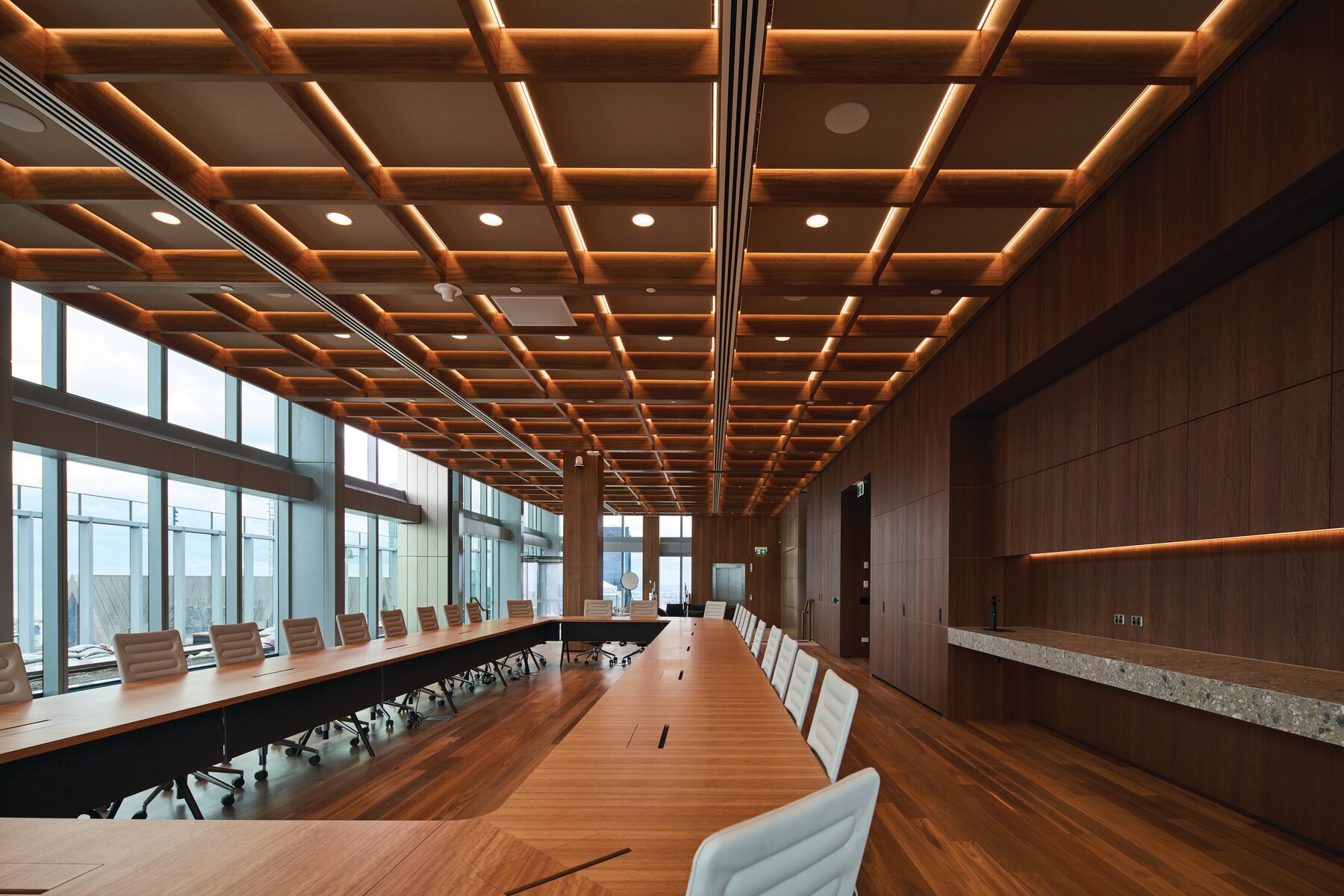

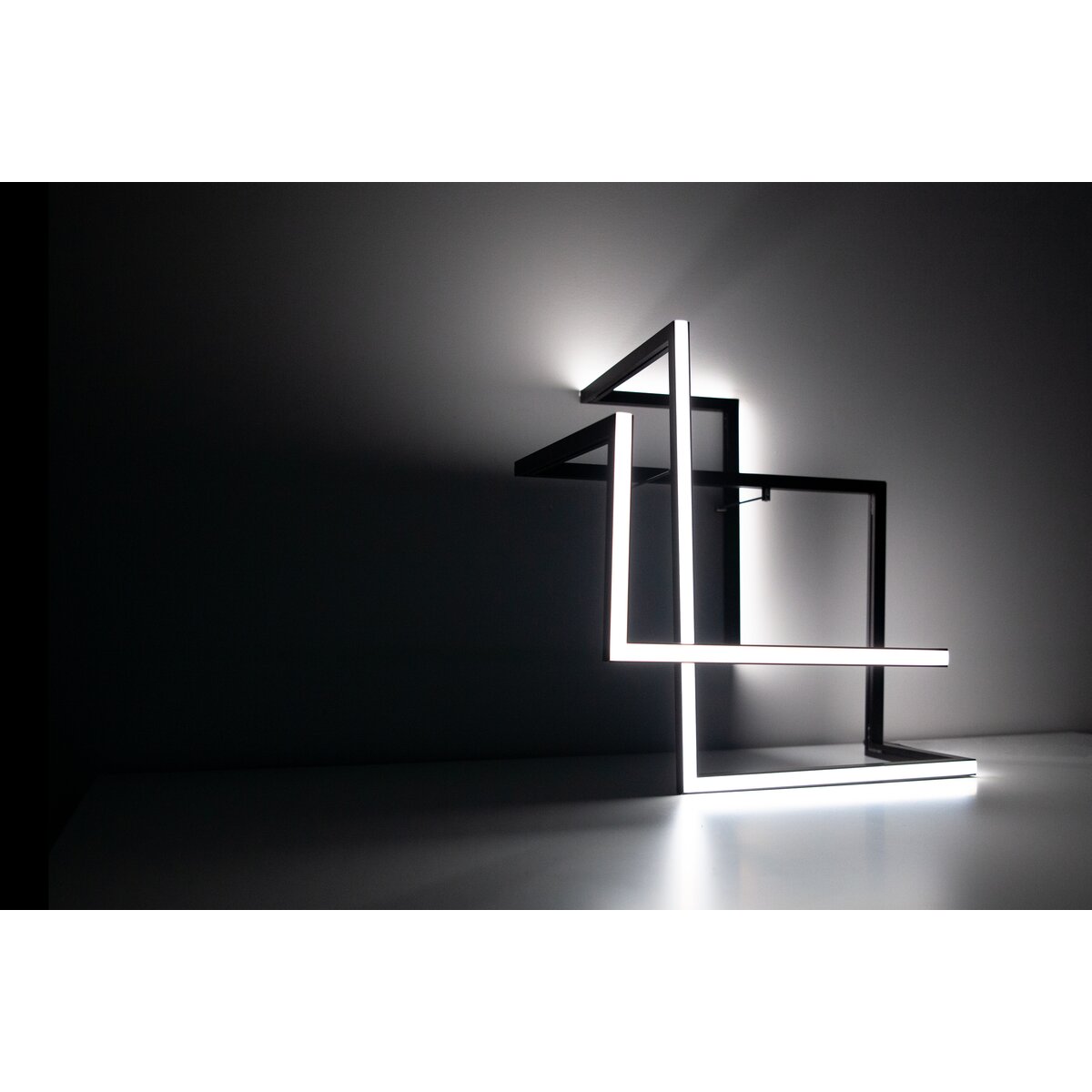

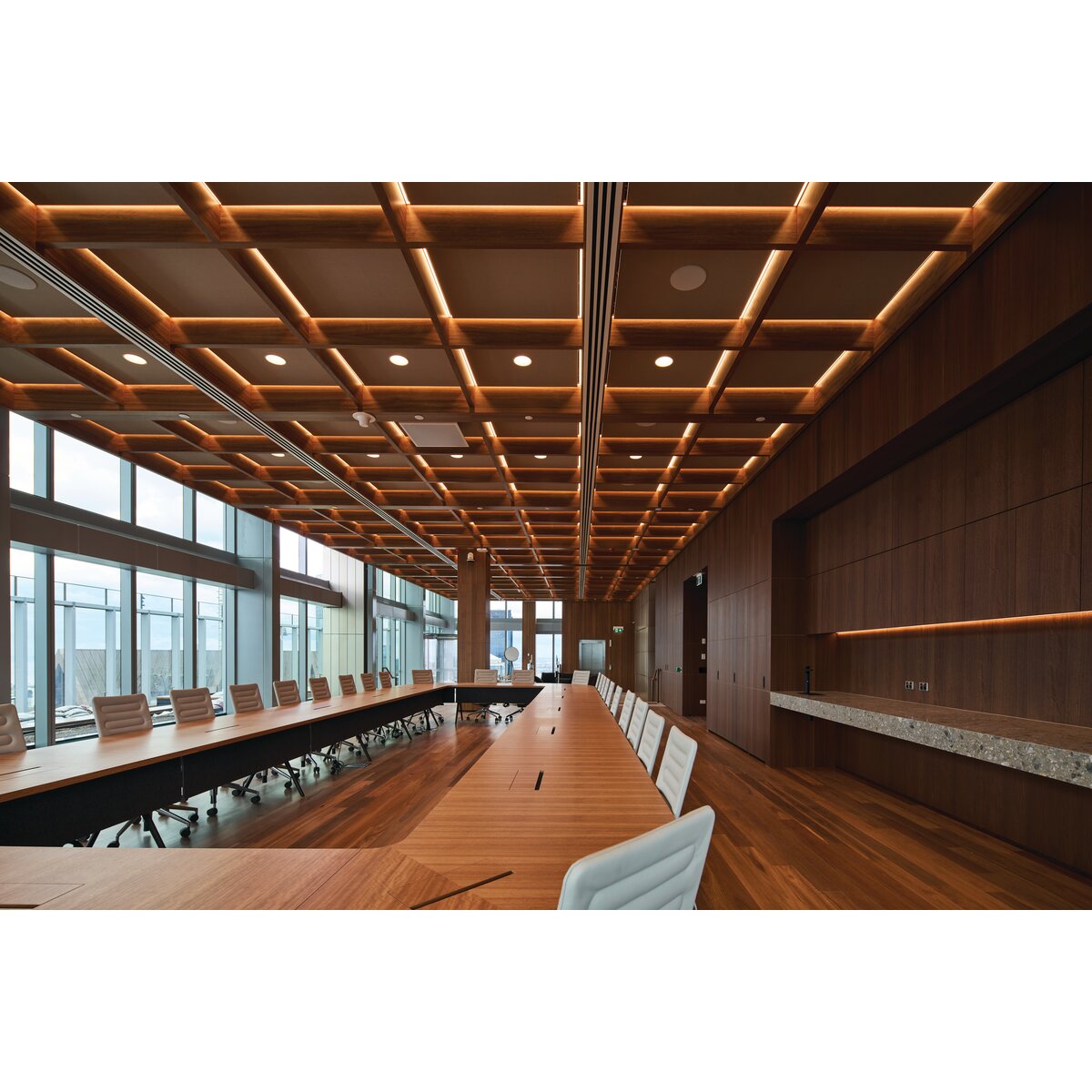

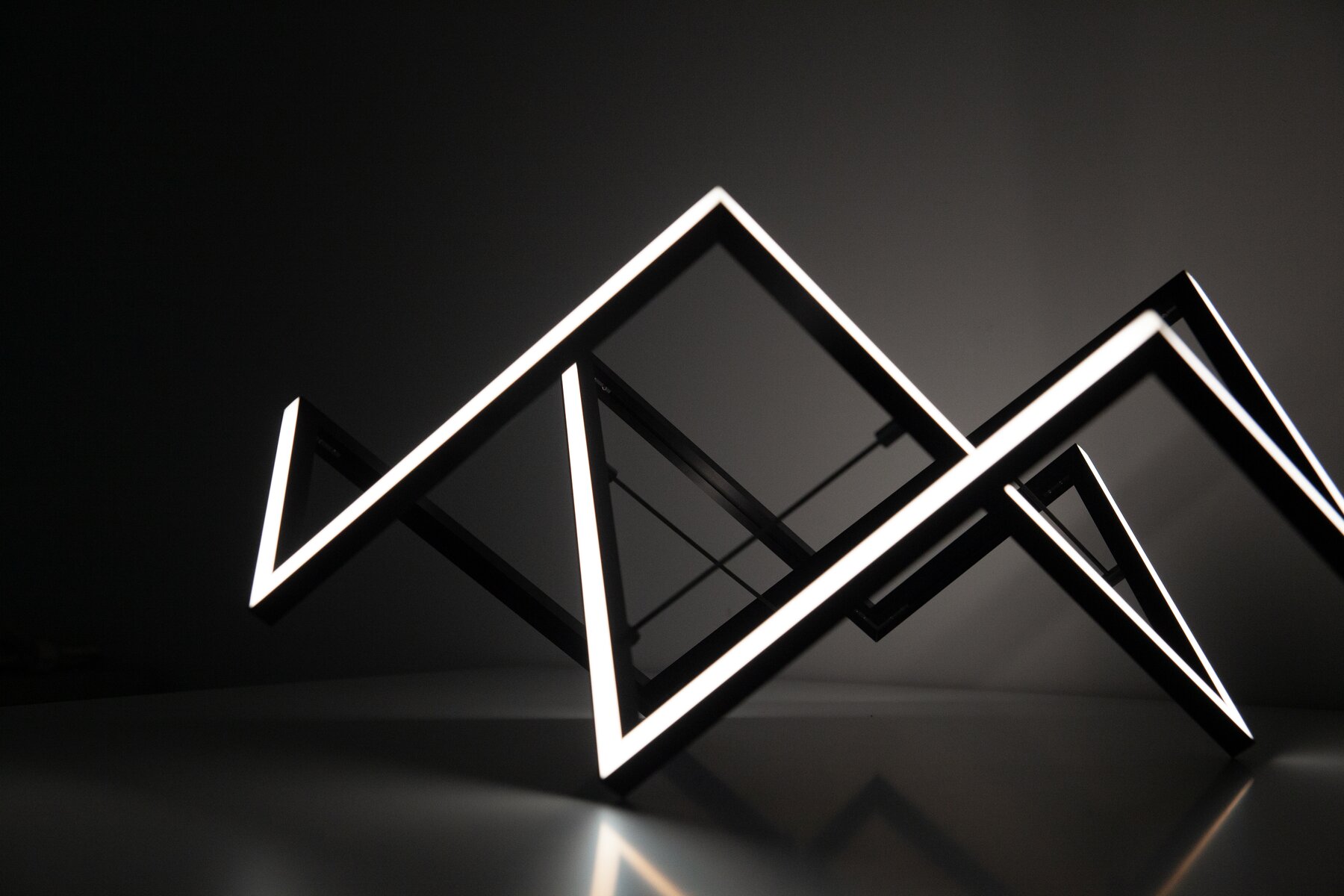

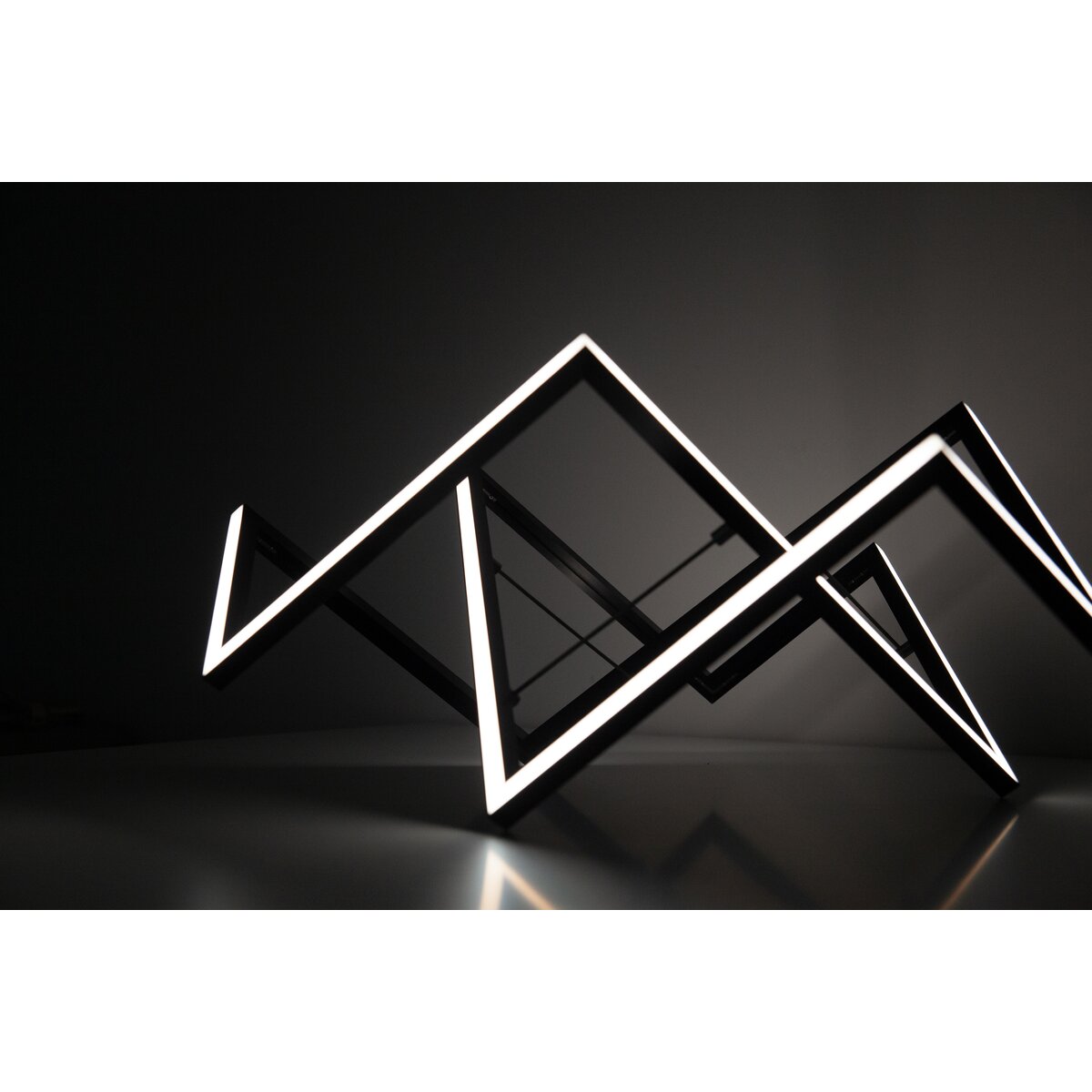

Usage examples

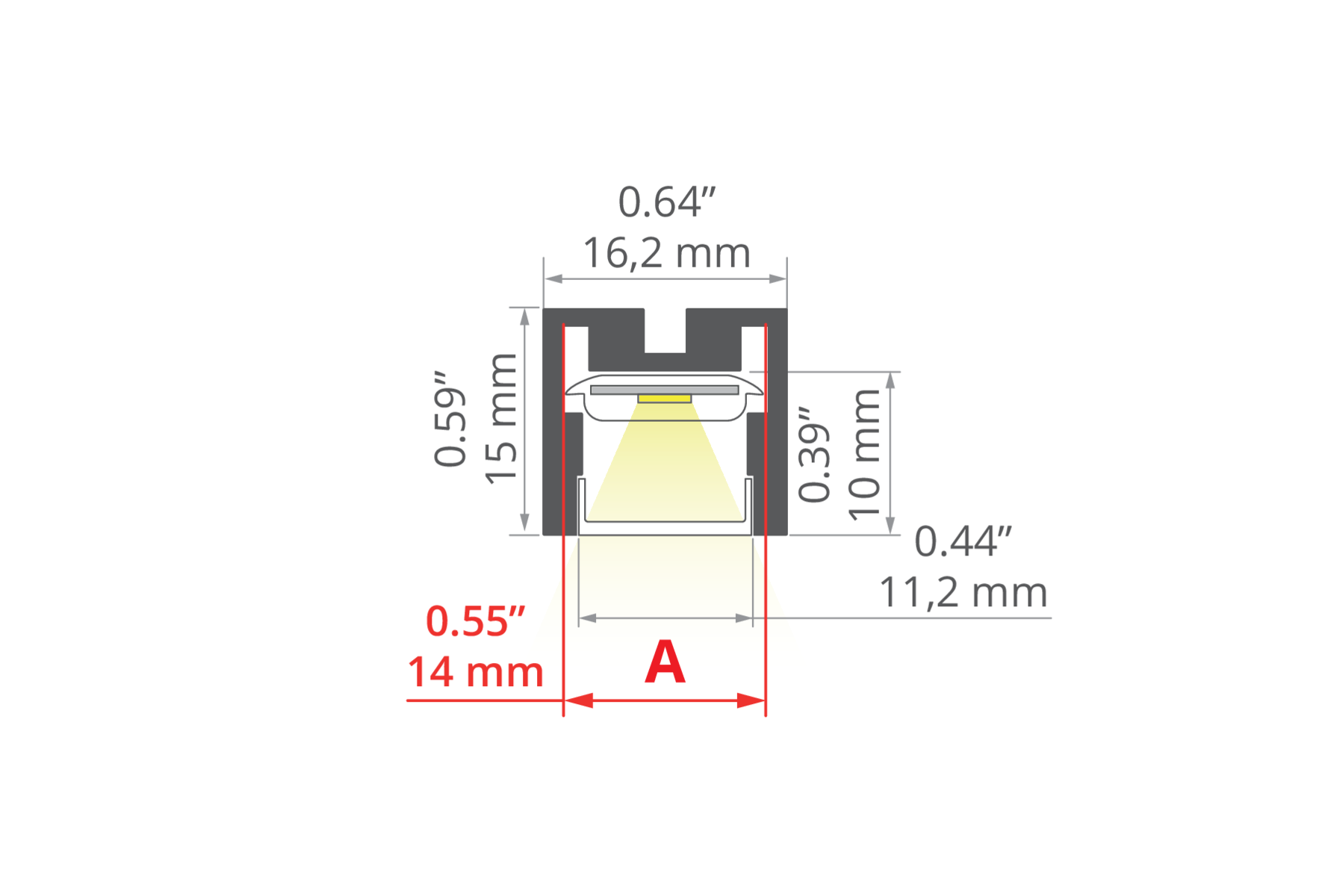

Technical drawing
PDS-ZM-PLUS Extrusion aluminum Technical drawing - A02056
Technical specification
Material
aluminum
Possible fixture IP
20, 67
Possible fixture shapes
linear, round, polygonal
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
7.3 W/ft
Width
0.6" (16.2 mm)
Height
0.6" (15 mm)
LED gluing width A
0.6" (14 mm)
Max. number of LED strips A (0.31" wide)
1
The cover is cut to the length of the profile
Yes
Can be easily connected into runs
Yes
Wire out back of extrusion
Yes
Possibility of obtaining a line of light
Yes
Possibility of bending
Yes
Minimum radius of the light arc
Radius of the light arc
Yes
Inside
400 mm
Outward
400 mm
Building type
Commercial, Hotel / Restaurant, Retail, Residential, Entertainment/ Arts, Outdoor
Facility zone
office, kitchen, under-cabinet / furniture, bathroom, decorative, fitness / spa, media rooms / av
Color Length Ref No
silver anodized
39.4" (1000 mm)
78.9" (2005 mm)
A02056A_1
A02056A_2
black anodized
39.4" (1000 mm)
78.9" (2005 mm)
A02056A07_1
A02056A07_2
Line of Light Table for Pixel Free Illumination
LED Tapes Covers
Categories LED tape type LIGER-11 Cover satin HS-11 Cover frosted KA-11R Cover frosted LIGER-11 Cover black
Bendable tape K-BT-0910-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
High Efficacy K-HEHD-0480-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) None
K-HEHD-0960-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) None
K-HEHD-1440-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) None
K-HEHD-1920-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) None
K-HEHD-0320-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) None
CRI 95+ K-CRHD-1820-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-CRHD-1910-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
CRI 90+ K-2400-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) None
RGB / RGB-W / RGB-CTT K-RGBW-1920-160-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) None
Single diode cuttable K-SD-1440-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) None
Adjustable White / Dim to Warm K-SDCR-22T50-1530-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
KWP-SDCR-22T50-1530-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
Line of Light for a number (X) of rows
Line of Light for a number (X) of rows - Pixel free imaging
Centered Line of Light
Centered Line of Light - Concentrated in middle
None
None - Visible dotting from diodes
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
similar profiles
Trimless
KOZMA
Ref No: A18040
Suspended
Surface mounted
PDS-4-PLUS
Ref No: A01263
Surface mounted
PDS-H
Ref No: A09204
Recessed
PDS-NK
Ref No: A01588
Suspended
Surface mounted
PDS-O
Ref No: B3777
Trimless
PDS-T
Ref No: A02057
Trimless
PDS-UST
Ref No: A02725
Suspended
PDS-ZM
Ref No: A07696
Suspended
PDS-ZMG
Ref No: A01418
Related products
Product name Material Key features Light transmittance [%] Color Ref No
LENSO-11 30°DEG Focusing cover
PC - indoor use
- focusing
80 %
semi-transparent
B17112T
Cover -11 BENCO
silicon - For indoor and outdoor applications
- UV resistant
50 %
frosted
B17215F
HS-11 Cover
PC - For indoor and outdoor applications
- UV resistant
- hight durability
59 %
88 %
frosted
clear
B17208F
B17208C
KA-11 Cover
PC - maximum brightness
- indoor use
- basic
- universal
67 %
89 %
frosted
clear
B17064F
B17064C
LIGER-11 Cover
PC - hight light quality
- Ease of obtaining a line of light
- perfectly diffusing
- For indoor and outdoor applications
59 %
21 %
satin
black
B17037S
B17037B
No results found for the selected filters.
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,
20 - 1.5 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-0480-24
K-HEHD25-0480-24
K-HEHD27-0480-24
K-HEHD30-0480-24
K-HEHD35-0480-24
K-HEHD40-0480-24
K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-0960-24
K-HEHD25-0960-24
K-HEHD27-0960-24
K-HEHD30-0960-24
K-HEHD35-0960-24
K-HEHD40-0960-24
K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-1440-24
K-HEHD25-1440-24
K-HEHD27-1440-24
K-HEHD30-1440-24
K-HEHD35-1440-24
K-HEHD40-1440-24
K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,
20 - 5.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-1920-24
K-HEHD25-1920-24
K-HEHD27-1920-24
K-HEHD30-1920-24
K-HEHD35-1920-24
K-HEHD40-1920-24
K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,
20 - 1 W/ft
2700K
3000K
3500K
4000K
- CRI over 95
- High Efficacy
K-HEHD27-0320-24
K-HEHD30-0320-24
K-HEHD35-0320-24
K-HEHD40-0320-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,
20 - 1.5 W/ft
2200K
2700K
- CRI over 95
K-CR22-1210-24
K-CR27-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1220-24
K-CR25-1220-24
K-CR27-1220-24
K-CR30-1220-24
K-CR35-1220-24
K-CR40-1220-24
K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1275-24
K-CR25-1275-24
K-CR27-1275-24
K-CR30-1275-24
K-CR35-1275-24
K-CR40-1275-24
K-CR50-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,
20 - 5.6 W/ft
2700K
- CRI over 95
- high LED density
K-CRHD27-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,
20 - 2.8 W/ft
2700K
3500K
4000K
- CRI over 95
- high LED density
K-CRHD27-1910-24
K-CRHD35-1910-24
K-CRHD40-1910-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,
20 - 1.6 W/ft
3500K
- CRI over 95
K-CRHD35-0530-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20
20 - 7.3 W/ft
2700K
3000K
3500K
4000K
5000K
- high power
K-27-2400-24
K-30-2400-24
K-35-2400-24
K-40-2400-24
K-50-2400-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-RGB27T65-1200-24 LED tape, 2700K, 122 lm/ft, 3.7 W/ft, IP20
20 - 3.7 W/ft
RGB
2700K
- RGB+Tunable White
K-RGB27T65-1200-24
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-120-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,
65 silicon sleeve 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
KWP-GRGBW-1920-120-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20
20 - 4.7 W/ft
2200K
- Tuneable white 2200K-5000K
K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65
65 silicon sleeve 4.7 W/ft
2200K
- Tuneable white 2200K-5000K
KWP-SDCR-22T50-1530-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,
20 - 4.4 W/ft
2700K
3000K
3500K
4000K
K-SD27-1440-24
K-SD30-1440-24
K-SD35-1440-24
K-SD40-1440-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-VBT-0720-24 LED tape, 323-338 lm/ft, IP20,
20 - 2.2 W/ft
2700K
3000K
3500K
4000K
5000K
- LED tape for bent profiles
K-VBT27-0720-24
K-VBT30-0720-24
K-VBT35-0720-24
K-VBT40-0720-24
K-VBT50-0720-24
K-BT-0910-24 LED tape, 237-282 lm/ft, IP20,
20 - 2.8 W/ft
2700K
3000K
3500K
4000K
5000K
- LED tape for bent profiles
K-BT27-0910-24
K-BT30-0910-24
K-BT35-0910-24
K-BT40-0910-24
K-BT50-0910-24
No results found for the selected filters.
Product name Material Color Ref No

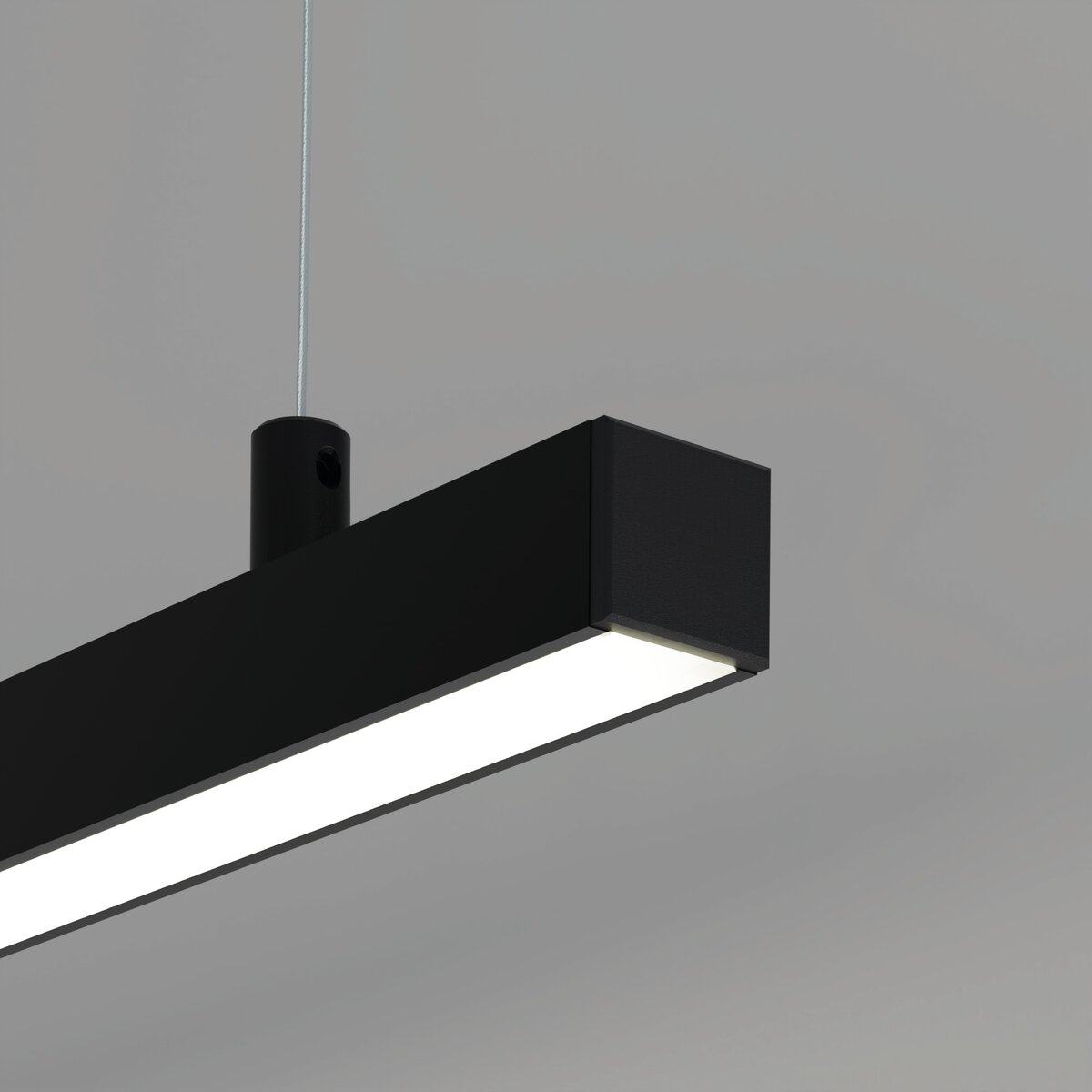

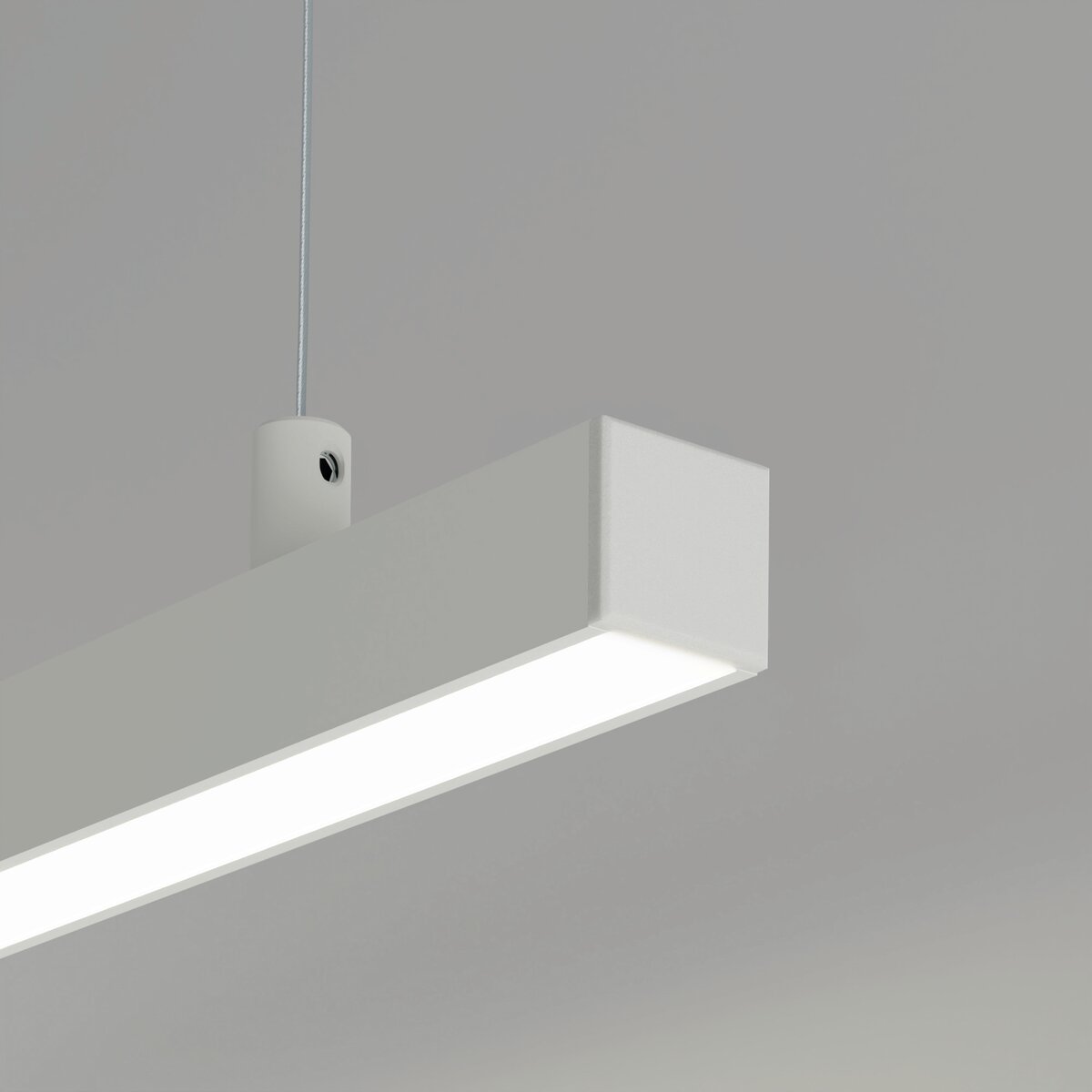

PDS-ZM-PLUS End cap
ABS
gray
black
C24364C02
C24364C07
No results found for the selected filters.
Product name Key features Material Color Ref No
NEO-ZM-3 Fastener set
- 3 pieces for heavy fixtures
magnet
silver
C28105N00
NEO-ZM-4 Fastener set
- 4 pieces for light fixtures
magnet
silver
C28106N00
Product name Key features Material Color Ref No
Spring GP
stainless steel
silver
C24500N00
Product name Key features Material Color Ref No
Head BZP
stainless steel
silver
C28113N00
FI-10-ZM-P Fastener
- Cross mounting
stainless steel
silver
C28117N00
FI-10-ZM-W Fastener
stainless steel
silver
C28116N00
FI-8-LIN-ZM Fastener
- Installation in the ZM system
stainless steel, PA
silver
black
C28170N00
C28170L07
FI-8-PRET-ZM Fastener
- Installation in the ZM system
silver
white
black
C28189N00
C28189L10
C28189L07
Product name Key features Material Color Ref No
Head BZP-ZZ
stainless steel
gray
42215
FI-8-LIN-ZMZ Fastener
- Power supply - mounting in the ZM system
stainless steel, aluminum, rubber, PCV
silver
white
black
C28171N00
C28171L10
C28171L07
PUSZ-LIN-MR Fastener
- Power supply cable - mounting in thin walls (from 1mm)
stainless steel, brass, nylon
silver
white
black
C28163N00
C28163L10
C28163L07
PUSZ-PRET-ZM Fastener
- Power supply cable - mounting in the ZM system
stainless steel, brass, nylon, aluminum
silver
white
black
C28161N00
C28161L10
C28161L07
Fastener PUSZ-PRET-ZM
stainless steel
silver
42250
Product name Key features Material Color Ref No
Fi-60mm Canopy
- Convenient cable length adjustment, in the ZM system
steel
gray
white
black
C24540L01
C24540L10
C24540L07
Product name Key features Material Color Ref No
RD-1 Fastener set
- Smooth cable adjustment, cable included
brass
silver
white
black
C28231P00
C28231P01
C28231L10
C28231L07
RG-1 Fastener set
- Cable adjustment at the ceiling, cable included
brass
silver
black
C28230P00
C28230L07
FI-8-ZM-2 Fastener set
- Convenient cable length adjustment, in the ZM system
stainless steel, aluminum
silver
white
black
C28135N00
C28135L10
C28135L07
No results found for the selected filters.
Product name IP rating Key features Ref No(Ref. arch.)
Switch MICRO 96W IP20
20 - push button switch
- factory pre-soldered wires
1576
UNI Proximity switch
20 - touchless switch
- width only 7mm
E61579
No results found for the selected filters.
Product name Material Color Ref No
ZM-G Connector
stainless steel
silver
42308
42304
42328
42330
42332
42334
42336
42338
42310
42324
42326
ZM Connector
stainless steel
silver
black
colorless
C28075N00
C28072N00
42720
42728
C24797C07
C28072C07
C28075C07
C28070C07
C28071C07
C28073C07
C28074C07
C24797N00
ZM-PION Connector
stainless steel
silver
black
42718
42719
42320
C28086N00
C28084N00
42314
C28086C07
C28084C07
C28088C07
C28087C07
C28085C07
Product name Material Color Ref No
Coupler L135
aluminum
silver
L135
Coupler L135PW
aluminum
silver
L135PW
Coupler L135PZ
aluminum
silver
L135PZ
Coupler L90
aluminum
silver
L90
Coupler L90PW
aluminum
silver
L90PW
Coupler L90PZ
aluminum
silver
L90PZ
Coupler T135L
aluminum
silver
T135L
Coupler T135R
aluminum
silver
T135R
Coupler T90
aluminum
silver
T90
Coupler X135
aluminum
silver
X135
Coupler X90
aluminum
silver
X90
Product name Material Color Ref No
Adapters set ZM-16
PC
transparent
C29001C00
Gland 6x1,2
C24517C07
Gland 6,4x3
C42264C07
Gland M8x1
C42265N00
Adapter LENSO
PC
transparent
E62146
Gland 8x1,6
C42290C07
No results found for the selected filters.

Compare products

Compare
KLUS, LLC
3755 9th St. Southwest
Vero Beach, FL 32968
Copyright 2026 Kluś. All right reserved..
