Fastener DP-ZO

Ref No: 00649
  • Longitudinal suspension on a rod or wire
  • Single pole conductivity possible
  • Fixing screw flush with the extrusion surface
Conducting electricity
Color
silver
  • Longitudinal suspension on a rod or wire
  • Single pole conductivity possible
  • Fixing screw flush with the extrusion surface
Application
  • - for suspending LED lighting fixtures
Mounting
  • - to the lighting fixture, using a countersunk screw (included)
  • - to a rod or cable, using a set bolt

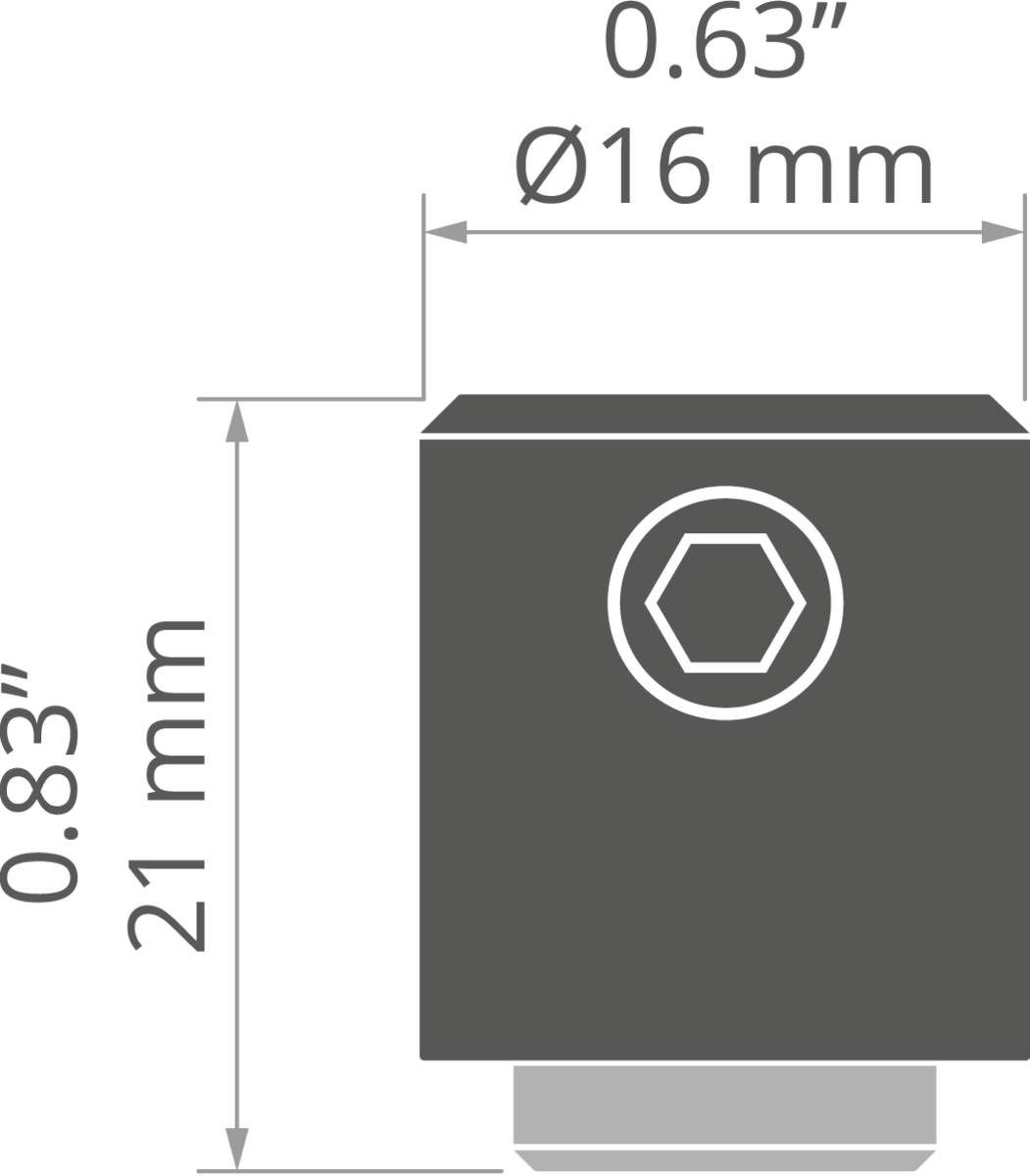

Technical drawing
Fastener DP-ZO stainless steel Technical drawing - 00649
Technical specification
Material
stainless steel
Height
0.8"
Diameter
0.6"
Conducting electricity
Yes
Working temperature
140°F
Lifting capacity
48.4 lb
Maximum current intensity
9 A
Power loss
0.18 V
