GLAZA-DUO Extrusion

Ref No: A03059
GLAZA-DUO Extrusion
GLAZA-DUO Extrusion
  • Up/down lighting
  • Smooth extrusions walls
  • Fasteners are mounted to the cover hook
  • Possibility to use current modules with efficiency up to 190lm/W and CRI>90. Available upon request.
Suspended
Two directional lighting for suspended fixtures
With the possibility of sealing up to IP20
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Configure
Color
silver
  • Up/down lighting
  • Smooth extrusions walls
  • Fasteners are mounted to the cover hook
  • Possibility to use current modules with efficiency up to 190lm/W and CRI>90. Available upon request.
Application
  • - main and decorative lighting
Mounting
  • - suspended, using dedicated accessories
Additional information
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
  • - NCS Premium paint option - minimum order quantity 30pcs - available on order within 14 days

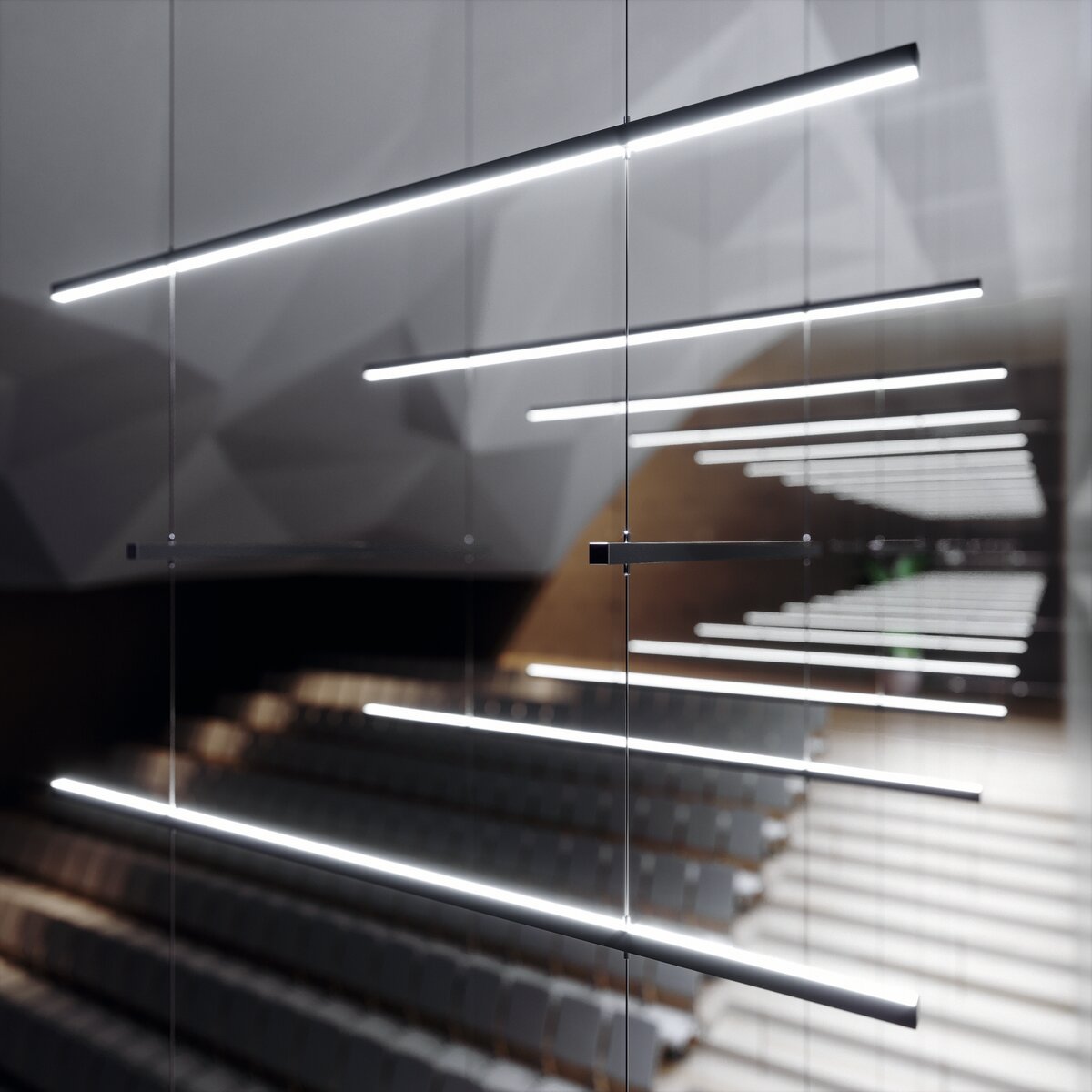

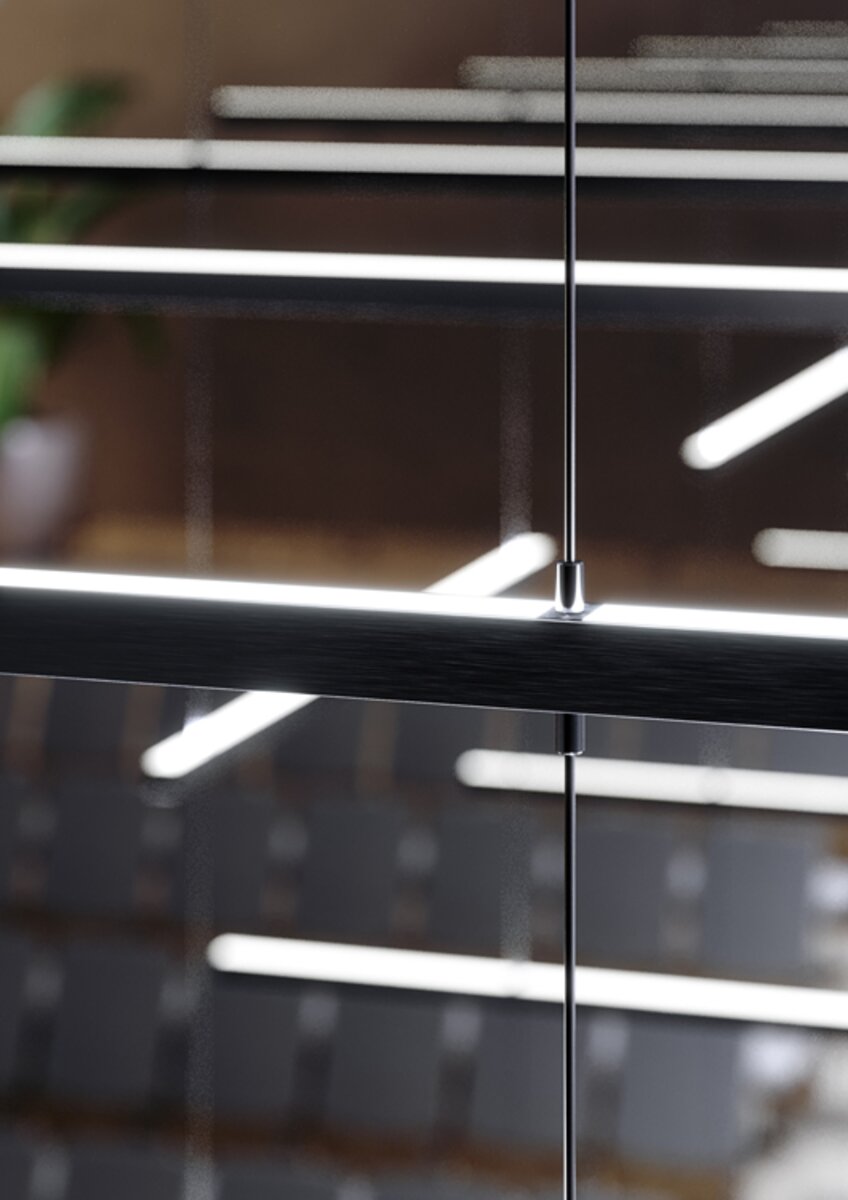

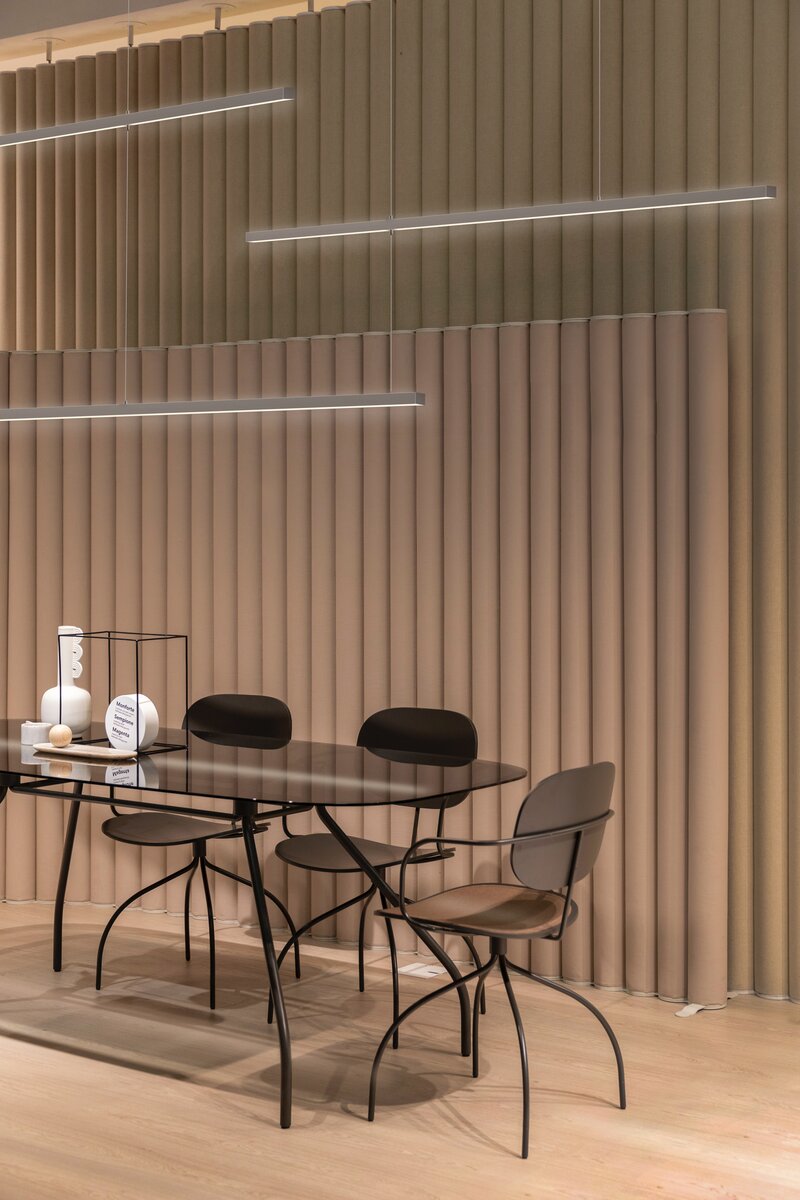

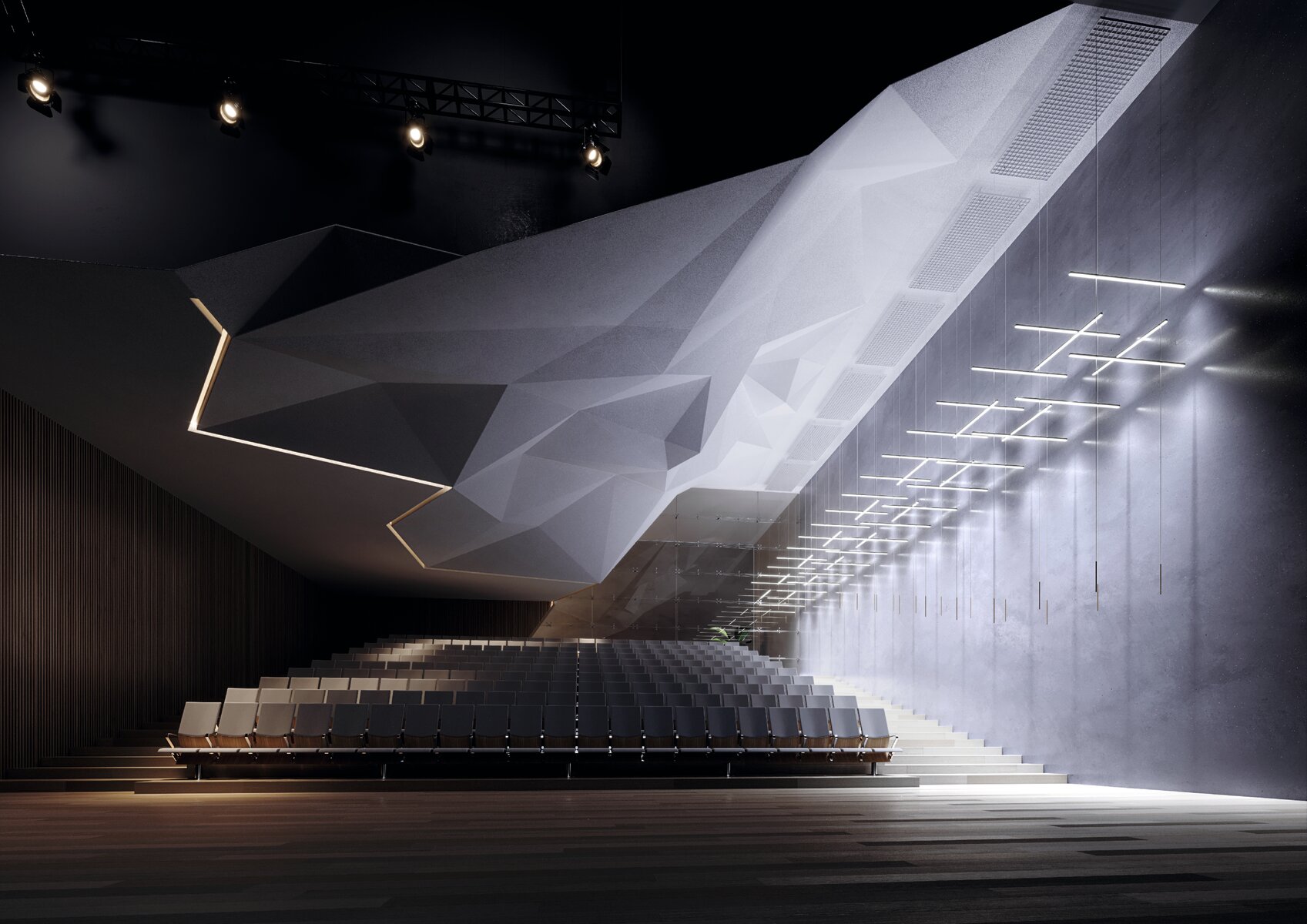

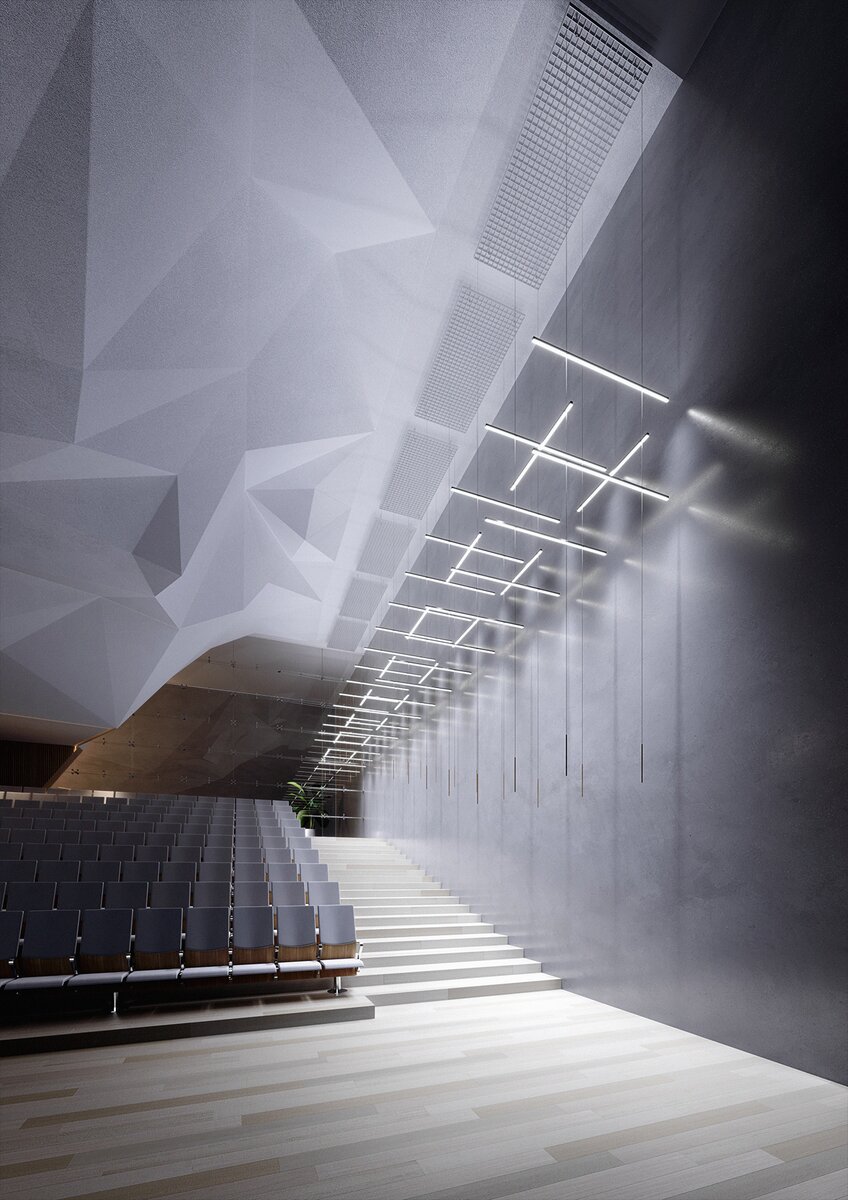

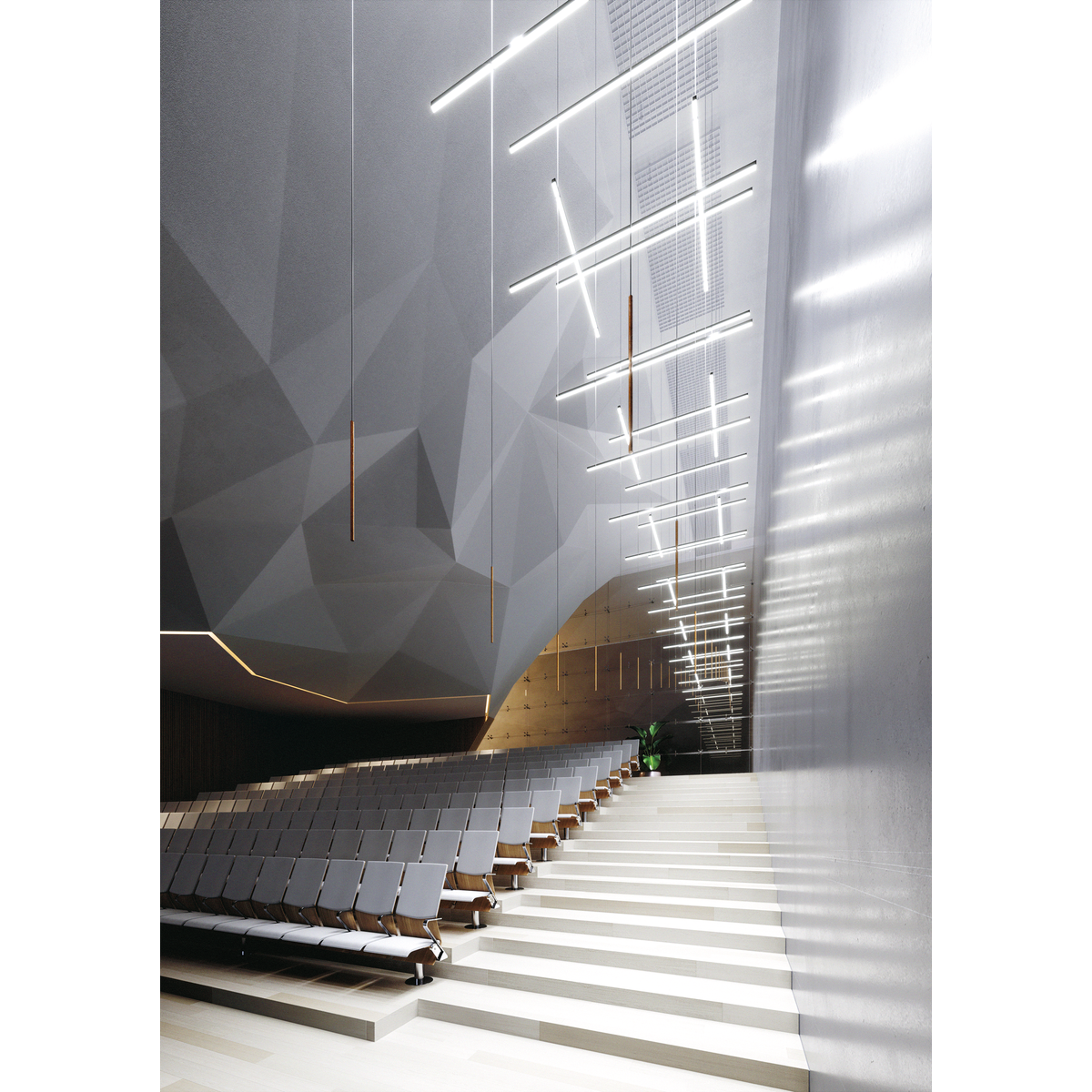

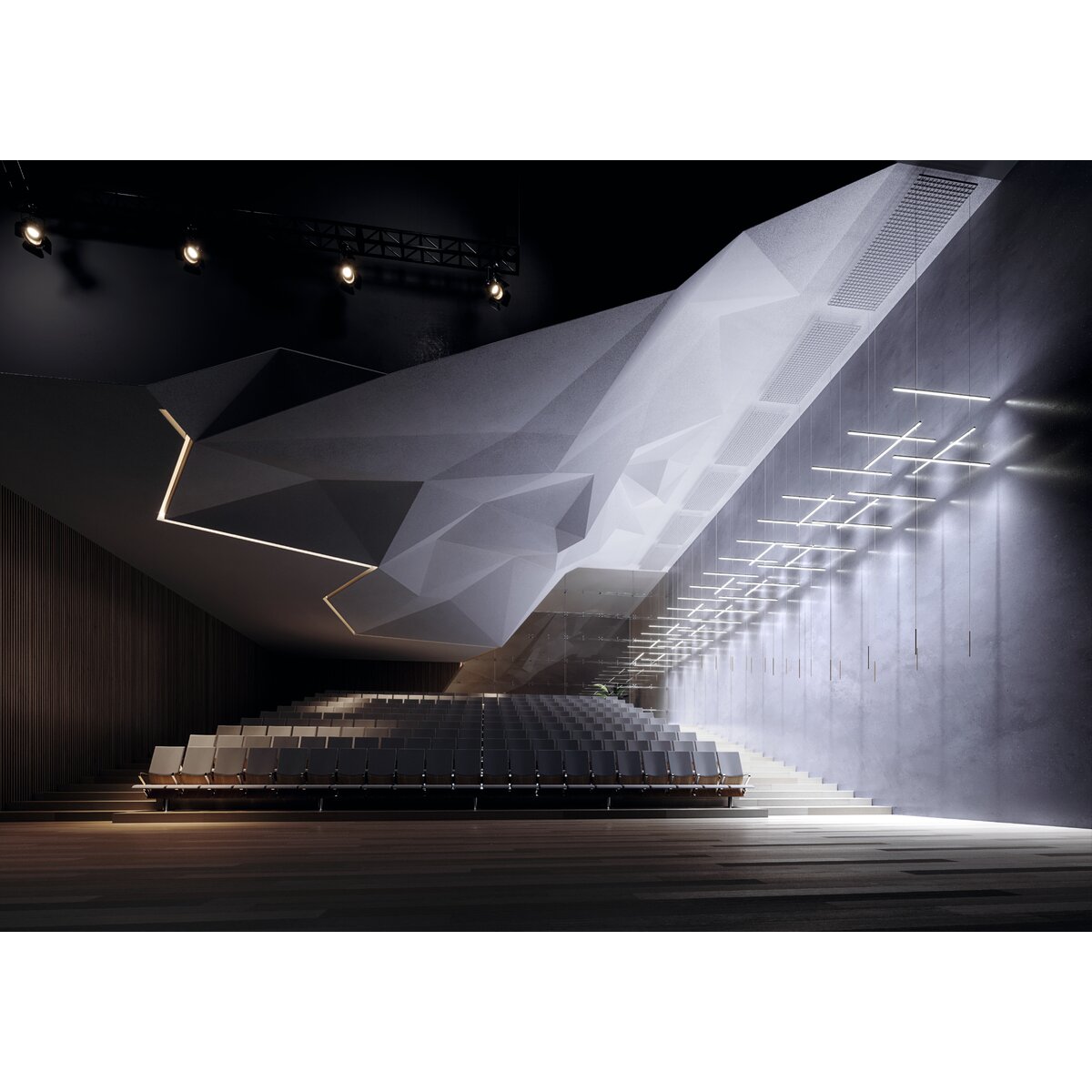

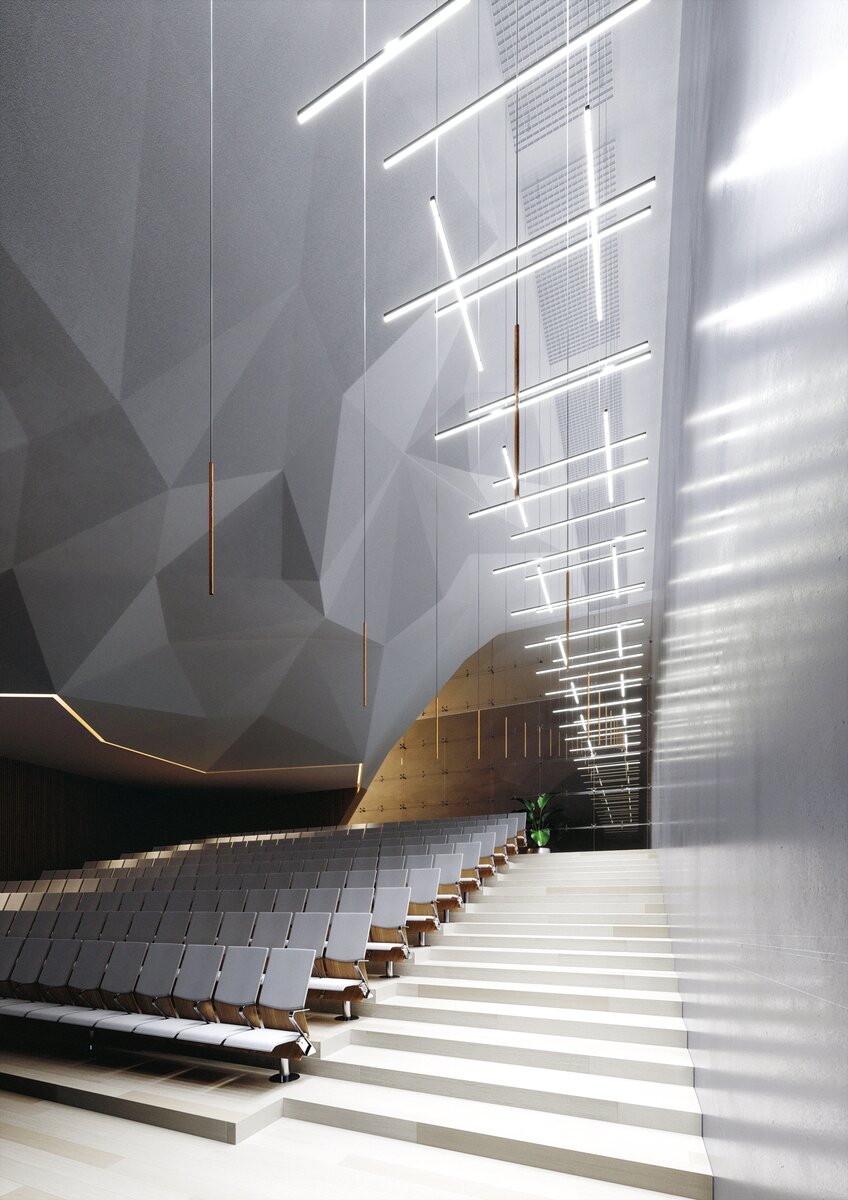

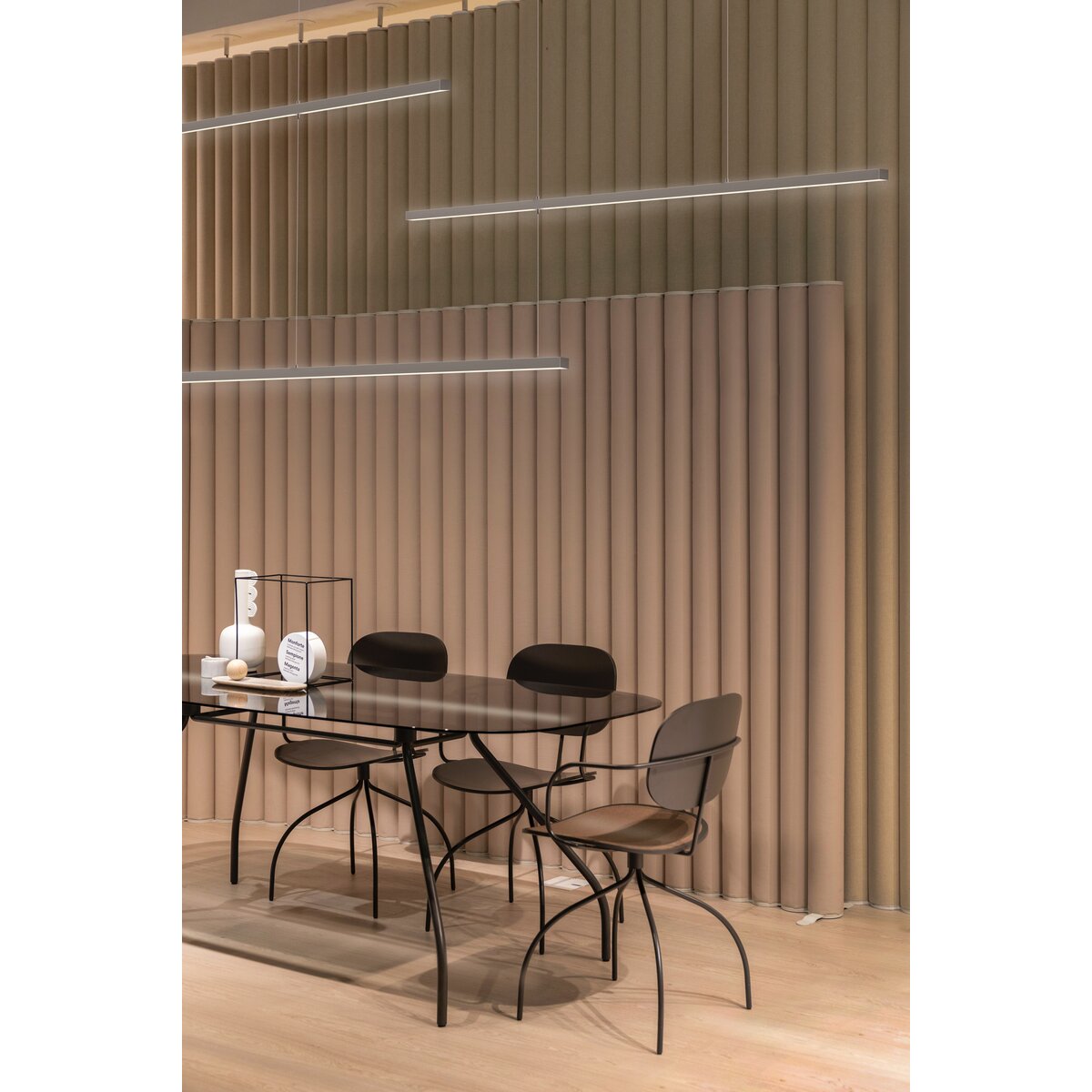

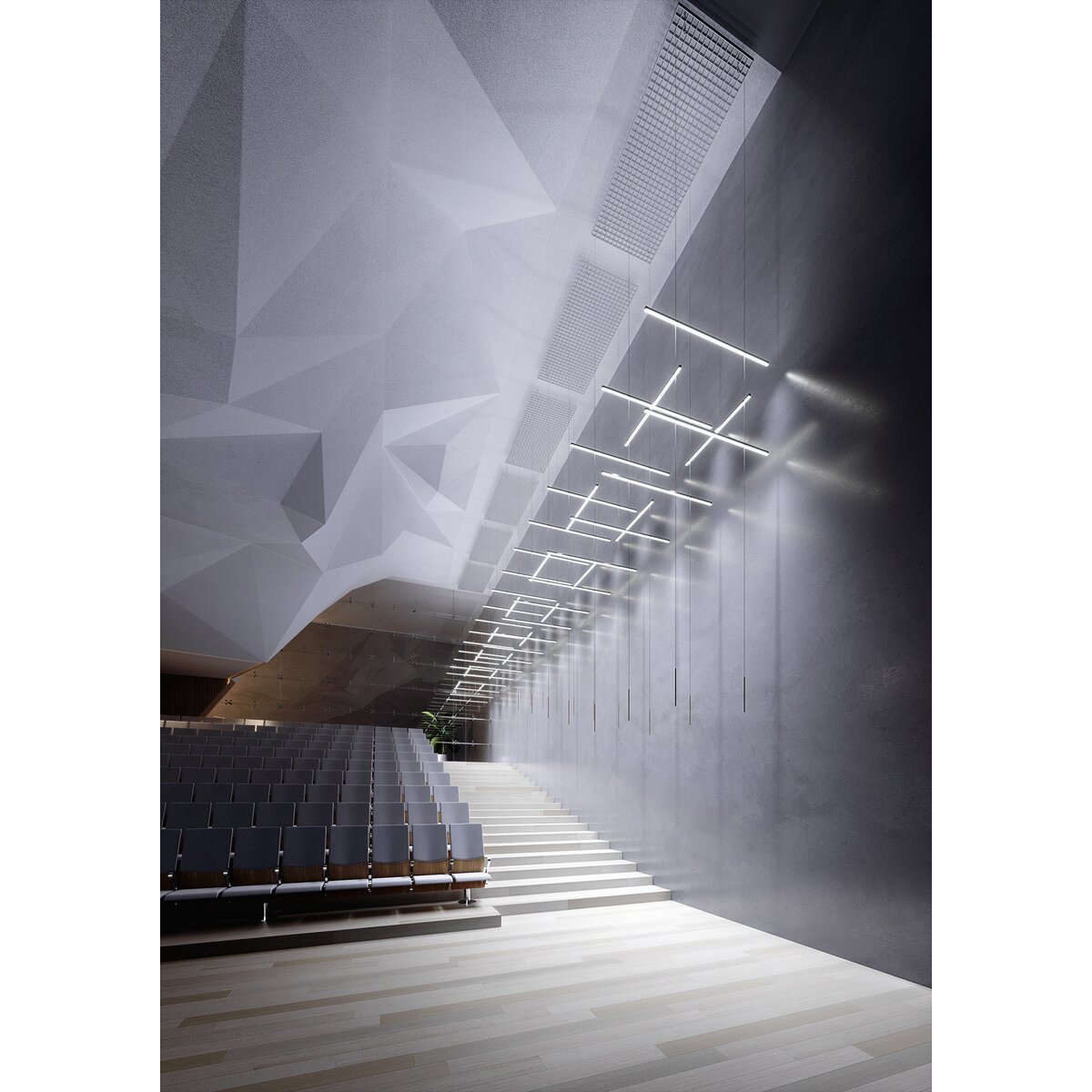

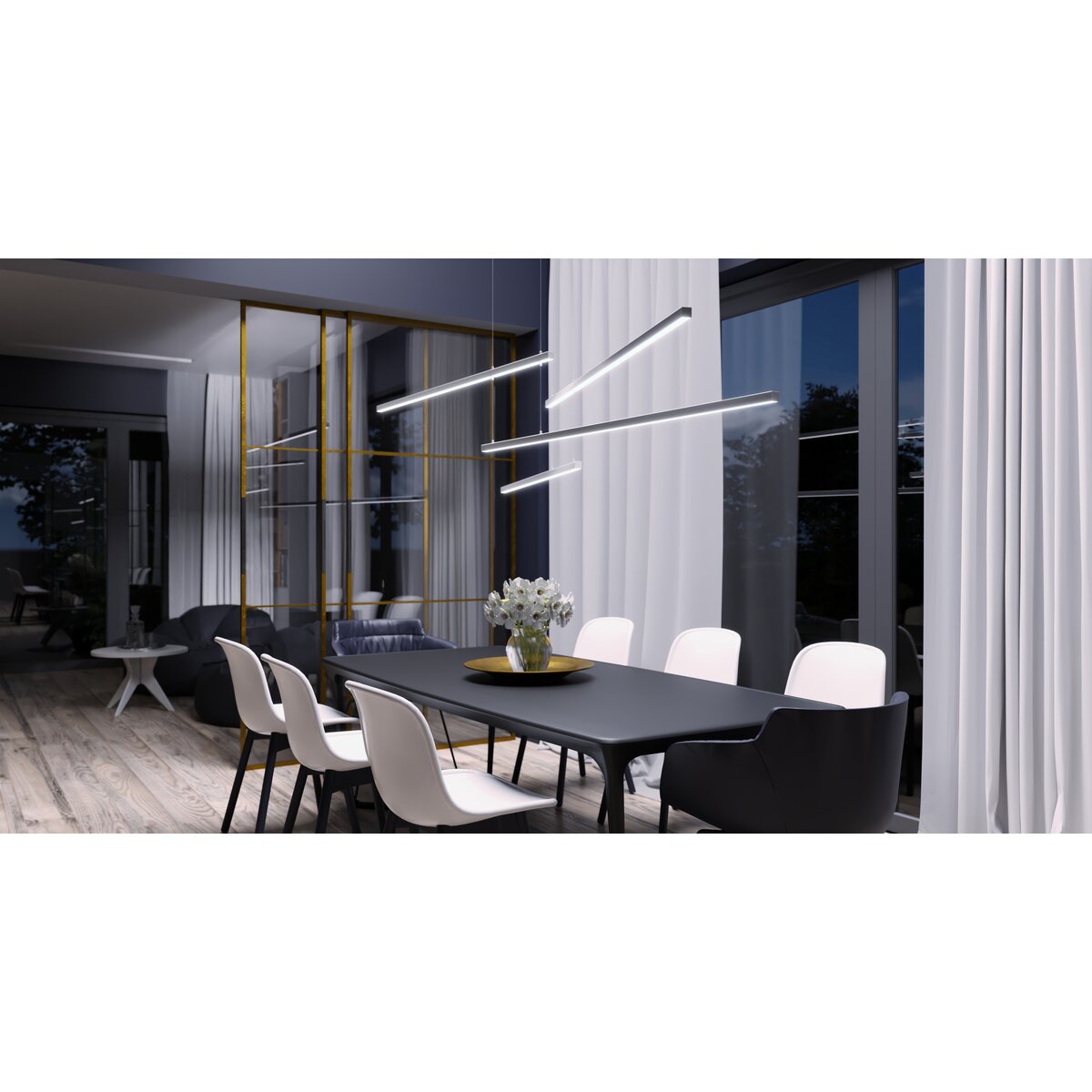

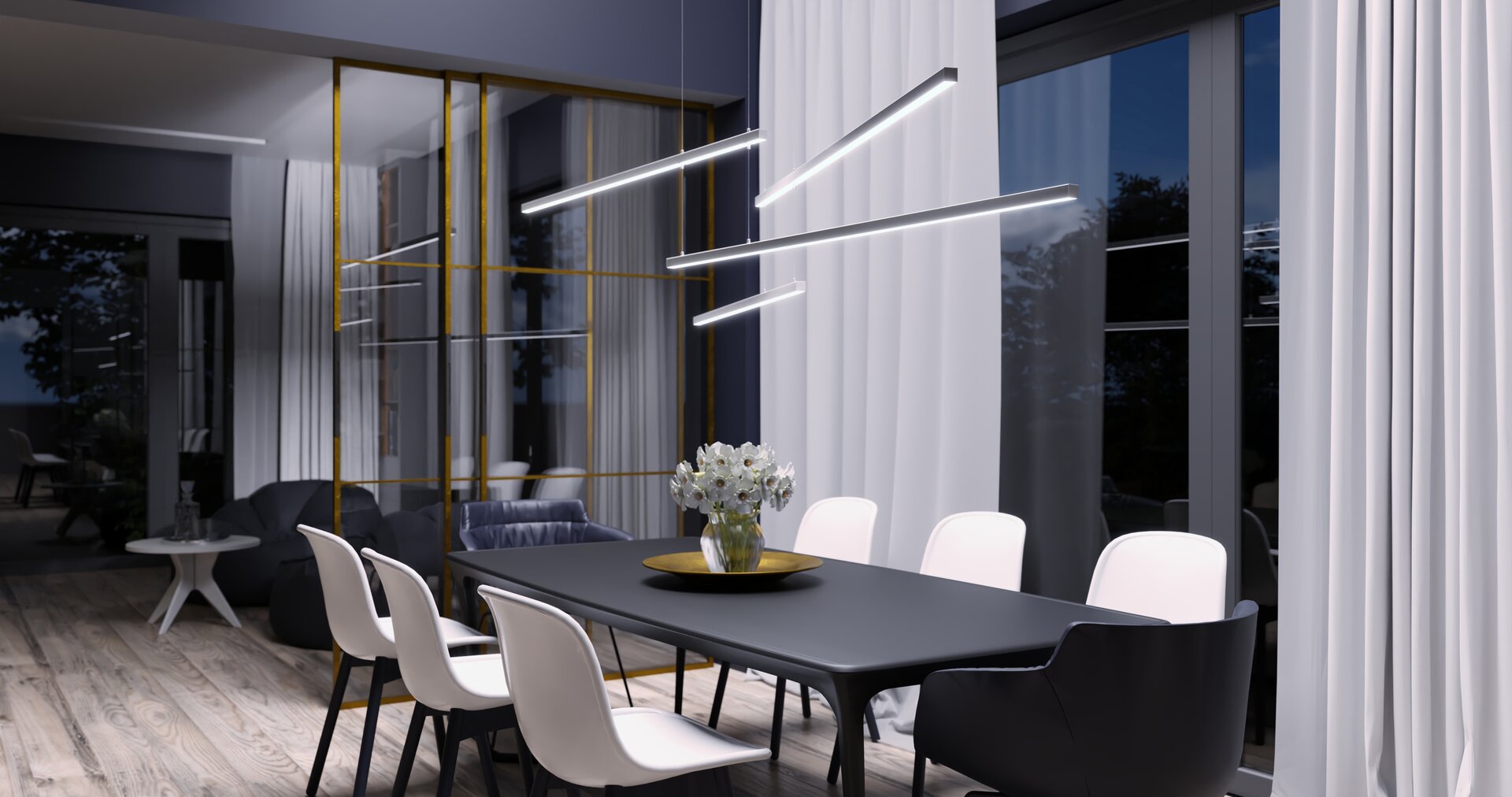

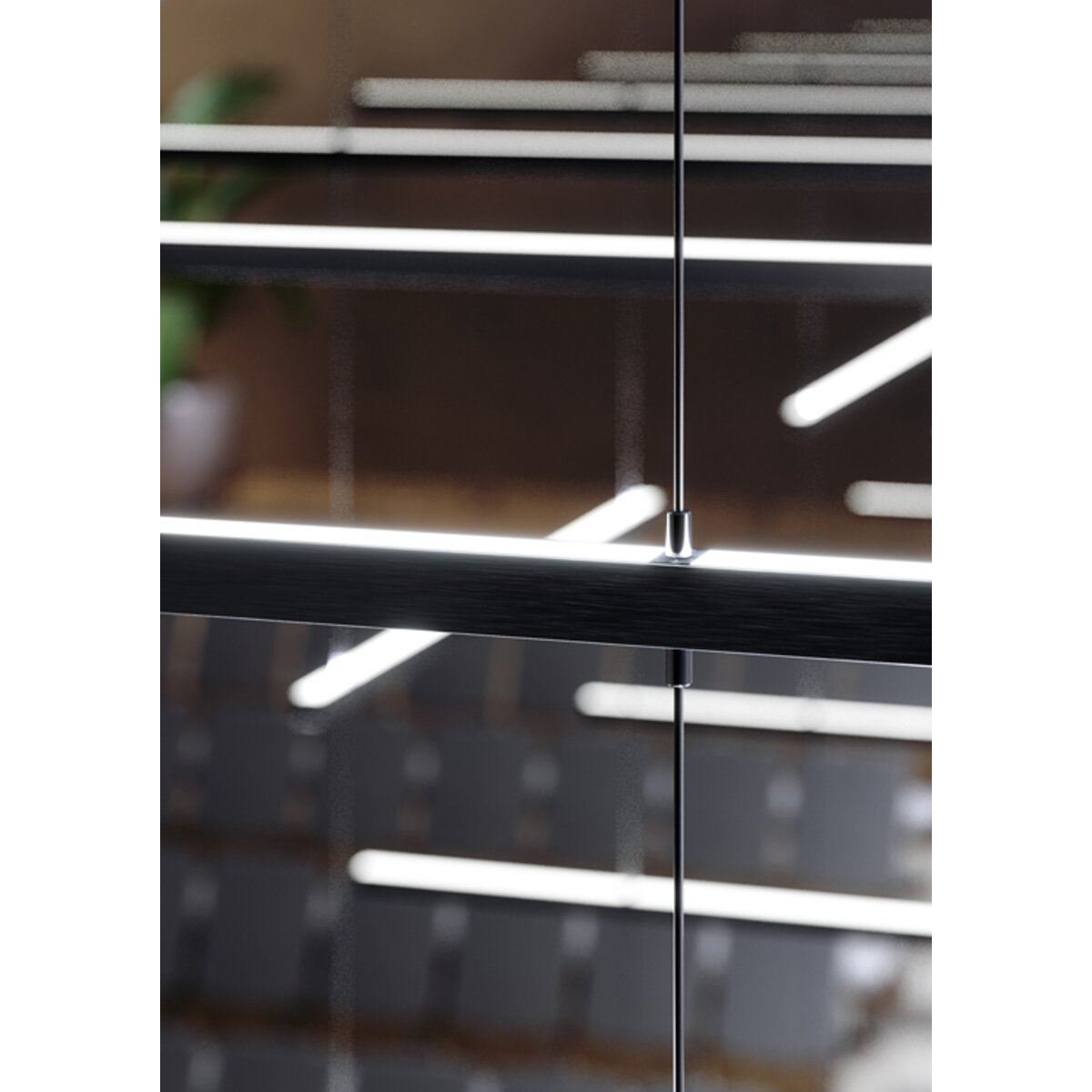

Usage examples

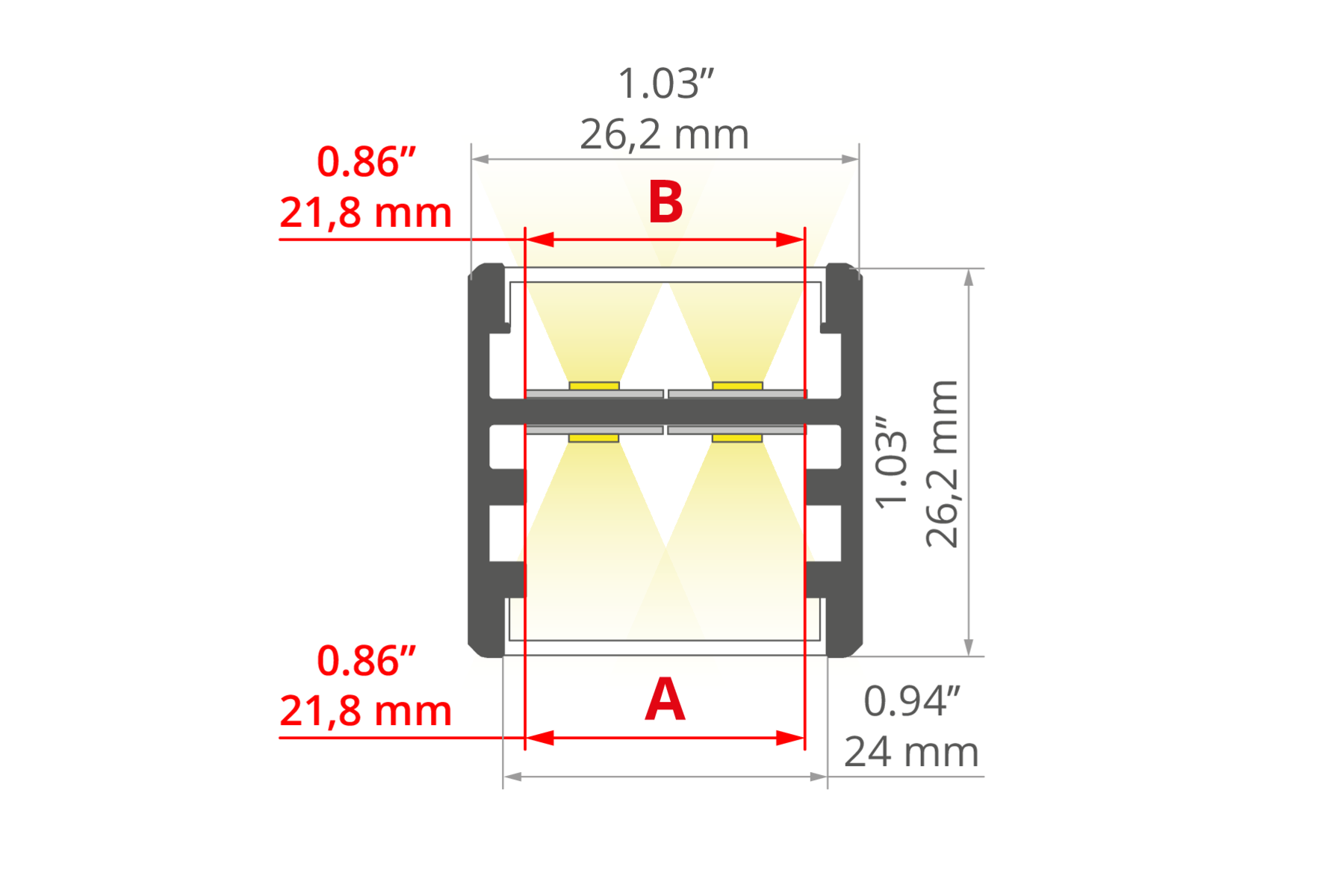

Technical drawing
GLAZA-DUO Extrusion aluminum Technical drawing - A03059
Technical specification
Material
aluminum
Possible fixture IP
20
Possible fixture shapes
linear, polygonal
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
7.3 W/ft
Width
1" (26.2 mm)
Height
1" (26.2 mm)
LED gluing width A
0.9" (21.8 mm)
LED mounting width B [inch]
0.9" (21.8 mm)
Max. number of LED strips A (0.31" wide)
2
Max. number of LED strips B (0.31" wide)
2
Can be easily connected into runs
Yes
Possibility of obtaining a line of light
Yes
Building type
Entertainment/ Arts, Hotel / Restaurant, Commercial, Retail
Facility zone
office, lobby / foyer, decorative, media rooms / av
Color Length Ref No
silver anodized
39.4" (1000 mm)
78.9" (2005 mm)
118.5" (3010 mm)
A03059A_1
A03059A_2
A03059A_3
Line of Light Table for Pixel Free Illumination
LED Tapes Covers
Categories LED tape type LIGER-22 Cover satin HS-22 Cover frosted
High Efficacy K-HEHD-0480-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2)
K-HEHD-0960-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2)
K-HEHD-1440-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2)
K-HEHD-1920-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2)
K-HEHD-0320-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2)
CRI 95+ K-CRHD-1820-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2)
K-CRHD-1910-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2)
RGB / RGB-W / RGB-CTT K-RGBW-1920-160-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2)
Single diode cuttable K-SD-1440-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2)
Adjustable White / Dim to Warm K-SDCR-22T50-1530-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2)
KWP-SDCR-22T50-1530-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2)
Line of Light for a number (X) of rows
Line of Light for a number (X) of rows - Pixel free imaging
Centered Line of Light
Centered Line of Light - Concentrated in middle
None
None - Visible dotting from diodes
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
Related extrusions
GLAZA-LL
Ref No: A02627
Related products
Product name Material Key features Light transmittance [%] Color Ref No
HS-22 Cover
PC - For indoor and outdoor applications
- UV resistant
65 %
88 %
90.5 %
frosted
clear
microprism
B17011F
B17011C
B17011M
LIGER-22 Cover
PC - hight light quality
- For indoor and outdoor applications
- Ease of obtaining a line of light
- perfectly diffusing
70 %
22 %
satin
black
B17032S
B17032B
No results found for the selected filters.
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,
20 - 1.5 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-0480-24
K-HEHD25-0480-24
K-HEHD27-0480-24
K-HEHD30-0480-24
K-HEHD35-0480-24
K-HEHD40-0480-24
K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-0960-24
K-HEHD25-0960-24
K-HEHD27-0960-24
K-HEHD30-0960-24
K-HEHD35-0960-24
K-HEHD40-0960-24
K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-1440-24
K-HEHD25-1440-24
K-HEHD27-1440-24
K-HEHD30-1440-24
K-HEHD35-1440-24
K-HEHD40-1440-24
K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,
20 - 5.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-1920-24
K-HEHD25-1920-24
K-HEHD27-1920-24
K-HEHD30-1920-24
K-HEHD35-1920-24
K-HEHD40-1920-24
K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,
20 - 1 W/ft
2700K
3000K
3500K
4000K
- CRI over 95
- High Efficacy
K-HEHD27-0320-24
K-HEHD30-0320-24
K-HEHD35-0320-24
K-HEHD40-0320-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,
20 - 1.5 W/ft
2200K
2700K
- CRI over 95
K-CR22-1210-24
K-CR27-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1220-24
K-CR25-1220-24
K-CR27-1220-24
K-CR30-1220-24
K-CR35-1220-24
K-CR40-1220-24
K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1275-24
K-CR25-1275-24
K-CR27-1275-24
K-CR30-1275-24
K-CR35-1275-24
K-CR40-1275-24
K-CR50-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,
20 - 5.6 W/ft
2700K
- CRI over 95
- high LED density
K-CRHD27-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,
20 - 2.8 W/ft
2700K
3500K
4000K
- CRI over 95
- high LED density
K-CRHD27-1910-24
K-CRHD35-1910-24
K-CRHD40-1910-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,
20 - 1.6 W/ft
3500K
- CRI over 95
K-CRHD35-0530-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20
20 - 7.3 W/ft
2700K
3000K
3500K
4000K
5000K
- high power
K-27-2400-24
K-30-2400-24
K-35-2400-24
K-40-2400-24
K-50-2400-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-RGB27T65-1200-24 LED tape, 2700K, 122 lm/ft, 3.7 W/ft, IP20
20 - 3.7 W/ft
RGB
2700K
- RGB+Tunable White
K-RGB27T65-1200-24
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-120-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,
65 silicon sleeve 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
KWP-GRGBW-1920-120-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20
20 - 4.7 W/ft
2200K
- Tuneable white 2200K-5000K
K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65
65 silicon sleeve 4.7 W/ft
2200K
- Tuneable white 2200K-5000K
KWP-SDCR-22T50-1530-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,
20 - 4.4 W/ft
2700K
3000K
3500K
4000K
K-SD27-1440-24
K-SD30-1440-24
K-SD35-1440-24
K-SD40-1440-24
No results found for the selected filters.
Product name Material Color Ref No
GLAZA-DUO End cap
ABS
silver
C24418L01
No results found for the selected filters.
Product name Key features Material Color Ref No
OS22-LIN-Z Fastener
- Power supply cable
stainless steel, PA
white
black
C28184L10
C28184L07
OS22-PRET-Z Fastener
- Power supply rod
PA, stainless steel
white
black
C28186L10
C28186L07
OS22-DUO-LIN-Z Fastener
- Power supply cable, two poles
stainless steel, PA
white
black
C28183L10
C28183L07
OS22-DUO-PRET-Z Fastener
- Power supply cable, two poles
stainless steel, PA
white
black
C28185L10
C28185L07
Product name Key features Material Color Ref No
Fi-60mm Canopy
- Convenient cable length adjustment, in the ZM system
steel
gray
white
black
C24540L01
C24540L10
C24540L07
No results found for the selected filters.
Product name IP rating Key features Ref No(Ref. arch.)
UNI Proximity switch
20 - touchless switch
- width only 7mm
E61579
No results found for the selected filters.
Product name Material Color Ref No
ZM-G Connector
stainless steel
silver
42308
42304
42328
42330
42332
42334
42336
42338
42310
42324
42326
ZM Connector
stainless steel
silver
black
colorless
C28075N00
C28072N00
42720
42728
C24797C07
C28072C07
C28075C07
C28070C07
C28071C07
C28073C07
C28074C07
C24797N00
ZM-PION Connector
stainless steel
silver
black
42718
42719
42320
C28086N00
C28084N00
42314
C28086C07
C28084C07
C28088C07
C28087C07
C28085C07
Product name Material Color Ref No
MP-22 Masking cover
PC
gray
white
black
C28261L01
C28261L10
C28261L07
Product name Material Color Ref No
Gland 6x1,2
C24517C07
Gland M8x1
C42265N00
Gland 8x1,6
C42290C07
No results found for the selected filters.
