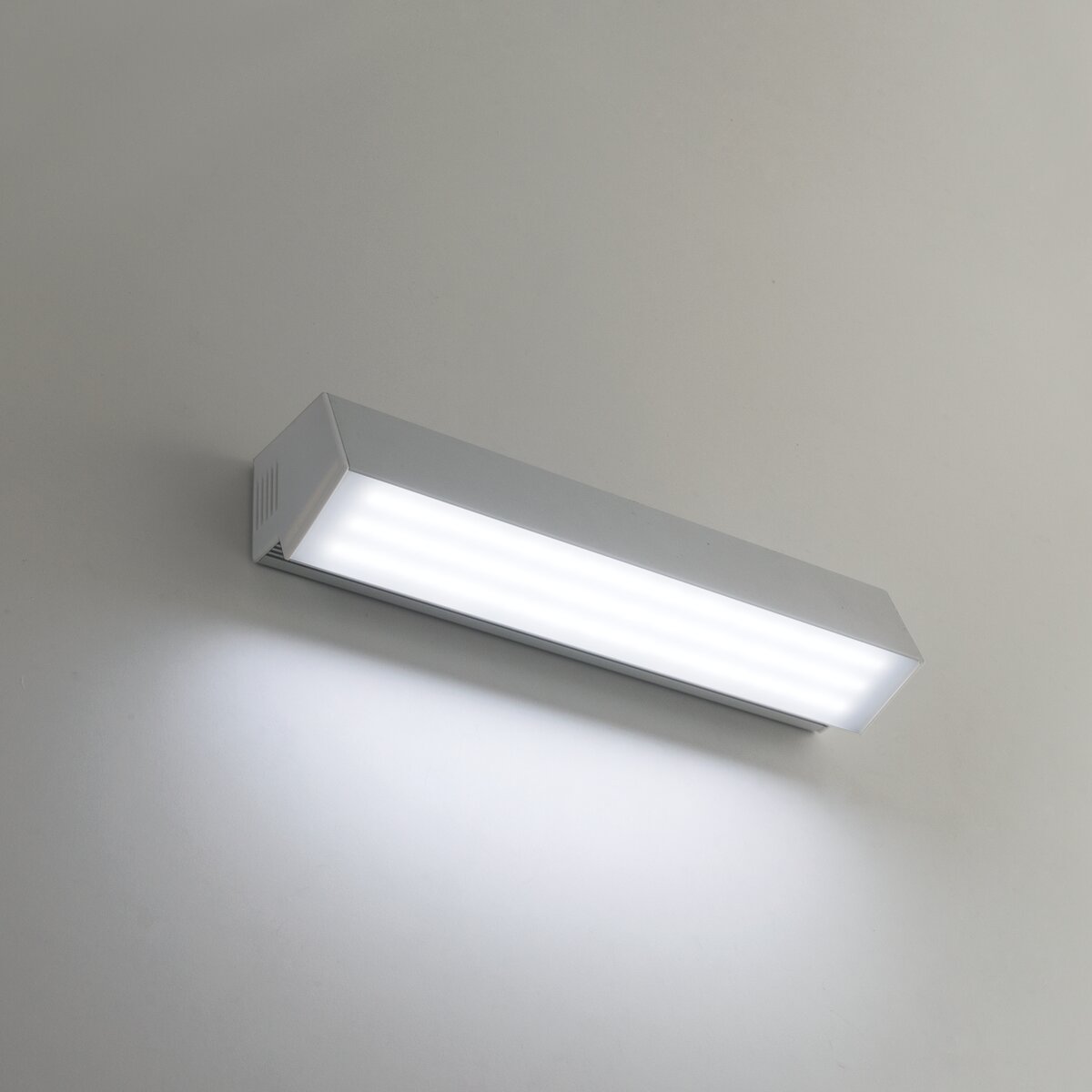

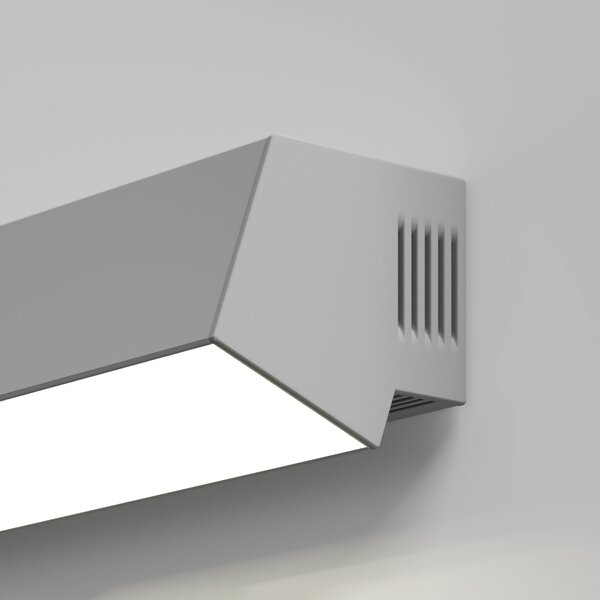

IMET Extrusion (A18012) | KlusDesign.com

Compare

Compared

Lighting angle: 30 Degrees
Easy maintenance

With the possibility of sealing up to IP20

Configure

Color

Description

Lighting angle: 30 Degrees
Easy maintenance

Application

- decorative lighting

Mounting

- to the surface, using a dedicated mounting track and properly selected screws

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

Usage examples

Description
download

Application

- decorative lighting

Mounting

- to the surface, using a dedicated mounting track and properly selected screws

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

Declaration of Conformity UKCA

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

Possible fixture shapes

linear

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

2.7" (69.8 mm)

Height

2.7" (68.2 mm)

LED gluing width A

1.8" (46.4 mm)

Max. number of LED strips A (0.31" wide)

Lighting at an angle

The cover is cut to the length of the profile

Yes

Wire out back of extrusion

Yes

Dedicated space for power supply

Yes

Building type

Hotel / Restaurant, Commercial, Residential

Facility zone

office

Color	Length	Ref No
silver anodized	39.4" (1000 mm) 78.9" (2005 mm)	A18012A_1 A18012A_2

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
HSP-47 Cover	PC	- Ease of obtaining a wide line of light - indoor use	80 % 82 %	frosted microprism	B17181F B17181M

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
High Efficacy

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0480-24 K-HEHD25-0480-24 K-HEHD27-0480-24 K-HEHD30-0480-24 K-HEHD35-0480-24 K-HEHD40-0480-24 K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0960-24 K-HEHD25-0960-24 K-HEHD27-0960-24 K-HEHD30-0960-24 K-HEHD35-0960-24 K-HEHD40-0960-24 K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1440-24 K-HEHD25-1440-24 K-HEHD27-1440-24 K-HEHD30-1440-24 K-HEHD35-1440-24 K-HEHD40-1440-24 K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,	20	-	5.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1920-24 K-HEHD25-1920-24 K-HEHD27-1920-24 K-HEHD30-1920-24 K-HEHD35-1920-24 K-HEHD40-1920-24 K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,	20	-	1 W/ft	2700K 3000K 3500K 4000K	- CRI over 95 - High Efficacy	K-HEHD27-0320-24 K-HEHD30-0320-24 K-HEHD35-0320-24 K-HEHD40-0320-24

LED tapes
CRI 95+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2700K	- CRI over 95	K-CR22-1210-24 K-CR27-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1220-24 K-CR25-1220-24 K-CR27-1220-24 K-CR30-1220-24 K-CR35-1220-24 K-CR40-1220-24 K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1275-24 K-CR25-1275-24 K-CR27-1275-24 K-CR30-1275-24 K-CR35-1275-24 K-CR40-1275-24 K-CR50-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,	20	-	5.6 W/ft	2700K	- CRI over 95 - high LED density	K-CRHD27-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,	20	-	2.8 W/ft	2700K 3500K 4000K	- CRI over 95 - high LED density	K-CRHD27-1910-24 K-CRHD35-1910-24 K-CRHD40-1910-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,	20	-	1.6 W/ft	3500K	- CRI over 95	K-CRHD35-0530-24
K-HEHD-1440-24-40C LED tape, 570-667 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- High Efficacy - cold weather -40F	K-HEHD22-1440-24-40C K-HEHD25-1440-24-40C K-HEHD27-1440-24-40C K-HEHD30-1440-24-40C K-HEHD35-1440-24-40C K-HEHD40-1440-24-40C K-HEHD50-1440-24-40C

LED tapes
CRI 90+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20	20	-	7.3 W/ft	2700K 3000K 3500K 4000K 5000K	- high power	K-27-2400-24 K-30-2400-24 K-35-2400-24 K-40-2400-24 K-50-2400-24

LED tapes
RGB / RGB-W / RGB-CTT

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-RGB27T65-1200-24 LED tape, 2700K, 122 lm/ft, 3.7 W/ft, IP20	20	-	3.7 W/ft	RGB 2700K	- RGB+Tunable White	K-RGB27T65-1200-24
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-120-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,	65	silicon sleeve	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1920-120-24

LED tapes
Adjustable White / Dim to Warm

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-24
K-30/18-1770-010V-24V LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-010V-24V
KWP-30/18-1770-010-24 LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP65	65	silicon sleeve	3.5 W/ft	1800K		KWP-30/18-1770-010-24
KWP-G30/18-1770-010-24 LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP65	65	gel cover	3.5 W/ft	1800K		KWP-G30/18-1770-010-24
KWP-G22/50-1728-24 LED tape, 2200K, 467 lm/ft, 5.3 W/ft, IP65	65	gel cover	5.3 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-G22/50-1728-24
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20	20	-	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65	65	silicon sleeve	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-SDCR-22T50-1530-24

LED tapes
Single diode cuttable

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,	20	-	4.4 W/ft	2700K 3000K 3500K 4000K		K-SD27-1440-24 K-SD30-1440-24 K-SD35-1440-24 K-SD40-1440-24

Accessories
End caps
Standard end caps

Product name	Material	Color	Ref No
End cap IMET-L	PP	gray	C24017C02
End cap IMET-P	PP	gray	C24016C02

Accessories
Suspension accessories
Conductive fasteners and heads for surface

Product name	Key features	Material	Color	Ref No
Fastener P-BOX-Z		stainless steel	silver	C28200N00
Fastener W-BOX-Z	- Power supply - mounting to the ceiling	stainless steel	silver	C28253N00

Accessories
Suspension accessories
Suspension and mounting sets

Product name	Key features	Material	Color	Ref No
Fastener set M15		stainless steel	silver	42614

Electronics
Switches

Product name	IP rating	Key features	Ref No(Ref. arch.)
UNI Proximity switch	20	- touchless switch - width only 7mm	E61579

Accessories
Additional items

Product name	Material	Color	Ref No
Gland 19x1,6			C24519C07
Gland 6x1,2			C24517C07
Gland M8x1			C42265N00
Gland 8x1,6			C42290C07
