Note: Archival product

INTER Extrusion

Ref No: A18011

We offer the following substitutes:

INTER-PLUS Extrusion
INTER Extrusion
INTER Extrusion
  • Easy maintenance
Surface mounted
With the possibility of sealing up to IP20
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Closet Rated
Configure
Color
silver
  • Easy maintenance
Application
  • - main, decorative and functional lighting
Mounting
  • - to the surface, using a dedicated mounting track and properly selected screws
Additional information
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

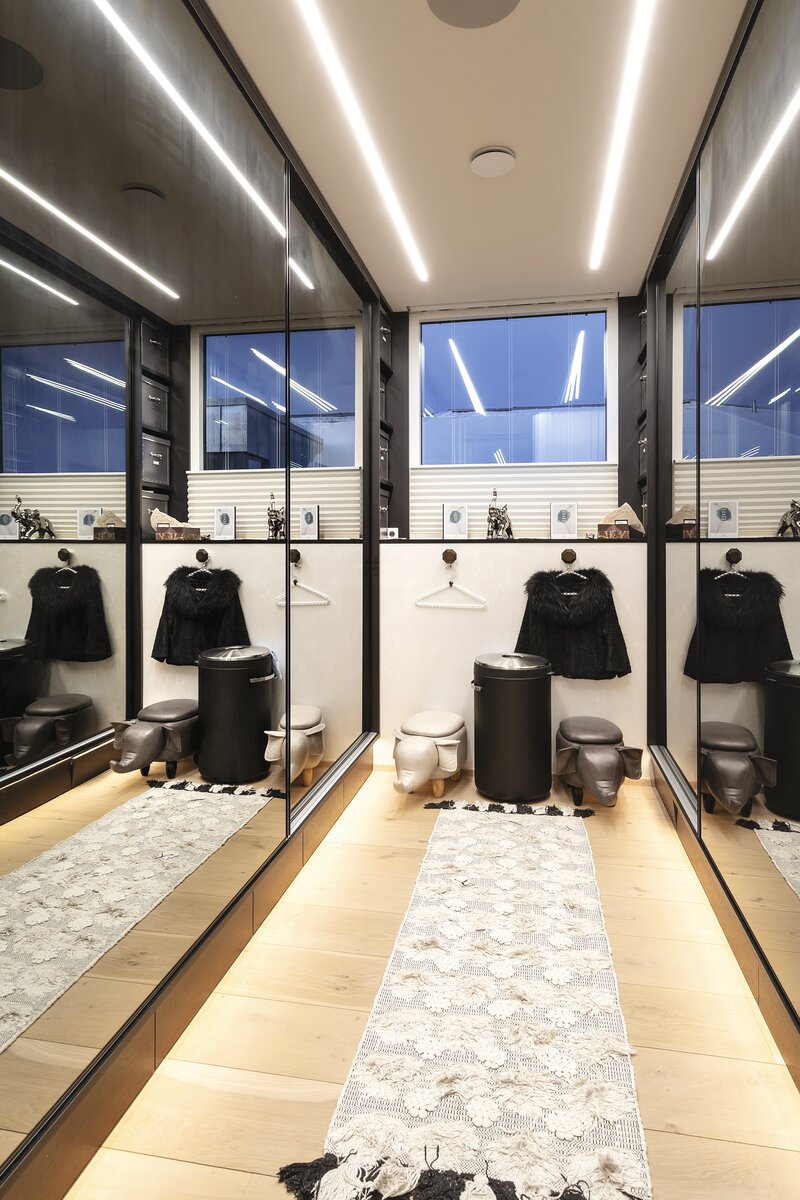

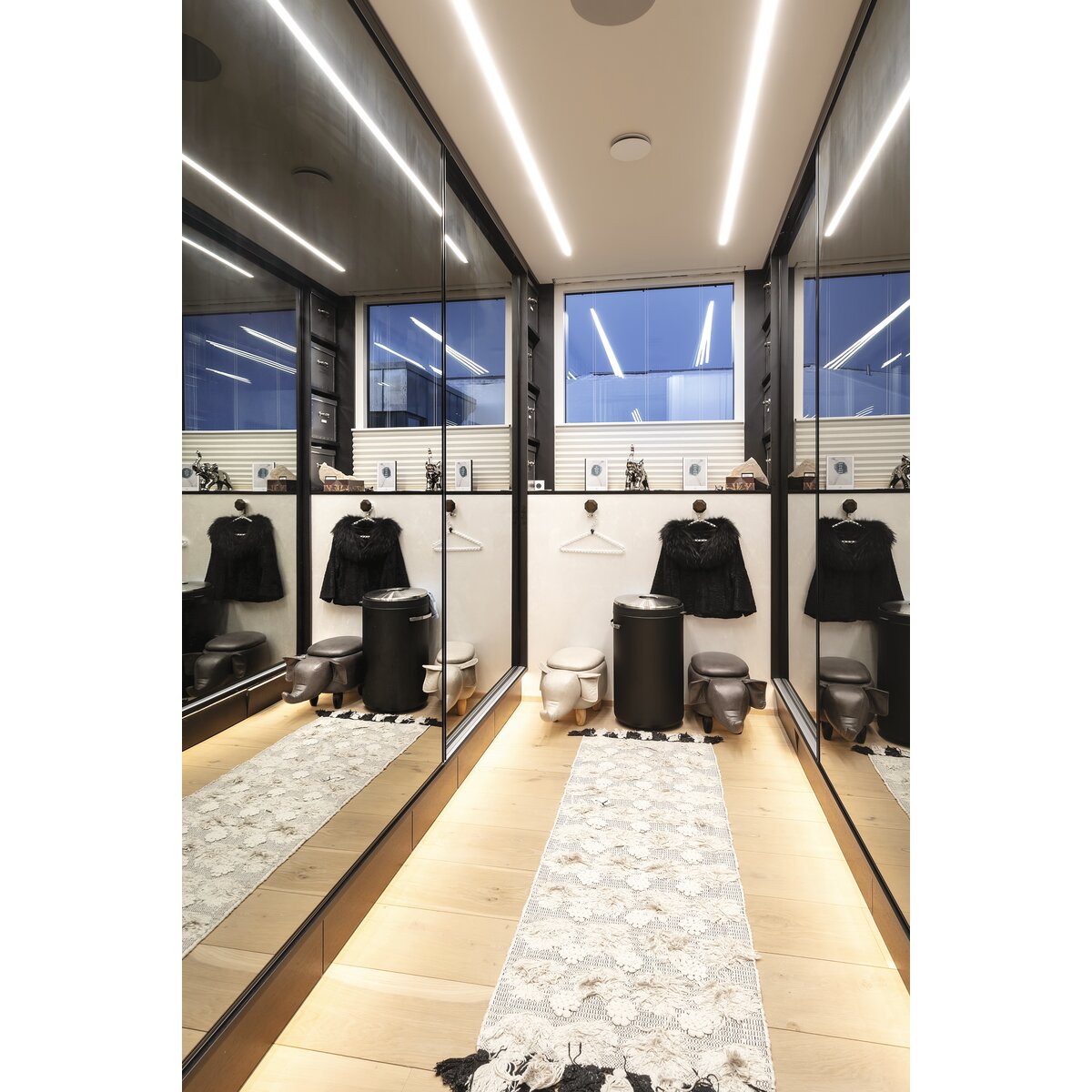

Usage examples

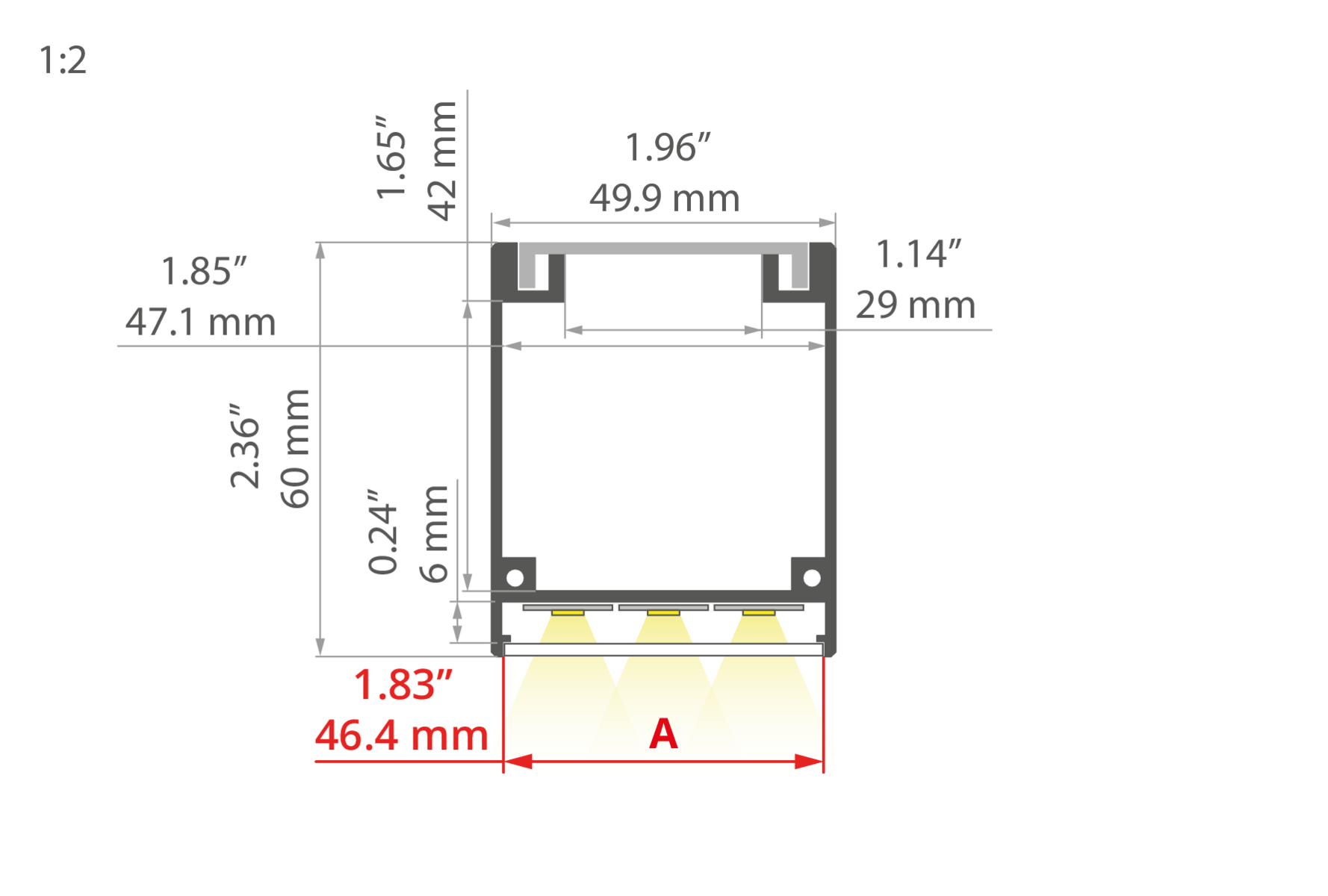

Technical drawing
INTER Extrusion aluminum Technical drawing - A18011
Technical specification
Material
aluminum
Possible fixture IP
20
Possible fixture shapes
linear
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
7.3 W/ft
Width
2" (49.9 mm)
Height
2.4" (60 mm)
LED gluing width A
1.8" (46.4 mm)
Max. number of LED strips A (0.31" wide)
5
The cover is cut to the length of the profile
Yes
Wire out back of extrusion
Yes
Dedicated space for power supply
Yes
Building type
Hotel / Restaurant, Commercial, Residential
Facility zone
office
Color Length Ref No
silver anodized
39.4" (1000 mm)
78.9" (2005 mm)
18011ANODA_1
18011ANODA_2
