KOZMA Extrusion

Ref No: A18040

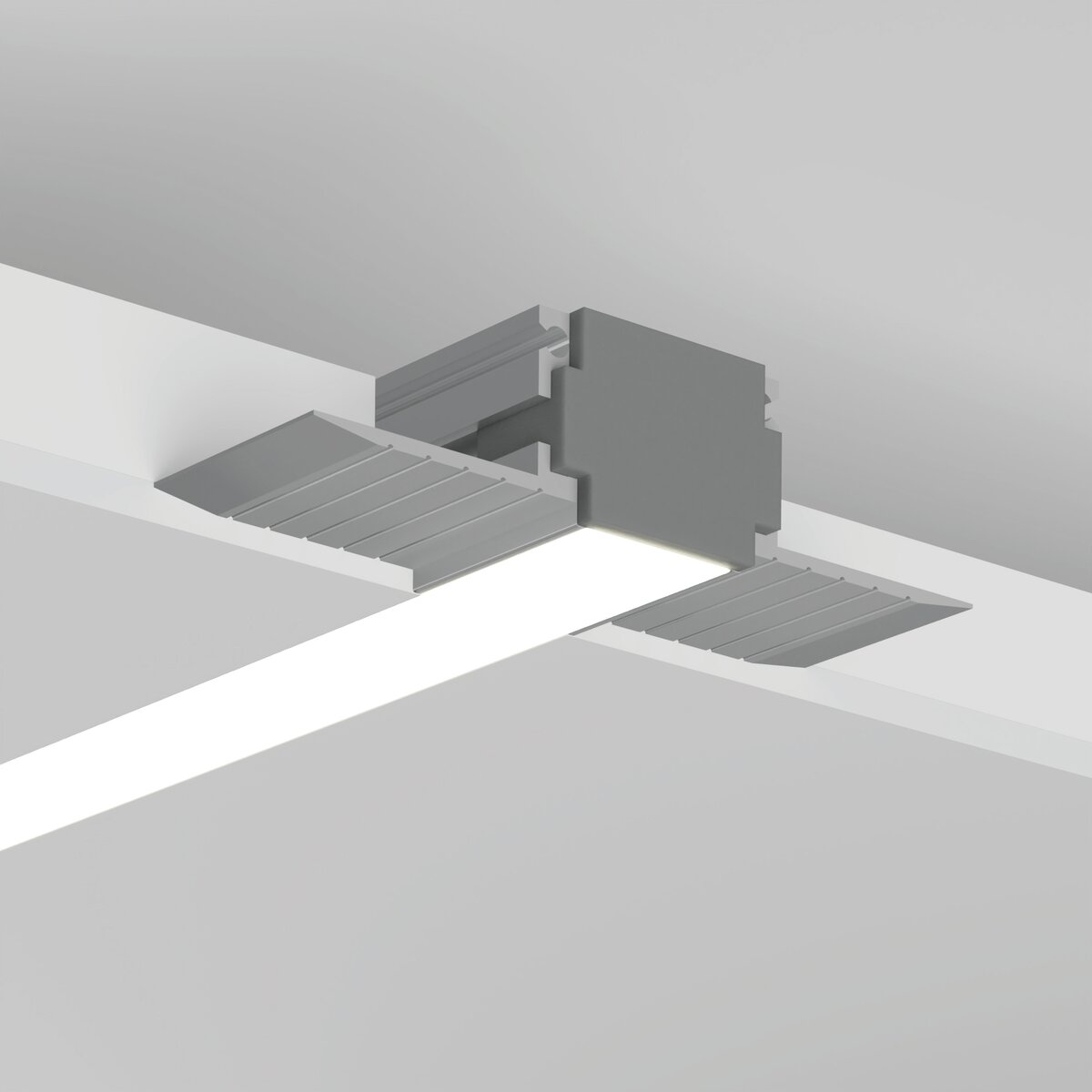

KOZMA Extrusion
KOZMA Extrusion
  • Mounting to drywall
  • No collision with the ceiling structure
  • Line of light flush with the surface
  • Non visible aluminum elements
  • Small bending radius
Trimless
Possibility of bending
With the possibility of sealing up to IP20
With the possibility of sealing up to IP67
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Closet Rated
Configure
Color
silver
  • Mounting to drywall
  • No collision with the ceiling structure
  • Line of light flush with the surface
  • Non visible aluminum elements
  • Small bending radius
Application
  • - main and decorative lighting
Mounting
  • - in drywall, with mounting adhesive
Additional information
  • - in order to protect the lighting fixture during installation, a TECH-KA protective insert should be used
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

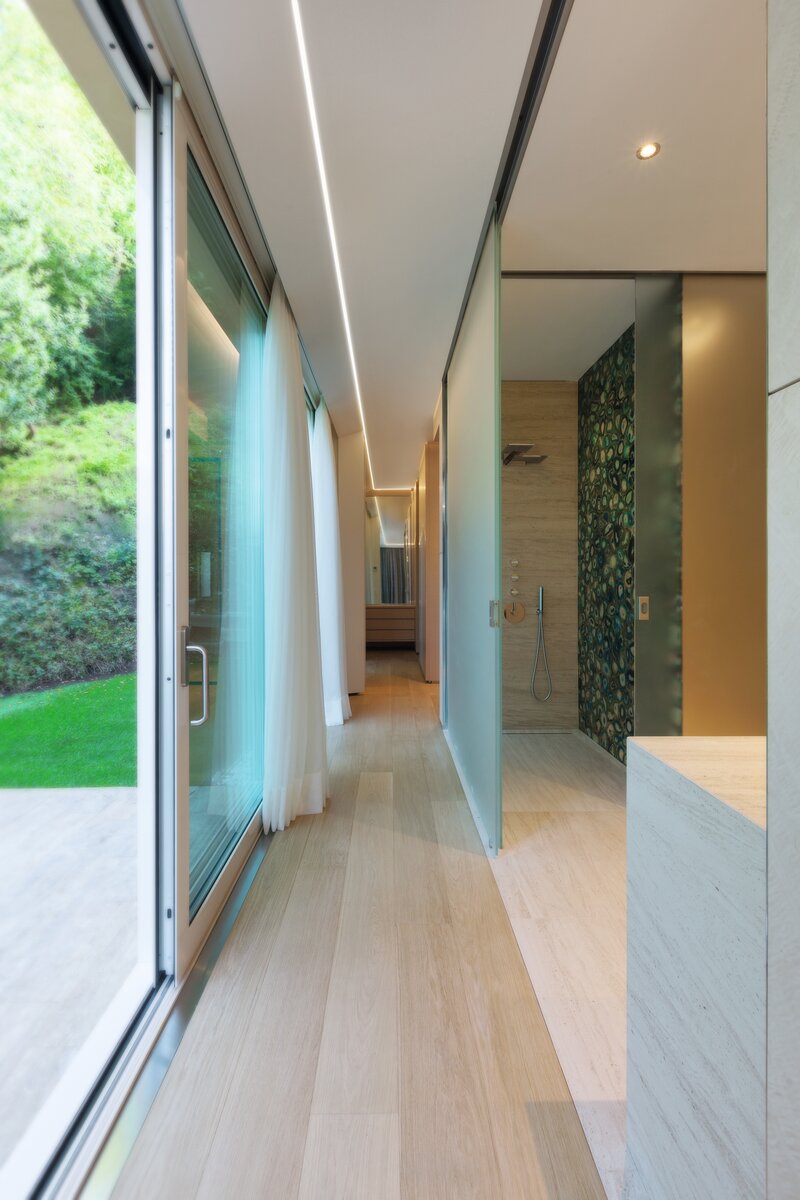

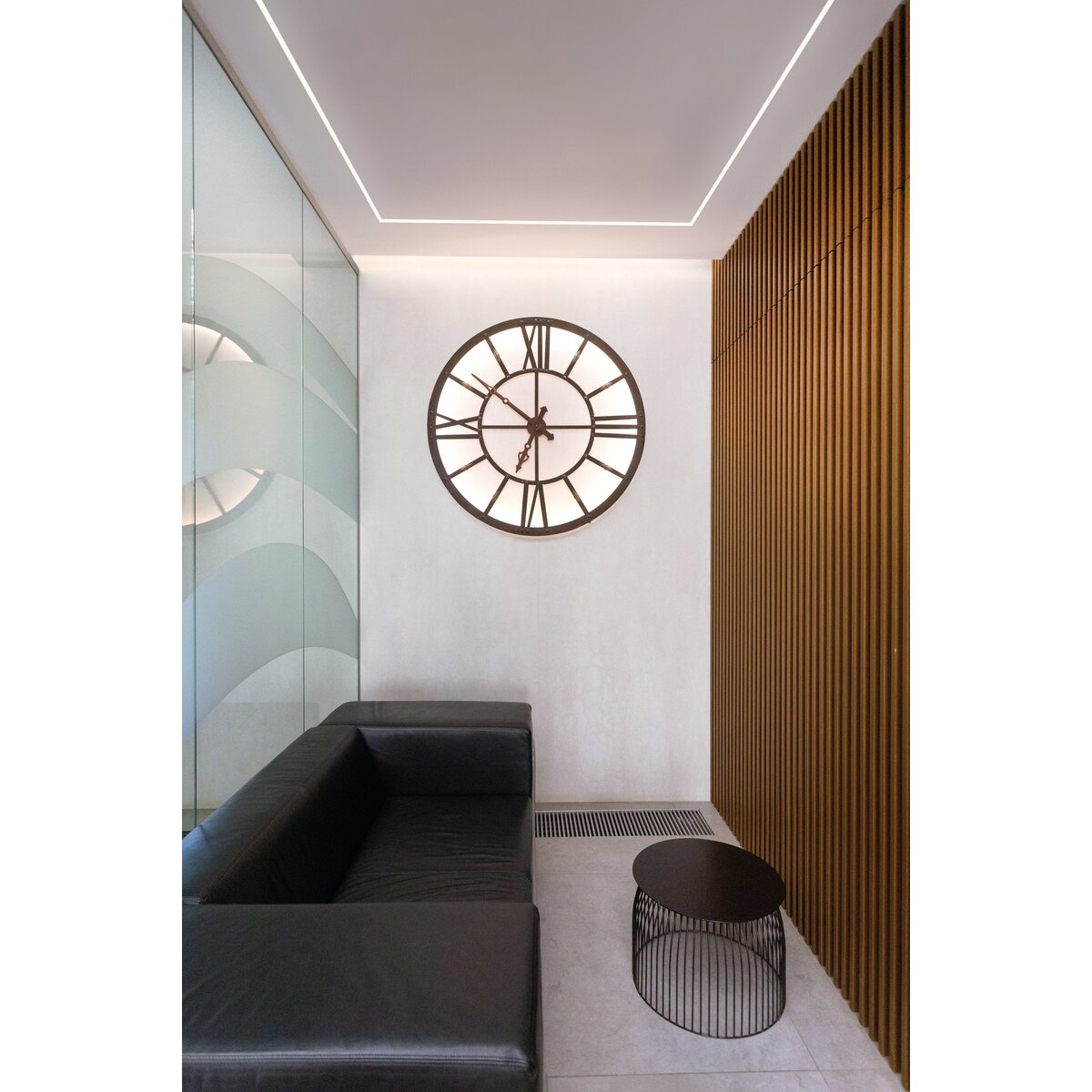

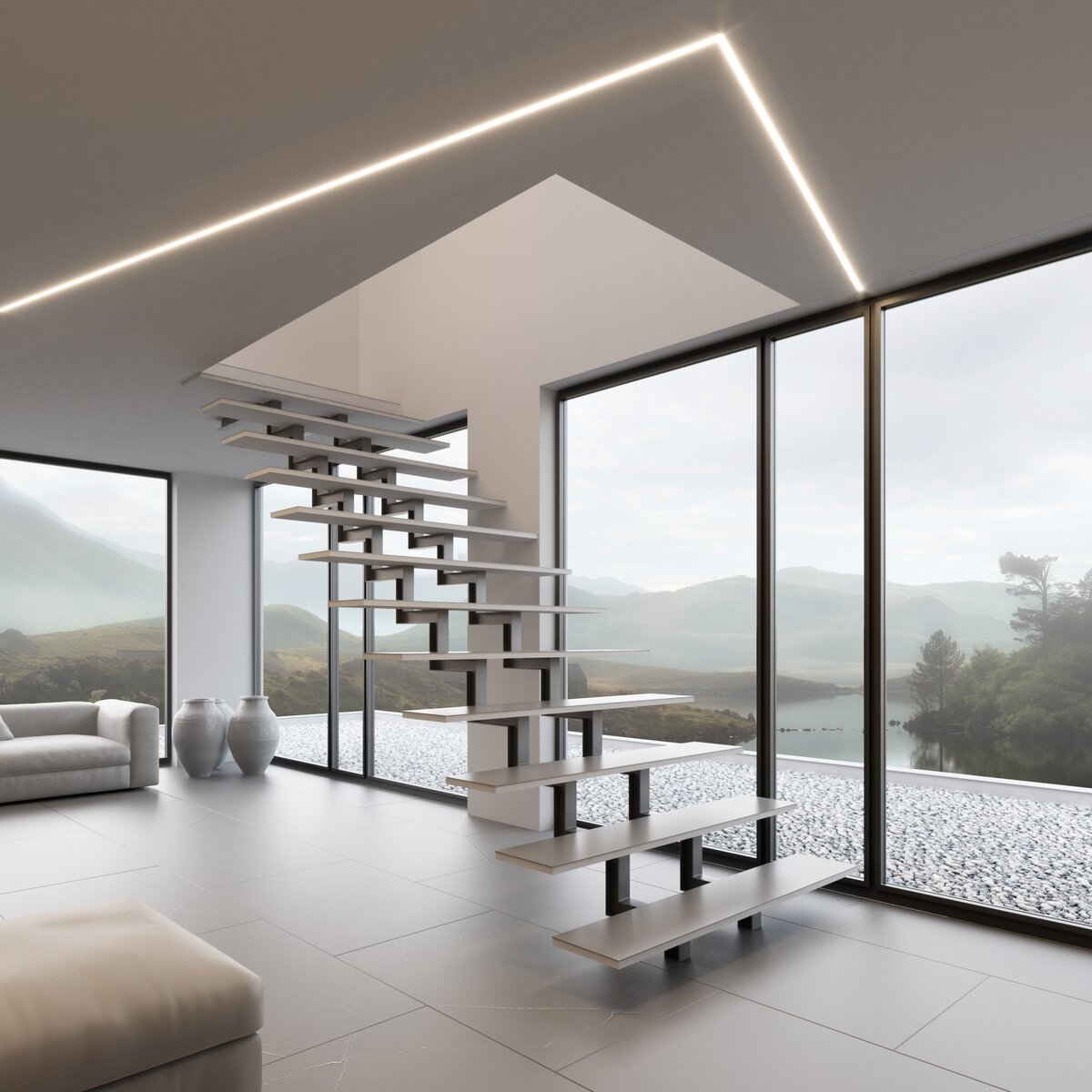

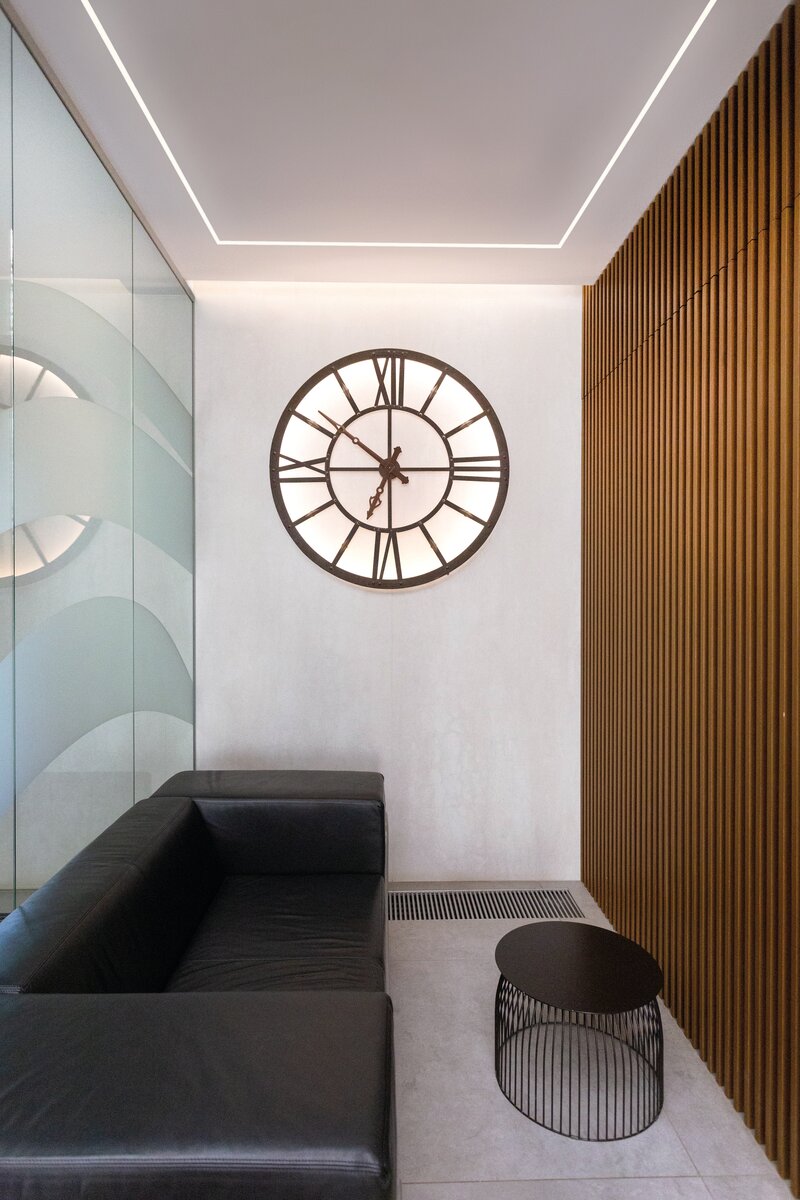

Usage examples
Technical drawing
KOZMA Extrusion aluminum Technical drawing - A18040
Technical specification
Material
aluminum
Possible fixture IP
20, 67
Possible fixture shapes
linear, polygonal
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
7.3 W/ft
Width
2.2" (56 mm)
Height
0.5" (13.5 mm)
LED gluing width A
0.4" (11 mm)
Max. number of LED strips A (0.31" wide)
1
The cover is cut to the length of the profile
Yes
Can be easily connected into runs
Yes
Mounting to drywall
Yes
To cover with plaster
Yes
Wire out back of extrusion
Yes
Possibility of obtaining a line of light
Yes
Possibility of bending
Yes
Minimum radius of the light arc
Radius of the light arc
Yes
Inside
500 mm
Outward
500 mm
Building type
Commercial, Retail, Residential, Hotel / Restaurant, Entertainment/ Arts
Facility zone
bathroom, lobby / foyer, office, decorative, media rooms / av
Color Length Ref No
silver non anodized
39.4" (1000 mm)
78.9" (2005 mm)
A18040N_1
A18040N_2
Line of Light Table for Pixel Free Illumination
LED Tapes Covers
Categories LED tape type LIGER-11 Cover satin LIGER-11 Cover black HS-11 Cover frosted KA-11 Cover frosted
High Efficacy K-HEHD-0480-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-HEHD-0960-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-HEHD-1440-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-HEHD-1920-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-HEHD-0320-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
CRI 95+ K-CRHD-1820-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-CRHD-1910-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-HEHD-1440-24-40C Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-CRHD-0530-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
CRI 90+ K-2400-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
Adjustable White / Dim to Warm K-30/18-1770-010V-24V Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-SDCR-22T50-1530-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
KWP-SDCR-22T50-1530-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
RGB / RGB-W / RGB-CTT K-RGBW-1920-160-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
Single diode cuttable K-SD-1440-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
Line of Light for a number (X) of rows
Line of Light for a number (X) of rows - Pixel free imaging
Centered Line of Light
Centered Line of Light - Concentrated in middle
None
None - Visible dotting from diodes
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
similar profiles
Surface mounted
PDS-H
Ref No: A09204
Recessed
PDS-NK
Ref No: A01588
Suspended
Surface mounted
PDS-O
Ref No: B3777
Trimless
PDS-T
Ref No: A02057
Trimless
PDS-UST
Ref No: A02725
Suspended
PDS-ZM
Ref No: A07696
Suspended
PDS-ZM-PLUS
Ref No: A02056
Suspended
PDS-ZMG
Ref No: A01418
Related products
Product name Material Key features Light transmittance [%] Color Ref No
LENSO-11 30°DEG Focusing cover
PC - indoor use
- focusing
80 %
semi-transparent
B17112T
Cover -11 BENCO
silicon - For indoor and outdoor applications
- UV resistant
50 %
frosted
B17215F
HS-11 Cover
PC - For indoor and outdoor applications
- UV resistant
- hight durability
59 %
88 %
frosted
clear
B17208F
B17208C
KA-11 Cover
PC - maximum brightness
- indoor use
- basic
- universal
67 %
89 %
frosted
clear
B17064F
B17064C
LIGER-11 Cover
PC - hight light quality
- Ease of obtaining a line of light
- perfectly diffusing
- For indoor and outdoor applications
59 %
21 %
satin
black
B17037S
B17037B
No results found for the selected filters.
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,
20 - 1.5 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-0480-24
K-HEHD25-0480-24
K-HEHD27-0480-24
K-HEHD30-0480-24
K-HEHD35-0480-24
K-HEHD40-0480-24
K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-0960-24
K-HEHD25-0960-24
K-HEHD27-0960-24
K-HEHD30-0960-24
K-HEHD35-0960-24
K-HEHD40-0960-24
K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-1440-24
K-HEHD25-1440-24
K-HEHD27-1440-24
K-HEHD30-1440-24
K-HEHD35-1440-24
K-HEHD40-1440-24
K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,
20 - 5.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-1920-24
K-HEHD25-1920-24
K-HEHD27-1920-24
K-HEHD30-1920-24
K-HEHD35-1920-24
K-HEHD40-1920-24
K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,
20 - 1 W/ft
2700K
3000K
3500K
4000K
- CRI over 95
- High Efficacy
K-HEHD27-0320-24
K-HEHD30-0320-24
K-HEHD35-0320-24
K-HEHD40-0320-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,
20 - 1.5 W/ft
2200K
2700K
- CRI over 95
K-CR22-1210-24
K-CR27-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1220-24
K-CR25-1220-24
K-CR27-1220-24
K-CR30-1220-24
K-CR35-1220-24
K-CR40-1220-24
K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1275-24
K-CR25-1275-24
K-CR27-1275-24
K-CR30-1275-24
K-CR35-1275-24
K-CR40-1275-24
K-CR50-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,
20 - 5.6 W/ft
2700K
- CRI over 95
- high LED density
K-CRHD27-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,
20 - 2.8 W/ft
2700K
3500K
4000K
- CRI over 95
- high LED density
K-CRHD27-1910-24
K-CRHD35-1910-24
K-CRHD40-1910-24
KWP-CR-1220-24 LED tape, 151-227 lm/ft, IP65,
65 silicon sleeve 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
KWP-CR22-1220-24
KWP-CR25-1220-24
KWP-CR27-1220-24
KWP-CR30-1220-24
KWP-CR35-1220-24
KWP-CR40-1220-24
KWP-CR50-1220-24
KWP-CR-1275-24 LED tape, 381-464 lm/ft, IP65,
65 silicon sleeve 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
KWP-CR22-1275-24
KWP-CR25-1275-24
KWP-CR27-1275-24
KWP-CR30-1275-24
KWP-CR35-1275-24
KWP-CR40-1275-24
KWP-CR50-1275-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,
20 - 1.6 W/ft
3500K
- CRI over 95
K-CRHD35-0530-24
K-HEHD-1440-24-40C LED tape, 570-667 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- High Efficacy
- cold weather -40F
K-HEHD22-1440-24-40C
K-HEHD25-1440-24-40C
K-HEHD27-1440-24-40C
K-HEHD30-1440-24-40C
K-HEHD35-1440-24-40C
K-HEHD40-1440-24-40C
K-HEHD50-1440-24-40C
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20
20 - 7.3 W/ft
2700K
3000K
3500K
4000K
5000K
- high power
K-27-2400-24
K-30-2400-24
K-35-2400-24
K-40-2400-24
K-50-2400-24
KWP-GHD-1640-24 LED tape, 364-503 lm/ft, IP65,
65 gel cover 5 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- high LED density
KWP-GHD22-1640-24
KWP-GHD25-1640-24
KWP-GHD27-1640-24
KWP-GHD30-1640-24
KWP-GHD35-1640-24
KWP-GHD40-1640-24
KWP-GHD50-1640-24
KWP-GHD-1910-24 LED tape, 227-279 lm/ft, IP65,
65 gel cover 2.8 W/ft
2200K
2700K
3000K
3500K
4000K
- high LED density
KWP-GHD22-1910-24
KWP-GHD27-1910-24
KWP-GHD30-1910-24
KWP-GHD35-1910-24
KWP-GHD40-1910-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-120-24
KWP-GRGBW-1530-24 LED tape, 3000K, 193 lm/ft, 4.7 W/ft, IP65
65 gel cover 4.7 W/ft
RGB+W
3000K
- RGBW (3000K)
KWP-GRGBW-1530-24
KWP-RGB-1920-24 LED tape, 187 lm/ft, 5.9 W/ft, IP65
65 silicon sleeve 5.9 W/ft
RGB
- RGB
KWP-RGB-1920-24
LED tape KWP-RGB-1200-24, 23 lm/m, 3.7 W/m, IP65
65 silicon sleeve 3.7 W/ft
RGB
- RGB
KWP-RGB-1200-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,
65 silicon sleeve 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
KWP-GRGBW-1920-120-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-30/18-1770-010V-24V LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP20
20 - 3.5 W/ft
1800K
K-30/18-1770-010V-24V
KWP-G30/18-1770-010-24 LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP65
65 gel cover 3.5 W/ft
1800K
KWP-G30/18-1770-010-24
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20
20 - 4.7 W/ft
2200K
- Tuneable white 2200K-5000K
K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65
65 silicon sleeve 4.7 W/ft
2200K
- Tuneable white 2200K-5000K
KWP-SDCR-22T50-1530-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,
20 - 4.4 W/ft
2700K
3000K
3500K
4000K
K-SD27-1440-24
K-SD30-1440-24
K-SD35-1440-24
K-SD40-1440-24
No results found for the selected filters.
Product name Material Color Ref No
End cap KOZMA
PP
gray
C24217C02
No results found for the selected filters.
Product name IP rating Key features Ref No(Ref. arch.)
Switch MICRO 96W IP20
20 - push button switch
- factory pre-soldered wires
1576
UNI Proximity switch
20 - touchless switch
- width only 7mm
E61579
No results found for the selected filters.
Product name Material Color Ref No
ZM-NA Connector
stainless steel
silver
42339
ZM-NA-PION Connector
stainless steel
silver
42321
42315
42317
ZM Connector
stainless steel
silver
black
colorless
C28075N00
C28072N00
42720
42728
C24797C07
C28072C07
C28075C07
C28070C07
C28071C07
C28073C07
C28074C07
C24797N00
ZM-PION Connector
stainless steel
silver
black
42718
42719
42320
C28086N00
C28084N00
42314
C28086C07
C28084C07
C28088C07
C28087C07
C28085C07
Product name Material Color Ref No
TECH-KA Protective insert
PVC
gray
C24530C02
Product name Material Color Ref No
Gland 6x1,2
C24517C07
Adapter LENSO
PC
transparent
E62146
Gland 8x1,6
C42290C07
No results found for the selected filters.

Compare products

Compare
KLUS, LLC
3755 9th St. Southwest
Vero Beach, FL 32968
Copyright 2026 Kluś. All right reserved..
