OBIT Extrusion (A04826) | KlusDesign.com

Compare

Compared

Hallway lighting
Three lighting options

With the possibility of sealing up to IP20

Configure

WATCH INSTRUCTIONAL VIDEO

Color

Description

Hallway lighting
Three lighting options

Application

- decorative and warning lighting

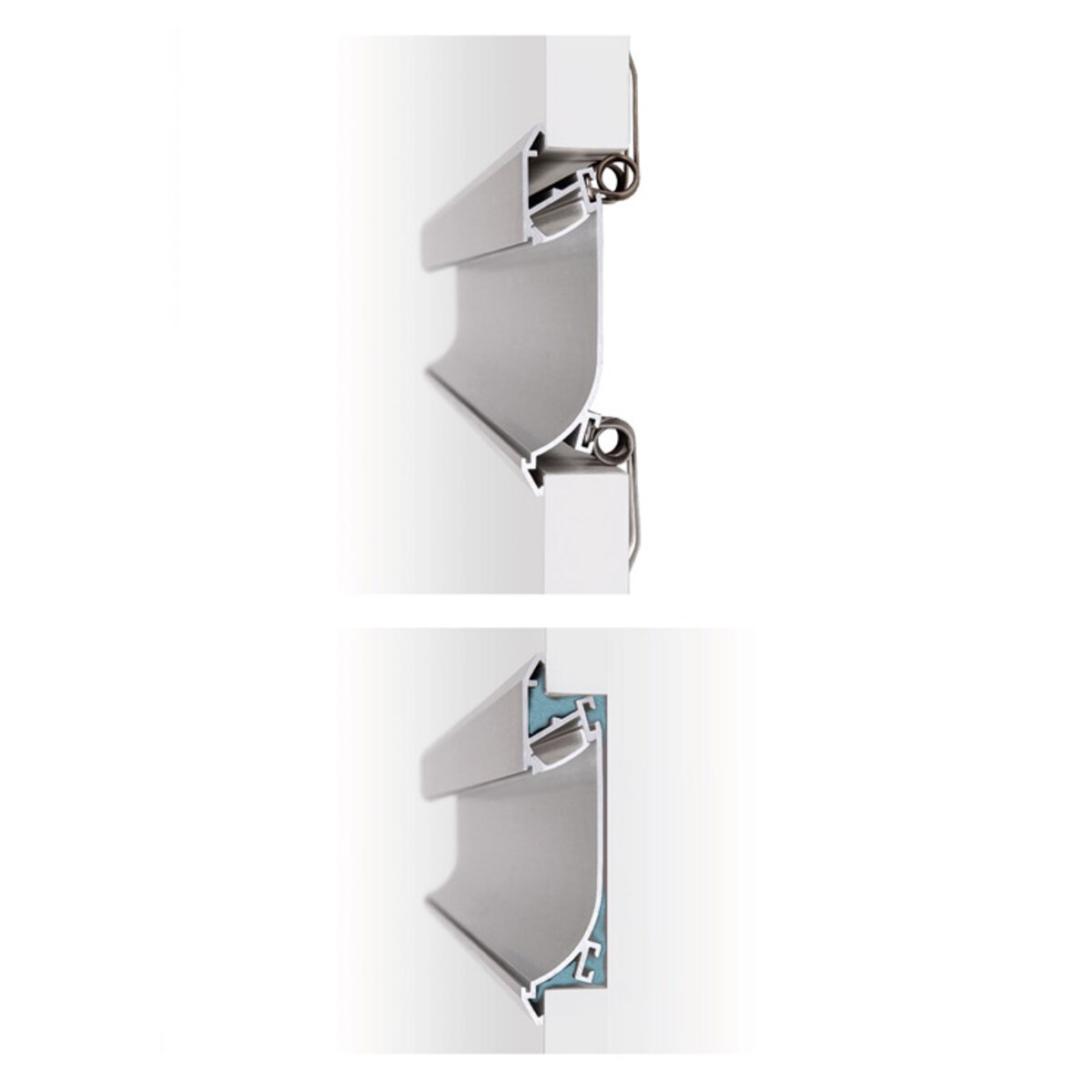

Mounting

- recessed, using dedicated accessories or mounting adhesive

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

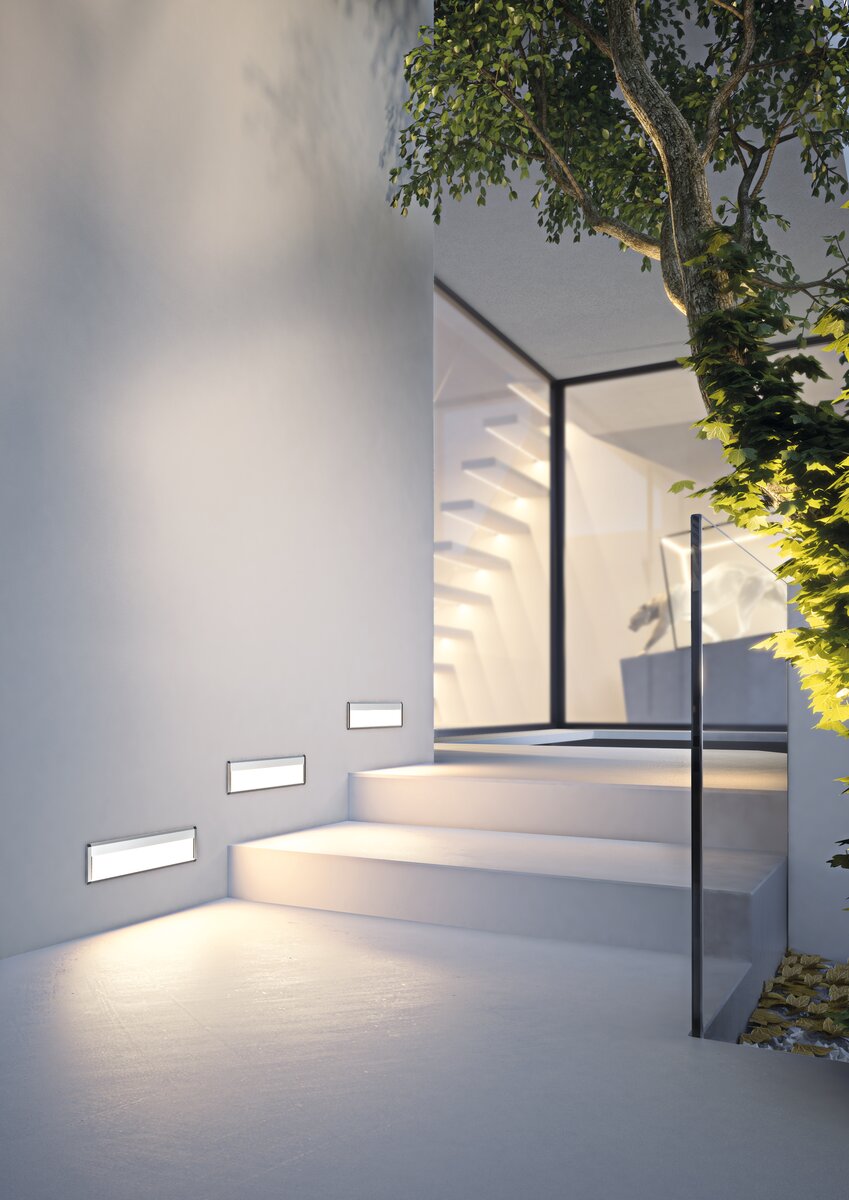

Usage examples

Description
download

Application

- decorative and warning lighting

Mounting

- recessed, using dedicated accessories or mounting adhesive

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

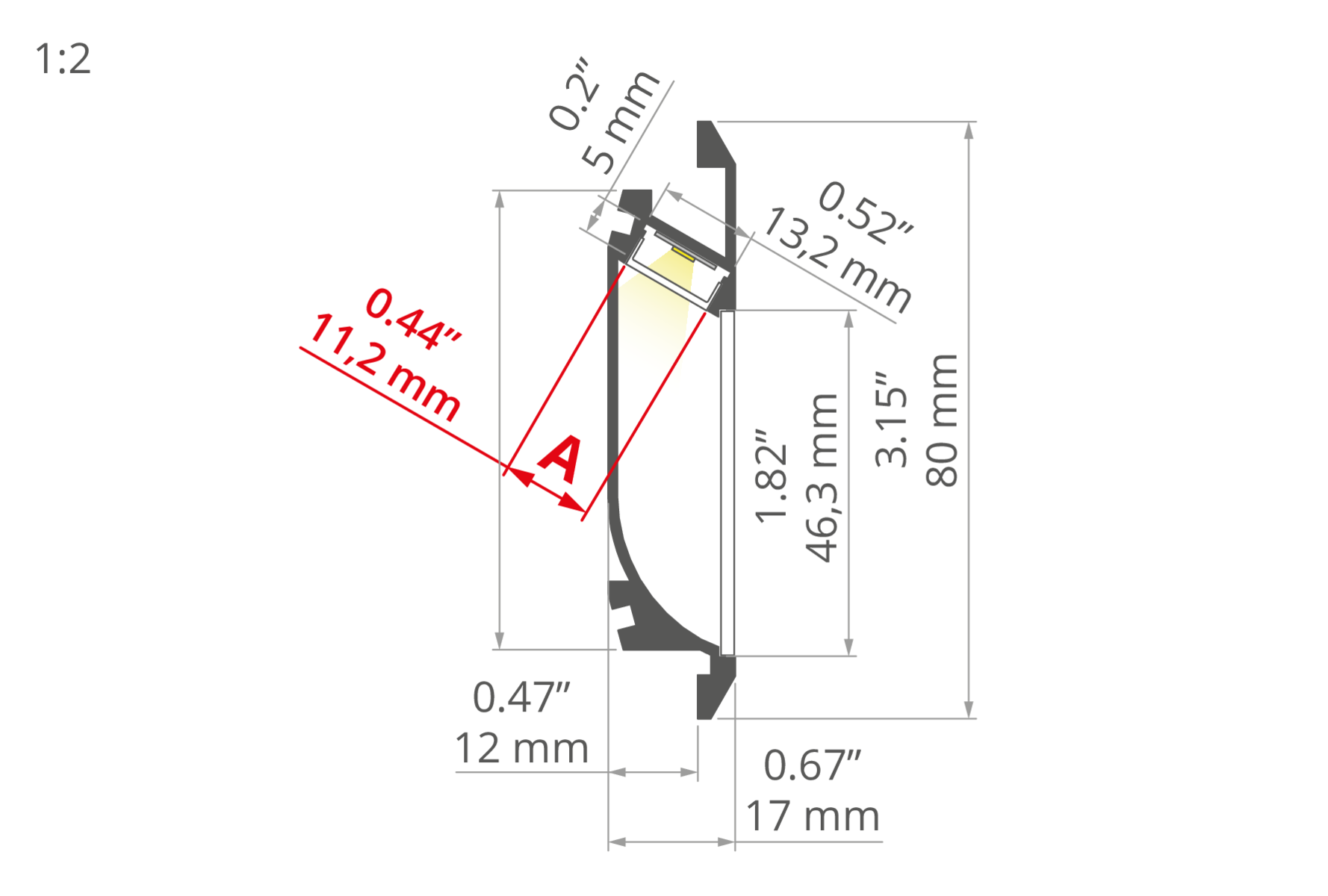

Technical drawing

Technical specification

Finish

anodized

Material

aluminum

Possible fixture IP

Possible fixture shapes

linear

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

0.7" (17 mm)

Height

3.1" (80 mm)

LED gluing width A

0.4" (11.2 mm)

Max. number of LED strips A (0.31" wide)

The cover is cut to the length of the profile

Yes

Can be easily connected into runs

Yes

Mounting to drywall

Yes

Wire out back of extrusion

Yes

Building type

Commercial, Residential, Entertainment/ Arts, Hotel / Restaurant

Facility zone

stairs / hallways, fitness / spa

Color	Length	Ref No
silver anodized	39.4" (1000 mm) 78.9" (2005 mm)	A04826A_1 A04826A_2
