OLEK Extrusion (A08505) | KlusDesign.com

Compare

Compared

Smooth extrusion surfaces
Lighting fixture with round cross-section
Luminaire direction adjustment
Wide range of accessories

With the possibility of sealing up to IP20

With the possibility of sealing up to IP67

Configure

WATCH INSTRUCTIONAL VIDEO

Color

Description

Smooth extrusion surfaces
Lighting fixture with round cross-section
Luminaire direction adjustment
Wide range of accessories

Application

- main and decorative lighting

Mounting

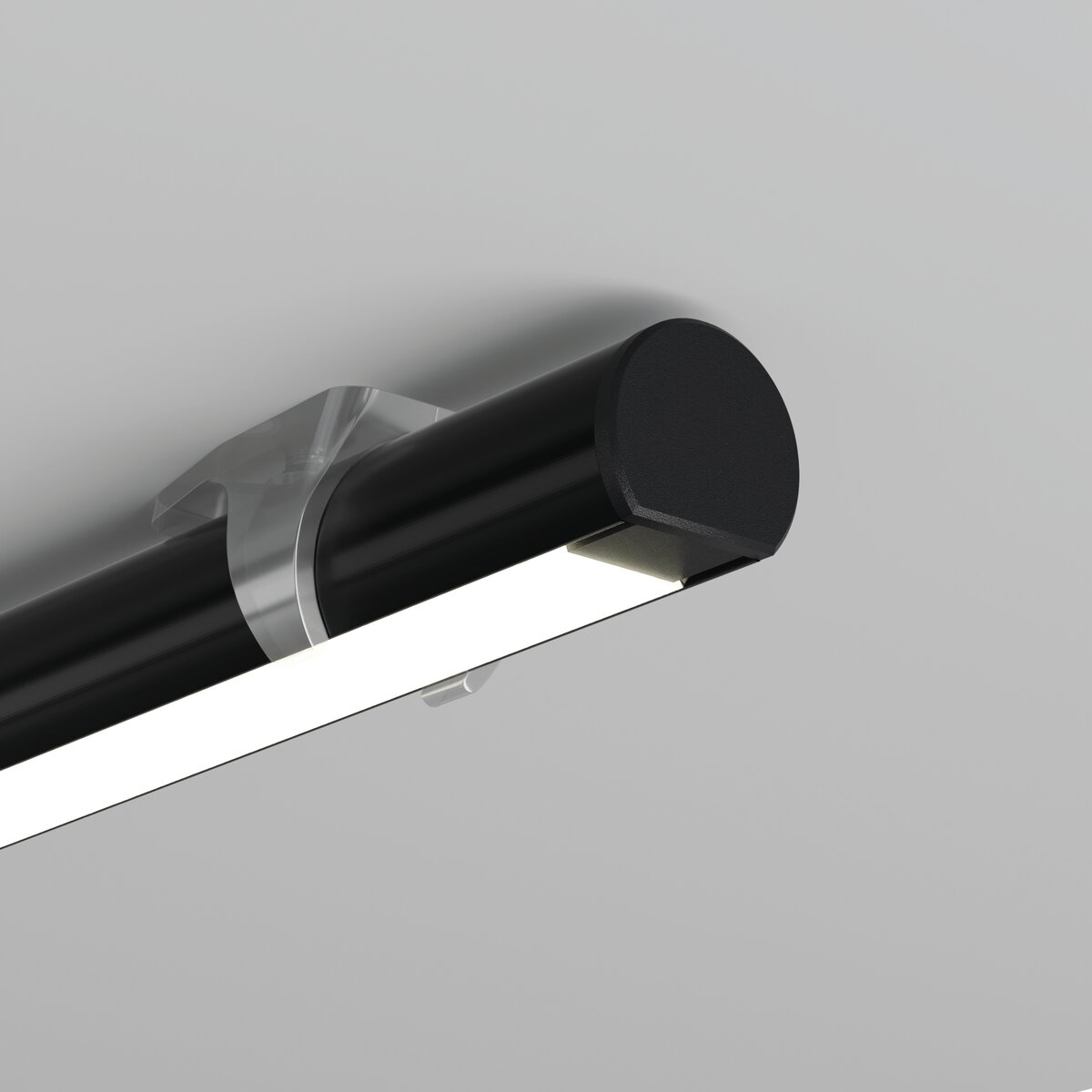

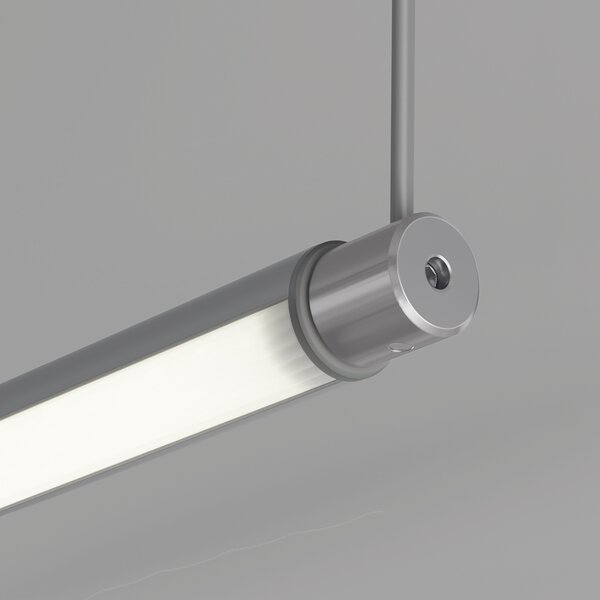

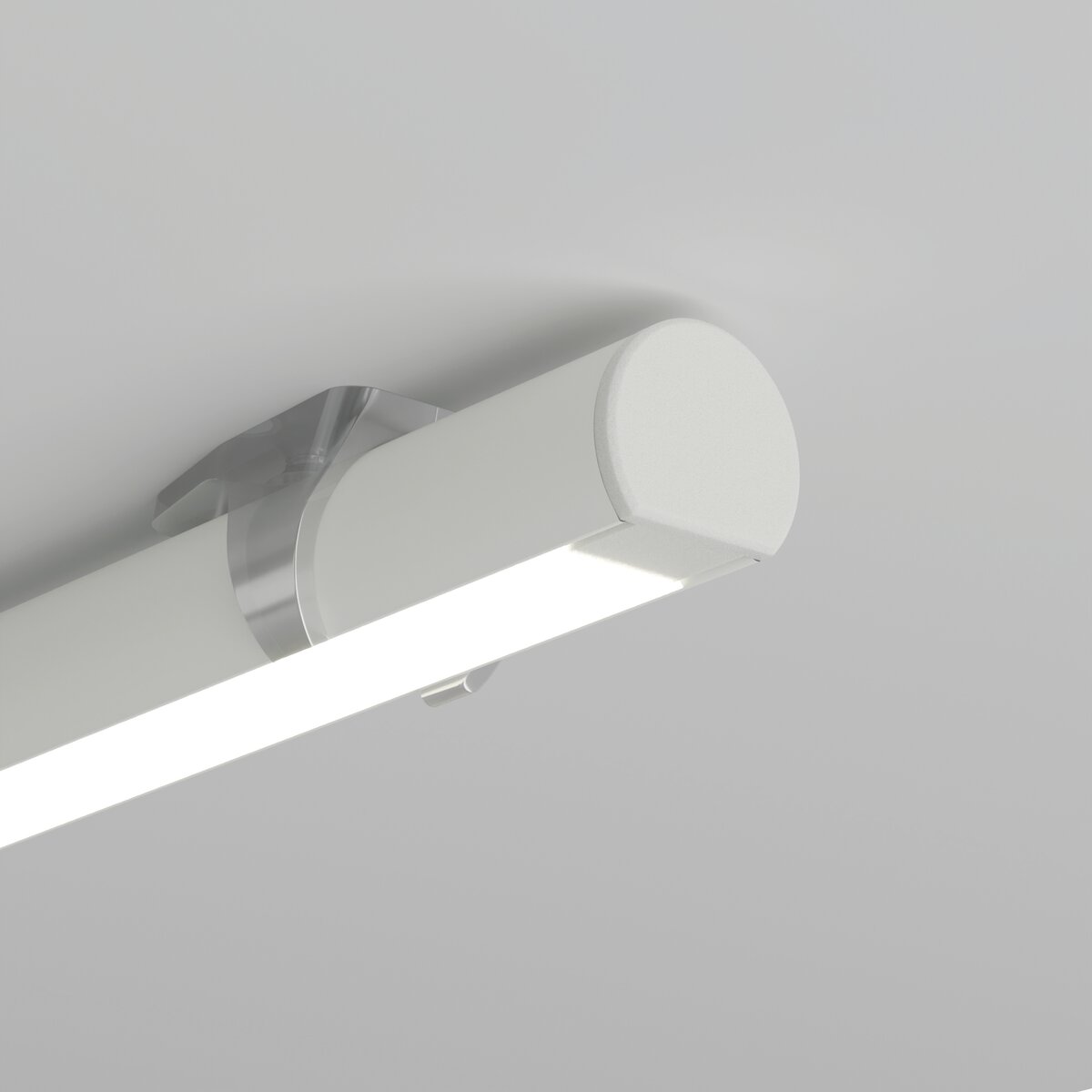

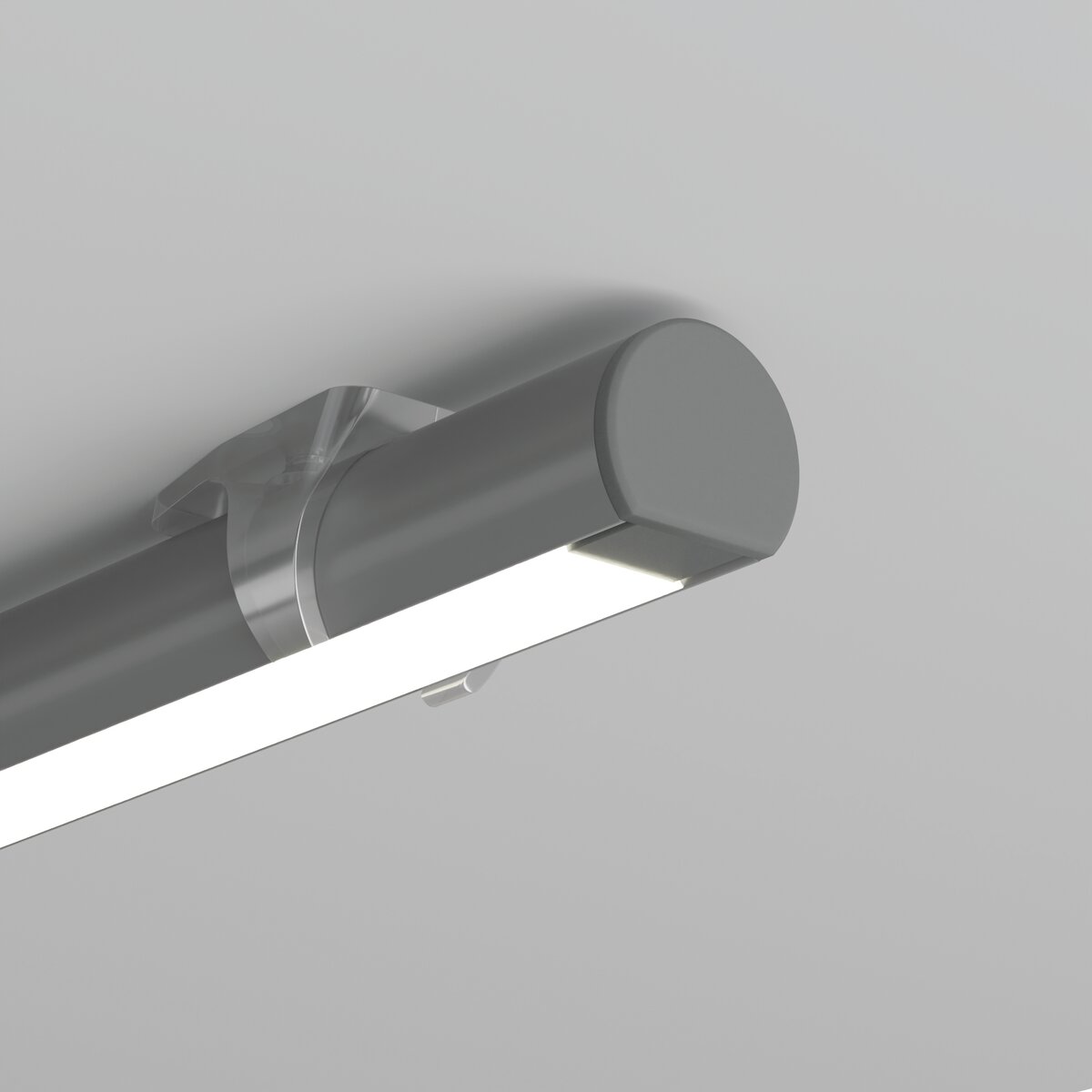

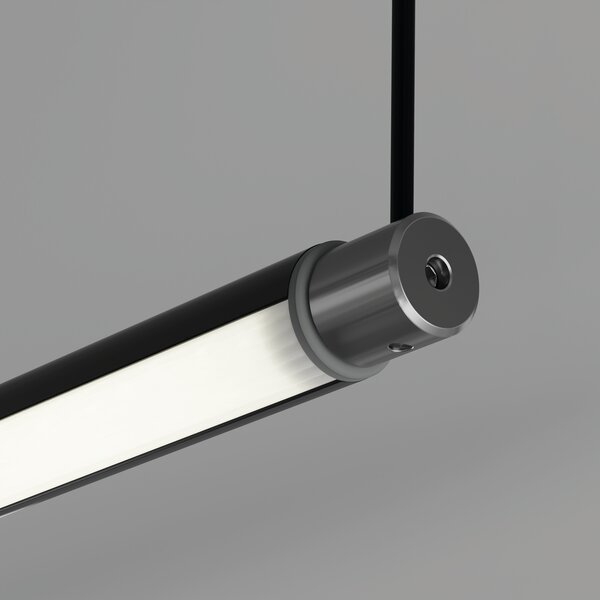

- suspended, using conductive end caps and dedicated accessories

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
- NCS Premium paint option - minimum order quantity 30pcs - available on order within 14 days

download

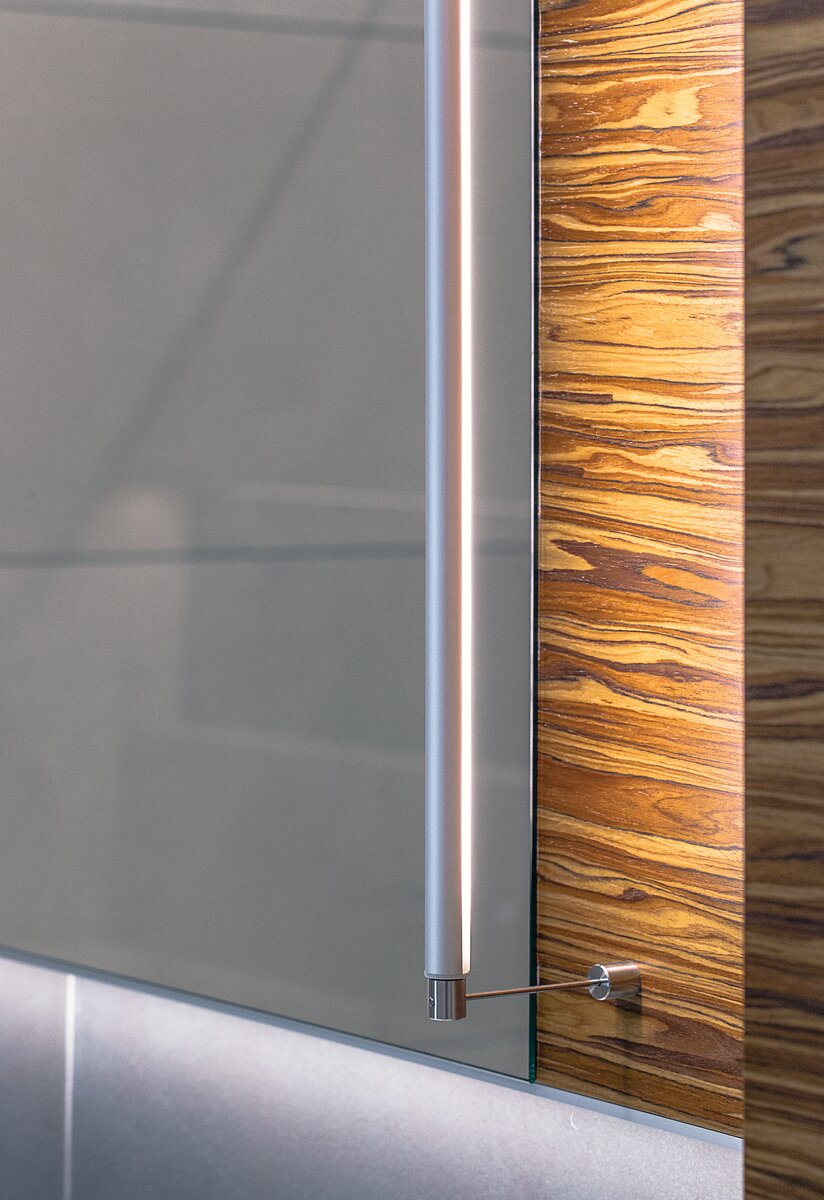

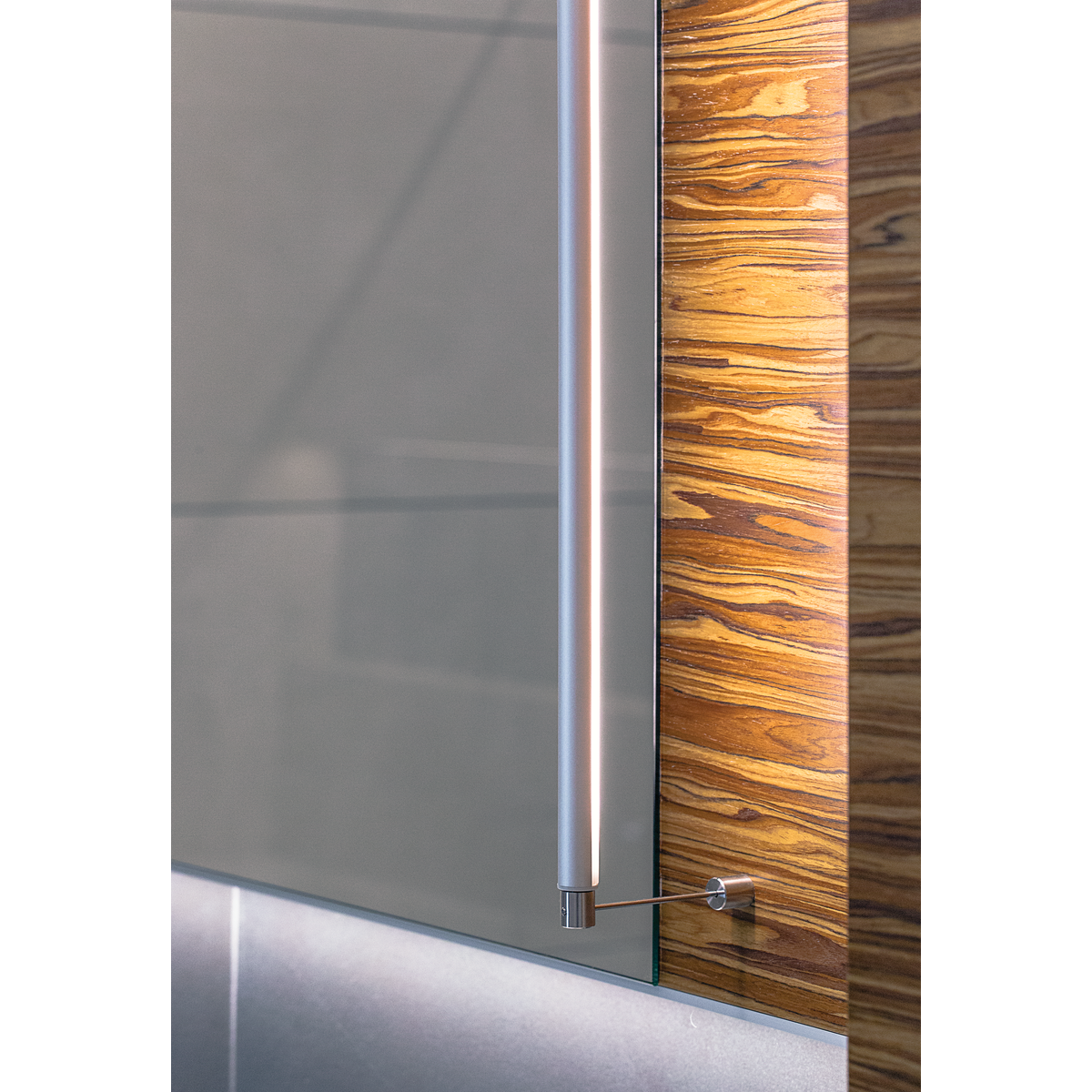

Usage examples

Description
download

Application

- main and decorative lighting

Mounting

- suspended, using conductive end caps and dedicated accessories

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
- NCS Premium paint option - minimum order quantity 30pcs - available on order within 14 days

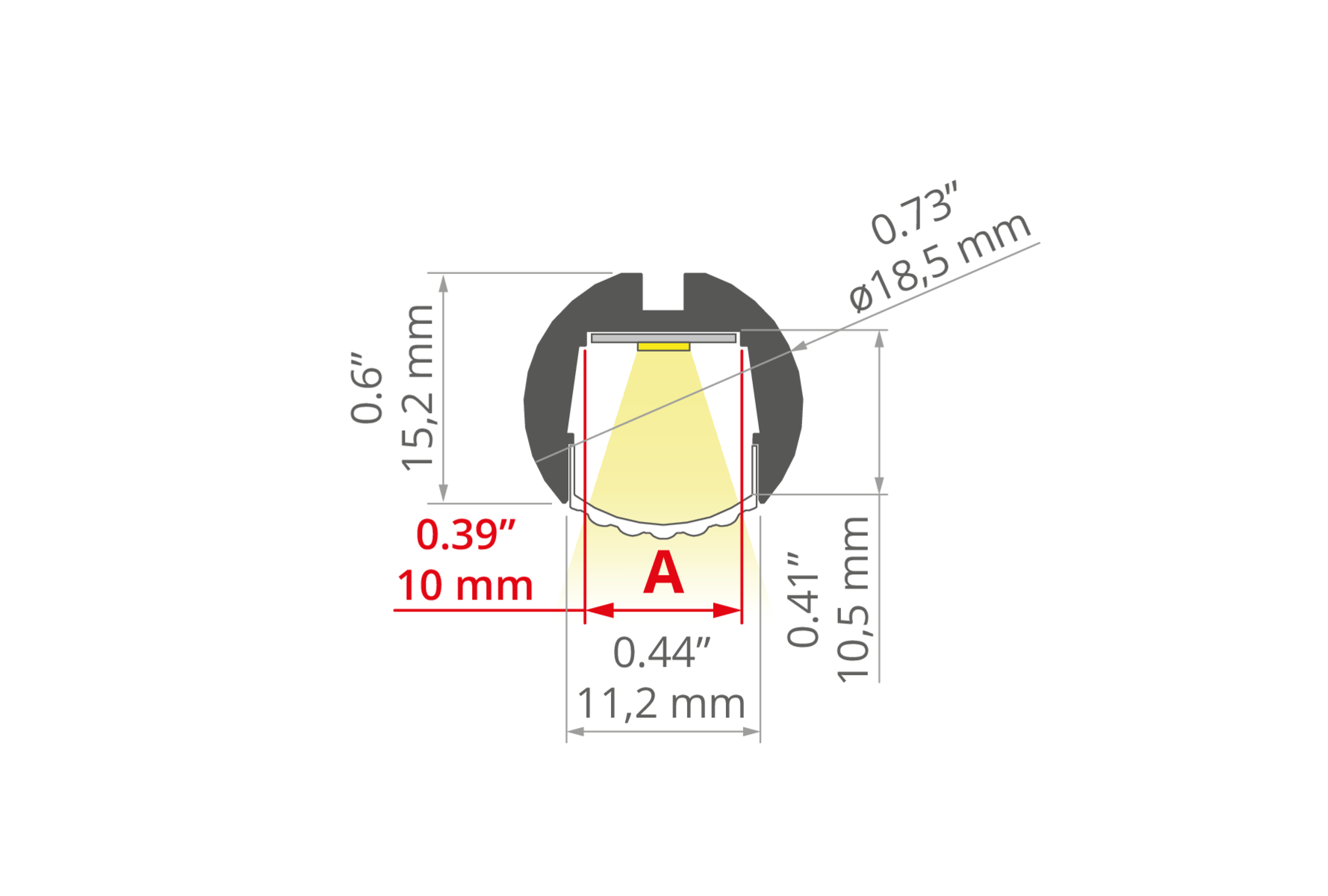

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

20, 67

Possible fixture shapes

linear, polygonal

Profile cross-section

round

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

0.7" (18.5 mm)

Height

0.6" (15.2 mm)

LED gluing width A

0.4" (10 mm)

Max. number of LED strips A (0.31" wide)

Lighting angle adjustment up to

360

The cover is cut to the length of the profile

Yes

Can be easily connected into runs

Yes

Wire out end cap

Yes

Possibility of obtaining a line of light

Yes

Building type

Commercial, Residential, Entertainment/ Arts, Hotel / Restaurant

Facility zone

kitchen, bathroom, under-cabinet / furniture, decorative

Color	Length	Ref No
silver anodized	39.4" (1000 mm) 78.9" (2005 mm)	A08505A_1 A08505A_2
black anodized	78.9" (2005 mm)	A08505A07_2
white lacquered	78.9" (2005 mm)	A08505L10OD_2

Line of Light Table for Pixel Free Illumination

LED Tapes		Covers
Categories	LED tape type	LIGER-11 Cover satin	LIGER-11 Cover black	HS-11 Cover frosted	KA-11R Cover frosted
High Efficacy	K-HEHD-0480-24	(1)			(1)
	K-HEHD-0960-24	(1)			(1)
	K-HEHD-1440-24	(1)			(1)
	K-HEHD-1920-24	(1)			(1)
	K-HEHD-0320-24	(1)			(1)
CRI 95+	K-CRHD-1820-24	(1)	(1)		(1)
CRI 95+	K-CRHD-1910-24	(1)	(1)		(1)
RGB / RGB-W / RGB-CTT	K-RGBW-1920-160-24	(1)			(1)
Single diode cuttable	K-SD-1440-24	(1)			(1)
Adjustable White / Dim to Warm	K-SDCR-22T50-1530-24	(1)	(1)		(1)
Adjustable White / Dim to Warm	KWP-SDCR-22T50-1530-24	(1)	(1)		(1)

Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
LENSO-11 30°DEG Focusing cover	PC	- indoor use - focusing	80 %	semi-transparent	B17112T
HS-11 Cover	PC	- For indoor and outdoor applications - UV resistant - hight durability	59 % 88 %	frosted clear	B17208F B17208C
KA-11 Cover	PC	- maximum brightness - indoor use - basic - universal	67 % 89 %	frosted clear	B17064F B17064C
LIGER-11 Cover	PC	- hight light quality - Ease of obtaining a line of light - perfectly diffusing - For indoor and outdoor applications	59 % 21 %	satin black	B17037S B17037B
KA-11R Cover	PC	- maximum brightness - hight durability - hight light quality - indoor use - perfectly diffusing	62 %	frosted	B17076F

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
High Efficacy

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0480-24 K-HEHD25-0480-24 K-HEHD27-0480-24 K-HEHD30-0480-24 K-HEHD35-0480-24 K-HEHD40-0480-24 K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0960-24 K-HEHD25-0960-24 K-HEHD27-0960-24 K-HEHD30-0960-24 K-HEHD35-0960-24 K-HEHD40-0960-24 K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1440-24 K-HEHD25-1440-24 K-HEHD27-1440-24 K-HEHD30-1440-24 K-HEHD35-1440-24 K-HEHD40-1440-24 K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,	20	-	5.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1920-24 K-HEHD25-1920-24 K-HEHD27-1920-24 K-HEHD30-1920-24 K-HEHD35-1920-24 K-HEHD40-1920-24 K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,	20	-	1 W/ft	2700K 3000K 3500K 4000K	- CRI over 95 - High Efficacy	K-HEHD27-0320-24 K-HEHD30-0320-24 K-HEHD35-0320-24 K-HEHD40-0320-24

LED tapes
CRI 95+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2700K	- CRI over 95	K-CR22-1210-24 K-CR27-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1220-24 K-CR25-1220-24 K-CR27-1220-24 K-CR30-1220-24 K-CR35-1220-24 K-CR40-1220-24 K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1275-24 K-CR25-1275-24 K-CR27-1275-24 K-CR30-1275-24 K-CR35-1275-24 K-CR40-1275-24 K-CR50-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,	20	-	5.6 W/ft	2700K	- CRI over 95 - high LED density	K-CRHD27-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,	20	-	2.8 W/ft	2700K 3500K 4000K	- CRI over 95 - high LED density	K-CRHD27-1910-24 K-CRHD35-1910-24 K-CRHD40-1910-24
KWP-CR-1220-24 LED tape, 151-227 lm/ft, IP65,	65	silicon sleeve	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	KWP-CR22-1220-24 KWP-CR25-1220-24 KWP-CR27-1220-24 KWP-CR30-1220-24 KWP-CR35-1220-24 KWP-CR40-1220-24 KWP-CR50-1220-24
KWP-CR-1275-24 LED tape, 381-464 lm/ft, IP65,	65	silicon sleeve	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	KWP-CR22-1275-24 KWP-CR25-1275-24 KWP-CR27-1275-24 KWP-CR30-1275-24 KWP-CR35-1275-24 KWP-CR40-1275-24 KWP-CR50-1275-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,	20	-	1.6 W/ft	3500K	- CRI over 95	K-CRHD35-0530-24

LED tapes
CRI 90+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20	20	-	7.3 W/ft	2700K 3000K 3500K 4000K 5000K	- high power	K-27-2400-24 K-30-2400-24 K-35-2400-24 K-40-2400-24 K-50-2400-24
KWP-GHD-1640-24 LED tape, 364-503 lm/ft, IP65,	65	gel cover	5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- high LED density	KWP-GHD22-1640-24 KWP-GHD25-1640-24 KWP-GHD27-1640-24 KWP-GHD30-1640-24 KWP-GHD35-1640-24 KWP-GHD40-1640-24 KWP-GHD50-1640-24
KWP-GHD-1910-24 LED tape, 227-279 lm/ft, IP65,	65	gel cover	2.8 W/ft	2200K 2700K 3000K 3500K 4000K	- high LED density	KWP-GHD22-1910-24 KWP-GHD27-1910-24 KWP-GHD30-1910-24 KWP-GHD35-1910-24 KWP-GHD40-1910-24

LED tapes
RGB / RGB-W / RGB-CTT

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-120-24
KWP-GRGBW-1530-24 LED tape, 3000K, 193 lm/ft, 4.7 W/ft, IP65	65	gel cover	4.7 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1530-24
KWP-RGB-1920-24 LED tape, 187 lm/ft, 5.9 W/ft, IP65	65	silicon sleeve	5.9 W/ft	RGB	- RGB	KWP-RGB-1920-24
LED tape KWP-RGB-1200-24, 23 lm/m, 3.7 W/m, IP65	65	silicon sleeve	3.7 W/ft	RGB	- RGB	KWP-RGB-1200-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,	65	silicon sleeve	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1920-120-24

LED tapes
Adjustable White / Dim to Warm

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-27/65-1920-24V LED tape, 2700K, 500 lm/ft, 5.9 W/ft, IP20	20	-	5.9 W/ft	2700K	- Tuneable white 2600K-6500K	K-27/65-1920-24
K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-24
KWP-27/65-1920-24 LED tape, 2700K, 246 lm/ft, 5.9 W/ft, IP65	65	silicon sleeve	5.9 W/ft	2700K	- Tuneable white 2600K-6500K	KWP-27/65-1920-24
K-30/18-1770-010V-24V LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-010V-24V
KWP-G22/50-1728-24 LED tape, 2200K, 467 lm/ft, 5.3 W/ft, IP65	65	gel cover	5.3 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-G22/50-1728-24
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20	20	-	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65	65	silicon sleeve	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-SDCR-22T50-1530-24

LED tapes
Single diode cuttable

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,	20	-	4.4 W/ft	2700K 3000K 3500K 4000K		K-SD27-1440-24 K-SD30-1440-24 K-SD35-1440-24 K-SD40-1440-24

LED tapes
Side emitting

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
KWP-SE-1210-24-8 LED tape, 101-116 lm/ft, IP65,	65	silicon sleeve	1.5 W/ft	2700K 3000K 4000K 5000K	- Side emitting	KWP-SE27-1210-24-8 KWP-SE30-1210-24-8 KWP-SE40-1210-24-8 KWP-SE50-1210-24-8

Accessories
End caps
Conductive end caps

Product name	Material	Color	Ref No
Electricity conductive end cap OLEK	ABS	gray	C28212C02
Electricity conductive end cap OLEK-LUK	ABS, stainless steel	gray	C28213C02

Accessories
End caps
High Quality end caps

Product name	Material	Color	Ref No
End cap set OLEK-LUK-HQ	aluminum	gray	C28221AS

Accessories
End caps
Standard end caps

Product name	Material	Color	Ref No
OLEK End cap	ABS	gray white	C24203C02 C24203C10
OLEK-LUK End cap	ABS	gray white black	C24204C02 C24204C10 C24204C07

Accessories
Suspension accessories
Suspension and mounting sets

Product name	Key features	Material	Color	Ref No
RD-1 Fastener set	- Smooth cable adjustment, cable included	brass	silver white black	C28231P00 C28231P01 C28231L10 C28231L07
RG-1 Fastener set	- Cable adjustment at the ceiling, cable included	brass	silver black	C28230P00 C28230L07
FI-8-ZM-2 Fastener set	- Convenient cable length adjustment, in the ZM system	stainless steel, aluminum	silver white black	C28135N00 C28135L10 C28135L07

Accessories
Suspension accessories
Conductive fasteners and heads for extrusions

Product name	Key features	Material	Color	Ref No
FI-8-LIN-ZMZ Fastener	- Power supply - mounting in the ZM system	stainless steel, aluminum, rubber, PCV	silver white black	C28171N00 C28171L10 C28171L07
PUSZ-LIN-MR Fastener	- Power supply cable - mounting in thin walls (from 1mm)	stainless steel, brass, nylon	silver white black	C28163N00 C28163L10 C28163L07
PUSZ-PRET-ZM Fastener	- Power supply cable - mounting in the ZM system	stainless steel, brass, nylon, aluminum	silver white black	C28161N00 C28161L10 C28161L07

Accessories
Suspension accessories
Fasteners and heads for extrusions

Product name	Key features	Material	Color	Ref No
FI-8-LIN-ZM Fastener	- Installation in the ZM system	stainless steel, PA	silver black	C28170N00 C28170L07
FI-8-PRET-ZM Fastener	- Installation in the ZM system		silver white black	C28189N00 C28189L10 C28189L07

Accessories
Suspension accessories
Canopies

Product name	Key features	Material	Color	Ref No
Fi-60mm Canopy	- Convenient cable length adjustment, in the ZM system	steel	gray white black	C24540L01 C24540L10 C24540L07

Electronics
Switches

Product name	IP rating	Key features	Ref No(Ref. arch.)
Switch MICRO 96W IP20	20	- push button switch - factory pre-soldered wires	1576
UNI Proximity switch	20	- touchless switch - width only 7mm	E61579

Accessories
Accessories for connecting and securing lighting fixtures
Connectors

Product name	Material	Color	Ref No
ZM-G Connector	stainless steel	silver	42308 42304 42328 42330 42332 42334 42336 42338 42310 42324 42326
ZM Connector	stainless steel	silver black colorless	C28075N00 C28072N00 42720 42728 C24797C07 C28072C07 C28075C07 C28070C07 C28071C07 C28073C07 C28074C07 C24797N00
ZM-PION Connector	stainless steel	silver black	42718 42719 42320 C28086N00 C28084N00 42314 C28086C07 C28084C07 C28088C07 C28087C07 C28085C07

Accessories
Additional items

Product name	Material	Color	Ref No
Gland 6x1,2			C24517C07
Gland 6,4x3			C42264C07
