Note: Archival product

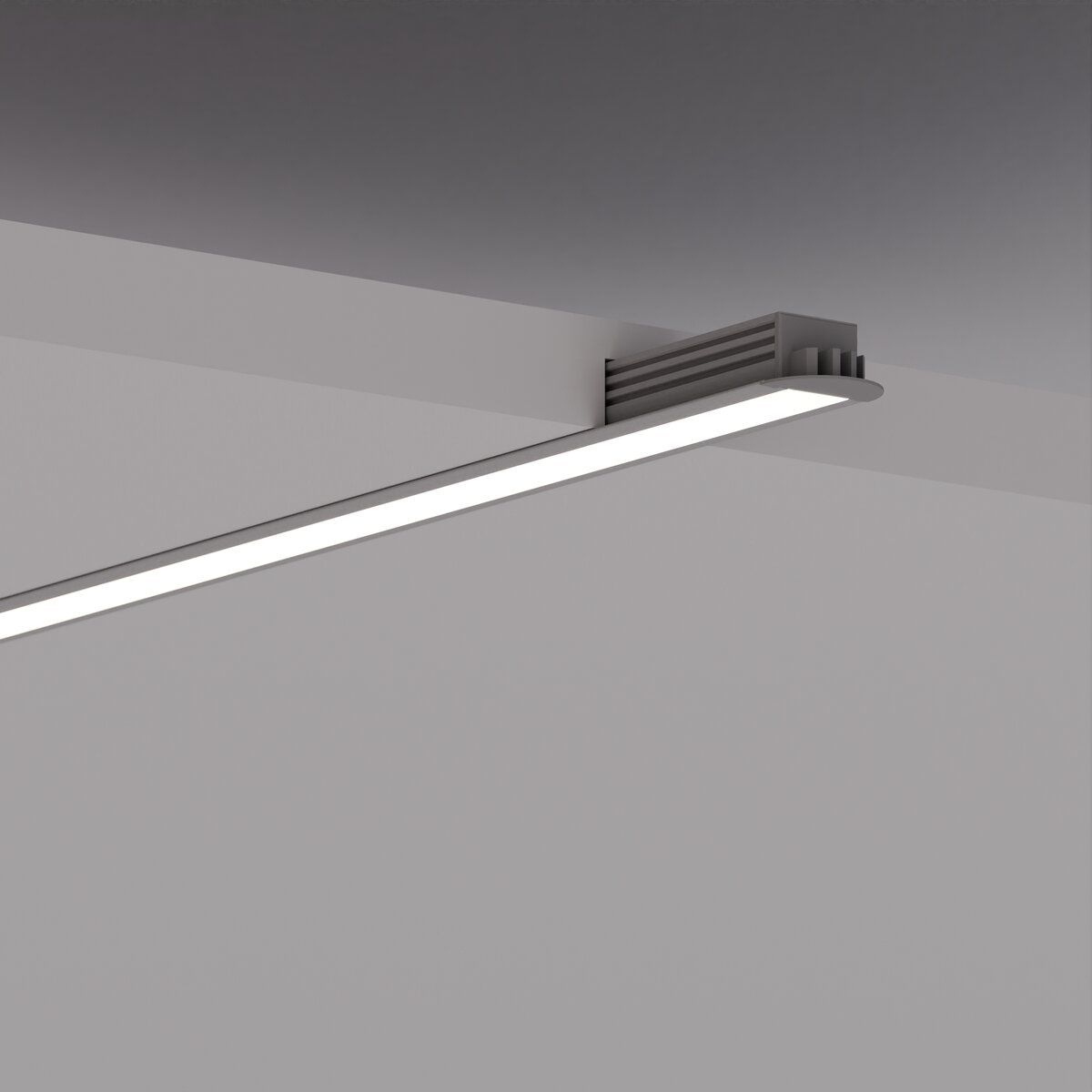

PDS-4-K Extrusion

Ref No: A03776

We offer the following substitutes:

PDS-NK Extrusion
PDS-4-K Extrusion
PDS-4-K Extrusion
  • Invisible groove edge
  • Wide range of accessories
  • Small bending radius
Recessed
Possibility of bending
With the possibility of sealing up to IP20
With the possibility of sealing up to IP67
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Closet Rated
Color
silver black
  • Invisible groove edge
  • Wide range of accessories
  • Small bending radius
Application
  • - furniture, main and decorative lighting
Mounting
  • - recessed, using properly selected screws, mounting adhesive or double-sided adhesive tape

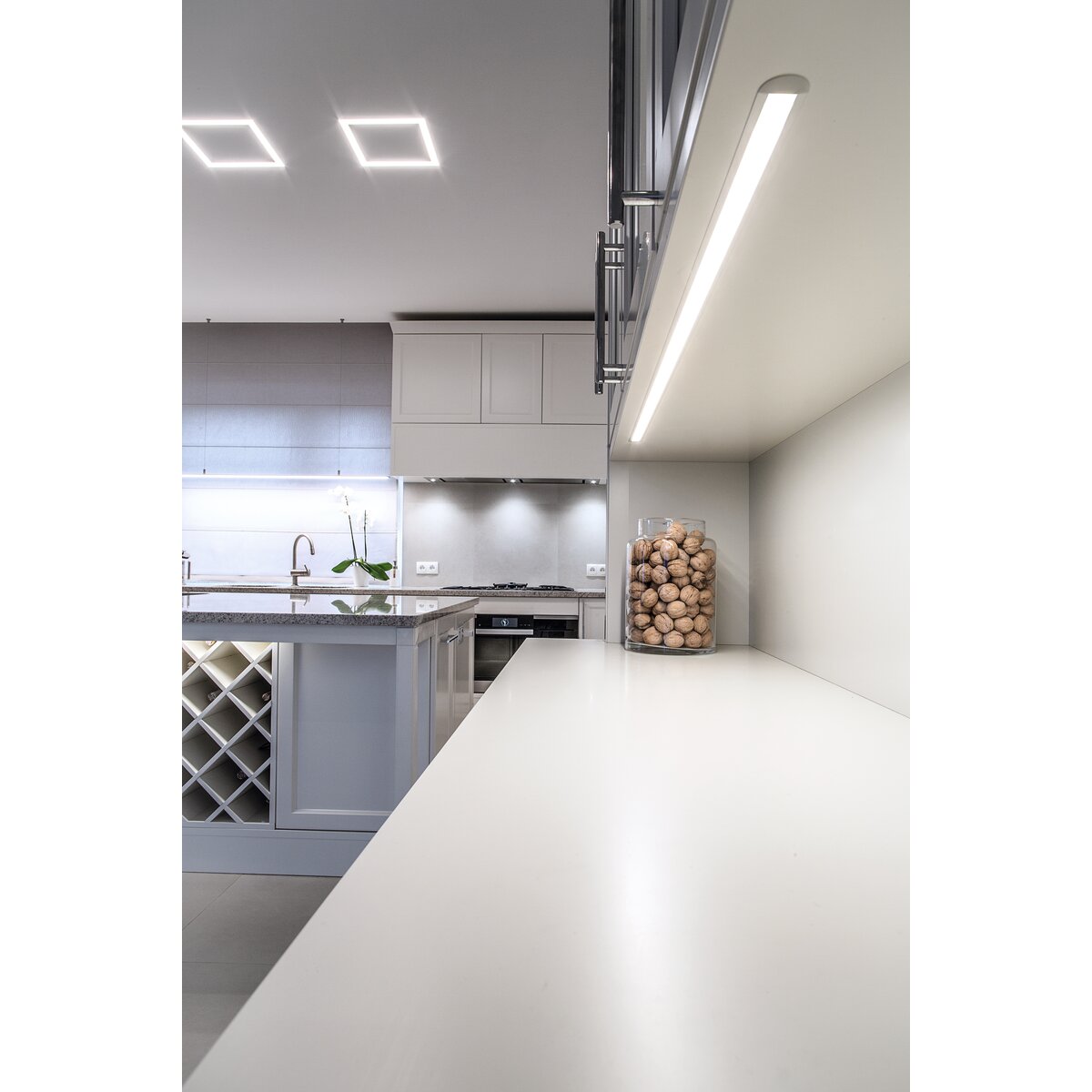

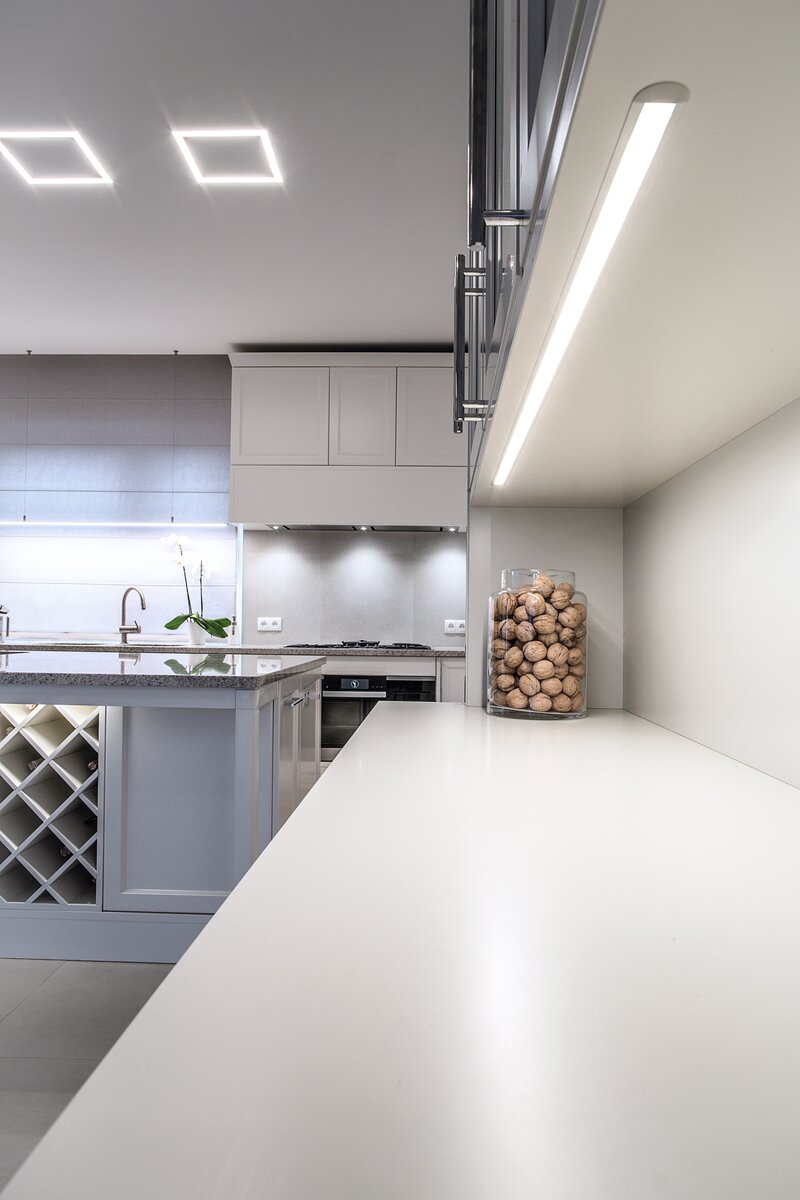

Usage examples

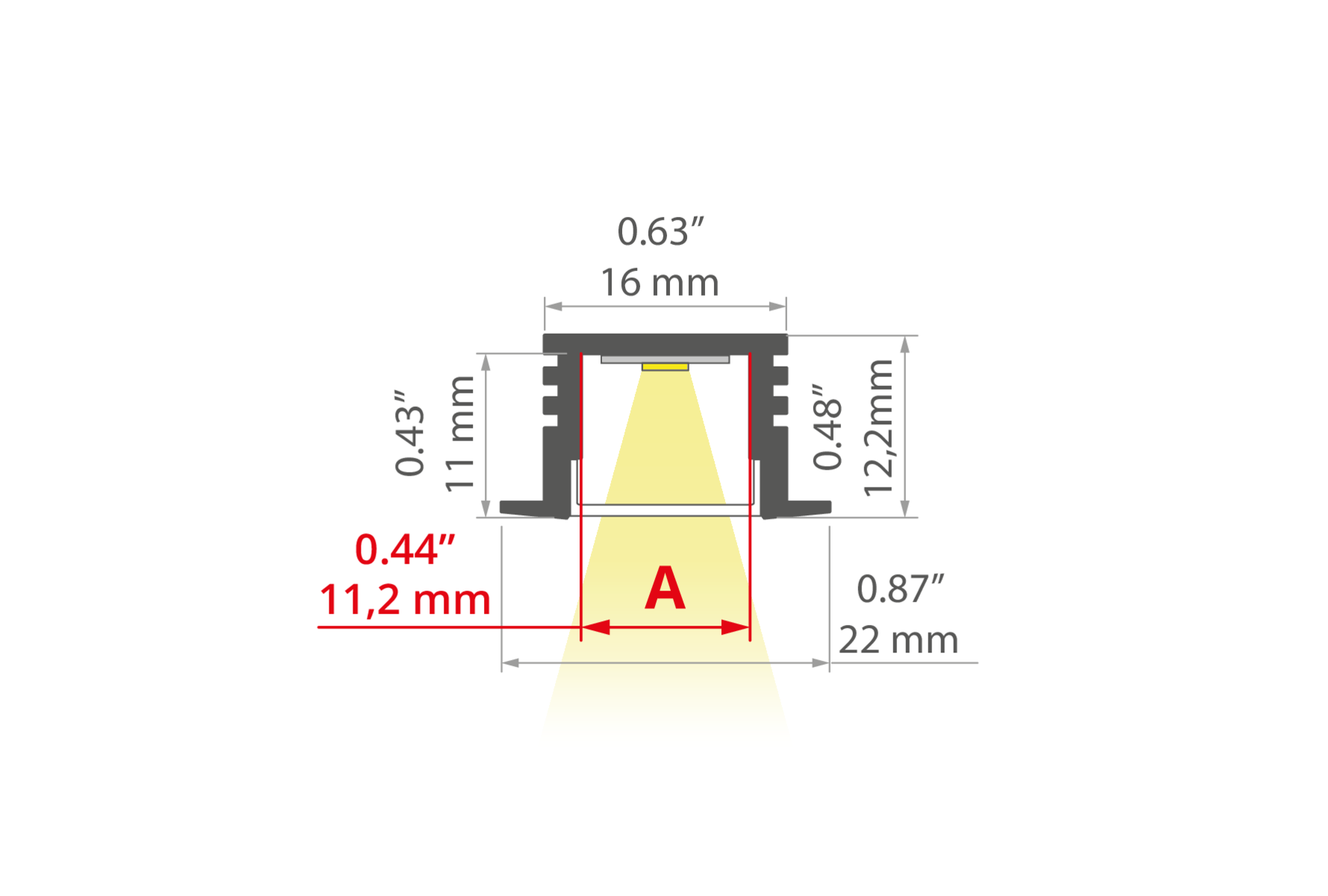

Technical drawing
PDS-4-K Extrusion aluminum Technical drawing - A03776
Technical specification
Material
aluminum
Possible fixture IP
20, 67
Possible fixture shapes
linear, round
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
7.3 W/ft
Width
0.9" (22 mm)
Height
0.5" (12.2 mm)
LED gluing width A
0.4" (11.2 mm)
Max. number of LED strips A (0.31" wide)
1
Wire out end cap
Yes
Wire out back of extrusion
Yes
Closet Rated
Yes
Possibility of bending
Yes
Minimum radius of the light arc
Radius of the light arc
Yes
Inside
150 mm
Outward
150 mm
Building type
Commercial, Hotel / Restaurant, Retail, Residential, Entertainment/ Arts, Outdoor
Facility zone
office, kitchen, bathroom, cove / perimeter, fascade lighting, stairs / hallways, under-cabinet / furniture, outdoor spaces
Color Length Ref No
silver anodized
39.4" (1000 mm)
78.9" (2005 mm)
A03776A_1
A03776A_2
black anodized
39.4" (1000 mm)
78.9" (2005 mm)
A03776A07_1
A03776A07_2
similar profiles
Surface mounted
PDS-4-ALU
Ref No: A01718
Suspended
Surface mounted
PDS-4-PLUS
Ref No: A01263
