PDS-T-BOK Extrusion

Ref No: A00016
PDS-T-BOK Extrusion
PDS-T-BOK Extrusion
PDS-T-BOK Extrusion
  • Mounting to 10 mm - 0.4" drywall
  • Dedicated for ceramic finishes and installation on the edges of moldings
  • Stable mounting to a suspended ceiling
  • Possibility of mounting sealed LED strips of the 8K series
Trimless
With the possibility of sealing up to IP20
With the possibility of sealing up to IP65
CE Certificate
UKCA Certificate
RoHS Certificate
Configure
Color
silver
  • Mounting to 10 mm - 0.4" drywall
  • Dedicated for ceramic finishes and installation on the edges of moldings
  • Stable mounting to a suspended ceiling
  • Possibility of mounting sealed LED strips of the 8K series
Application
  • - main and decorative lighting
Mounting
  • - in drywall, with screws
Additional information
  • - in order to protect the lighting fixture during installation, a TECH-KA protective insert should be used
  • - smooth transition from a recessed into a suspended fixture
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

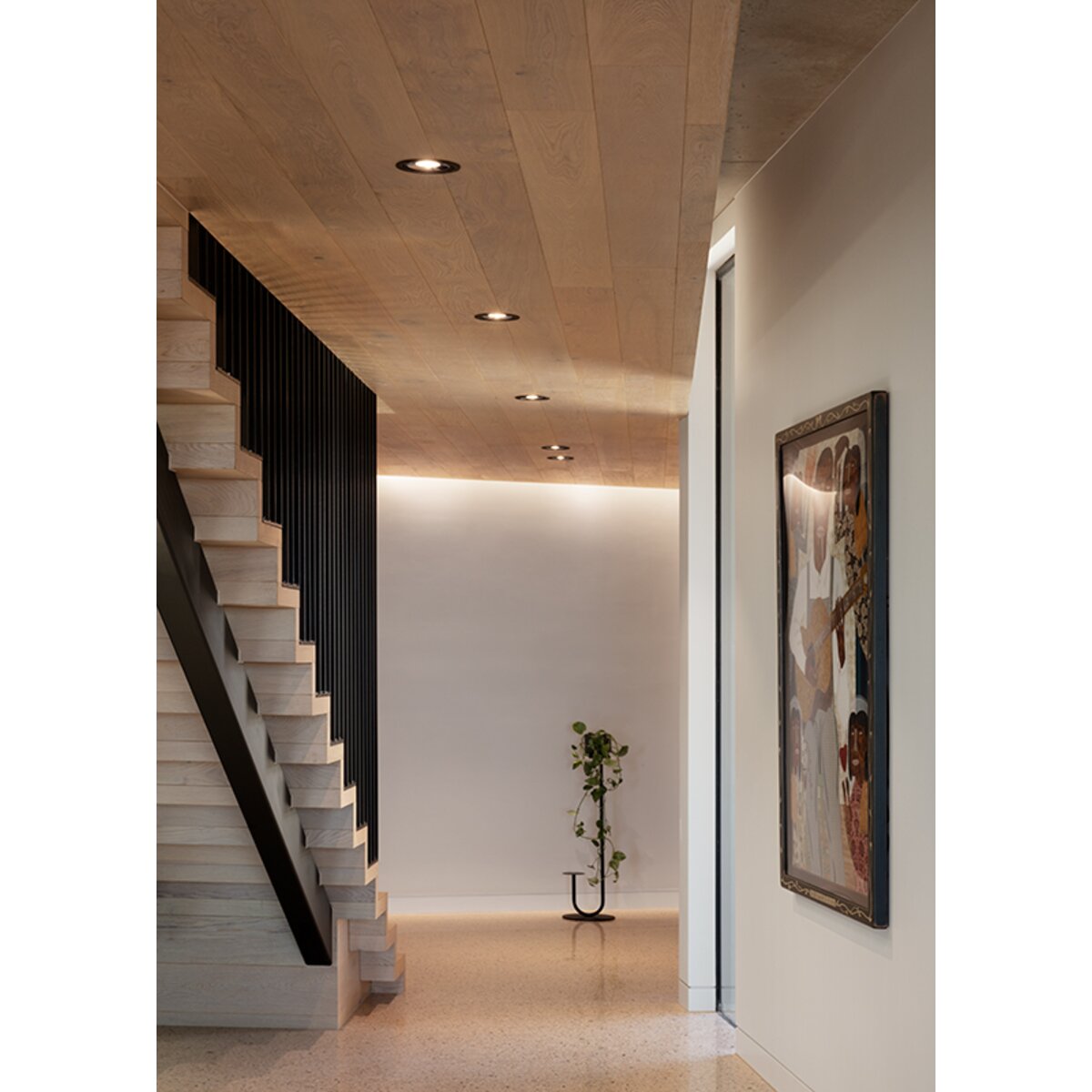

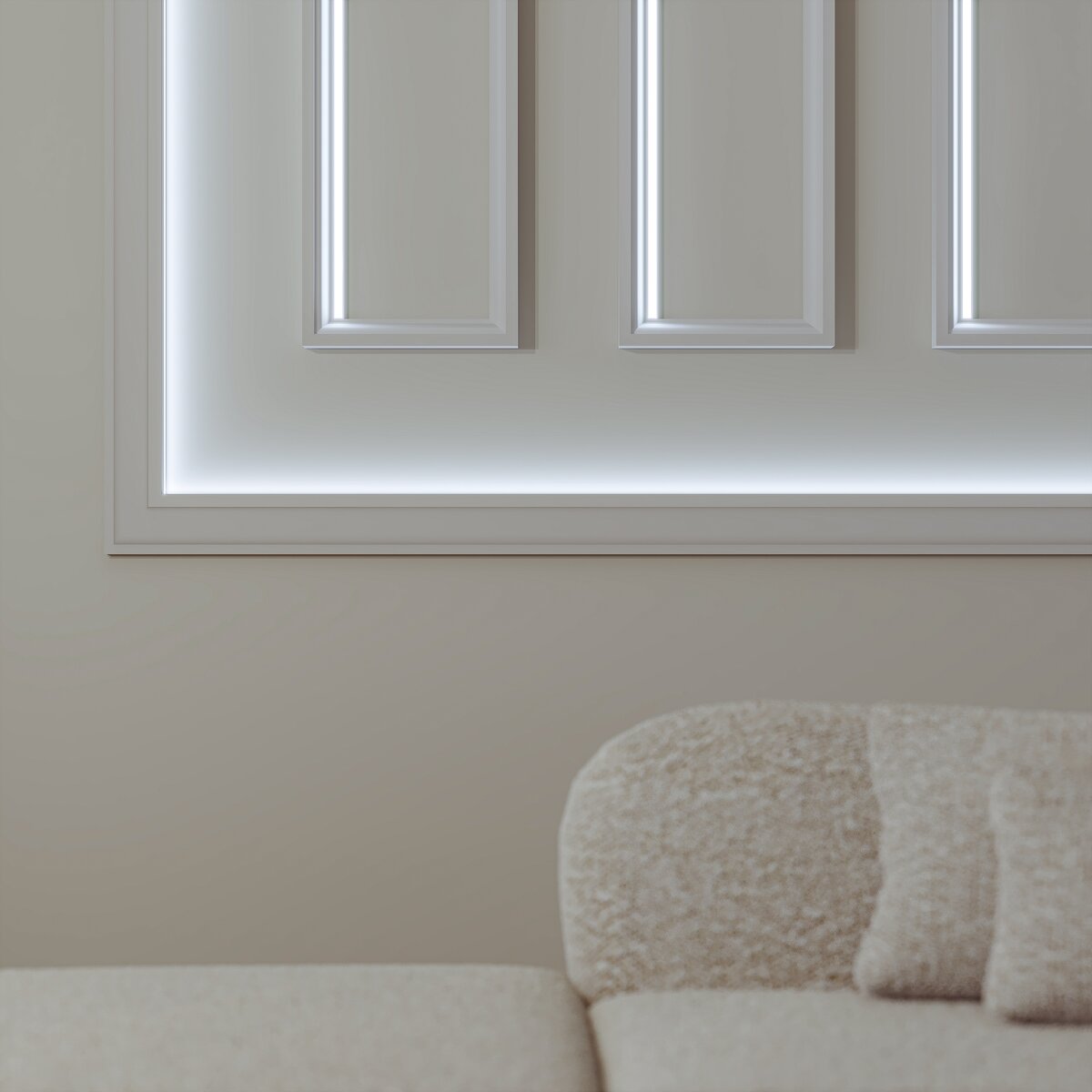

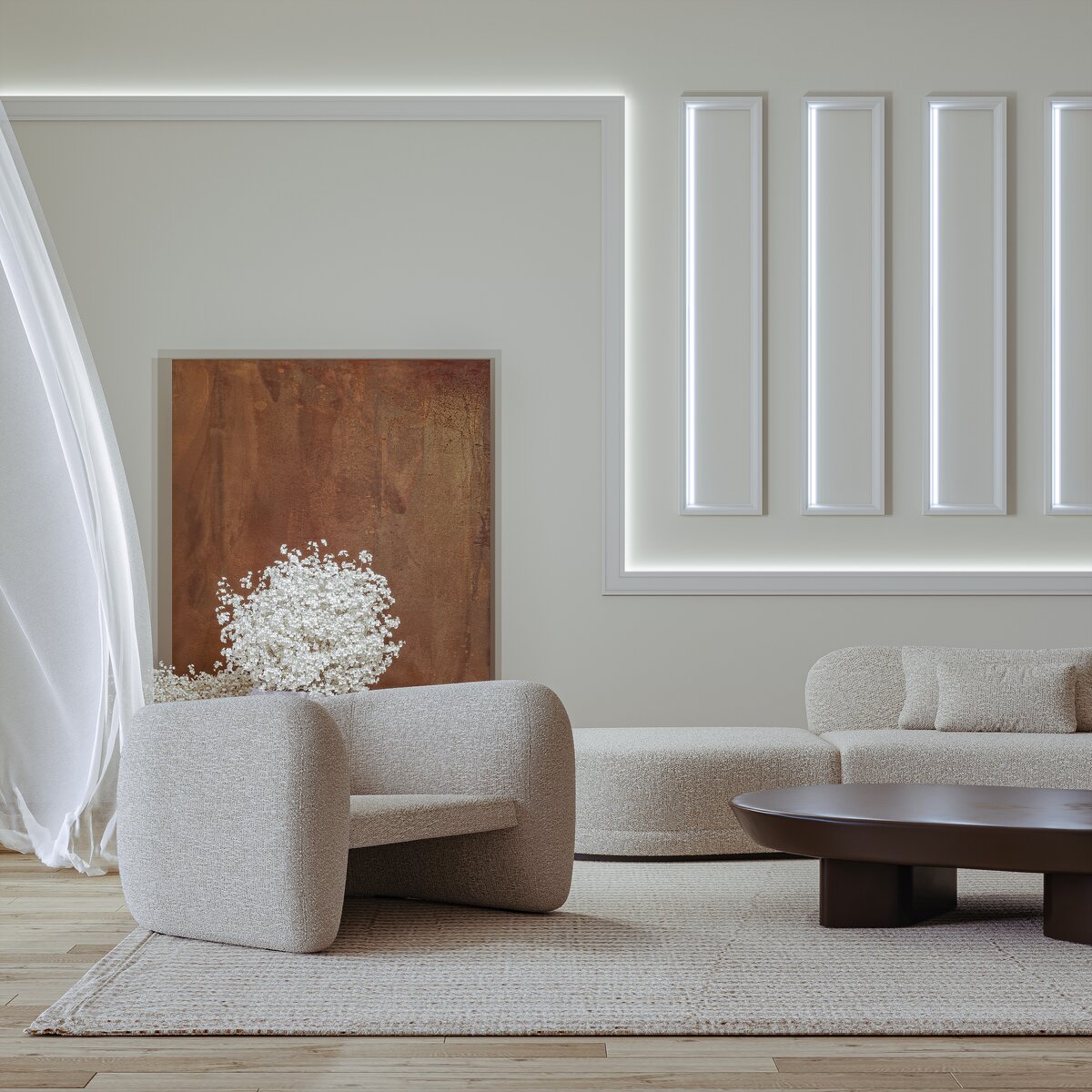

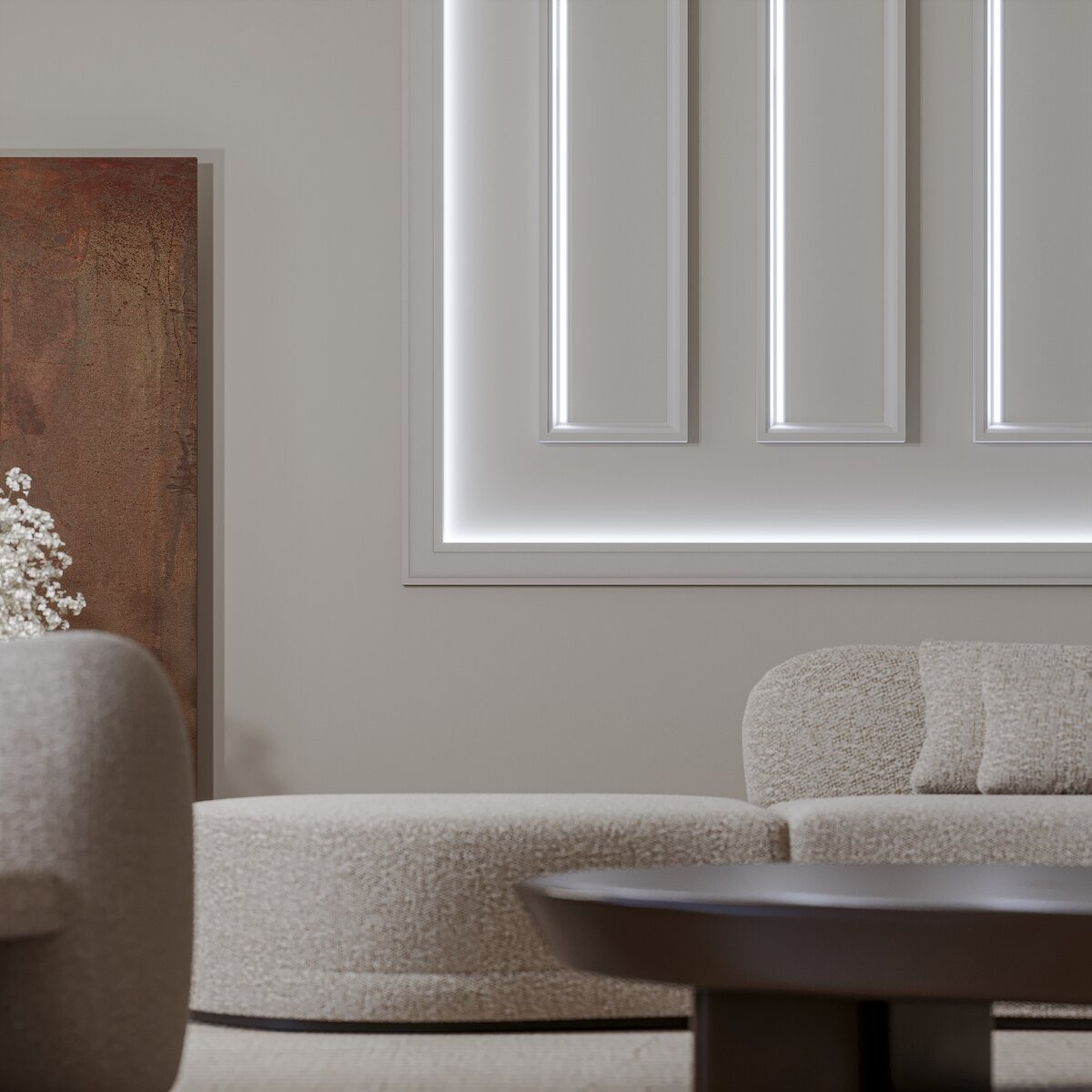

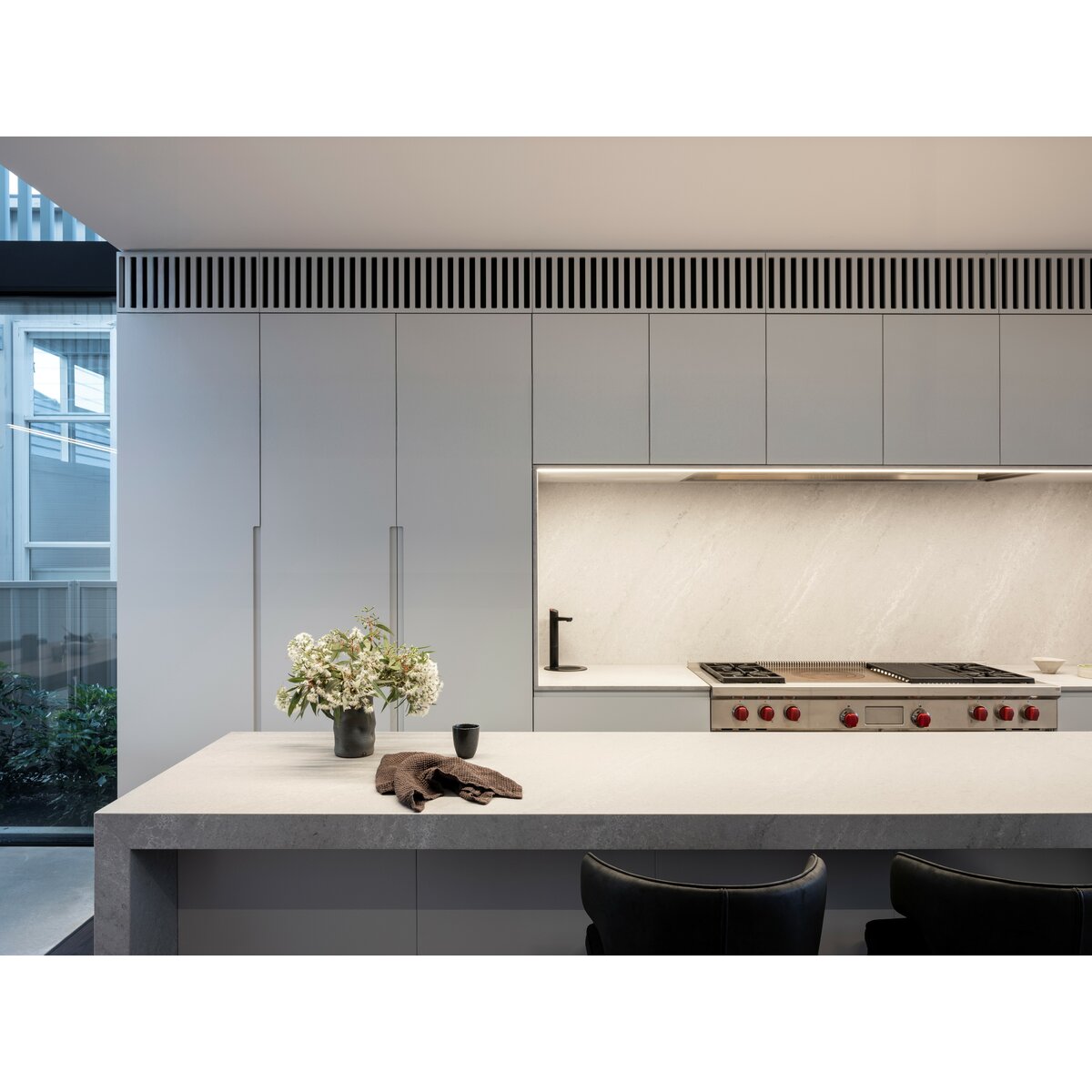

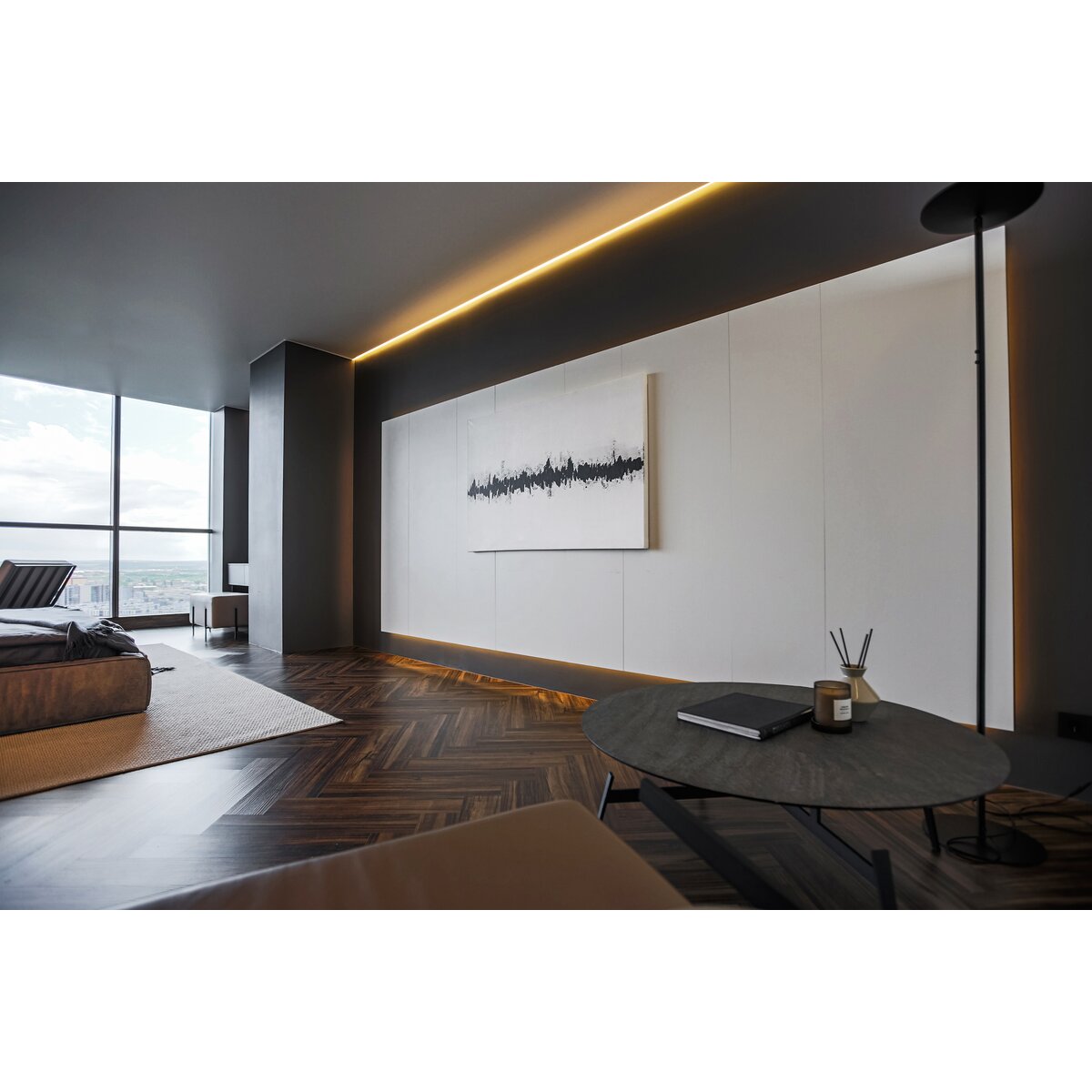

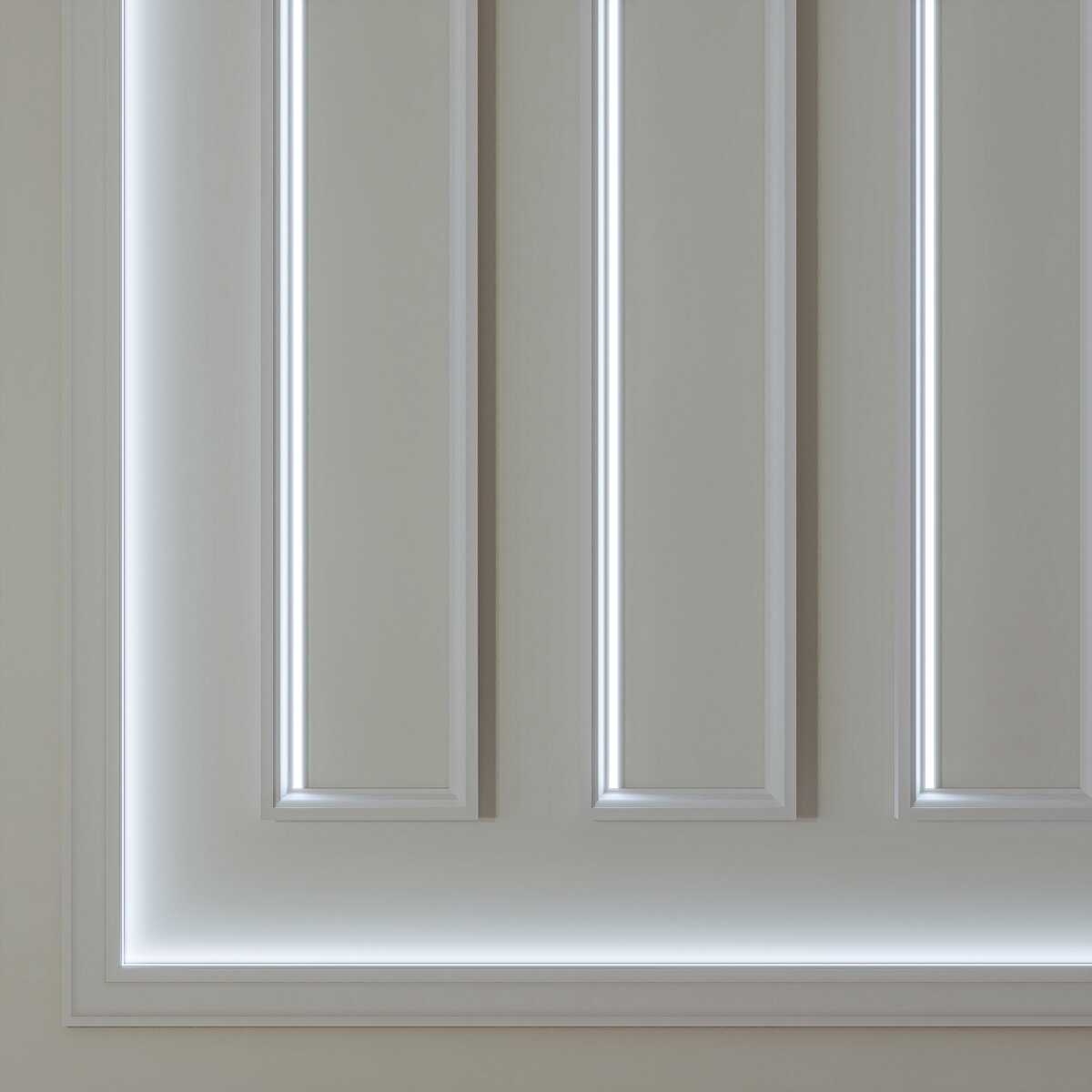

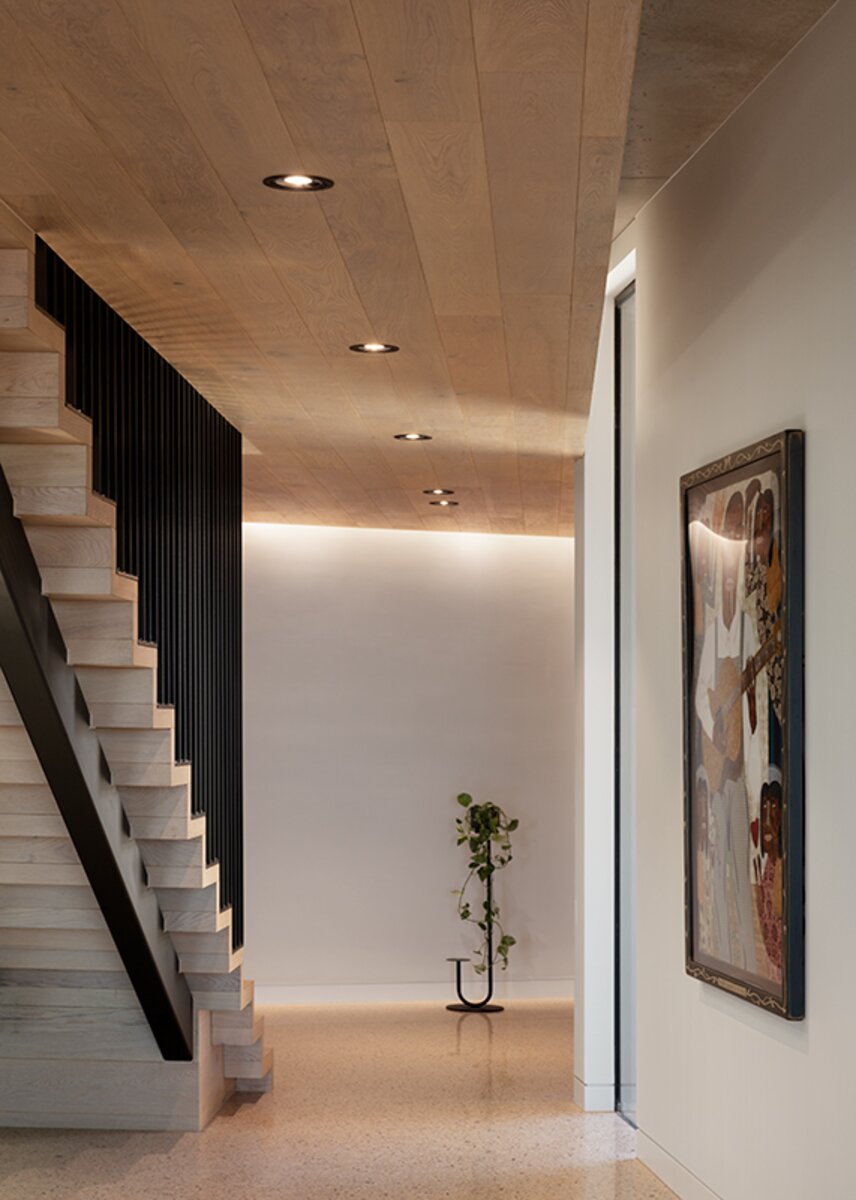

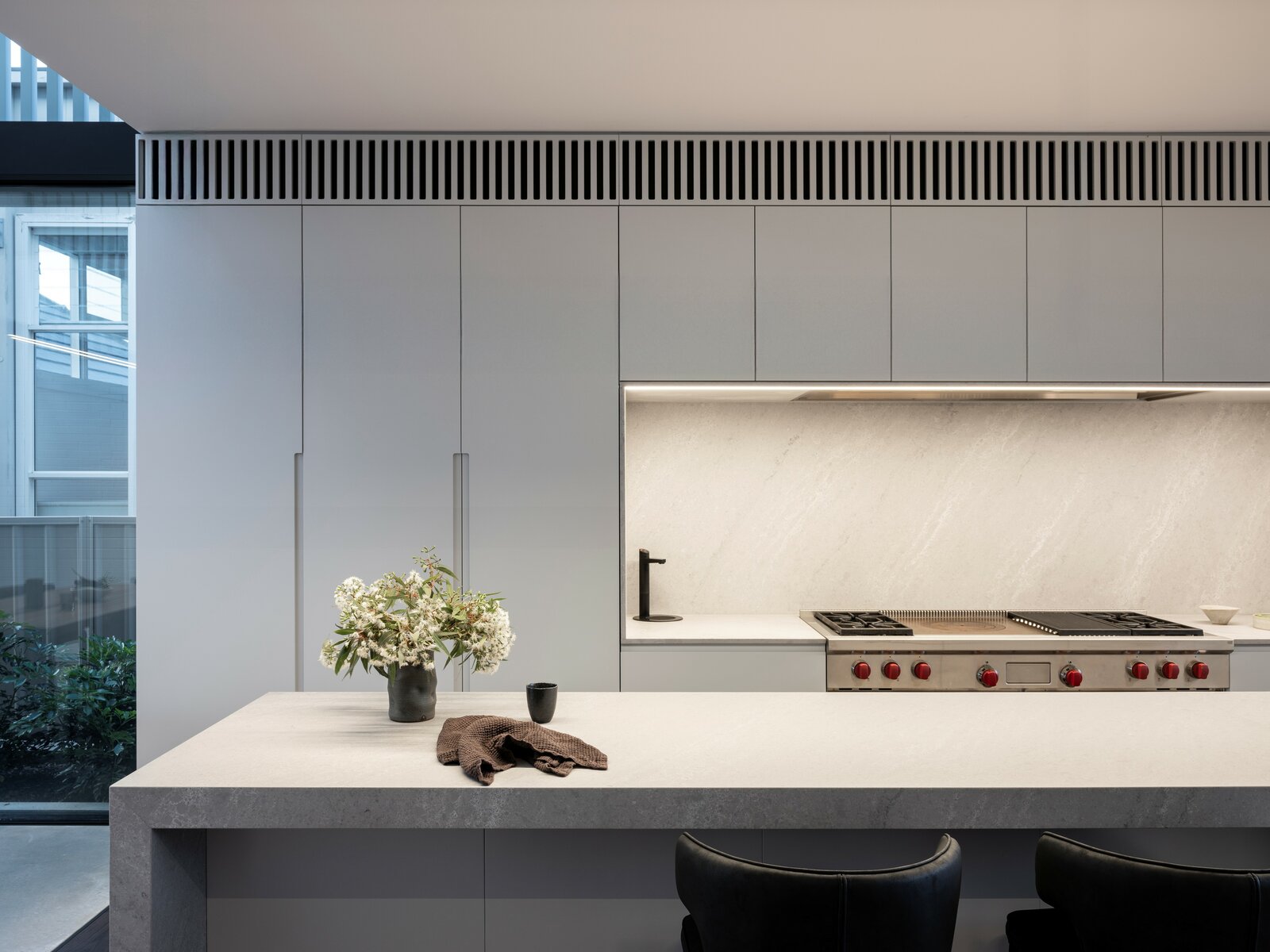

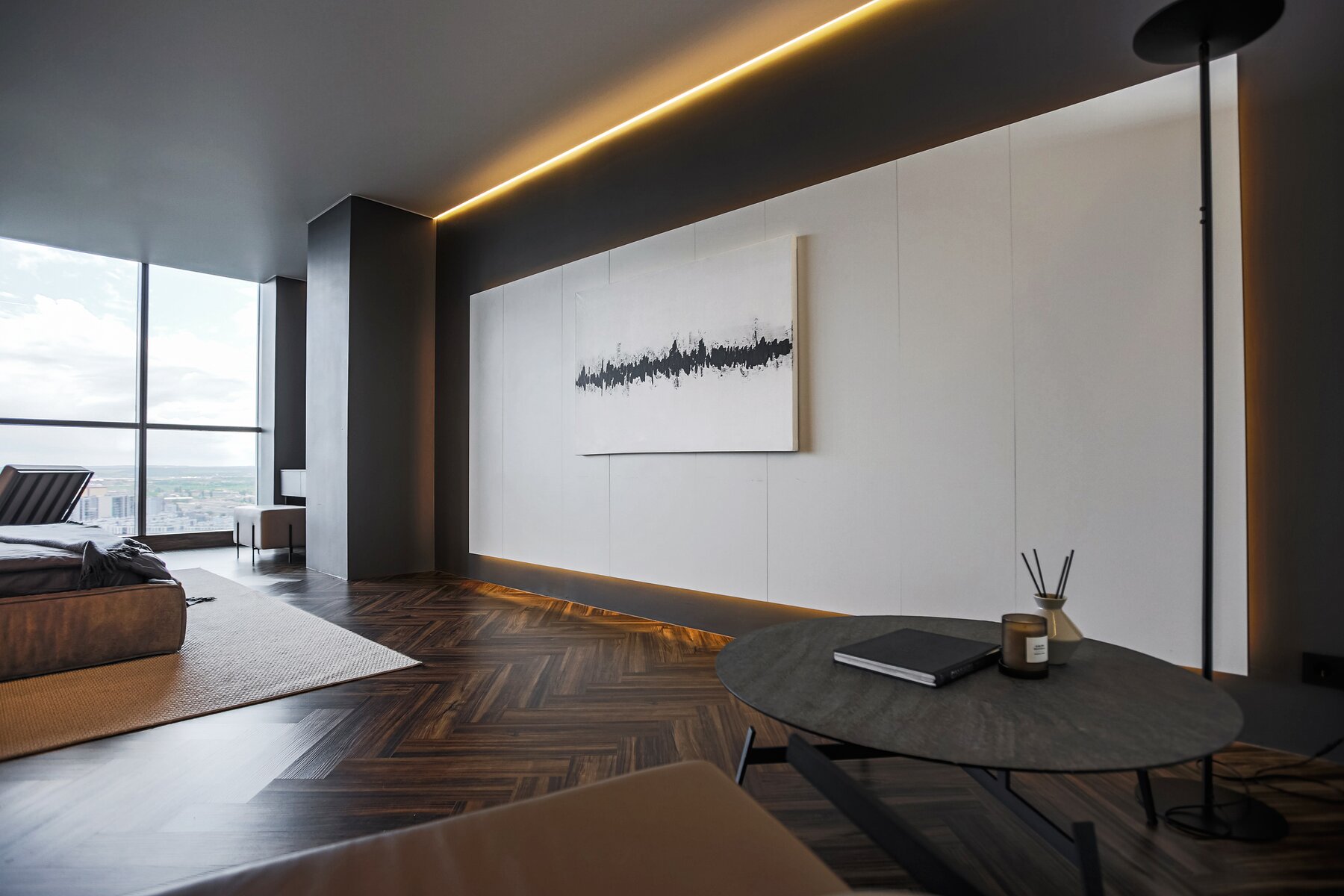

Usage examples
Technical drawing
PDS-T-BOK Extrusion aluminum Technical drawing - A00016
Technical specification
Material
aluminum
Possible fixture IP
20, 65
Possible fixture shapes
linear
Max power of a single KLUŚ LED strip
5.9 W/ft
Width
1.4" (36 mm)
Height
0.5" (12 mm)
Maximum length on request
0.2"
LED gluing width A
0.4" (11.2 mm)
Max. number of LED strips A (0.31" wide)
1
The cover is cut to the length of the profile
Yes
Mounting to drywall
Yes
To cover with plaster
Yes
Wire out end cap
Yes
Wire out back of extrusion
Yes
Possibility of obtaining a line of light
Yes
Building type
Commercial, Residential, Hotel / Restaurant, Retail, Entertainment/ Arts
Color Length Ref No
silver anodized
78.9" (2005 mm)
118.5" (3010 mm)
A00016A_2
A00016A_3
Line of Light Table for Pixel Free Illumination
LED Tapes Covers
Categories LED tape type LIGER-11 Cover satin LIGER-11 Cover black HS-11 Cover frosted KA-11 Cover frosted
CRI 90+ K-2400-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
High Efficacy K-HEHD-0480-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-HEHD-0960-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-HEHD-1440-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-HEHD-1920-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-HEHD-0320-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
CRI 95+ K-CRHD-1820-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-CRHD-1910-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
RGB / RGB-W / RGB-CTT K-RGBW-1920-160-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
Single diode cuttable K-SD-1440-24 Line of Light for a number (X) of rows (1) None Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
Adjustable White / Dim to Warm K-SDCR-22T50-1530-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
KWP-SDCR-22T50-1530-24 Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
Line of Light for a number (X) of rows
Line of Light for a number (X) of rows - Pixel free imaging
Centered Line of Light
Centered Line of Light - Concentrated in middle
None
None - Visible dotting from diodes
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
similar profiles
Surface mounted
PDS-H
Ref No: A09204
Trimless
PDS-T
Ref No: A02057
Trimless
PDS-UST
Ref No: A02725
Suspended
PDS-ZM
Ref No: A07696
Suspended
PDS-ZM-PLUS
Ref No: A02056
Suspended
PDS-ZMG
Ref No: A01418
Related products
Product name Material Key features Light transmittance [%] Color Ref No
HS-11 Cover
PC - For indoor and outdoor applications
- UV resistant
- hight durability
59 %
88 %
frosted
clear
B17208F
B17208C
KA-11 Cover
PC - maximum brightness
- indoor use
- basic
- universal
67 %
89 %
frosted
clear
B17064F
B17064C
LIGER-11 Cover
PC - hight light quality
- Ease of obtaining a line of light
- perfectly diffusing
- For indoor and outdoor applications
59 %
21 %
satin
black
B17037S
B17037B
No results found for the selected filters.
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,
20 - 1.5 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-0480-24
K-HEHD25-0480-24
K-HEHD27-0480-24
K-HEHD30-0480-24
K-HEHD35-0480-24
K-HEHD40-0480-24
K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-0960-24
K-HEHD25-0960-24
K-HEHD27-0960-24
K-HEHD30-0960-24
K-HEHD35-0960-24
K-HEHD40-0960-24
K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-1440-24
K-HEHD25-1440-24
K-HEHD27-1440-24
K-HEHD30-1440-24
K-HEHD35-1440-24
K-HEHD40-1440-24
K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,
20 - 5.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-1920-24
K-HEHD25-1920-24
K-HEHD27-1920-24
K-HEHD30-1920-24
K-HEHD35-1920-24
K-HEHD40-1920-24
K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,
20 - 1 W/ft
2700K
3000K
3500K
4000K
- CRI over 95
- High Efficacy
K-HEHD27-0320-24
K-HEHD30-0320-24
K-HEHD35-0320-24
K-HEHD40-0320-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,
20 - 1.5 W/ft
2200K
2700K
- CRI over 95
K-CR22-1210-24
K-CR27-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1220-24
K-CR25-1220-24
K-CR27-1220-24
K-CR30-1220-24
K-CR35-1220-24
K-CR40-1220-24
K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1275-24
K-CR25-1275-24
K-CR27-1275-24
K-CR30-1275-24
K-CR35-1275-24
K-CR40-1275-24
K-CR50-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,
20 - 5.6 W/ft
2700K
- CRI over 95
- high LED density
K-CRHD27-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,
20 - 2.8 W/ft
2700K
3500K
4000K
- CRI over 95
- high LED density
K-CRHD27-1910-24
K-CRHD35-1910-24
K-CRHD40-1910-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,
20 - 1.6 W/ft
3500K
- CRI over 95
K-CRHD35-0530-24
K-HEHD-1440-24-40C LED tape, 570-667 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- High Efficacy
- cold weather -40F
K-HEHD22-1440-24-40C
K-HEHD25-1440-24-40C
K-HEHD27-1440-24-40C
K-HEHD30-1440-24-40C
K-HEHD35-1440-24-40C
K-HEHD40-1440-24-40C
K-HEHD50-1440-24-40C
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20
20 - 7.3 W/ft
2700K
3000K
3500K
4000K
5000K
- high power
K-27-2400-24
K-30-2400-24
K-35-2400-24
K-40-2400-24
K-50-2400-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-120-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,
65 silicon sleeve 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
KWP-GRGBW-1920-120-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20
20 - 4.7 W/ft
2200K
- Tuneable white 2200K-5000K
K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65
65 silicon sleeve 4.7 W/ft
2200K
- Tuneable white 2200K-5000K
KWP-SDCR-22T50-1530-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,
20 - 4.4 W/ft
2700K
3000K
3500K
4000K
K-SD27-1440-24
K-SD30-1440-24
K-SD35-1440-24
K-SD40-1440-24
No results found for the selected filters.
Product name Material Color Ref No
PDS-4-PLUS-OTW
ABS
gray
white
black
C24337C02TW
C24337C10TW
C24337C07TW
Product name Material Color Ref No
PDS-4-PLUS End cap
ABS
gray
silver
white
black
C24337C02
C24337L01
C24337C10
C24337C07
No results found for the selected filters.
Product name Material Color Ref No
TECH-KA Protective insert
PVC
gray
C24530C02
No results found for the selected filters.
