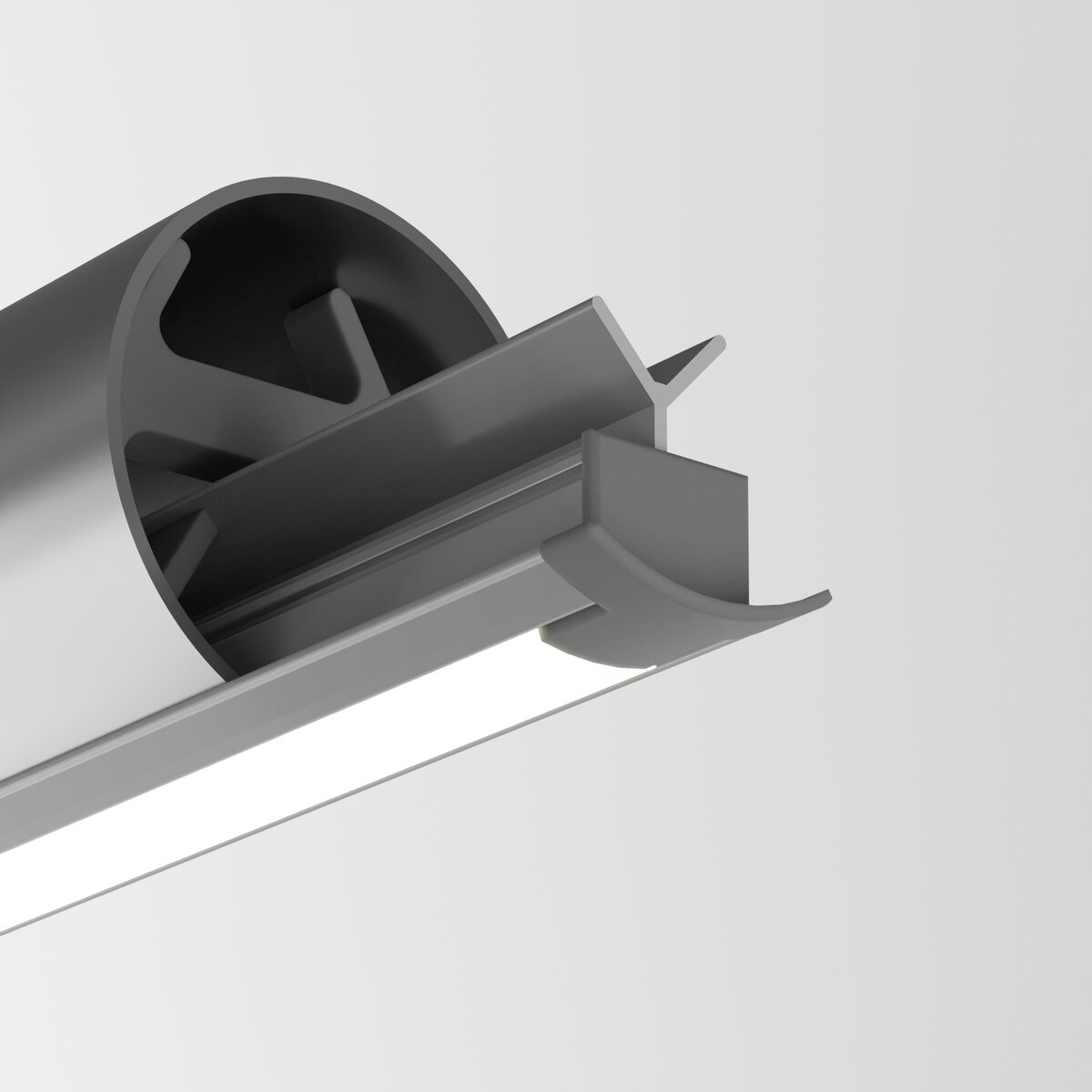

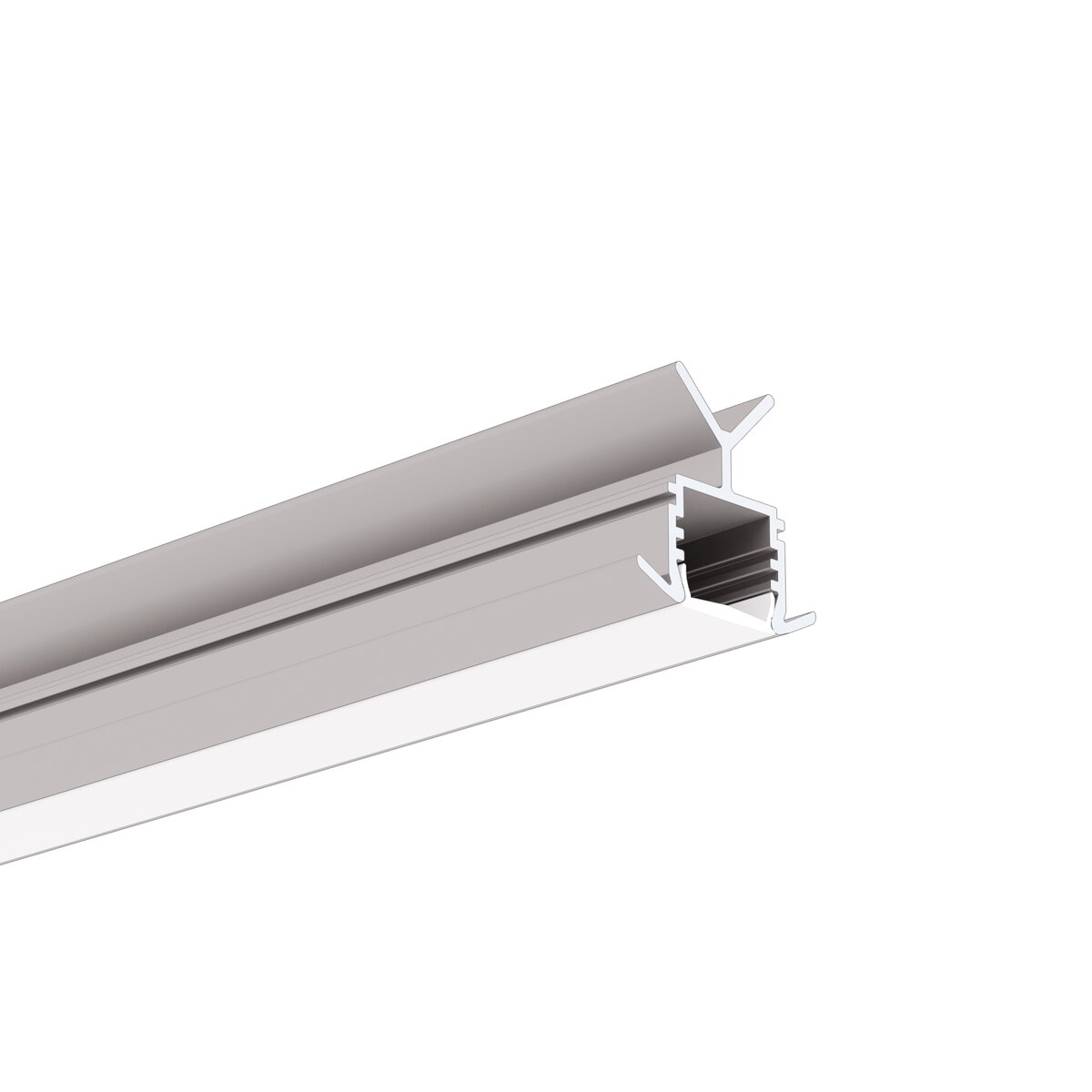

Recessed Handrail lighting
Easy click installation
Suitable for handrails with a diameter of 1.65" or 1.9"

With the possibility of sealing up to IP20

With the possibility of sealing up to IP67

Configure

WATCH INSTRUCTIONAL VIDEO

Color

Description

Recessed Handrail lighting
Easy click installation
Suitable for handrails with a diameter of 1.65" or 1.9"

Application

- decorative lighting of stairs, staircases and passageways

Mounting

- in handrails, using dedicated accessories
- can be used in handrails with an inner diameter of 42 mm | 1.65" or 49 mm | 1.93"

Additional information

- it is possible to obtain mounting brackets adapted to other handrail diameters
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

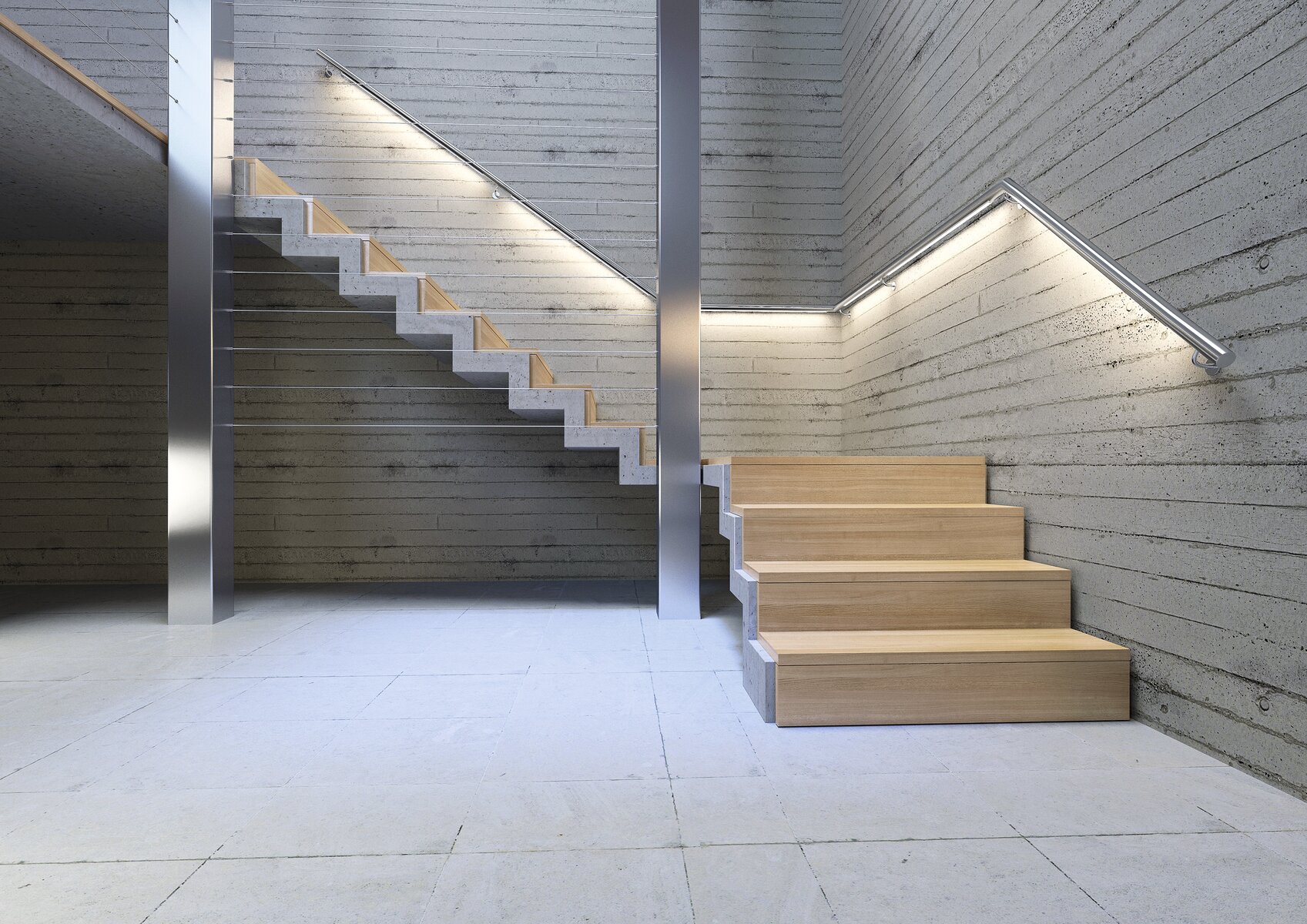

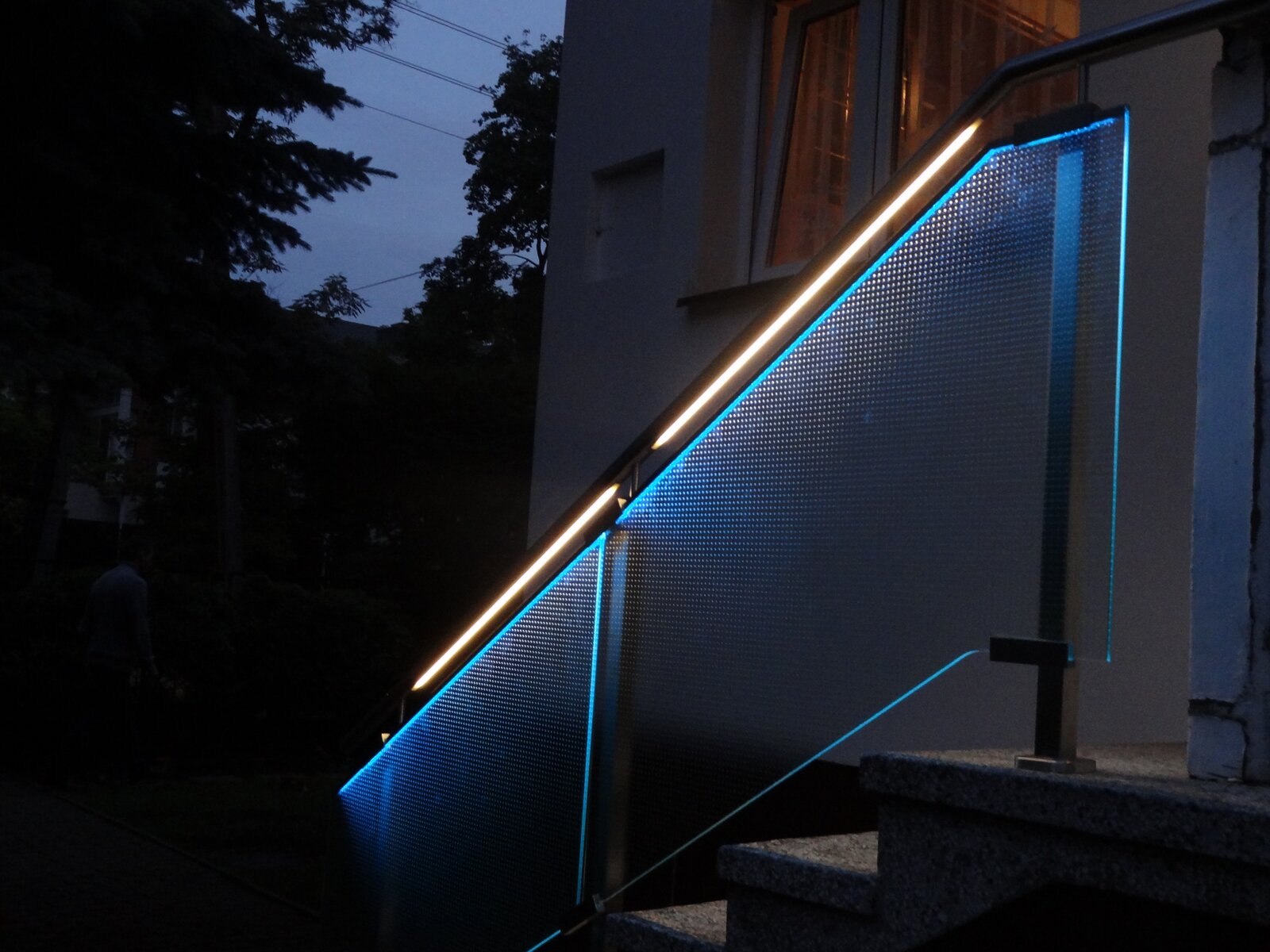

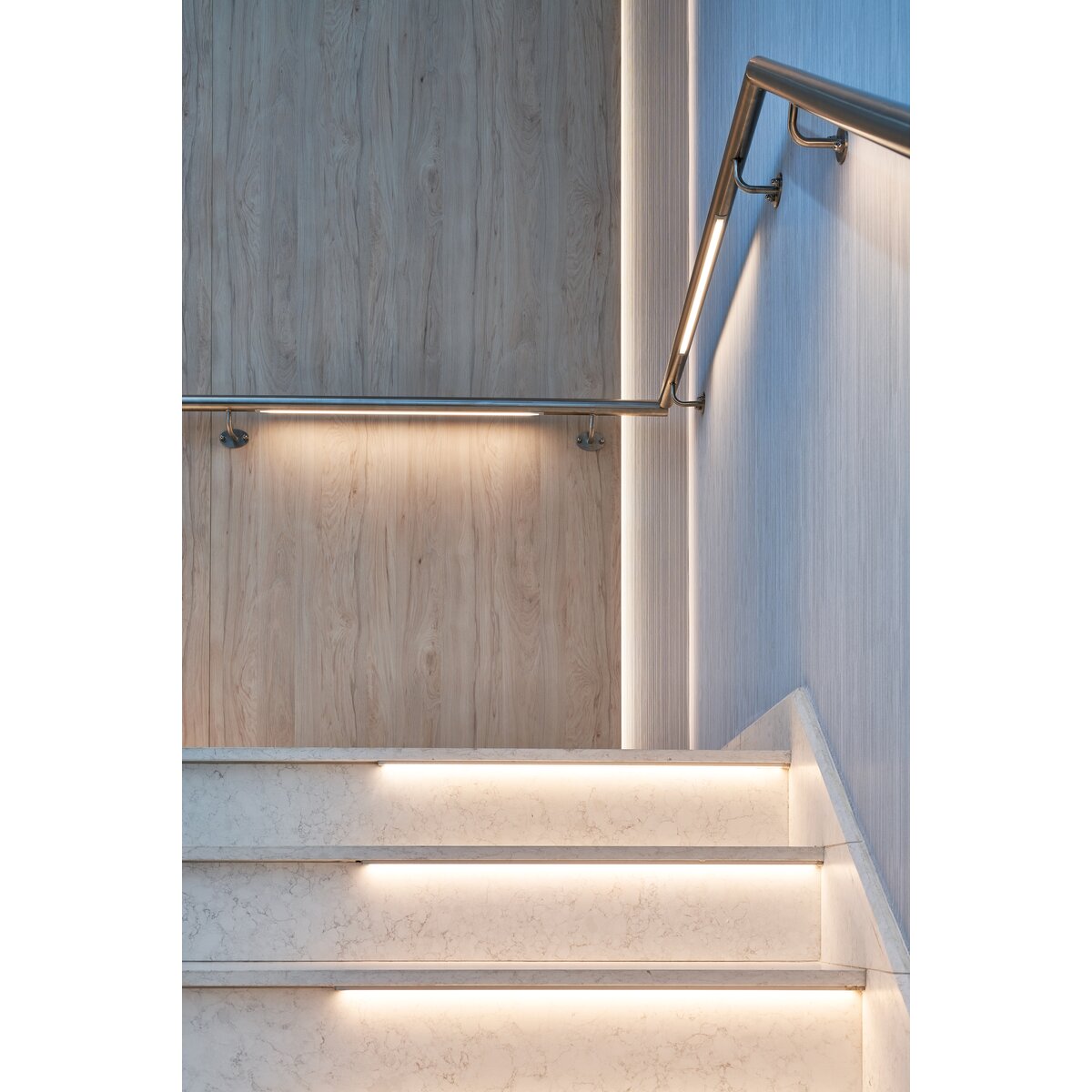

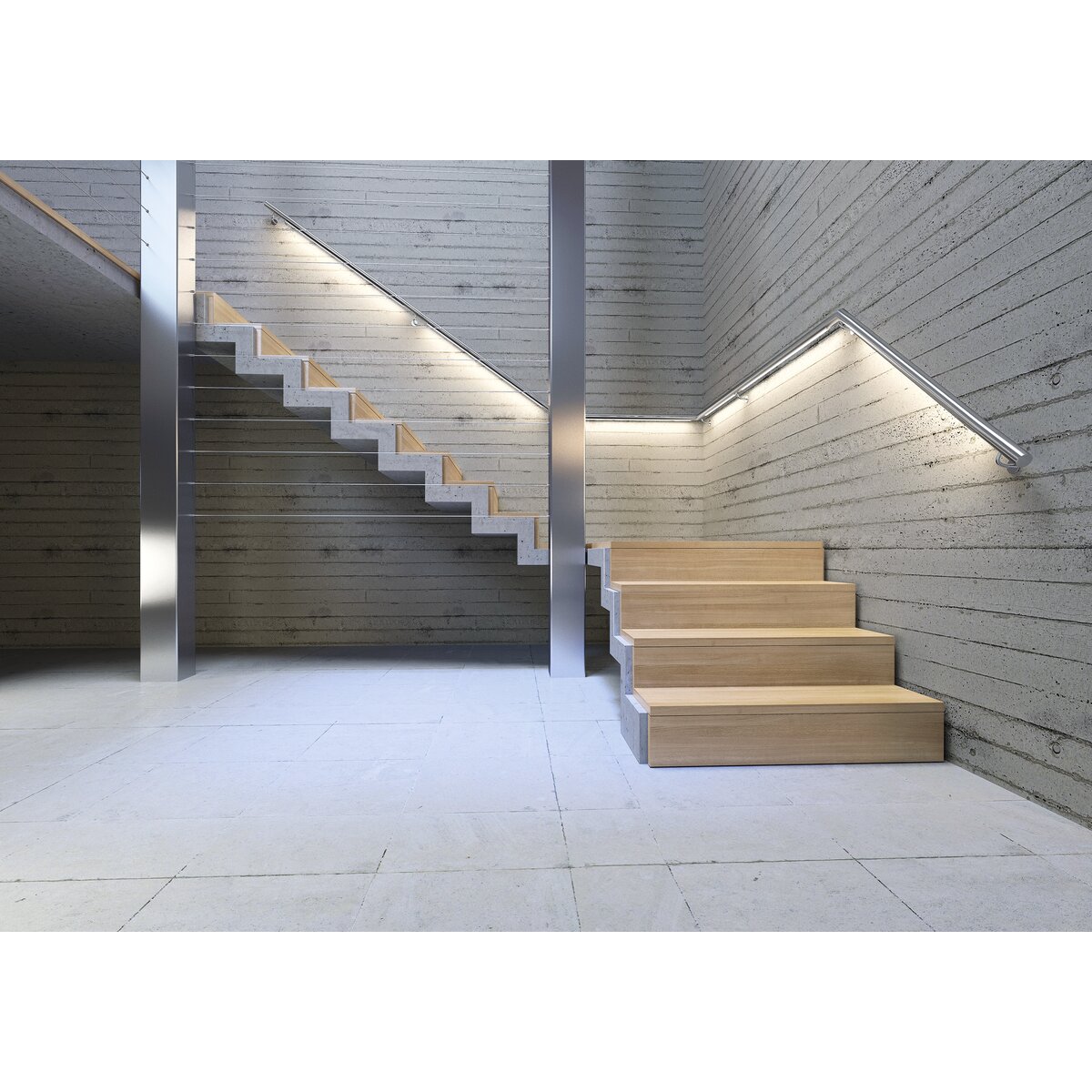

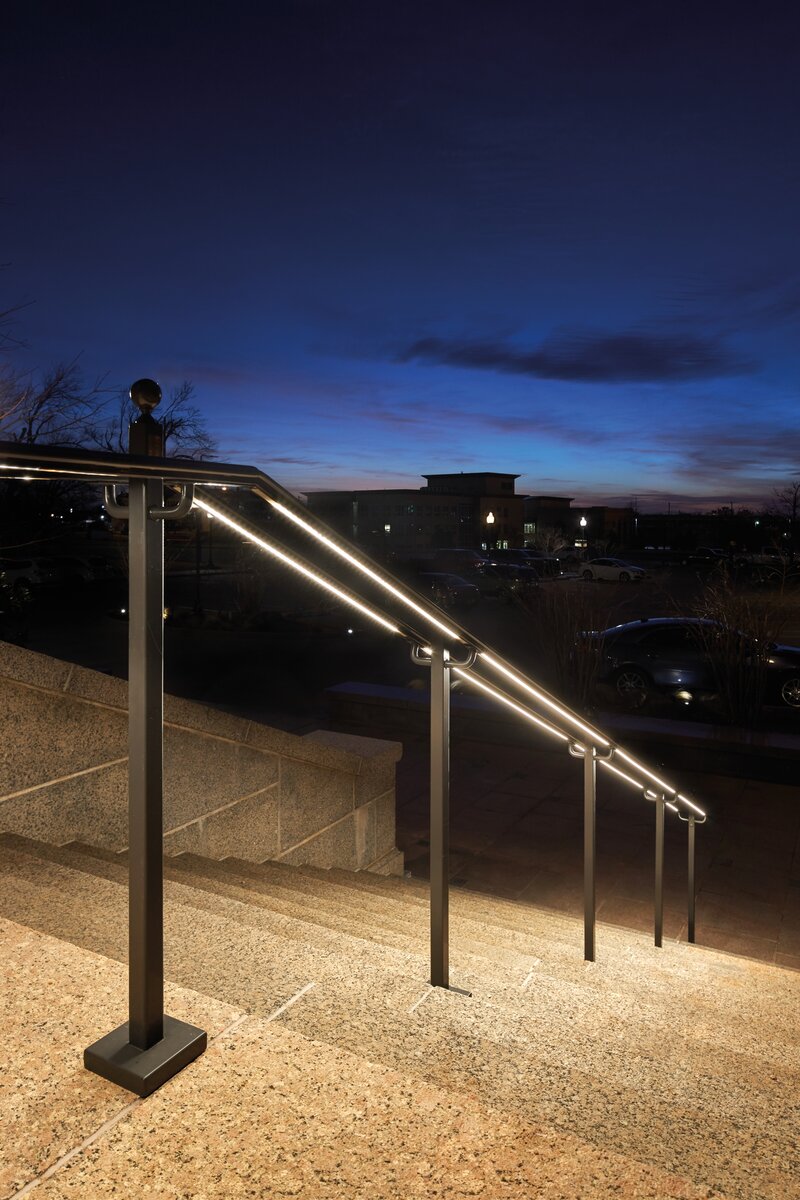

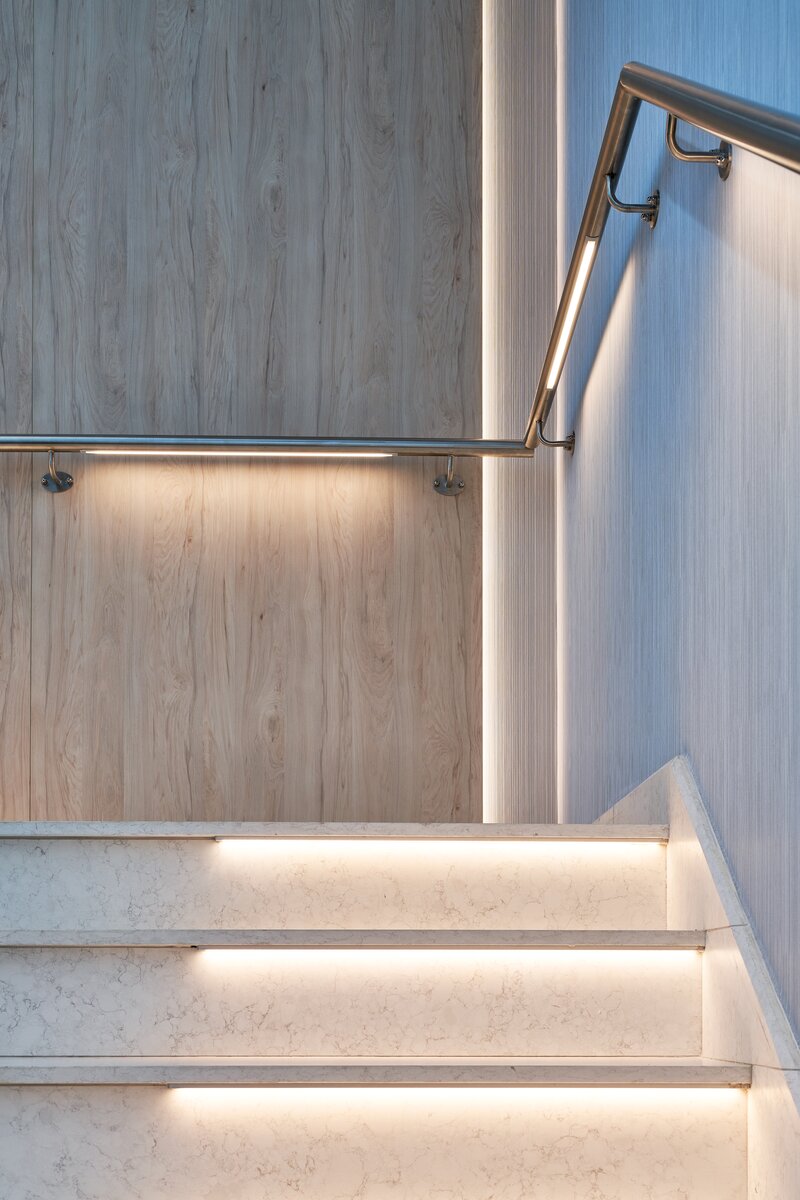

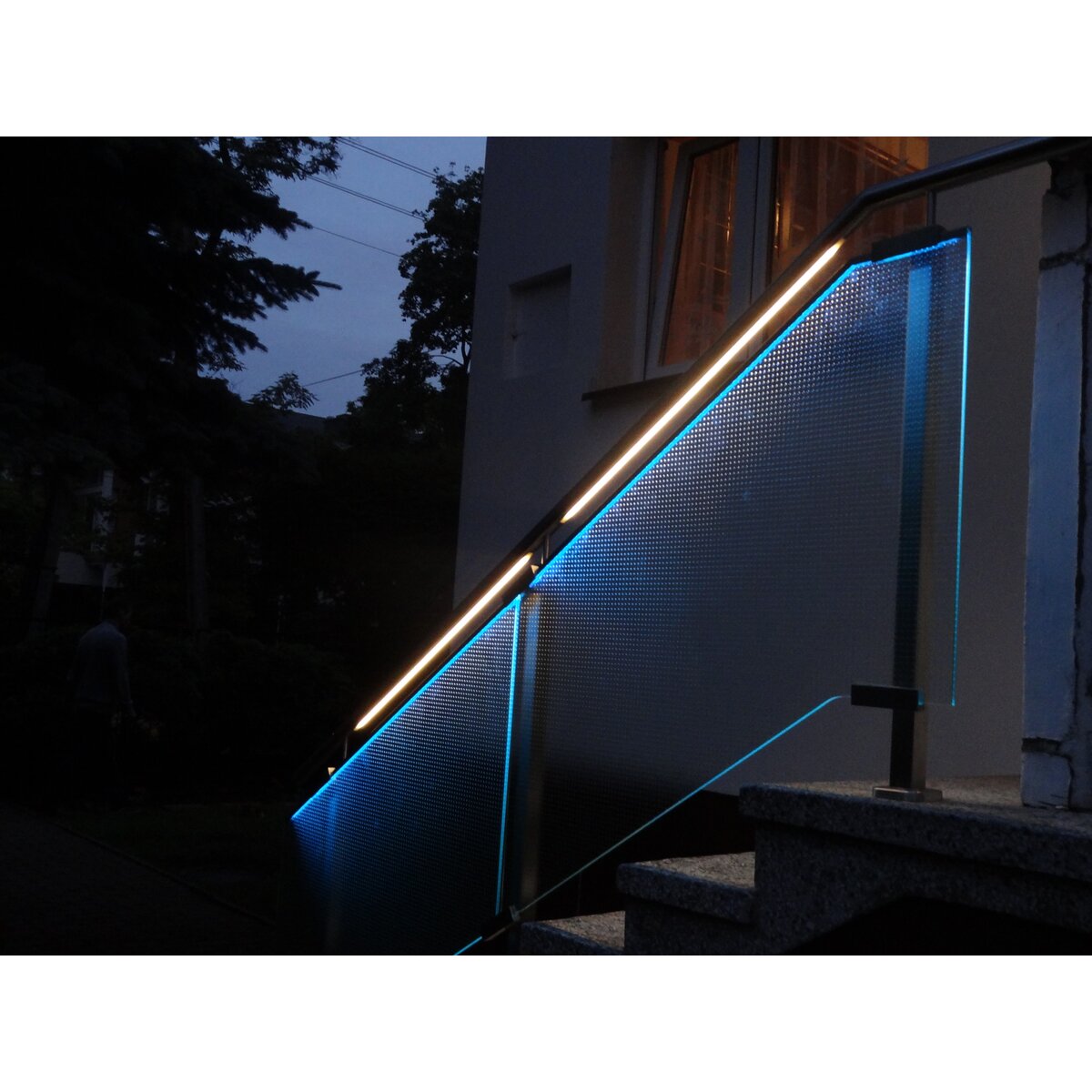

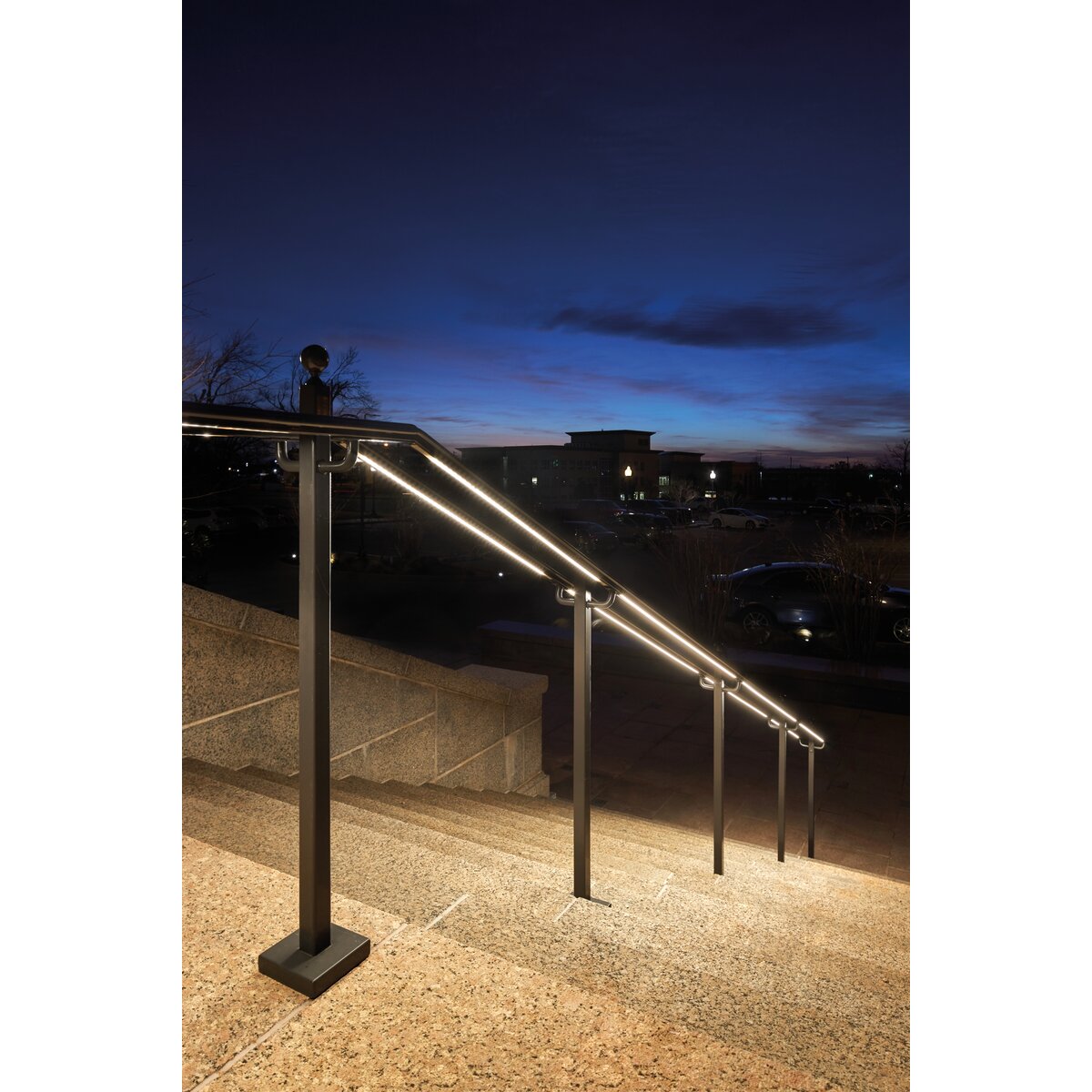

Usage examples

Description
download

Application

- decorative lighting of stairs, staircases and passageways

Mounting

- in handrails, using dedicated accessories
- can be used in handrails with an inner diameter of 42 mm | 1.65" or 49 mm | 1.93"

Additional information

- it is possible to obtain mounting brackets adapted to other handrail diameters
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

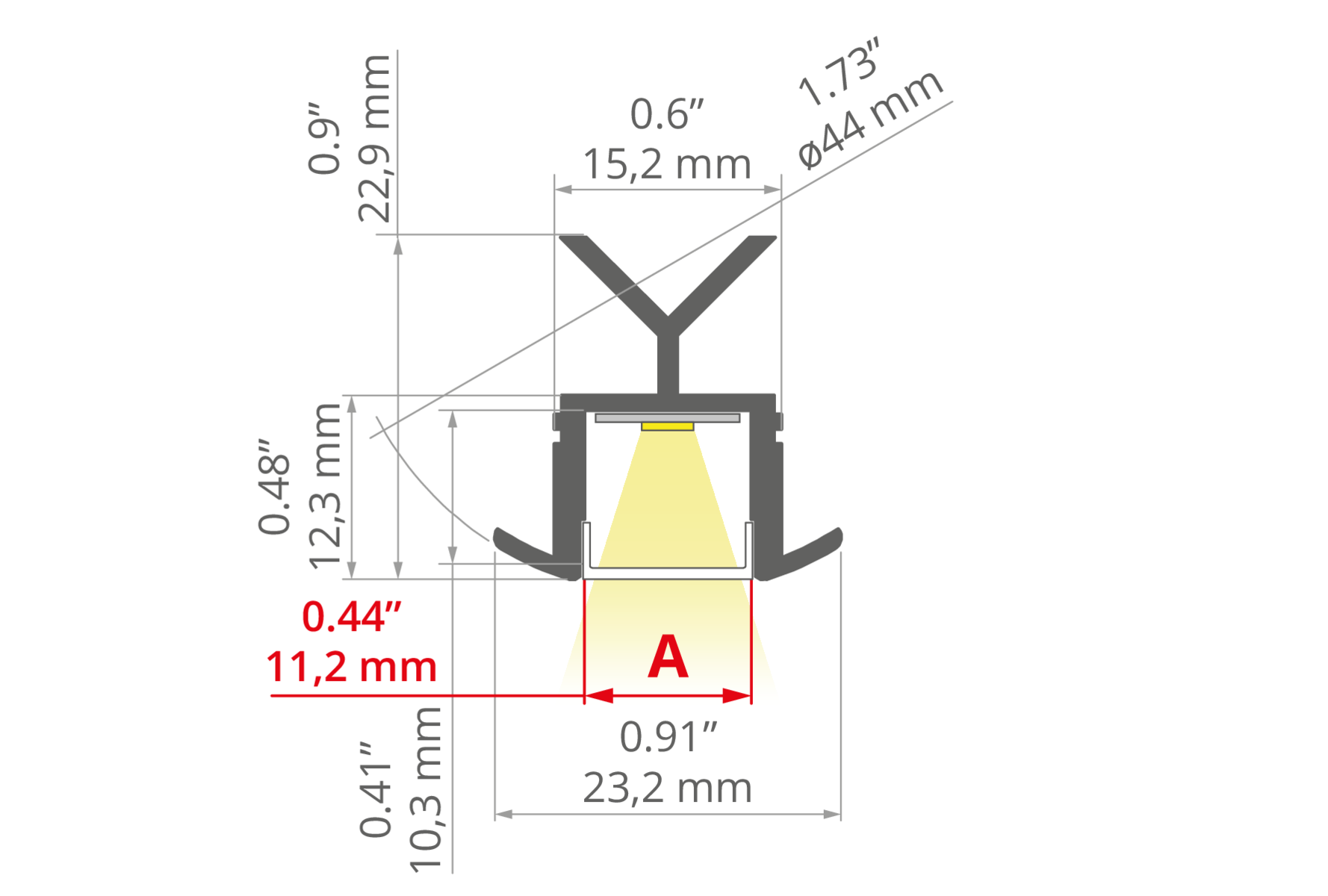

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

20, 67

Possible fixture shapes

linear

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

0.9" (23.2 mm)

Height

0.9" (22.9 mm)

LED gluing width A

0.4" (11.2 mm)

Max. number of LED strips A (0.31" wide)

Wire out end cap

Yes

Wire out back of extrusion

Yes

Building type

Commercial, Residential, Entertainment/ Arts, Hotel / Restaurant, Outdoor

Facility zone

stairs / hallways

Color	Length	Ref No
silver anodized	41.3" (1050 mm) 82.7" (2100 mm)	A06144A_1.05 A06144A_2.10

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
HS-11 Cover	PC	- For indoor and outdoor applications - UV resistant - hight durability	59 % 88 %	frosted clear	B17208F B17208C
KA-11 Cover	PC	- maximum brightness - indoor use - basic - universal	67 % 89 %	frosted clear	B17064F B17064C
LIGER-11 Cover	PC	- hight light quality - Ease of obtaining a line of light - perfectly diffusing - For indoor and outdoor applications	59 % 21 %	satin black	B17037S B17037B

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
High Efficacy

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0480-24 K-HEHD25-0480-24 K-HEHD27-0480-24 K-HEHD30-0480-24 K-HEHD35-0480-24 K-HEHD40-0480-24 K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0960-24 K-HEHD25-0960-24 K-HEHD27-0960-24 K-HEHD30-0960-24 K-HEHD35-0960-24 K-HEHD40-0960-24 K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1440-24 K-HEHD25-1440-24 K-HEHD27-1440-24 K-HEHD30-1440-24 K-HEHD35-1440-24 K-HEHD40-1440-24 K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,	20	-	5.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1920-24 K-HEHD25-1920-24 K-HEHD27-1920-24 K-HEHD30-1920-24 K-HEHD35-1920-24 K-HEHD40-1920-24 K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,	20	-	1 W/ft	2700K 3000K 3500K 4000K	- CRI over 95 - High Efficacy	K-HEHD27-0320-24 K-HEHD30-0320-24 K-HEHD35-0320-24 K-HEHD40-0320-24

LED tapes
CRI 95+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2700K	- CRI over 95	K-CR22-1210-24 K-CR27-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1220-24 K-CR25-1220-24 K-CR27-1220-24 K-CR30-1220-24 K-CR35-1220-24 K-CR40-1220-24 K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1275-24 K-CR25-1275-24 K-CR27-1275-24 K-CR30-1275-24 K-CR35-1275-24 K-CR40-1275-24 K-CR50-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,	20	-	5.6 W/ft	2700K	- CRI over 95 - high LED density	K-CRHD27-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,	20	-	2.8 W/ft	2700K 3500K 4000K	- CRI over 95 - high LED density	K-CRHD27-1910-24 K-CRHD35-1910-24 K-CRHD40-1910-24
KWP-CR-1220-24 LED tape, 151-227 lm/ft, IP65,	65	silicon sleeve	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	KWP-CR22-1220-24 KWP-CR25-1220-24 KWP-CR27-1220-24 KWP-CR30-1220-24 KWP-CR35-1220-24 KWP-CR40-1220-24 KWP-CR50-1220-24
KWP-CR-1275-24 LED tape, 381-464 lm/ft, IP65,	65	silicon sleeve	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	KWP-CR22-1275-24 KWP-CR25-1275-24 KWP-CR27-1275-24 KWP-CR30-1275-24 KWP-CR35-1275-24 KWP-CR40-1275-24 KWP-CR50-1275-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,	20	-	1.6 W/ft	3500K	- CRI over 95	K-CRHD35-0530-24

LED tapes
CRI 90+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20	20	-	7.3 W/ft	2700K 3000K 3500K 4000K 5000K	- high power	K-27-2400-24 K-30-2400-24 K-35-2400-24 K-40-2400-24 K-50-2400-24
KWP-GHD-1640-24 LED tape, 364-503 lm/ft, IP65,	65	gel cover	5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- high LED density	KWP-GHD22-1640-24 KWP-GHD25-1640-24 KWP-GHD27-1640-24 KWP-GHD30-1640-24 KWP-GHD35-1640-24 KWP-GHD40-1640-24 KWP-GHD50-1640-24
KWP-GHD-1910-24 LED tape, 227-279 lm/ft, IP65,	65	gel cover	2.8 W/ft	2200K 2700K 3000K 3500K 4000K	- high LED density	KWP-GHD22-1910-24 KWP-GHD27-1910-24 KWP-GHD30-1910-24 KWP-GHD35-1910-24 KWP-GHD40-1910-24

LED tapes
RGB / RGB-W / RGB-CTT

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-120-24
KWP-GRGBW-1530-24 LED tape, 3000K, 193 lm/ft, 4.7 W/ft, IP65	65	gel cover	4.7 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1530-24
KWP-RGB-1920-24 LED tape, 187 lm/ft, 5.9 W/ft, IP65	65	silicon sleeve	5.9 W/ft	RGB	- RGB	KWP-RGB-1920-24
LED tape KWP-RGB-1200-24, 23 lm/m, 3.7 W/m, IP65	65	silicon sleeve	3.7 W/ft	RGB	- RGB	KWP-RGB-1200-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,	65	silicon sleeve	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1920-120-24

LED tapes
Adjustable White / Dim to Warm

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-27/65-1920-24V LED tape, 2700K, 500 lm/ft, 5.9 W/ft, IP20	20	-	5.9 W/ft	2700K	- Tuneable white 2600K-6500K	K-27/65-1920-24
K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-24
KWP-27/65-1920-24 LED tape, 2700K, 246 lm/ft, 5.9 W/ft, IP65	65	silicon sleeve	5.9 W/ft	2700K	- Tuneable white 2600K-6500K	KWP-27/65-1920-24
K-30/18-1770-010V-24V LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-010V-24V
KWP-G22/50-1728-24 LED tape, 2200K, 467 lm/ft, 5.3 W/ft, IP65	65	gel cover	5.3 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-G22/50-1728-24
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20	20	-	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65	65	silicon sleeve	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-SDCR-22T50-1530-24

LED tapes
Single diode cuttable

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,	20	-	4.4 W/ft	2700K 3000K 3500K 4000K		K-SD27-1440-24 K-SD30-1440-24 K-SD35-1440-24 K-SD40-1440-24

LED tapes
Side emitting

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
KWP-SE-1210-24-8 LED tape, 101-116 lm/ft, IP65,	65	silicon sleeve	1.5 W/ft	2700K 3000K 4000K 5000K	- Side emitting	KWP-SE27-1210-24-8 KWP-SE30-1210-24-8 KWP-SE40-1210-24-8 KWP-SE50-1210-24-8
