Note: Archival product

Cover -11 BENCO

Ref No: B17215
  • installation in bent profiles
  • Additional chamber for sealing the LED strip
  • Cover offered in sections up to 10 rm
Frosted
Possibility of twisting
Possibility of bending
UV radiation resistance
Color
frosted
  • installation in bent profiles
  • Additional chamber for sealing the LED strip
  • Cover offered in sections up to 10 rm
Application
  • - LED protection and light diffusion in lighting fixtures
Mounting
  • - Snapped in a dedicated profile
Additional information
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

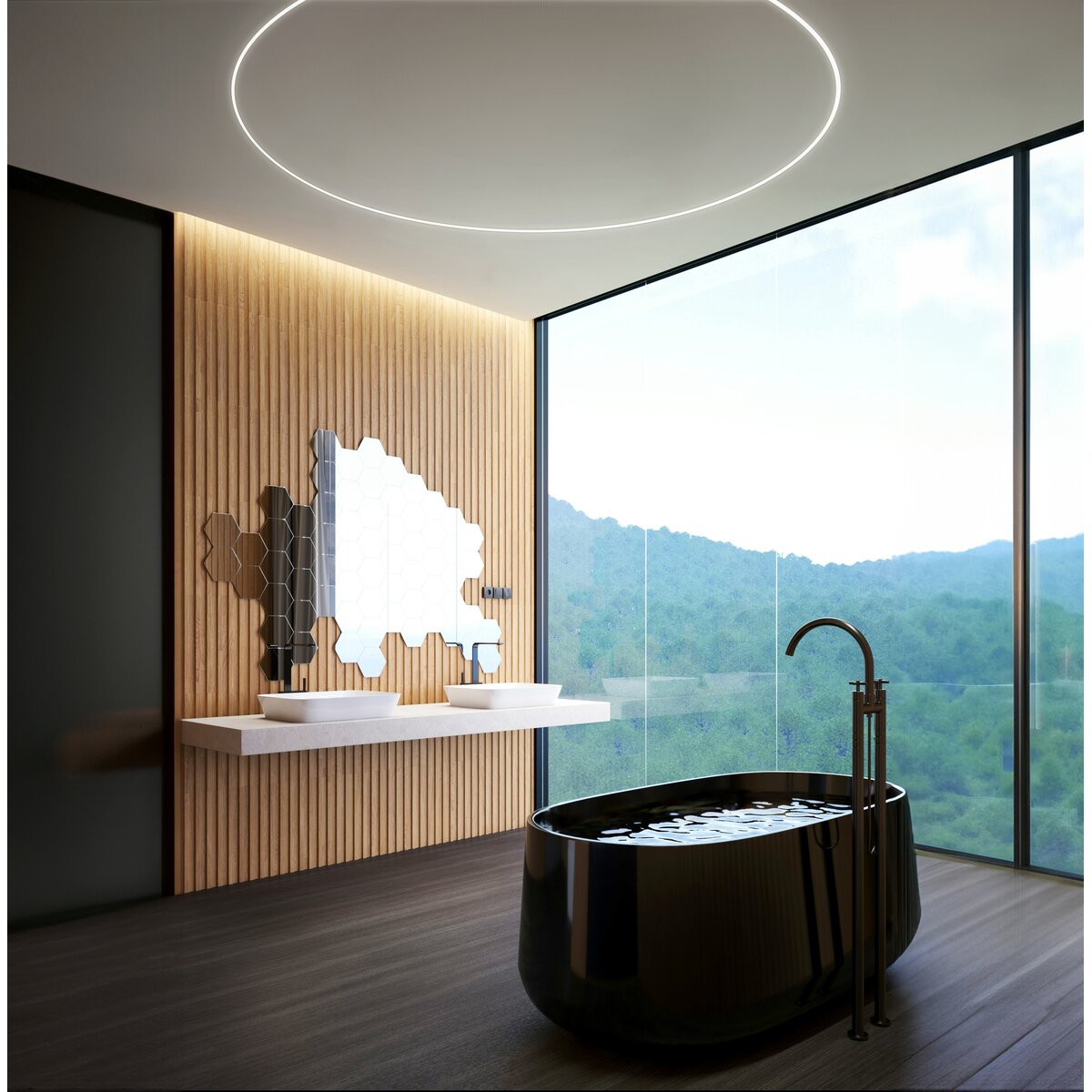

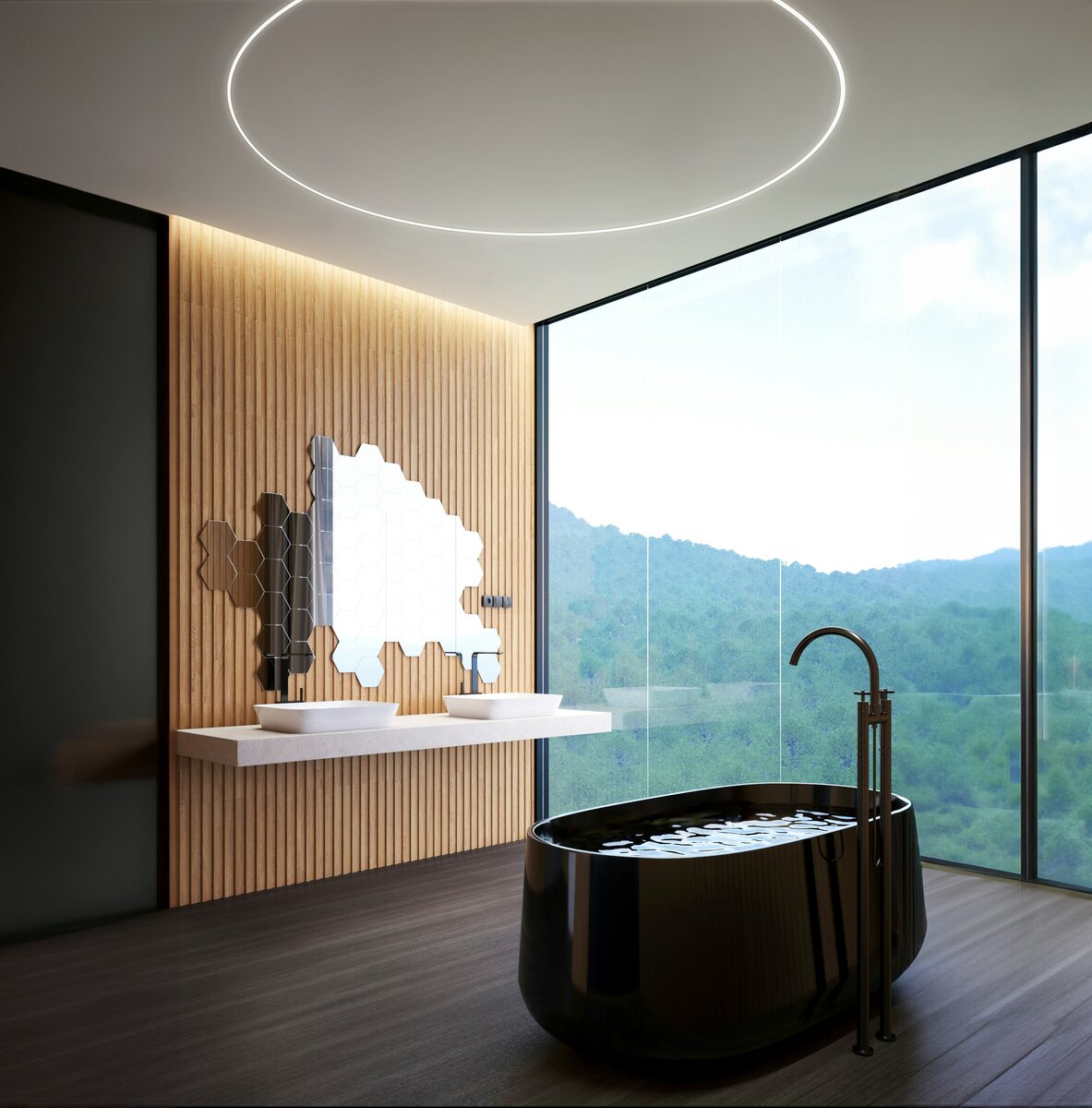

Usage examples

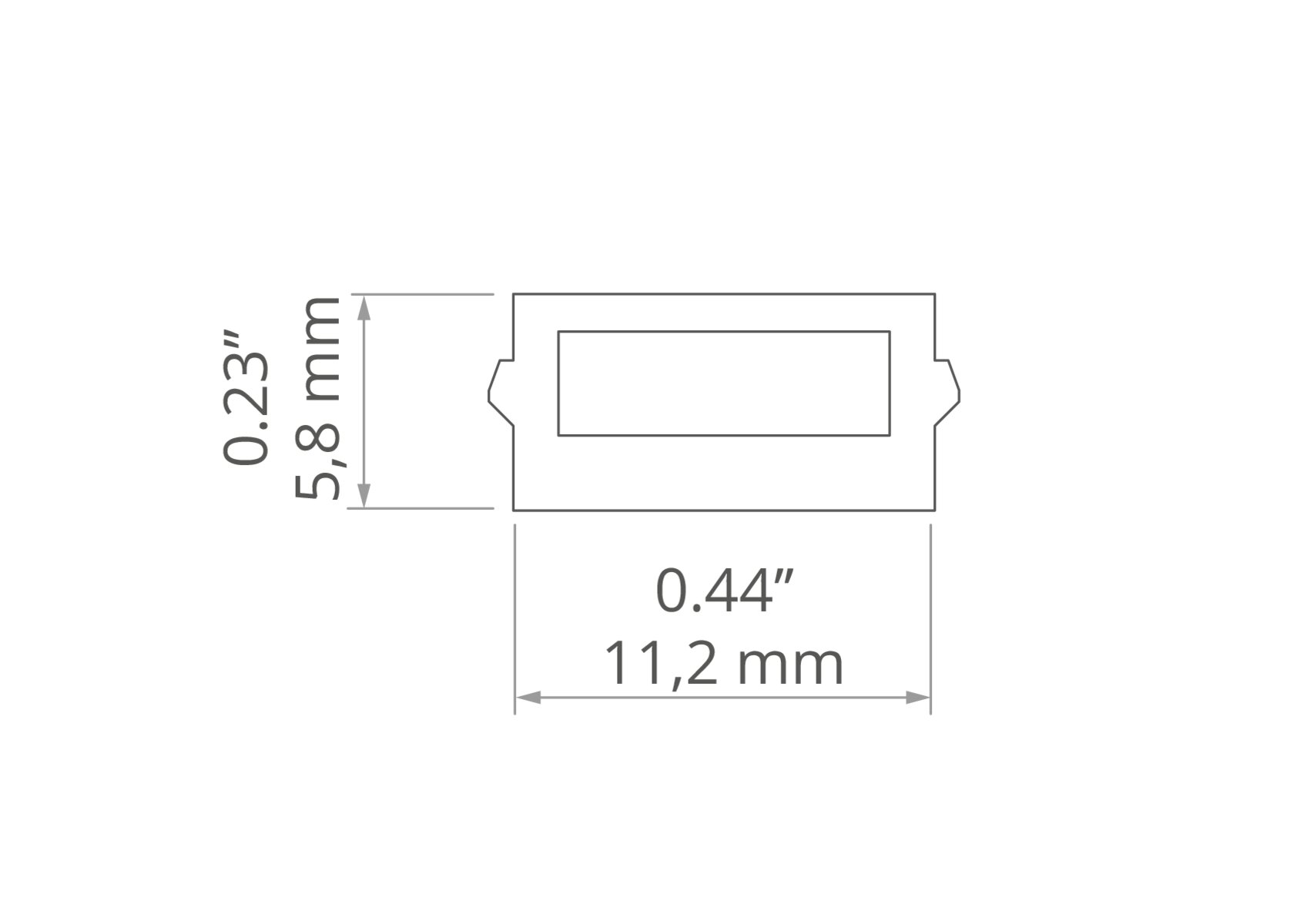

Technical drawing
Cover -11 BENCO silicon Technical drawing - B17215
Technical specification
Finish
frosted
Material
silicon
Shape
flat
Maximum length on request
32'09" (10000 mm)
Light transmission
50 %
Przepuszczalność świetlna dokładna [%]
50 %
Possibility of obtaining a line of light
Yes
Possibility of twisting
Yes
Possibility of bending
Yes
UV resistance
Yes
Length x Width x Height
39.4" x 0.5" x 0.2"
Color Light transmittance [%] Length Ref No
frosted
50 %
39.4" (1000 mm)
118.5" (3010 mm)
B17215F_1
B17215F_3
