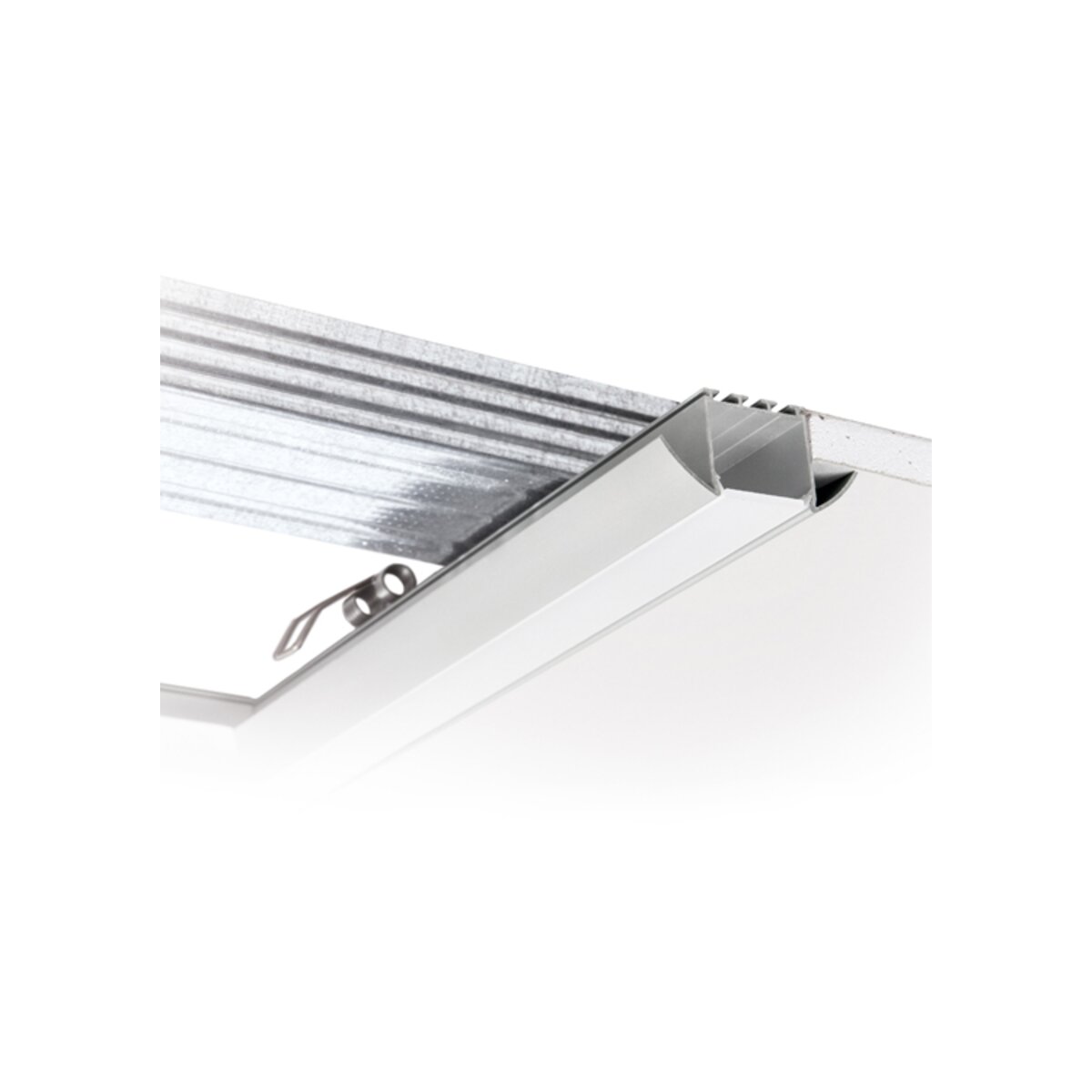

LESTO Extrusion (A05551) | KlusDesign.com

Compare

Compared

With the possibility of sealing up to IP20

With the possibility of sealing up to IP65

Configure

Color

download

Specification sheet

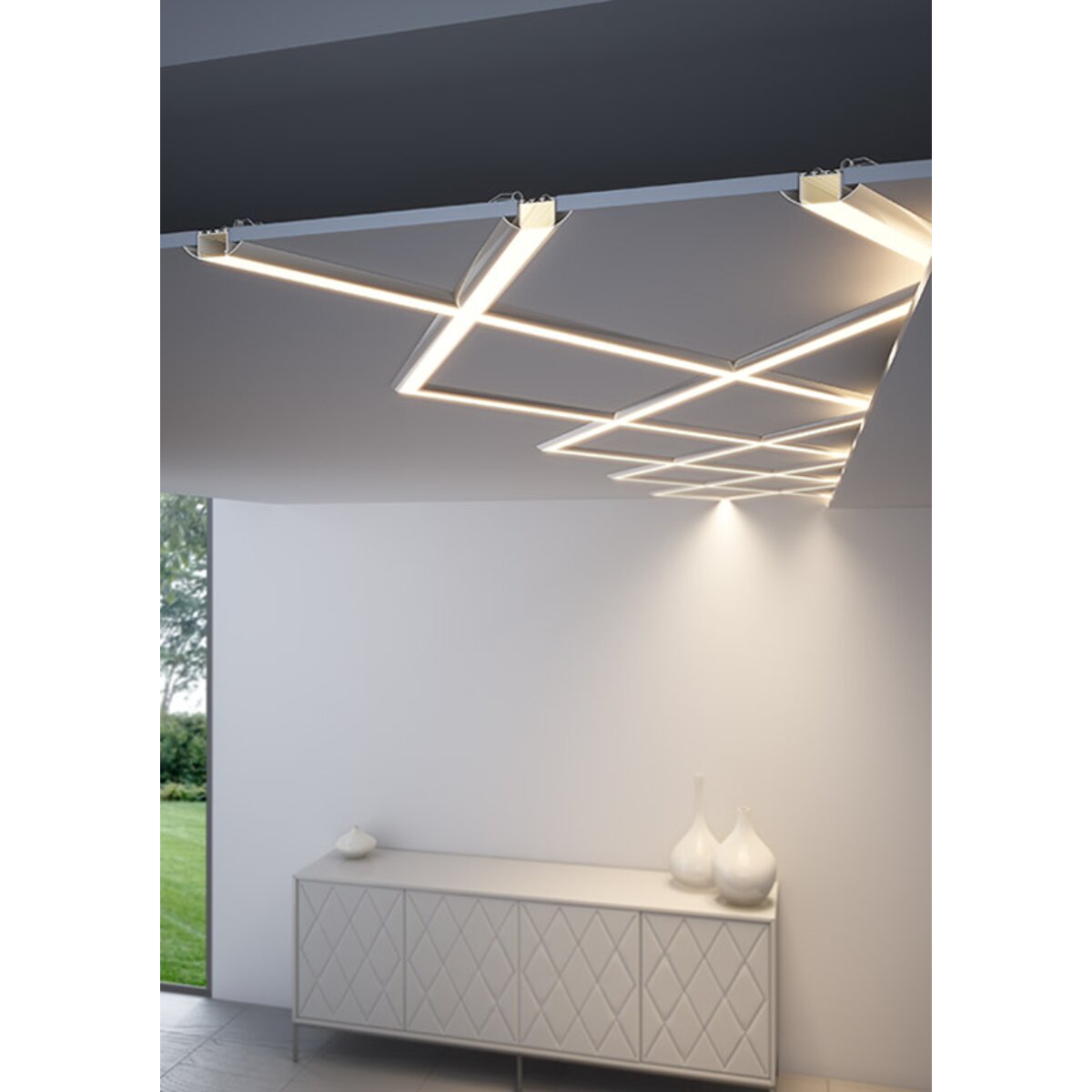

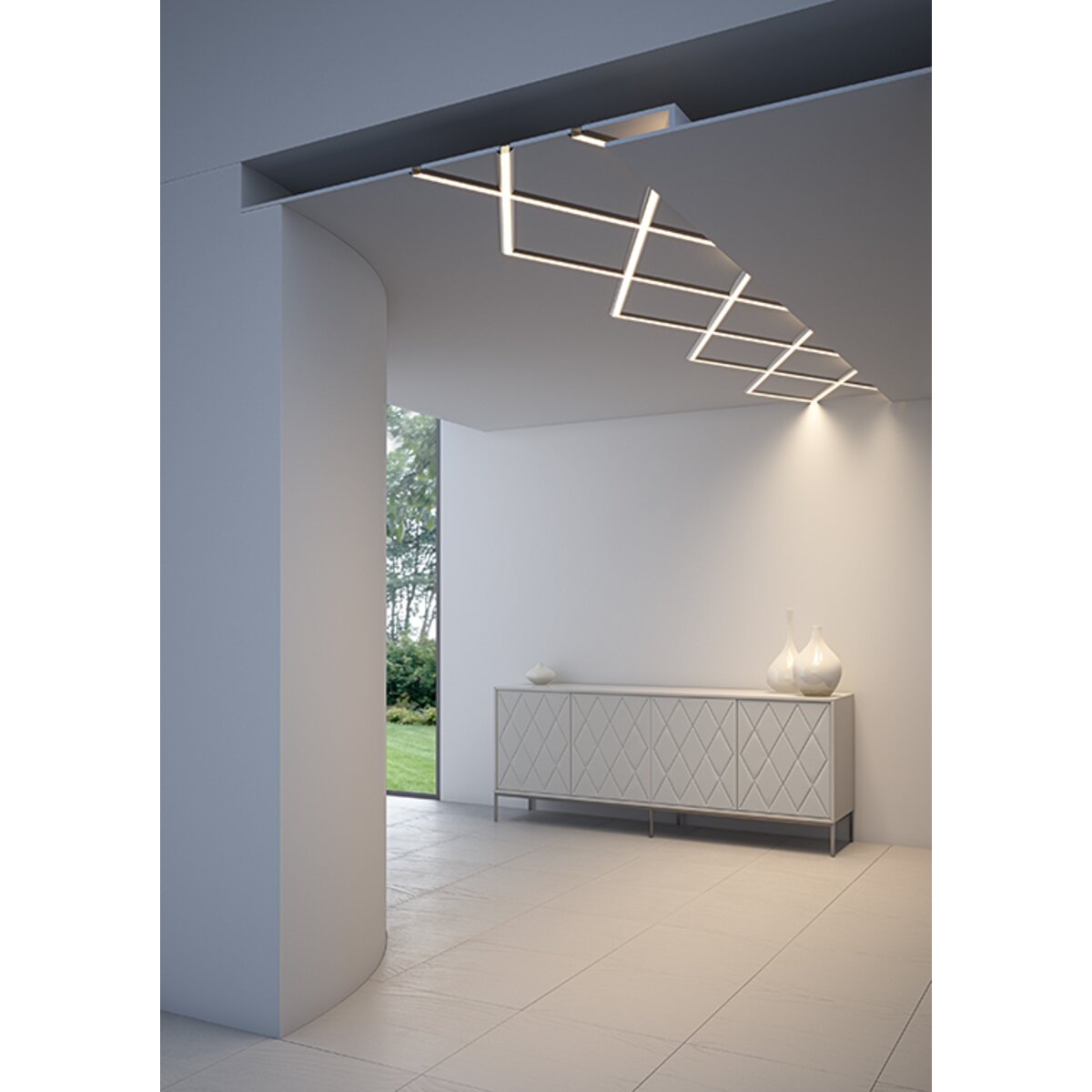

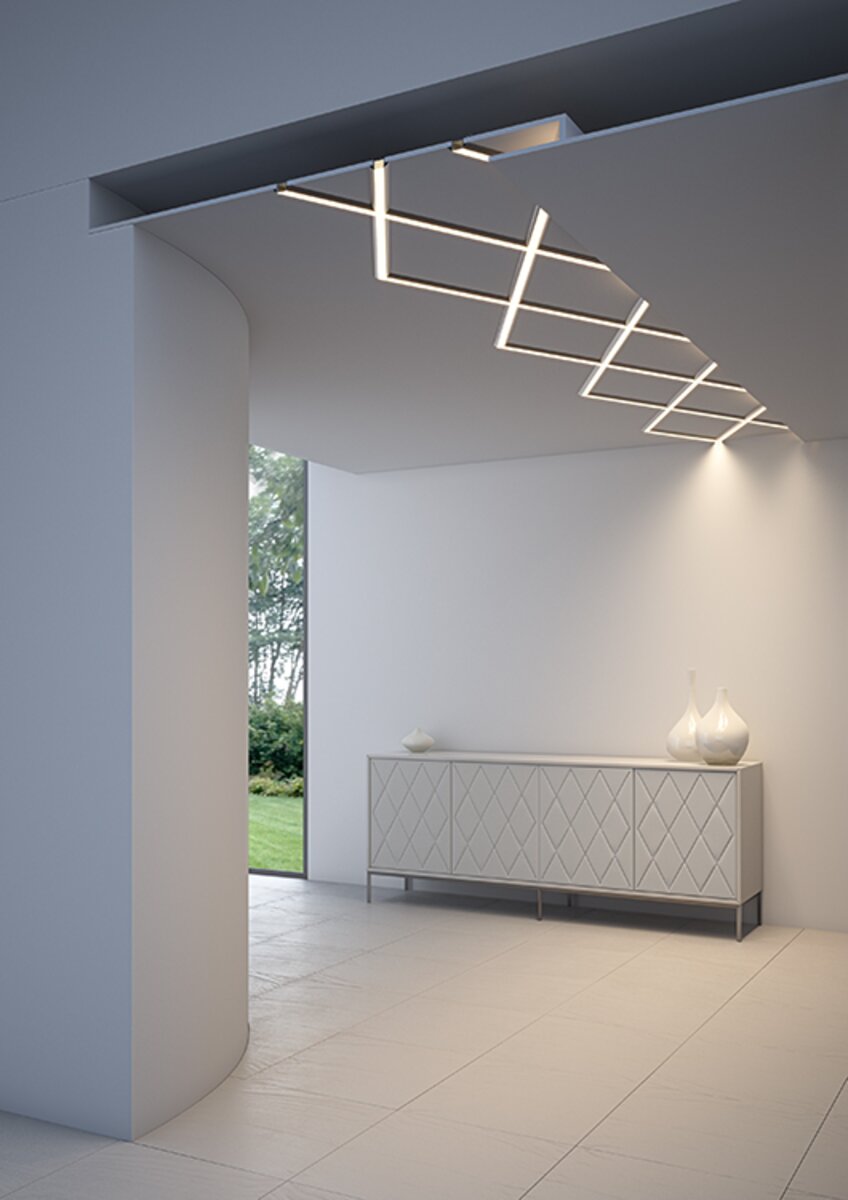

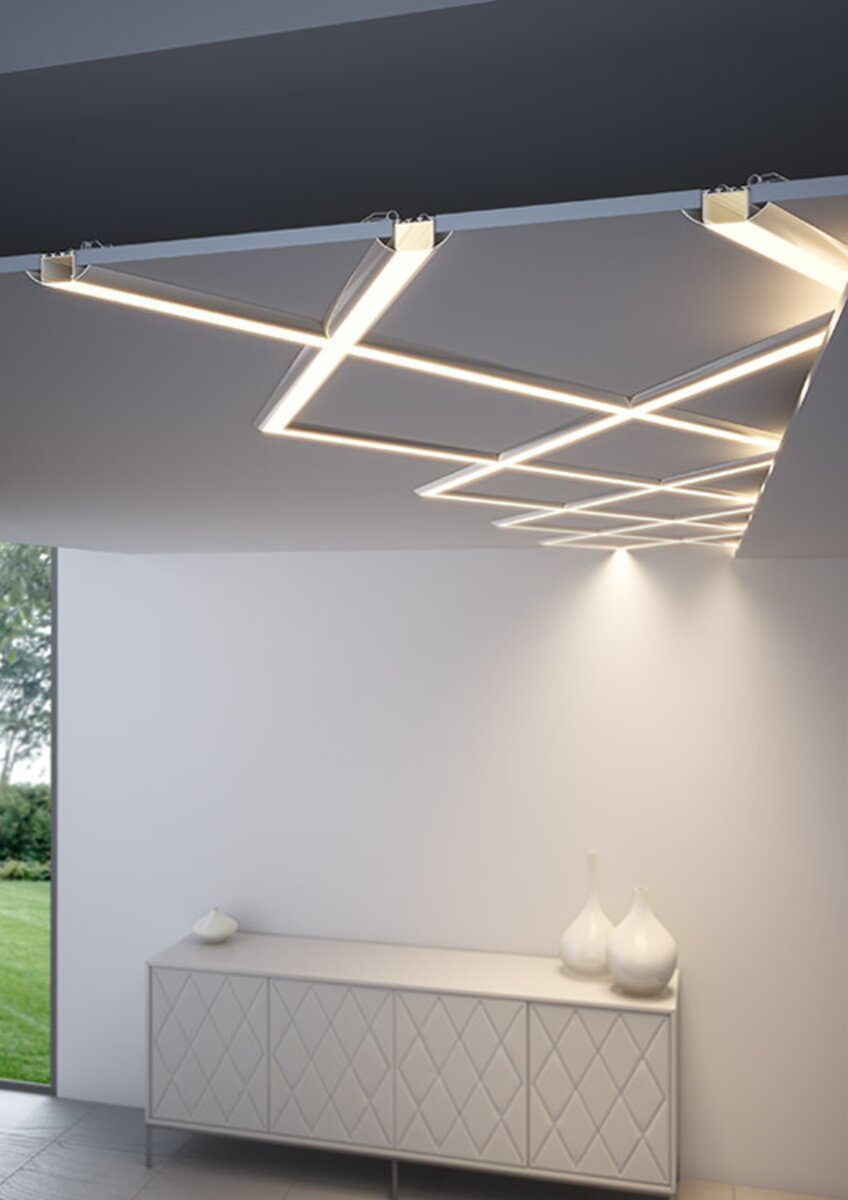

Usage examples

download

Specification sheet

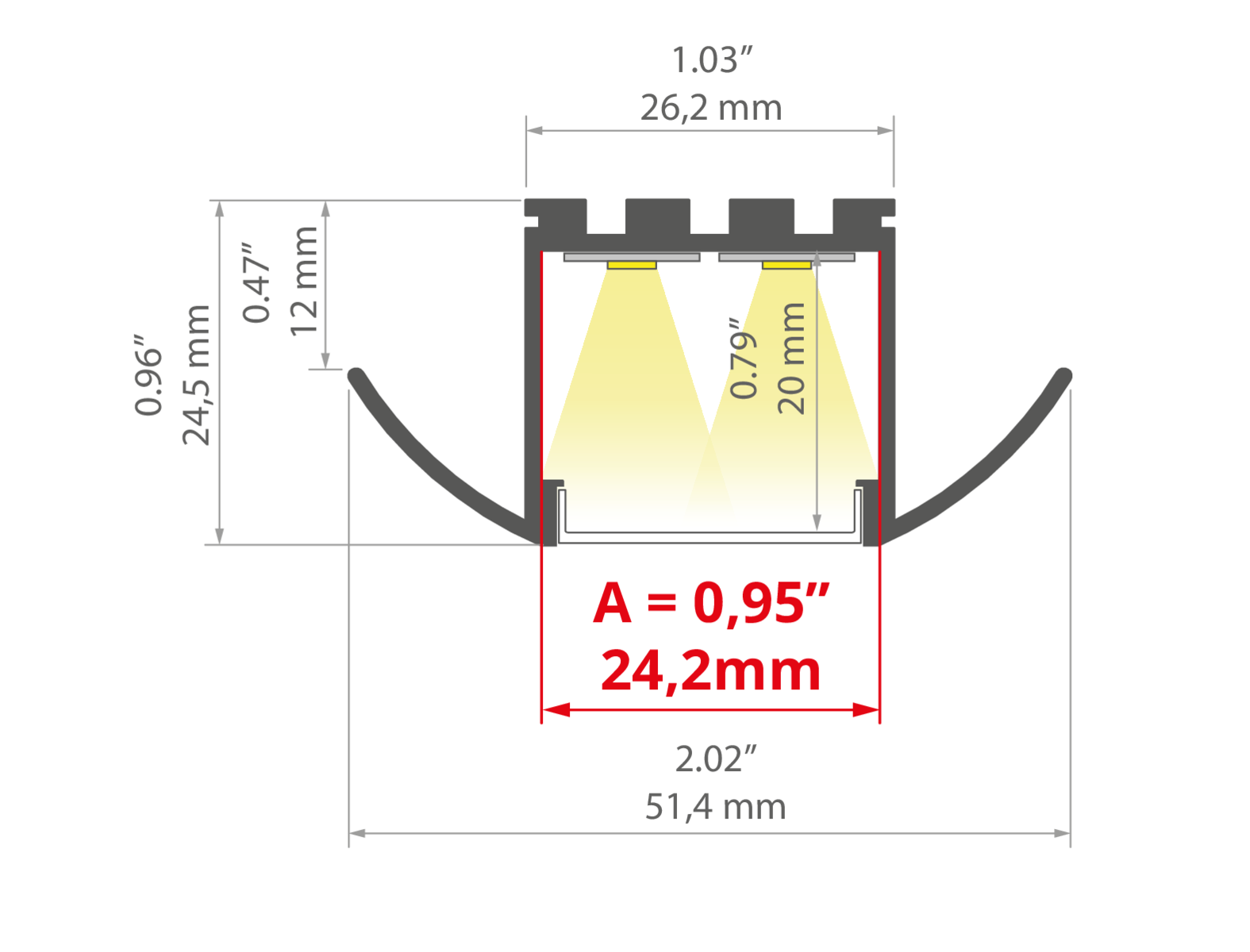

Technical drawing

Technical specification

Finish

anodized

Material

aluminum

Possible fixture IP

20, 65

Possible fixture shapes

rectangular

Profile cross-section

round

Max power of a single KLUŚ LED strip

5.9 W/ft

Width

2" (51.4 mm)

Height

1" (24.5 mm)

Number of LED strips A (0.31" wide)

Building type

Residential, Hotel / Restaurant, Other

Facility zone

office, lobby / foyer

Color	Length	Ref No
silver anodized	39.4" (1000 mm) 78.9" (2005 mm)	A05551A_1 A05551A_2

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
BENCO-22 Cover	silicon	- For indoor and outdoor applications - UV resistant			B17209
G-22S Cover	PMMA	- indoor use - perfectly diffusing	85 % 50 %	frosted	B17204F 17007
G-22R Cover	PMMA	- indoor use - perfectly diffusing			B17006
HS-22 Cover	PC	- For indoor and outdoor applications - UV resistant			B17011
LIGER-22 Cover	PC	- hight light quality - For indoor and outdoor applications - Ease of obtaining a line of light - perfectly diffusing			B17032

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
High Efficacy

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,	20	-	1.5 W/ft	-	- CRI over 95 - High Efficacy	K-HEHD-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,	20	-	2.9 W/ft	-	- CRI over 95 - High Efficacy	K-HEHD-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,	20	-	4.4 W/ft	-	- CRI over 95 - High Efficacy	K-HEHD-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,	20	-	5.9 W/ft	-	- CRI over 95 - High Efficacy	K-HEHD-1920-24
KWP-HEHD-0480-24 LED tape, 134-185 lm/ft, IP65,	65	silicon sleeve	1.5 W/ft	-	- High Efficacy	KWP-HEHD-0480-24
KWP-HEHD-0960-24 LED tape, 268-377 lm/ft, IP65,	65	silicon sleeve	2.9 W/ft	-	- CRI over 95 - High Efficacy	KWP-HEHD-0960-24
KWP-HEHD-1440-24 LED tape, 402-566 lm/ft, IP65,	65	silicon sleeve	4.4 W/ft	-	- CRI over 95 - High Efficacy	KWP-HEHD-1440-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,	20	-	1 W/ft	-	- CRI over 95 - High Efficacy	K-HEHD-0320-24

LED tapes
CRI 95+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,	20	-	1.5 W/ft	2500K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR25-1210-24 K-CR30-1210-24 K-CR35-1210-24 K-CR40-1210-24 K-CR50-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,	20	-	2.9 W/ft	-	- CRI over 95	K-CR-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,	20	-	4.4 W/ft	-	- CRI over 95	K-CR-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,	20	-	5.6 W/ft	2200K 2500K 3000K 3500K 4000K 5000K	- CRI over 95 - high LED density	K-CRHD22-1820-24 K-CRHD25-1820-24 K-CRHD30-1820-24 K-CRHD35-1820-24 K-CRHD40-1820-24 K-CRHD50-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,	20	-	2.8 W/ft	2200K 2500K 3000K 5000K	- CRI over 95 - high LED density	K-CRHD22-1910-24 K-CRHD25-1910-24 K-CRHD30-1910-24 K-CRHD50-1910-24
KWP-CR-1220-24 LED tape, 151-227 lm/ft, IP65,	65	silicon sleeve	2.9 W/ft	-	- CRI over 95	KWP-CR-1220-24
KWP-CR-1275-24 LED tape, 381-464 lm/ft, IP65,	65	silicon sleeve	4.4 W/ft	-	- CRI over 95	KWP-CR-1275-24
KWP-CRHD-1910-24 LED tape, 196-253 lm/ft, IP65,	65	silicon sleeve	2.8 W/ft	2200K 2500K 3000K 4000K 5000K	- CRI over 95 - high LED density	KWP-CRHD22-1910-24 KWP-CRHD25-1910-24 KWP-CRHD30-1910-24 KWP-CRHD40-1910-24 KWP-CRHD50-1910-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,	20	-	1.6 W/ft	2200K 2500K 2700K 3000K 4000K 5000K	- CRI over 95	K-CRHD22-0530-24 K-CRHD25-0530-24 K-CRHD27-0530-24 K-CRHD30-0530-24 K-CRHD40-0530-24 K-CRHD50-0530-24
KWP-HEHD-1440-24-40C LED tape, 520-607 lm/ft, IP65,	65	gel cover	4.4 W/ft	-	- High Efficacy - cold weather -40F	KWP-HEHD-1440-24-40C

LED tapes
CRI 90+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
KWP-GHD-1640-24 LED tape, 364-503 lm/ft, IP65,	65	gel cover	5 W/ft	-	- high LED density	KWP-GHD-1640-24

LED tapes
RGB / RGB-W / RGB-CTT

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-120-24
KWP-RGB-1920-24 LED tape, 187 lm/ft, 5.9 W/ft, IP65	65	silicon sleeve	5.9 W/ft	RGB	- RGB	KWP-RGB-1920-24
K-RGB-0700-120-24 LED tape, 126 lm/ft, 2.1 W/ft, IP20	20	-	2.1 W/ft	RGB	- RGB	K-RGB-0700-120-24
K-RGB-1200-120-24 LED tape, 182 lm/ft, 3.7 W/ft, IP20,	20	-	3.7 W/ft	RGB	- RGB	K-RGB-1200-120-24

LED tapes
Adjustable White / Dim to Warm

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-24
KWP-30/18-1770-24 LED tape, 3000K, 279 lm/ft, 3.5 W/ft, IP65	65	silicon sleeve	3.5 W/ft	3000K		KWP-30/18-1770-24
K-30/18-1770-010V-24V LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-010V-24V
KWP-30/18-1770-010-24 LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP65	65	silicon sleeve	3.5 W/ft	1800K		KWP-30/18-1770-010-24
KWP-G22/50-1728-24 LED tape, 2200K, 467 lm/ft, 5.3 W/ft, IP65	65	gel cover	5.3 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-G22/50-1728-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65	65	silicon sleeve	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-SDCR-22T50-1530-24

Accessories
Mounting accessories

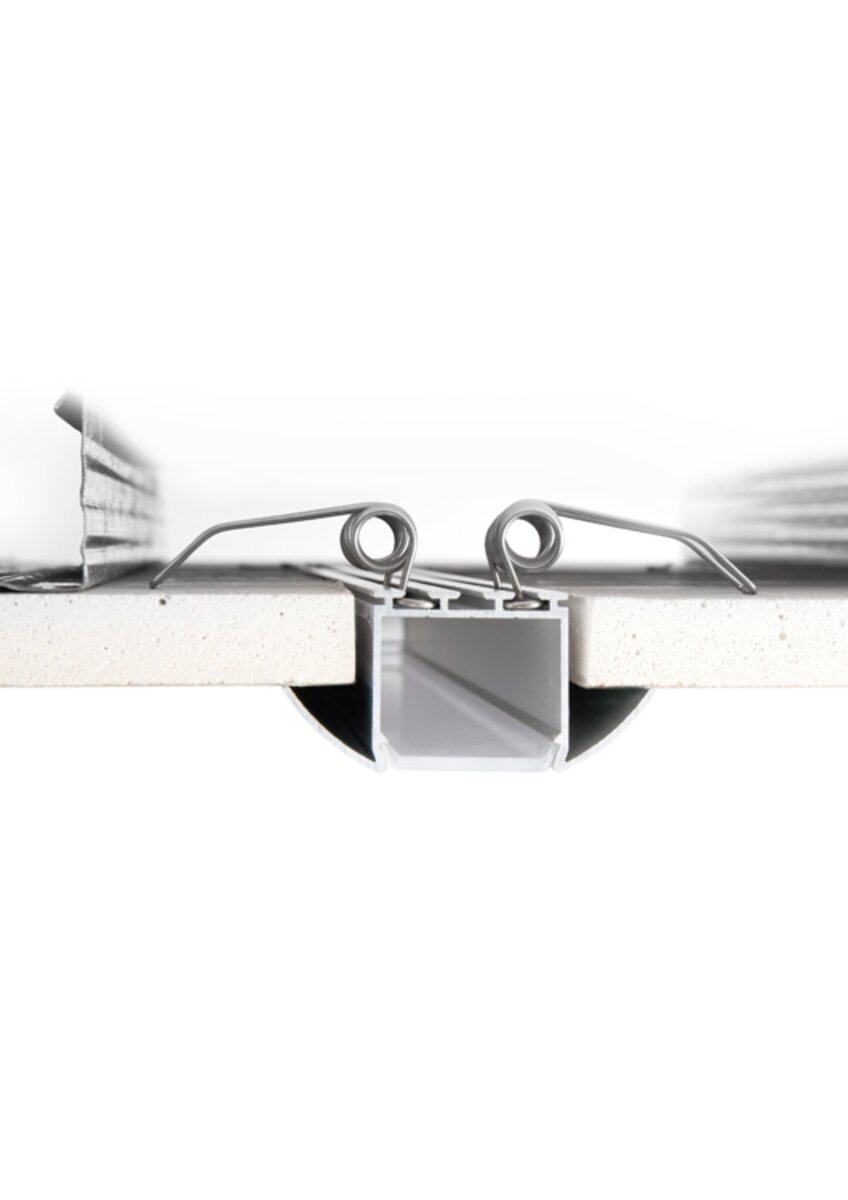

Springs for recessed mount and mounting tracks

Product name	Key features	Material	Color	Ref No
Spring KMA		stainless steel	silver	C24503N00

Electronics
LED accessories
White LED strip connectors

Product name	IP rating	Ref No(Ref. arch.)
Connector C1-0W	20	E60920
Connector C2-1.5W	20	E60921
Conductive connector C3-6W	20	E60922
C-SC-IP20 Conductive connector	20	C-SC-IP20
C-SC-IP65 Conductive connector	65	C-SC-IP65
EC-SS-IP20 Conductive connector	20	EC-SS-IP20
